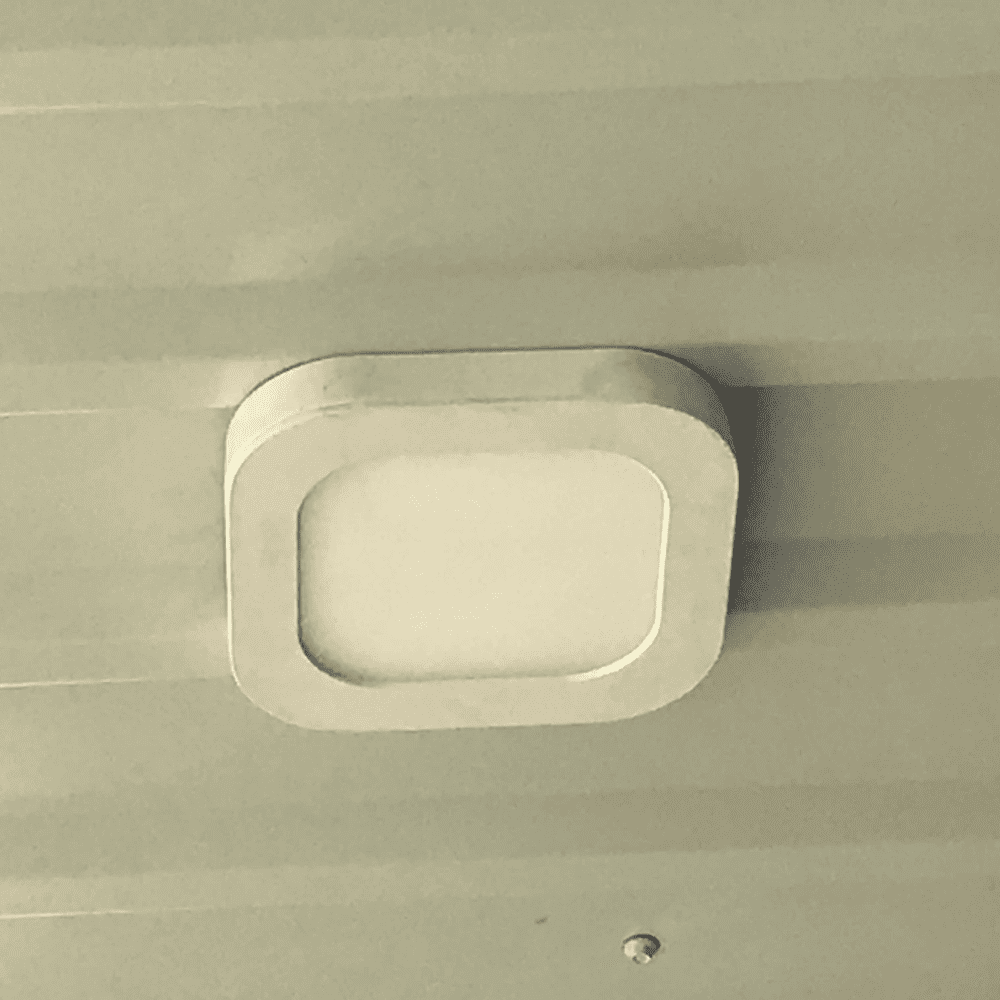

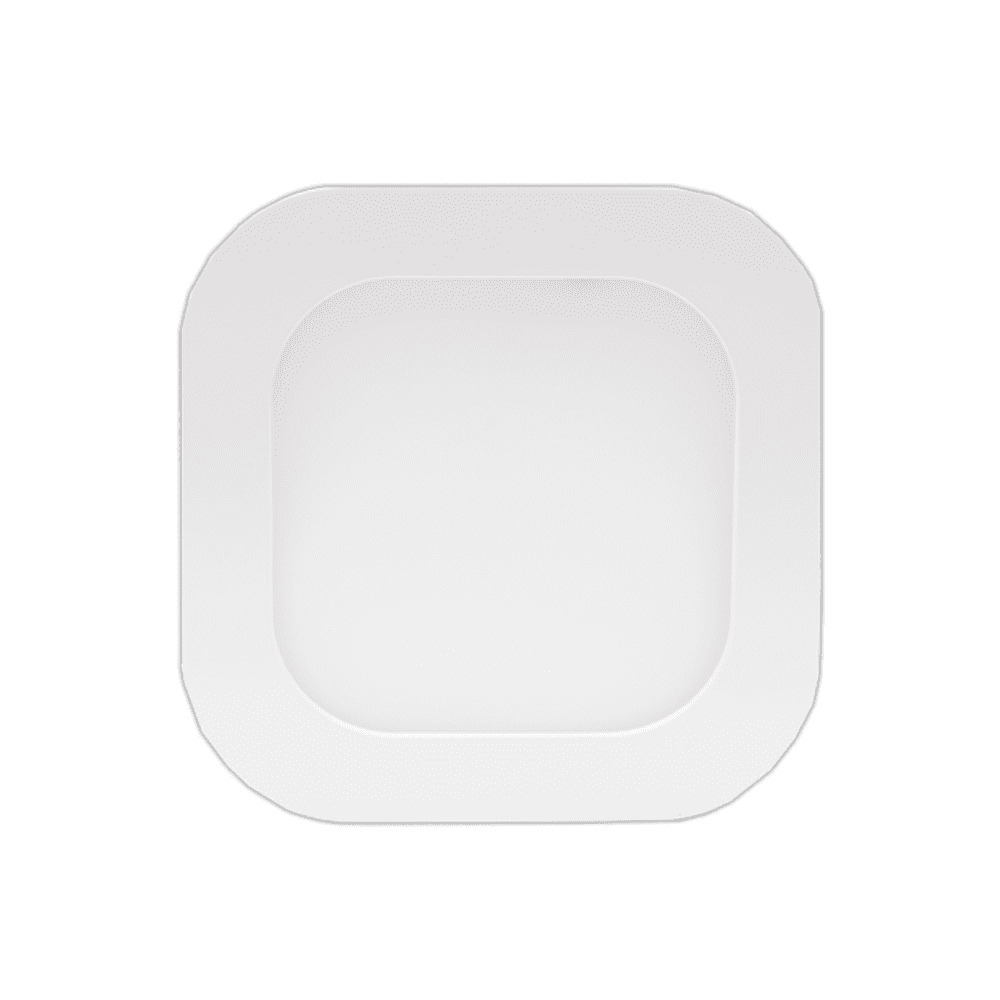

SYRF 11w LED Square Canopy Light, 120-277v

$38.87

The SYRF 11w LED Square Canopy Light, 120-277v is a surface mount luminaire designed for mounting over standard 3˝ or 4˝ recessed outlet boxes. The superior optics facilitate broad light distribution to light adjacent walkways and parking spaces. Additional lighting applications include retail centers, multi-unit housing, hotels, schools, public transit locations i.e. airports, and medical facilities.

Value: The SYRF 11w LED Square Canopy Light is budget friendly and efficient, boasting over 22 lumens per dollar

Polycarbonate Lens: The frosted white polycarbonate lens of the SYRF 11w LED Square Canopy Light eliminates glare and diffuses light

Durable Housing: This fixture boasts a one piece vandal resistant lens and a sturdy die-cast aluminum housing

In Stock

SKU: AF33XSLS7Q Category: Tag:


Product Description

The SYRF 11w LED Square Canopy Light, 120-277v is a surface mount luminaire designed for mounting over standard 3˝ or 4˝ recessed outlet boxes. The superior optics facilitate broad light distribution to light adjacent walkways and parking spaces. Additional lighting applications include retail centers, multi-unit housing, hotels, schools, public transit locations i.e. airports, and medical facilities.

Value: The SYRF 11w LED Square Canopy Light is budget friendly and efficient, boasting over 22 lumens per dollar

Polycarbonate Lens: The frosted white polycarbonate lens of the SYRF 11w LED Square Canopy Light eliminates glare and diffuses light

Durable Housing: This fixture boasts a one piece vandal resistant lens and a sturdy die-cast aluminum housing



Features

SYRF 11w LED Square Canopy Light, 120-277v includes:

  • Square surface mount luminaire
  • Die-cast aluminum housing
  • 120-277v
  • 11w LED
  • Aluminum LED boards
  • L70 rated life of 165,000 hours
  • 4000K
  • 80 CRI
  • 890 Lumens
  • 0-10v Dimming
  • Operating temperature of -40°C to +40°C
  • White frosted polycarbonate lens
  • IP54 Rated
  • CSA: Listed for damp locations
  • Built-in 0 -10v dimmable driver
  • White powdercoat finish over a chromate conversion coating

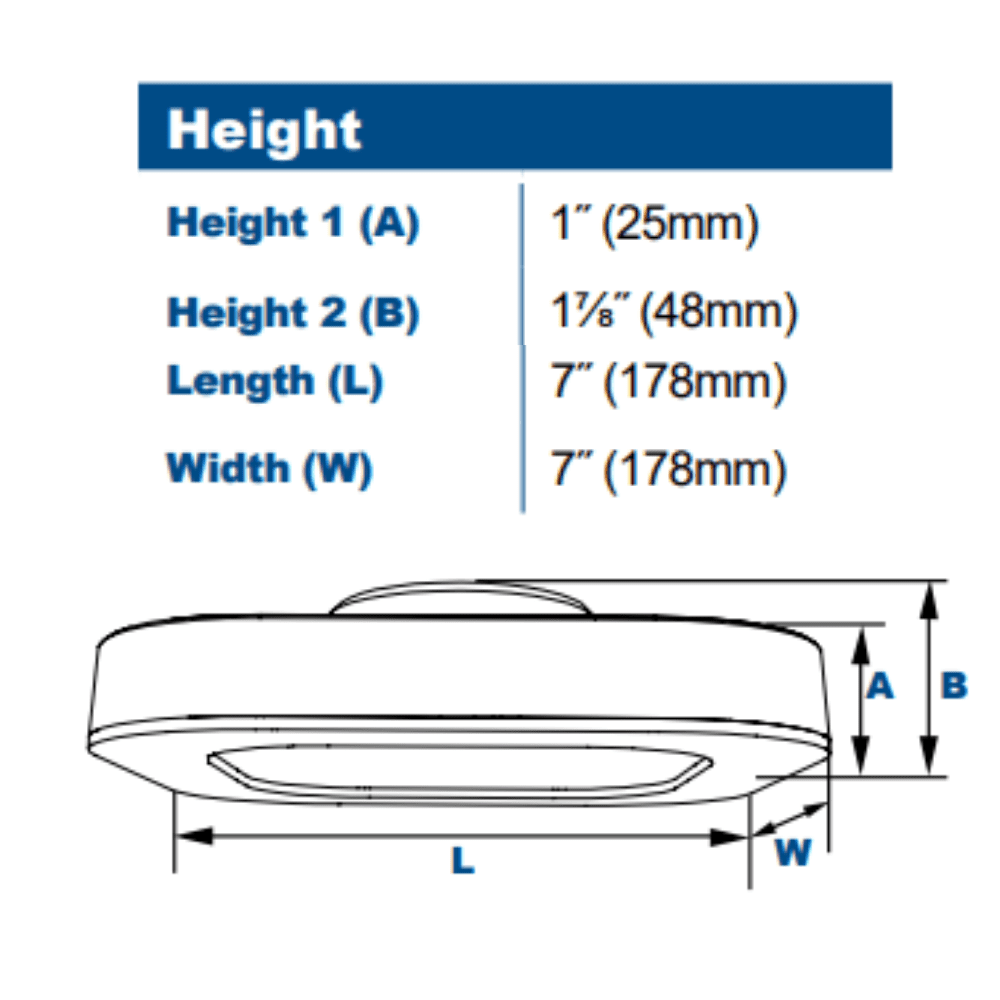

  • 7″ x 1 7/8″ x 7″
  • 2 lbs.

Mounting Options

SYRF 11w LED Square Canopy Light, 120-277v includes:

  • Includes push-in wire connector
  • Mount over a 3˝ or 4˝ recessed outlet box
  • Mounting heights of 8 to 12 feet can be used based on light level and uniformity requirements

Access Fixtures 5-Year Warranty

All Access Fixtures packages come with a 5-year warranty. If your product is found to have a manufacturing defect – we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team is happy to help with all your questions or address any concerns. If you have any questions, please give us a call at 800-468-9925. Please view Access Fixtures’ return policy.

Need a Photometric Analysis for Your SYRF 11w LED Square Canopy Light, 120-277v Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order SYRF 11w LED Square Canopy Light, 120-277v or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.

Specifications

Weight 4 lbs
Dimensions 10 × 10 × 4 in
Availability

Typically ships in 7-10 business days

Available Finishes

White, Custom RAL

Color Rendering Index (CRI)

80+

Color Temperature (K)

4000K

Housing

Die-Cast Aluminum Housing with Built-In Heat Sink

System Watts

11

Lens

Opalescent polycarbonate lens

Light Source

Light Source Included

LED Array Included

Light Source Lumens

890

Listings

ANSI/UL 1598, 8750, CSA: Listed for damp locations, IP54

Mounting

Surface Mount

Product Family

SYRF

Rated Life

165,000 Hours

Voltage

120-277v

Warranty

5-Year Limited Warranty
