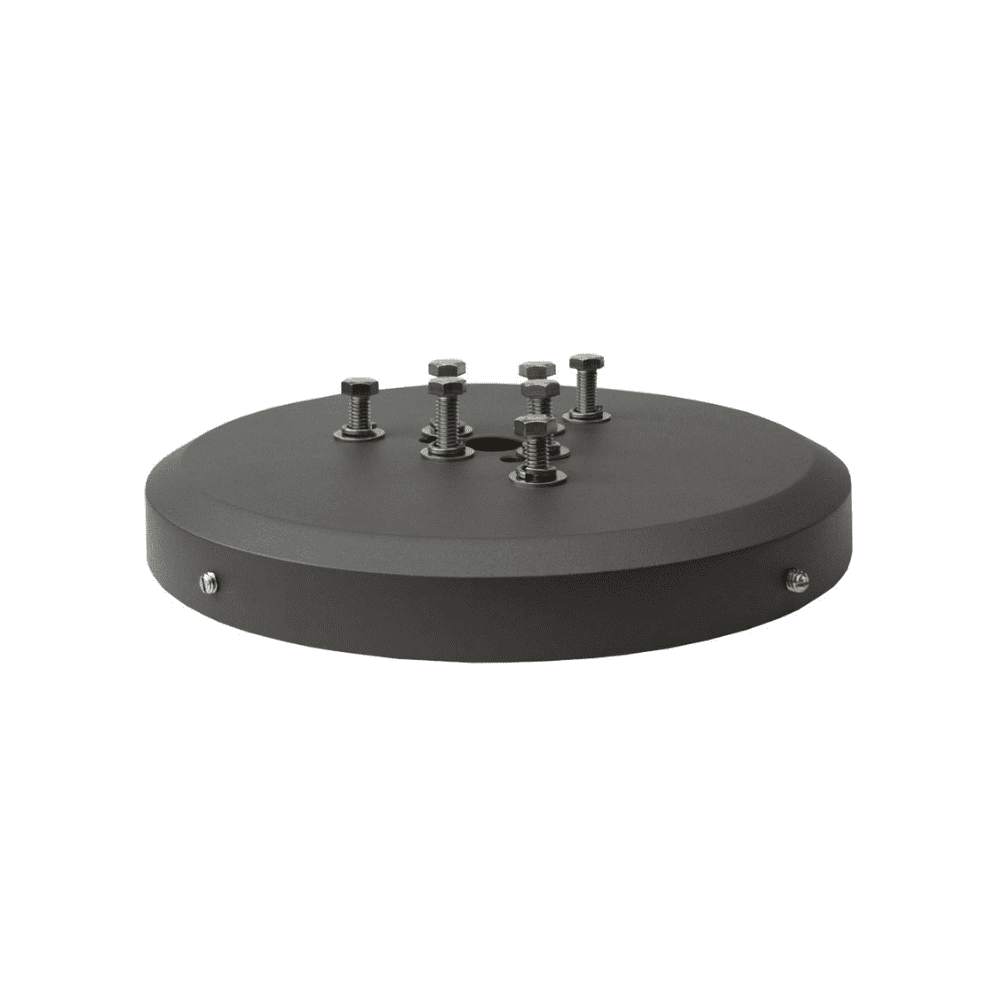

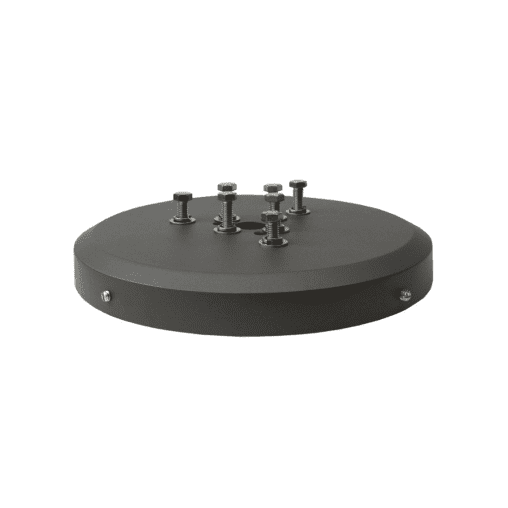

SIRU Universal Bollard Light Replacement Kit

$189.87

The SIRU Universal Bollard Light Replacement Kit provides an easy and affordable system to mount your new bollard lights on old bollard light foundations. The SIRU Universal Bollard Light Replacement Kit offers a welcome alternative to digging a new hole and pouring new concrete. Simply install the kit adapter plate on existing bollard bolts, secure the cover plate over the base, and affix your new bollard light on the cover. This kit easily accommodates 7″ bollard lights but can be drilled easily to accommodate larger or smaller diameter bollards. The kit includes heavy-duty die-cast aluminum base with built-in leveling and universal slots, die-cast cover, and hardware. Select the description tab below for details. Call Access Fixtures for information about quantity pricing.



In Stock

SKU: AF33XBREBASE Category:

Specifications

Weight 10 lbs
Dimensions 11.5 × 11.5 × 1.5 in
Application

Available Finishes

Black, Bronze, Custom RAL

Availability

5 to 7 Day Production, plus Shipping

Components

Adapter Base Plate, Hardware, Pre-Drilled Cover

Housing

Die-cast aluminum housing

Product Family

SIRU

Warranty

5-Year Limited Warranty

Product Description

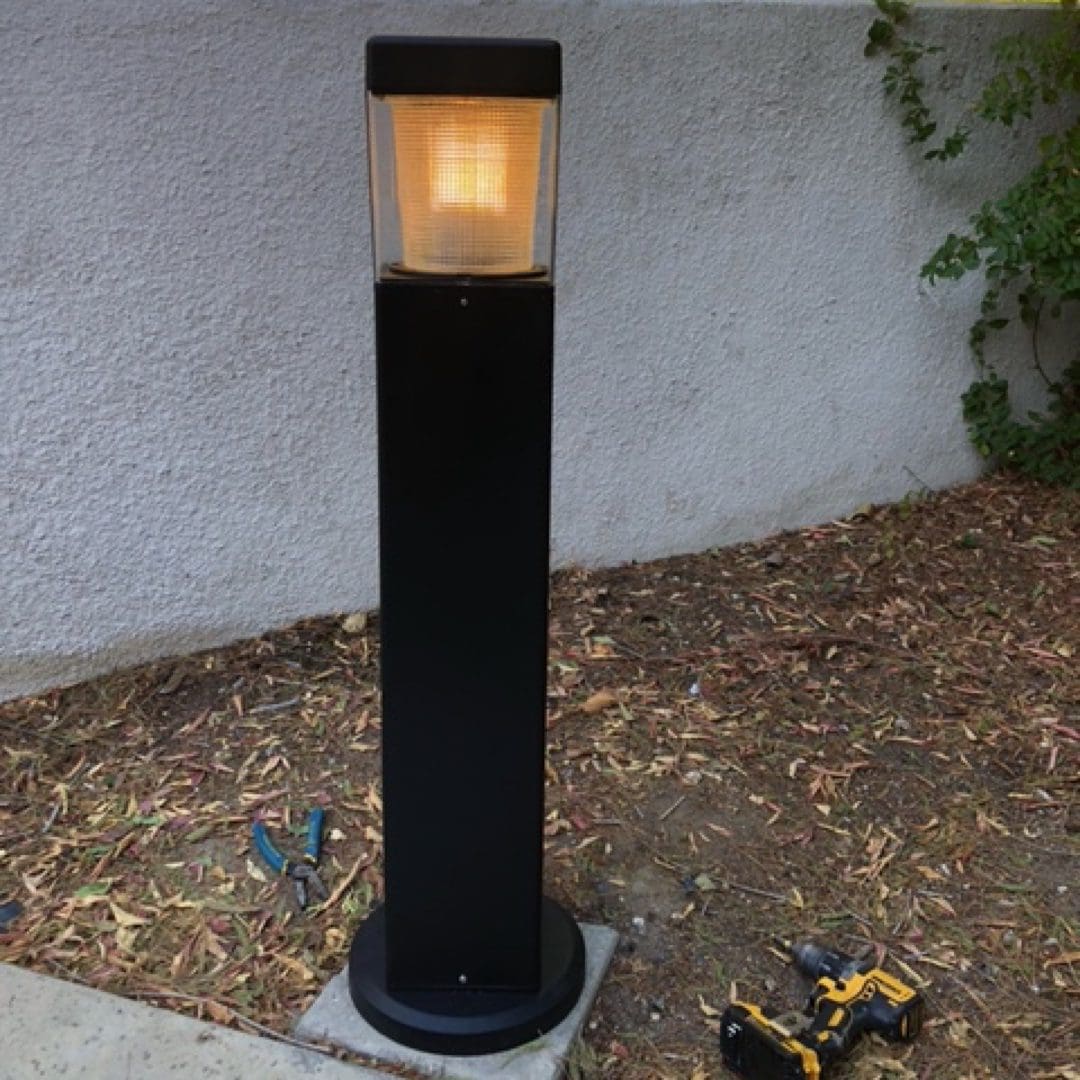

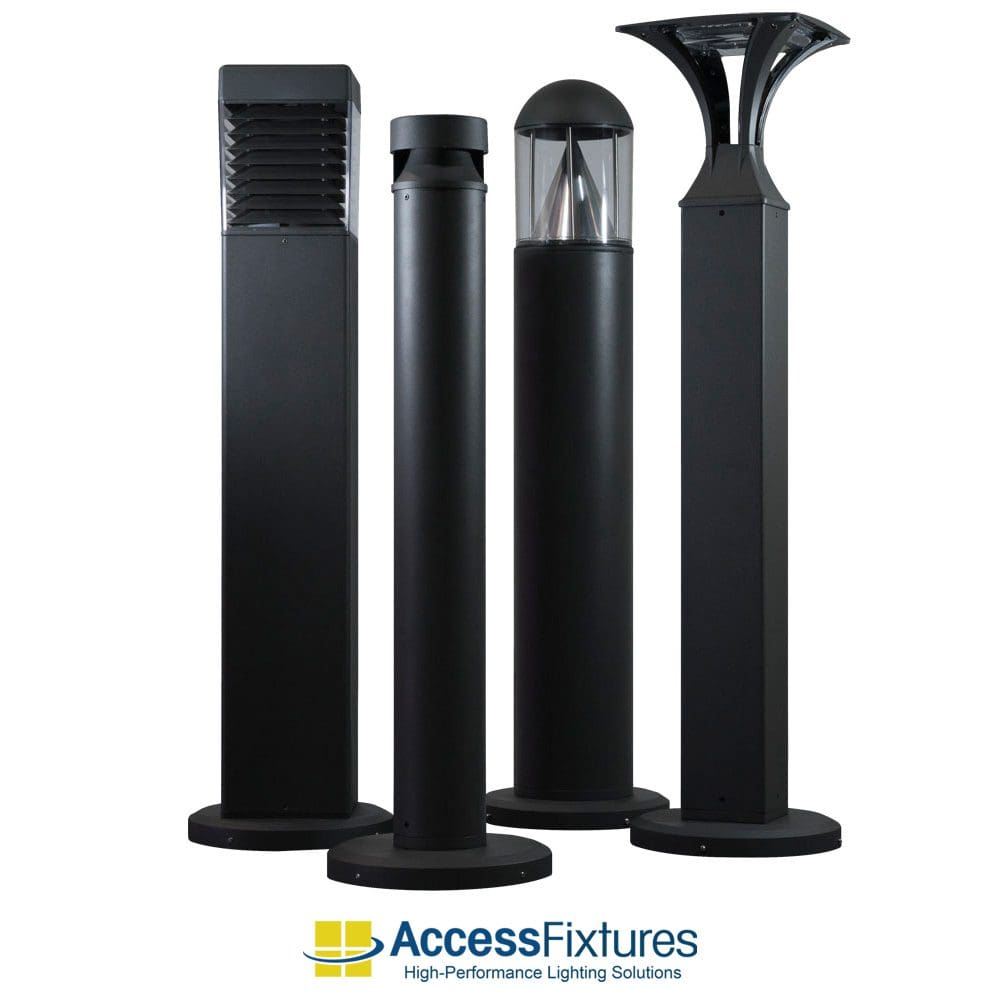

The SIRU Universal Bollard Light Replacement Kit is a convenient and affordable kit for mounting new bollard lights on old bollard light foundations. After many years, bollard lights age and dull, perhaps fading and corroding. When ready to replace your bollards, the SIRU Universal Bollard Light Replacement Kit offers an easy alternative to digging a new hole and pouring new concrete. Simply install the kit adaptor plate on existing bollard bolts, secure the cover plate over the base, and affix your new bollard light. Some Access Fixtures LED bollard lights well-suited to this kit are the TEFA, CONA, and LUVO bollard light families. This kit easily accommodates 7″ bollard lights but can be drilled easily to accommodate larger or smaller diameter bollards.

SIRU Universal Bollard Light Replacement Kit Is All Inclusive

The Bollard Retrofit Base Kit includes the following:

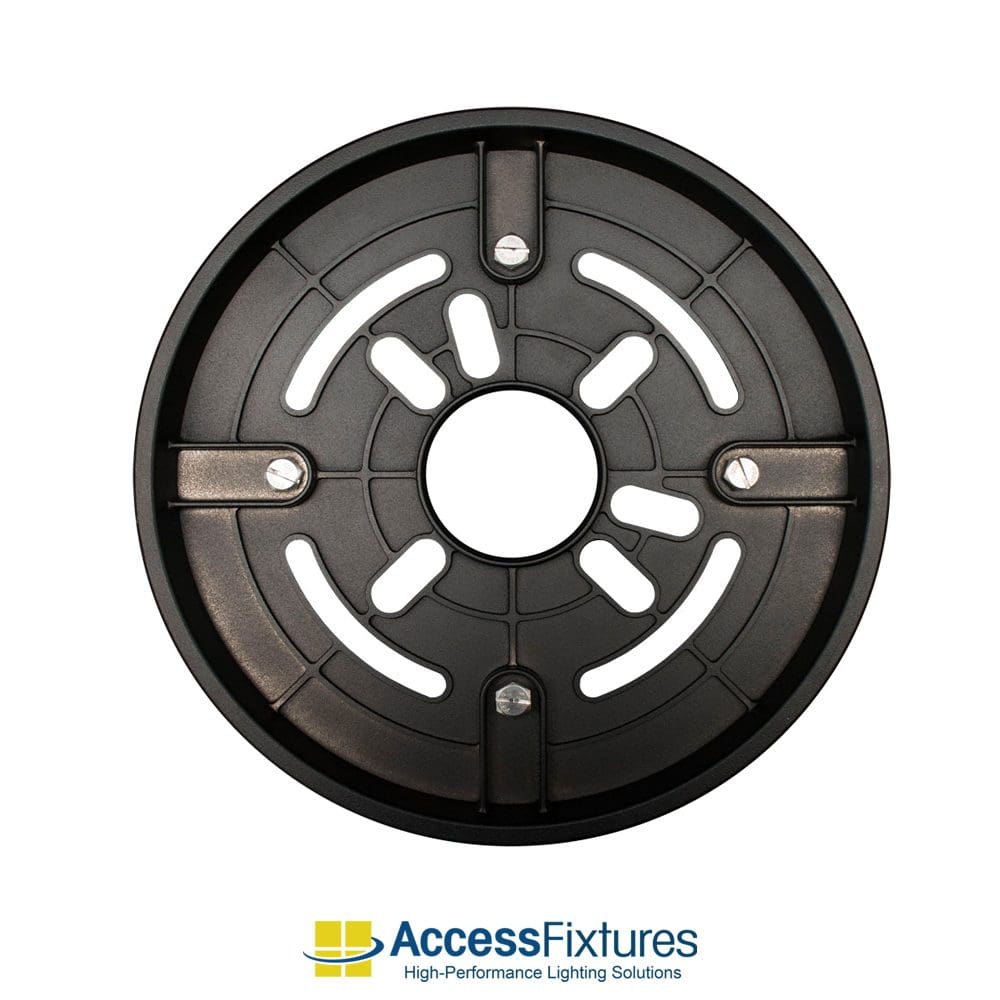

  • Heavy-duty die-cast aluminum adaptor plate, with 4 leveling screws
  • Precast slots for existing anchor bolt mounting: 3 slots at 120⁰, 4 slots at 90⁰, and 2 slots at 180⁰ (3.5˝ to 5˝ diameter bolt circles)
  • Extra-large center conduit hole
  • Heavy-duty die-cast pre-drilled aluminum cover plate
  • Stainless Steel set screws at 90⁰ for securing the cover plate to the adaptor plate.
  • Stainless steel bolts for mounting bollard adaptor plate
  • Two leveling bubbles

Slots can accommodate ¼˝ to ⅜˝ diameter anchor bolts. Some bollard lights larger than 7″ may require field-drilled anchors (not included) if the existing anchor bolt pattern does not fit slots, or the old anchor bolts are damaged or unusable.

SIRU Universal Bollard Light Replacement Kit Specifications

Download the SIRU Universal Bollard Replacement Kit PDF (526 kb) for complete details and specifications.

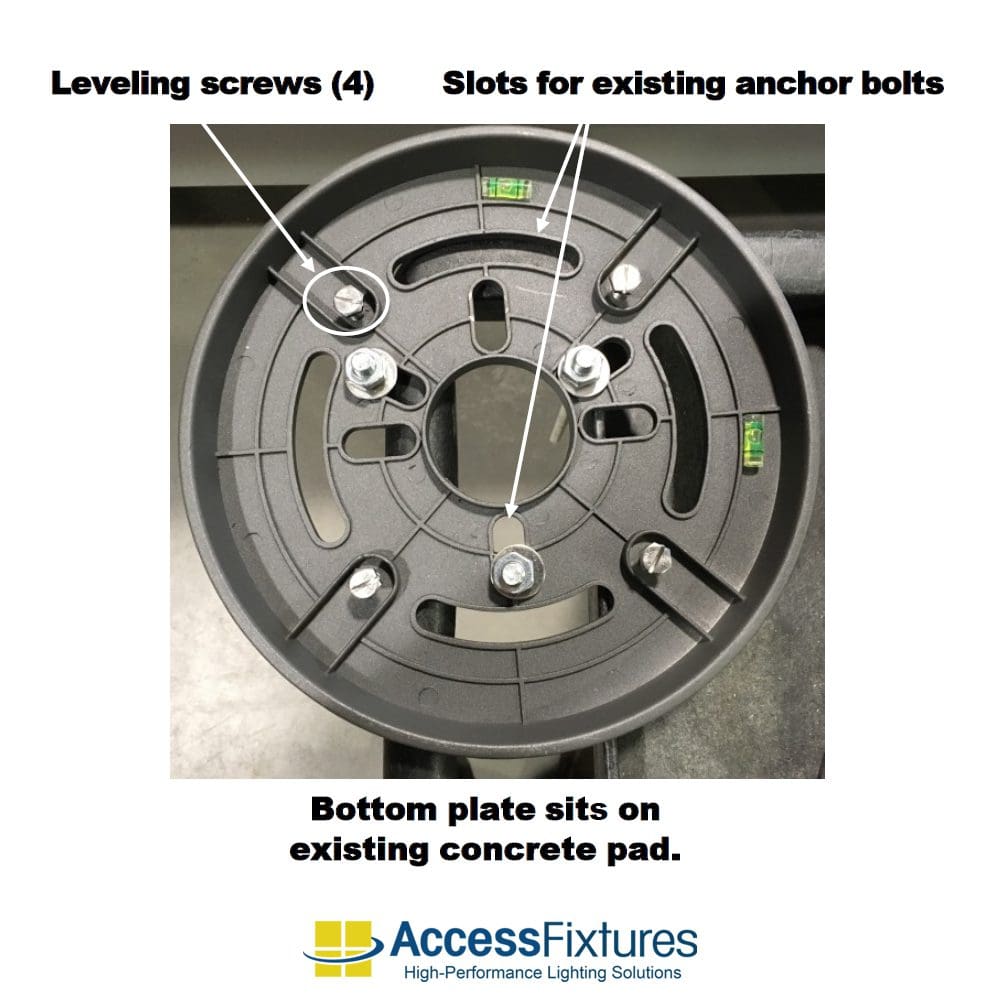

Easy Installation with Built-In Leveling Bolts

The base comes with four stainless steel leveling bolts with two leveling bubbles at 90⁰ for perfect mounting for your new bollard. Includes threaded holes in patterns to match all 7″ bollard base mounting plates. The cover plate can be rotated 360°, allowing perfect alignment of your new bollard lights.

Powder-coat finish over chromate conversion coating is available in Black, Bronze, or custom RAL to match your new bollards.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Ready to Order SIRU Universal Bollard Light Replacement Kit?

You can place your order online, right here. Or give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team, located in Worcester, MA, is available to provide anything you need to purchase fixtures and illuminate your project with confidence.
