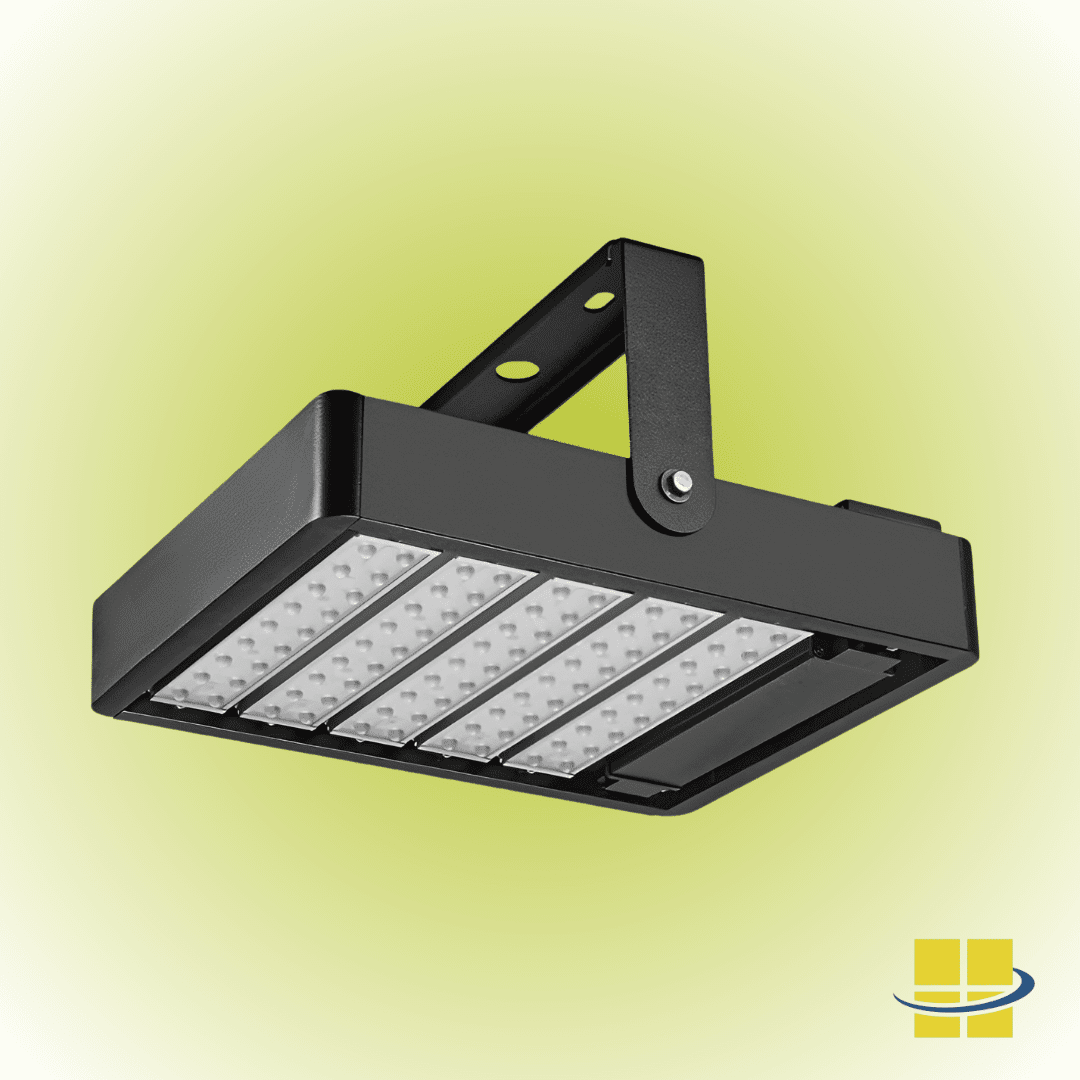

UPTA 300 No UV – No Light Under 450nm LED Lights, EXTREME-LIFE

$1,049.87

UPTA LED high bay lights are engineered for optimal performance in demanding environments like hangars, sports arenas, convention centers, stadiums, and large commercial/industrial spaces with clear heights exceeding 60 feet. With advanced optics and heat management, they deliver powerful and reliable illumination while minimizing glare. Thanks to a patented spill light control system and exceptional heat sink design, UPTA lights offer uniform anti-glare illumination and extreme longevity with minimal maintenance, reducing downtime and servicing costs.

EXTREME-LIFE: The robust heat sink design ensures an extraordinary lifespan, with an L70 rating of 200,000 hours, providing maintenance-free performance for years.

Flawless Light: The selection of advanced optics, Kelvin options, and color rendering capabilities of up to Ra>90 enables top-tier anti-glare illumination.

No UV – No Light Below 450nm: Opting for more diversified spectral options, with one being equivalent and three offering a broader spectrum of light.





In Stock

  • Black and Gray are standard colors. Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Large facilities may have birds living inside the building. Installing bird spikes on high bay lights stops the birds from nesting on the lights.
  • UPTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Do you need the UPTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
  • Maximize energy savings and the life of the high bay light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Total

Specifications

Weight 19.8 lbs
Dimensions 19.21 × 13.15 × 5.20 in
Application

, ,

Availability

3 to 4 Week Production, plus Shipping

Light Source

, , ,

Available Finishes

Black, Gray

Housing

High-Grade Aluminum

Lens

Type I, Type V

Light Source Included

LED Array Included

Light Source Lumens

42,600

Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA

Mounting

D Type Mounting, H Type Mounting, U Type Mounting

Product Family

UPTA

Rated Life

L70 @ up to 200,000 Hours

System Watts

300

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

Product Description

UPTA 300w LED High Bay Light Features:

  • 17.1 lbs
  • 19.21L x 13.15W x 5.20H
  • No UV – No Light Under 450nm
  • 100-277VAC or 277-480VAC, 50/60Hz
  • Nominal power 40W-960W
  • Superior patented high-efficiency spill light control system
  • High light output, low weight
  • Provides superior quality anti-glare illumination to large-scale areas
  • Constructed with high-grade aluminum
  • 1050 mA
  • Ra70 standard, optional Ra80 or Ra90
  • <20% total harmonic distortion at full load
  • Imax 10KA surge protection
  • Exceptional heat sink design to ensure these fixtures will last for more than 20 years or 200,000 hours of operation – making them virtually maintenance-free for a lifetime
  • Choose from T1S, T5M, T5W, T10D, T20D, T40D, T60D, T90D optics
  • Black or Gray color options
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA rated

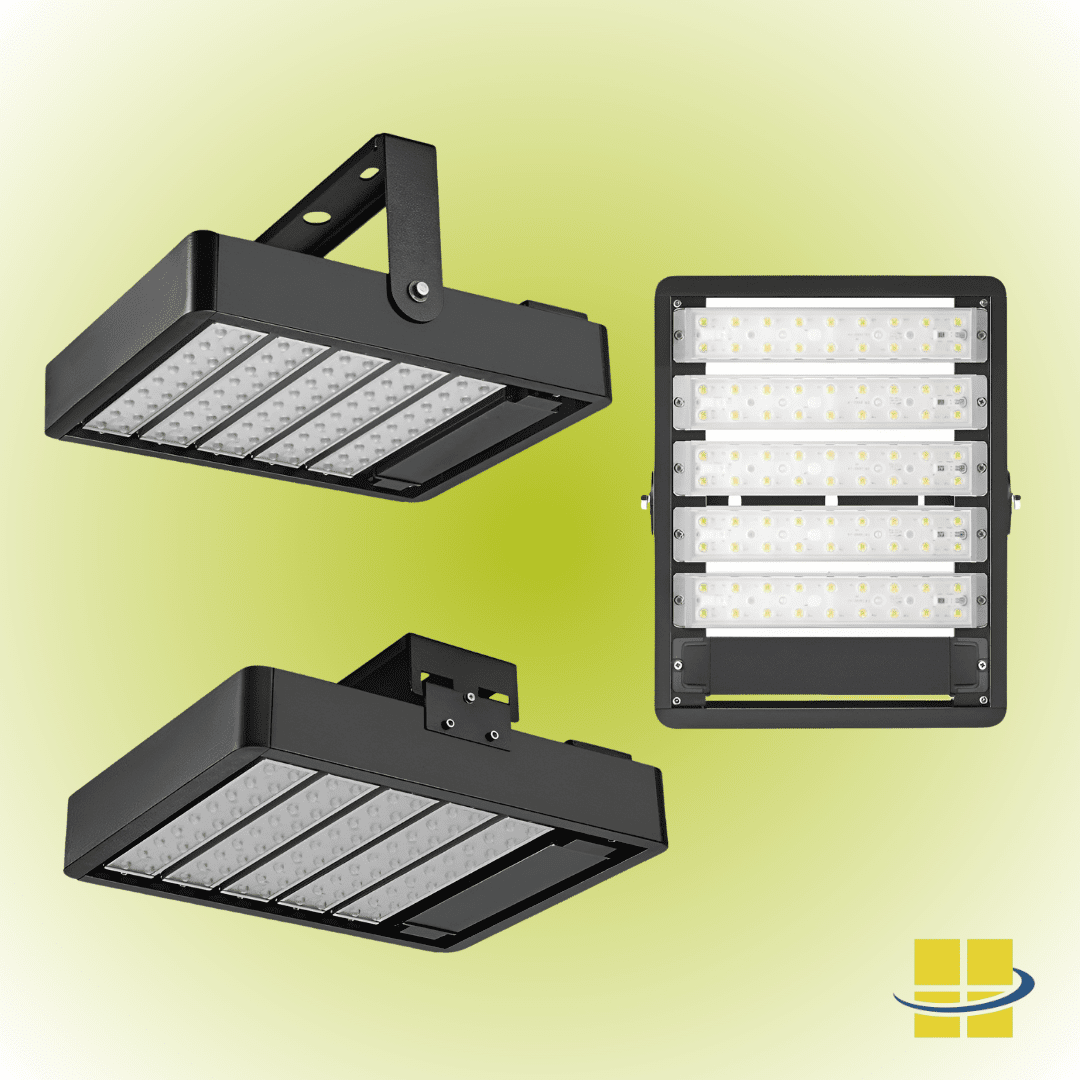

UPTA 300w LED High Bay Light Options:

  • D type mounting
  • U type mounting
  • H type mounting
  • 1-10v dimming
  • 10v PWM control
  • DALI control
  • DMX control
  • Motion sensor
  • Emergency power supply
  • Backlight shield
  • Ra80 or Ra90 optional
