UPTA Microwave Motion Sensor Ultranik Remote Control

$45.00

The UPTA MMS ultranik remote control for the UPTA LED high bay lights controls the built-in motion sensor. Light is automatically on when needed and dimmed to a preset level before it is totally off. If you want to customize the program, you need this MMS remote control.



Only 1 Required: Only one MMS remote control will program multiple UPTA LED high-bay lights

Maintenance-Free: Enjoy years of maintenance-free, convenient, and customized illumination after installation

Maximize Efficiency: Minimize energy use with your custom programming options

ARCI LED Bollard Light PDF

In Stock

SKU: AF59XHRC-05 Categories: ,

Specifications

Weight 1 lbs
Dimensions 10 × 9 × 9 in
Application

Product Family

UPTA

Warranty

5-Year Limited Warranty

Product Description

UPTA Remote Control for MMS Motion Sensor Ultranik Features:

  • For use with UPTA LED High Bay lights
  • Wire loop-in and loop-out
  • Zero-cross relay operation
  • Detection range
  • Step-dim function
  • Hold-time: 5s / 30s/ 1min / 5min / 10min/ 20min / 30min
  • 120-277VAC 50/60Hz
  • Rated load: 400W @ 120VAC, 800W @ 240 VAC, 1000W @ 277VAC (capacitive load)
  • Detection range: 12m x 6m
  • Detection angle: 30° – 150°
  • Microwave frequency: 5.8 GHz +/- 75MHz
  • Stand-by period/tri-level control
  • Stand-by time:0s / 10s / 1min / 5min / 10min / 30min / 1h / +
  • Stand-by dimming level: 10%, 20%, 30%, 50%
  • Daylight sensor: 2-50lux
  • Transmitting power:<0.2mW
  • Working temperature: -20° – +60°C
  • Stand-by power: <1W
  • IP65 rating
  • UL, ETC, FCC ratings

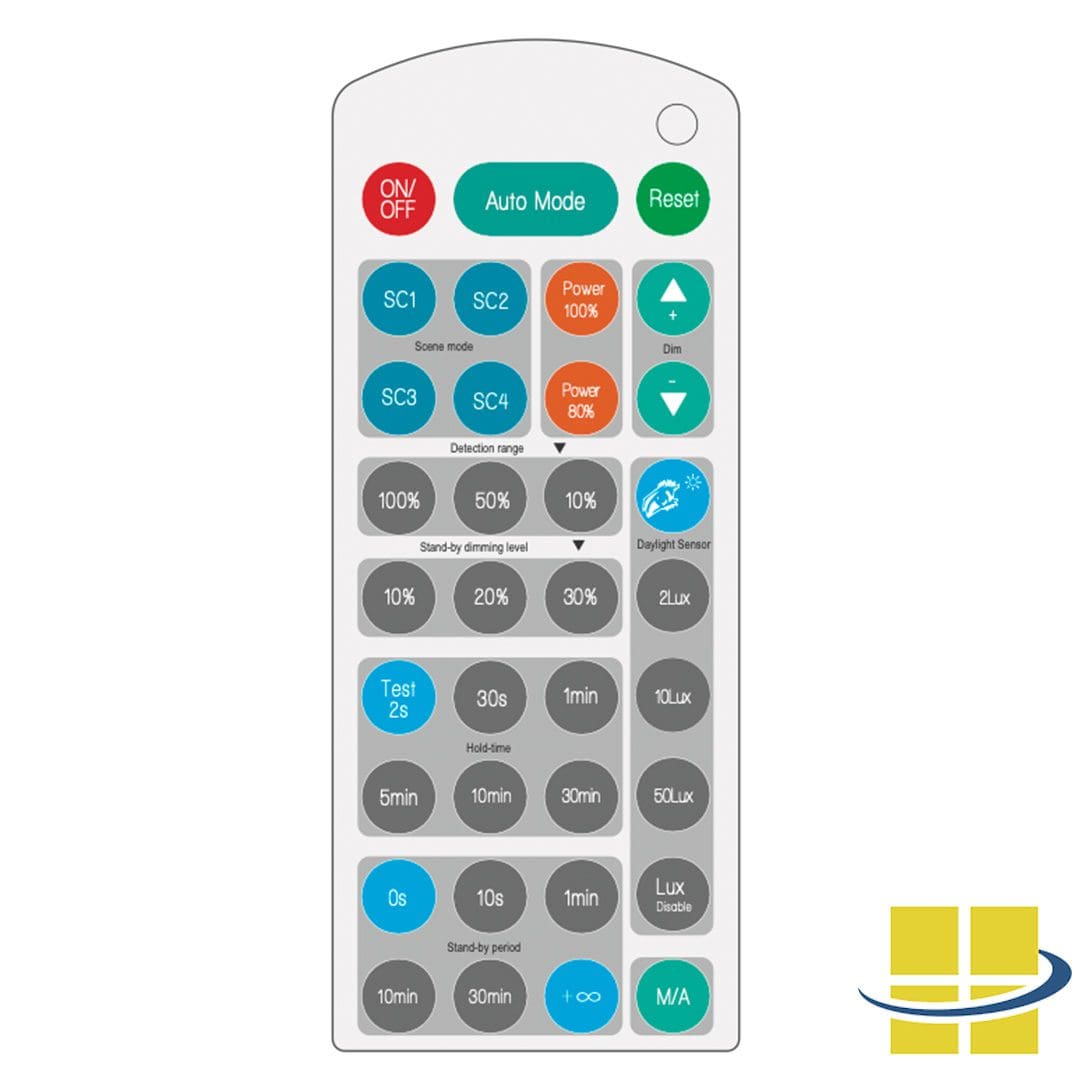

UPTA Remote Control for MMS Ultranik Options:

  • Permanent ON/OFF function
  • Sensor Mode/Auto mode
  • Reset function
  • Dim +/-
  • Test mode
  • Power output
  • LUX disable to disable daylight sensor for threshold control
  • Manual override/absence detection
  • Scene mode
  • Detection range
  • Hold-time
  • Daylight sensor
  • Stand-by-period (tri-level control)
  • Stand-by dimming level
