Product Specifications
| Weight | 15 lbs |
|---|---|
| Dimensions | 10 × 10 × 5 in |
| Model Number | AF33XTV2C32X43U40K |
| Weight Pounds | 5 lbs |
| Shipping Weight (Pounds) | 6.27 lbs |
| EPA | .31 sq. ft |
| Product Family | VERS |
| Housing Material | Die-Cast Gasketed Aluminum |
| Finish Specifications | Textured Architectural Powdercoat Finish Over a Chromate Conversion Coating |
| Finish Color (s) | Standard Black, Custom RAL |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | Tempered Clear Flat Glass |

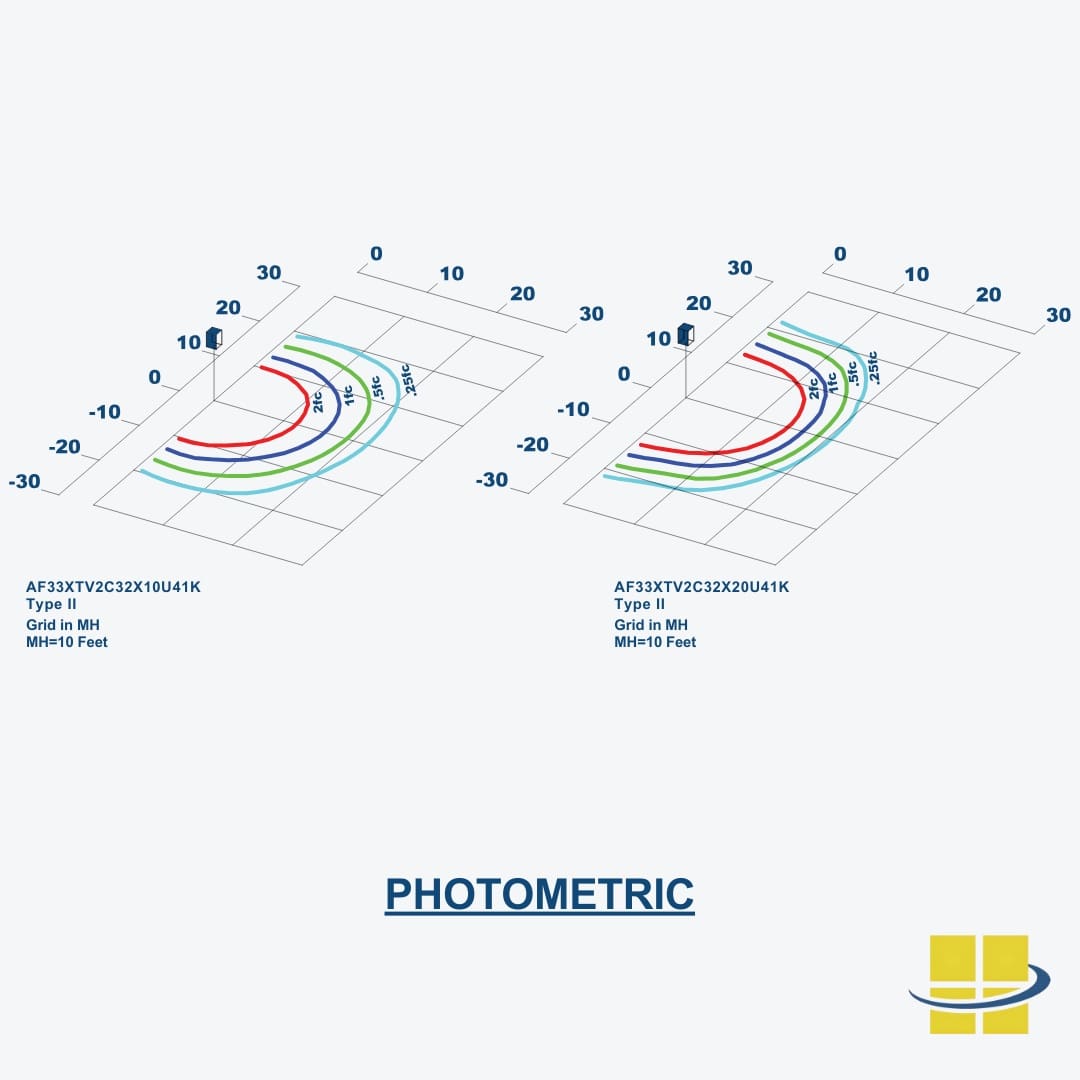

| Optics | Type II |
| Color Temperature (Kelvin) | 4000K |
| LED Type | EasyLED Aluminum Board |
| System Watts | 43w |
| Light Source Lumens | 4,025 |
| Luminaire Lumens | n/a |
| Luminaire Lumens Per Watts | 110 lm/W |

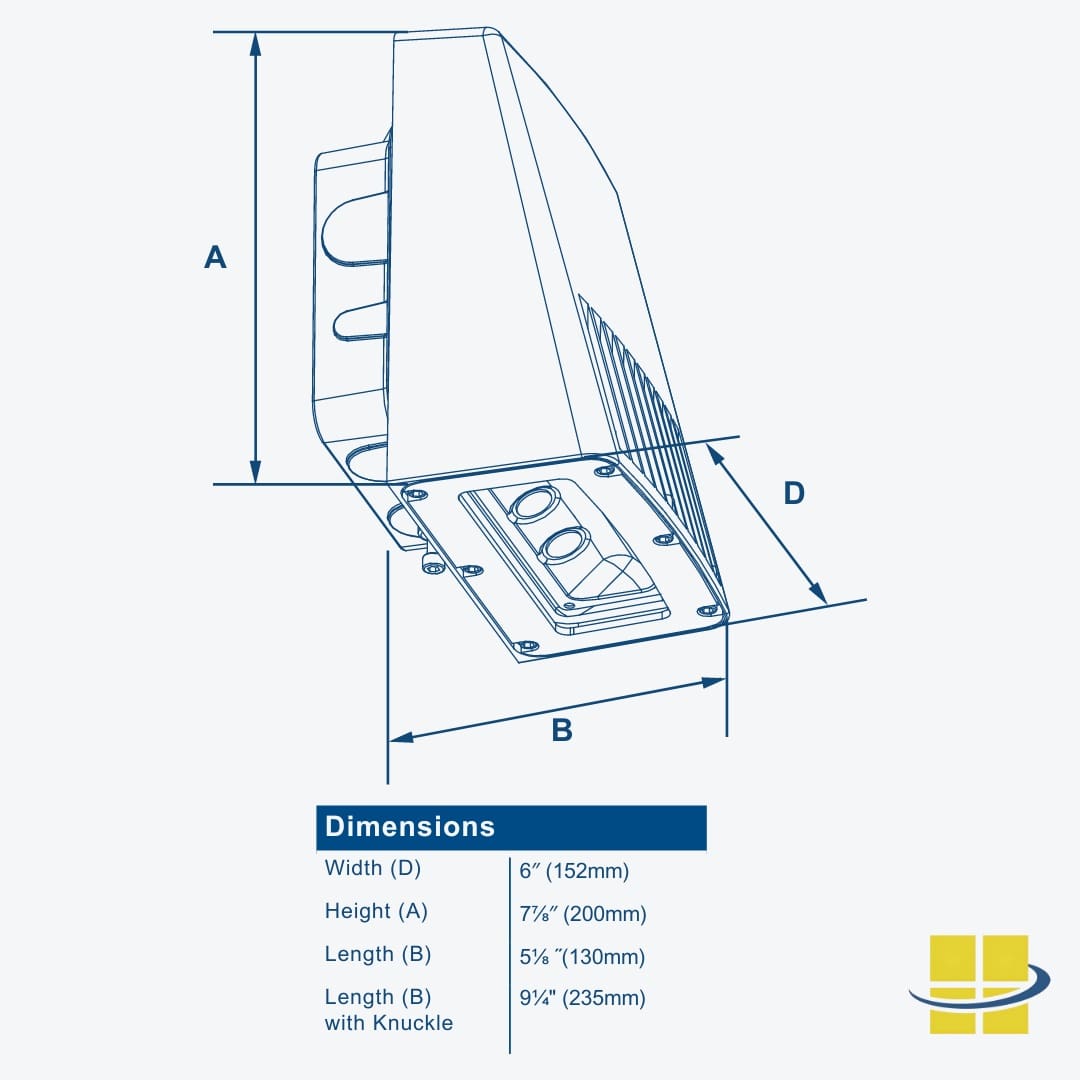

| Dimensions in Inches | 6" x 7.78" x 5.18" |
| Dimension in mm | 152.4mm x 200.025mm x 130.175mm |
| Mount (s) | Mount Directly Over Recessed Electrical Box or use 1⁄2 ̋ Surface Mount Conduit. Adjustable Knuckle with 1⁄2 ̋ NPS Threads, Sold Separately, Field Installed |
| Rated Life (L70@ x Hours) | 76,000 Hours |
| Voltage | 120-277v, 380-477v |
| Surge Protection | 6kV |
| Controls | Photocell, Battery Back-up |
| Operating Temperature | -40°C to +50°C |
| IP Rating | IP66 |
| lK Rating | TBD |
| DLC Number | n/a |
| BUG Rating | B2, U1, G1 |
| Listings (ex: UL,CUL,CE) | ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; Sealed LED Compartment. |
| Availability (Lead-Time) | 7 -10 Days Production, Plus shippng |
VERS 43 BAA Certified LED Full Cutoff Wall Pack
VERS BAA Certified Full Cutoff Wall Pack delivers powerful, BAA-compliant performance in a compact, architectural form. Featuring a rugged die-cast aluminum housing and an IP66-sealed LED compartment, it’s engineered for reliable operation in wet locations and harsh environments—combining industrial-grade durability with refined design.
FULL CUTOFF: Engineered to meet stringent local lighting ordinances, VERS precisely controls light distribution to minimize glare and light trespass—delivering light only where it’s needed.
BAA CERTIFIED: Manufactured in the USA, VERS meets Build America Act requirements while delivering dependable, high-quality performance.

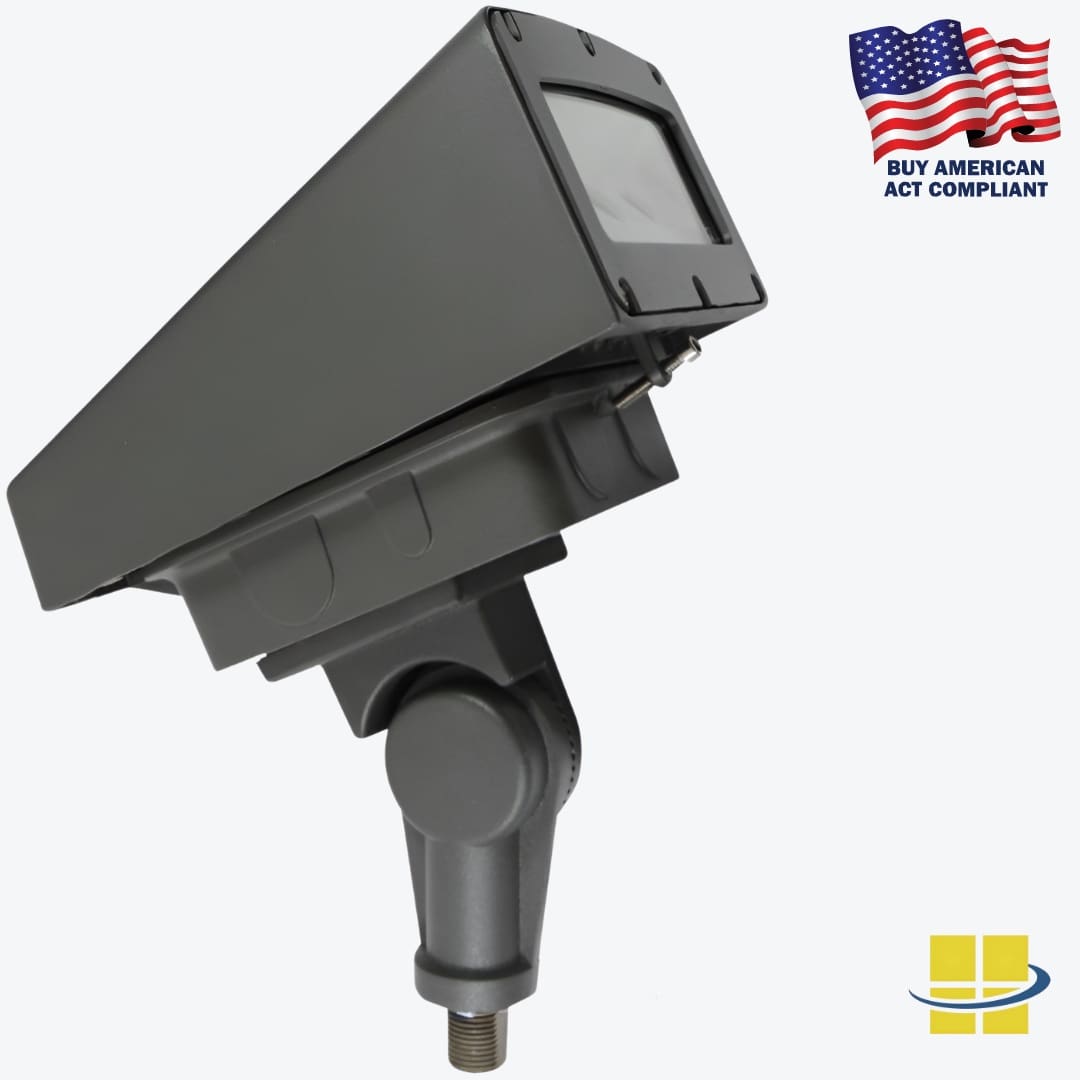

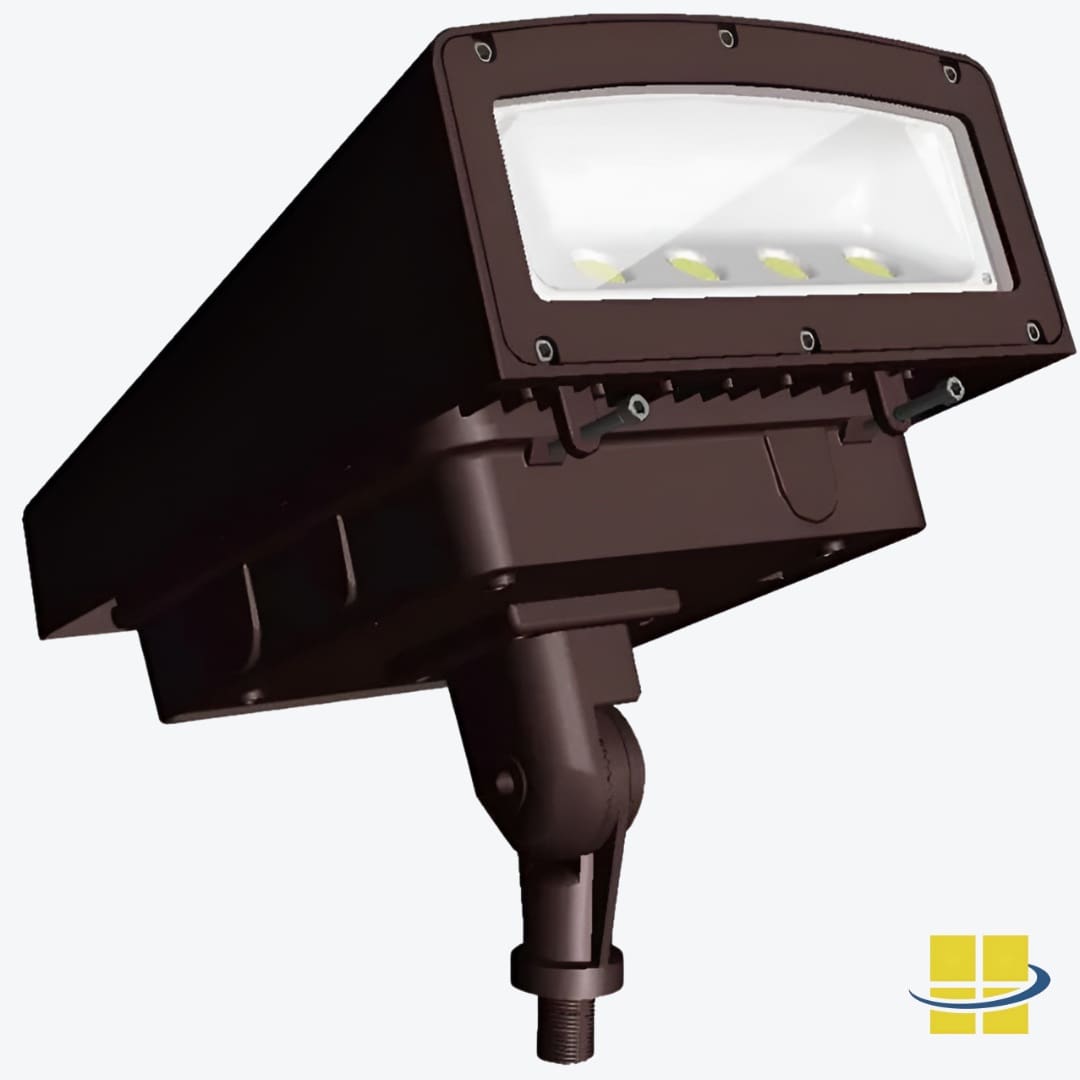

VERSATILE MOUNTING: Whether you need wall-mounted security or knuckle-mounted flood lighting, VERS offers flexible installation to meet your specific site requirements.
$199.87
Product Specifications
| Weight | 15 lbs |
|---|---|
| Dimensions | 10 × 10 × 5 in |
| Model Number | AF33XTV2C32X43U40K |
| Weight Pounds | 5 lbs |
| Shipping Weight (Pounds) | 6.27 lbs |
| EPA | .31 sq. ft |
| Product Family | VERS |
| Housing Material | Die-Cast Gasketed Aluminum |
| Finish Specifications | Textured Architectural Powdercoat Finish Over a Chromate Conversion Coating |
| Finish Color (s) | Standard Black, Custom RAL |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | Tempered Clear Flat Glass |
| Optics | Type II |
| Color Temperature (Kelvin) | 4000K |
| LED Type | EasyLED Aluminum Board |
| System Watts | 43w |
| Light Source Lumens | 4,025 |
| Luminaire Lumens | n/a |
| Luminaire Lumens Per Watts | 110 lm/W |
| Dimensions in Inches | 6" x 7.78" x 5.18" |
| Dimension in mm | 152.4mm x 200.025mm x 130.175mm |
| Mount (s) | Mount Directly Over Recessed Electrical Box or use 1⁄2 ̋ Surface Mount Conduit. Adjustable Knuckle with 1⁄2 ̋ NPS Threads, Sold Separately, Field Installed |
| Rated Life (L70@ x Hours) | 76,000 Hours |
| Voltage | 120-277v, 380-477v |
| Surge Protection | 6kV |
| Controls | Photocell, Battery Back-up |
| Operating Temperature | -40°C to +50°C |
| IP Rating | IP66 |
| lK Rating | TBD |
| DLC Number | n/a |
| BUG Rating | B2, U1, G1 |
| Listings (ex: UL,CUL,CE) | ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; Sealed LED Compartment. |
| Availability (Lead-Time) | 7 -10 Days Production, Plus shippng |
