Dark Sky Compliant Pickleball Court with Lights in Arizona
This case study highlights the successful engineering and installation of a high-performance LED lighting system for a pickleball court with lights in Arizona. The client, located in Tucson, required a solution that provided exceptional on-court playability while adhering to some of the most stringent dark sky regulations in the United States. Access Fixtures designed and implemented a custom lighting system that met professional athletic standards and achieved full compliance with Tucson's demanding lighting code.
Key Takeaways
-
-
Optimized Athletic Lighting - Achieved 33 average footcandles with a 1.51 max/min ratio, delivering exceptional visibility and uniformity for competitive pickleball play.
-
Dark Sky Compliant Design - Utilized 3000K fixtures with advanced optics and zero uplight, fully aligned with Tucson’s dark sky regulations.
-
Customized Engineering - A two-pole, 20-foot configuration with ASTA 720 fixtures was selected to balance site limitations with lighting performance.
-
Project Overview
- Project Title: Pickleball Court with Lights - Tucson, Arizona
- Location: Tucson, Arizona
- Objective: To engineer a high-output, energy-efficient LED system that meets sports lighting standards for safe play while adhering to strict local dark sky codes.
- Fixtures Used: (2) ASTA 720-watt LED Sports Lights.
- Client Type: Athletic Facility
The Client’s Challenge
The client needed to illuminate a pickleball court to allow for safe, competitive-level play after dark. For a fast-paced sport with a small ball, this requires meeting Illuminating Engineering Society (IES) standards of at least 30 footcandles and a low uniformity ratio to ensure the ball is always visible. The primary challenge was achieving these high-performance metrics within the legal framework of Tucson's dark sky ordinances, which mandate a color temperature of 3000K or lower and absolutely no uplight to protect the region's natural environment.
The Access Fixtures Solution
Access Fixtures approached the challenge with a methodology grounded in physics and engineering. A certified lighting engineer conducted a comprehensive photometric analysis using Illuminating Engineering Society (IES) guidelines to create a tailored solution that guaranteed performance and compliance.

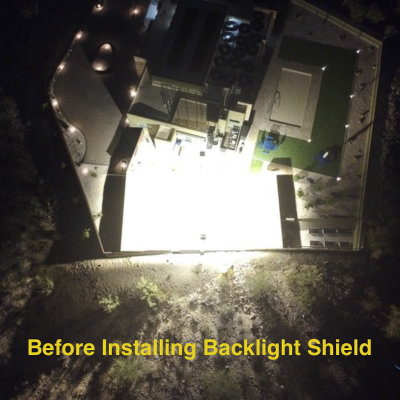

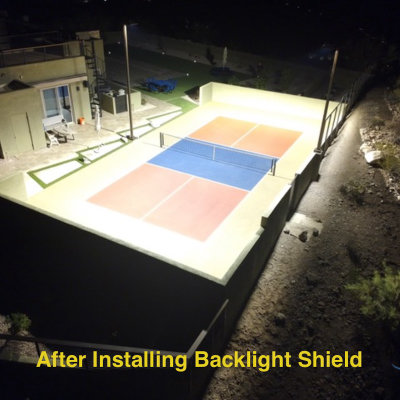

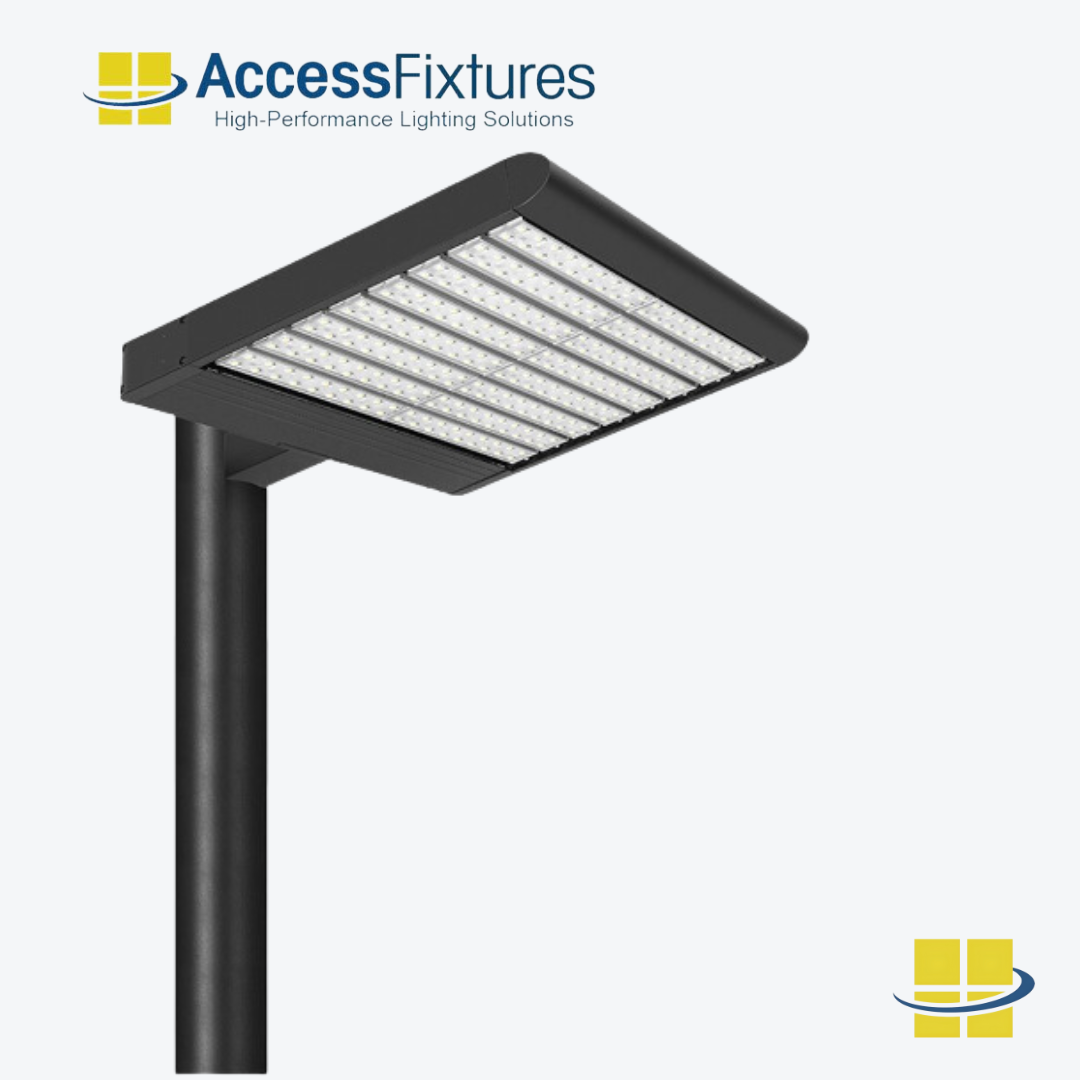

- Fixture Selection: Two ASTA 720-watt LED sports lights with custom backlight shields were chosen. These custom-manufactured fixtures were selected for their high luminous flux of 66,042 lumens each and advanced T4S optics, which allow for precise light distribution.

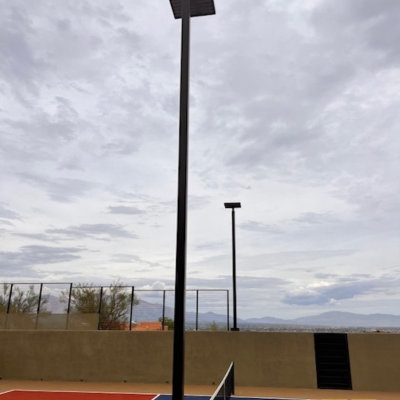

- Custom Layout: The fixtures were strategically mounted on two 20-foot poles to achieve maximum on-court coverage while minimizing spill light.

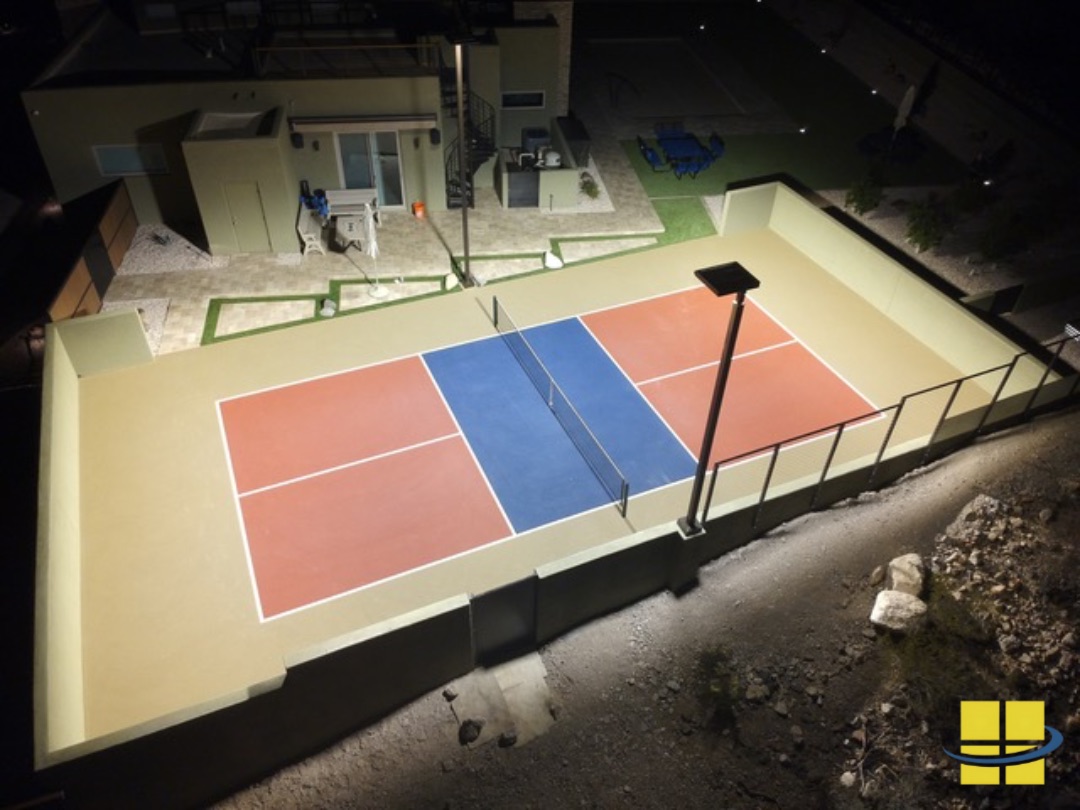

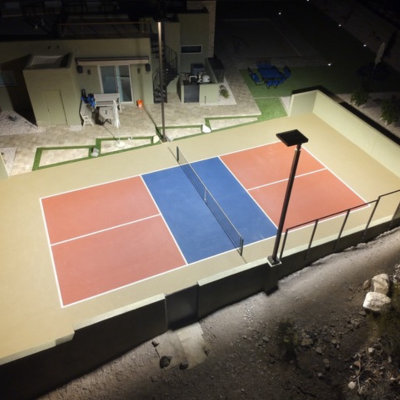

- Compliance-Driven Design: To meet Tucson's code, a 3000K color temperature was utilized. The fixtures and their aiming were engineered for full cutoff, resulting in a 0.0% Upward Light Ratio (ULR) and ensuring no light is cast directly into the night sky. This advanced optical control is crucial for confining light strictly to the playing area.

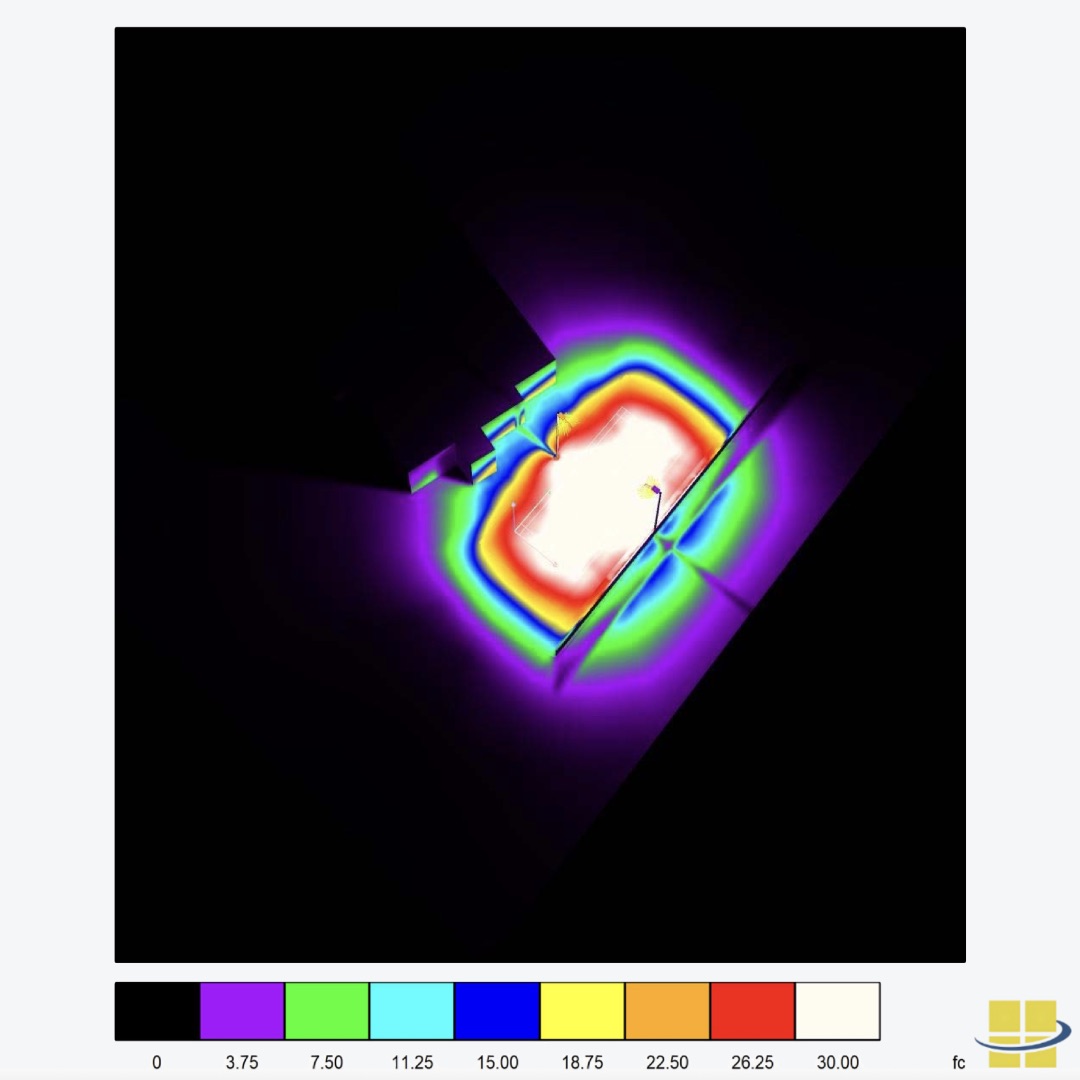

Photometric Analysis
The simulation results confirmed that the design exceeded both playability and compliance requirements:
-
Average Light Level: 33 footcandles (exceeding the 30 fc standard for pickleball).
-
Uniformity: 1.51 max/min ratio, ensuring consistent illumination across the court.
-
Trespass Control: Within 30 feet of the perimeter, illumination dropped to negligible levels, protecting nearby residences and preserving the night sky.
The Tangible Result
The final engineered design, validated by a detailed photometric analysis, delivered quantifiable results that successfully met both the client's athletic requirements and Tucson's strict environmental regulations. The installed system provides a safe, high-performance athletic venue that is also a model of responsible, dark-sky-friendly lighting.
- Exceptional Playability: The court is illuminated to an average of 33 footcandles , exceeding the 30-footcandle standard recommended for fast-paced sports like pickleball. An outstanding uniformity (max/min) ratio of 1.51 was achieved, ensuring consistent, even lighting across the entire playing surface. The detailed analysis confirmed a high minimum light level of 28 footcandles and a maximum of 39 footcandles , eliminating dark spots and preventing issues with pupil dilation that can cause players to lose sight of the ball.
- Verified Dark Sky Compliance: The system is fully compliant with Tucson's code, utilizing a 3000K color temperature. Critically, the full-cutoff fixture design achieved a 0.0% Upward Light Ratio (ULR) , meaning zero direct uplight is cast into the night sky, protecting the local environment. This rigorous, data-driven approach is designed to ensure seamless approval for athletic courts in Arizona.
- Zero Light Trespass: The advanced T4S optics and precision aiming proved highly effective at containing light within the designated area. The photometric report shows illumination levels dropping sharply just beyond the court, with readings of 0.00 footcandles along the perimeter, preventing spill light from affecting neighboring properties or the community.
Final Thoughts
This project demonstrates how Access Fixtures designs lighting solutions that balance athletic performance with community standards. The Tucson pickleball court now benefits from high-quality illumination that supports fast-paced play while maintaining respect for Arizona’s natural night skies.
Conclusion
The success of this pickleball court with lights in Arizona underscores the value of combining advanced photometric analysis with fixture technology designed for both sports performance and dark sky compliance. With precise optics, tailored engineering, and code-conscious design, Access Fixtures delivers solutions that elevate both the game and the environment.
Contact an Access Fixtures Lighting Specialist today to discuss your pickleball court lighting project in Arizona.
Check Out The Full Case Study Portfolio >>>
Pickleball Court with Lights in Arizona - Frequently Asked Questions (FAQs)
What lighting levels are required for pickleball courts?
Most pickleball courts require at least 30 footcandles with a max/min ratio of 2.0 or better to ensure visibility and safe gameplay.
Can pickleball courts in Arizona use 5000K lighting?
While 5000K is common for sports lighting, Tucson requires 3000K or lower to comply with dark sky regulations.
How do you prevent light trespass on nearby properties?
Using full cutoff fixtures, advanced optics, and careful pole placement ensures light is confined to the court, minimizing trespass.
Why were ASTA 720 LED fixtures chosen?
They provide extremely high lumen output, precision optics, and durability, making them ideal for athletic applications with strict compliance needs.
How does dark sky compliance affect gameplay?
With the right fixtures and optics, players still get bright, uniform illumination while protecting the night sky and the surrounding community.
