Fiberglass-or fibreglass, depending on which side of the Atlantic you're on-is one of the most versatile composite materials in modern industry. From chemical storage tanks to boat hulls to the LED lighting poles that illuminate parking lots and coastlines, this glass-reinforced material delivers a rare combination of strength, corrosion resistance, and low weight. This guide breaks down what fiberglass is, how it's made, how it compares with other materials like steel and carbon fiber, and why it pairs so well with high-performance LED lighting from Access Fixtures. More information on Access Fixtures Fiberglass Light Poles.
Key Takeaways
- Fiberglass (fibreglass) is a high-strength, corrosion-resistant composite made from glass fibers embedded in a resin matrix; it does not rust, rot, or degrade in harsh environments.
- Fiberglass light poles are ideal for demanding locations-coastal zones, chemical plants, high-humidity areas-where steel, aluminum, and wood poles corrode, warp, or decay.
- Access Fixtures designs high-performance LED lighting systems that mount on fiberglass poles to deliver long-lasting, low-maintenance illumination in extreme conditions.
- Common fiberglass types like E glass and S glass offer different balances of tensile strength, cost, and electrical insulation for poles, storage tanks, and other structural components.
- Fiberglass is lighter than many other materials, easy to install, and widely used across the composites industry-from oil and gas to construction and utilities.
What Is Fiberglass / Fibreglass and Glass Fiber?
Fiberglass-sometimes called fiberglass reinforced plastic or simply FRP-is a composite material made from thin glass fibers embedded in a polymer resin. In the UK and many Commonwealth countries, the same material is spelled fibreglass. The term "glass fiber" (or "glass fibres") refers to the reinforcing strands themselves, while "fiberglass" describes the finished composite: glass reinforced plastic, also called fiberglass reinforced plastic, or GRP.
The base glass is produced by melting silicon dioxide (silica sand) along with other oxides, then drawing the molten glass through fine nozzles to form glass filaments. These individual filaments are bundled into glass strands, then gathered into rovings, mats, or woven fabrics that serve as reinforcements in the final composite. Key inherent properties include a high strength-to-weight ratio, resistance to moisture and corrosion, excellent electrical insulation, and good fatigue performance across many composite materials. Fiberglass does not rust, rot, or degrade in harsh environments, making it suitable for decades of outdoor service. It remains one of the most common reinforcement fibers globally-far more widely used by volume than carbon fiber-mainly because of its lower cost and broad versatility.
From Glass to Fiber Glass: How Glass Fibers Are Produced
The manufacturing process behind glass fiber underpins nearly every glass-reinforced plastic product on the market, from printed circuit boards to fiberglass poles. Understanding how fibers are produced helps explain why the material performs the way it does.
Production begins with batching raw materials-silica sand, limestone, soda ash, alumina, and other materials-and feeding them into furnaces operating at approximately 1,400–1,600°C. Inside, the batch melts into molten glass, which is refined and homogenized to remove bubbles. The molten glass then flows through platinum-rhodium bushings fitted with hundreds or thousands of tiny orifices. Each orifice produces a continuous filament, and the drawing speed attenuates these into fibers measuring roughly 5–20 μm in diameter. In essence, fiberglass is made by melting glass and forcing it through spinnerets at high temperatures.
Fresh glass fibers are immediately coated with a "sizing" -a thin chemical coating containing coupling agents (often silane), lubricants, and film formers. This coating protects the filament surfaces and promotes bonding with specific resin systems such as polyester, vinyl ester, or epoxy. Fiberglass production involves applying resin to glass fibers for strength in the final composite form.

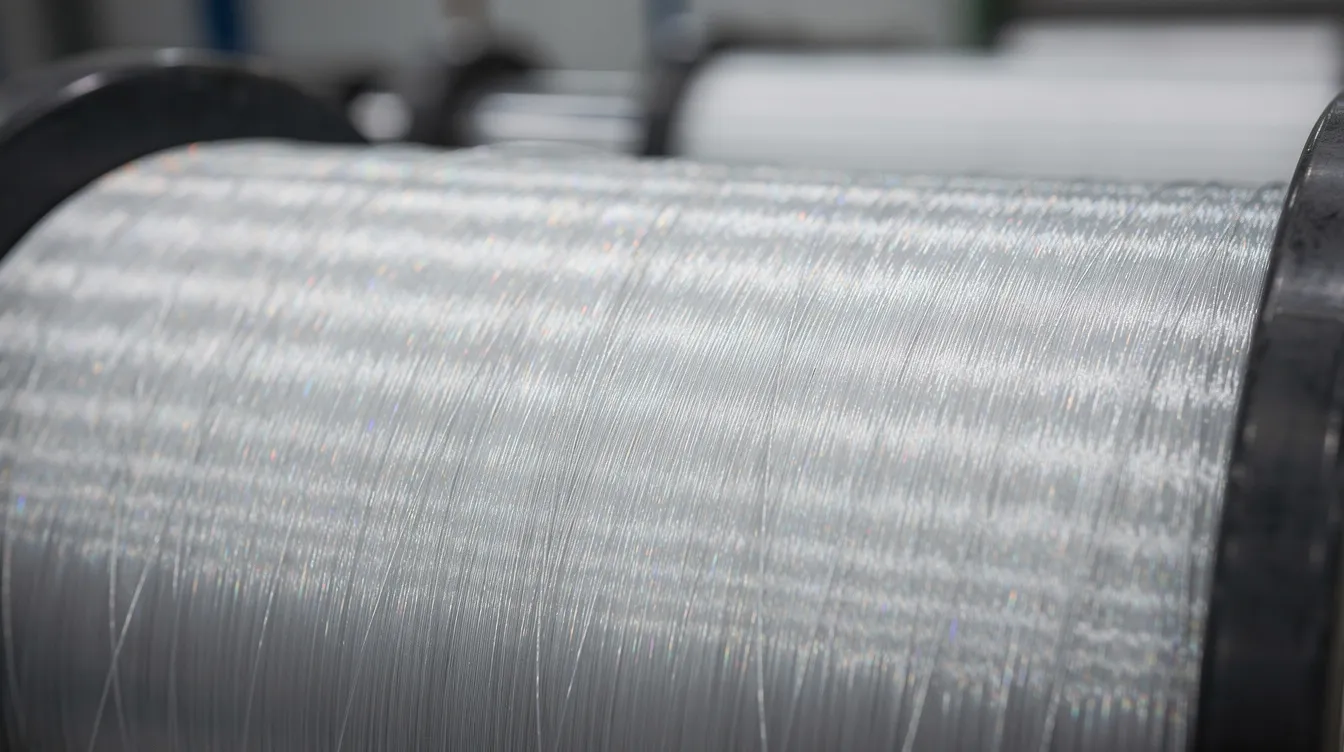

After sizing, fibers are gathered into strands and processed into different forms: chopped fibers, woven roving, continuous filament mat, and fabrics. Fiberglass can be produced in mats or sheets for various applications. These forms allow manufacturers to tailor fiber orientation and resin content for the specific mechanical properties required in the end product.
Types of Glass Fibre (E Glass, S Glass, and Others)
Different glass compositions yield different balances of strength, chemical resistance, cost, and electrical performance. This is why various types of glass exist in the composites industry.
E glass (electrical grade) is the most common type of fiberglass. It's an alumino-borosilicate glass with very low alkali content, offering good tensile strength (approximately 1.7–3.5 GPa for bare fibers), excellent dielectric properties, and moisture resistance-all at a competitive price. E glass dominates applications in fiberglass storage tanks, FRP piping, fiberglass poles, and PCB laminates. Its melting point and production economics make it the default for most structural and electrical insulators.
S glass (or S-2 glass) contains higher concentrations of alumina and magnesia, delivering roughly 30–40% higher tensile strength and a Young's modulus of approximately 80–90 GPa versus E glass's ~70 GPa. S glass has higher strength and thermal resistance than E glass, making it the choice for aerospace, ballistic armor, and high-performance sporting goods-but its higher cost limits routine use.
Other notable glass types include:
- C glass - optimized for resistance to corrosive chemicals; used in chemical plant piping and tanks
- A glass - a soda-lime glass similar to window glass, primarily used for electrical insulation in less demanding applications
- AR glass - designed for alkaline resistance in concrete applications, often containing zirconia
- D glass - engineered for low dielectric constant in radomes and electronic insulation
For fiberglass lighting poles, E glass is the typical choice: it provides the right combination of mechanical performance, electrical insulation, and long-term weathering resistance at a cost that makes infrastructure projects viable.
Fiberglass as a Composite Material (Glass Reinforced Plastic / GRP)
Most structural fiberglass is a form of reinforced plastic-glass fibers embedded in a thermoset resin matrix. The resin binds the fibers, transfers loads between them, and protects them from environmental attack.
Key matrix resins and their trade-offs:
| Resin Type | Cost | Chemical Resistance | Mechanical Performance |
|---|---|---|---|
| Polyester | Low | Moderate | Good for general use |
| Vinyl ester | Medium | High | Good for tanks and piping |
| Epoxy | High | High | Highest structural performance |
Fiber orientation matters enormously. Unidirectional fiber layups maximize strength along one axis; woven fabrics provide balanced strength in two directions; chopped strand mat yields more isotropic but lower-strength properties. Fiber volume fraction-typically 40–70% in pultruded shapes-directly controls stiffness and strength.
GRP is often contrasted with carbon fiber reinforced plastic (CFRP). Carbon composites are stronger and stiffer per unit weight but significantly more expensive and electrically conductive, which can complicate grounding for electrical fixtures. Fiberglass is cheaper than carbon fiber but more expensive than some plastics, making it the practical middle ground. Fiberglass can be molded into complex shapes and contours, and for infrastructure components like poles, ladders, and grating, GRP offers an excellent mix of high strength, low weight, dielectric safety, and freedom from rust.
How Fiberglass Components Are Manufactured
Fiberglass can be shaped by multiple manufacturing methods, each suited to different shapes-from flat panels to curved shells to constant-section profiles used in poles and beams.
- Hand lay-up: Layers of glass fabric or mat are placed into an open mold, resin is applied by brush or roller, air is removed, and the part cures. This method works for small, custom parts like fiberglass boats and covers, but it's labor-intensive and produces lower fiber-volume composites.
- Spray lay-up: Chopped glass fibers and resin are sprayed onto a mold surface with a chopper gun, then rolled to consolidate. Faster than hand lay-up, it's used for larger, moderately loaded parts, though with more variable properties.
- Filament winding: Filament winding is a common technique for manufacturing fiberglass products like pressure vessels, pipes, and some pole sections. Continuous glass or carbon filaments saturated with resin are wound across a rotating mandrel at controlled angles, then cured. This produces very high fiber volumes and is ideal for molded cylindrical or tapered shapes.

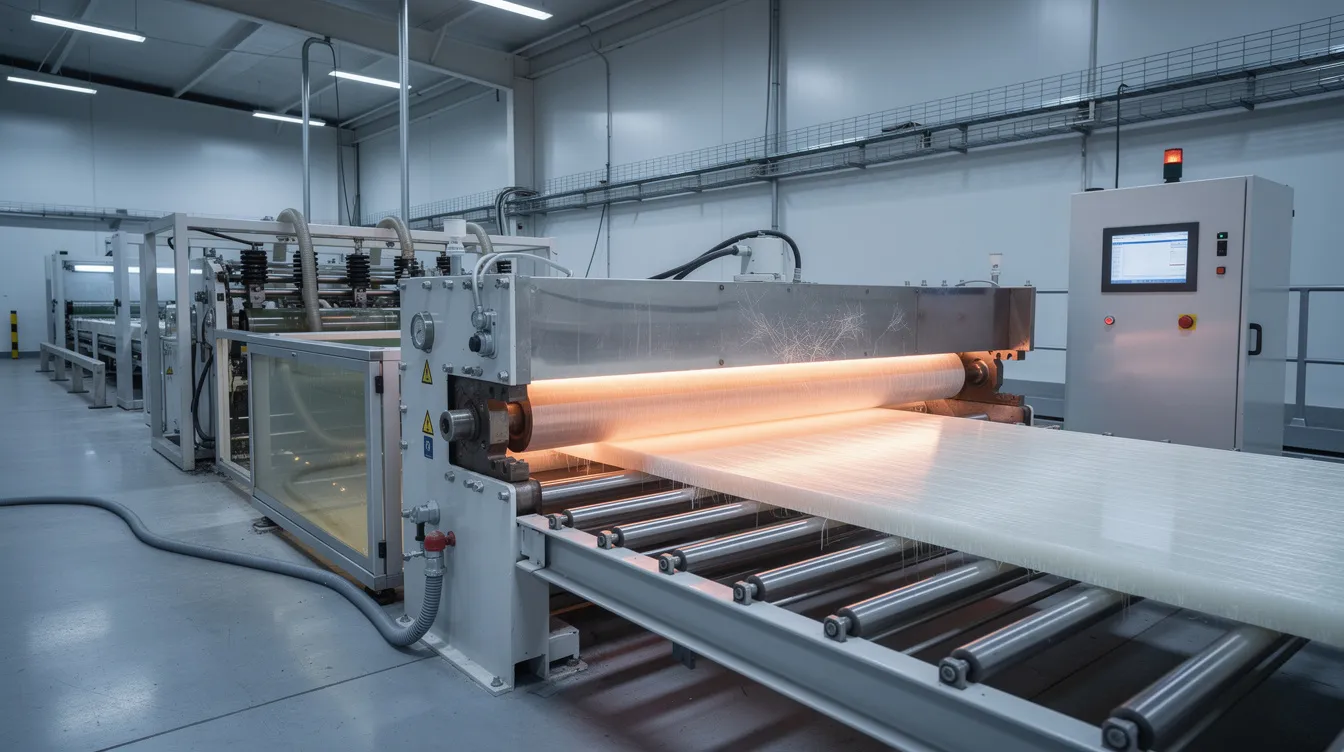

- Pultrusion: For straight fiberglass profiles and poles, pultrusion is key. Continuous glass fibers are pulled through a resin bath and a heated die, curing into constant-section beams, channels, and poles. Fiber volume fractions of 40–70% are common, yielding excellent longitudinal strength. This manufacturing method enables high-volume, consistent production of fiberglass pole profiles.
Each fabrication method can produce parts in different shapes-tubes, sheets, channels, or complex contours-depending on the tooling and fiber architecture used.
Health, Safety, and Regulatory Aspects of Glass Fibers
Health precautions are necessary during fiberglass fabrication. Modern glass fibers are considered low cancer risk in finished form, but they can cause mechanical irritation to eyes, skin, and lungs during handling, cutting, or drilling.
Common fiberglass exposure symptoms include itchy skin, red or itchy eyes, scratchy throat, and coughing. Fiberglass irritates eyes, skin, and the respiratory system; exposure to fiberglass can cause itchy eyes and a sore throat. These effects are typically reversible once exposure stops and protective gear is used.
Regulatory status is nuanced: as of 2001, fiberglass wools are not classifiable as carcinogenic by the International Agency for Research on Cancer (IARC). However, the NTP considers fibrous glass dust a reasonably anticipated carcinogen under certain exposure conditions. OSHA limits fiberglass exposure to 5 mg/m³ in respiratory air (respirable fraction) over an 8-hour time-weighted average, with a total dust limit of 15 mg/m³.
Practical safety measures for installers and fabricators:
- Wear gloves and long sleeves
- Use eye protection (goggles or safety glasses)
- Wear dust masks or respirators when cutting or drilling fiberglass poles and panels
- Employ ventilation and dust extraction at cutting points
Finished GRP products-fiberglass light poles, storage tanks, panels-are inert and safe in service. The risk of fiberglass exposure occurs mainly during fabrication, cutting, or demolition.
Fiberglass vs Carbon Fiber and Other Materials
Choosing the right material for a structure-whether it's a pole, hull, or panel-requires weighing strength, stiffness, weight, durability, and cost.
Fiberglass vs carbon fiber: Carbon fiber composites offer higher stiffness and lower weight ratio, but at significantly higher cost. Carbon is also electrically conductive (complicating grounding for electrical fixtures) and more brittle in impact. Fiberglass can suffer brittleness and impact damage under sharp blows, but it is generally more forgiving than carbon under overload.
Fiberglass vs steel: Steel delivers very high strength and rigidity but is heavy and prone to corrosion-especially in coastal salt spray. Fiberglass offers corrosion resistance, lower weight, and electrical insulation, which can reduce grounding requirements and eliminate the need for galvanizing or repainting.
Fiberglass vs aluminum: Aluminum is lightweight and corrosion-resistant in many settings, but it can suffer galvanic corrosion and pitting in saltwater environments. Fiberglass resists many chemicals and salt spray without metal loss.
Fiberglass vs wood: Wood poles are inexpensive upfront but can rot, warp, split, and be attacked by insects. Fiberglass poles are dimensionally stable and require minimal long-term maintenance compared to wood and metals over decades of service.
Fiberglass is favored in marine applications due to its corrosion resistance. It is used in boat and sports car bodies where a durable, lightweight shell is essential. Fiberglass rods are used in oil extraction for their strength, handling the cyclic loads of artificial lift systems.
Where Fiberglass Is Used: From Storage Tanks to Infrastructure
Fiberglass is one of the most widely used composite materials in modern industry, touching nearly every sector where corrosion resistance, high strength, or low weight matters.
Industrial: Fiberglass is used for chemical storage tanks up to 300 tonnes, wastewater piping, and fire-protection systems. GRP's resistance to corrosive chemicals and low maintenance make it superior to steel in many plant environments.
Energy and oil & gas: Fiberglass rods are used in oil pumping for their high tensile strength. GRE/GRP piping handles water injection and produced-water lines, while cable trays and ladders serve refineries and offshore platforms.
Transportation and marine: Fiberglass boats remain a staple of recreational and commercial marine fleets. It is used in automotive manufacturing for body panels and components, and in aerospace for lightweight components where it reduces fuel consumption.
Construction and building materials: Fiberglass is commonly used in construction for insulation and panels. Fiberglass insulation-often made from glass wool-serves as an effective thermal insulator in walls and roofing. Utility enclosures, non-conductive ladders, and platforms are produced from GRP where electrical safety is a priority.
Sports and consumer: Common uses include sports equipment, such as surfboards and skis. Fiberglass is commonly used in protective sports gear like helmets, where impact resistance and low weight are critical. It is also utilized in telecommunications for shrouding antennas, and swimming pools commonly use fiberglass shells for their durability and resistance to chemicals.

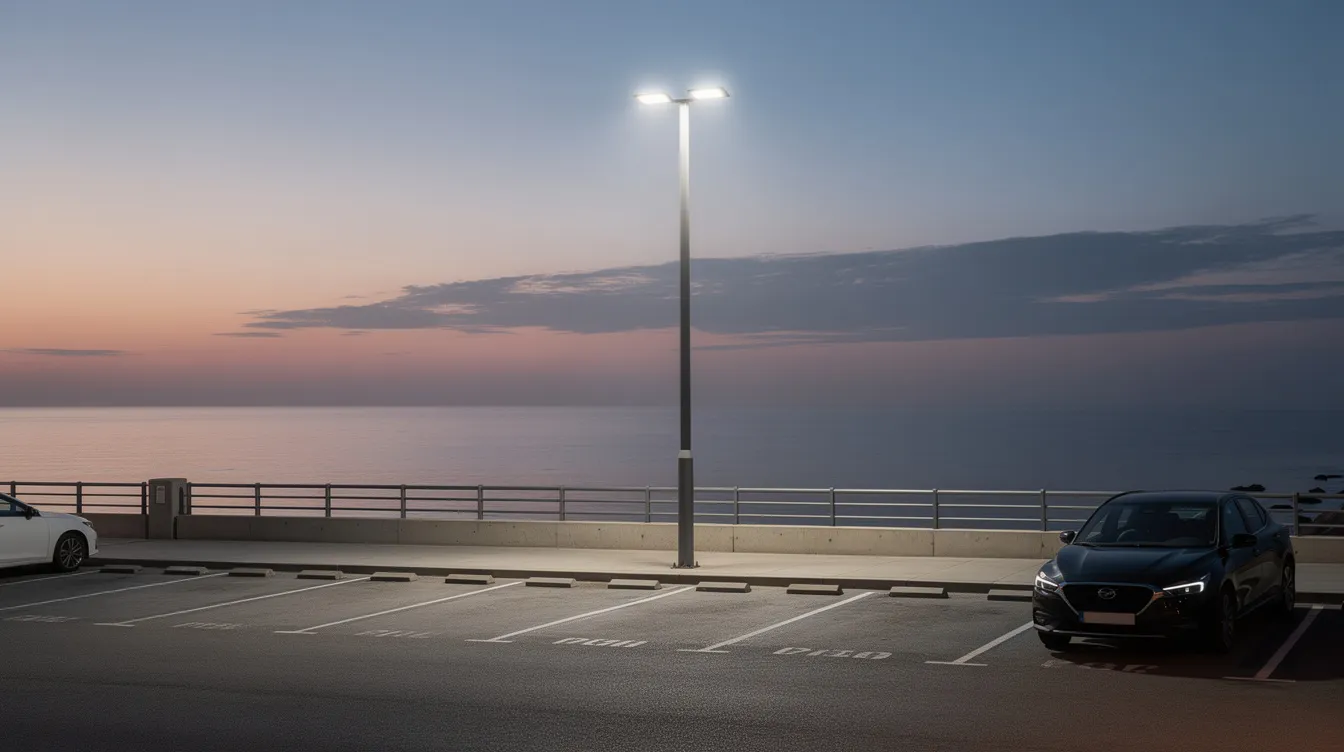

Fiberglass Light Poles and LED Lighting: Why They Work So Well Together
Pairing fiberglass poles with modern LED luminaires-such as those supplied by Access Fixtures-creates outdoor lighting systems that can operate for decades with minimal intervention.
Fiberglass poles excel in corrosive or demanding locations: coastal regions with salt spray, marinas, wastewater treatment plants, chemical processing facilities, and fertilizer or food-processing plants. In these environments, steel poles corrode, aluminum pits, and wood rots. Fiberglass simply endures.
The material's electrical insulation improves safety for area lighting, sports lighting, and pathway lighting. It provides electrical insulation, making it safe for electrical applications where accidental contact is possible. The pole itself does not conduct current, which reduces shock risk and simplifies installation.
Fiberglass poles are lighter than steel, which simplifies handling and installation of LED fixtures, reduces foundation loads, and can lower labor costs on remote or difficult sites. A two-person crew can often handle what would otherwise require a crane.
Access Fixtures' marine-grade, corrosion-resistant LED luminaires have been hurricane-tested along the U.S. coastline, surviving multiple storms over two years without corrosion damage. Fiberglass poles complement these fixtures in high-salt, high-humidity environments, ensuring the pole doesn't become the weak link in an otherwise durable system.
Comparing Fiberglass Light Poles with Other Pole Materials
Buyers designing LED area lighting or sports lighting systems often compare fiberglass poles with galvanized steel, aluminum, and concrete options.
Fiberglass vs galvanized steel poles: Steel offers high stiffness and is familiar to engineers, but it requires galvanizing or paint, can corrode at welds or in coastal air, and is significantly heavier. Fiberglass avoids rust entirely and often maintains its finish longer without recoating.
Fiberglass vs aluminum poles: Aluminum is light and corrosion-resistant but can pit in saltwater environments and may experience fatigue cracking at stress concentrations. Fiberglass remains non-metallic, non-sparking, and unaffected by many corrosive agents.
Fiberglass vs concrete poles: Concrete is robust and stiff but very heavy-often requiring heavy equipment for transport and installation. Fiberglass provides a lighter alternative suitable for parking lots, campus pathways, and recreational fields.
Access Fixtures recommends fiberglass poles specifically for LED lighting near coastlines, in wastewater and chemical facilities, in high-humidity indoor pools, and in installations requiring non-conductive structures or resistance to fertilizers and road salt.
Designing LED Lighting Systems on Fiberglass Poles
Proper structural and photometric design is crucial when mounting LED luminaires on fiberglass poles. Getting it wrong means premature failure or code violations; getting it right means a system that runs for decades.
Engineers must consider pole height, wall thickness, and fiber orientation to manage wind loads, fixture weight, and EPA (effective projected area) of the LED luminaires and brackets. Fiberglass poles tend to have lower stiffness per cross-section than steel but are acceptable when designed with sufficient safety margins and proper fiber layup.
Access Fixtures lighting specialists match LED fixture families-area lights, flood lights, and sports lighters-to fiberglass poles with appropriate mounting hardware, tenons, and base plates. Their LED fixtures are available with multiple distributions, wattages, and color temperatures, enabling tailored solutions for parking lots, walkways, tennis courts, and building perimeters.
Longevity considerations include UV-stabilized pole resins, marine-grade powder-coated aluminum or stainless hardware, sealed LED optics, and surge protection. Poles that use protective outer veils, foam core insulation layers, or UV-resistant coatings hold up significantly better under decades of sun exposure and temperature cycling.
Durability, Maintenance, and Sustainability of Fiberglass Structures
Fiberglass structures-including poles and storage tanks-can deliver service lives of several decades with minimal maintenance when properly designed. Access Fixtures offers modular high-mast direct burial fiberglass poles with warranties of up to 41 years, reflecting confidence in the material's long-term durability.
Typical durability benefits include:
- Resistance to rust, rot, and many chemicals
- Good performance under UV exposure with suitable gel coats or pigmented resins
- Stable mechanical properties across a wide temperature range
- It requires minimal long-term maintenance compared to wood and metals
Maintenance for fiberglass lighting poles is straightforward: periodic visual inspections, cleaning, and hardware checks. There is no need to repaint or galvanize, unlike steel poles in corrosion-prone areas. This durable performance means fewer truck rolls and lower lifecycle costs.
Sustainability is an evolving area. Fiberglass is non-biodegradable and presents recycling challenges, but several industrial processes are emerging. GE recycled 564 wind turbine blades in 2017, and crushing a single wind turbine blade yields about 15,000 pounds of fiberglass waste material that can be repurposed as aggregate in concrete or asphalt. Owens Corning uses over one billion pounds of cullet annually in its operations, and up to 70% of Owens Corning's fiberglass insulation is made from recycled glass. Global Fiberglass Solutions has recycled fiberglass since 2008, demonstrating that circular approaches are viable at scale.
Pairing durable fiberglass poles with energy-efficient LED luminaires from Access Fixtures yields systems that reduce both operational costs and resource consumption over their full service life.
FAQ
Are fiberglass light poles strong enough for heavy LED fixtures and high winds?
Structural fiberglass poles are engineered using E glass reinforcement and designed to meet specific wind-speed ratings-typically 90–150 mph depending on region and code. When specifying a system, Access Fixtures checks fixture EPA, weight, mounting height, and local wind requirements to ensure pole strength and deflection remain within safe limits. In very tall or extreme-wind installations (such as some high-mast sports lighting), steel poles may still be preferred, but fiberglass is fully capable for many parking lots, pathways, and moderate-height sports applications.
Do fiberglass poles require grounding for LED lighting installations?
Fiberglass is a non-conductive, insulating material, so the pole itself does not typically function as a grounding path the way a metal pole would. However, electrical codes still require equipment grounding for LED luminaires and circuits, usually via copper conductors and bonding of metal components such as brackets, junction boxes, and fixture housings. Designers should follow the National Electrical Code (NEC) or local equivalent, and Access Fixtures can help confirm proper grounding approaches when fiberglass poles are specified.
Can fiberglass poles and glass reinforced plastic structures be used in coastal hurricane zones?
Fiberglass is highly resistant to salt spray, moisture, and many airborne chemicals, making it attractive for coastal applications when combined with hurricane-rated foundations and hardware. Pole and foundation design must account for site-specific wind loads and local codes (e.g., Florida Building Code). Access Fixtures already supplies LED lighting systems that have survived multiple hurricanes without corrosion damage. Using marine-grade LED fixtures with corrosion-resistant housings and stainless or coated hardware further improves reliability in hurricane-prone regions.
How long do fiberglass poles and LED luminaires typically last in outdoor service?
Well-designed fiberglass poles routinely achieve 25–30 years or more of service life, especially in non-impact environments with UV-stable resins and finishes. Quality commercial LED luminaires from Access Fixtures often have L70 lifetimes of 50,000–100,000 hours, translating to roughly 10–25 years of operation depending on daily run time. The combination of long-life poles and long-life LEDs greatly reduces the frequency of replacements, truck rolls, and downtime compared with older HID fixtures on corroding metal poles.
Is fiberglass recyclable, and what happens at end of life for fiberglass lighting poles?
Fiberglass is more challenging to recycle than simple metals, but several industrial processes are emerging. Poles can be ground into aggregate for use in concrete, asphalt, or composite panels. Some countries have pilot programs for reusing decommissioned GRP products, similar to programs repurposing decommissioned wind-turbine blades. Specifiers who prioritize sustainability can pair fiberglass poles with high-efficiency LEDs to minimize lifetime energy consumption and explore regional recycling or repurposing options when poles eventually reach end of life.
