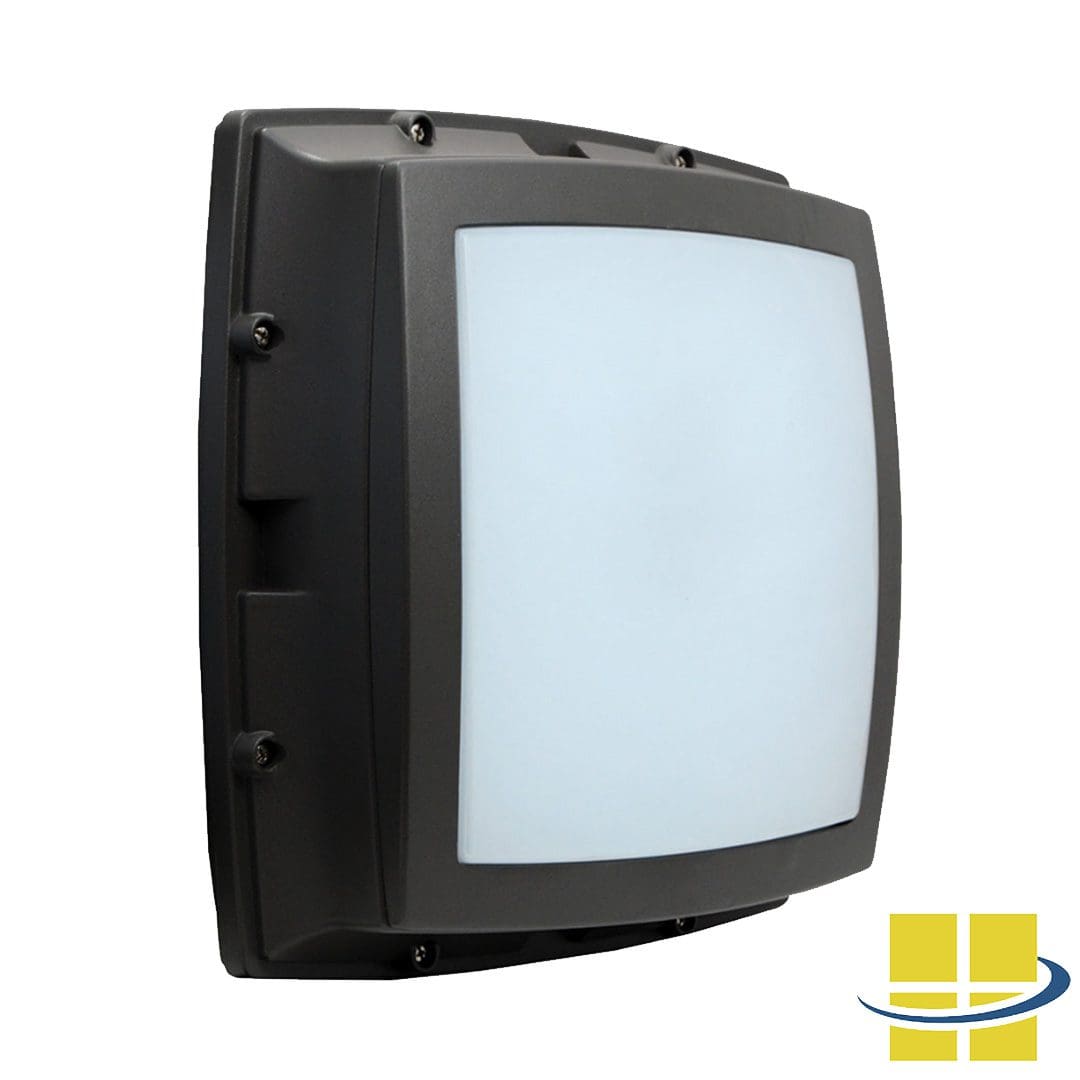

SARC 20w LED Wall Pack 120-277v – Open, 50w HID EQV EXTREME LIFE

$198.40

The SARC LED 20w Square Wall Light 120-277v, Open Frame, 50w HID EQV – EXTREME LIFE exterior square wall light is IP65 rated for protection against dust and water, rated for wet locations by the CSA, and has been proven to last for well over 187,000 hours. These fixtures are ideal for recreational facilities, indoor pool rooms, locker rooms, outdoor pools and walkways, and elsewhere. Read more in the Description below.

Place your order online or call a lighting specialist for more information at 800-468-9925.

In Stock

SKU: AF33XWPS25OFQF1X17U5KL Category: Tag:


Product Description

20w Square Wall Light 120-277v



The SARC 20w Square Wall Light 120-277v is an attractive fixture for any commercial application that requires a bright, efficient, and attractive fixture. Applications include: public buildings, condominiums, shopping malls, recreational facilities, indoor pool rooms, locker rooms, outdoor pools and walkways, and more. The LEDs in this fixture throw light forward and the low-profile housing makes it easy to mount these units on the floors, walls, or ceilings. These SARC wall packs are available in bronze, white, and any custom RAL color of your choice. Read below for complete information on these units and then place your order online today or call an Access Fixtures lighting specialist at 800-468-9925.



LED Performance and Lumen Output – SARC 20w Square Wall Light 120-277v

This fixture’s LEDs are mounted on a sturdy aluminum board and produce a total lumen output of 1,614 lumens. Each SARC 20w Square Wall Light 120-277v runs at only 20 watts and features an impressive L70 rated life of 187,000 hours. This means that after 187,000 hours, this fixture will still emit 70% or greater of its original lumens. That’s almost 22 years of sustained light. The LEDs and safely enclosed driver are designed to run and run. We back these units with a 5-year factory warranty, too, so we’ll be here to help address any issues.

The light from these fixtures is at a Kelvin temperature of 4000K or 5000K; choose your option from the drop-down menu above. The color rendering index (CRI) of these units is a strong 80, so objects in the light will appear vibrant and bright.

These SARC 20w Square Wall Light offers the same lumen output of a 50w metal halide fixture. At a fraction of wattage and more than seven times the lifetime, this fixture will quickly pay for itself.



Housing, Hardware, and Glass

This fixture features a durable precision die-cast aluminum housing construction with a polycarbonate opal glass lens for durability, resistance, and to eliminate hot spots. By die-casting the housing, we ensure the highest standard of quality. Building die-cast aluminum housings requires pressing molten metal into specific shapes. Since their molds are reusable, die-casting makes for repeatable design and easy quality management.

The SARC 20w Square Wall Lights 120-277v open door frame allows for maximum light output and the housings are available in architectural bronze, white, or any RAL color of your choice. The powder coat is finished with a chromate conversion coating, which protects the fixture from corrosion and erosion. Click here to learn more about custom-painted fixtures in RAL coloring.  The IP65 rating of this fixture means it can endure the rain or water, the dust, and more.

20w Square Wall Light 120-277v



Dimensions and Mounting

The SARC 20w Square Wall Light 120-277v makes it easy to revitalize your outdoor lighting. With a relatively small form factor of 12.5” x 12.5″ x 3.9″, it is easy to pick up and install. The unit mounts directly onto a surface to further simplify the installation process.



Ratings and Listings

These wall packs are rated for a variety of environments and applications. As mentioned above, these fixtures are IP65 rated. They have the additional certification of being rated for wet locations by the CSA and have been tested to operate between -40°C and +50°C.120v-277v



Input Voltage

This fixture will automatically detect line voltages of 120v-277v.



Optional Battery Back-Up

20w Square Wall Light 120-277v

Battery Backup

A battery backup is available for this fixture if you require one. Our AF33X3EBL1202774500 battery backup provides power to a fixture for 90 minutes after an outage. Whether these units are installed in commercial, residential, or hospitality locations, visibility after a power outage can prevent injury (and may be required).

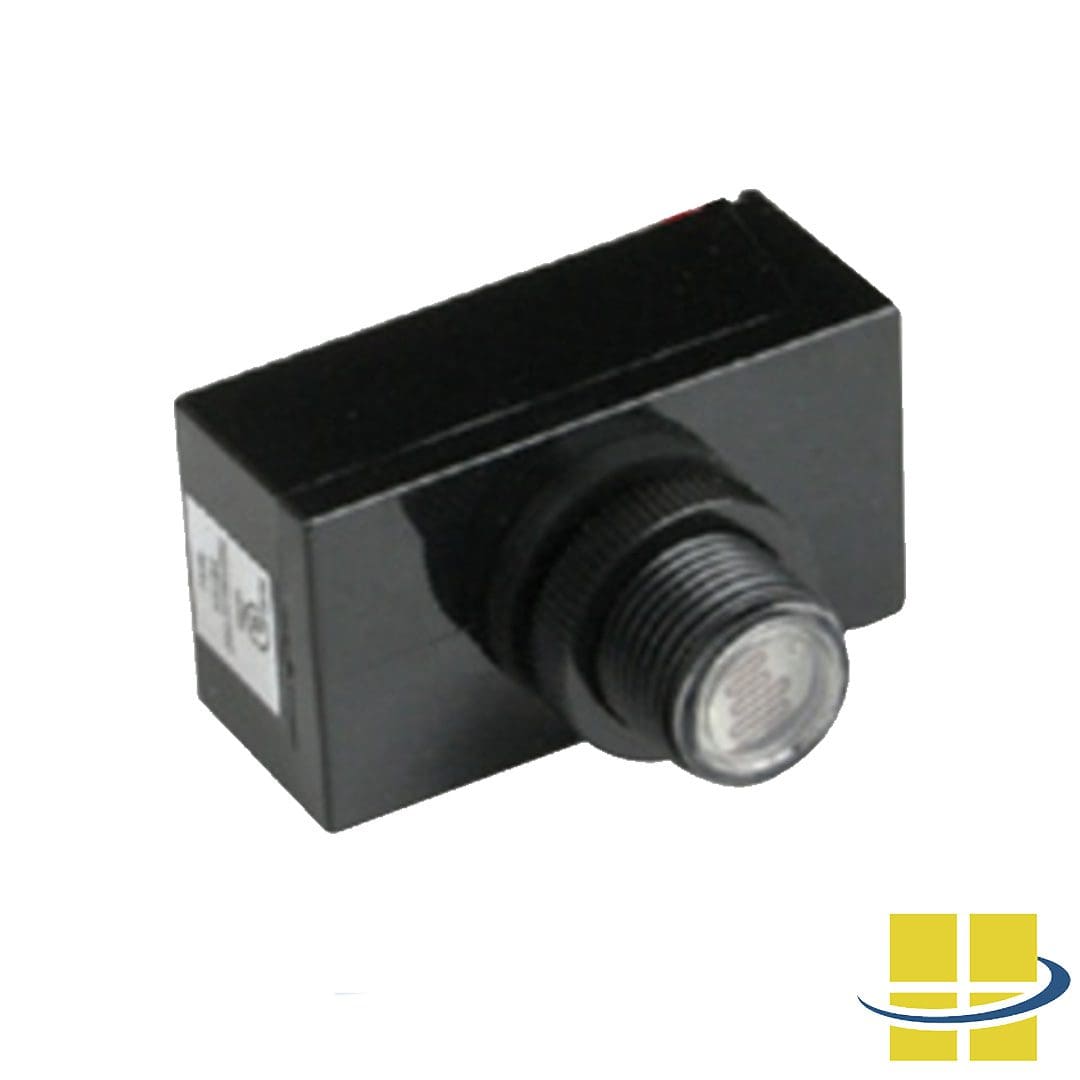

Optional Photocell

Whether installing these fixtures indoors or outdoors, you may want to use a photocell. When the ambient light drops down (due to the sun setting or to other fixtures being turned off), the photocell on each SARC wall pack will trigger the fixtures to turn on. To receive photocells with your SARC 20w square wall light 120-277v, simply select the option from the drop-down menu above.

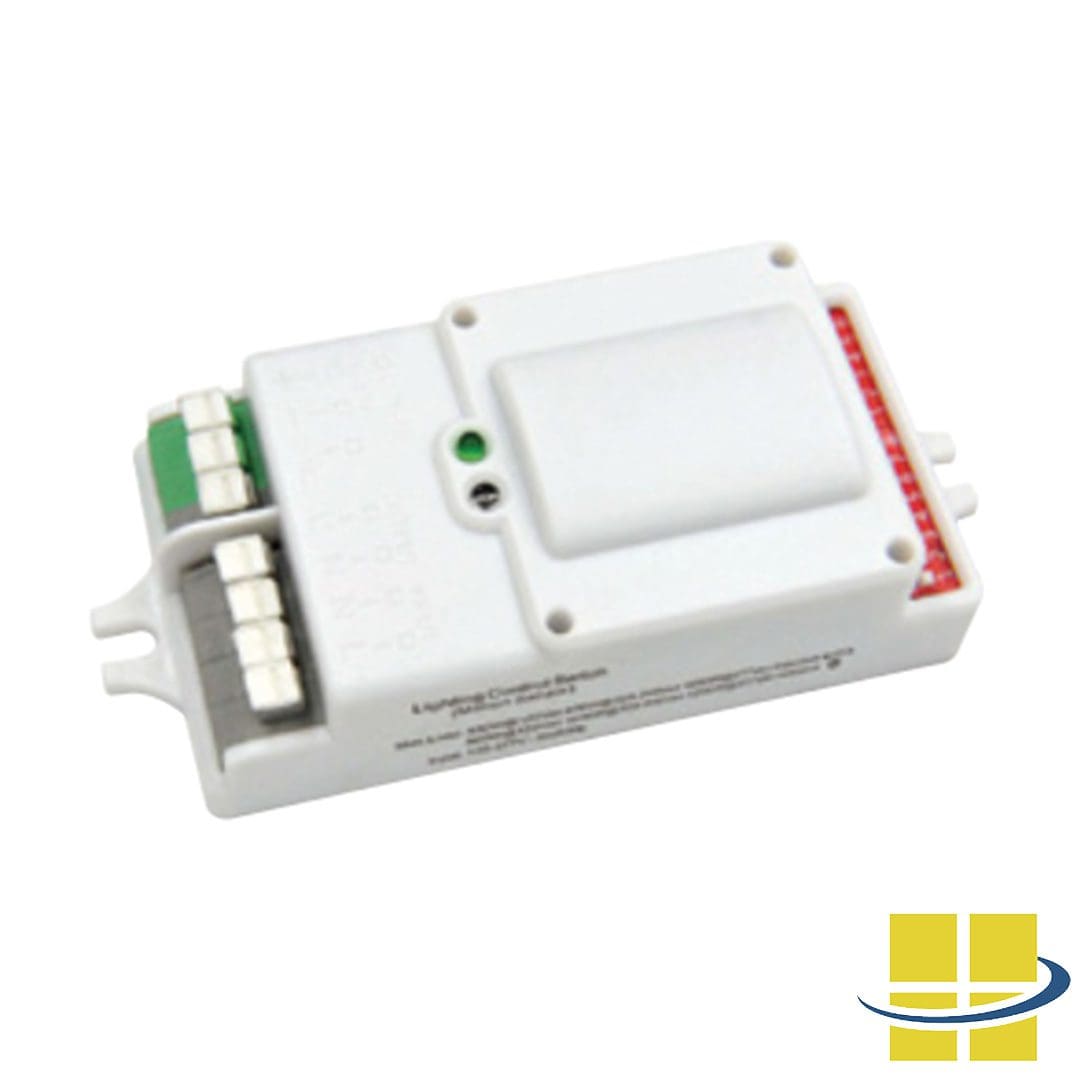

Optional Microwave Sensor

A microwave occupancy sensor [AF33XP17117] is also available for this product. The microwave occupancy sensor has a detection range of 8-30 feet when the fixture is mounted on the ceiling and 8-12 feet when the fixture is mounted on the wall. It has a number of adjustable options, including:

  • Time Delay (5-second, 30-second, 90-second, 3-minute, 20-minute, and 30-minutes)
  • Detection Motion Speed (2- to 10-feet per second)
  • Daylight Sensor for Daylight Harvesting
  • Vacant to Dim Settings (10%, 20%, 30%, 50%)
  • Vacant Stand-By Delay (5 seconds, 5 minutes, 10 minutes, 30 minutes, and 60 minutes)

Call an Access Fixtures lighting specialist to find out if the microwave sensor will be appropriate and useful in your facility.



Ready to Order the SARC 20w Square Wall Light 120-277v or Talk to a Lighting Specialist?

Place your order online today. If you have any additional questions or if you feel more comfortable ordering over the phone, call us at 800-468-9925.

Specifications

Weight 11 lbs
Dimensions 12.5 × 12.5 × 3.9 in
Available Finishes

Bronze, White, Custom RAL

Light Source Lumens

1614

Ballast/Driver

Electronic 50/60 Hz

Color Temperature (K)

4000K, 5000K

Light Source Included

LED Array Included

LED Type

LED Array

Lens

Opalescent polycarbonate lens

Light Source

White Light Spectrum

Mounting

Surface Mount

Rated Life

187,000 Hours

Style

Bulkhead Wall Packs, Forward Throw

Total Light Source Watts

17

Voltage

120-277v

Warranty

5-Year Warranty

Color Rendering Index (CRI)

80
