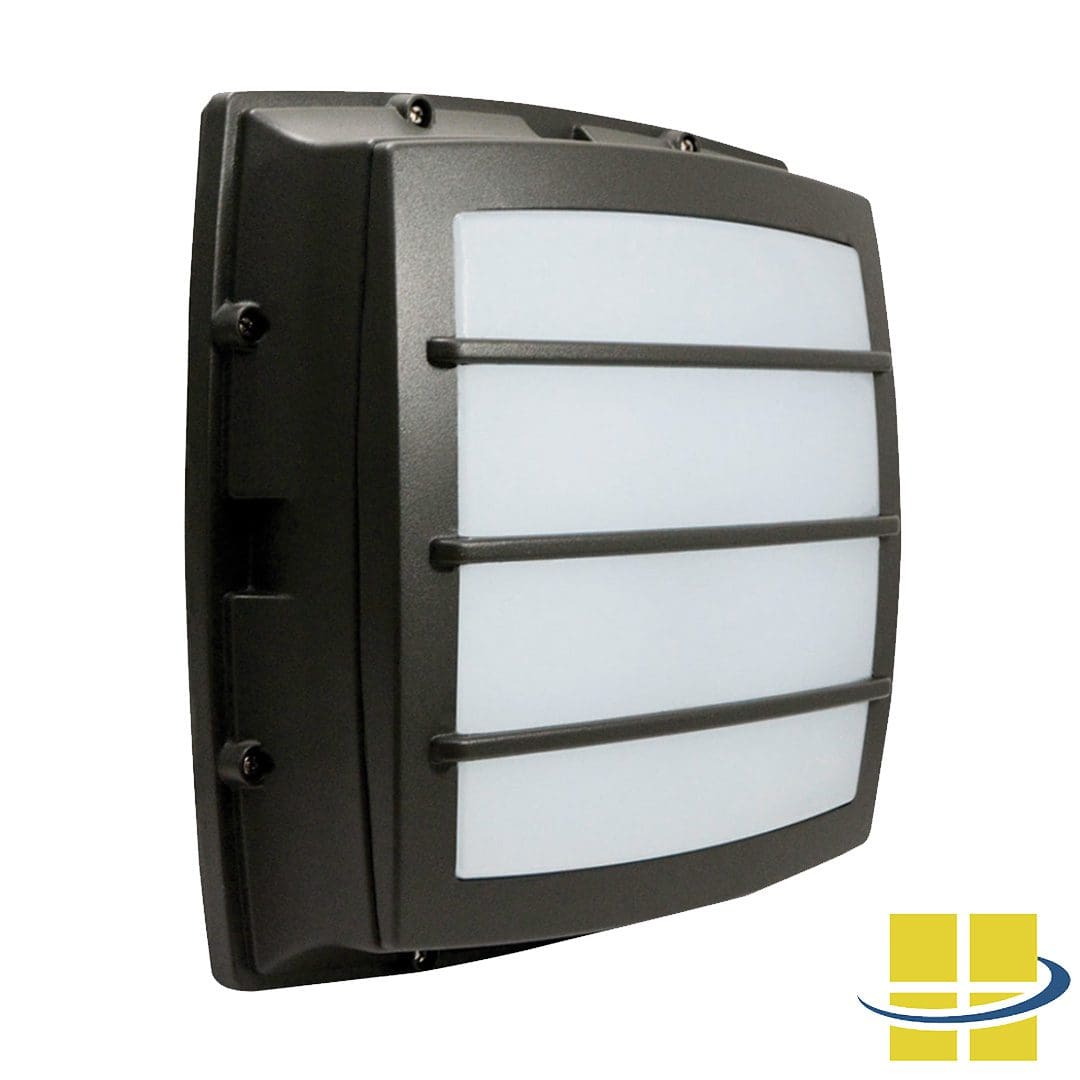

BAA SARC 18w LED Square Grid-Frame Wall Pack, EXTREME-LIFE


The SARC 18w LED square bulkhead wall pack is designed with a grid frame to help protect the lens and sturdy die-cast aluminum housing. Its UV-stabilized polycarbonate opal lens is vandal-resistant and eliminates any LED hot spots. SARC throws light in a wide forward arc, making it perfect for lighting large areas outside of buildings at 8′ to 20′ mounting heights.

EXTREME-LIFE: The SARC 18w square bulkhead grid-frame wall pack features an impressive L70 rated life of 187,000 hours. This means that after 187,000 hours, this fixture will still emit 70% or greater of its original lumens. That’s almost 22 years of sustained light!

Vandal-Resistant: The SARC wall pack features durable die-cast aluminum housing construction with a vandal-resistant stabilized polycarbonate opal lens for durability, resistance, and the elimination of hot spots. Architectural grade textured powder-coat finish with chromate conversion coating will protect the fixture from corrosion and erosion.

IP66 Rated: The SARC is fully protected against water jets, making this wall pack an ideal solution for any application where dust or water may be a concern.

Buy American Act Compliant

In Stock

- Wall Pack - SARC LED Square Bulkhead Grid-Frame Wall Pack 230605

  • For a custom RAL color, please speak to one of our lighting specialists
  • Adding surge protection protects your light from unwanted power spikes that can damage the fixture
  • Maximize energy savings and the life of the lights by adding a motion sensor
  • Adding a photocell prevents the need to manually turn on/off your wall packs when it gets dark.
  • Total


Weight 15 lbs
Dimensions 15 × 15 × 6 in

5 to 7 Day Production, plus Shipping

Available Finishes

Bronze, White, Custom RAL

BUG Rating

1, 1, 0


Die cast aluminum housing


UV-Stabilized Polycarbonate Opal Vandal-Resistant

Light Source

, ,

Light Source Included

Aluminum Boards

Light Source Lumens



IP66, CSA: Listed for wet locations


Surface Mount

Product Family


Rated Life

187,000 Hours

System Watts



120v, 208v, 240v, 277v


5-Year Limited Warranty

Product Description

SARC 18w LED Square Bulkhead Grid-Frame Wall Pack Features

  • Square wall pack fixture
  • 12.5” x 12.5″ x 3.9″
  • 18 system watts
  • 3000K, 4000K, 5000K
  • 120-277v
  • 347v
  • Grid frame
    • helps protect the lens and adds a decorative appearance
  • Die-cast gasketed aluminum housing
  • Integral heat sinking and driver compartment
  • Electronic driver
  • 0-10v dimming
  • L70 rated life of 187,000 hours
  • UV-Stabilized polycarbonate opal vandal-resistant lens
    • eliminates LED hot spots
  • BUG Rating: 1, 1, 0
  • Aluminum boards
  • CSA listed for outdoor use in wet locations
  • IP66 rating
  • Lumen output:
    • 3000K: 1,838 lumens
    • 4000K: 1,994 lumens
    • 5000K: 2,077 lumens
  • Mounts directly onto a surface


  • Finish: Bronze, White or Custom RAL
  • Kelvin temperature: 3000K, 4000K or 5000K
  • Dimming
  • 120-277VAC 20KA Surge Suppressor
  • Battery Backup, 90 Minutes (120-277v Only)

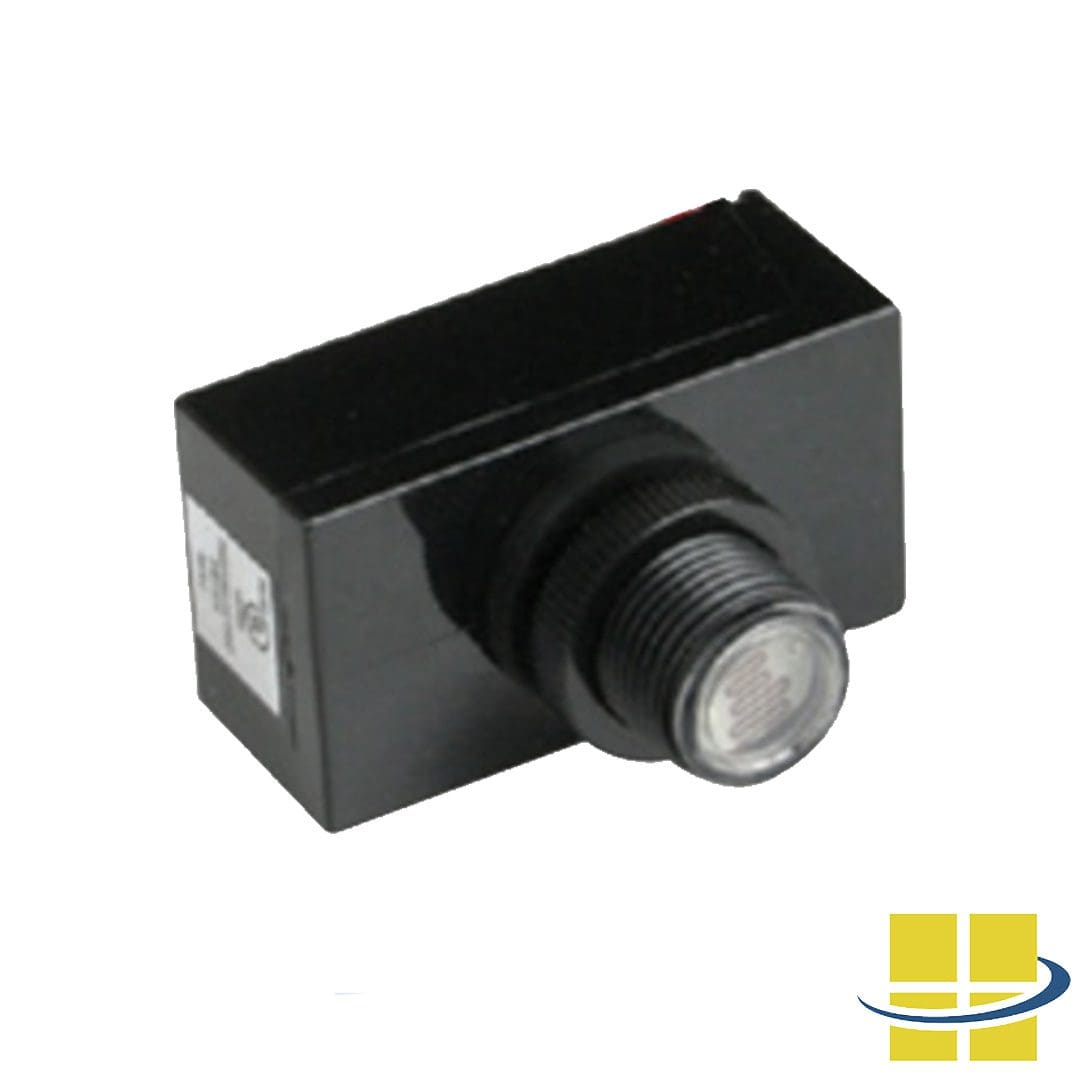

  • Pencil Photocell, 120-277VAC

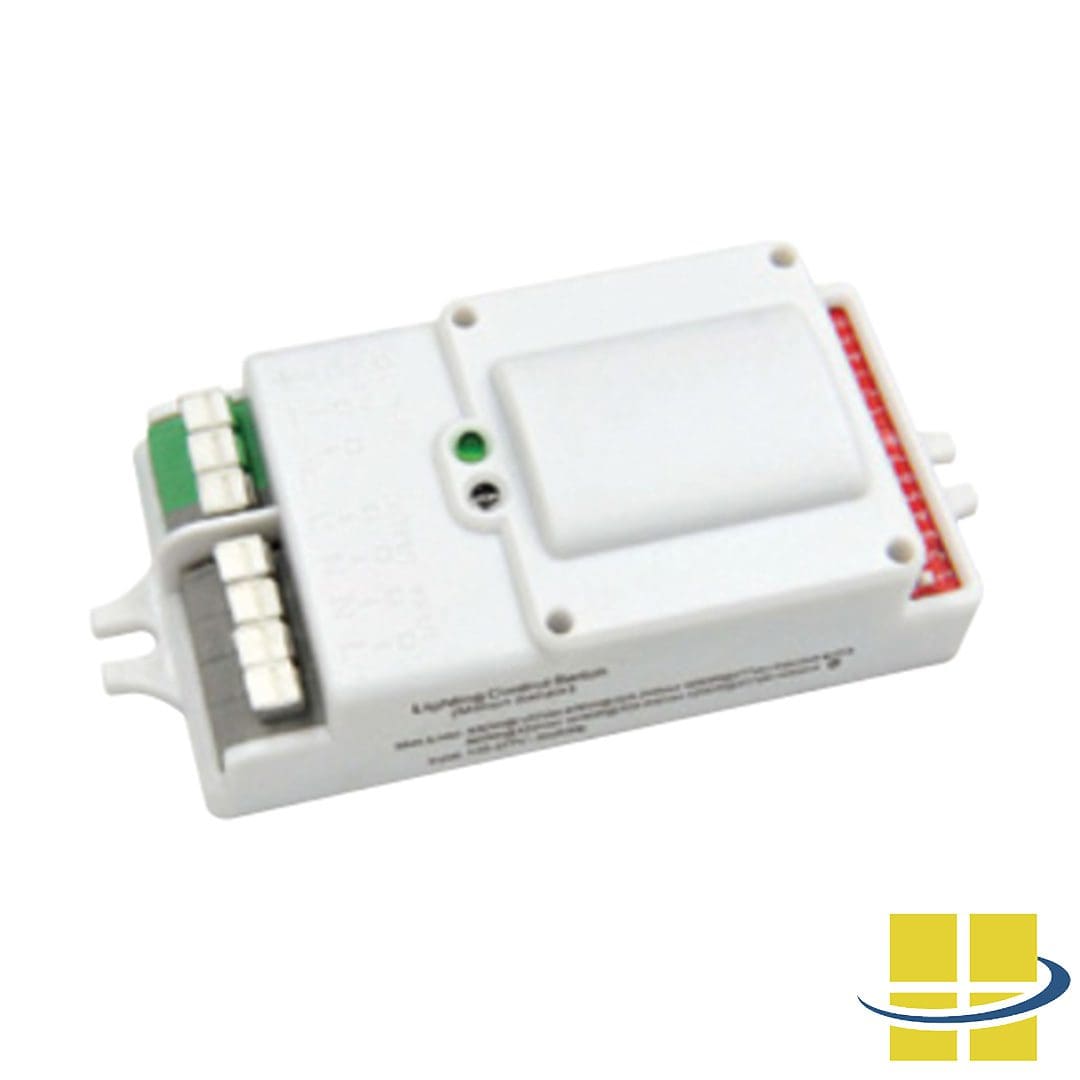

  • Microwave Sensor with Dimming (120-277V Only)

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

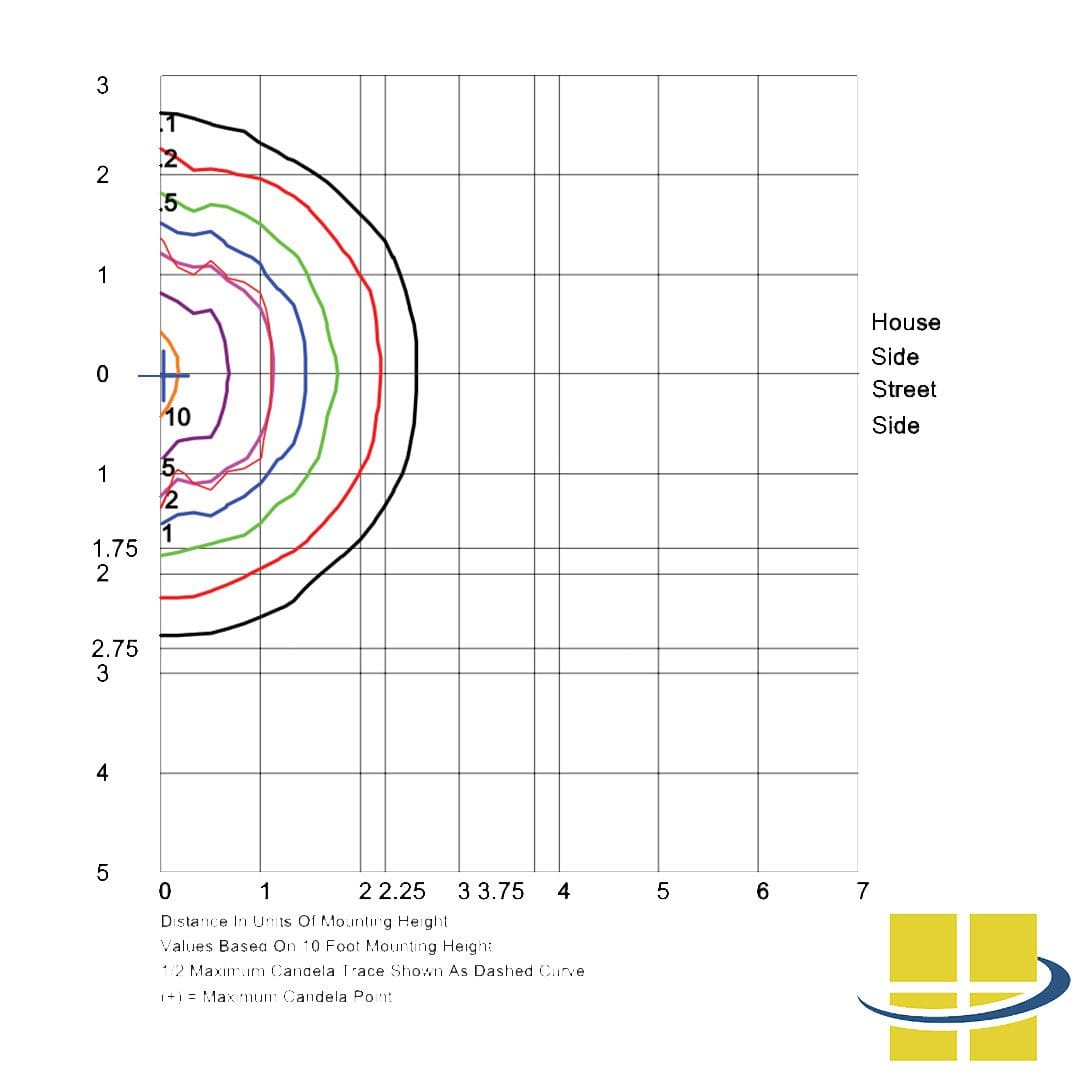

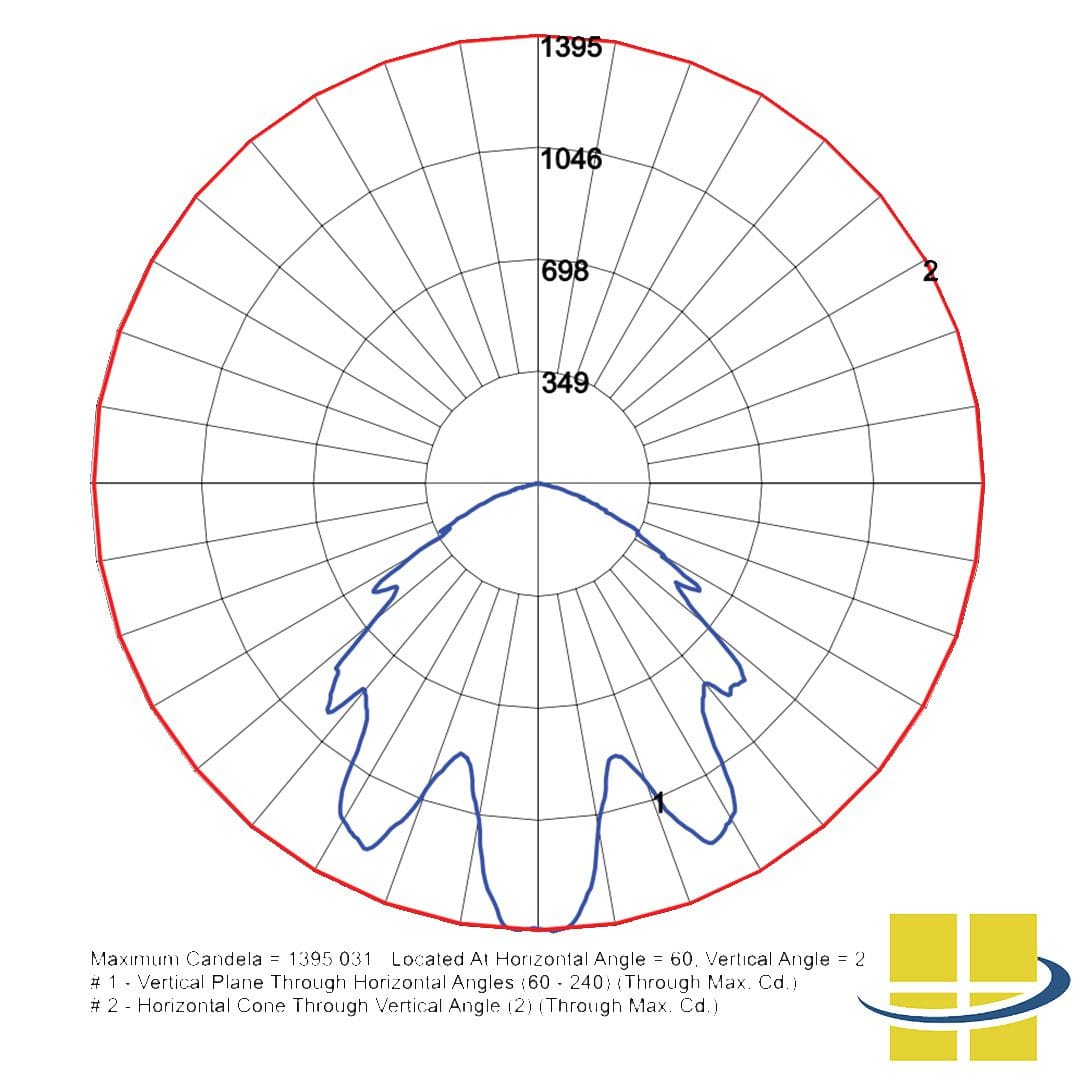

Need a Photometric Analysis for Your SARC 18w LED Square Bulkhead Grid Frame Wall Pack Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order a SARC 18w LED Wall Pack or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
