Product Specifications

Weight 14.11 lbs
Dimensions 17.40 × 16.73 × 6.30 in
Application

, ,

Availability

3 to 4 Week Production, plus Shipping

Light Source

, , ,

Available Finishes

Black, Gray

Housing

High-Grade Aluminum

Lens

Type I, Type V

Light Source Included

LED Array Included

Light Source Lumens

17640

Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA

Mounting

D Type Mounting, H Type Mounting, U Type Mounting

Optics

T10D, T1S, T20D, T40D, T5M, T5W, T60D, T90D

Product Family

ALTA

Rated Life

100,000 Hours

System Watts

120

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

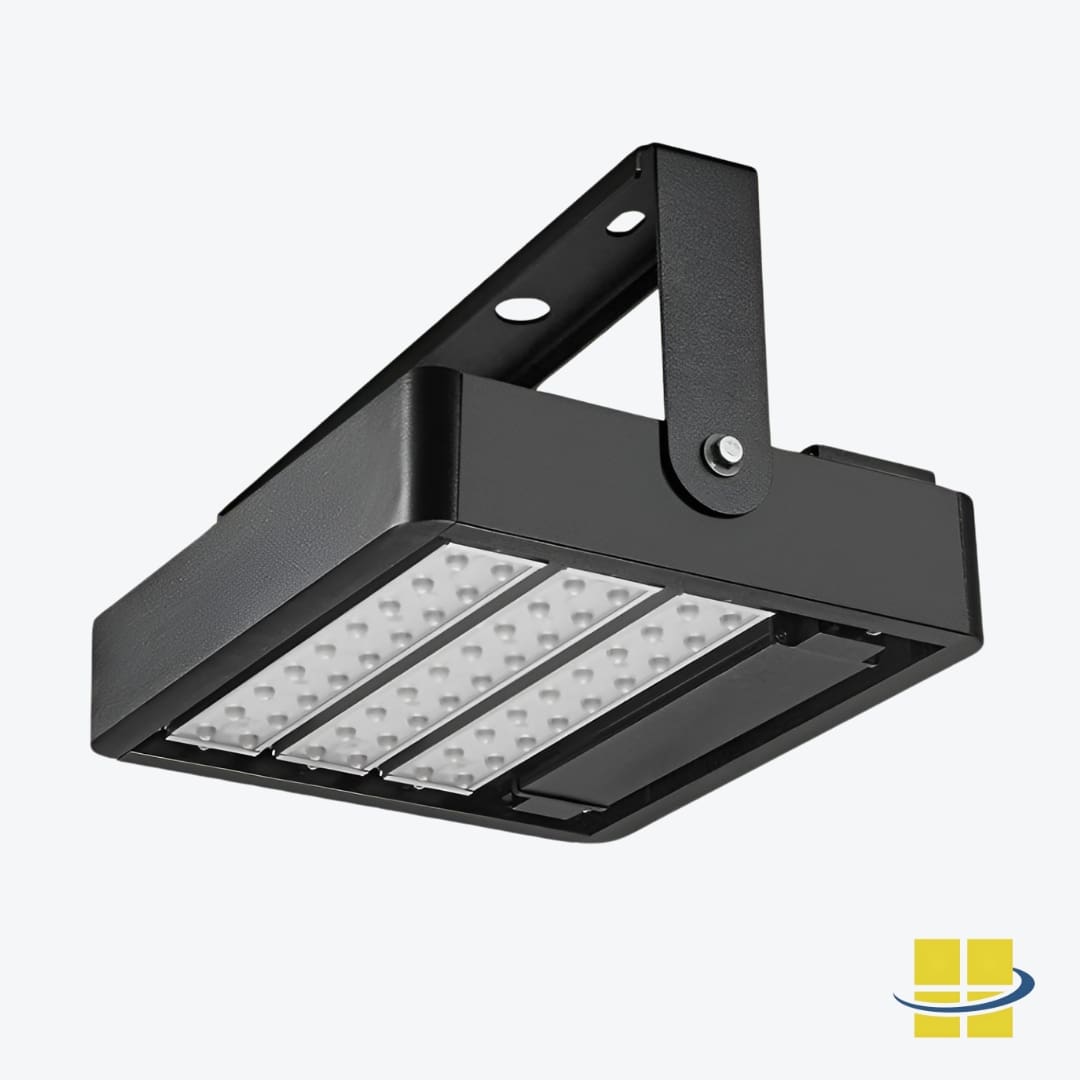

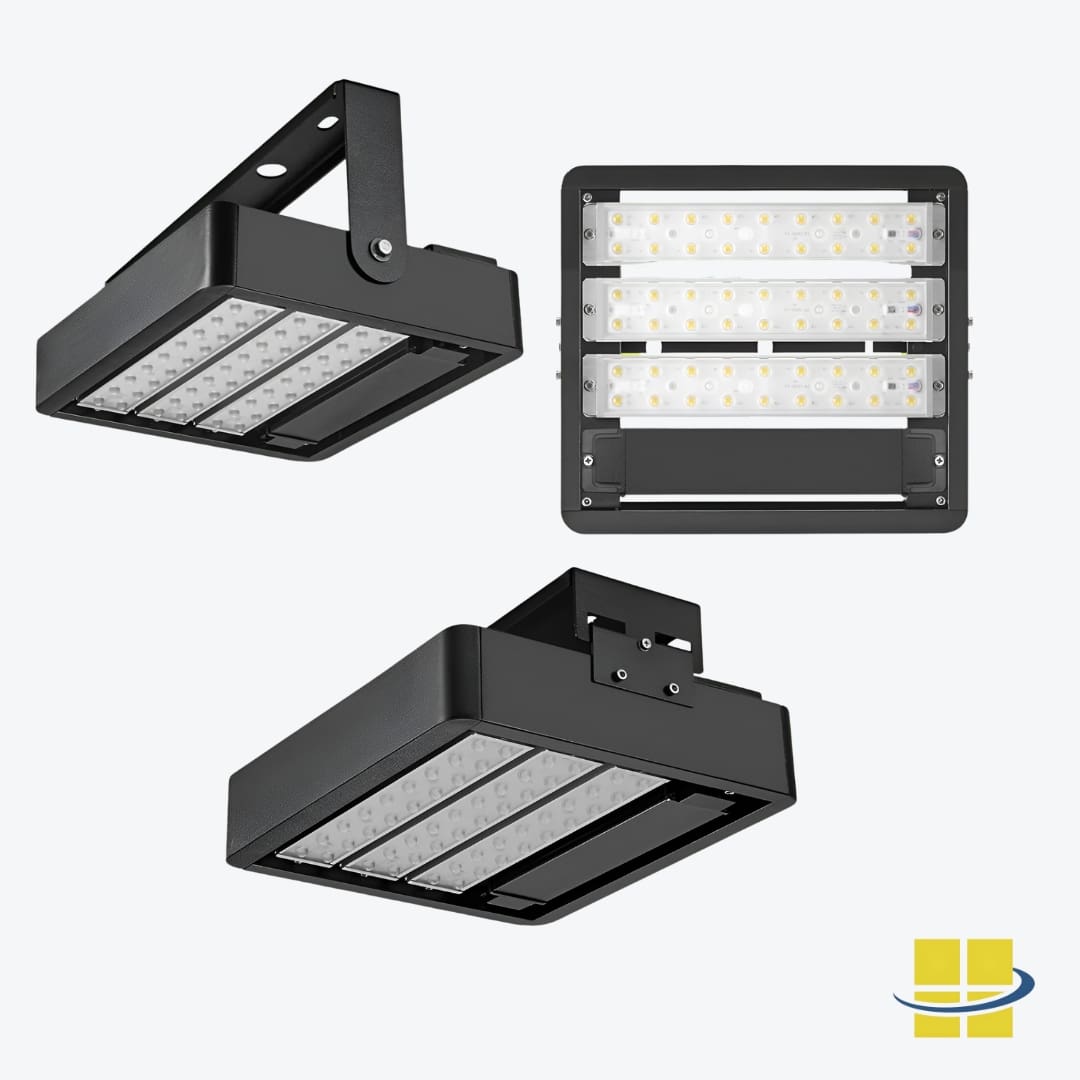

ALTA 120 LED High Heat High Bay Lights, Advanced Optics, EXTREME-LIFE

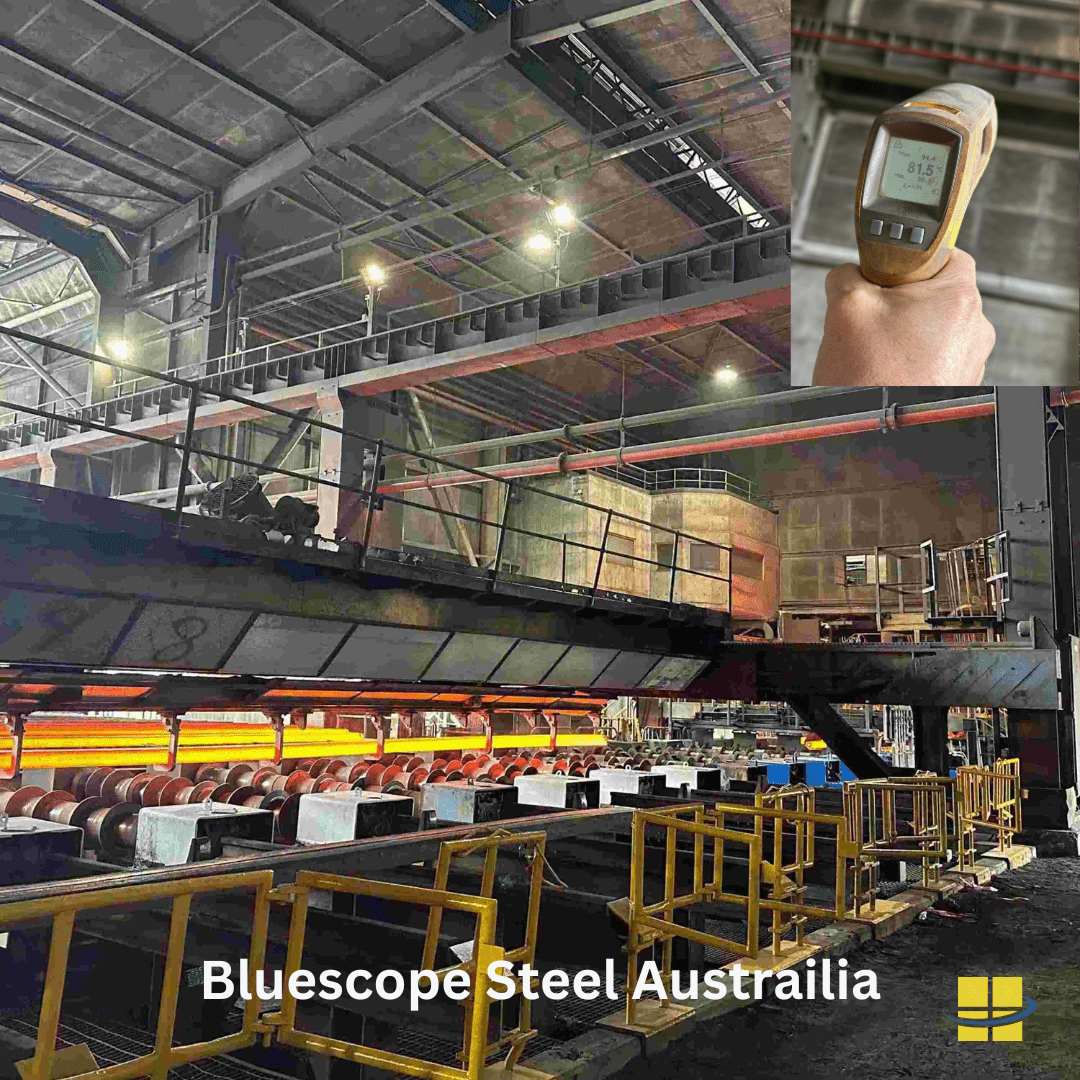

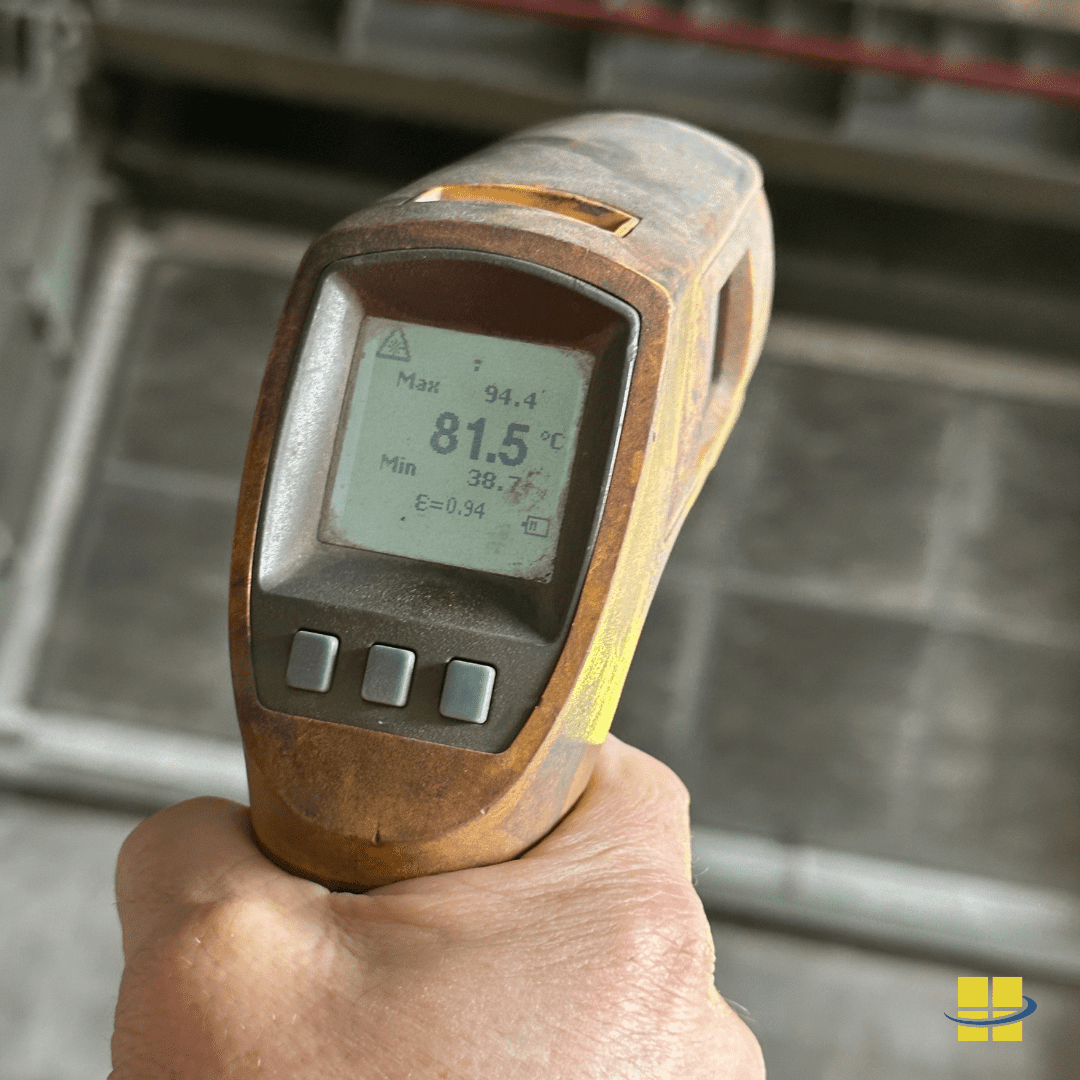

Designed to excel in ambient maximum temperature environments, this product features durable extruded aluminum construction with superior thermal performance and IP66 waterproof and dustproof certification. Its advanced optics deliver precise, waste-free light direction while minimizing light pollution. Engineered to operate in ambient temperatures up to 80°C with a removable driver, the LED drivers are easy to maintain, support multiple voltages (100–480VAC, 50/60Hz, and 530mA), and ensure reliable performance in extreme conditions. Finished with corrosion-resistant polyester powder paint, it meets strict certifications, including cULus, RoHS, and DLC Premium, making it the perfect solution for high-temperature applications.

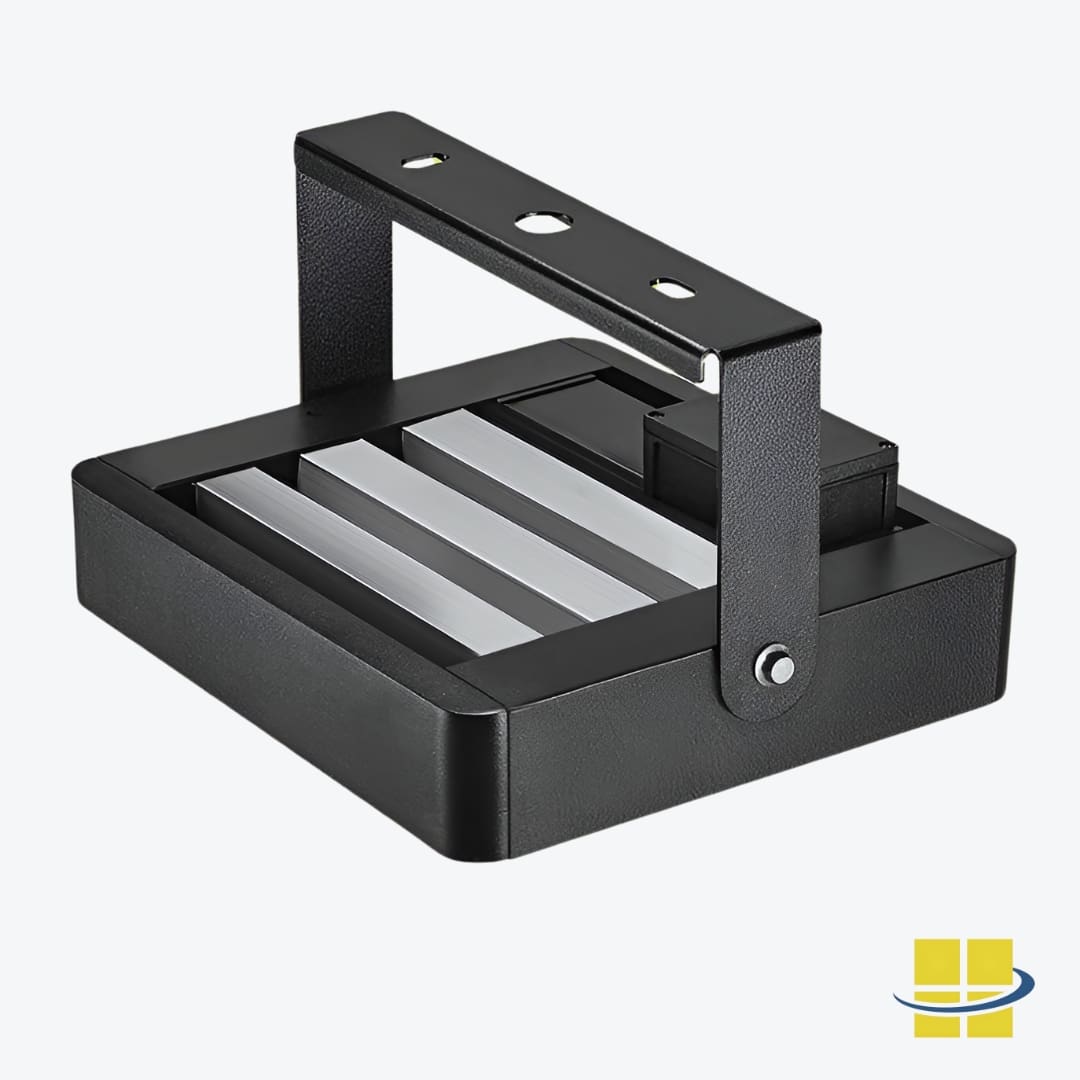

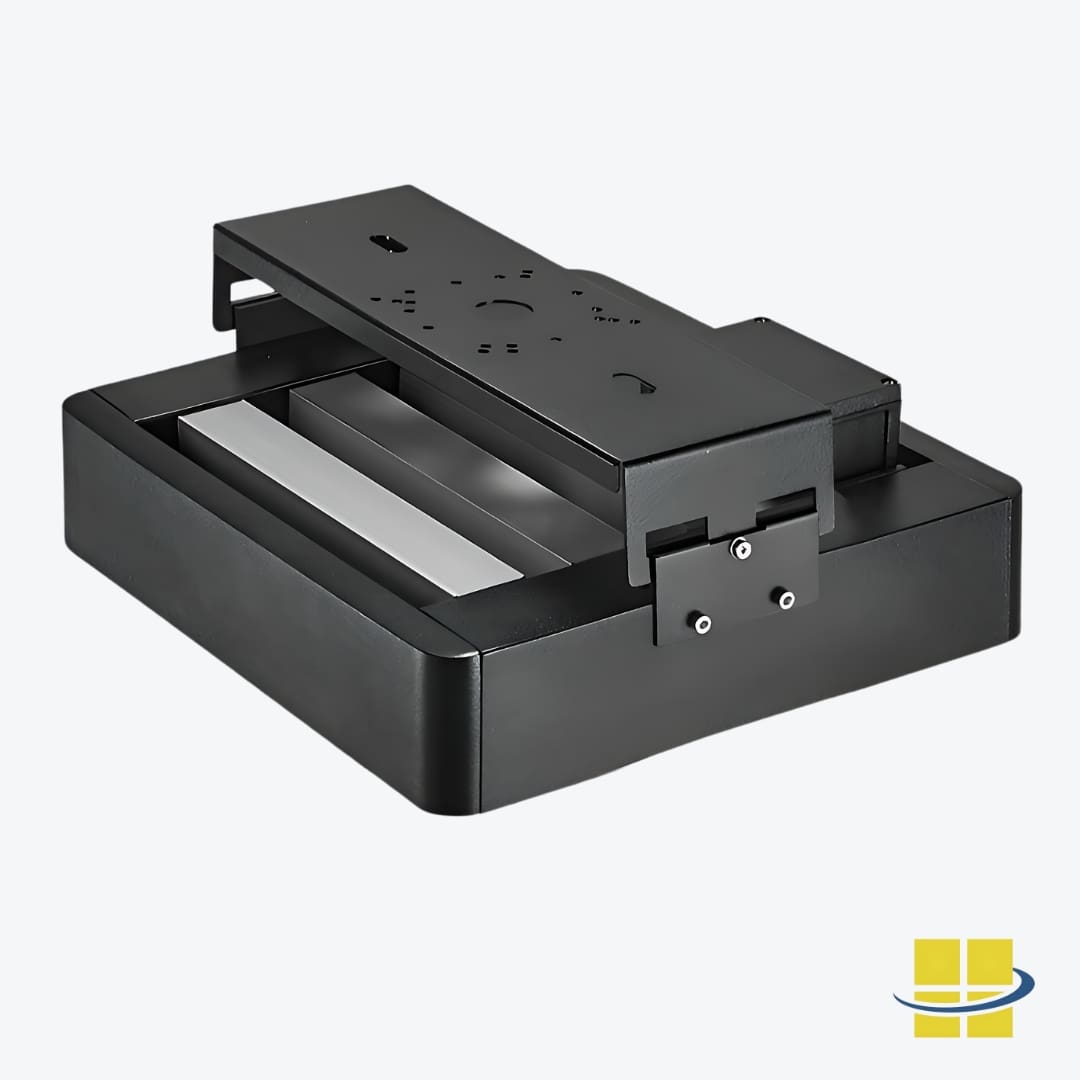

Durable Construction: Crafted from extruded aluminum housing with die-cast end caps and heat sinks, it ensures superior thermal performance, structural durability, and strength. The interlocking design is 3G vibration tested, IP66-rated for waterproof and dustproof protection, and offers exceptional longevity for this fixture.

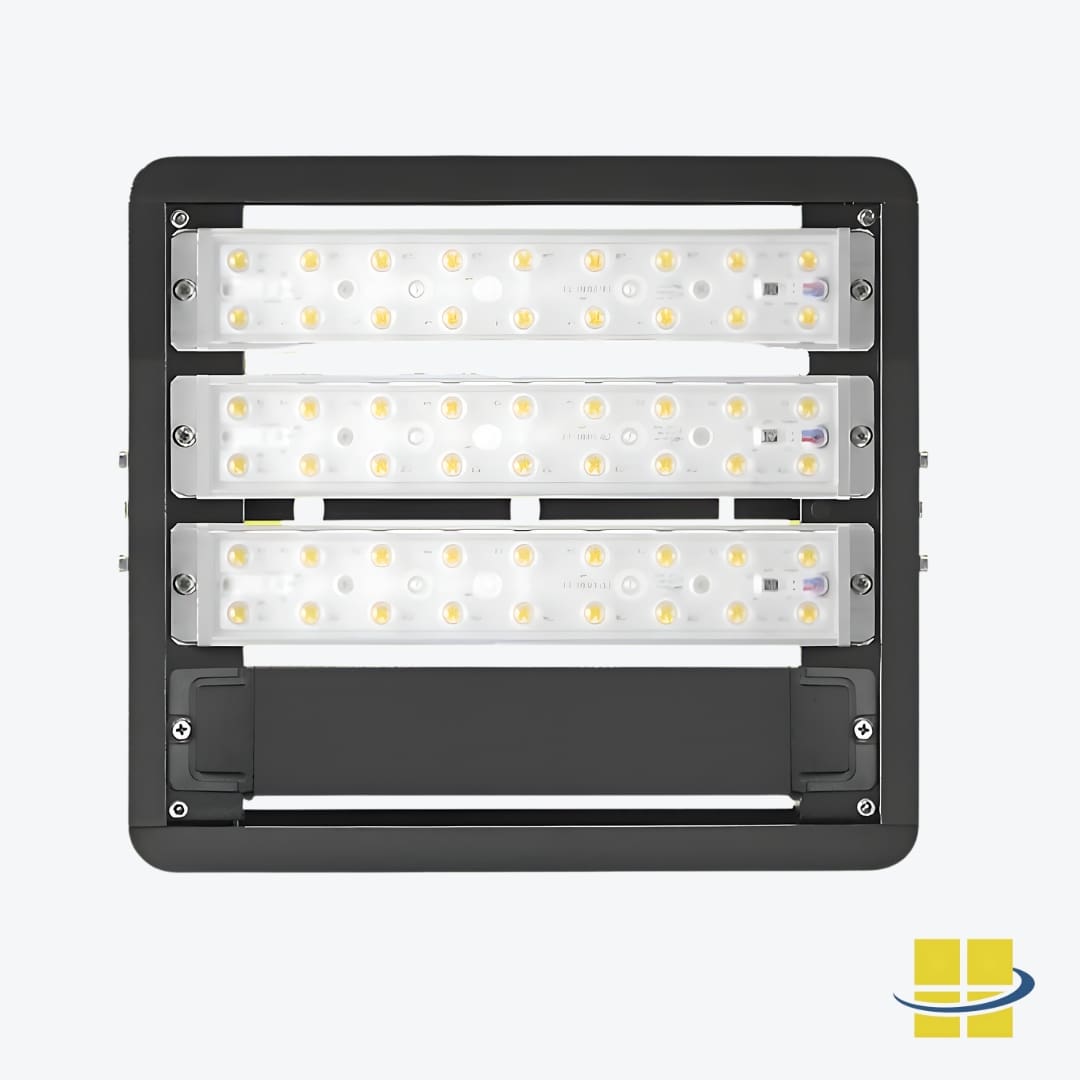

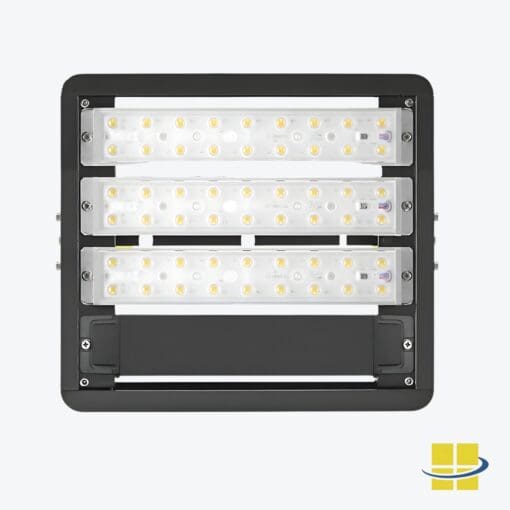

Advanced Optics: This technology ensures precise illumination with minimal waste. With 17 different optic options, you can focus light only where needed, reducing glare and minimizing light pollution.

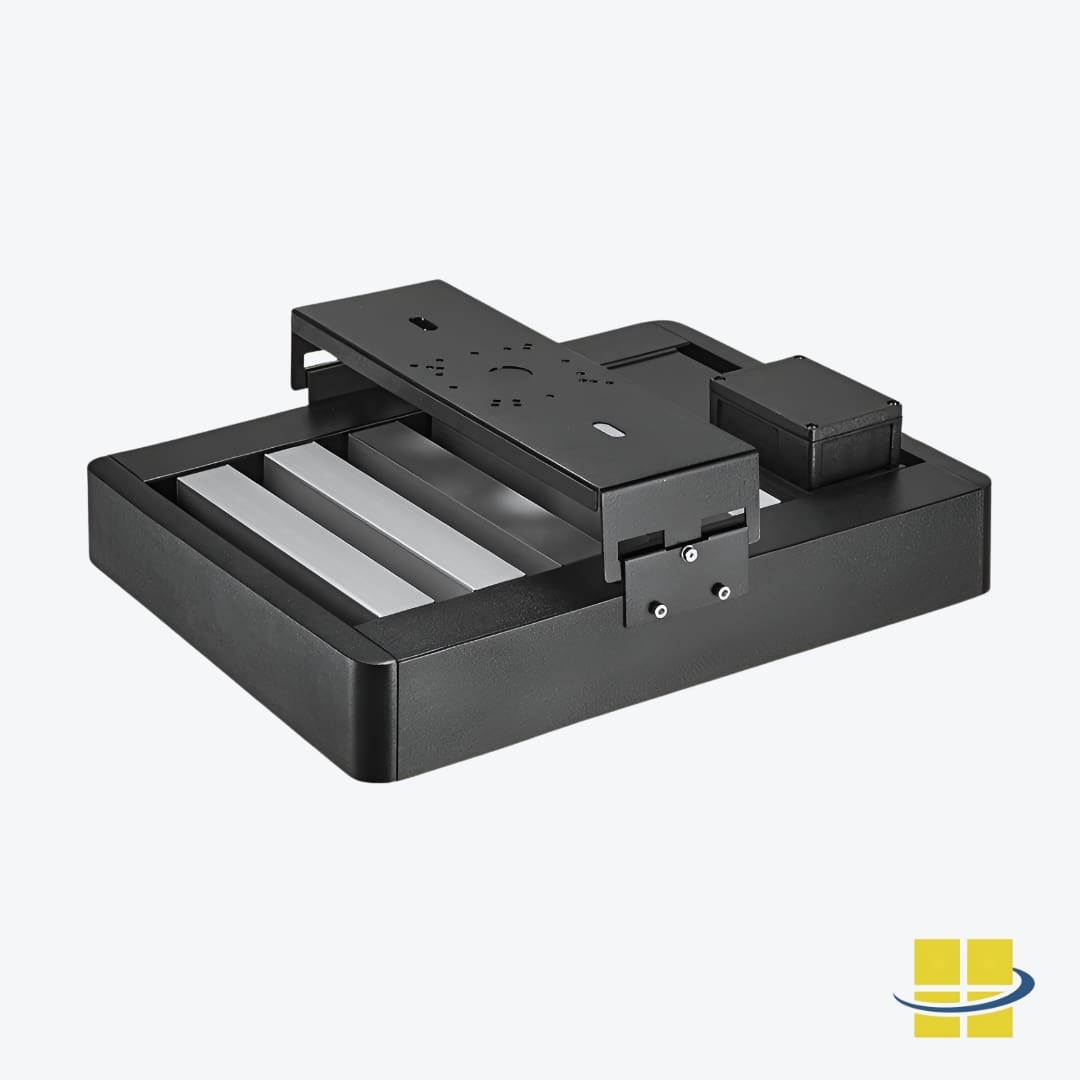

Removable LED Driver Tray Assembly: Designed for optimal performance, the removable tray assembly features a removable driver pack, ensuring effortless maintenance and quick access for servicing while effectively managing higher heat levels when the driver is removed, operates on 100-277VAC at 50/60Hz and is suitable for ambient temperatures for up to 80°C.



$799.87

In Stock

"*" indicates required fields

Black and Gray are standard colors. Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
ALTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.

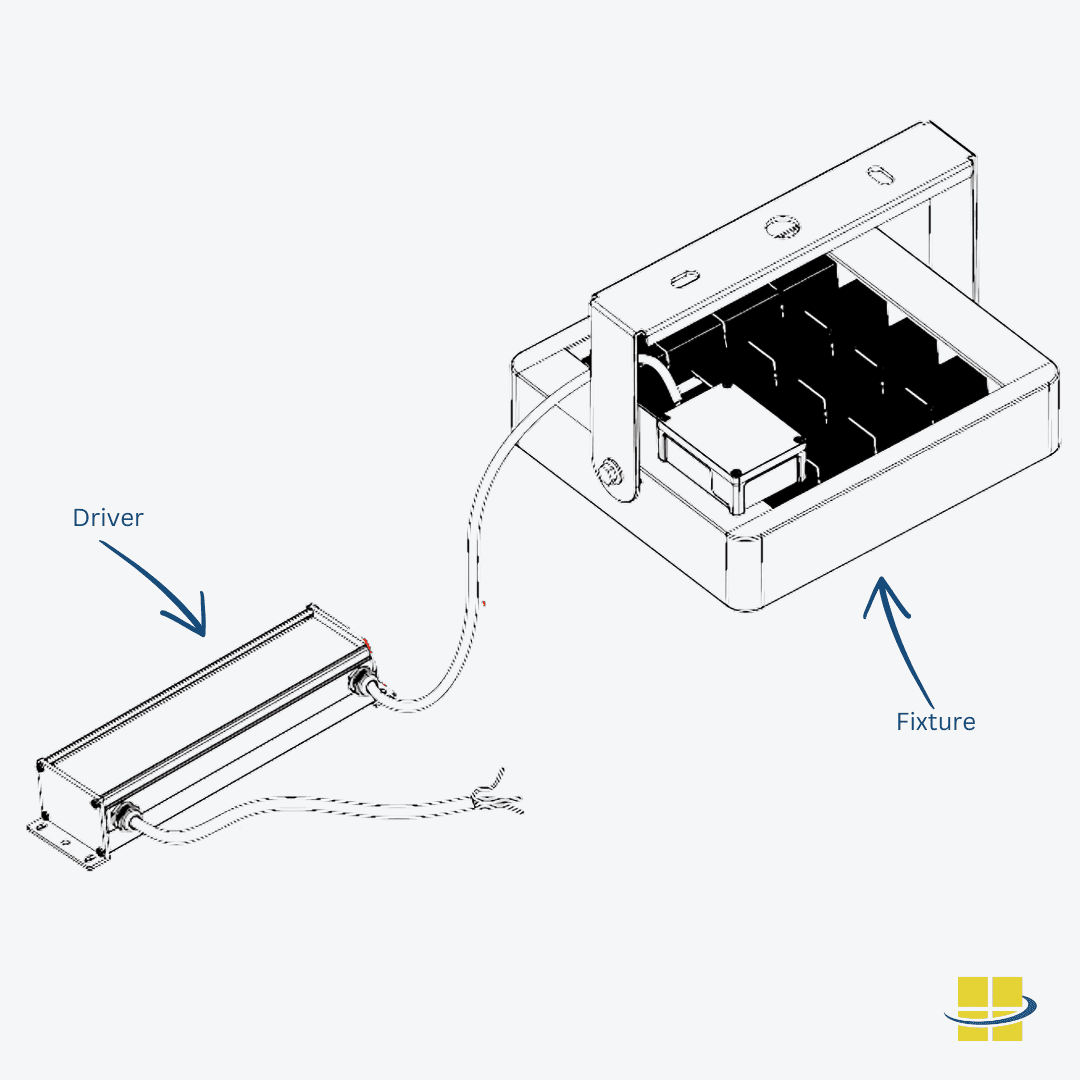

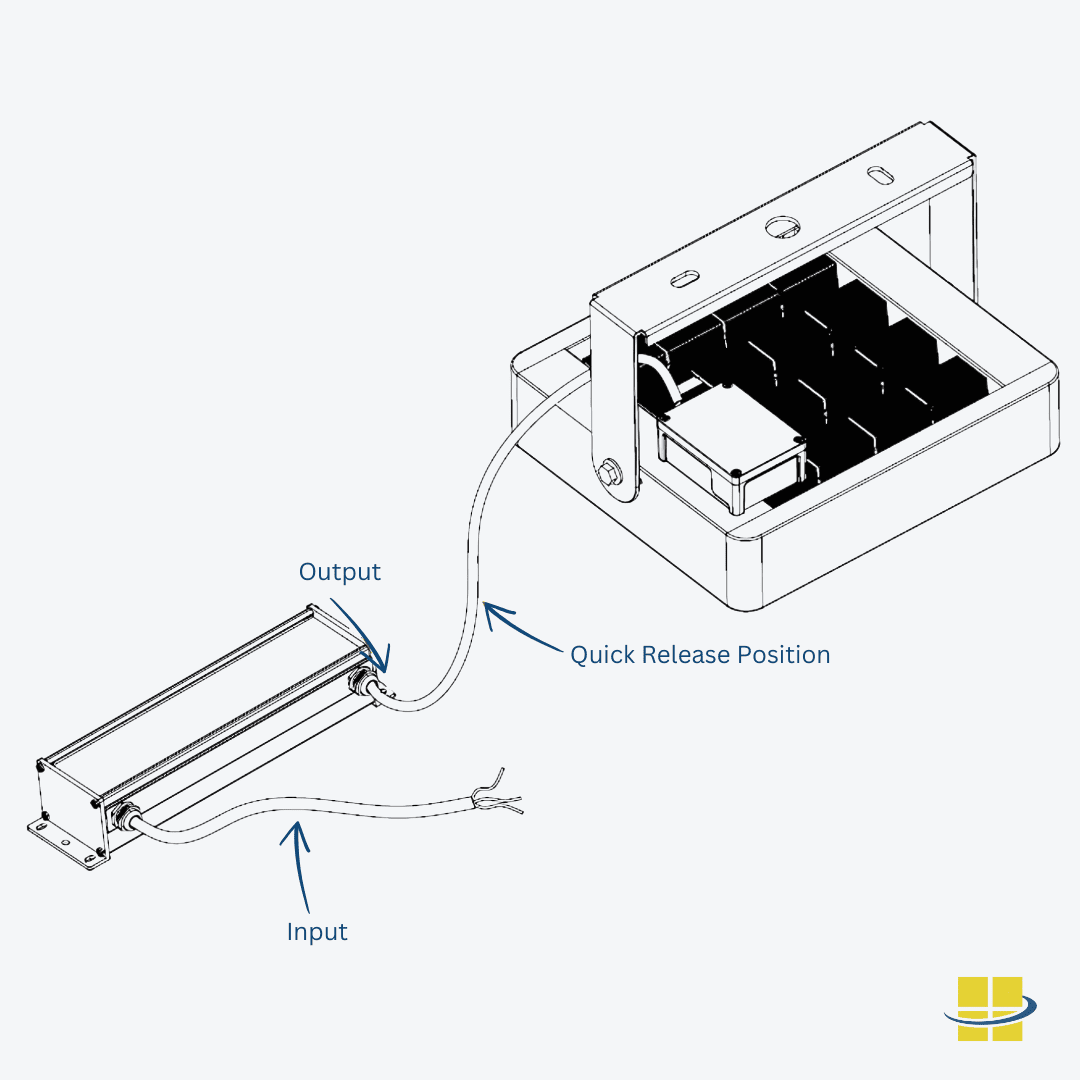

Remote LED drivers require a power cord that connects the light fixture to the remote driver. Select the length of the Remote Driver Cord using this dropdown. The maximum distance between the LED driver and the light fixture is 80 ft.
Do you need the ALTAs to stay on when the power goes out? If yes, add the Emergency Power Supply.
This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
Maximize energy savings and the life of the high heat high bay light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Total

Lead Time: 7 to 10 Day Production, plus Shipping

Product Specifications

Weight 14.11 lbs
Dimensions 17.40 × 16.73 × 6.30 in
Application

, ,

Availability

3 to 4 Week Production, plus Shipping

Light Source

, , ,

Available Finishes

Black, Gray

Housing

High-Grade Aluminum

Lens

Type I, Type V

Light Source Included

LED Array Included

Light Source Lumens

17640

Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA

Mounting

D Type Mounting, H Type Mounting, U Type Mounting

Optics

T10D, T1S, T20D, T40D, T5M, T5W, T60D, T90D

Product Family

ALTA

Rated Life

100,000 Hours

System Watts

120

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty
