Product Specifications
| Weight | 26.01 lbs |
|---|---|
| Dimensions | 332.17 × 16.73 × 6.30 in |
| Application | |
| Availability | 3 to 4 Week Production, plus Shipping |
| Light Source | 3000K – Neutral White, 4000K – Cool White, 5000K – Bright White, 5700K – Cinematography |
| Available Finishes | Black, Gray |
| Housing | High-Grade Aluminum |
| Light Source Included | LED Array Included |
| Light Source Lumens | 67,200 |
| Listings | IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA |
| Mounting | D Type Mounting, H Type Mounting, U Type Mounting |
| Product Family | ALTA |
| Rated Life | 100,000 Hours |
| System Watts | 480 |
| Voltage | 120v, 208v, 240v, 277v, 347v, 480v |
| Warranty | 5-Year Limited Warranty |

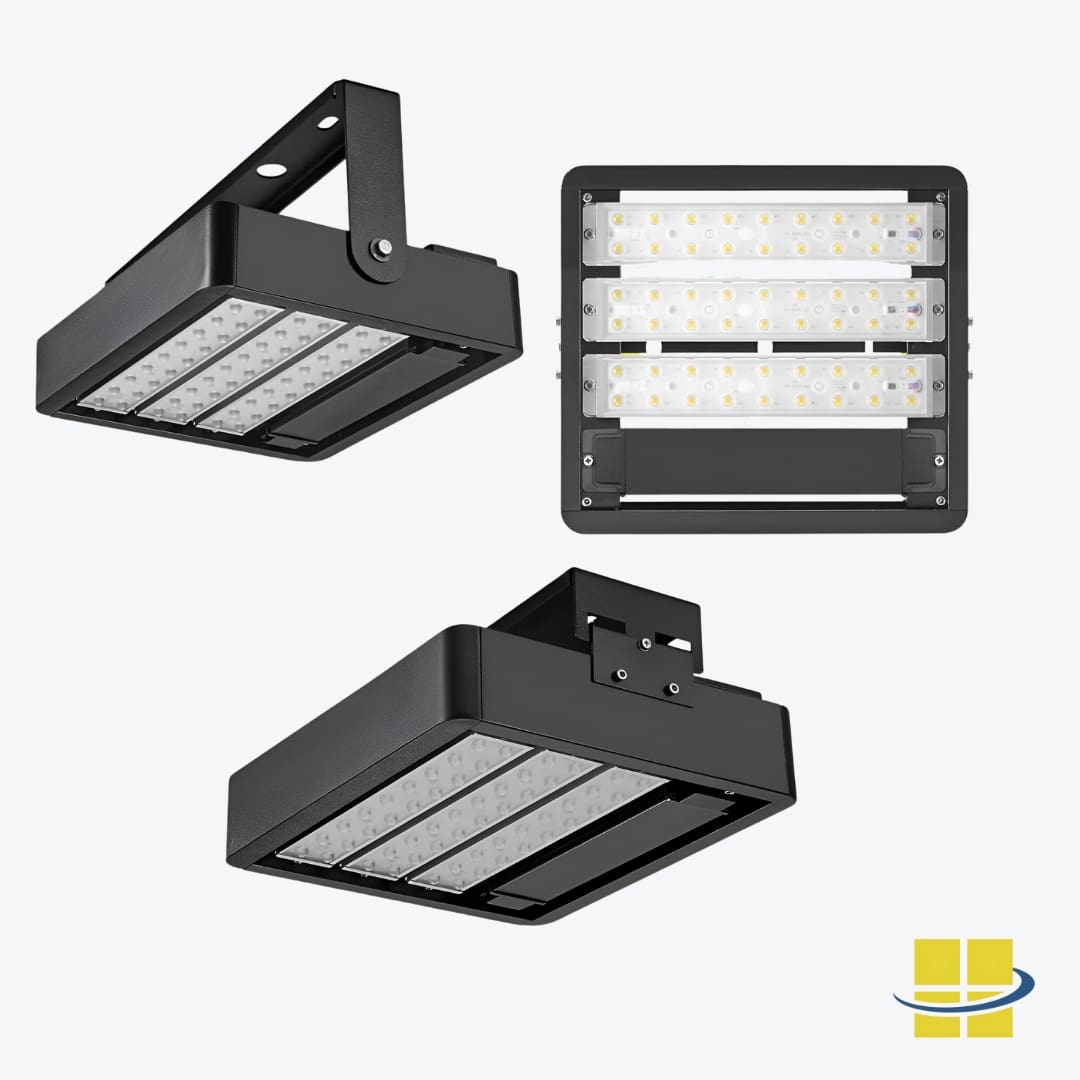

ALTA 480 LED High Heat High Bay Lights, Advanced Optics, EXTREME-LIFE
Designed to excel in ambient maximum temperature environments, this product features durable extruded aluminum construction with superior thermal performance and IP66 waterproof and dustproof certification. Its advanced optics deliver precise, waste-free light direction while minimizing light pollution. Engineered to operate in ambient temperatures up to 80°C with a removable driver, the LED drivers are easy to maintain, support multiple voltages (100–480VAC, 50/60Hz, and 530mA), and ensure reliable performance in extreme conditions. Finished with corrosion-resistant polyester powder paint, it meets strict certifications, including cULus, RoHS, and DLC Premium, making it the perfect solution for high-temperature applications.
Durable Construction: Crafted from extruded aluminum housing with die-cast end caps and heat sinks, it ensures superior thermal performance, structural durability, and strength. The interlocking design is 3G vibration tested, IP66-rated for waterproof and dustproof protection, and offers exceptional longevity for this fixture.
Advanced Optics: This technology ensures precise illumination with minimal waste. With 17 different optic options, you can focus light only where needed, reducing glare and minimizing light pollution.

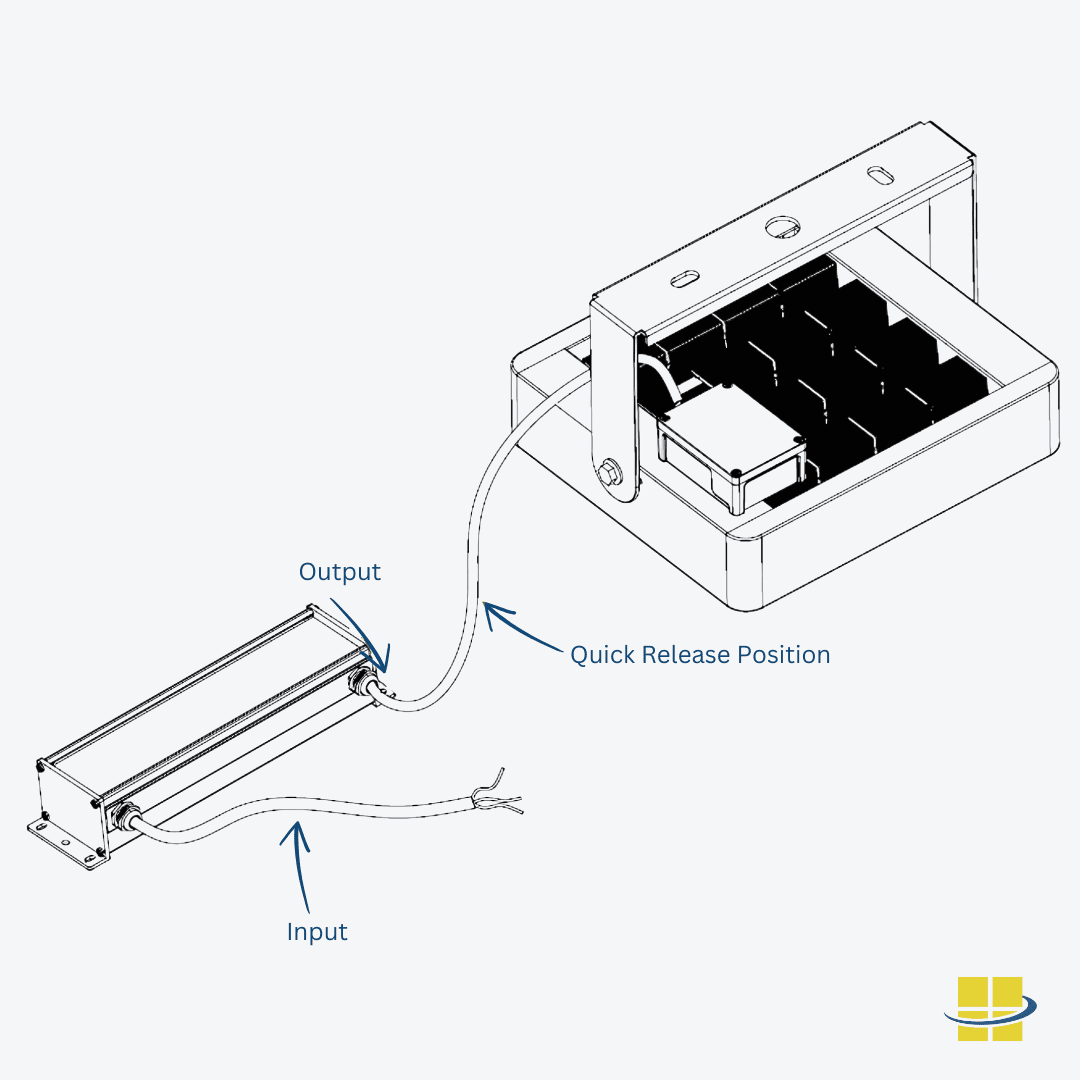

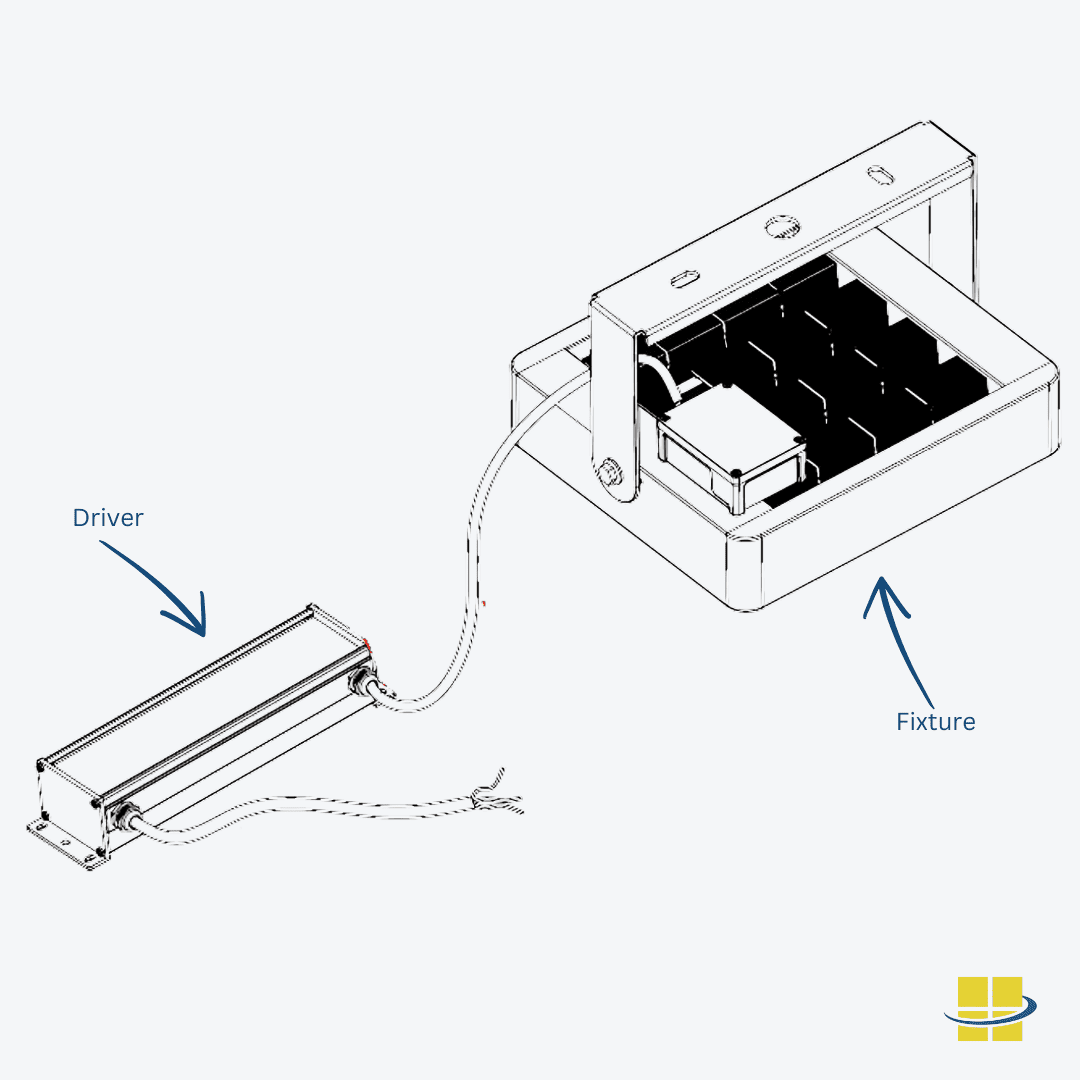

Removable LED Driver Tray Assembly: Designed for optimal performance, the removable tray assembly features a removable driver pack, ensuring effortless maintenance and quick access for servicing while effectively managing higher heat levels when the driver is removed, operates on 100-277VAC at 50/60Hz and is suitable for ambient temperatures for up to 80°C.
$2,499.87
Product Specifications
| Weight | 26.01 lbs |
|---|---|
| Dimensions | 332.17 × 16.73 × 6.30 in |
| Application | |
| Availability | 3 to 4 Week Production, plus Shipping |
| Light Source | 3000K – Neutral White, 4000K – Cool White, 5000K – Bright White, 5700K – Cinematography |
| Available Finishes | Black, Gray |
| Housing | High-Grade Aluminum |
| Light Source Included | LED Array Included |
| Light Source Lumens | 67,200 |
| Listings | IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA |
| Mounting | D Type Mounting, H Type Mounting, U Type Mounting |
| Product Family | ALTA |
| Rated Life | 100,000 Hours |
| System Watts | 480 |
| Voltage | 120v, 208v, 240v, 277v, 347v, 480v |
| Warranty | 5-Year Limited Warranty |
