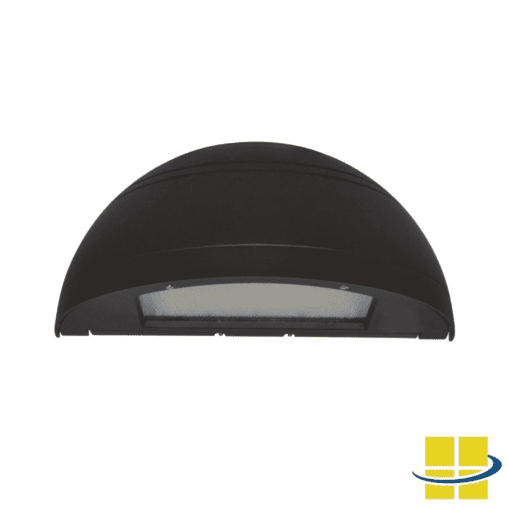

ANGY Quarter-Sphere Selectable 15-30-50-72w LED Wall Pack


ANGY Quarter-Sphere Full Cut Off LED Wall Packs are architecturally wall packs with field selectable wattage to get the correct amount of light emitted every time. Thses wall packs are Dark Sky Compliant when ordered with 3000 Kelvin LEDs.


Architectural Excellence – Full cut off optics housed in a Quarter-Sphere architectural housing

Low Glare – Glare reduction lens provides superior light distribution while minimizing glare

Selectable Wattage – Select 15, 30, 50 or 72 watts for 1,750 to 8,407 lumens with the flick of a switch


Questions? Contact a lighting specialist.

Call 800-468-9925

In Stock

SKU: AF55XSML303FTV/xK Category: Tags: ,


Weight 16 lbs
Dimensions 22 × 13 × 13 in

Typically ships in 7-10 business days

Light Source

, ,

Available Finishes

Bronze, Custom RAL

Color Rendering Index (CRI)



Die-cast aluminum housing


Glare Reduction Lens

Light Source Included

LED Array Included

Light Source Lumens

1,750, 3,450, 5,750, 8,407


CuL Listed, DLC Listed, IP65, UL Listed


Surface Mount

Mounting Height

10 ft., 15 ft., 20 ft.

Product Family


Rated Life

50,000 Hours

System Watts

15, 30, 50, 72


120v, 208v, 240v, 277v


5-Year Limited Warranty


Full Cutoff

Product Description

ANGY Quarter-Sphere Selectable Wattage LED Wall Pack Features:

  • Selectable wattage – 15w, 30w, 52w, and 72w
  • Choice of Kelvin – 3000K, 4000K, or 5000K
  • Glare reduction lens
  • Die-cast aluminum housing
  • 8 Stage UV stabilized powdercoat bronze finish
  • 120-277v
  • 8,407 lumens at 72 watts and 5000K
  • L70 @ 50,000 hours
  • 6kV Surge protection standard
  • Operating/starting range of -40°C to +50°C (-40°F to 122°F)
  • IP65 rated
  • 1 person install surface mount
  • 70+ CRI (learn more about Color Rendering Index here)
  • DLC, CE, UL, and CUL Listed

ANGY Quarter-Sphere Selectable Wattage LED Wall Pack Options:

  • Photocell
