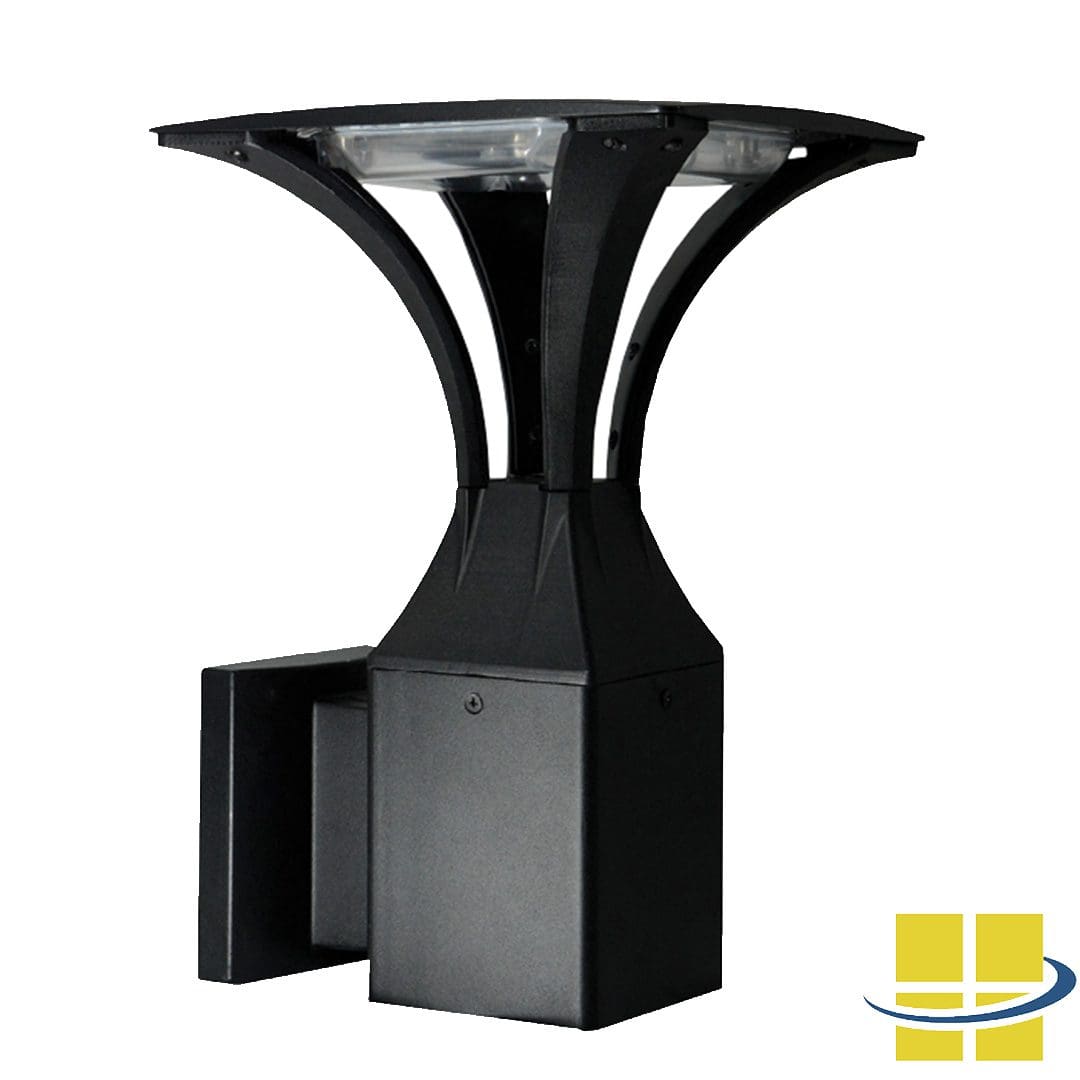

ATRI 27w LED Square Open Cutoff Wall Sconce, EXTREME-LIFE


The ATRI 27w LED Square Open Architectural Exterior Wall Sconce features are an ideal solution for ambient, egress, and security lighting for commercial and residential building exteriors such as retail centers, schools and universities, office buildings, medical facilities, and more. ATRI features an elegant look, an IP66 rating, and a remarkable 187,000-hour rated life.  The LED chips provide up to 1,813 lumens of shadow-free illumination and because there is no outer lens, there is no risk for condensation build-up.

Optic Design: Features a single downward-facing LED array at the top of the fixture, emitting 1,813 lumens in a medium beam spread – sending light exactly where it is needed.

EXTREME-LIFE:  ATRI is EXTREME-LIFE L70 rated at 187,000 hours, making it virtually maintenance-free.

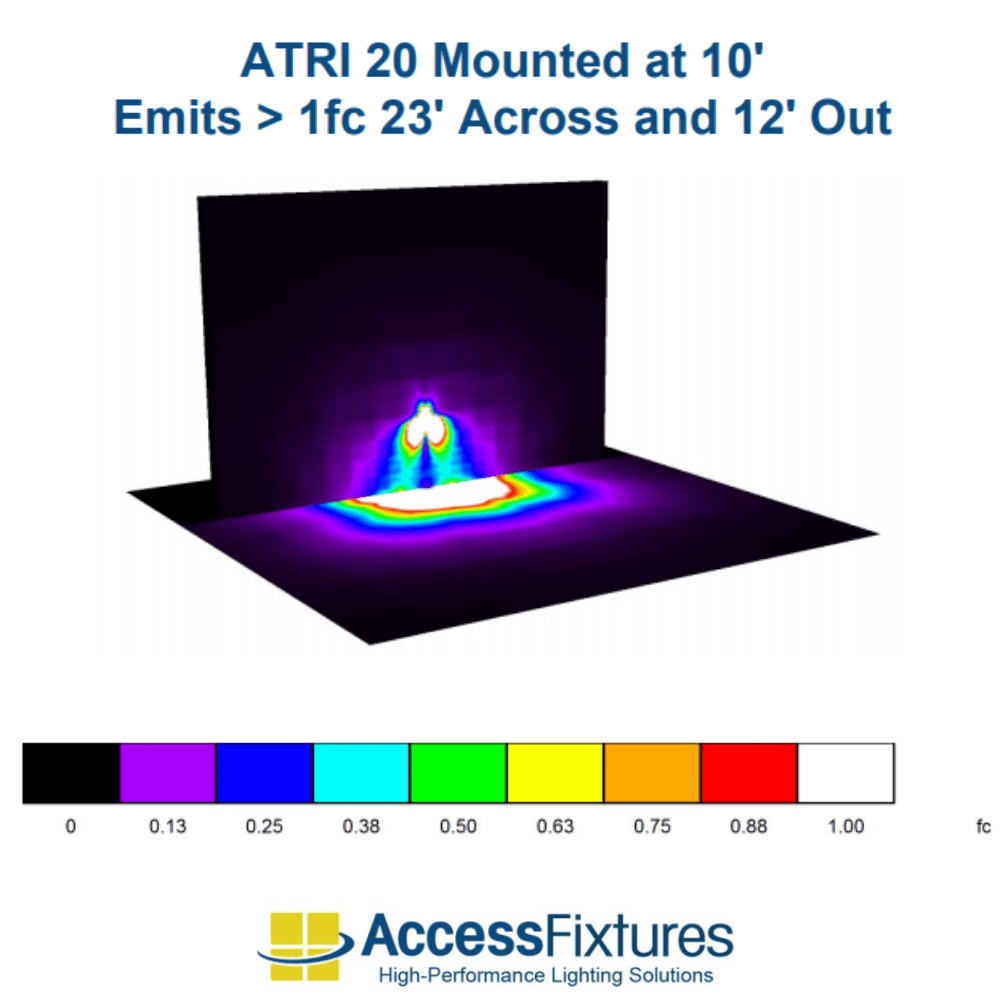

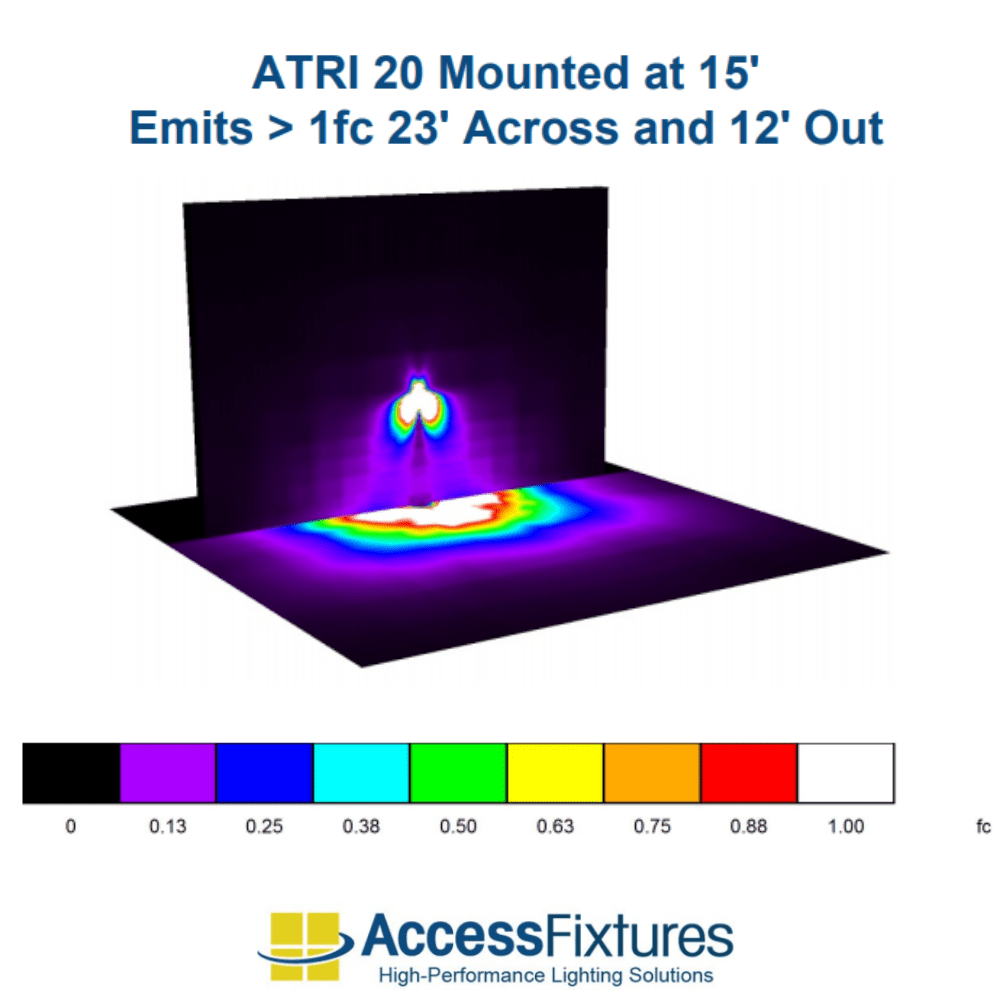

Even Lighting: Mounted at 10′, ATRI emits >1fc 23′ Across and 12′ Out. Mounted at 15′ ATRI emits >1fc 23′ Across and 12′ Out; providing you with incredibly even light.

Buy American Act Compliant

In Stock

  • Total


Weight 15 lbs

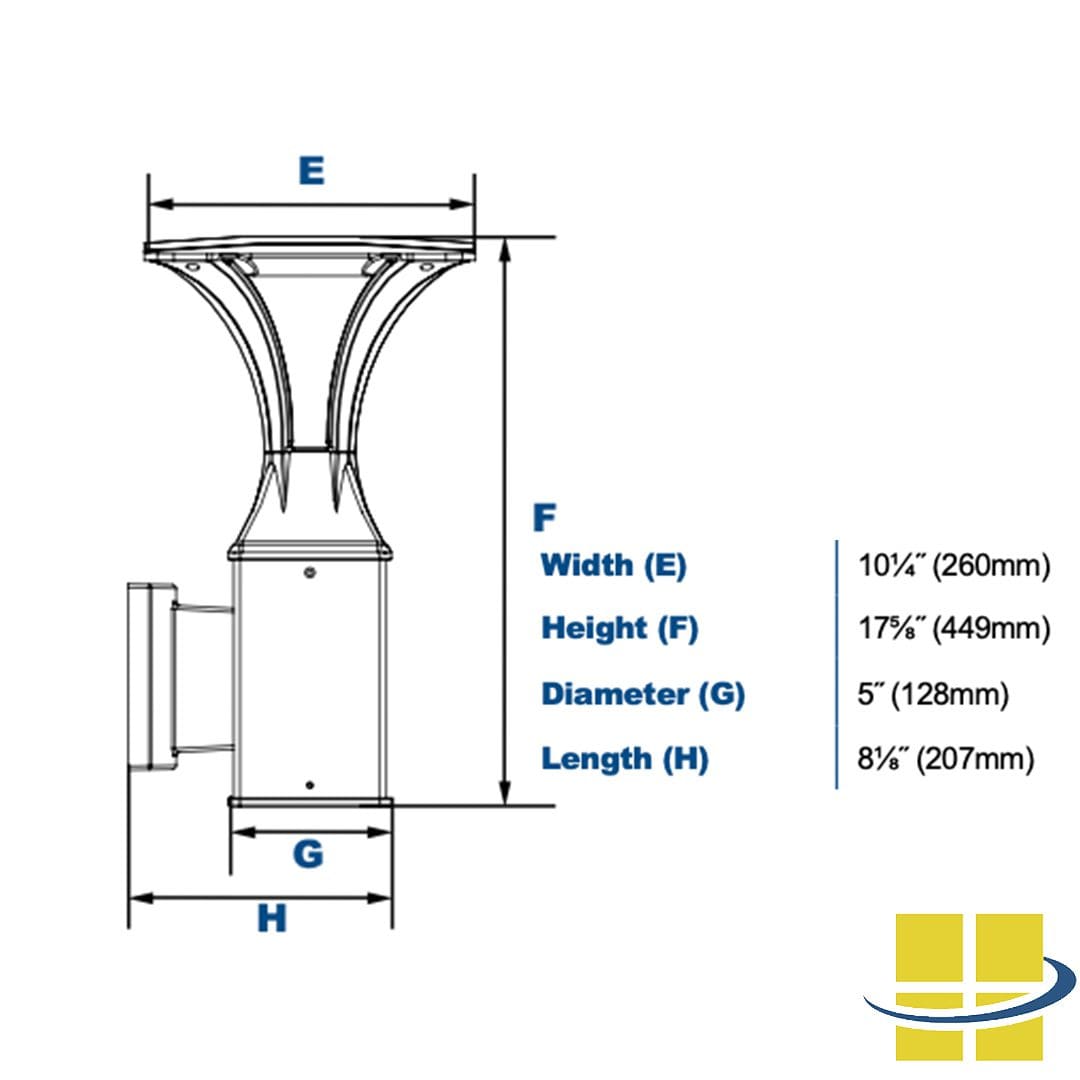

Dimensions 20 × 15 × 5 in

7 to 10 Day Production, plus Shipping

Available Finishes

Black, Bronze, Custom RAL

BUG Rating

1, 3, 1

Color Rendering Index (CRI)



Die-cast aluminum housing with flush-mount, easy-hang wall bracket. Built-in level. Powdercoat finish over a chromate conversion coating. Sealed driver compartment.


Clear polycarbonate lens, Opalescent polycarbonate diffuser lens

Light Source

, ,

Light Source Included

LED Array Included

Light Source Lumens



IP66, CSA: Listed for wet locations


Mounts over 4-inch electrical box

Mounting Height


Product Family



Full Cutoff

System Watts



120v, 208v, 240v, 277v


5-Year Limited Warranty

Product Description


  • 27w integrated LED
  • 2,719 lumens
  • Die-cast aluminum housing with flush mount easy-hang wall bracket, built-in level, flat top.
  • Photocell Adaptable
  • CSA listed for wet locations
  • ANSI/UL 1598, 8750
  • IP66-rated
  • EXTREME-LIFE L70 @ 187,000 hours
  • Textured architectural bronze or black powder coat finish over a chromate conversion coating
  • Clear UV-stabilized polycarbonate or Opal UV-stabilized polycarbonate vandal-resistant inner lens

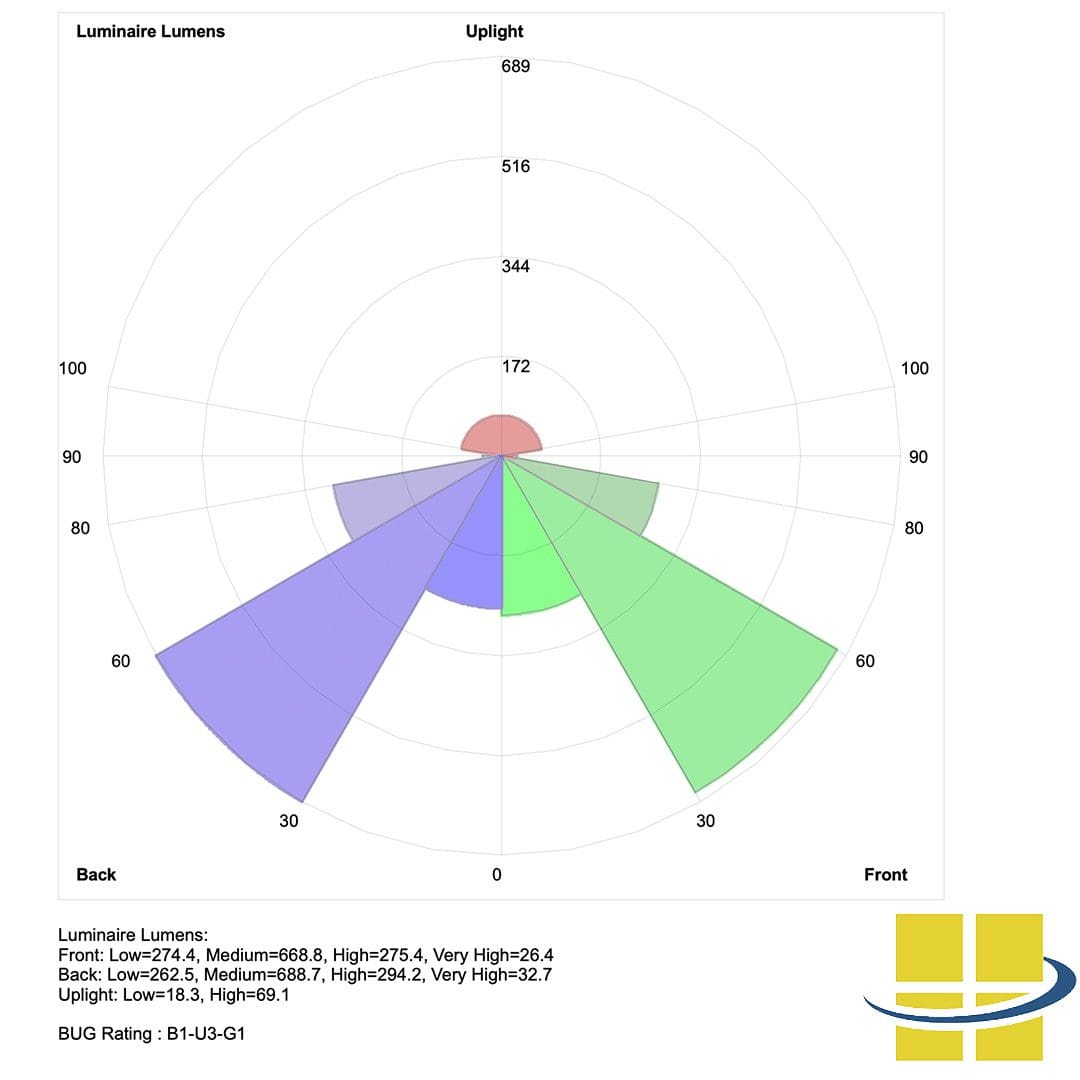

  • BUG Rating: 1, 3, 1
  • Mount over 4″ recessed outlet box
  • Aluminum boards
  • Electronic driver, 120-277v, 50/60Hz
  • Optional battery backup
  • CRI 80+ (learn more about Color Rendering Index here)
  • Rated for use in temperatures between -40°C and +50°C
  • 5-year warranty


  • Choice of finish color: bronze, black, custom RAL
  • Choice of Kelvin Temperature: 3000K, 4000K, or 5000K (learn more here)
  • Choice of Lens: Clear shatter-resistant polycarbonate lens or Opalescent shatter-resistant polycarbonate lens
  • Surge Protection
  • Battery backup

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

Need a Photometric Analysis for Your ATRI 27w LED Square Open Architectural Wall Sconce Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order ATRI 27w LED Square Open Architectural Wall Sconce or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
