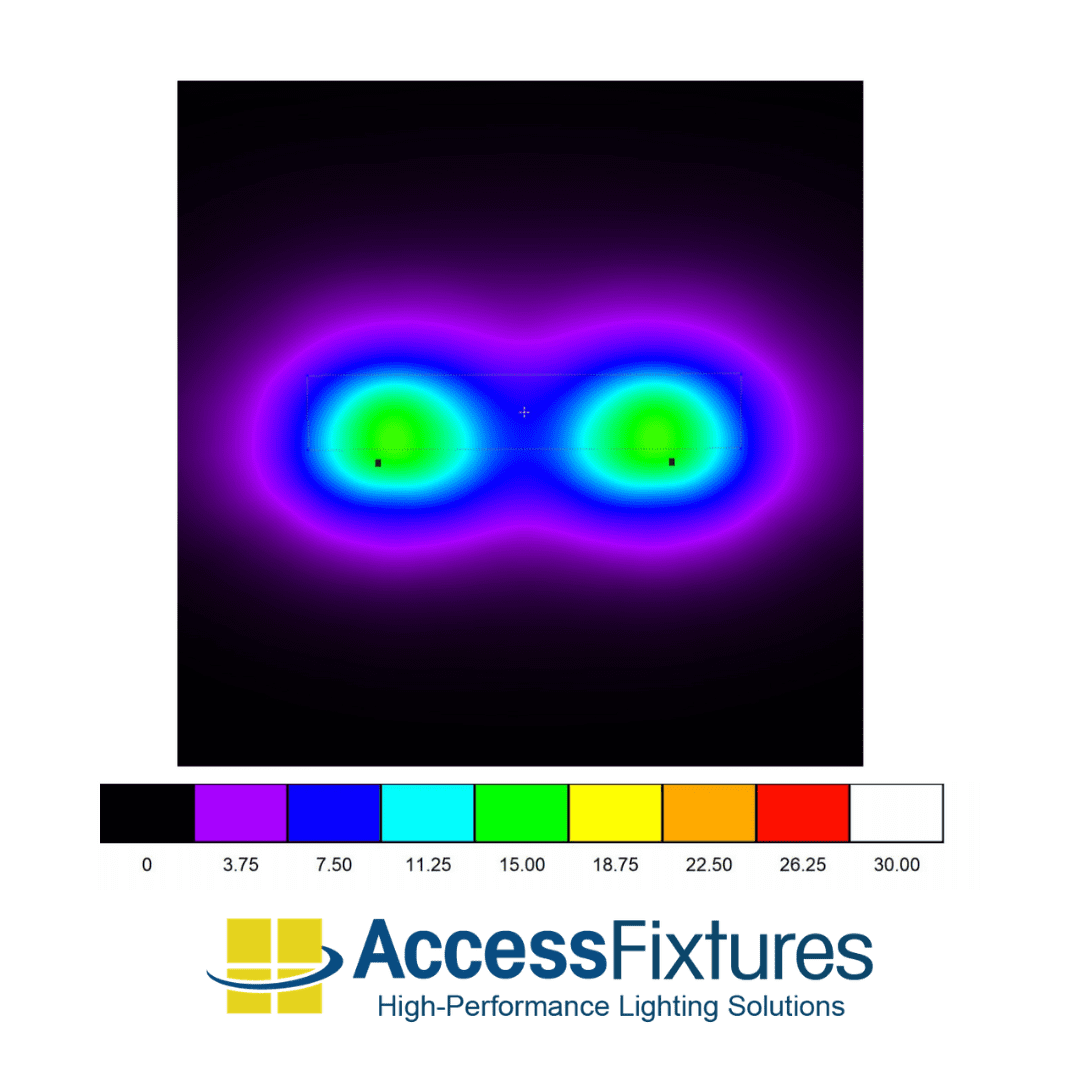

Bocce LED Lighting – 2 Pole 12′ x 70′, 11fc, 2.83 max/min

$3,224.30

The Bocce LED Lighting – 2 Pole 12′ x 70′, 11fc, 2.83 max/min is a bocce court lighting solution for homeowners and recreational facilities.

Choice of Kelvin: This bocce court lighting package offers a choice of 3000K, 4000K, or 5000K.

Dark Sky Compliant: The CARO, when selected in 3000K, makes this package dark sky compliant.

Great Value: This is Access Fixtures’ lowest-cost bocce court lighting package available in dark sky style.

In Stock

SKU: AF55XLED6098A0178(2)+POLZ(2) Categories: , Tag:


Specifications

Weight 100 lbs
Dimensions 50 × 50 × 50 in
Availability

Typically ships in 2-4 weeks

Light Source

, ,

Available Finishes

Bronze

Ballast/Driver

700mA Driver

Color Rendering Index (CRI)

80+

Light Source Included

LED Array Included

Listings

CUL, DLC Premium, IP65, RoHS, UL

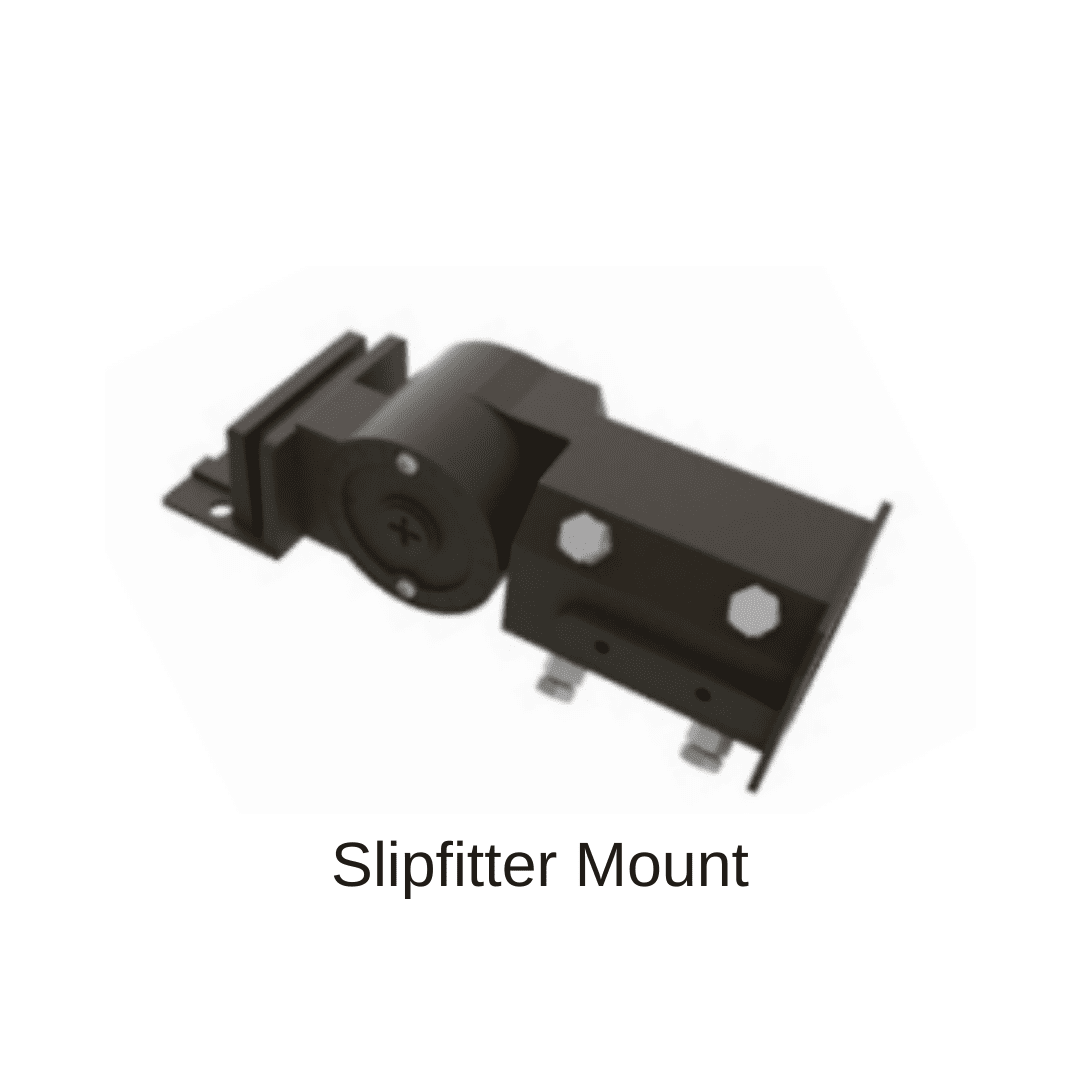

Mounting

Slip Fitter

Product Family

CARO

Rated Life

50,000 Hours

Reflector

Optical Polycarbonate

Sports Level of Play

Recreation

Average Footcandles

11

Max/Min Uniformity

2.83

Number of Courts

1

Number of Fixtures

2

Number of Poles

2

Pole Height

16 Feet

Vendor

AF33X, AF55X

Warranty

5-Year Limited Warranty

Voltage

120-277v

Light Source Lumens

27,612

Product Description

The Bocce LED Lighting – 2 Pole 12′ x 70′, 11fc, 2.83 max/min is a bocce court lighting solution for homeowners and recreational facilities.

Choice of Kelvin: This bocce court lighting package offers a choice of 3000K, 4000K, or 5000K.

Dark Sky Compliant: The CARO, when selected in 3000K, makes this package dark sky compliant.

Great Value: This is Access Fixtures’ lowest-cost bocce court lighting package available in dark sky style.

CARO 178 Features:

  • Die cast aluminum housing
  • CSA, ANSI/UL listed
  • 80+ CRI
  • Dimmable 0-10v
  • 21,500 lumens
  • 50,000 hour L70 rated life
  • IP65 Rated: protected from total dust ingress; protected from high pressure water jets from any direction
  • Bronze powdercoat finish

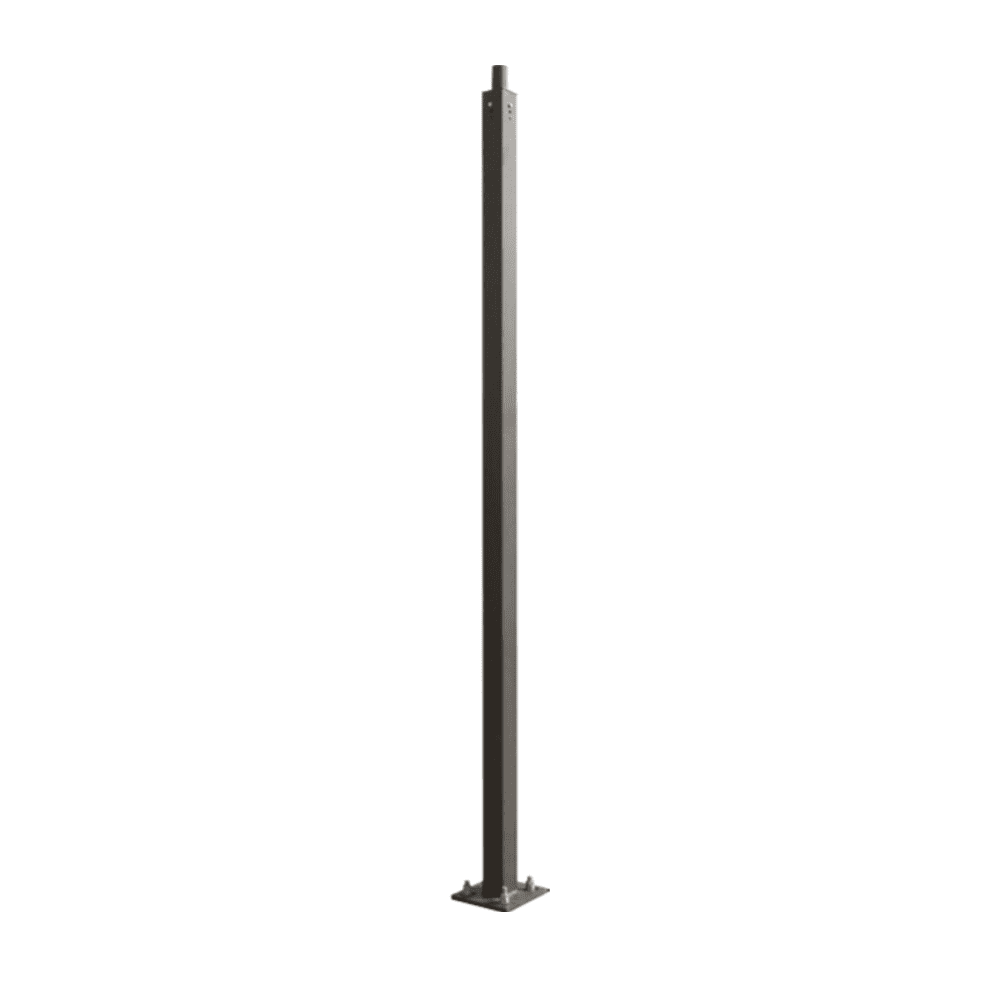

Pole Features

  • Number of Poles: 2
  • Pole Height: 16 feet
  • Shaft Size: 4” x 4” square
  • Gauge: 11-Gauge
  • Installation: Anchor-Based
  • Number of Anchor Bolts: 4 per pole
  • Base Plate Dimensions: 10.5 x 10.5” x .75” thickness
  • Base Plate Anchor Bolt Circle: 8”-11” diameter steel
  • Anchor Bolt Dimensions: M22 x 33”
  • Tenon: 2 ⅜” Tenon
  • Finish: Baked-on, textured, architectural bronze finish.
  • Base Cover: Square 10.75” x 10.75” x 4” 2-piece steel base cover
  • Hand Hole: Cast-iron-reinforced hand hole with cover
  • Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at sales@accessfixtures.com. Click here to view Access Fixtures' complete warranty policy.


Ready to Order Bocce LED Lighting – 2 Pole 12′ x 70′, 11fc, 2.83 max/min?

You can place your order online here. Or, if you want additional information, give us a call at 800-468-9925. Our team of friendly expert lighting specialists is available to provide what you need to purchase fixtures and illuminate your project with confidence.
