Bocce LED Lighting 12′ x 70′ Court – 11 fc 2.67 max/min – DIY poles

$1,184.12

Bocce LED Lighting for single court features 2) APTA 120w sports lighters, 29,125 lumens, 12 avg footcandles, 2.67 max/min uniformity, instructions for do-it-yourself pole installation (poles are not included). 5-year warranty. Do-it-yourself poles are not included. This package comes in bronze only.



In Stock

SKU: AF72XBOC12x701FLB120L2DIY-FC12 Category: Tag:


Product Description

Access Fixtures LED Lighting fixtures set a high bar for bocce match illumination. The 200,000 hours L70 rating translates to virtually maintenance-free. Minimized energy use together with low (or no) maintenance results in the perfect marriage of performance, efficiency, and sustainability. Do-it-yourselfers will love this budget-friendly bocce LED lighting package. Purchase your wood poles locally. Download easy-to-follow for DIY poles purchase, construction, and installation.

Precision Design for Optimal Light Levels

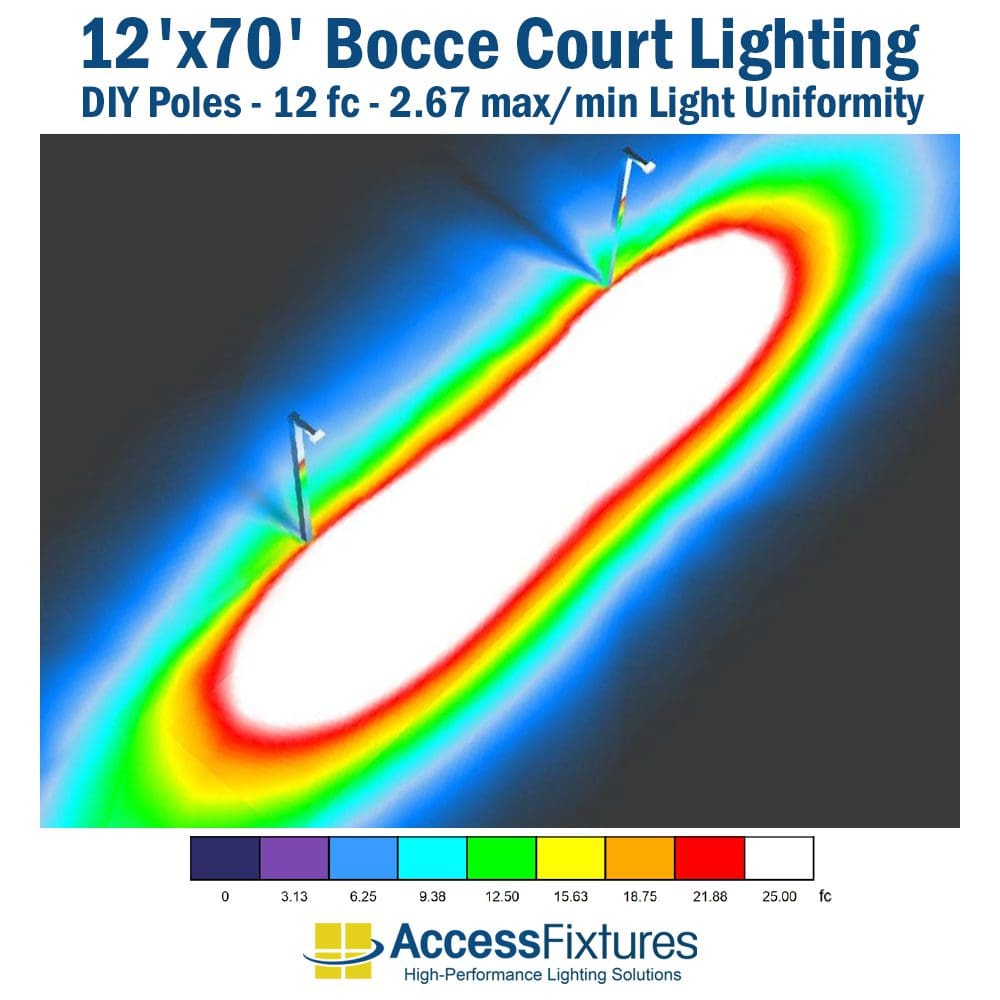

This package fits a 12′ x 70′ bocce court. Your two poles, with one luminaire each, are evenly spaced on the same side of the court. This layout provides 11 average footcandles and a max/min (uniformity) ratio of 2.67 which assures the court is consistently illuminated. A max/min uniformity in the 3 range or less is considered very good, the lower the ratio number, the better uniformity.

Reliable Energy-Efficient LED Bocce Court Fixtures

This Bocce LED Lighting package includes weatherproof, energy-efficient, extreme-life, APTA LED sport lights. Their modular construction features interchangeable components that are all but indestructible. If however, repair were needed, modules can be replaced individually. Boasting 130 watts per lumen, this package reduces energy cost by at least 50% when compared to old-fashioned incandescent or pulse start-metal halide systems

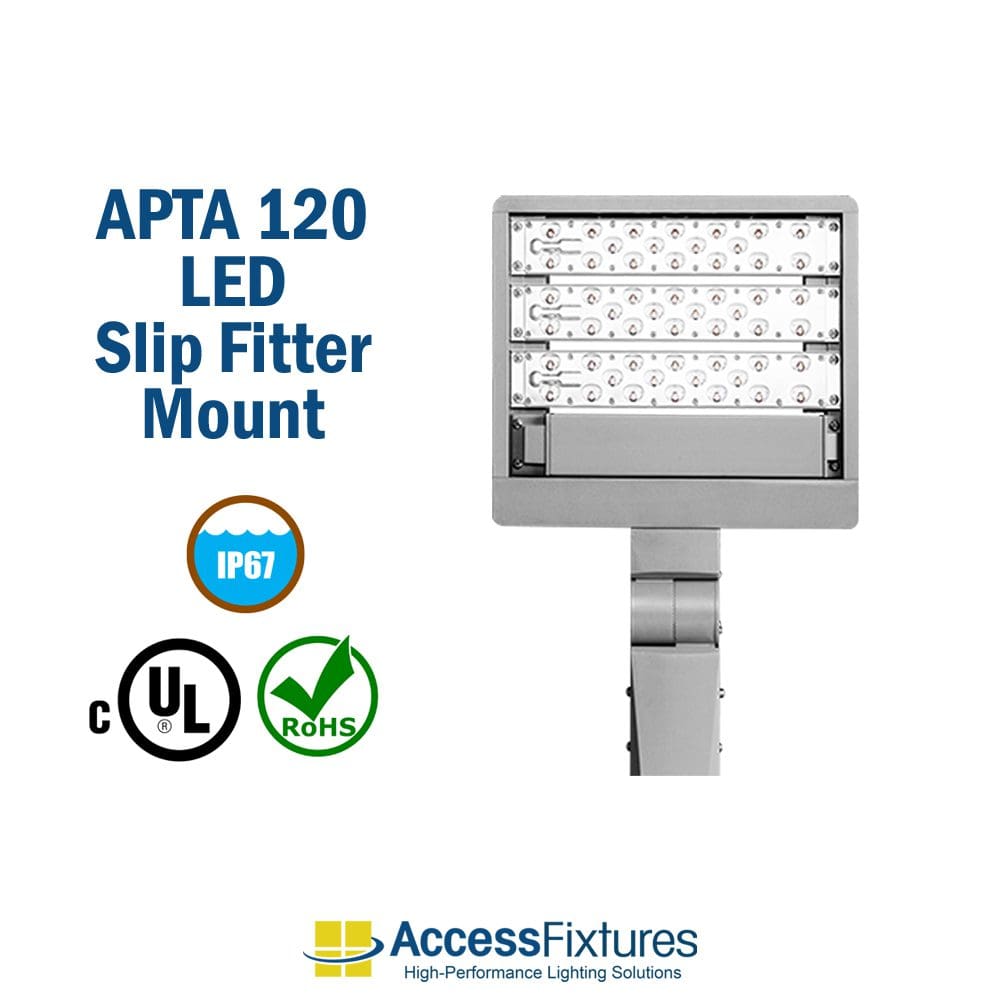

  • Luminaires: 2) APTA 120 LED Sport Lights with Slip Fitter Mounts
  • Number of Luminaires: 2
  • Fixture Wattage: 120
  • Rated Life (L70): 200,000+ Hours
  • Optics: Type 2 Medium
  • Weights: 17.7 lbs

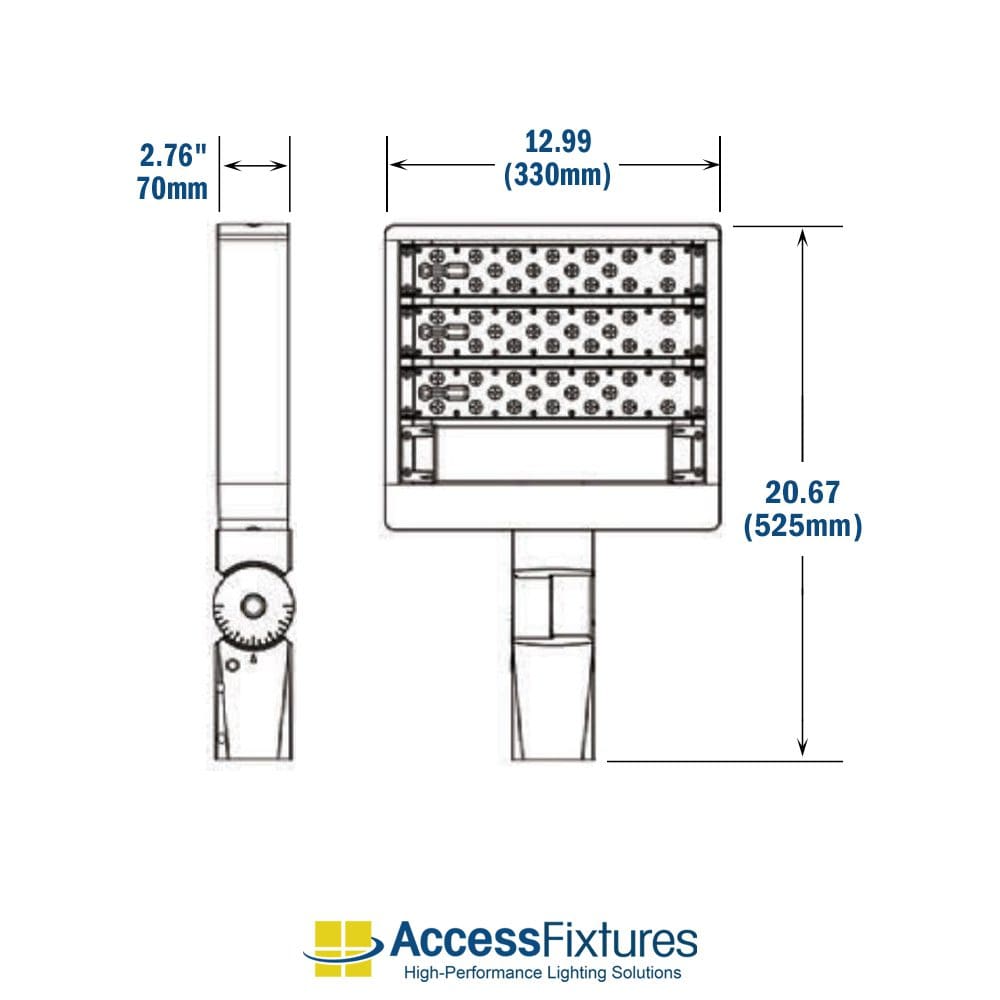

  • Fixture Dimensions: 21.18″ x 12.99″ x 2.76″
  • Housing: Die-cast aluminum housing with corrosion-resistant polyester powdercoat. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.
  • Listings: IP67, UL Listed, CuL Listed, RoHS, ENEC, CB, CB, IK08,
  • Dimming: 0-10v dimming included in all fixtures.
  • Backlight Shield: to minimize light trespass, Included
  • Voltage Compatibility: 120-277v
  • Warranty: 5-Year Warranty
  • Surge Protection: (optional)
  • Assembled in the United States

Purchase Budget-Friendly DIY Wood Poles Locally

Supplying and installing your own wood poles is simple and cost effective. Access Fixtures recommends direct burial installation. Starting with a 20’ long pole, 3 feet is direct buried and 17 feet remains above the surface. The pole is placed into an augured hole lined with gravel then back filled with native soils, stone dust or cement. Wood poles and direct burial provides the following benefits.

  • Monetary – Lower cost materials and no need for expensive footings
  • Time Savings – Faster installation than poles that require cement bases
  • Simple – No reliance form work or cement pouring schedules
  • Appearance – No exposed base plates or anchors bolts

Secure Mounting Included

This package mounts one fixture on each pole using the 90-degree mount (included). Poles are not included. For more information about the fixtures, mounts, or the DIY poles, call 800-468-9925 or send us an email at customerservice@accessfixtures.com.

  • 90-Degree Mounting Brackets: 2) AF33XPRSWMB90Z:

Prompt Delivery of Your Bocce Court Lighting Package

Bocce LED Lighting packages typically ships in 2-4 weeks. Stock does fluctuate, so call 800-468-9925 for an exact lead time.

Access Fixtures Bocce Court Lighting Provides Exactly What You Need

Access Fixtures lighting specialists use the most advanced photometric software to make sure you get the perfect bocce court for your particular site. As the premier expert in court lighting, Access Fixtures has designed court lighting for clubs, schools, and HOAs, as well as home courts across the US and the Caribbean. Few courts have identical needs. Some regions have local ordinances regulating light trespass, glare, and light pollution. Packages for coastal regions benefit from custom adaptations to compensate for wind, salt spray, and other local weather conditions. If you have any questions, our knowledgeable lighting specialists in Worcester, MA are available to walk you through your bocce LED lighting project. Call us today at 800-468-9925 to discuss your project. You can also email us at customerservice@accessfixtures.com.

Access Fixtures 5-Year Warranty

All Access Fixtures sports court packages come with 5-year warranties. If your product is found to have a manufacturing defect, we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team is happy to help with before- or after-sale questions and address your concerns. If you have any questions, give us a call at 800-468-9925.

Ready to Order Bocce LED Lighting 12′ x 70′ Court – 11 fc 2.67 max/min – DIY poles?

You can place your order online here. Or, if you want additional information, give us a call at 800-468-9925. Our team of friendly expert lighting specialists is available to provide what you need to purchase fixtures and illuminate your project with confidence.

Specifications

Weight 17.7 lbs
Dimensions 21.18 × 12.99 × 2.76 in
Availability

Typically ships in 2-4 weeks

Available Finishes

Bronze

Ballast/Driver

700mA Driver

Color Rendering Index (CRI)

80, 70, 90

Color Temperature (K)

3000K, 4000K, 5000K

Color Temperature Filter

3000, 4000, 5000

Components

APTA Sports Light, Mounting Bracket

Features

Sports Court Package

LED Type

Modular LED Array

Lens

Type 2 Medium

Light Source

White Light Spectrum

Light Source Included

LED Array Included

Light Source Lumens

29,125

Listings

IP67, CB, CE, CUL, ENEC, ErP, IK08, LM79, RoHS, SAA, UL

Mounting

Mounting Bracket

Product Family

APTA

Rated Life

200,000+ Hours

Reflector

Optical Polycarbonate

Sports Level of Play

Club, Competition, Recreation

Sports Avg. Footcandles

12 Footcandles

Sports Max/Min Uniformity

2.67 Max/Min

Sports Number of Courts

1

Sports Number of Fixtures

2

Sports Number of Poles

2 (not included)

Sports Pole Height

17 Feet

System Watts

240
