Bocce LED Lighting with 2 Poles – 3 Courts 12′ x 62′ – 10 fc 2.00 max/min

$3,043.90

The Bocce LED Lighting with 2 Poles – 3 Courts 12′ x 62′ – 10 fc 2.00 max/min is a bocce court lighting solution for homeowners and recreational facilities.

Extreme Life: This bocce court lighting package is L70 rated at over 200,000 hours.

Dark Sky Compliant: This package is dark sky compliant in 2200K or 3000K and full cutoff style.

Choice of Finish: APTA fixtures are available in bronze, white, black, or gray.

In Stock

SKU: AF72XBOC12x621FLB280L2P202-FC11-1 Categories: , Tag:


Product Description

The Bocce LED Lighting with 2 Poles – 3 Courts 12′ x 62′ – 10 fc 2.00 max/min is a bocce court lighting solution for homeowners and recreational facilities.

Extreme Life: This bocce court lighting package is L70 rated at over 200,000 hours.

Dark Sky Compliant: This package is dark sky compliant in 2200K or 3000K and full cutoff style.

Choice of Finish: APTA fixtures are available in bronze, white, black, or gray.

APTA Features:

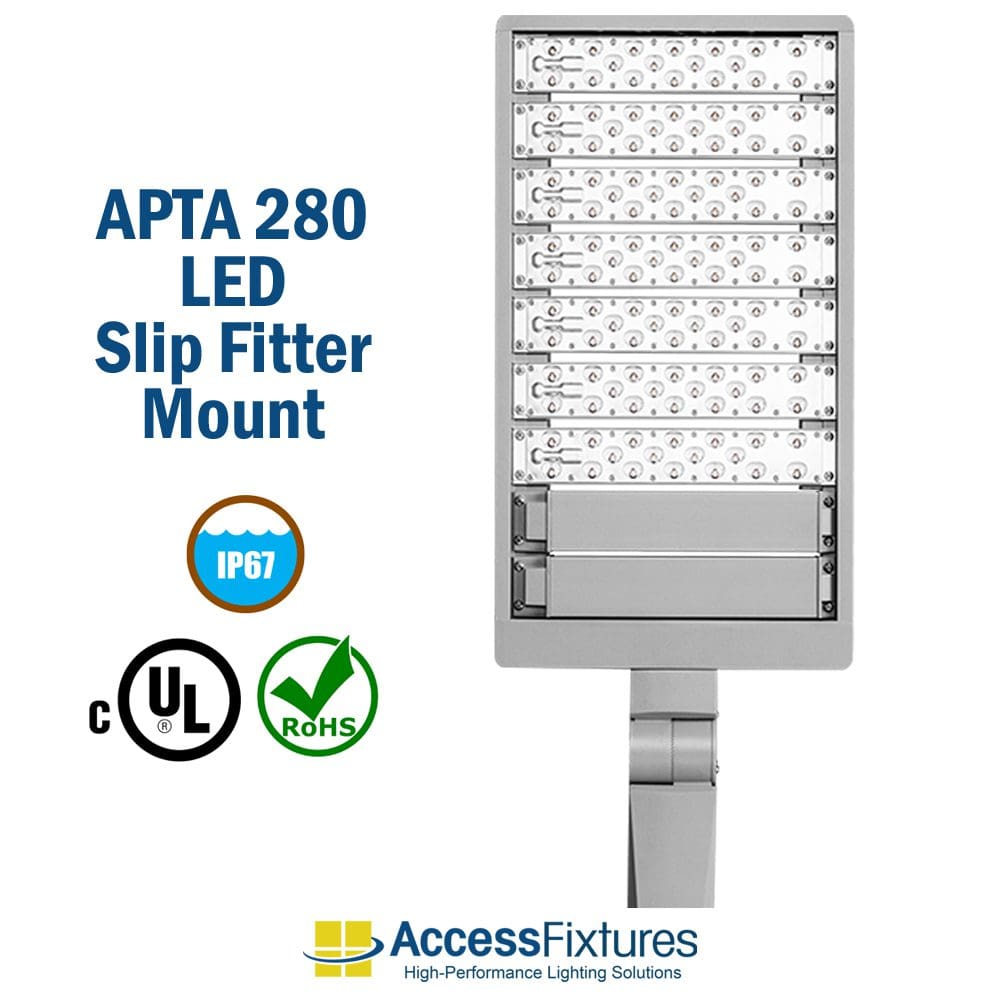

  • Luminaires: 2) APTA 280 LED Sport Lights with Slip Fitter Mounts
  • Number of Luminaires: 2
  • Fixture Wattage: 285
  • Rated Life (L70): 200,000+ Hours
  • Optics: T4M1
  • Weights: 27.51 lbs

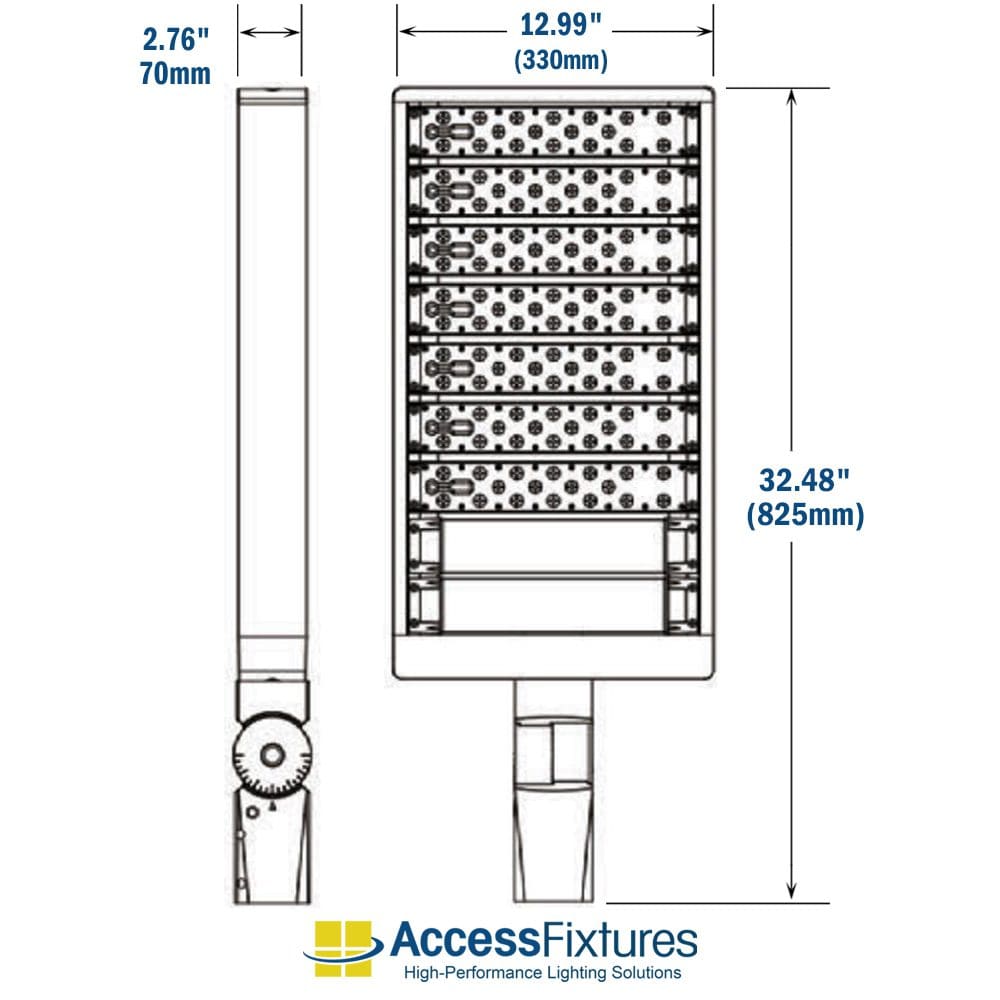

  • Fixture Dimensions: 32.99″ x 12.99″ x 2.76″
  • Housing: Die-cast aluminum housing with corrosion-resistant polyester powdercoat. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.
  • Listings: IP67, UL Listed, CuL Listed, RoHS, ENEC, CB, CB, IK08,
  • Dimming: 0-10v dimming included in all fixtures.
  • Backlight Shield: to minimize light trespass, Included
  • Voltage Compatibility: 120-277v
  • Warranty: 5-Year Warranty
  • Surge Protection: (optional)

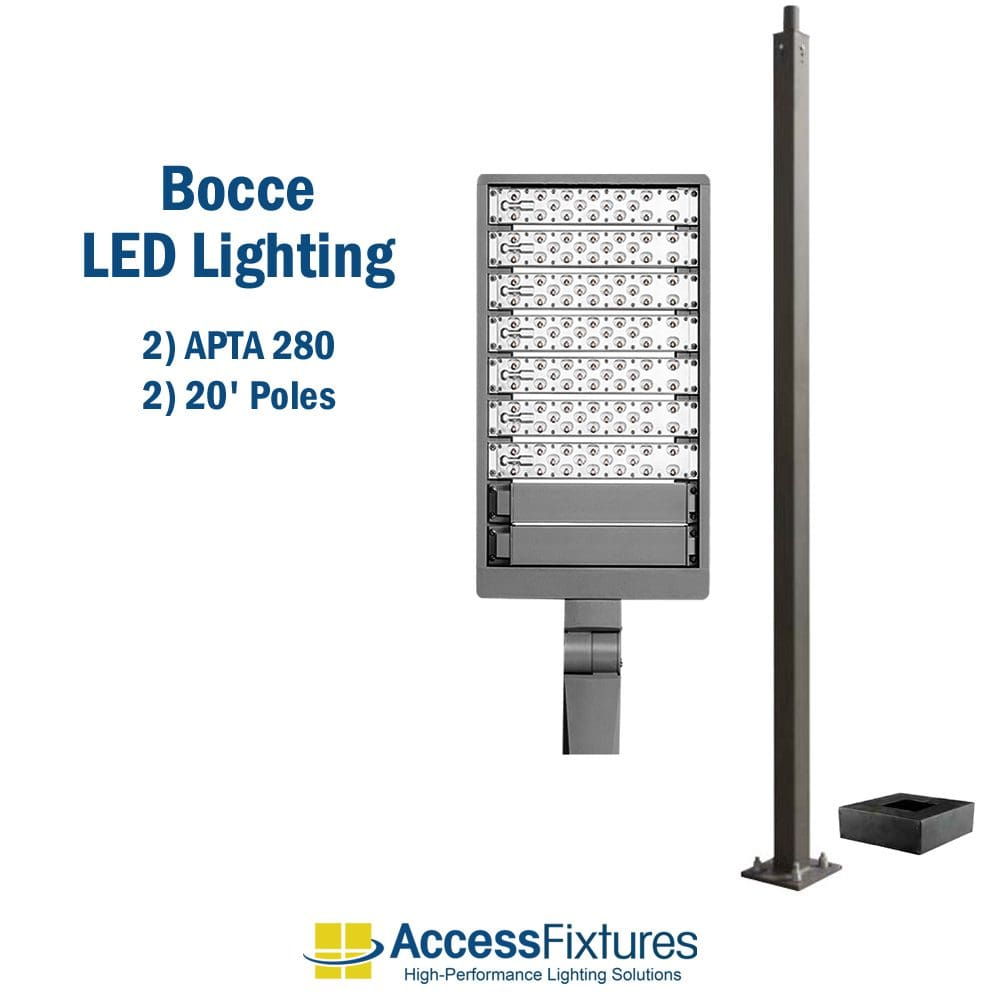

Pole Features:

  • Number of Poles: 2
  • Pole Height: 20 feet
  • Shaft Size: 4” x 4” square
  • Gauge: 11-Gauge
  • Installation: Anchor-Based
  • Number of Anchor Bolts: 4 per pole
  • Base Plate Dimensions: 10.5 x 10.5” x .75” thickness
  • Base Plate Anchor Bolt Circle: 8”-11” diameter steel
  • Anchor Bolt Dimensions: M22 x 33”
  • Tenon: 2 ⅜” Tenon
  • Finish: Baked-on, textured, architectural bronze finish.
  • Base Cover: Square 10.75” x 10.75” x 4” 2-piece steel base cover
  • Hand Hole: Cast-iron-reinforced hand hole with cover
  • Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.

Secure Mounting

This package mounts one fixture on each pole tenon with a secure slip fitter mount. For more information about the fixtures, mounts, or the poles in this package, call 800-468-9925 or send us an email at customerservice@accessfixtures.com.

Access Fixtures 5-Year Warranty

All Access Fixtures sports court packages come with 5-year warranties. If your product is found to have a manufacturing defect, we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team is happy to help with before- or after-sale questions and address your concerns. If you have any questions, give us a call at 800-468-9925.

Ready to Order Bocce LED Lighting with 2 Poles – 3 Courts 12′ x 62′ – 10 fc 2.00 max/min?

You can place your order online here. Or, if you want additional information, give us a call at 800-468-9925. Our team of friendly expert lighting specialists is available to provide what you need to purchase fixtures and illuminate your project with confidence.

Specifications

Weight 27.51 lbs
Dimensions 32.99 × 12.99 × 2.76 in
Light Source

Availability

Typically ships in 6-8 weeks.

Available Finishes

Black, Bronze, Gray, White

Ballast/Driver

700mA Driver

Color Rendering Index (CRI)

70+, 80+, 90+

Components

APTA Sports Light, Pole, Pole Base Cover

Features

Sports Court Package

Lens

Type 4 Medium

Light Source Included

LED Array Included

Listings

IP67, CB, CE, CUL, ENEC, ErP, IK08, LM79, RoHS, SAA, UL

Mounting

Slip Fitter

Product Family

APTA

Rated Life

200,000+ Hours

Reflector

Optical Polycarbonate

Sports Level of Play

Recreation

Average Footcandles

10

Max/Min Uniformity

2.00

Number of Courts

3

Number of Fixtures

2

Number of Poles

2

Pole Height

20 Feet

System Watts Filter

200w – 499w

Vendor

AF33X, AF72X
