CARO 100-120-150 LED Sports Light and Area Light with Selectable Kelvin 3K-4K-5K

$269.87

With its streamlined, aerodynamic profile and precision-engineered design, CARO blends modern aesthetics with tough performance. The die-cast aluminum housing and UV-stabilized powder coat finish ensure long-lasting durability, while the impact-resistant polycarbonate lens protects the LEDs.

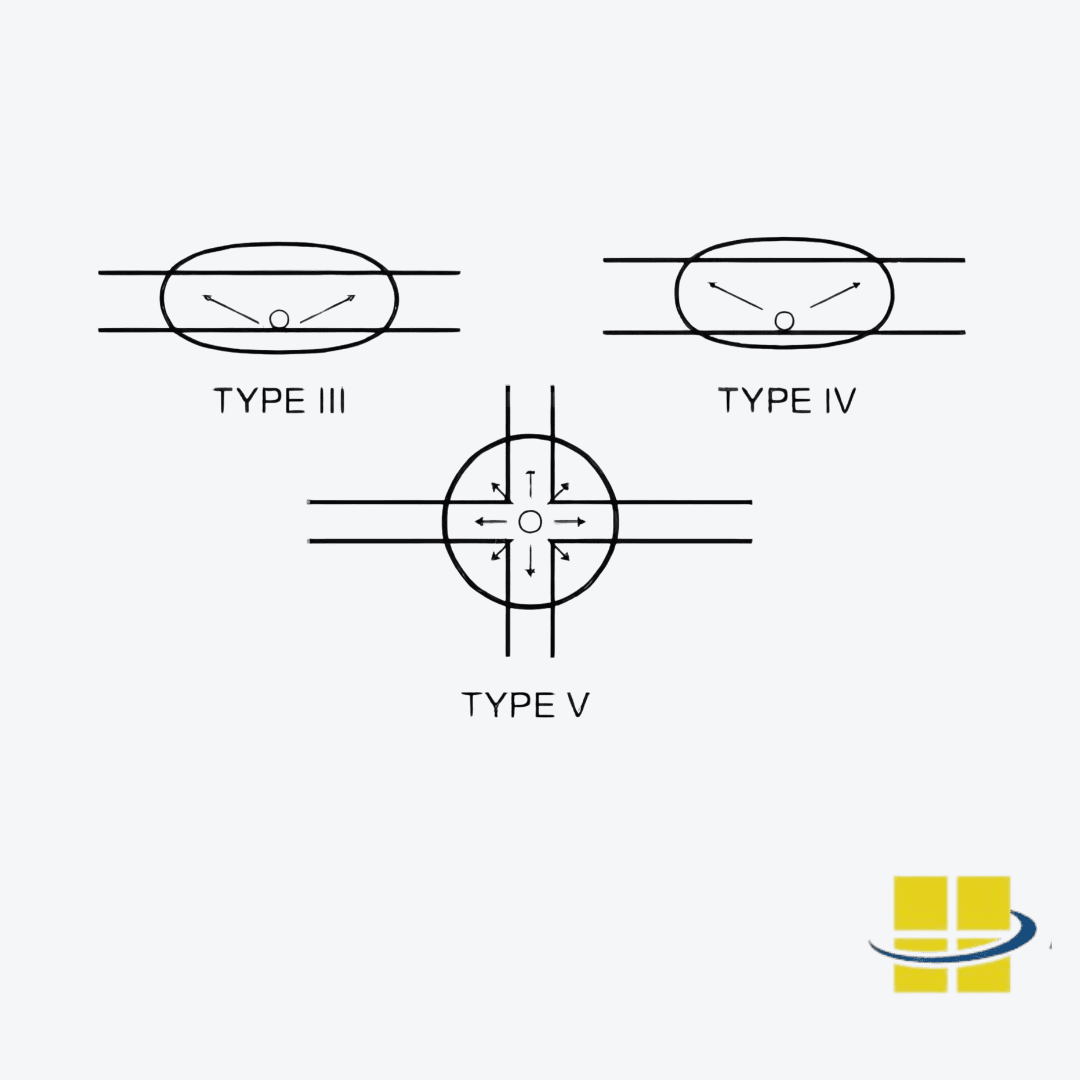

CUSTOMIZABLE: This fixture is built to order, offering customizable features to suit your specific application. Choose a pole-side shield to reduce backlight, or add a photocell or occupancy sensor for energy-saving control. Available with Type III, IV, or V optics, it delivers powerful, precise illumination exactly where it’s needed.

FIELD SELECTABLE: CARO offers selectable wattage and Kelvin temperature, giving you the flexibility to tailor light output and ambiance to your desires. Choose from 3000K, 4000K, or 5000K and adjust between 40w, 60w, or 80w based on your specific needs.

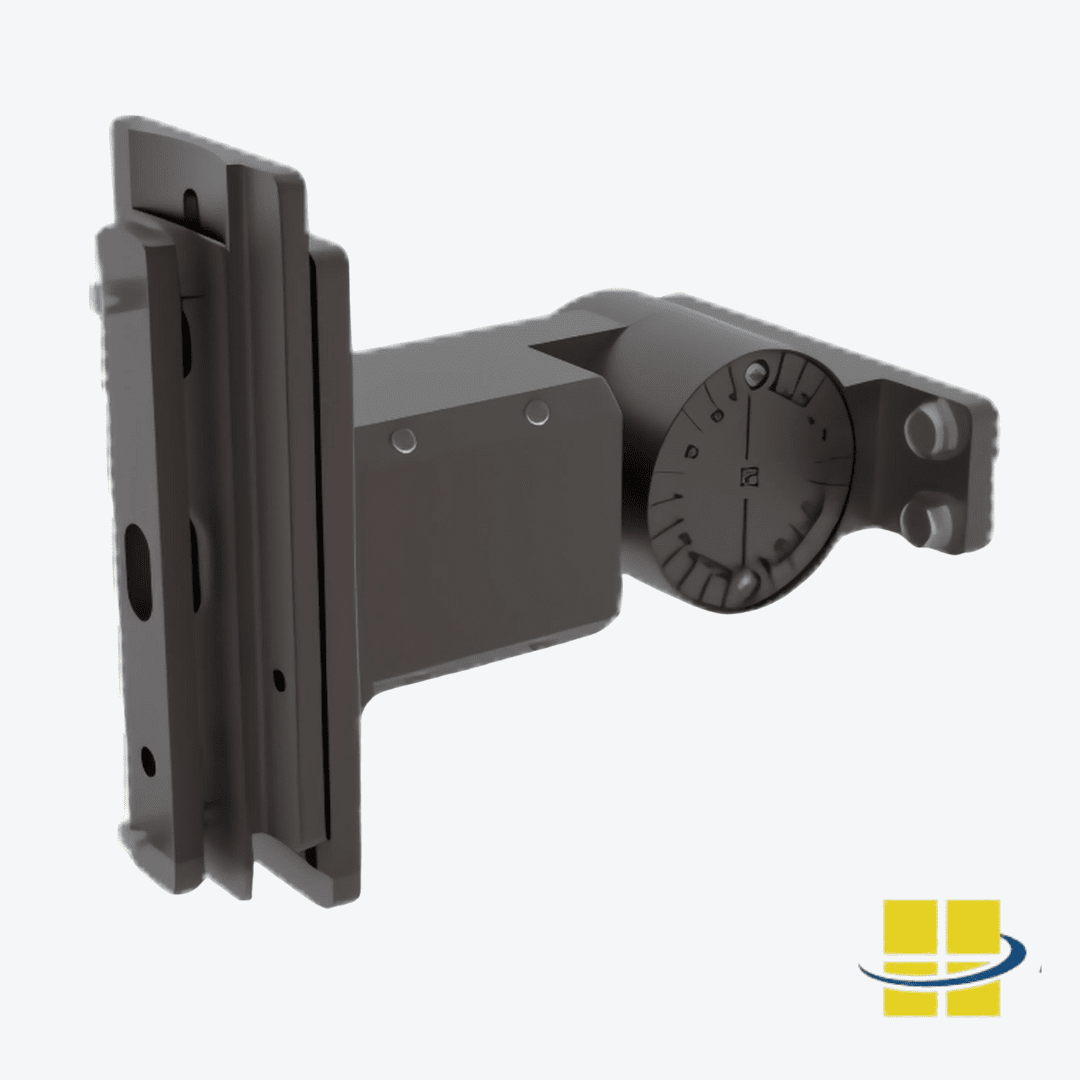

UNIVERSAL MOUNT: CARO’s universal mounting is designed for seamless adaptability across a wide range of installation scenarios. Its 180° adjustable mount enhances both form and function, effortlessly integrating with round or square poles, ensuring fast, secure and versatile installation.



Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Minimizes light behind the pole and partially blocks the view of the light source.
  • Recommended on islands or anyplace that has fluctuations in voltage. LED lights should never be on the same circuit as HID lights or machinery.

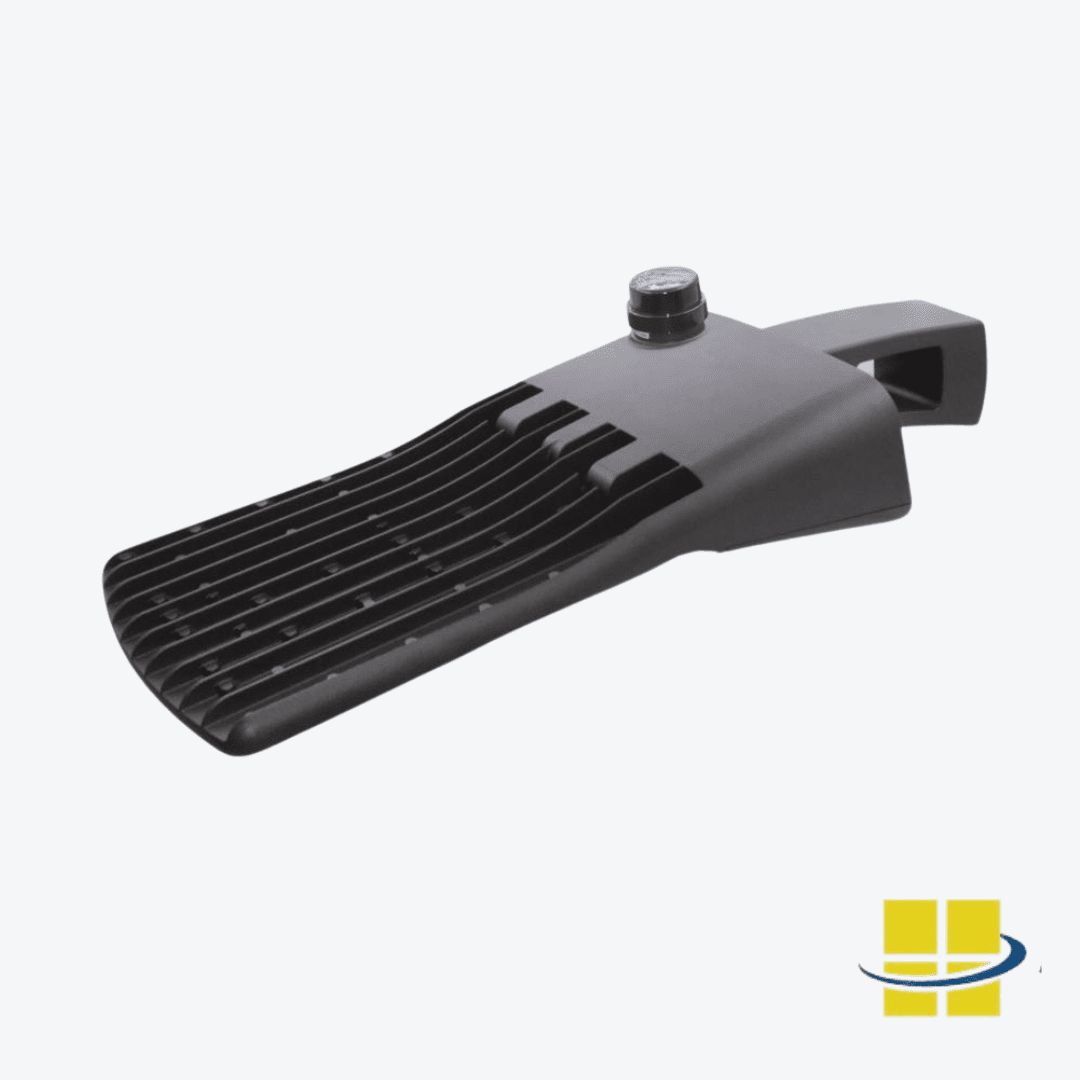

  • Photocell includes top mounted outlet and twist-lock photocell. Bi-level dimming photocell/occupancy sensor: Light off when ambient light is >80 Lux (7.5fc). 50% of light when ambient light is 80 Lux (7.5fc). (D-OSMA)
  • Total

Specifications

Weight 21 lbs
Dimensions 15 × 26 × 9 in
Model Number

AF55XL6010NT3/15345K

Weight in Pounds

12 lbs

Shipping Weight (Pounds)

21 lbs

EPA

1.34

Housing

Die-cast aluminum housing

Finish Specifications

UV Stabilized Powder Coat

Finish Color

Bronze

Color Rendering Index (CRI)

70+

Lens

Polycarbonate

Optics

III, IV, V

Color Temperature (Kelvin)

3000K, 4000K, 5000K

LED Type

LED Module

System Watts

100, 120, 150

Light Source Lumens @ 4000K

21,464

Luminaire Lumens @ 4000K

21,464

Luminaire Lumens Per Watts @ 4000K*

153

Dimensions in Inches

26.18 x 9.44 x 3.74

Dimension in mm

665 x 240 x 95

Mounting

Universal Mount

L70 Rating

50,000 Hours

Voltage

100-277V

Surge Protection

10KV

Controls

Pole side shield, Photocell/Occupancy Sensor

Operating Temperature

-40C to 40C

IP Rating

IP65

lK Rating

IK08

DLC Number

S-OP3SJ6

Listings

RoHS Compliant, Wet locations, CuL Listed, DLC Premium, IP65, UL

Warranty

5-Year Limited Warranty

Availability

7 to 10 Day Production, plus Shipping

Product Description

CARO 100-120-150 LED Flood/Area Light Features:

  • One piece die-cast aluminum housing
  • DLC, UL, cUL, CE, RoHs Listed
  • 70+ CRI
  • Dimmable 1-10v
  • 19,374 lumens
  • 160 to 170 Lumens per Watt (LPW)
  • 50,000 hour L70 rated life
  • IP65 Rated: protected from total dust ingress; protected from high pressure water jets from any direction
  • Bronze UV Stabilized Powdercoat Finish

CARO 100-120-150 LED Flood/Area Light Options:

  • Mount -Universal Mount
  • Pole side back light shield
  • Voltage – 120-277v,
  • Optics – Type III, Type IV, or Type V
  • Kelvin – 3000K, 4000K, 5000K
  • Photocell – Twist lock photocell with receptacle
  • Bi-level microwave control with occupancy sensor and daylight harvesting
  • Surge Protection – 10kV standard, 20kV optional

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


CARO 100-120-150 LED Flood/Area Light Photometric Analysis

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

CARO 100-120-150 LED Flood/Area Light Orders and Questions

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
