Club-Level Twin Tennis Package: 35 Avg Fc, 1.84 Max/Min, Dark Sky Compliant

$15,999.87

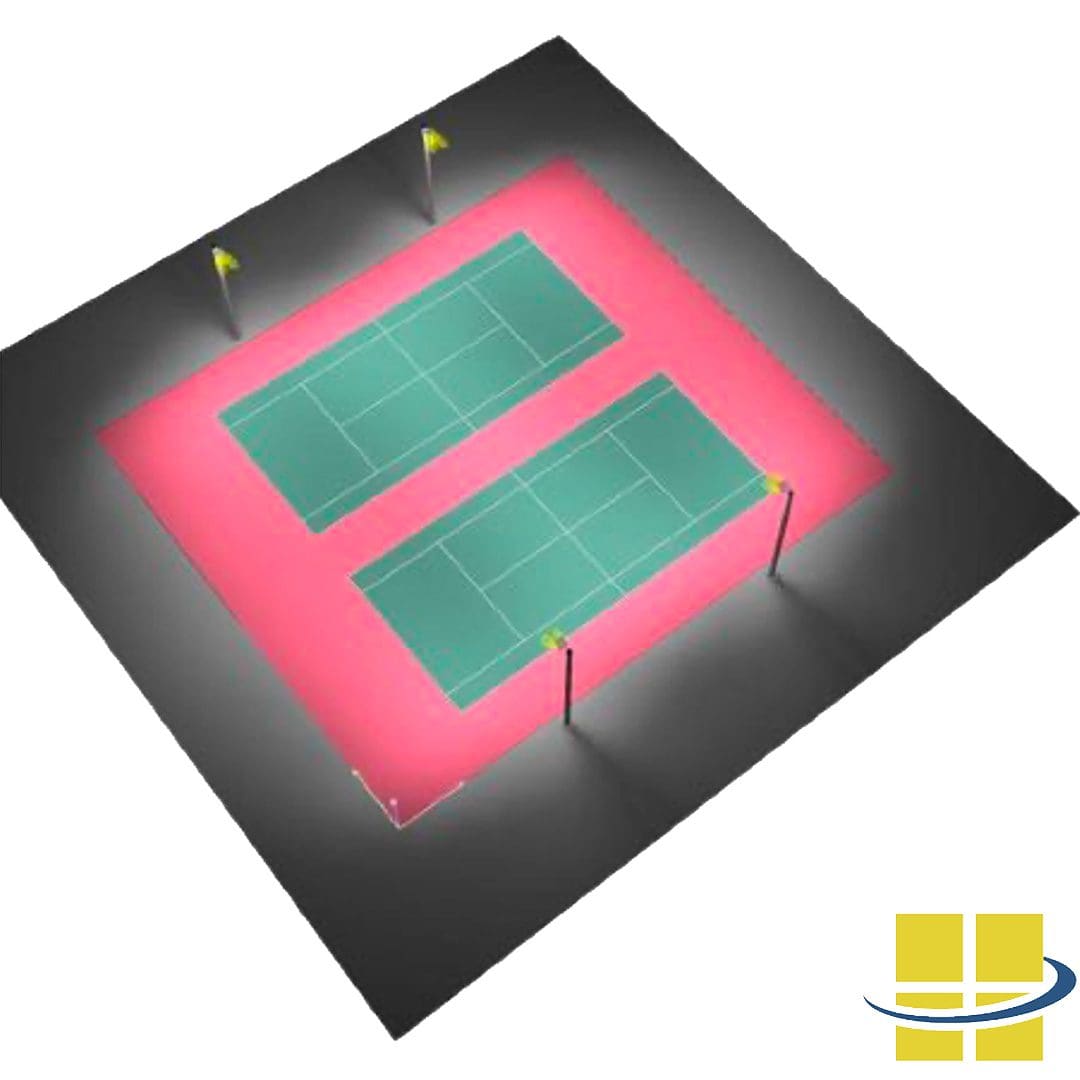

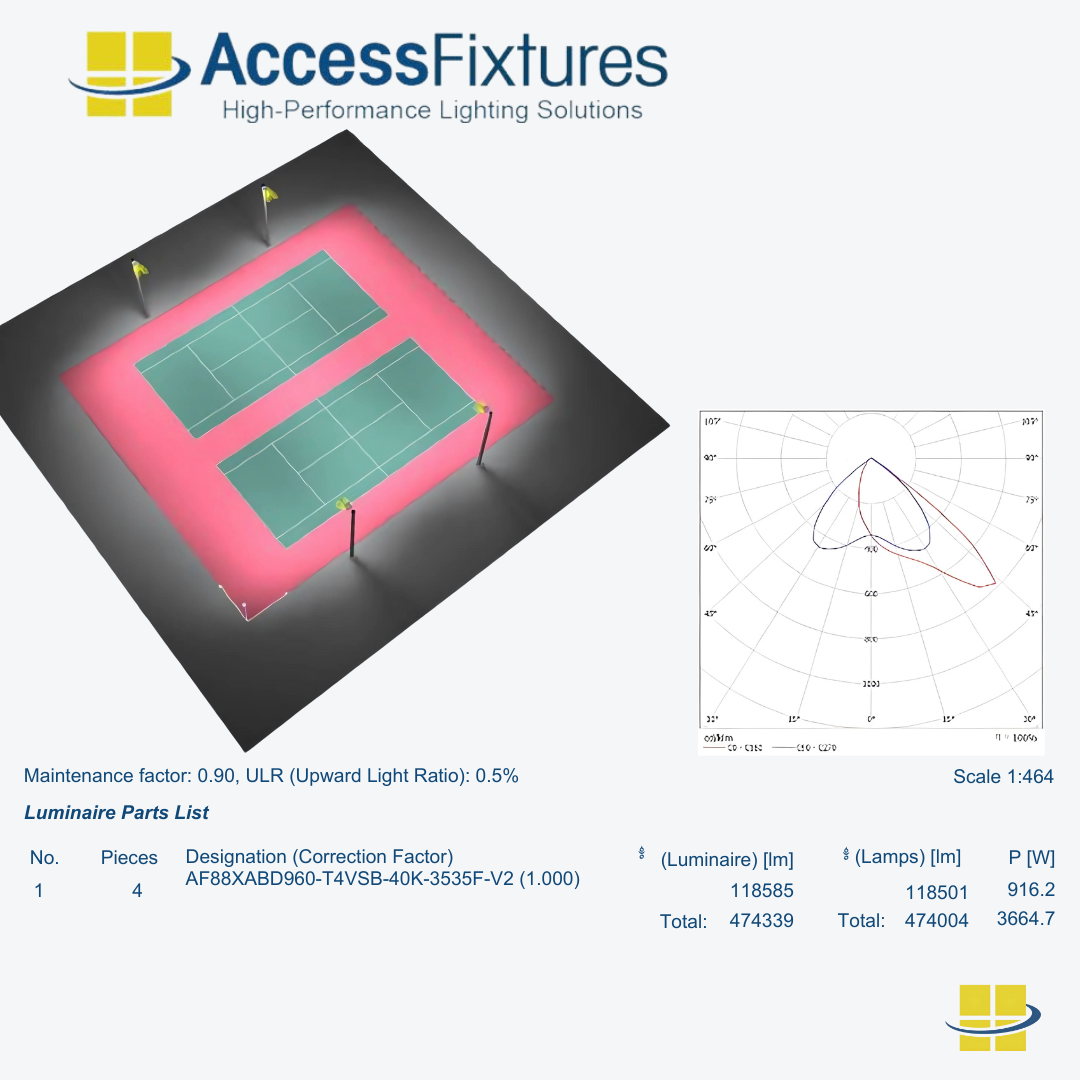

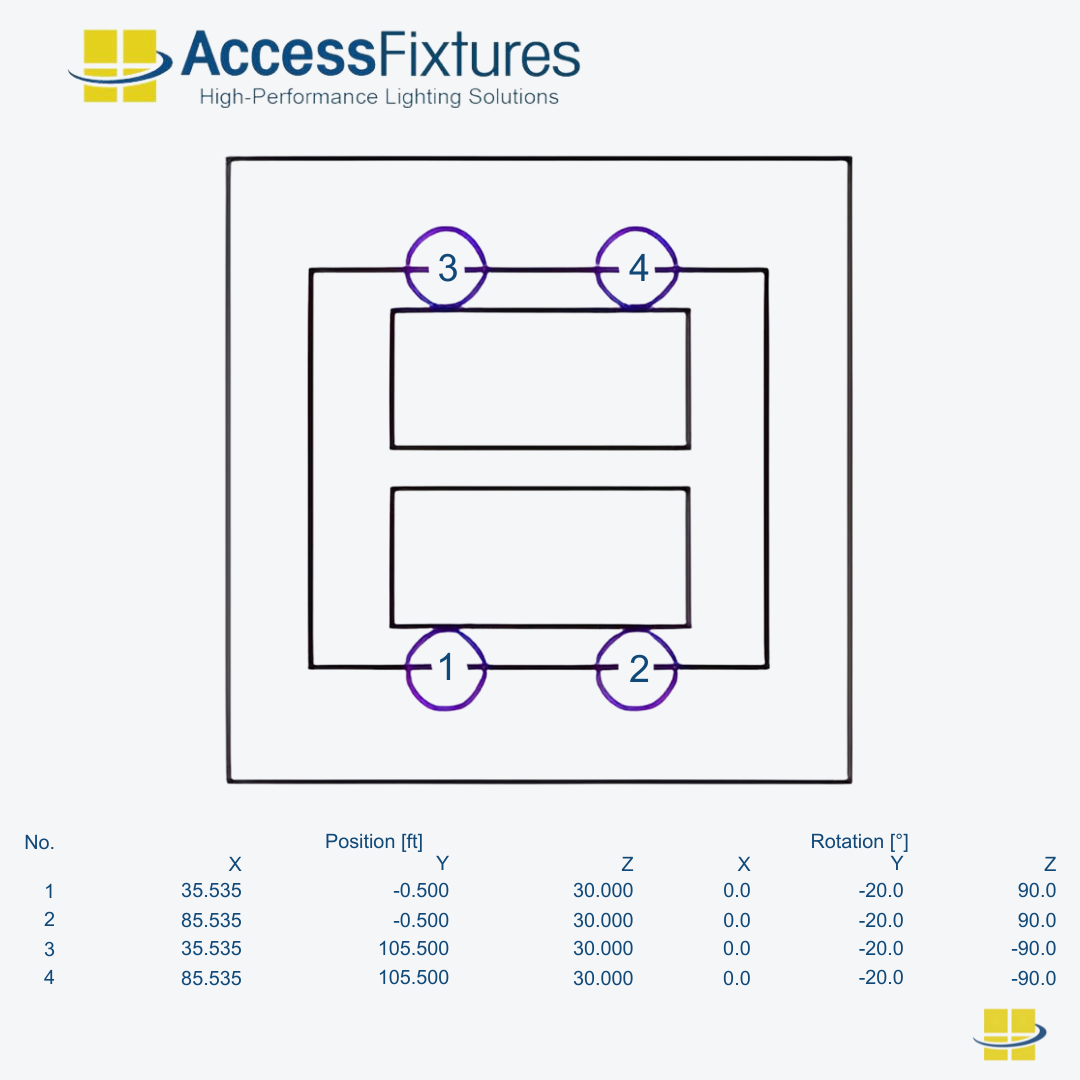

This club-level twin tennis court lighting package uses 4 x 30ft. steel poles and 4 x APTA 960 LED fixtures to illuminate a tennis court for club-level play with 35 footcandles, 1.84 max/min. Featuring superior optics, spill light control design, and low weight/low effective projection area (EPA), this package is designed to provide long-lasting, superior quality, anti-glare light for your courts.

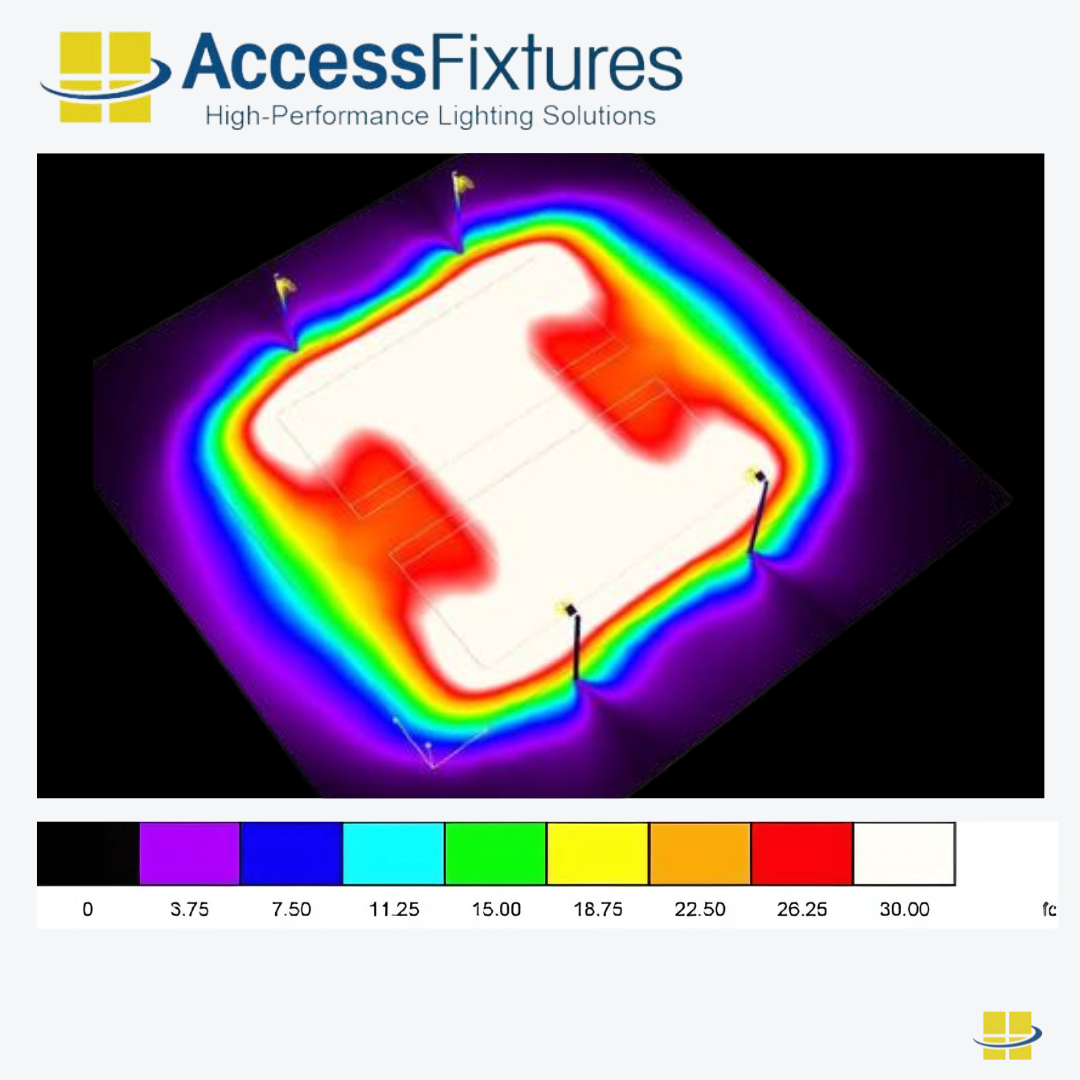

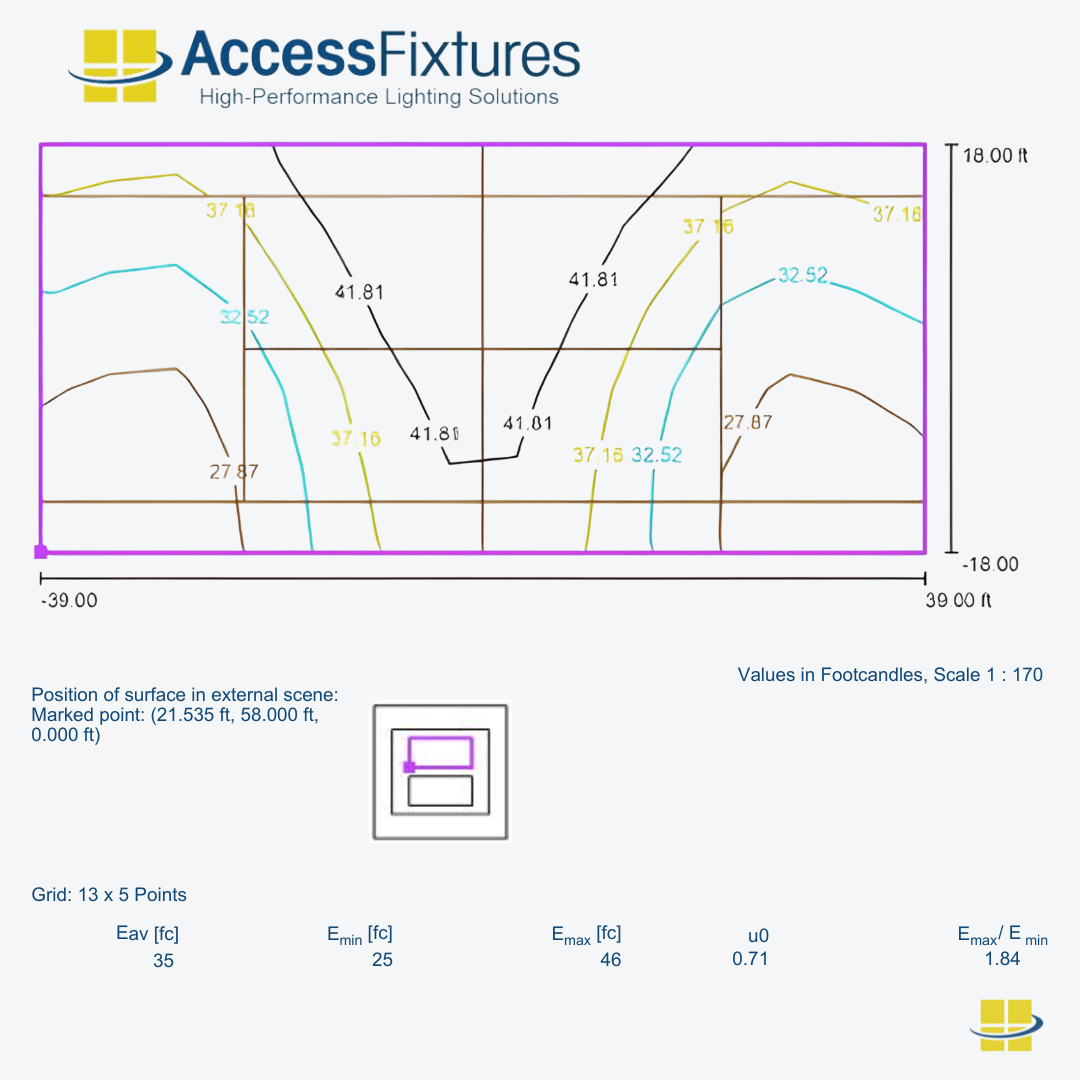

Club Level Lighting – Average of 35 footcandles with an optimal sub 2.0 max/min of 1.85.

EXTREME-LIFE LED Lights – L70 @ 200,000 hours, impact resistant. Marine-grade finish.

Full Cutoff – Full cutoff optics. Dark sky compliant in most locations when equipped with 3K LEDs.

In Stock

  • Black, Gray, Bronze, White and Green are standard colors. Custom RAL finishes are available at an up-charge with a minimum order quantity (MOQ).
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Large facilities may have birds living inside the building. Installing bird spikes on area/spot/flood lights stops the birds from nesting on the lights.
  • Hidden
  • APTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Hidden
    Do you need the APTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • Hidden
    This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
  • Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Select from this option and we will ship your anchor bolts and mounting hardware right away.

SKU: AF88XPBD960L-L/T-S + AF33XPSSS30507 Categories: ,

Specifications

Weight 100 lbs
Dimensions 30 × 30 × 30 in
Light Source

Availability

6 to 8 Week Production, plus Shipping

Available Finishes

Green [RAL6005], Black, Bronze, Gray, White

Ballast/Driver

Electronic 50/60 Hz

Housing

High-Grade Aluminum

Landing Page Attribute (LPA)

Sports Package

Listings

IK10, IP66, CE, CuL Listed, DLC Listed, ENEC, RoHS, SAA, UL Listed

Lumens

115,200

Product Family

APTA, PLS

Rated Life

L70 @ up to 200,000 Hours

Sports Level of Play

Club

Pole Height

30 Feet

Number of Fixtures

4

Number of Poles

4

Warranty

5-Year Limited Warranty

Number of Courts

2

Average Footcandles

35

Max/Min Uniformity

1.84

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Product Description

Club-Level Twin Tennis Court LED Lighting Package:

The following parts and materials are included in this package:

  • 4 x APTA 960 fixtures
  • 4 x 30ft. poles
  • Anchor bolts

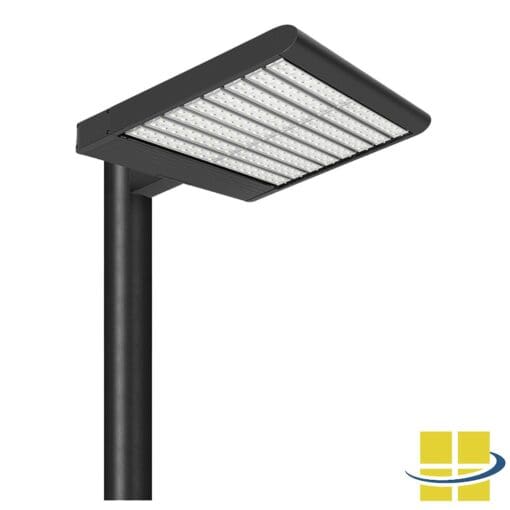

APTA 960w LED Sport Light Features:

  • 42.54 lbs
  • 36.22L x 22.87W x 3.23H
  • 100-277VAC or 277-480VAC, 50/60Hz
  • Nominal power 40W-960W
  • Superior patented high-efficiency spill light control system
  • High light output, low weight
  • Low effective project area (EPA)
  • Provides superior quality anti-glare illumination to large-scale areas
  • Constructed with high-grade aluminum
  • 115,200 lumens
  • 1050 mA
  • Ra70 standard, optional Ra80 or Ra90
  • <20% total harmonic distortion at full load
  • Imax 10KA surge protection
  • Exceptional heat sink design to ensure these fixtures will last, with a rating of L70 @ 200,000 hours of operation – making them virtually maintenance-free for a lifetime
  • T2S, T2M, T3S, T3M, T4VVSB, T4VS, T4VSB, T4S, T4SB, T4M, T4MB, T5M, T5W, T10D, T20D, T40D, T60D, T90D optics
  • Black or Gray color options
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA, ENEC, TUV rated

APTA 960w LED Sports Light Options:

  • 2200K, 3000K, 4000K, 5000K, 5700K,  590nm Amber (wildlife & turtle friendly)
  • 1-10v dimming

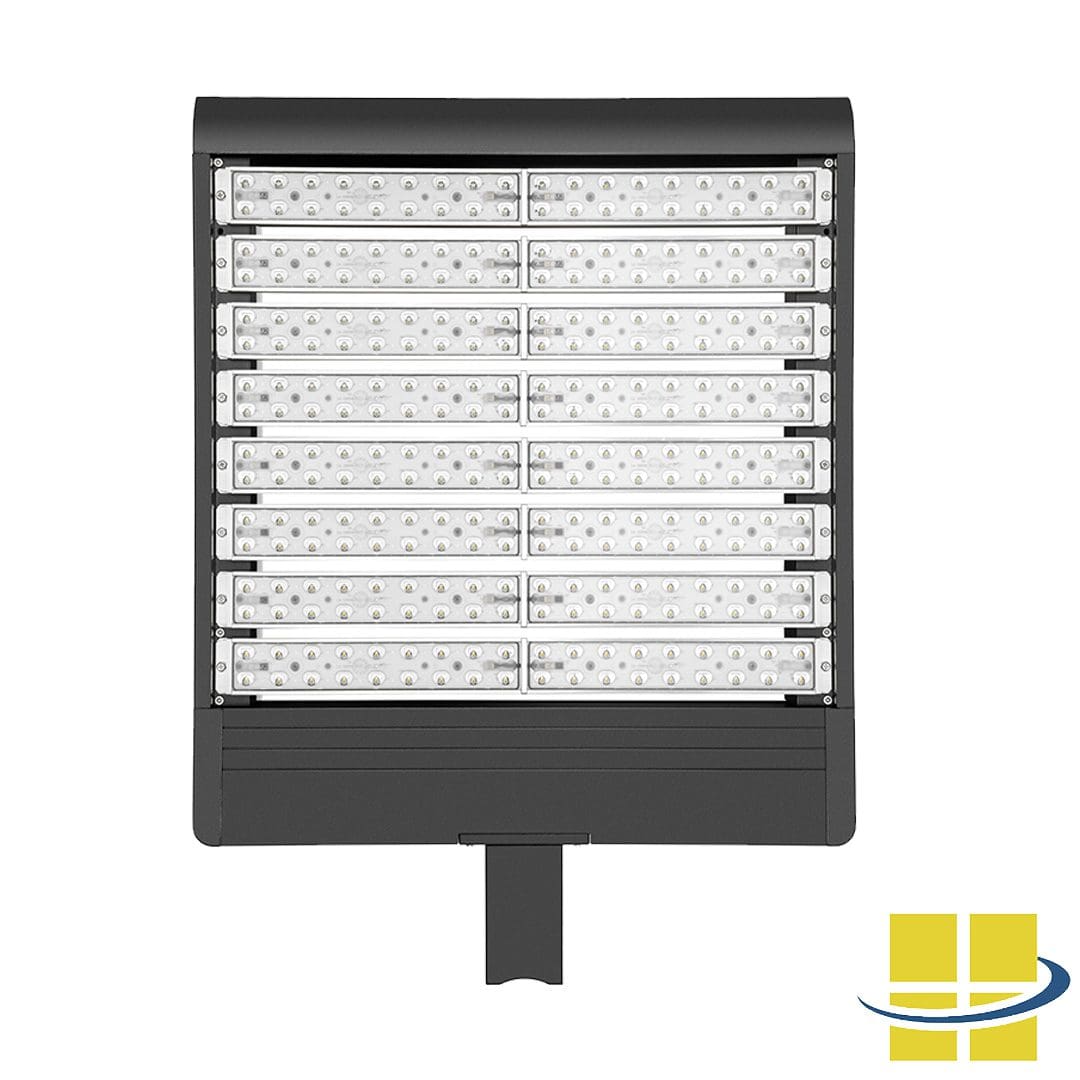

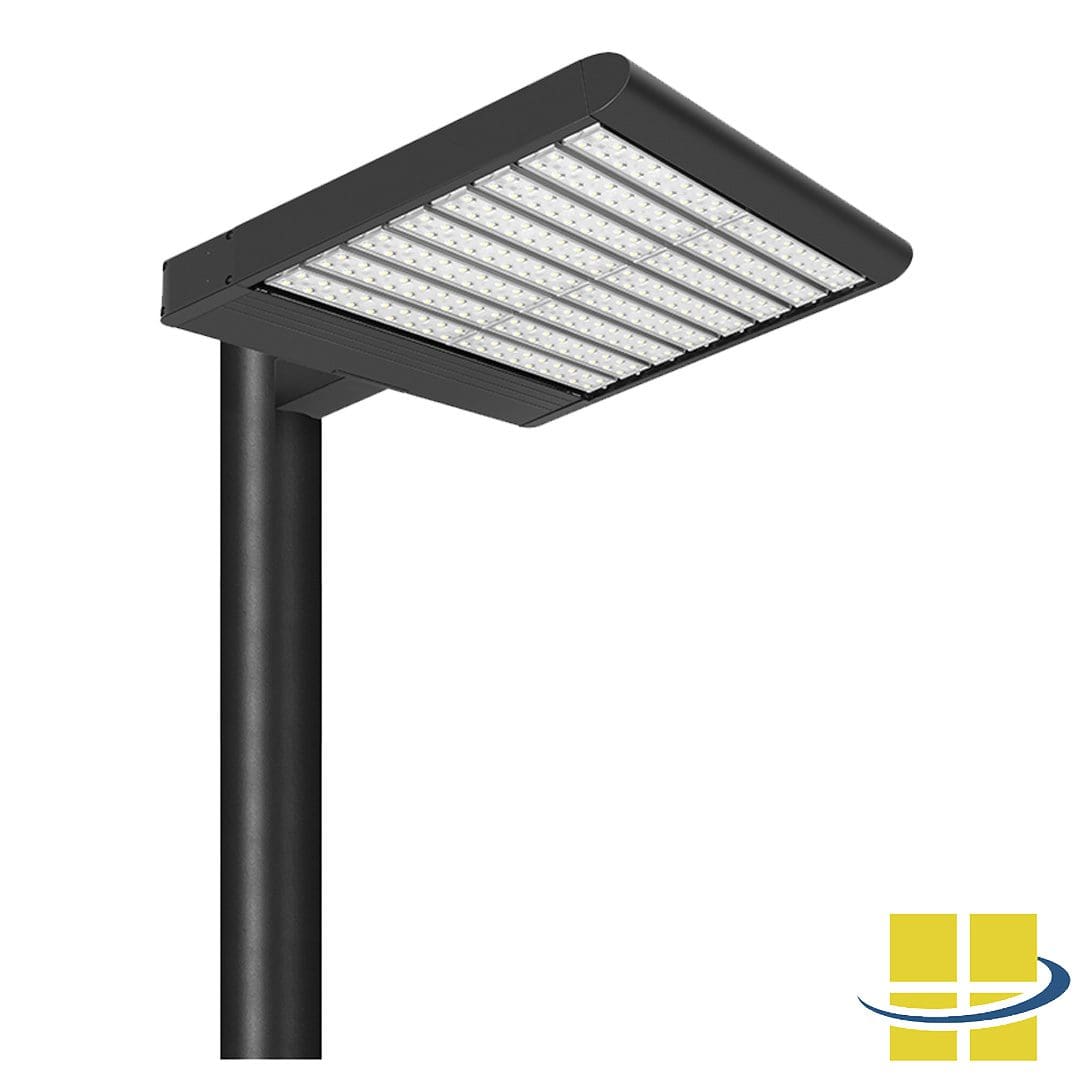

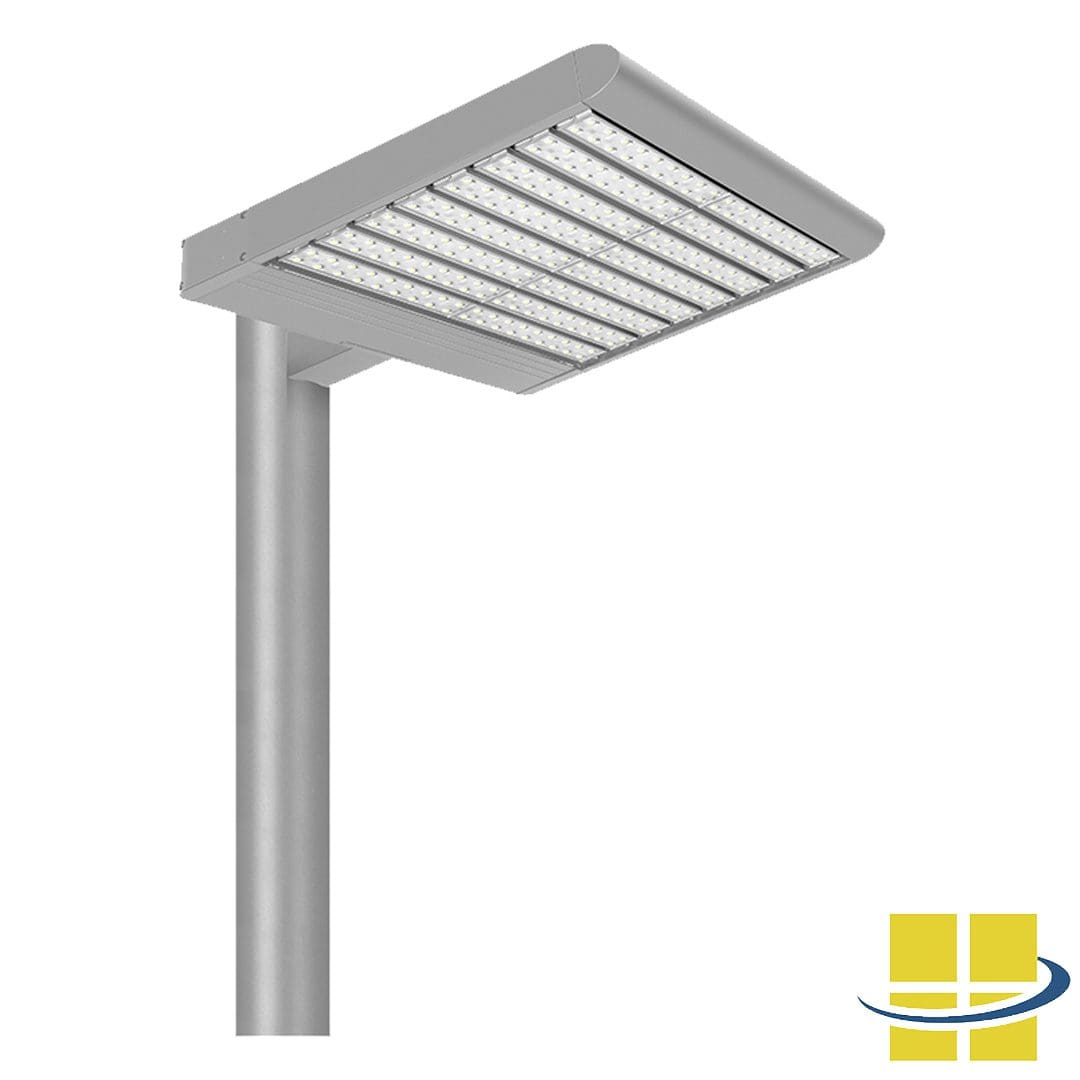

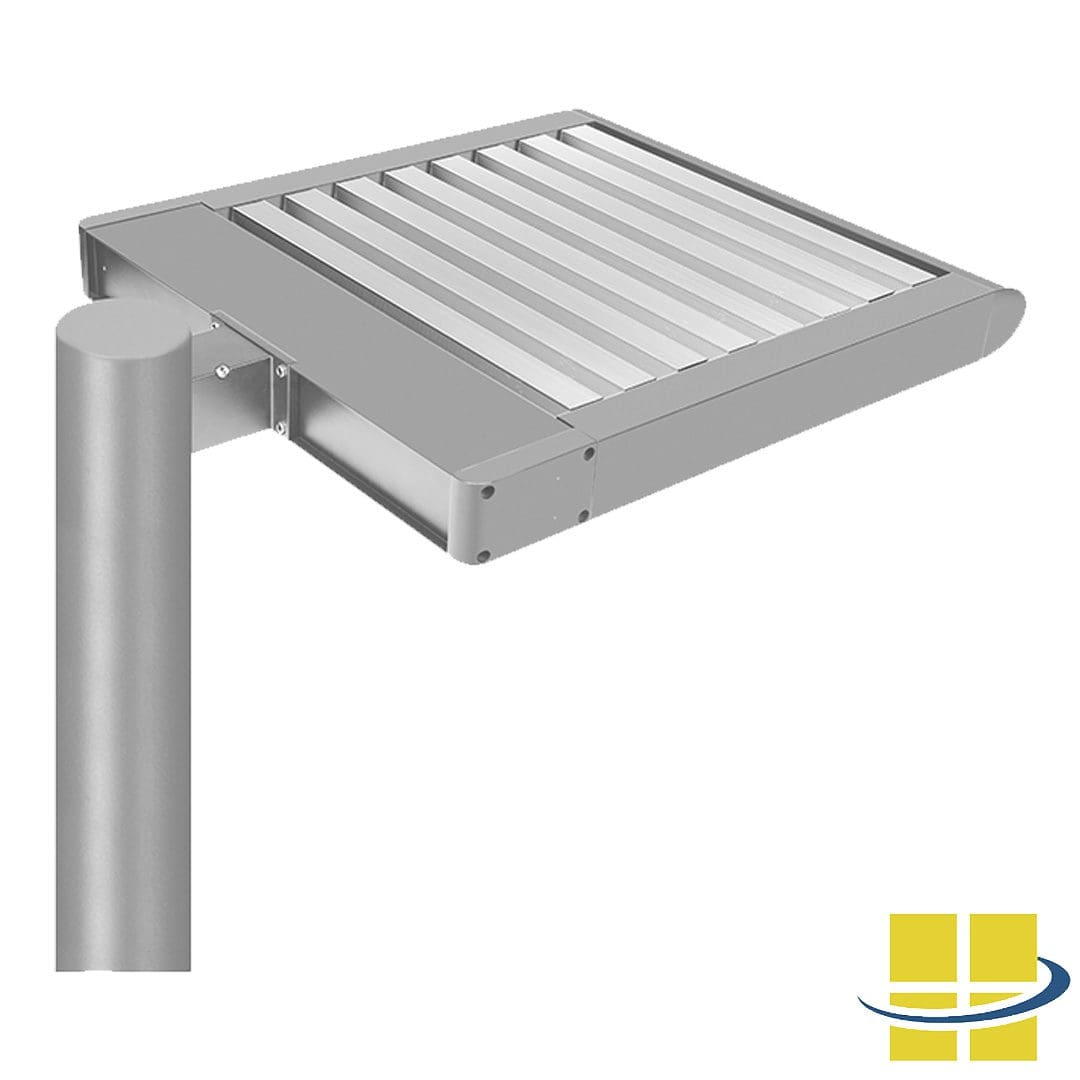

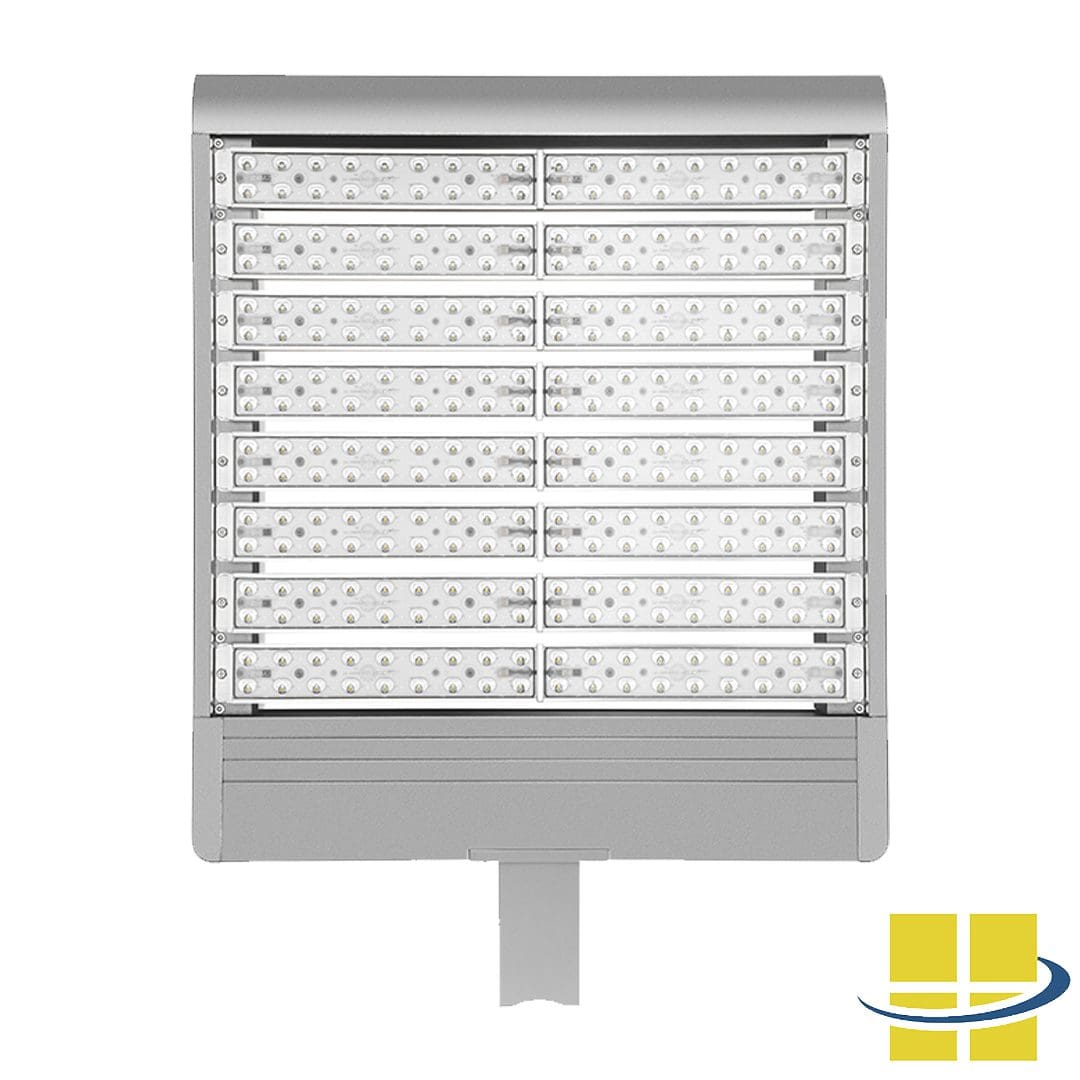

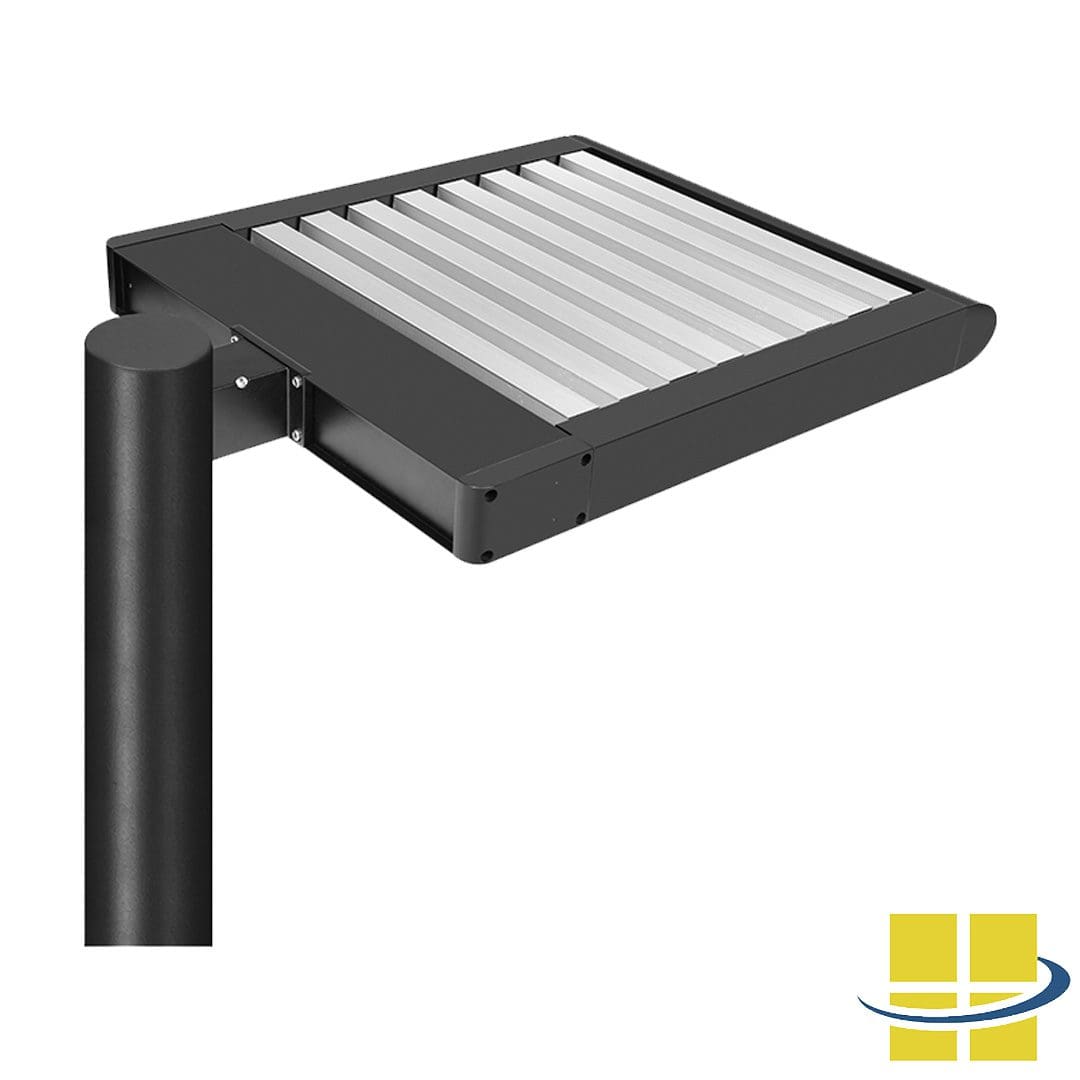

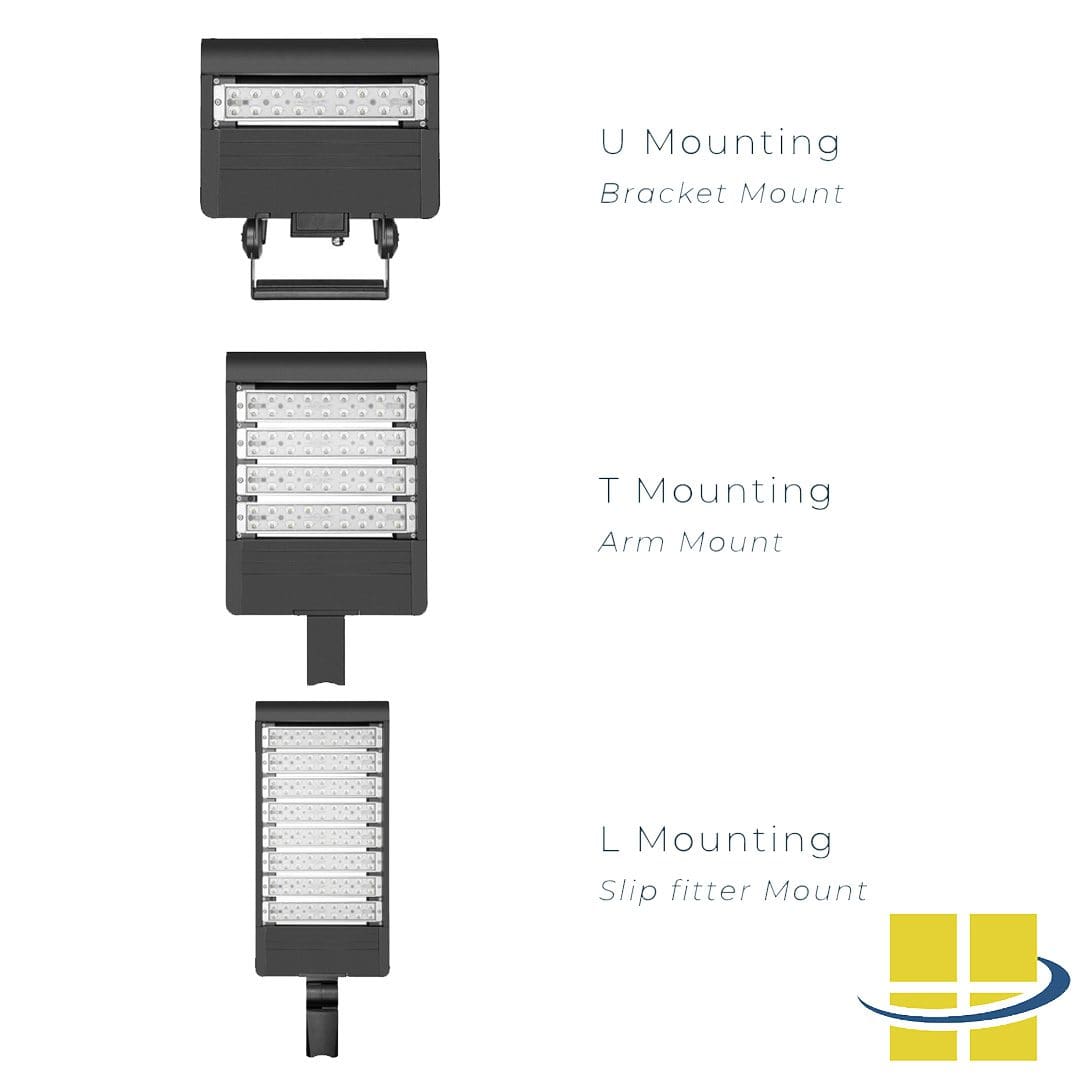

  • T Mount (fixed arm mount)

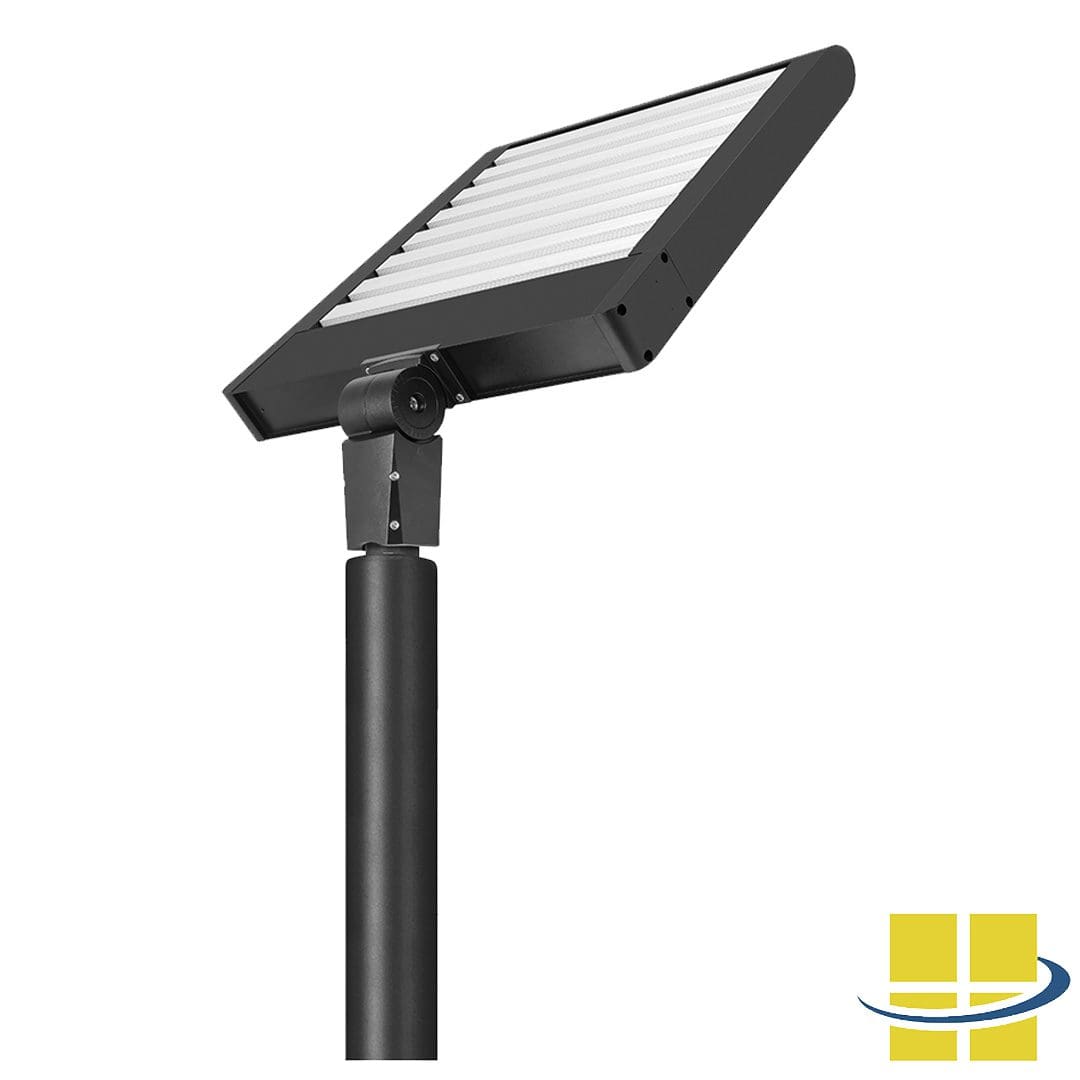

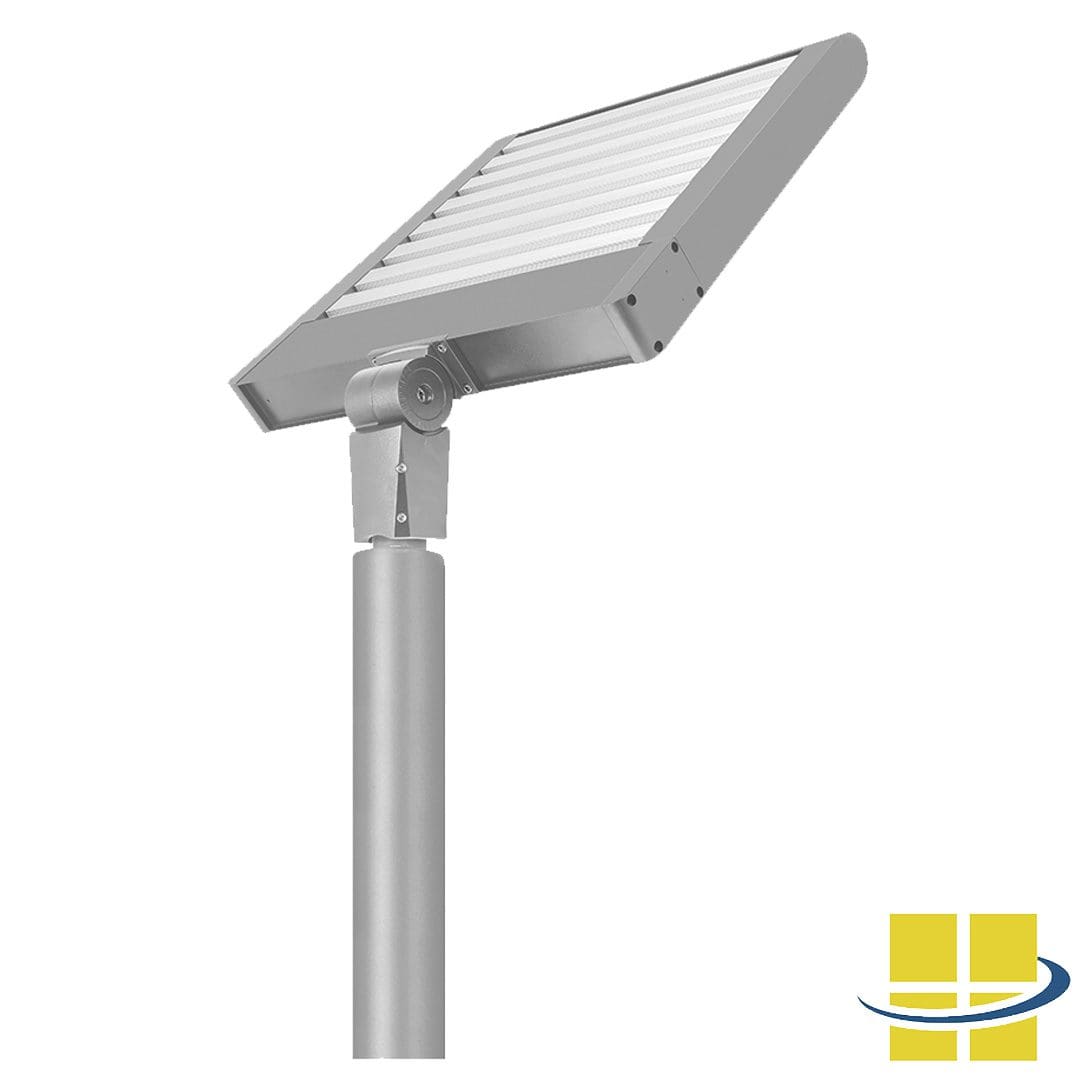

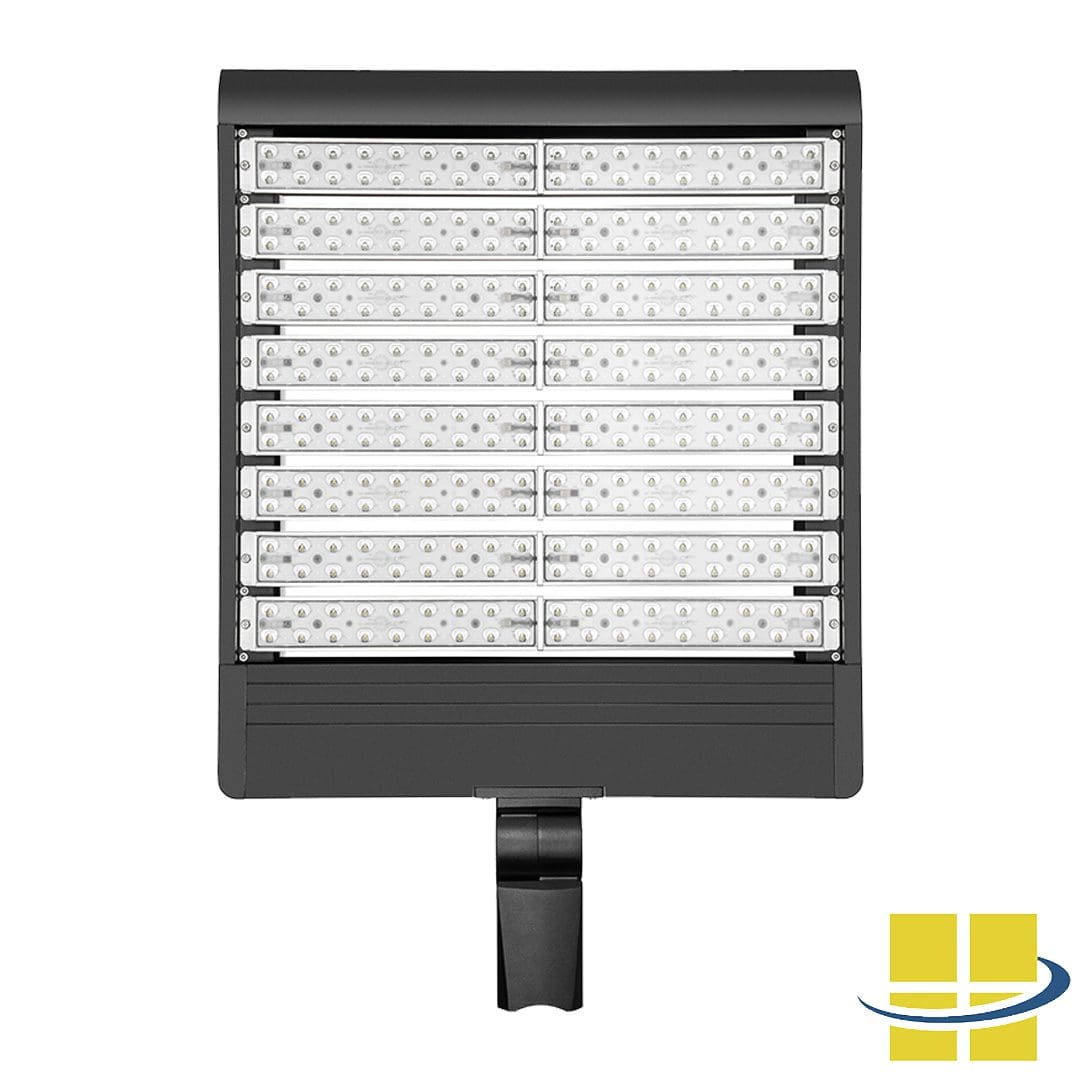

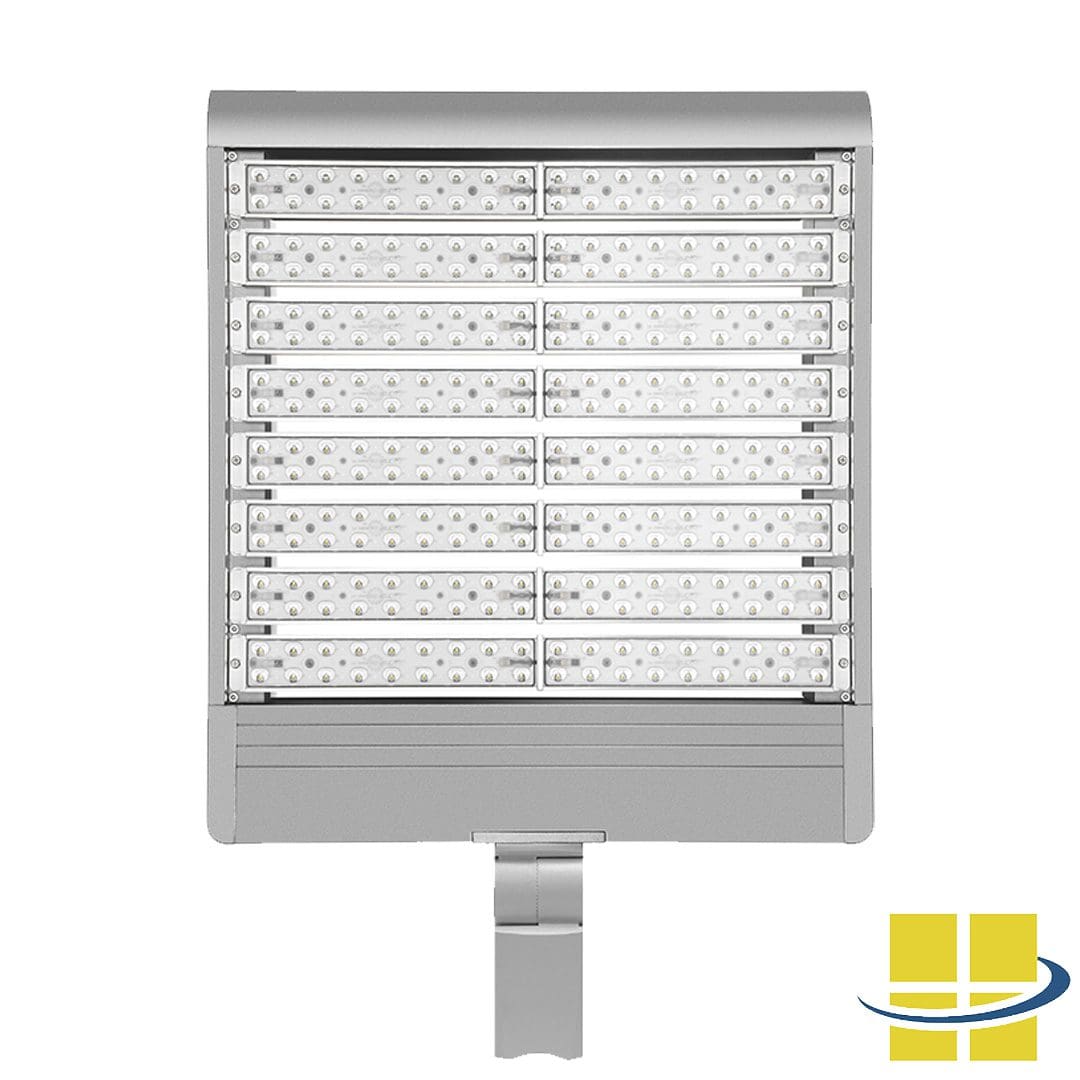

  • L Mount (slip fitter mount)

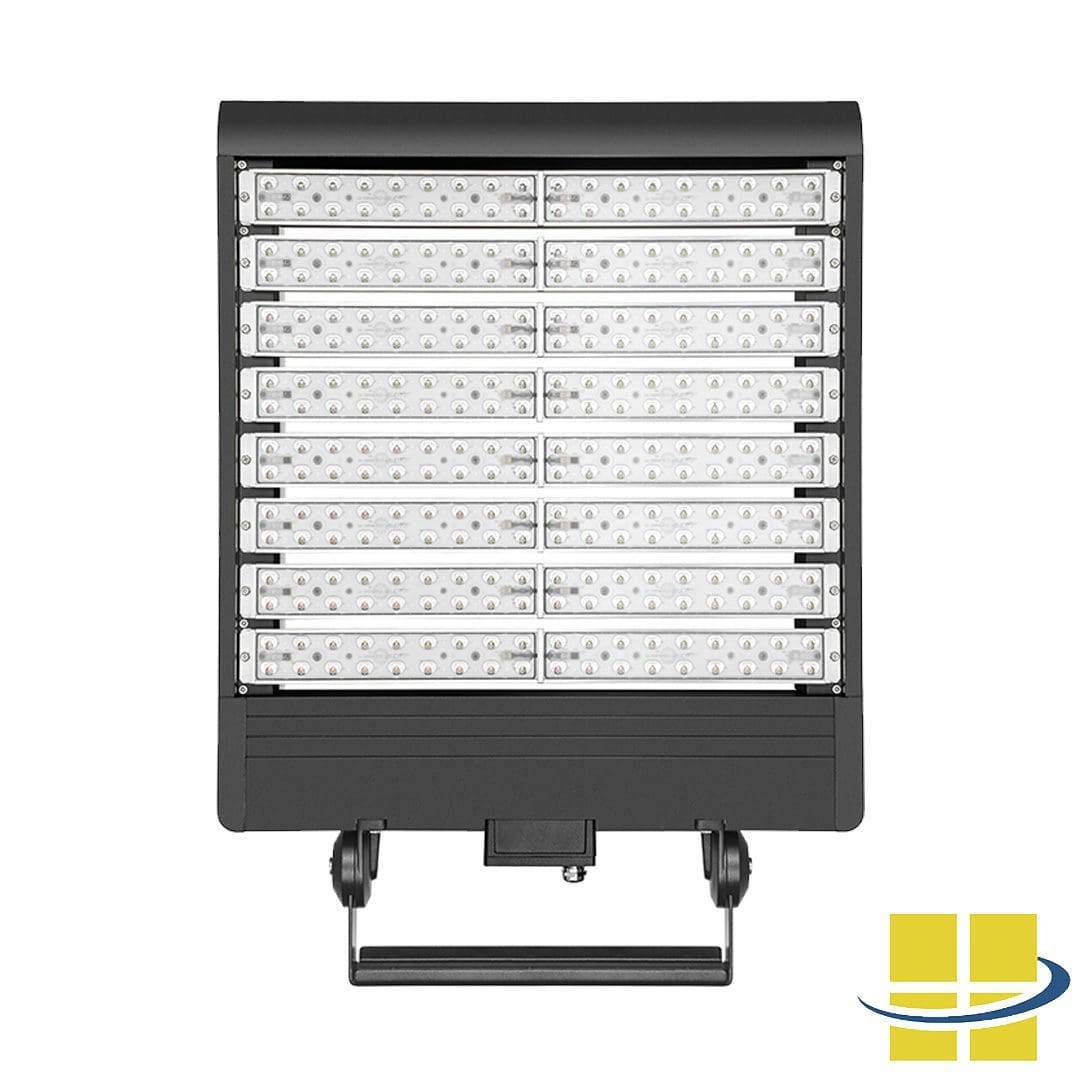

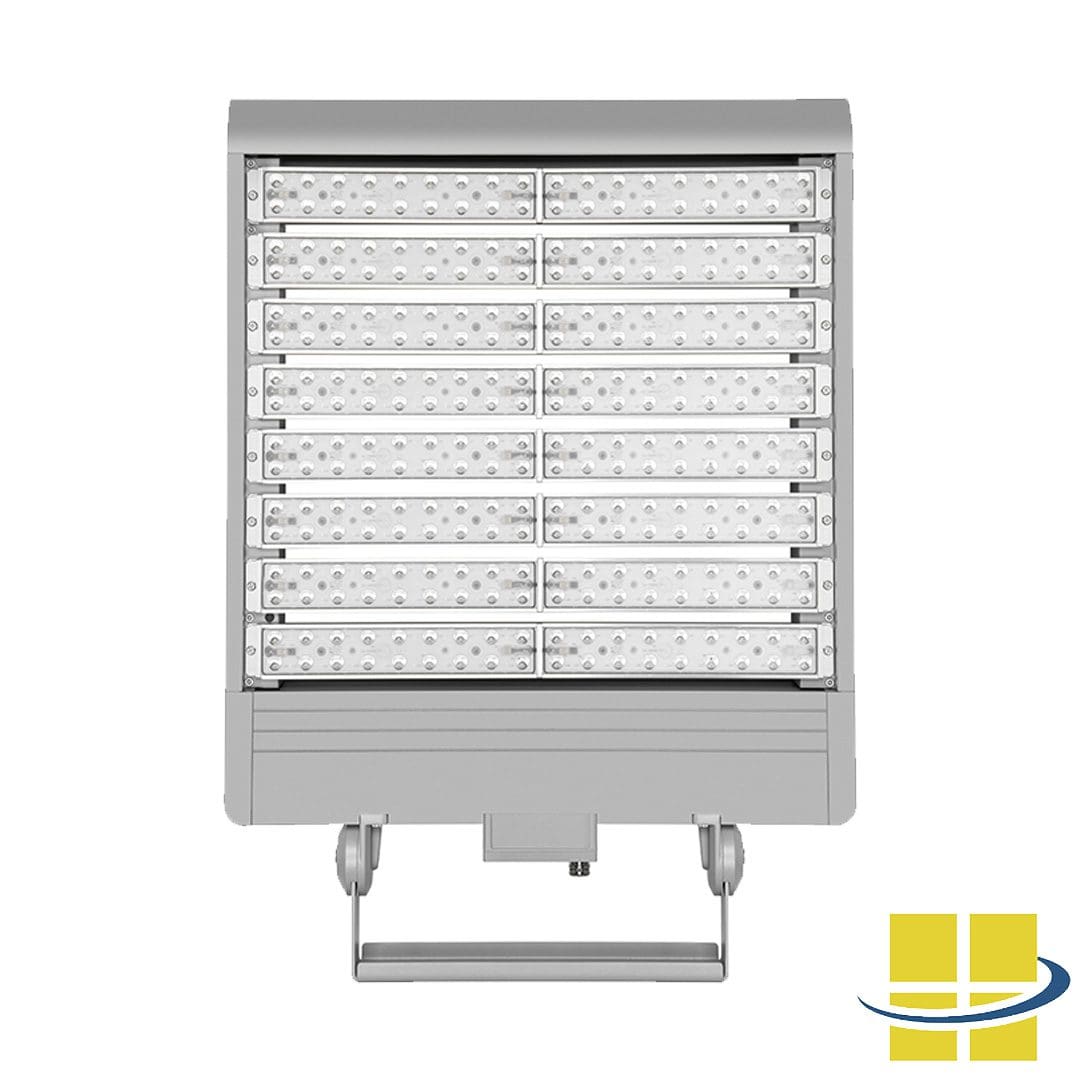

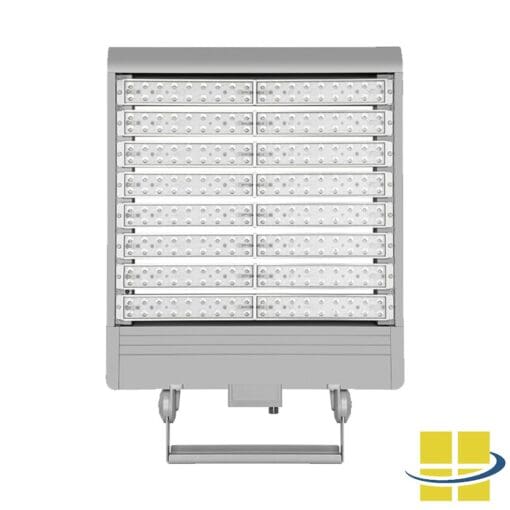

  • U Mount (bracket mount)
  • J Mount (mast mount)
  • Optional remote LED drivers
  • 10v PWM control
  • DALI control
  • DMX control
  • Microwave motion sensor
  • Photocell 3PIN, photocell 7PIN, Photocell MINI
  • Spill Control
  • Bird spikes
  • Optics rotated left
  • Optics rotated right
  • Emergency power supply
  • Backlight shield
  • Ra80 or Ra90 optional

If you have additional questions about the fixtures used in this package, please call us at 800-468-9925.

Pole Features

  • Square tapered steel poles built from high-strength steel tube
  • Wall thickness: 11 gauge (.120″)
  • Textured architectural bronze or black powder coat finish
    • Baked to ensure maximum paint adhesion, hardness, and durability
  • Anchor Bolts are included
    • sized based on pole data charts for the selected pole size
  • Cast iron reinforced hand hole and cover with ground screw
  • Poles are provided with a two-piece formed steel base cover
    • Easily assembled and fitted over pole base
  • Pole height: 30′
  • Standard length poles include side drilled 2@180°
  • UV-Stabilized polycarbonate top cover and hole plugs for unused drilling locations
  • Taper Rate=0.14″/FT
  • Side Drills: 2 at 180°
  • Base plate anchor bolt circle: 10.6-12″ (268-310mm)
  • Base size: 11″
  • Base thickness: 1″
  • Bolt projection: 4″
  • Anchor bolt size: M22 x 33″
  • Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.
  • 2 ⅜” x 4″ Tenon or 2 ⅜” x 3″ Tenon

Prompt Delivery of Your Tennis Court LED Lighting Package

Everything in this package typically ships in 6-8 weeks. The fixtures are custom-built to order but we are almost always able to meet or exceed this estimated window. We’ll ship your poles from the factory location closest to you. Stock does fluctuate, so call 800-468-9925 for an exact lead time.

Access Fixtures Warranty

Access Fixtures is proud to assemble high-quality, long-lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Custom Photometric Analysis for Your Tennis Court Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
