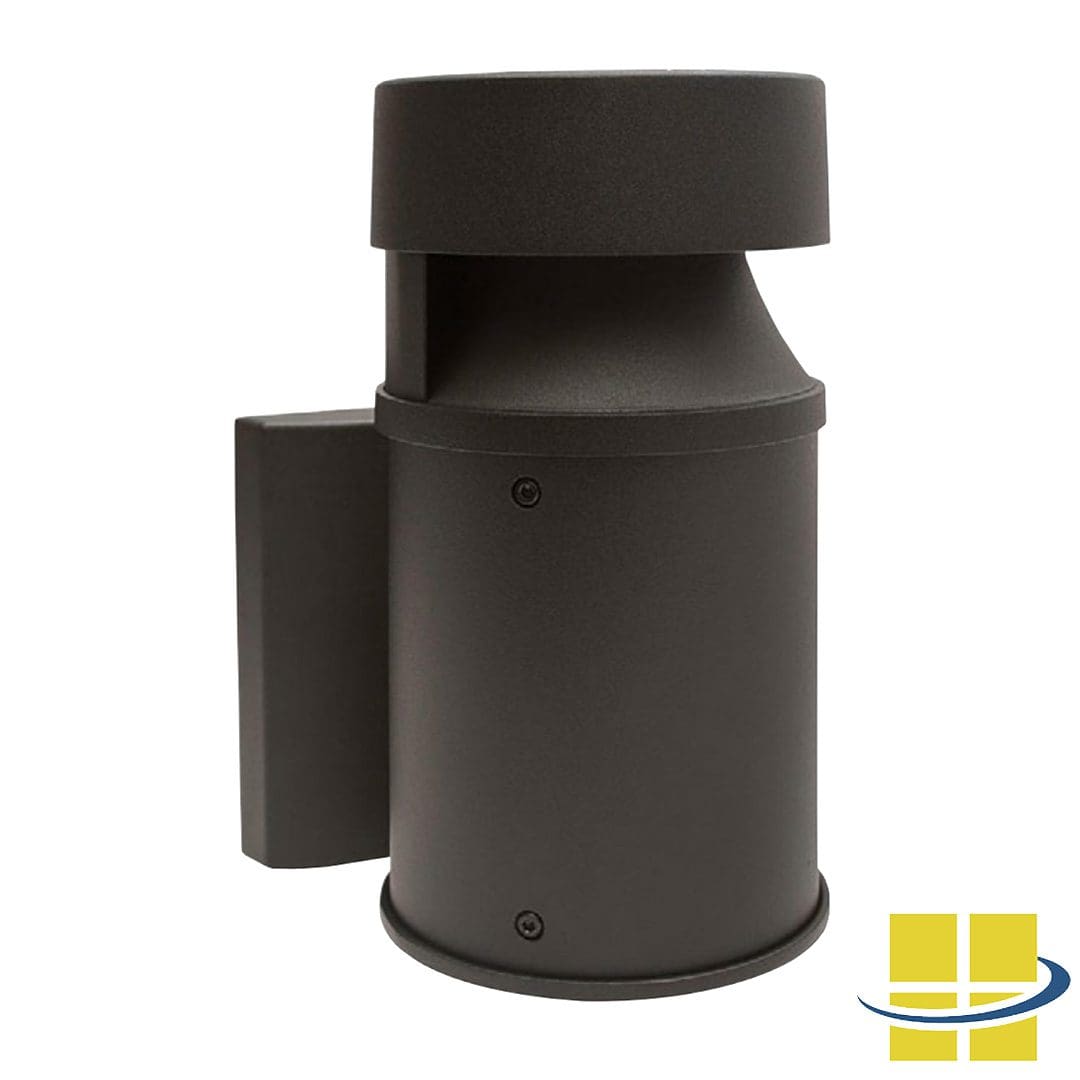

CLYD 17 LED Full Cutoff Wall Light EXTREME-LIFE, 120-277v

$486.20

The CLYD 17w LED full cutoff wall sconce provides controlled down lighting with uniform distribution designed to replace compact fluorescent and HID lighting systems up to 50w MH or HPS. Constructed of extruded aluminum with flush mount easy-hang wall bracket, built-in level, sealed driver compartment, and clear polycarbonate vandal-resistant lens all make this a standout choice for any lighting project. Choose from 360° distribution or 120° or 180° shield. Mounting heights of 8 to 12 feet can be used based on light level and uniformity requirements.

Extreme Life: L70 rated life of 147,000 hours. This means that after 147,000 hours this fixture will still deliver 70% or more of its initial lumens.

Full Cutoff: The full cutoff design of this wall pack helps to meet local lighting ordinances by minimizing light trespass – making it neighbor and dark-sky friendly!

Shielding Options: Choose between a 360 distribution or 120 degree or 180 degree shielding option – for a unique touch to direct light exactly where needed.


Buy American Act Compliant

In Stock

SKU: AF33XWBB5-F1X17 Category: Tags: , , , ,


Specifications

Weight 10 lbs

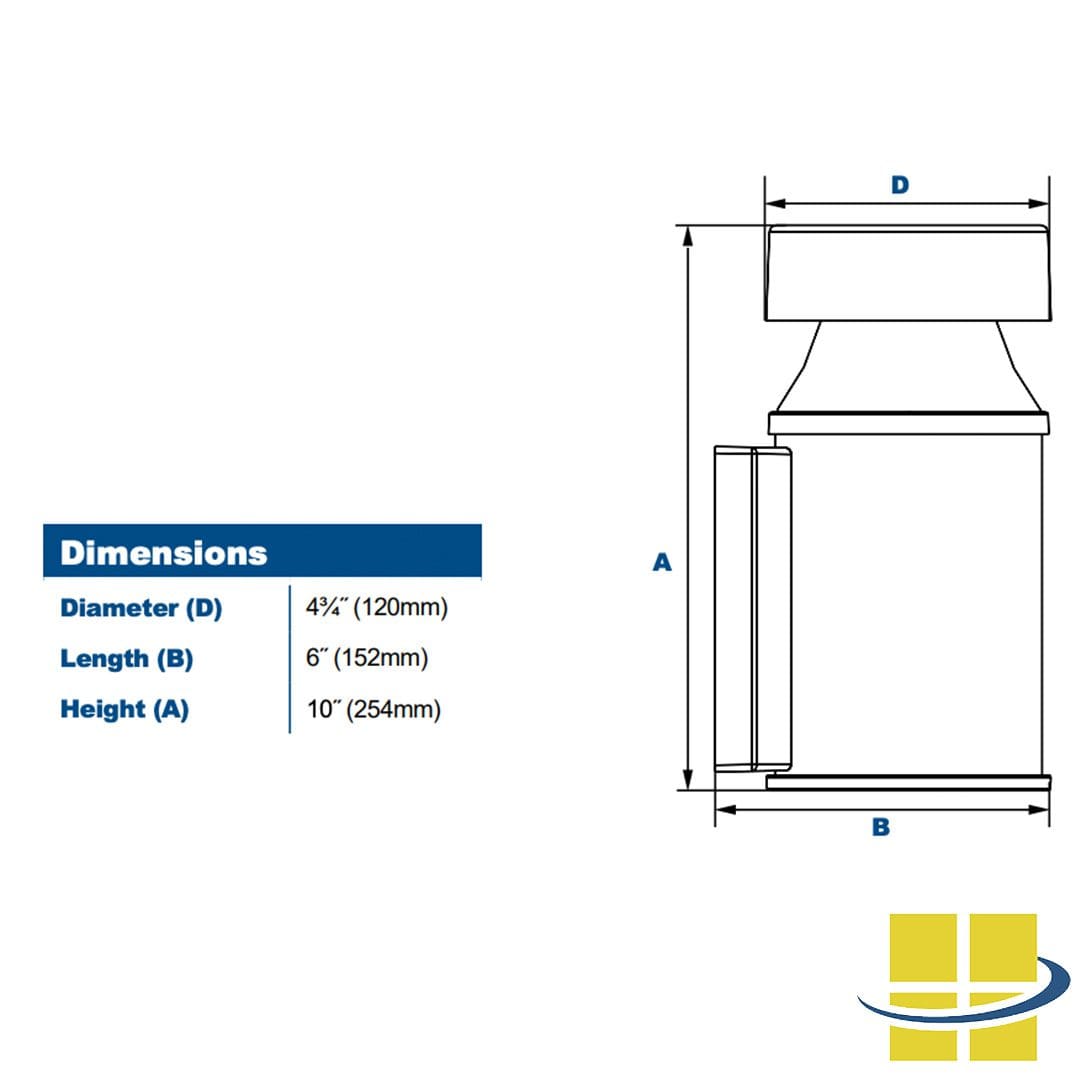

Dimensions 10 × 10 × 20 in
Availability

Typically ships in 7-10 business days

Light Source

,

Available Finishes

Black, Bronze, Custom RAL

Color Rendering Index (CRI)

80+

Housing

Flush mount easy hang bracket, Extruded aluminum housing

Lens

Clear polycarbonate lens

Light Source Included

LED Array Included

Light Source Lumens

674

Listings

IP66, ANSI/UL 1598, 8750, CSA: Listed for wet locations

Mounting

Mounts over 4-inch electrical box

Mounting Height

8-12 ft.

Product Family

CLYD

Rated Life

147,000 Hours

System Watts

17

Voltage

120-277v

Warranty

5-Year Limited Warranty

Style

Full Cutoff

Product Description

The CLYD 17w LED full cutoff wall sconce provides controlled down lighting with uniform distribution designed to replace compact fluorescent and HID lighting systems up to 50w MH or HPS. Constructed of extruded aluminum with flush mount easy-hang wall bracket, built-in level, sealed driver compartment, and clear polycarbonate vandal-resistant lens all make this a standout choice for any lighting project. Choose from 360° distribution or 120° or 180° shield. Mounting heights of 8 to 12 feet can be used based on light level and uniformity requirements.

Extreme Life: L70 rated life of 147,000 hours. This means that after 147,000 hours this fixture will still deliver 70% or more of its initial lumens.

Full Cutoff: The full cutoff design of this wall pack helps to meet local lighting ordinances by minimizing light trespass – making it neighbor and dark-sky friendly!

Shielding Options: Choose between a 360 distribution or 120 degree or 180 degree shielding option – for a unique touch to direct light exactly where needed.

Features:

  • 17w integrated LED
  • 488 | 674 lumens
  • 120-277v
  • Die-cast aluminum housing
  • CRI 80+ (learn more about Color Rendering Index here)
  • CSA: Listed for wet locations, ANSI/UL 1598, 8750
  • IP66 sealed LED compartment
  • Rated for use in temperature between -4°F and 104°F
  • L70 life of 147,000+ hours
  • 0-10v Dimmable Driver
  • 5 lbs.
  • 6 x 5 x 10 in.
  • Mount over a 4˝ recessed outlet box
  • 5 year warranty

Options:

  • Finish: Textured architectural bronze or black powdercoat finish over a chromate conversion coating. Custom colors available upon request
  • Choose a 360 degree distribution (non-shielded), 180 degree backlight shield, or 120 degree backlight shield
  • Choice of  4000K or 5000K

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at sales@accessfixtures.com. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
