Product Specifications
| Weight | 10 lbs |
|---|---|
| Dimensions | 11 × 8.75 × 5.75 in |
| Availability | 7 to 10 Day Production, plus Shipping |
| Available Finishes | Bronze, Custom RAL |
| BUG Rating | 1, 0, 1 |
| Color Rendering Index (CRI) | 80+ |
| Housing | NIckel plated stainless steel hardware, Die cast aluminum housing |
| Lens | Clear One-Piece Molded Type 4 Polycarbonate Lens |
| Light Source | 3000K – Neutral White, 4000K – Cool White, 5000K – Bright White |
| Light Source Included | LED Array Included |
| Light Source Lumens | 2,326 |
| Listings | CSA – listed for wet Locations, IP66, ANSI/UL 1598, 8750 |

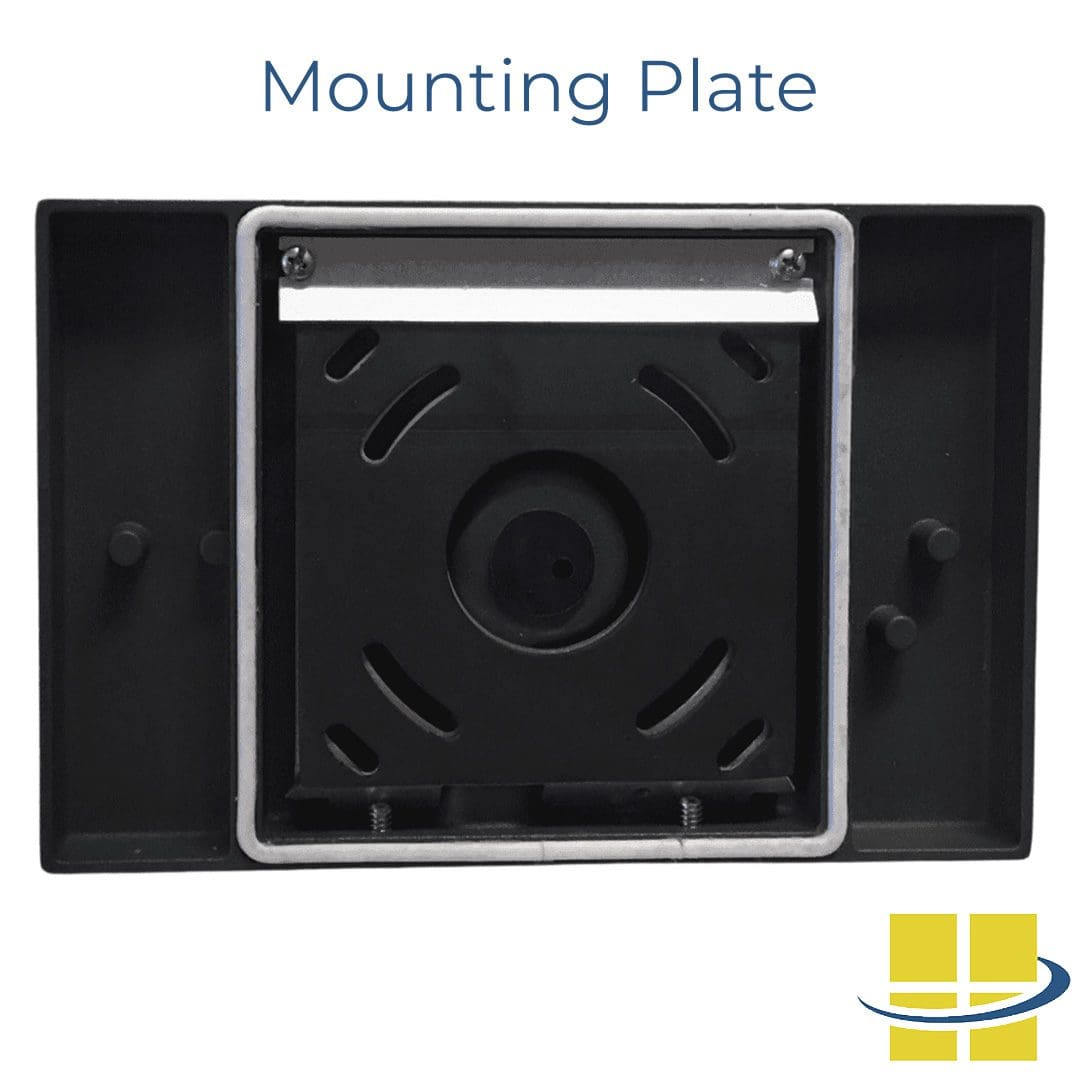

| Mounting | Built-in level, Easy-hang wall bracket, Mounts over 4-inch electrical box, Optional Trim Plate for retrofit applicatons |
| Mounting Height | 6' to 10', 11' to 15', 16' to 20', 21' to 25' |
| Product Family | CUDL |
| Rated Life | 646,000 Hours |
| System Watts | 19 |
| Voltage | 120v, 208v, 240v, 277v, 347v, 480v |
| Warranty | 5-Year Limited Warranty |

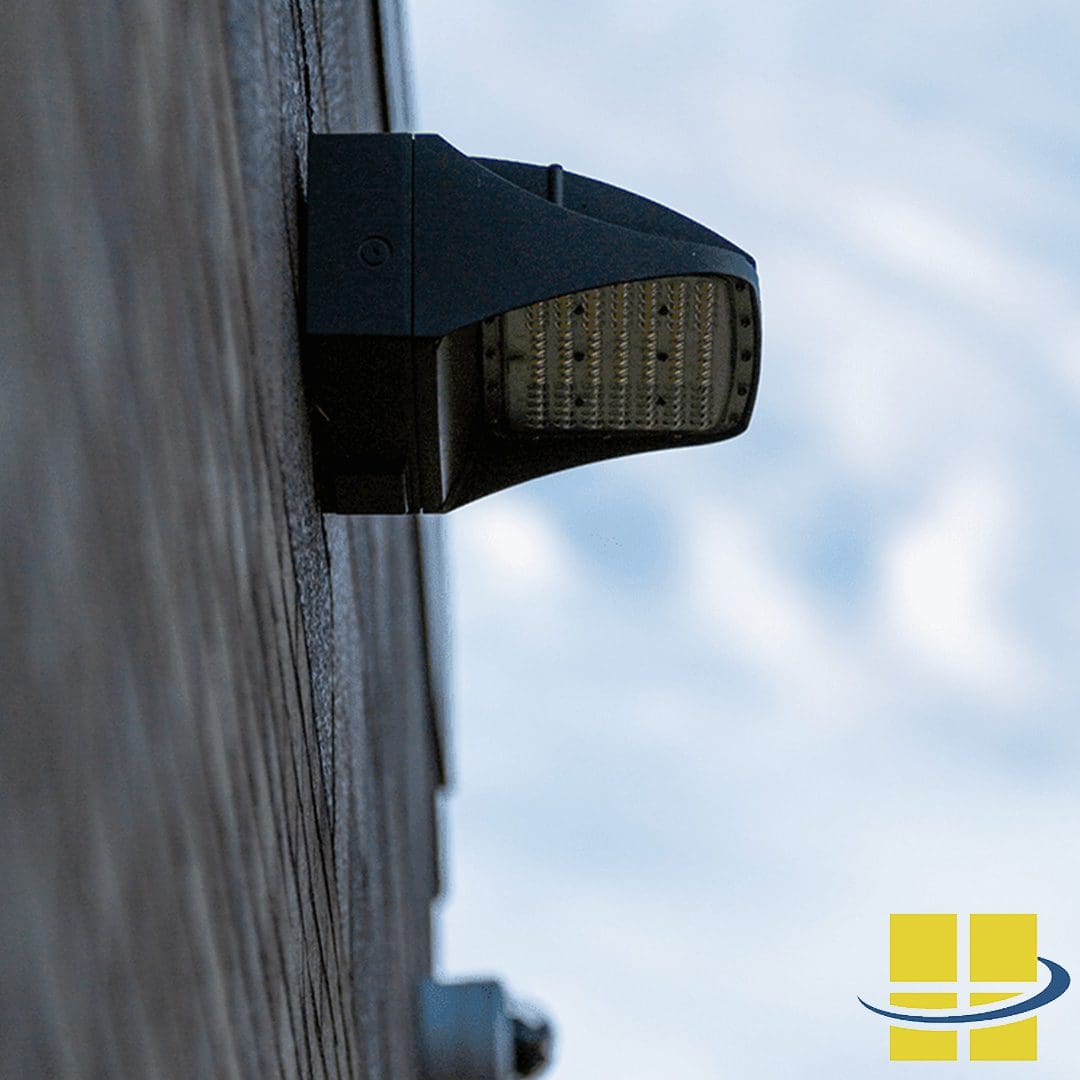

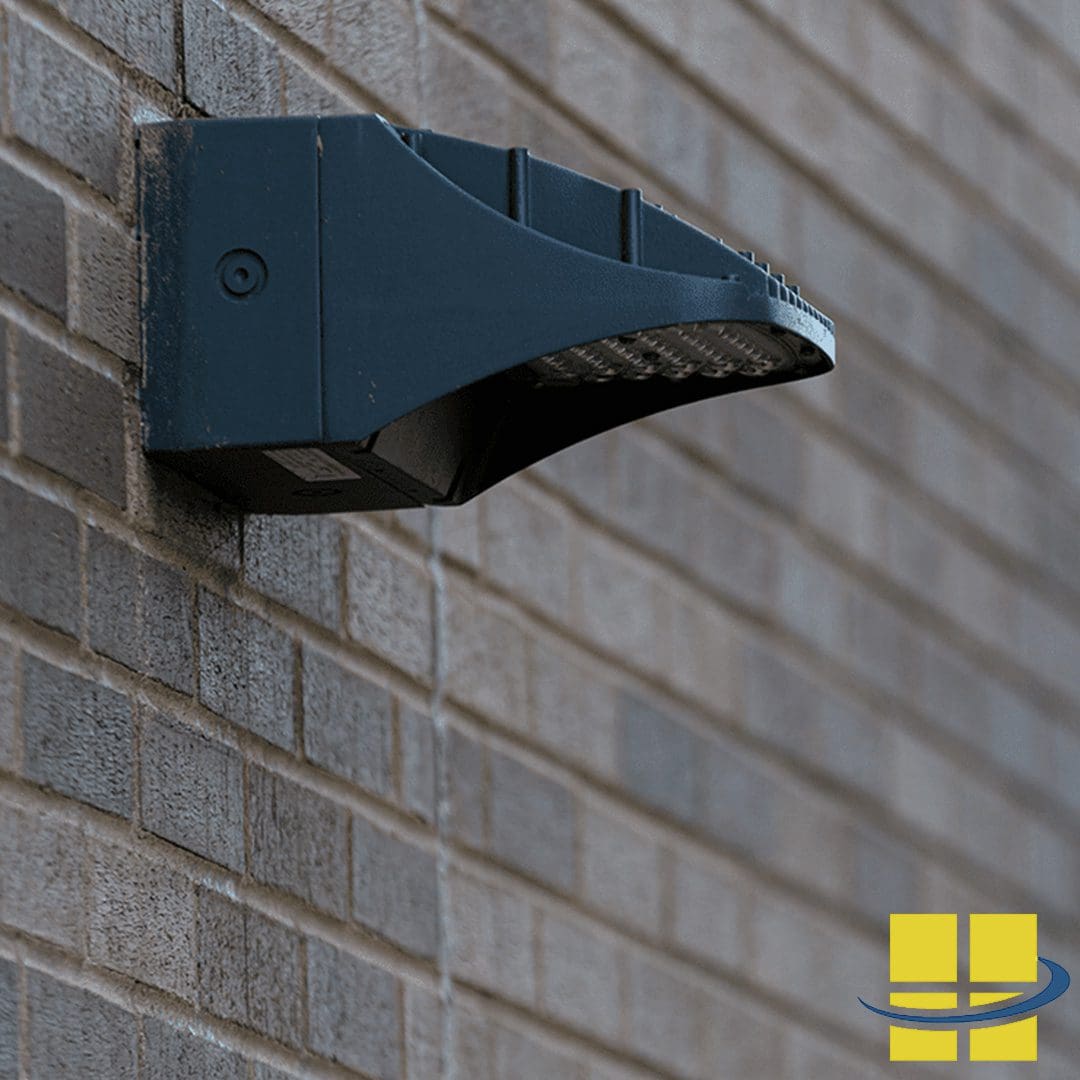

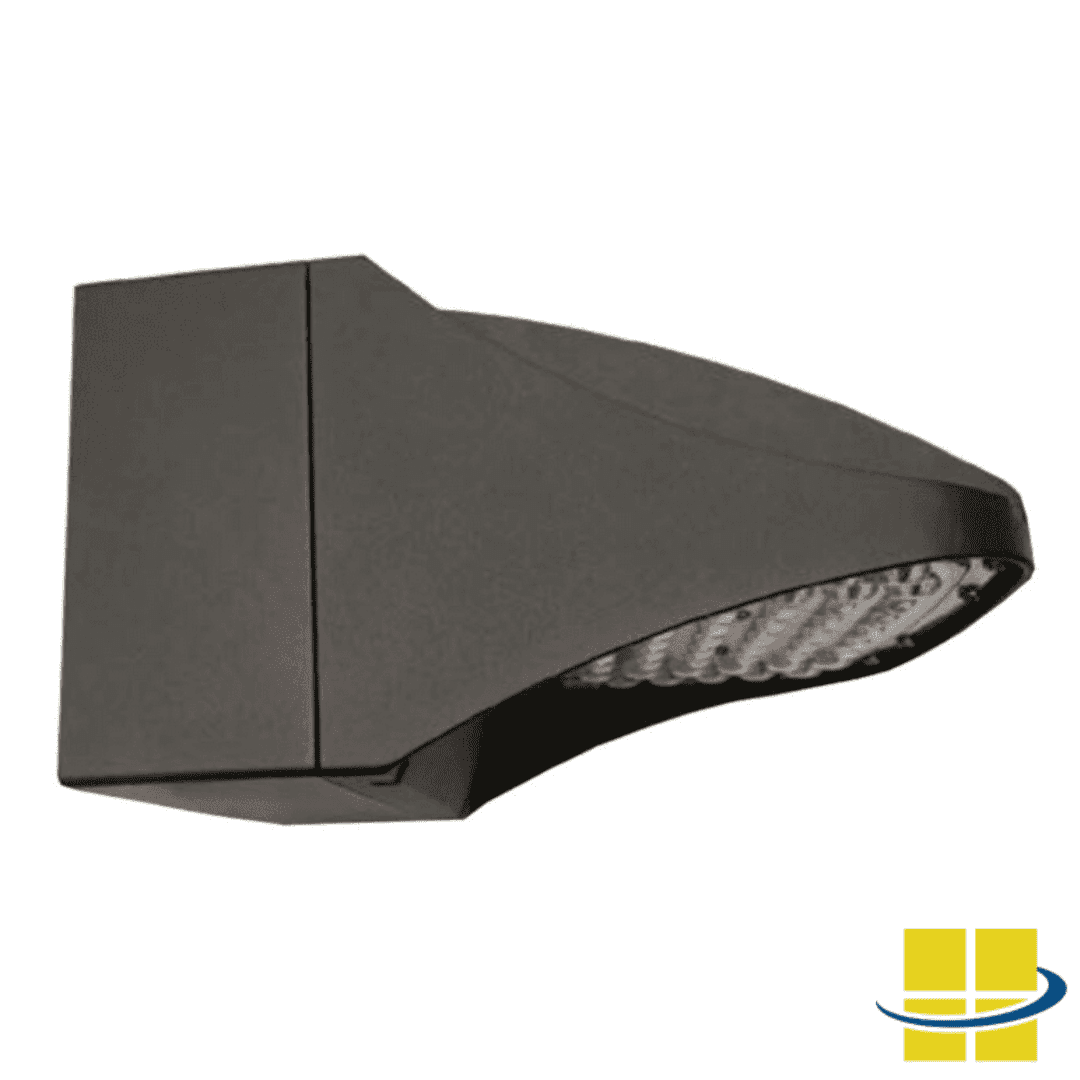

CUDL 19w LED Full Cutoff Wall Pack, Type 4 Optics, EXTREME-LIFE

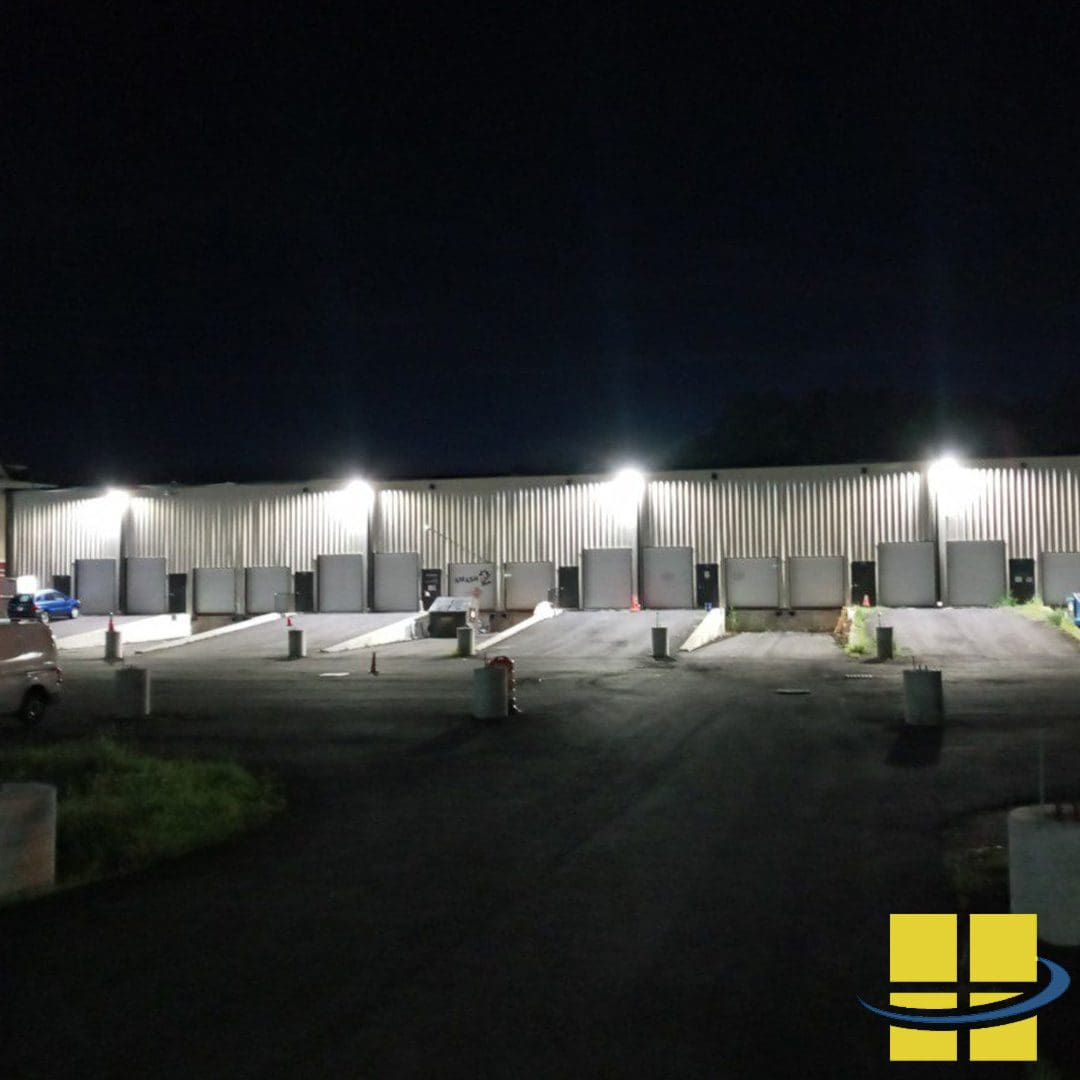

CUDL LED Full Cutoff Wall Pack features type 4 optics specially designed to maximize light distribution. With its EXTREME-LIFE of 646,000 hours at L70, the CUDL wall pack is built to perform, and built to last. CUDL offers an array of features and options and is a great choice for high walls, and commercial buildings such as airports and medical facilities, universities, schools, retail centers, and more.
Full Cutoff: The full cutoff design of this wall pack helps customers meet local lighting ordinances by minimizing up-light and light trespass.
EXTREME-LIFE: The CUDL is L70-rated at 646,000 hours, making it ideal for hot climates, hard-to-reach places, and other locations where reliability and longevity matter.
Type 4 Optics: Standard wide-angle type 4 optics maximize light distribution between wall packs and out across surface areas.
$449.87
Product Specifications
| Weight | 10 lbs |
|---|---|
| Dimensions | 11 × 8.75 × 5.75 in |
| Availability | 7 to 10 Day Production, plus Shipping |
| Available Finishes | Bronze, Custom RAL |
| BUG Rating | 1, 0, 1 |
| Color Rendering Index (CRI) | 80+ |
| Housing | NIckel plated stainless steel hardware, Die cast aluminum housing |
| Lens | Clear One-Piece Molded Type 4 Polycarbonate Lens |
| Light Source | 3000K – Neutral White, 4000K – Cool White, 5000K – Bright White |
| Light Source Included | LED Array Included |
| Light Source Lumens | 2,326 |
| Listings | CSA – listed for wet Locations, IP66, ANSI/UL 1598, 8750 |
| Mounting | Built-in level, Easy-hang wall bracket, Mounts over 4-inch electrical box, Optional Trim Plate for retrofit applicatons |
| Mounting Height | 6' to 10', 11' to 15', 16' to 20', 21' to 25' |
| Product Family | CUDL |
| Rated Life | 646,000 Hours |
| System Watts | 19 |
| Voltage | 120v, 208v, 240v, 277v, 347v, 480v |
| Warranty | 5-Year Limited Warranty |
