Driving Range Lighting 115′ Wide, 33 STAK 600, 7 70′ Poles

$146,905.71

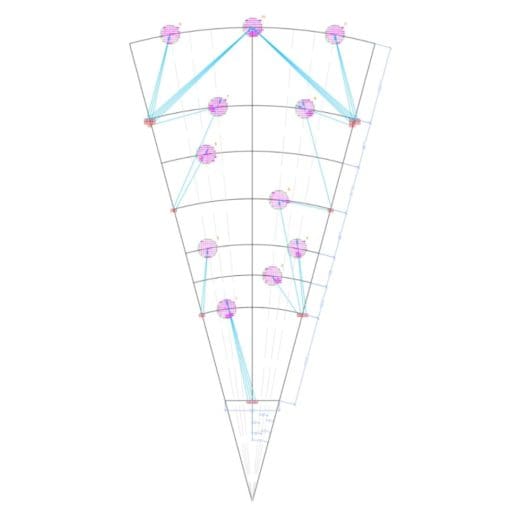

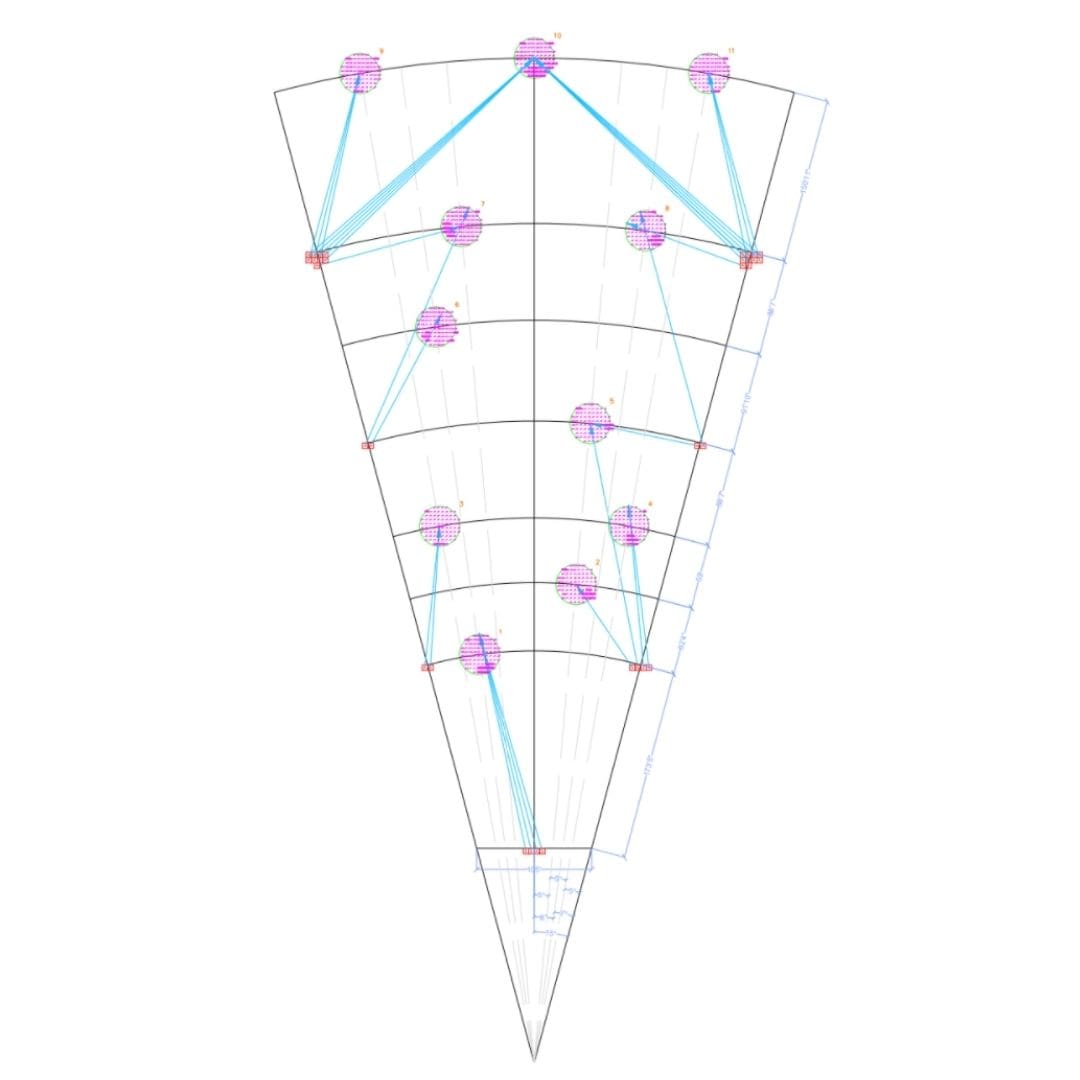

This Driving Range Lighting 115′ Wide, 33 STAK 600, 7 70′ Poles lighting package utilizes 33 STAK 600 fixtures on 7 70′ poles to light a 115′ driving range with over 10 average footcandles on each target green.

Lightweight and Durable: STAK boasts a small frame, light weight and low EPA that facilitates easy installation on fiberglass poles.

Maximum Light Output: High lumens per watt and premium optics design provide maximum light output with minimal glare and overall superior performance.

Precision Optics: This fixture is available with 25° precision optics and an optional laser to help you position the light exactly where it’s needed.

View Driving Range Lighting for more information



Questions? Contact a lighting specialist.



Call 800-468-9925

In Stock

SKU: AF77XST-RSL600S(33)(7)70Poles Categories: , Tag:


Specifications

Weight 100 lbs
Dimensions 100 × 200 × 16 in
Application

Availability

Typically ships in 4-6 weeks

Available Finishes

Black

Average Footcandles

10

Color Rendering Index (CRI)

80 Ra, 70+

Housing

Polycarbonate front housing

Indoor/Outdoor

Outdoor

Lens

Clear polycarbonate lens

Light Source

Light Source Included

LED Array Included

Listings

CUL, ETL Listed, IP65, UL Listed

Product Family

STAK

Mounting

Yoke Mount/U-Bracket Mount

Rated Life

50,000 Hours

Warranty

5-Year Limited Warranty

Voltage

120-277v

Light Source Lumens

2,376,000

Product Description

This Driving Range Lighting 115′ Wide, 33 STAK 600, 7 70′ Poles lighting package utilizes 33 STAK 600 fixtures on 7 70′ poles to light a 115′ driving range with over 10 average footcandles on each target green.

Lightweight and Durable: STAK boasts a small frame, light weight and low EPA that facilitates easy installation on fiberglass poles.

Maximum Light Output: High lumens per watt and premium optics design provide maximum light output with minimal glare and overall superior performance.

Precision Optics: This fixture is available with 25° precision optics and an optional laser to help you position the light exactly where it’s needed.

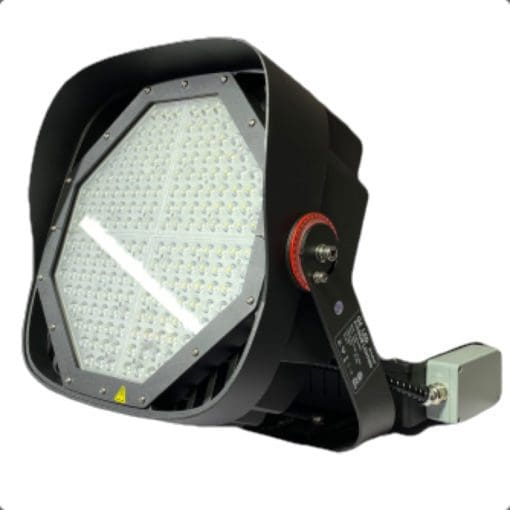

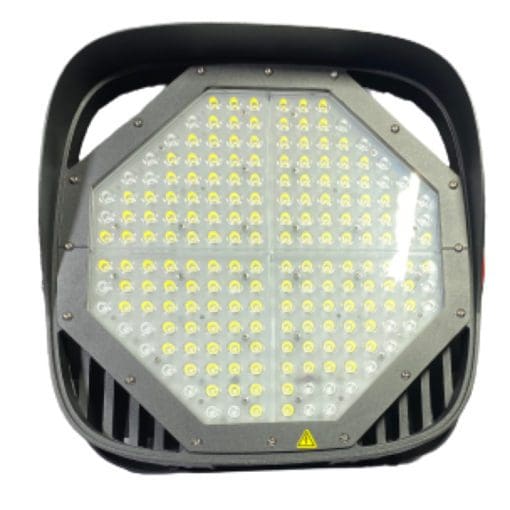

33 STAK 600 Features:

  • Black die cast aluminum powdercoat finish
  • Up to 72,000 lumens
  • 25° optics
  • 600 system watts
  • Operates from -104° F to 122° F
  • 70+ CRI/80Ra
  • IP65 rated, ETL/CETL, DLC listed
  • Bracket mount
  • 120-277v
  • 5000K
  • 120 lumens per watt
  • L70 @ 50,000 hours
  • 34.1 lbs
  • 5-year warranty

Other Features:

  • 7 70′ direct burial black fiberglass poles
  • Mounts included with package

Driving Range Lighting 115′ Wide, 33 STAK 600, 7 70′ Poles Provides Exactly What You Need

Access Fixtures high performance lighting specialists use the most advanced photometric software to ensure you get the perfect driving range lighting. Few driving ranges have identical lighting needs. If you have any questions, our knowledgeable high performance lighting specialists in Worcester, MA are available to walk you through your arena LED lighting project. Call us today at 800-468-9925 to discuss your project. You can also email us at customerservice@accessfixtures.com.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at sales@accessfixtures.com. Click here to view Access Fixtures' complete warranty policy.


Ready to Order Driving Range Lighting 115′ Wide, 33 STAK 600, 7 70′ Poles?

You can place your order online here. Or, if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
