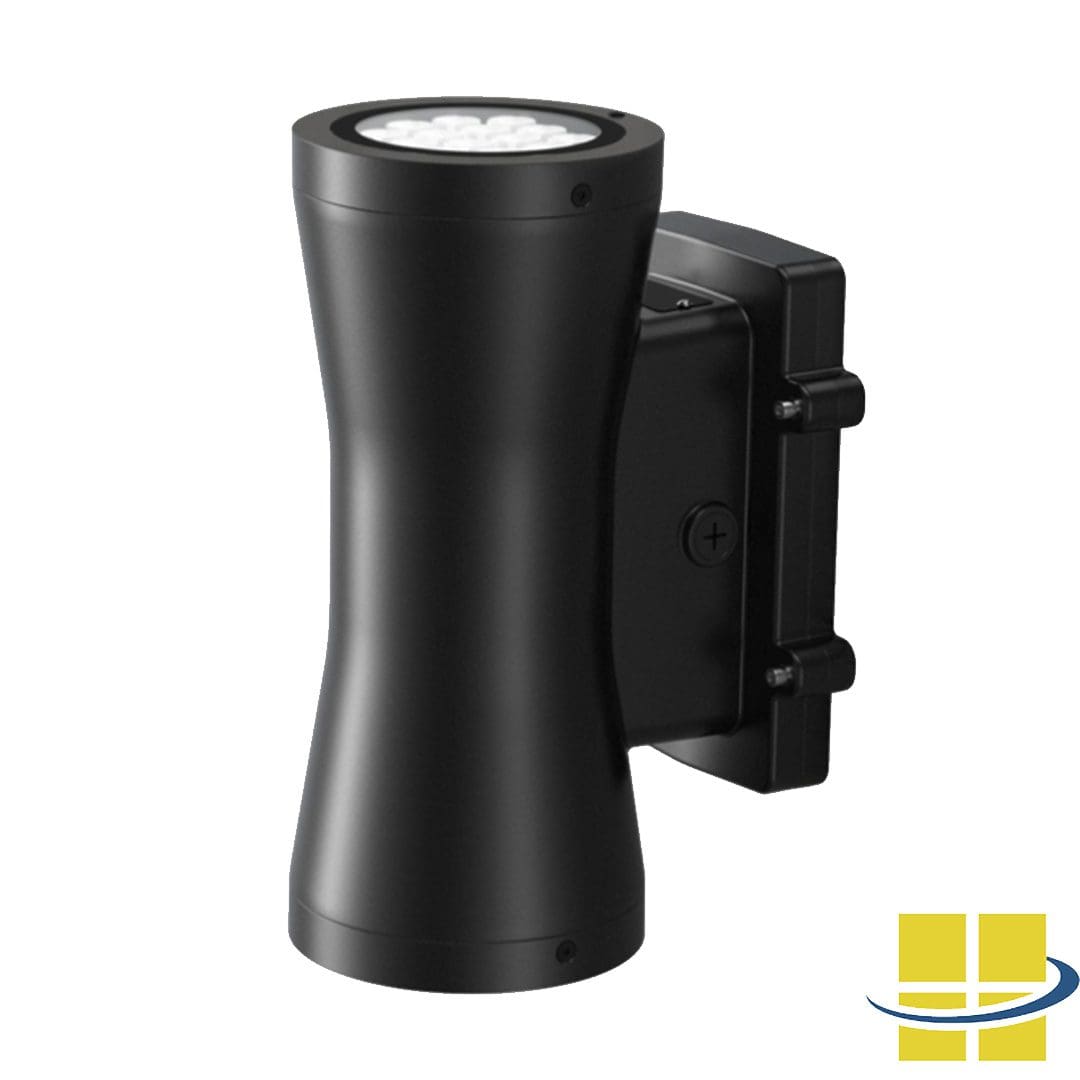

HAMO LED Wall Pack, Selectable Wattage & Kelvin, EXTREME-LIFE

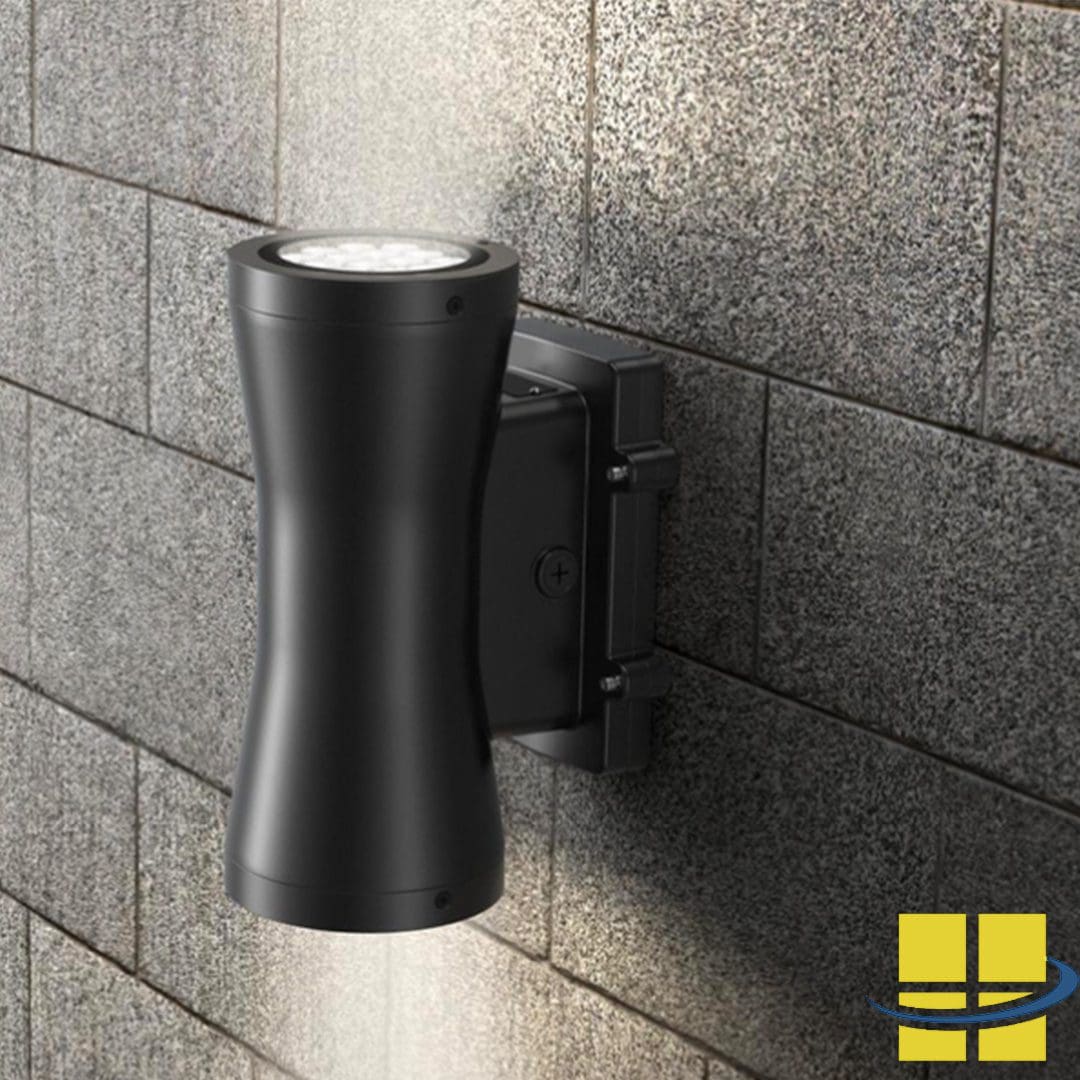

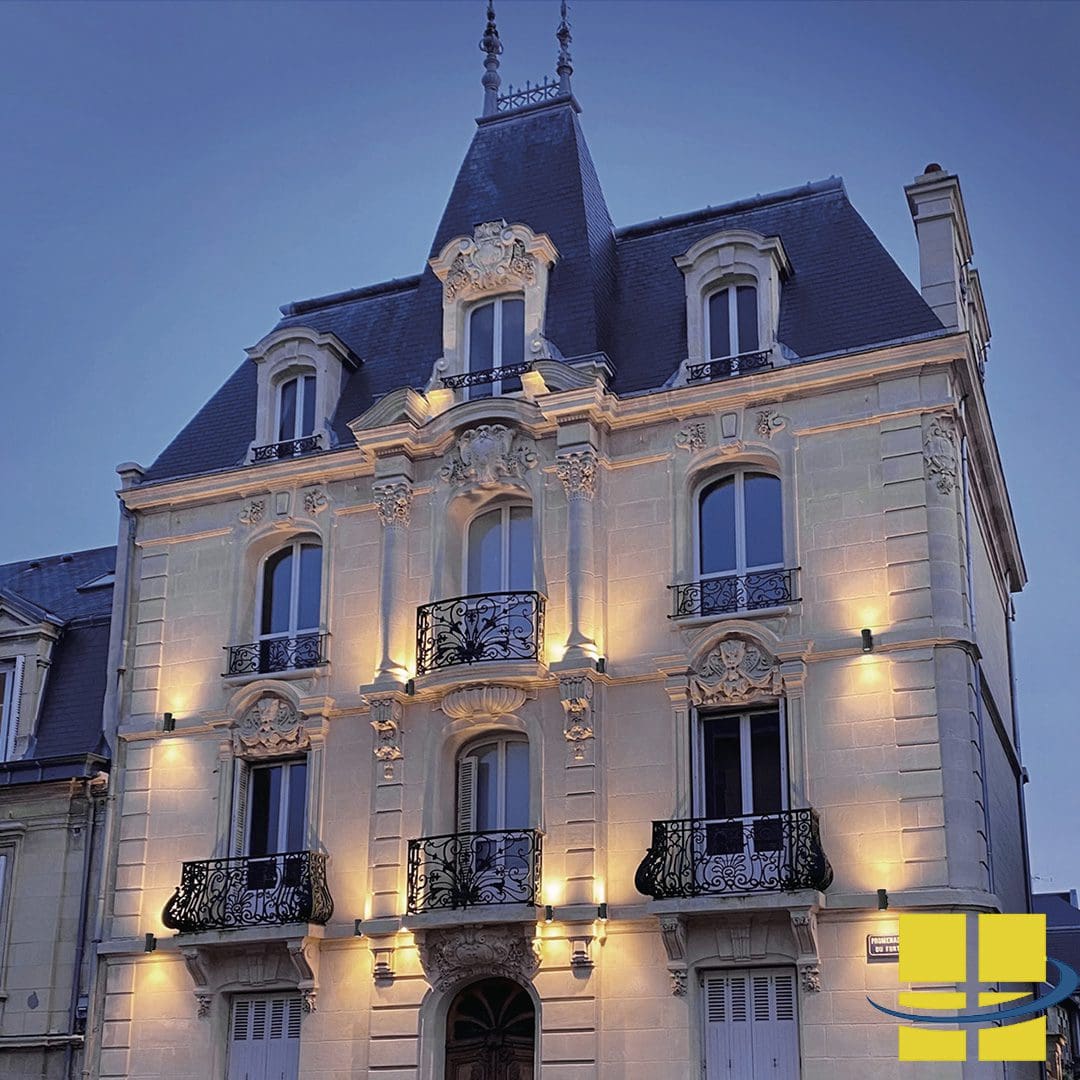

This HAMO Up-Light/Downlight LED Wall Pack Light features Selectable Kelvin: 3000K, 4000K, 5000K, Selectable Wattage: 60w @ 100% / 75% / 50% / 30%, and Selectable Modes: up light, down light, and up/down light. EXTREME-LIFE L70 @ 130,000 hours rated. .Ready to be installed indoors or outdoors, HAMO brings both decorative and functional factors with its architectural style, die-cast aluminum housing, and robust structure.

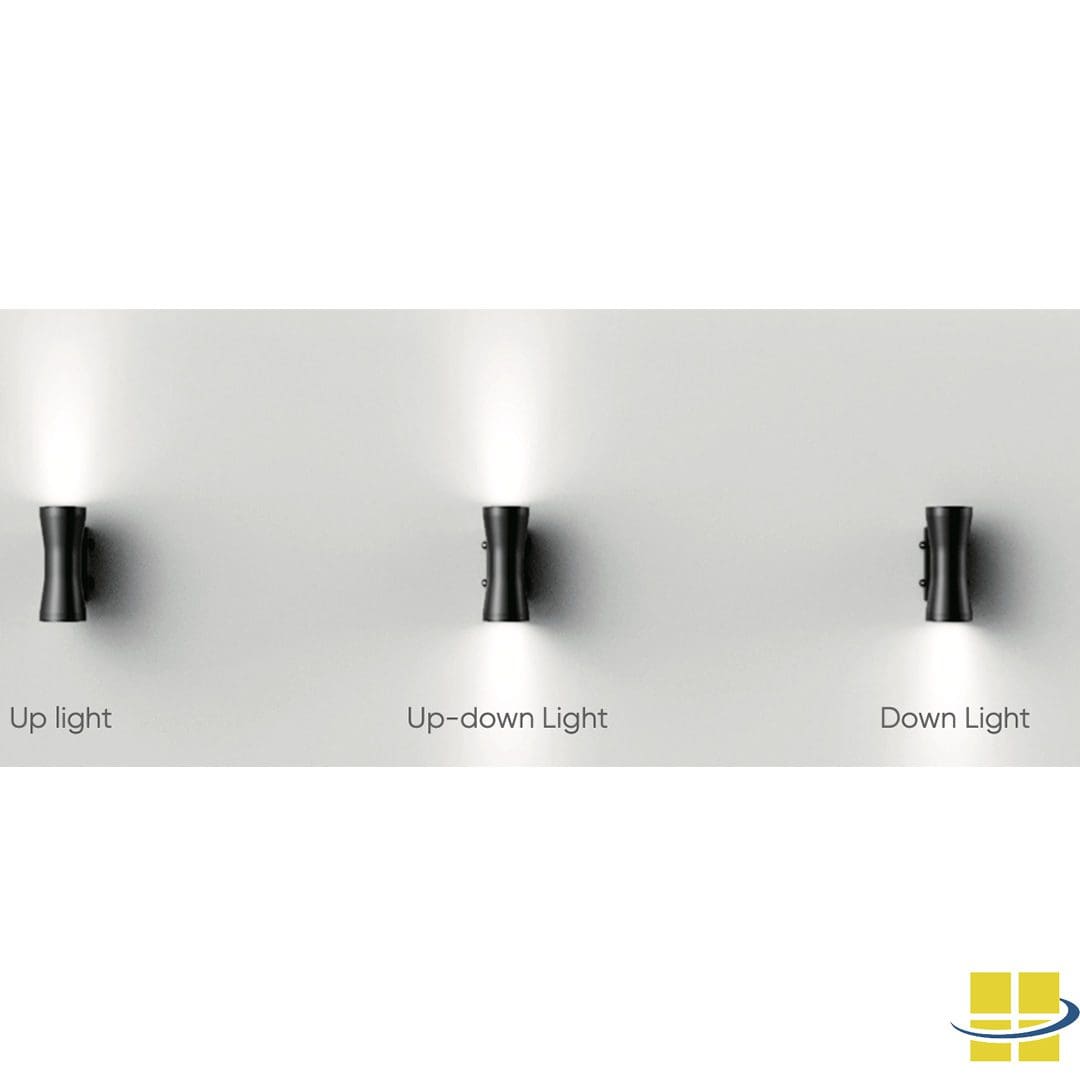

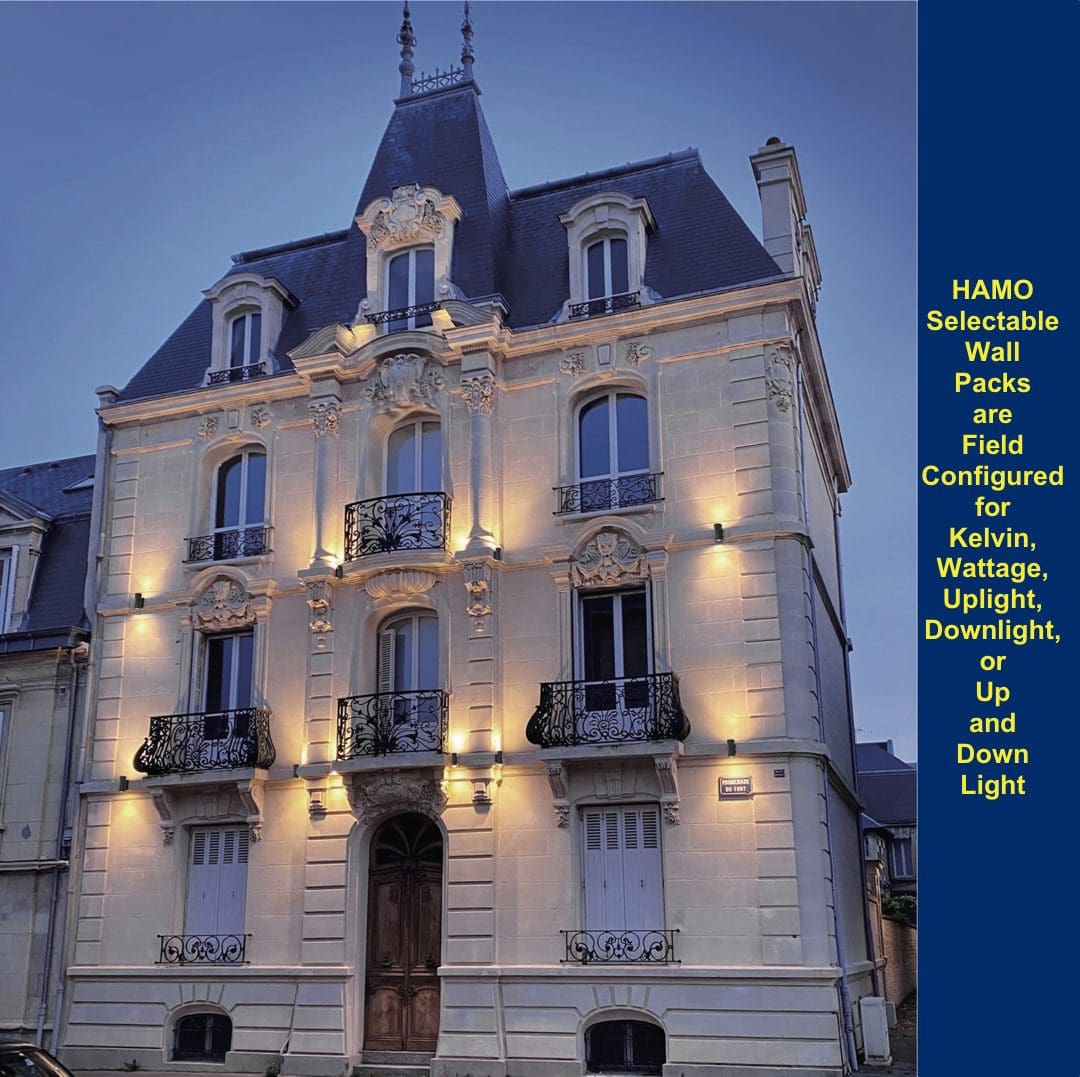

3 Light Modes: HAMO brings life to any outdoor facade with its three lighting modes: Up light, Down light, and Up/Down light.

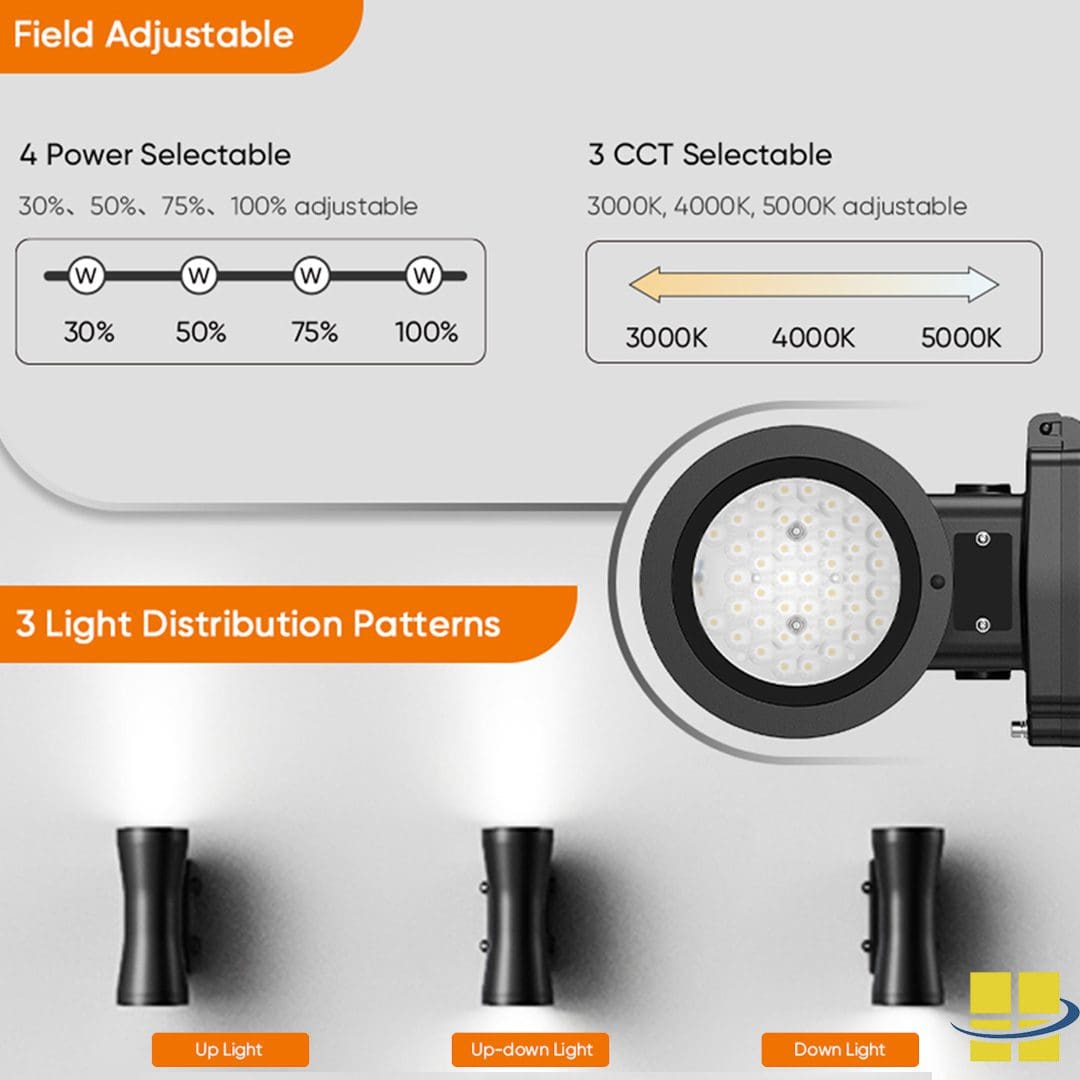

Selectable Kelvin: Get the exact Kelvin you want at the site with the flick of a smart controller switch. Choose from 3000K, 4000K, or 5000K.

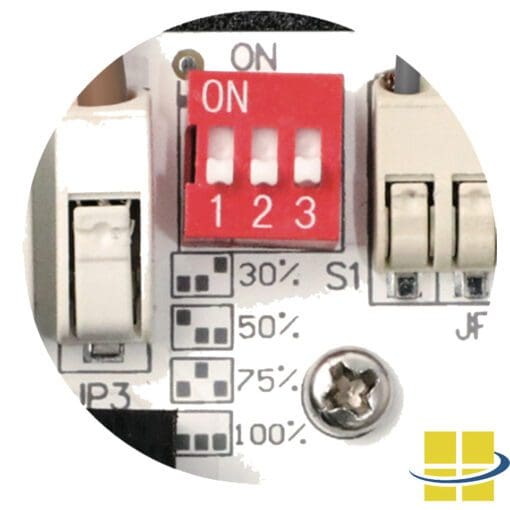

4-Power Selectable Wattage: Get the exact amount of light desired using Selectable Wattage 60w 100% / 75% / 50% / 30%, and additional lighting control using the 0-10v dimmable driver.

BAHB LED Post-Top Light

In Stock

SKU: AF59XWP07-060 Categories: ,


Weight 11.5 lbs
Dimensions 17 × 12 × 11 in

7 to 10 Day Production, plus Shipping

Light Source

, ,

Available Finishes



Die-cast aluminum housing


PMMA Glass

Light Source Included

LED Array Included

Light Source Lumens



IP66, ETL Listed, IK08


Wall Mount

Product Family


System Watts Filter

1w – 19w, 50w – 99w, 100w – 199w

System Watts

Selectable Watts 100% / 75% / 50% / 30%


120v, 208v, 240v, 277v, 347v


5-Year Limited Warranty

Product Description

HAMO LED Wall Pack Features:

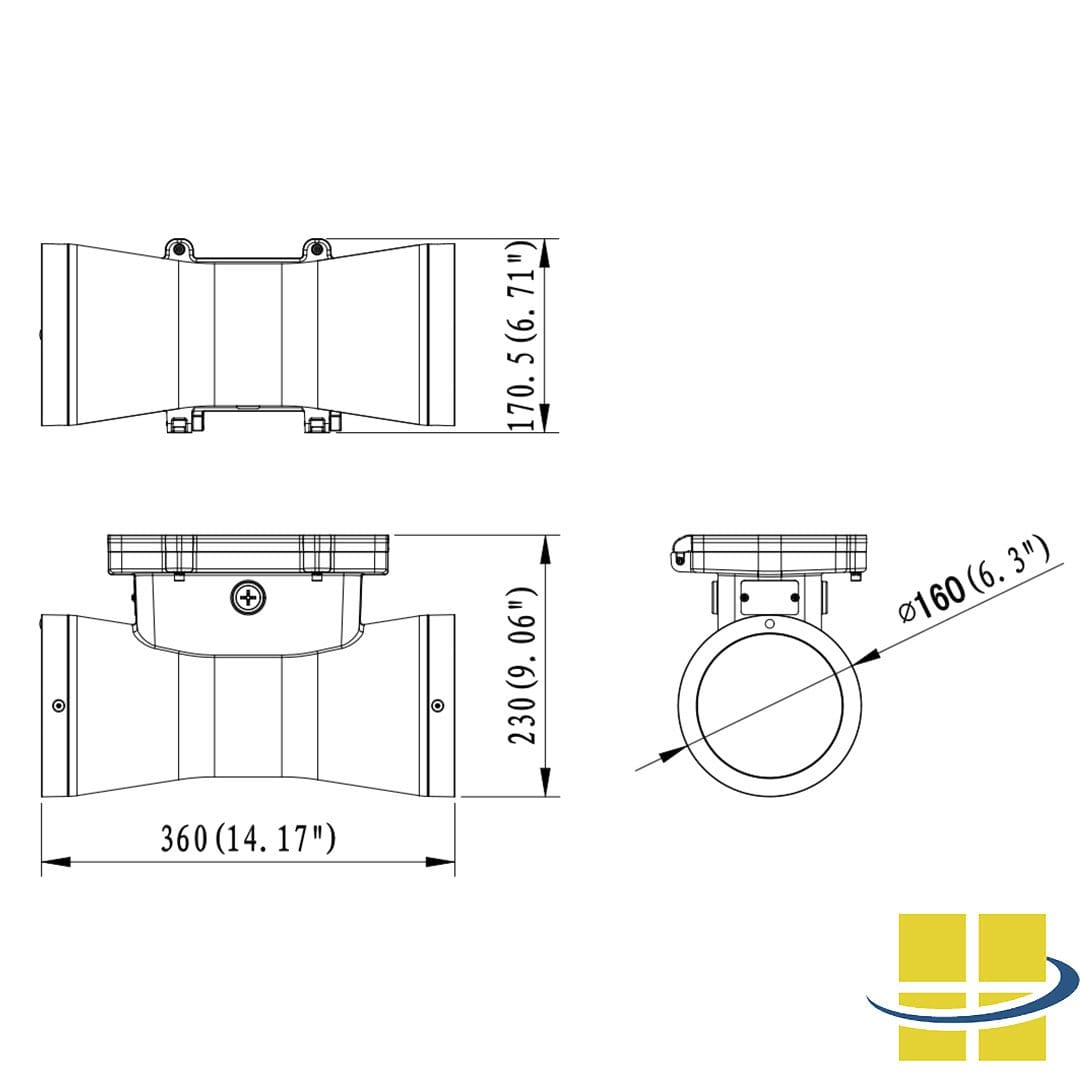

  • 14.17″ x 9.06″ x 6.71″ inches
  • 4.3lbs
  • Selectable Wattage
    • 30%, 50%, 75%, 100% adjustable
  • Selectable Kelvin
    •  3000K, 4000K, 5000K
  • Black finish [RAL 9017]
  • 3 light distribution patterns
    • Up light
    • Up/Down light
    • Down light
  • Up Light power
    • 30w (100% / 75% / 50% / 30% Selectable)
  • Down Light power
    • 30W (100% / 75% / 50% / 30% Selectable)

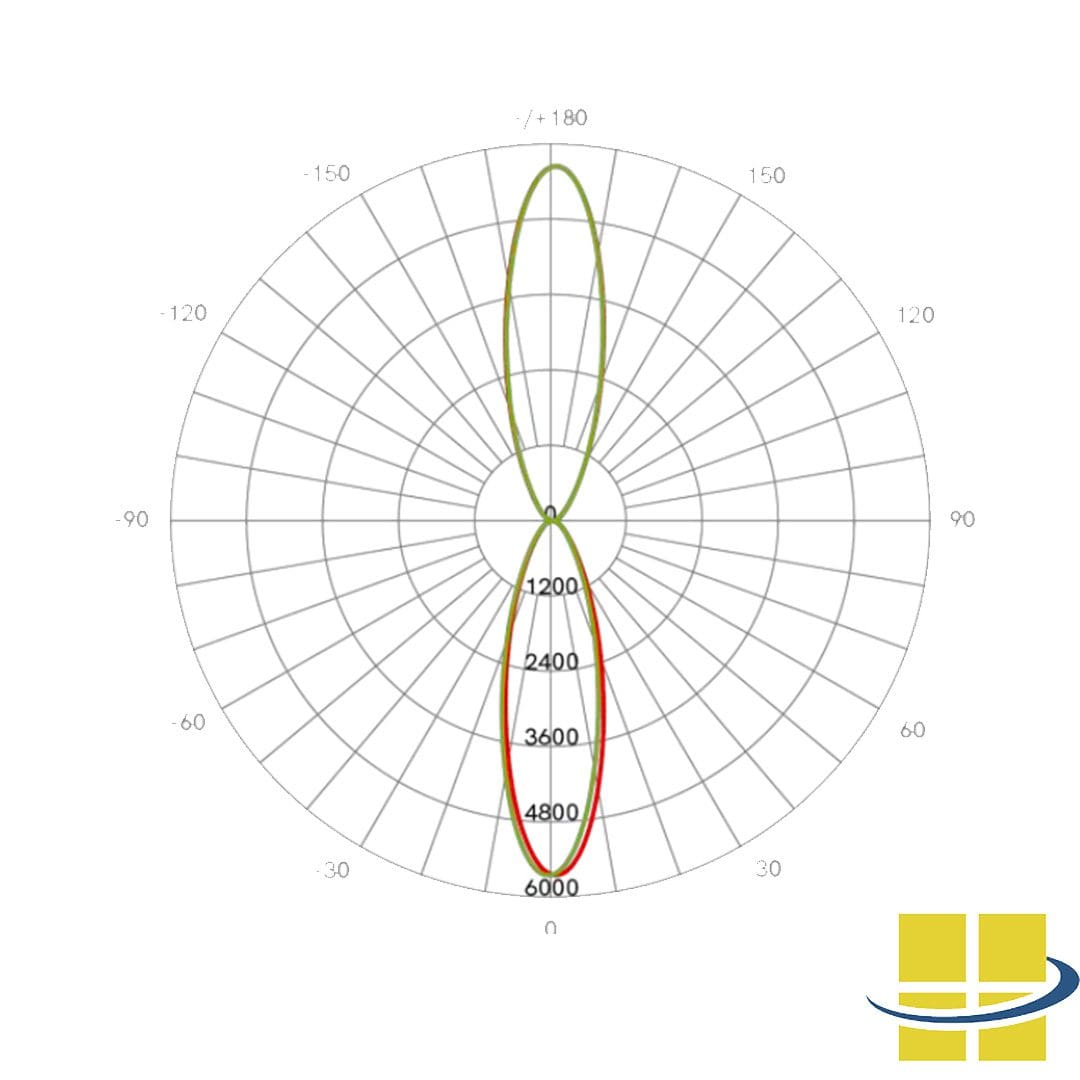

  • 30° beam angle
  • Power consumption +5%
    • 60W(100%/ 75%/ 50% /30% Selectable)
  • 120-247 VAC, 50/60 Hz
  • 0-10v dimmable
  • Wall mounted

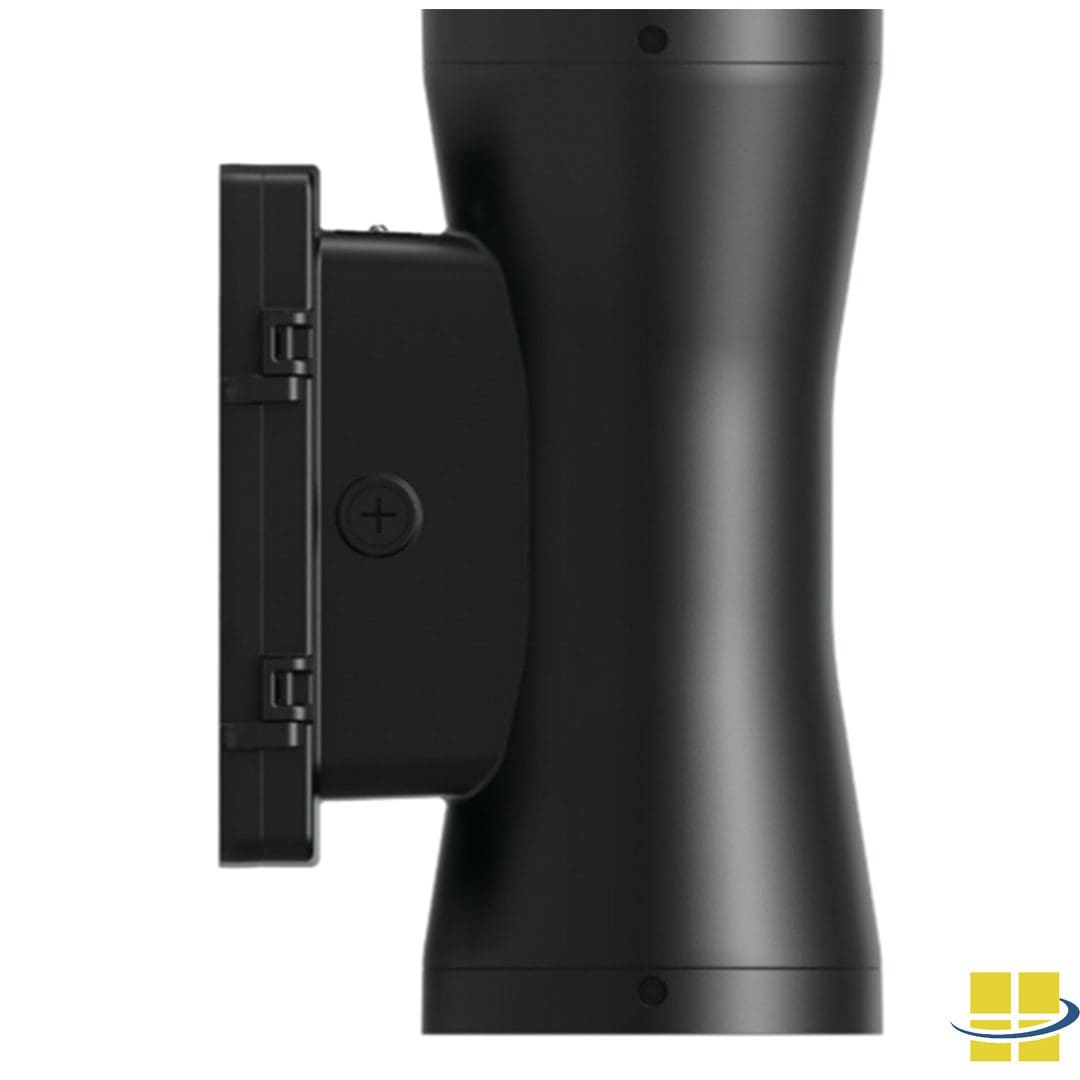

  • Revolving shaft open/close structure

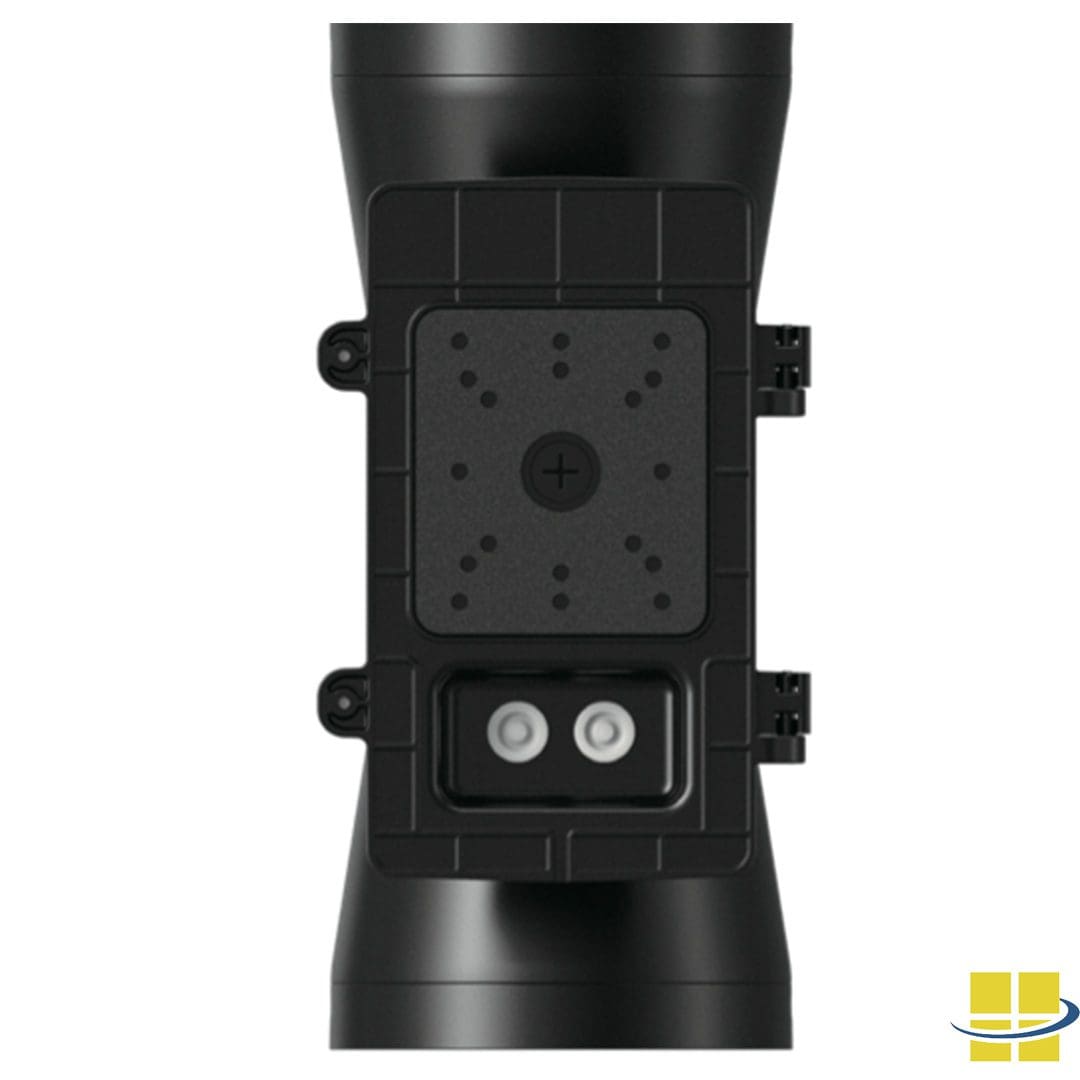

    • The reserved hole provides installation possibilities from both sides or the back side directly
  • Industrial robust powder-coated, die-cast aluminum alloy structure
    • Protects the fixture from being easily vandalized

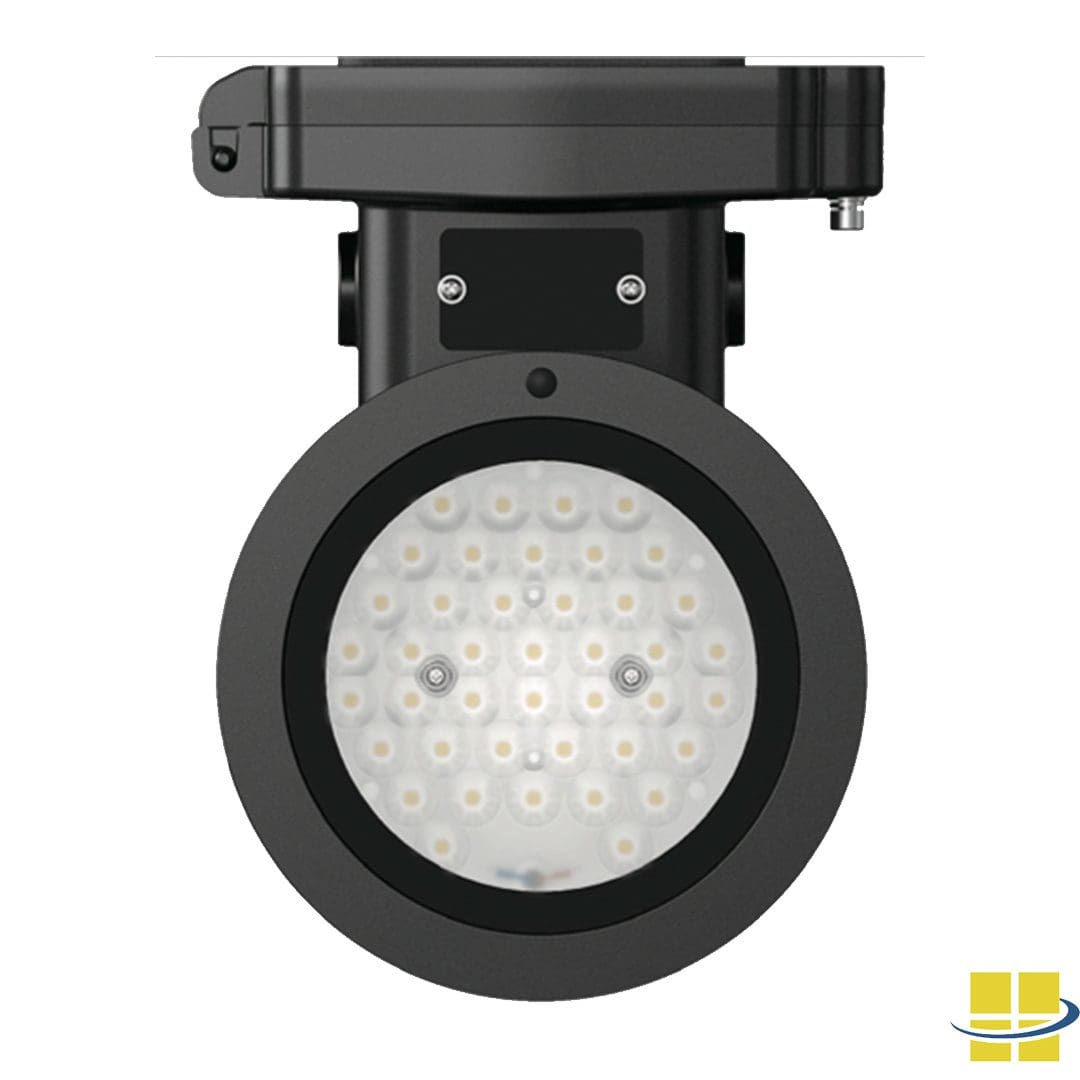

  • PMMA lens
    • Specially processed safety glass prevents dirt and water from accumulating
  • Lumen output:
    • 7200 lumens
    • 120 LPW
  • EXTREME-LIFE: L70 @ 130,000 hours life span
  • IP66 rated
  • IK08
  • 2KV line-line surge protection, 4KV line-earth surge protection
  • CRI 80+
  • -22°F to 122°F
  • 5-year warranty
  • 5-year Access Fixtures warranty
