Product Specifications
| Dimensions | 29.92 × 27.56 × 6.30 in |
|---|---|
| Indoor/Outdoor Courts | Indoor |
| Light Source | |
| Availability | 6 to 8 Week Production, plus Shipping |
| Available Finishes | Black |
| Ballast/Driver | Electronic 50/60 Hz |
| Housing | High-Grade Aluminum |
| Landing Page Attribute (LPA) | Sports Package |
| Listings | IK10, IP66, CE, CuL Listed, DLC Listed, ENEC, RoHS, SAA, UL Listed |
| Lumens | 345,600 |
| Product Family | UPTA |
| Rated Life | L70 @ up to 200,000 Hours |
| Sports Level of Play | Recreation |
| Pole Height | 25 Feet |
| Number of Fixtures | 6 |
| Warranty | 5-Year Limited Warranty |
| Number of Courts | 1 |
| Average Footcandles | 50 |
| Max/Min Uniformity | 1.15 |
| Voltage | 120v, 208v, 240v, 277v, 347v, 480v |
| System Watts | 720 |
| Grid/Solar | Grid |
Indoor Tennis Court LED Lighting Package- 50fc, 1.15 Max/Min 6 720w LED lights, mounted 25′
Play Tennis Indoors with High-Performance APTA Sports Lighting. Elevate your indoor tennis experience with Access Fixtures’ UPTAsports lighting package, engineered for precision, reliability, and exceptional visual comfort. APTA delivers powerful, consistent illumination that enhances visibility, safety, and performance for recreational play, training, and competitive indoor matches.
Optimized for Indoor Environments: UPTA’s optical design provides targeted, uniform lighting across the court without creating harsh glare or reflections on floors, walls, or surfaces—ideal for indoor facilities where visual comfort is essential. Players benefit from bright, consistent illumination that improves depth perception and ball-tracking throughout every rally.

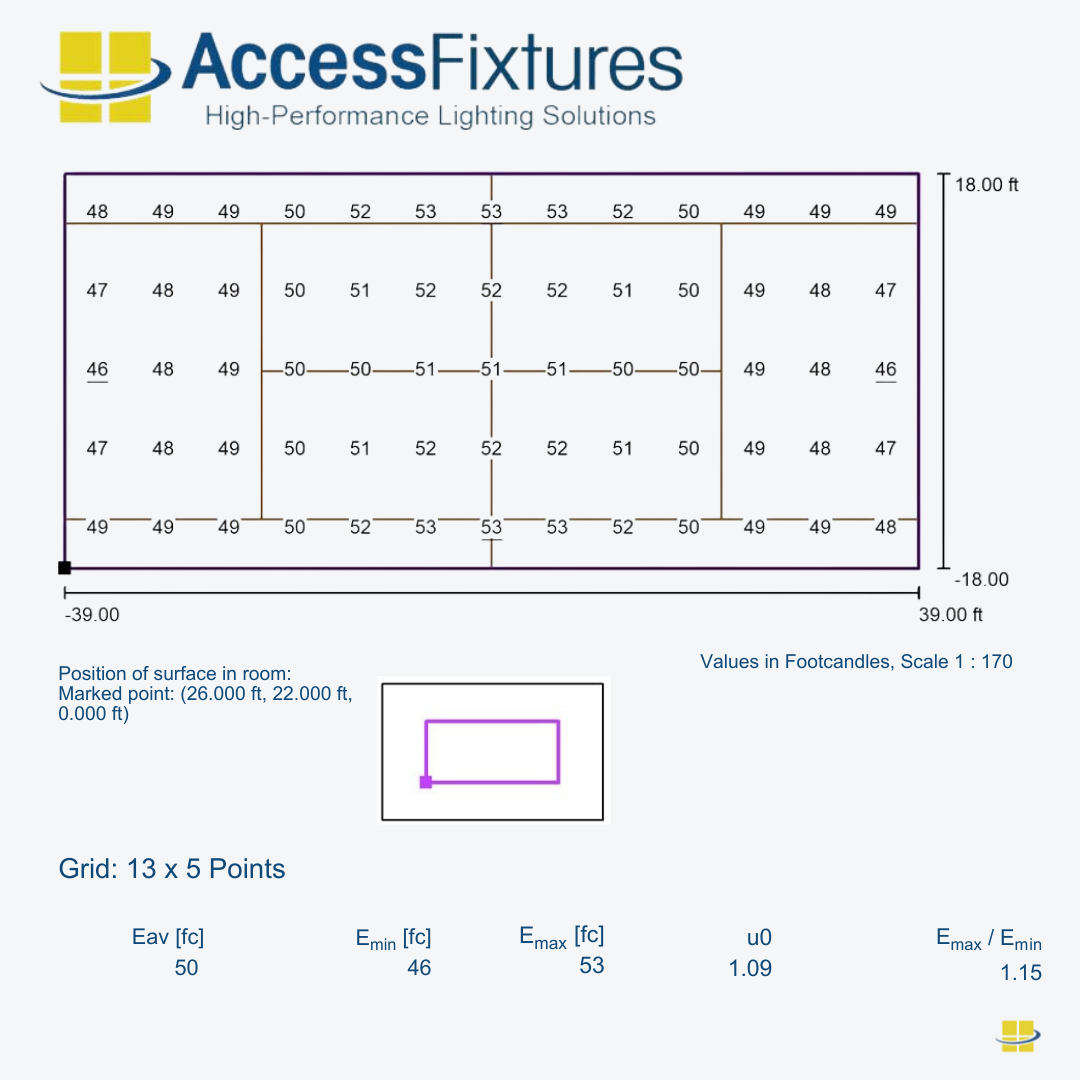

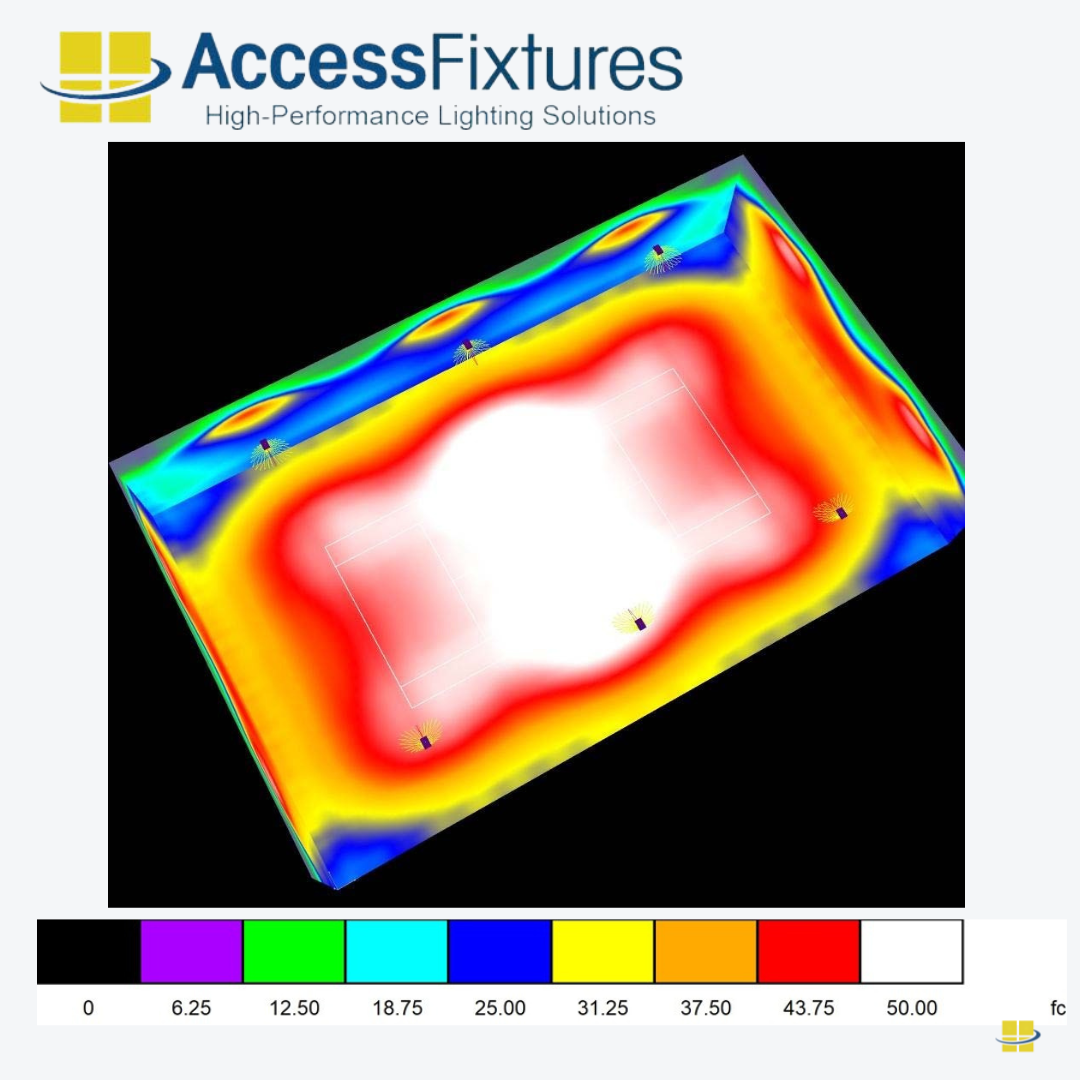

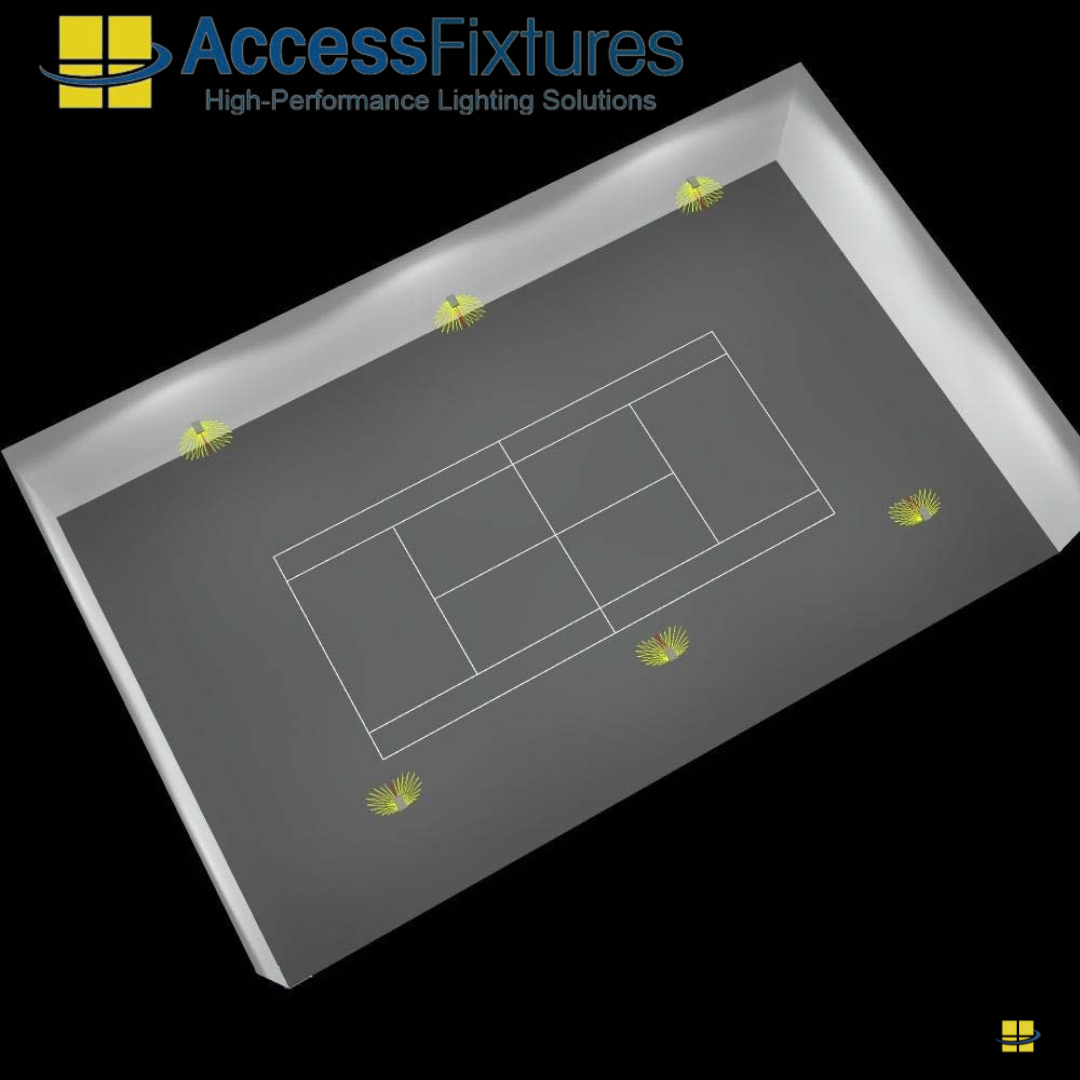

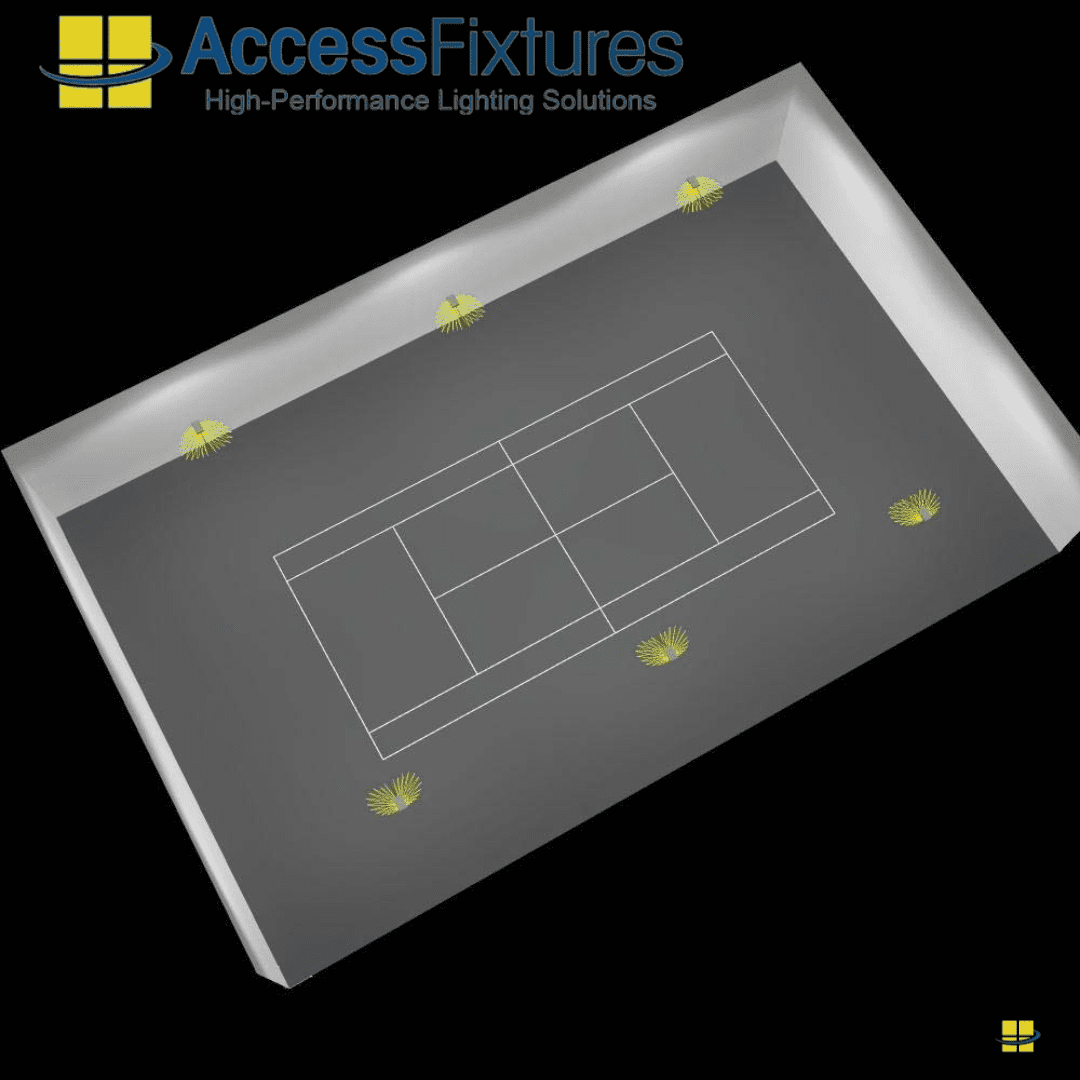

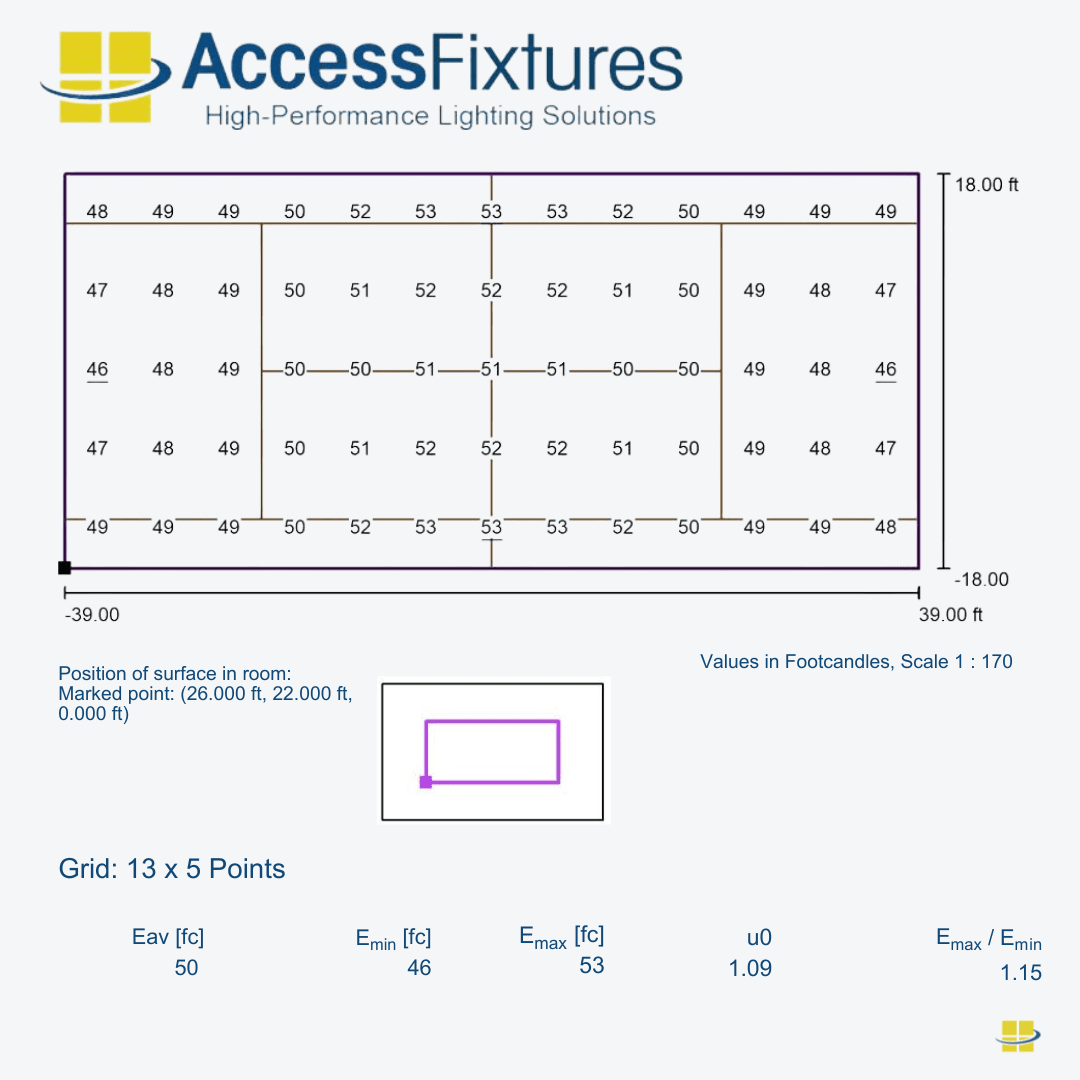

Superior Visibility: This UPTA indoor tennis lighting package delivers 50fc with an outstanding 1.15 max/min uniformity ratio using 6 UPTA 720W fixtures on 25′ mounts. The result is clean, balanced lighting that makes it easy to follow every serve, volley, and fast-moving ball. Low-glare optics reduce eye strain and create a comfortable, competition-ready environment.
Reliable, Long-Term Performance: UPTA fixtures are built for durability inside busy athletic facilities, featuring rugged housings, advanced heat management, IP66 protection, and an EXTREME-LIFE L70 rating of 200,000 hours. Season after season, UPTA ensures your indoor tennis courts stay bright, consistent, and ready for continuous play with minimal maintenance.
Tennis Lighting Requirements
Average Footcandles:
- Recreational Play: 20–30 average footcandles
- Club/Competitive Play: 30–50 average footcandles
- Professional/Televised: Minimum of 75 average footcandles
- Uniform Lighting: Max/Min ratio of 2.0 or less to ensure even light across the court and consistent ball visibility
- Glare Control: Low-glare optics to minimize eye strain and allow players to clearly track fast-moving balls
- Mounting Height: Outdoor: Minimum 20 ft; Indoor: Minimum 30 ft (higher for professional or televised play)
Fixture Durability:
- IP65: Wet location rated, sealed against dirt and moisture
- IK08: Impact-resistant housing for demanding environments
- Choice of Color Temp: 3000K, 4000K, or 5000K options to balance visibility and comfort
- CRI: 80+ for excellent color rendering of the ball and court surfaces
Proper Planning: Proper planning is essential for meeting tennis court lighting requirements. Access Fixtures lighting specialists can provide pre-engineered packages or custom photometric studies tailored to your court layout and level of play. Ensure your project delivers safe, uniform, and high-performance lighting. Contact a Lighting Specialist today.
No documents available
$13,199.87
Product Specifications
| Dimensions | 29.92 × 27.56 × 6.30 in |
|---|---|
| Indoor/Outdoor Courts | Indoor |
| Light Source | |
| Availability | 6 to 8 Week Production, plus Shipping |
| Available Finishes | Black |
| Ballast/Driver | Electronic 50/60 Hz |
| Housing | High-Grade Aluminum |
| Landing Page Attribute (LPA) | Sports Package |
| Listings | IK10, IP66, CE, CuL Listed, DLC Listed, ENEC, RoHS, SAA, UL Listed |
| Lumens | 345,600 |
| Product Family | UPTA |
| Rated Life | L70 @ up to 200,000 Hours |
| Sports Level of Play | Recreation |
| Pole Height | 25 Feet |
| Number of Fixtures | 6 |
| Warranty | 5-Year Limited Warranty |
| Number of Courts | 1 |
| Average Footcandles | 50 |
| Max/Min Uniformity | 1.15 |
| Voltage | 120v, 208v, 240v, 277v, 347v, 480v |
| System Watts | 720 |
| Grid/Solar | Grid |
