Pickleball 2 Court LED Lighting, 4 20′ Poles, 32fc, 1.39 max/min

$11,699.87

This Pickleball 2 Court LED Lighting, 4 20′ Poles, 32fc, 1.39 max/min uses steel poles, 4 double bullhorns, and 8 APTA 240 fixtures to illuminate two pickleball courts for recreational play.

Even Lighting: This package utilizes 8 APTA 240 fixtures to produce an incredibly even max/min of 2.05.

Light Four Courts: Using 8 fixtures and 4 poles, this package illuminates two pickleball courts at once.

Extreme Life: APTA is L70 rated at over 200,000 hours for years of maintenance free life.



Questions? Contact a lighting specialist.



Call 800-468-9925

In Stock

SKU: AF72XPKC2FLB240L8P420DB2FC32 Categories: , Tag:


Specifications

Weight 100 lbs
Dimensions 30 × 30 × 30 in
Light Source

, ,

Availability

Typically ships in 6-8 weeks.

Available Finishes

Bronze

Ballast/Driver

Electronic 50/60 Hz

Color Rendering Index (CRI)

70+, 80+, 90+

Components

APTA Sports Light, Bullhorn, Pole Base Cover, Pole Mounting Kit, Slip Fitter Mount

Features

Complete Sports Light Package, Wet location

Housing

Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.

Landing Page Attribute (LPA)

Sports Package

Listings

IP67, CB, CE, CuL Listed, ErP, IK08, RoHS, SAA, UL Listed

Lumens

243,360

Mounting

Slip Fitter on Double Bullhorn

Product Family

APTA

Rated Life

200,000+ Hours

Sports Level of Play

NCAA/Televised

Pole Height

20 Feet

Number of Fixtures

8

Number of Poles

4

System Watts Filter

1,000w+

Warranty

5-Year Limited Warranty

Number of Courts

2

Average Footcandles

32

Max/Min Uniformity

1.83

Voltage

120-277v

Product Description

This Pickleball 2 Court LED Lighting, 4 20′ Poles, 32fc, 1.39 max/min uses steel poles, 4 double bullhorns, and 8 APTA 240 fixtures to illuminate two pickleball courts for recreational play.

Even Lighting: This package utilizes 8 APTA 240 fixtures to produce an incredibly even max/min of 2.05.

Light Four Courts: Using 8 fixtures and 4 poles, this package illuminates two pickleball courts at once.

Extreme Life: APTA is L70 rated at over 200,000 hours for years of maintenance free life.

Fixture Features

  • Number of Luminaires: 8
  • Luminaires: APTA 240 LED Sport Lights
  • Fixture Wattage: 246w
  • Light Source Wattage: 240w
  • Light Source Lumens: 30,420 (243,360 total lumens)
  • Rated Life (L70): 200,000+ Hours
  • Optics: Type 4 medium beam
  • Weight: 23.44 lbs each luminaire
  • Dimensions: 30.63″ x 12.99″ x 2.76″
  • Housing: Die-cast aluminum housing with corrosion-resistant polyester powdercoat. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.
  • Listings: IP67, UL Listed, CuL Listed, RoHS, ENEC, CB, CB, IK08
  • Voltage Compatibility: 120-277v, optional high-voltage 347-480v available
  • Dimming: 0-10v dimming included in all fixtures.
  • Backlight Shield: to minimize light trespass, Included
  • Warranty: 5-Year Warranty

If you have additional questions about the fixtures used in this package, please call us at 800-468-9925.

Pole Features

  • Number of Poles: 4

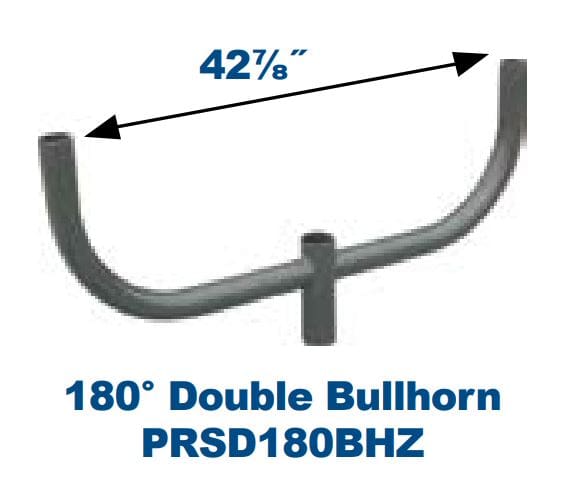

  • Number of Bullhorns: 4 Double Bullhorns
  • Pole Height: 20 Feet
  • Shaft Size: 4” x 4”
  • Gauge: 11-Gauge
  • Installation: Anchor-Based
  • Number of Anchor Bolts: 4
  • Base Plate Dimensions: 10.5 x 10.5” x .75” thickness
  • Base Plate Anchor Bolt Circle: 8”-11” diameter
  • Anchor Bolt Dimensions: M22 x 33”
  • Weight: 205 lbs each pole, 410 lbs total
  • Tenon: 2 ⅜” Tenon
  • Finish: Baked-on, textured, architectural bronze finish.
  • Base Cover: Square 10.75” x 10.75” x 5” 2-piece steel base cover
  • Hand Hole: Cast-iron-reinforced hand hole with cover
  • Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.



Prompt Delivery of Your Pickleball 2 Court LED Lighting, 4 20′ Poles, 32fc, 1.39 max/min

Everything in this package typically ships in 6-8 weeks. The fixtures are custom-built to order but we are almost always able to meet or exceed this estimated window. We’ll ship your poles from the factory location closest to you. Stock does fluctuate, so call 800-468-9925 for an exact lead time.
