Pickleball 4-Court LED Lighting Package: 8 Poles, 16 Fixtures, 34fc

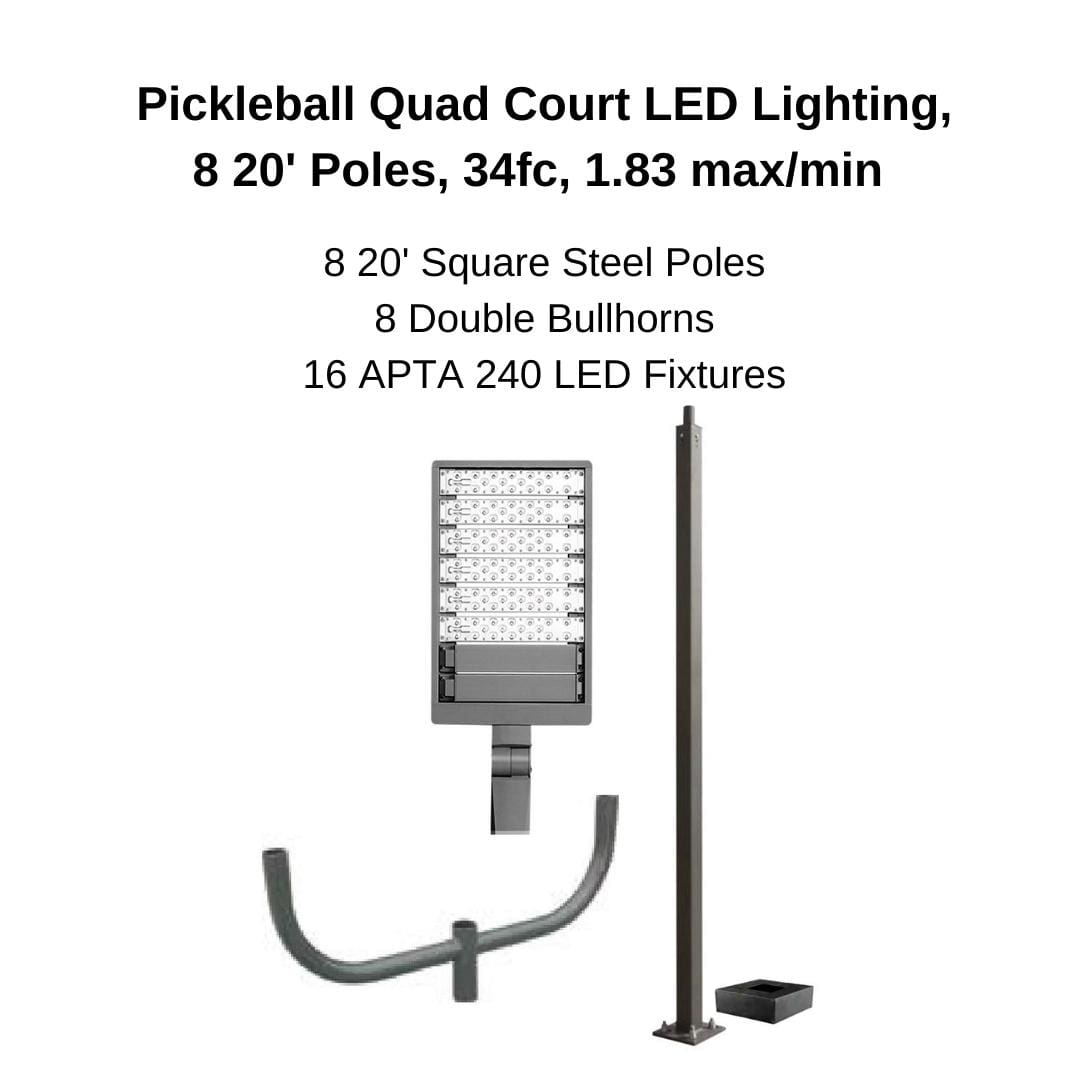

This Pickleball 4-Court LED Lighting Package produces 486,720 lumens or 34fc. It includes 8) 20’ square steel poles; (8) Double bullhorns, 16) APTA 240 sport lights, extreme 200,000-hour L70 life, 5-year warranty and a full photometric study. The IP67-rated die-cast aluminum housings withstand dust, relentless weather, and even immersion in water. This package comes in bronze only. See the description tab below for details. Questions? Call Access Fixtures at 800-468-9925

In Stock

SKU: AF72XPKC4FLB240L16P820DB4FC34 Category: Tag:

Product Description

Pickleball 4-court Led Lighting Package: 8 Poles, 16 Fixtures, 34fc best max/minThis Pickleball Quad-Court LED Lighting Package with 8 Poles features 486,720 lumens, landing an impressive 34 average footcandles with a extraordinary 1.83 max/min uniformity ratio. The package comes with 16) APTA 240 LED sport lights with slip fitter mounts;  a 5-year warranty; plus a full photometric study. The IP67-rated die-cast aluminum fixture housings withstand dust and driving rain and even 30 minutes immersion.

Whether you’re interested in setting up a quad pickleball court lighting at home, re-purposing an underused basketball or tennis court, or building a multi-court complex for your community, Access Fixtures is your premier expert in court lighting. For lighting other pickleball court configurations, please check out Access Fixtures Pickleball Single-Court and 2-Court Packages.

Precision Design for a Pickleball Quad Court

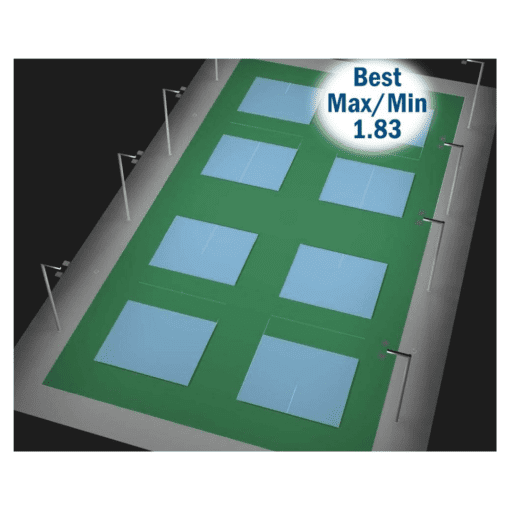

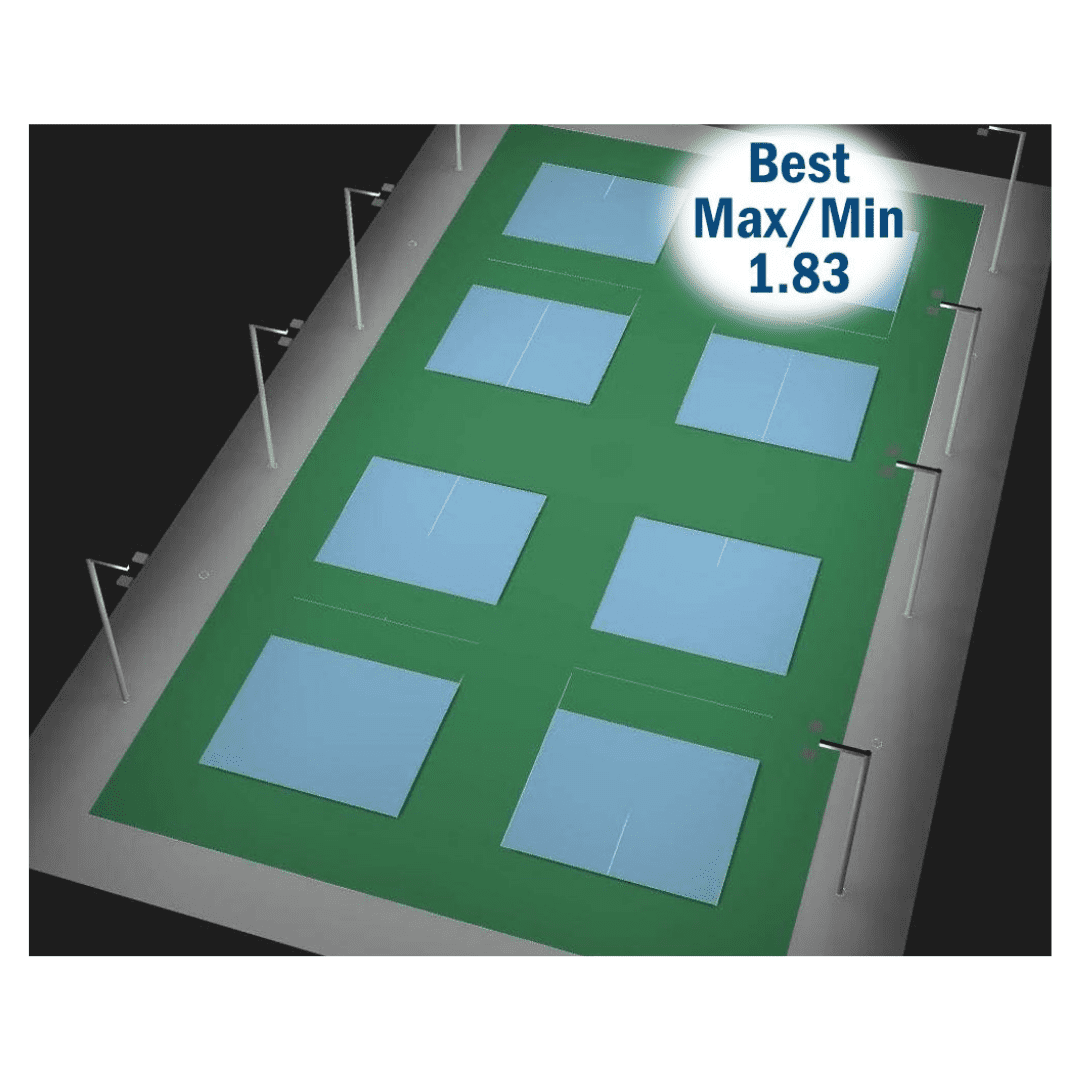

The Pickleball Quad-Court LED Lighting Package with 8 Poles is designed for four standard pickleball courts measuring 60 ft. x 120 ft. long, including 7 feet on either side of the courts and 8 feet at the ends. This package has 8 poles spaced along either side of the courts. The poles are installed approximately 5.5 feet outside the sideline. 2 luminaires are mounted on top of each pole for a total of 16 luminaires.

Optimal Light Levels

The Access Fixtures Pickleball 4-Court LED Lighting Package with 8 Poles provides light levels recommended by the International Federation of Pickleball (IFP) and the USA Pickleball Association (USAPA). Notably high footcandles and exceptionally uniform light levels illuminate the playing area to an average of 31 footcandles. The package achieves a maximum footcandle reading of 41 and does not go below 21 footcandles. This achieves a max/min (uniformity) ratio of 1.83, which assures light is evenly spread across the entire playing area. A max/min uniformity of 3 or less is good: a lower ratio number indicates better uniformity.

  • Average Footcandles: 34fc
  • Light Uniformity (max/min footcandles): 1.83

Energy-Efficient Reliable Pickleball 4-Court LED Lighting

The Pickleball 4-Court LED Lighting Package includes (16) energy-efficient extreme-life APTA 240 sport lights. The modular construction allows individual modules to be replaced if the need arises.

  • Number of Luminaires: 16
  • Luminaires: APTA 240 LED Sport Lights
  • Fixture Wattage: 246w
  • Light Source Wattage: 240w
  • Light Source Lumens: 30,420 (486,720 total lumens)
  • Rated Life (L70): 200,000+ Hours
  • Optics: Type 4 medium beam
  • Weight: 23.44 lbs each luminaire
  • Dimensions: 30.63″ x 12.99″ x 2.76″
  • Housing: Die-cast aluminum housing with corrosion-resistant polyester powdercoat. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.
  • Listings: IP67, UL Listed, CuL Listed, RoHS, ENEC, CB, CB, IK08
  • Voltage Compatibility: 120-277v, optional high-voltage 347-480v available
  • Dimming: 0-10v dimming included in all fixtures.

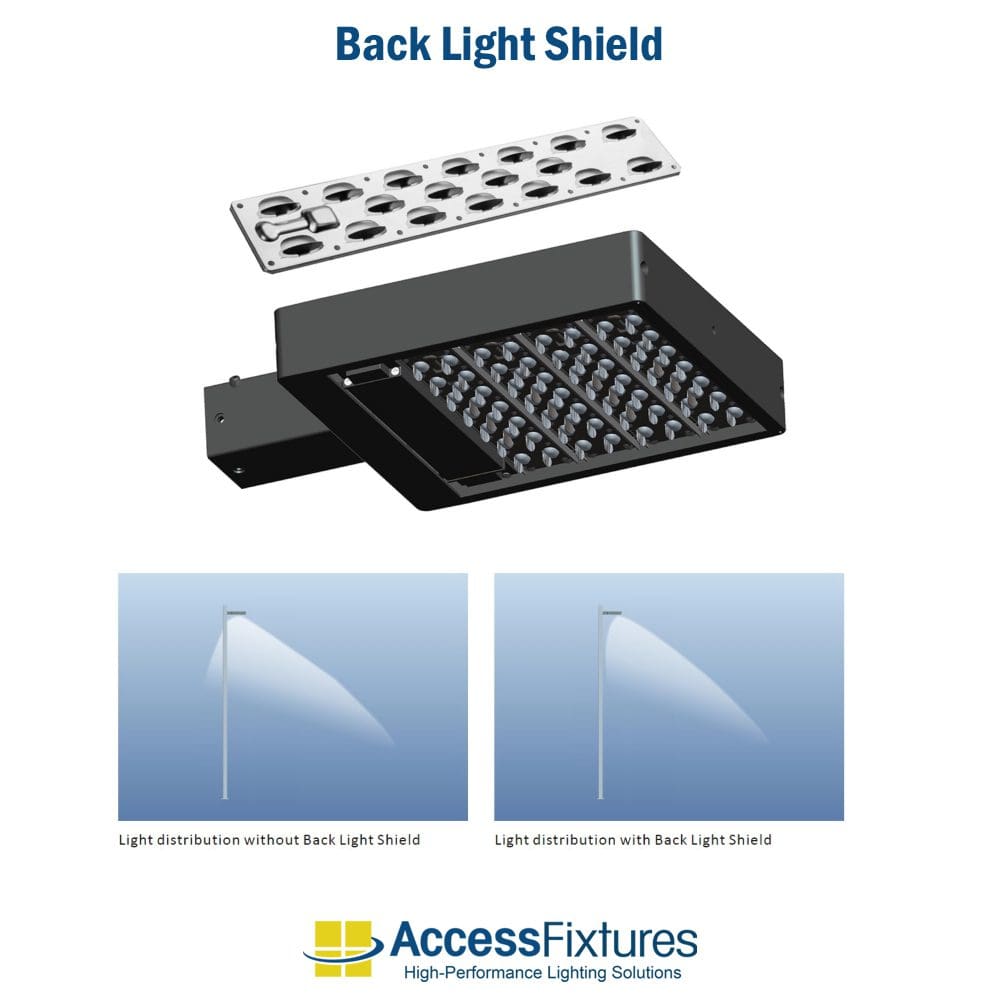

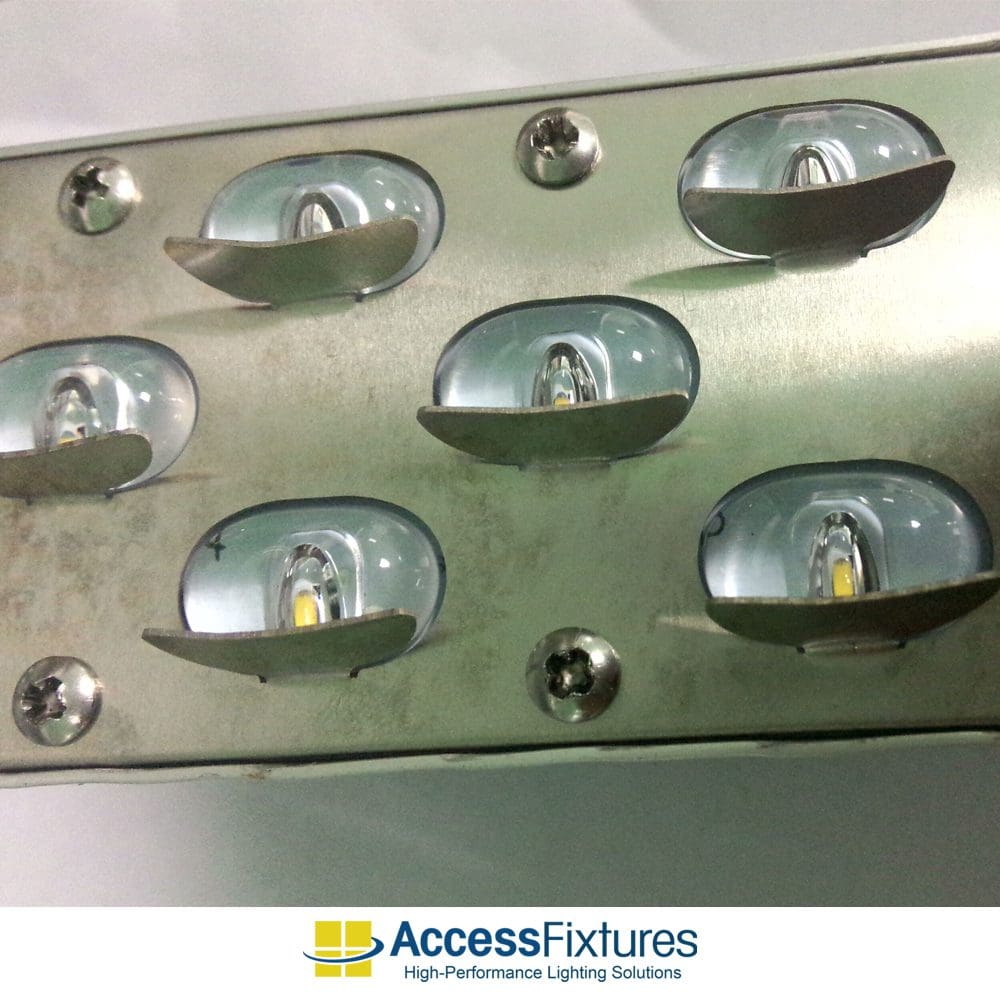

  • Backlight Shield: to minimize light trespass, Included
  • Warranty: 5-Year Warranty

If you have additional questions about the fixtures used in this package, please call us at 800-468-9925.

High-Strength 20-foot Square Steel Poles

The straight square steel poles used in this package ships come complete with a mounting template, base plates, anchor bolts, and base covers. For pickleball courts located in high-wind areas, e.g., Florida, Louisiana, South Carolina, the Caribbean, and many coastal areas, ask us about EPA ( Effective Projected Area) wind ratings and wind tolerances for each setup. Installations in these areas may require heavier poles or alternate designs. Our engineers can provide data and pole recommendations for any location. As specs can affect lead time and pricing, it is best to call first.

  • Number of Poles: 8
  • Pole Height: 20 Feet
  • Shaft Size: 4” x 4”
  • Gauge: 11-Gauge
  • Installation: Anchor-Based
  • Number of Anchor Bolts: 4
  • Base Plate Dimensions: 10.5 x 10.5” x .75” thickness
  • Base Plate Anchor Bolt Circle: 8”-11” diameter
  • Anchor Bolt Dimensions: M22 x 33”
  • Weight: 205 lbs each pole, 1,640 lbs total
  • Tenon: 2 ⅜” Tenon
  • Finish: Baked-on, textured, architectural bronze finish.
  • Base Cover: Square 10.75” x 10.75” x 5” 2-piece steel base cover
  • Hand Hole: Cast-iron-reinforced hand hole with cover
  • Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.

Secure Mounting

This package includes one double bullhorn bracket on each pole. Bullhorn brackets secure to the pole tenon while the fixtures attach to the “horns” of the bullhorn with built-in slip fitters. Double bullhorns add 42” to the width and 24” to the mounting height the fixtures, which helps improve light distribution. For more information about the fixtures, mounts, or the poles in this package, call 800-468-9925 or send us an email at customerservice@accessfixtures.com.

Prompt Delivery of Your Pickleball Quad-Court LED Lighting Package

Everything in this Pickleball 4-Court LED Lighting Package with 8 Poles typically ships in 2-4 weeks. The fixtures are custom-built to order but we are almost always able to meet or exceed this estimated window. We’ll ship your poles from the factory location closest to you. Stock does fluctuate, please call 800-468-9925 for an exact lead time.

The Best Court Lighting Provides Exactly What You Need

We at Access Fixtures want to make sure you buy with confidence and that you get exactly the perfect pickleball court for your particular site. We’ve designed packages for HOAs, clubs and schools, as well as backyard courts throughout the US and the Caribbean. While pickleball courts are standardized, few will have identical needs. Some regions have local ordinances regulating light trespass, glare, and light pollution. Packages installed in other areas may benefit from adaptations to compensate for wind, salt spray, or other local environmental conditions.

If you have any questions, our friendly lighting specialists in Worcester, MA are available to walk you through your pickleball court LED lighting project. Give us a call today at 800-468-9925 to discuss your project. You can also email us at customerservice@accessfixtures.com.


Weight 100 lbs
Dimensions 30 × 30 × 30 in

Typically ships in 2-4 weeks

Available Finishes



Electronic 50/60 Hz

Color Rendering Index (CRI)

80, 70, 90+

Color Temperature (K)

3000K, 4000K, 5000K


APTA Sports Light, Bullhorn, Pole Base Cover, Pole Mounting Kit


Complete Sports Light Package, Wet location


Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.

Landing Page Attribute (LPA)

Sports Package

LED Type

Modular LED Array

Light Source

, ,


IP67, CB, CE, CuL Listed, ErP, IK08, RoHS, SAA, UL Listed




Slip Fitter on Quad Bullhorn

Product Family


Rated Life

200,000+ Hours

Sports Level of Play


Pole Height

20 Feet

Number of Fixtures


Number of Poles


System Watts





5-Year Warranty

Number of Courts
