Product Description
Electrical Specifications:
- Wattage Options: 30w/50w/60w
- AC Input Voltage: 100-277V.
- Driver Brand: Meanwell / SOSEN / Other Brands. – Dimming: 0-10V / 1-10V.
- Total Harmonic Distortion (THD): < 20
- Light Output: Lumen Output: 3300lm, 5500lm, 6600lm, 8800lm, 11,000lm, 13,000lm.
- Efficacy: 100-110 LM/W (customizable for higher LM/W).
Optical Specifications
- LED Chip: SMD 3030.

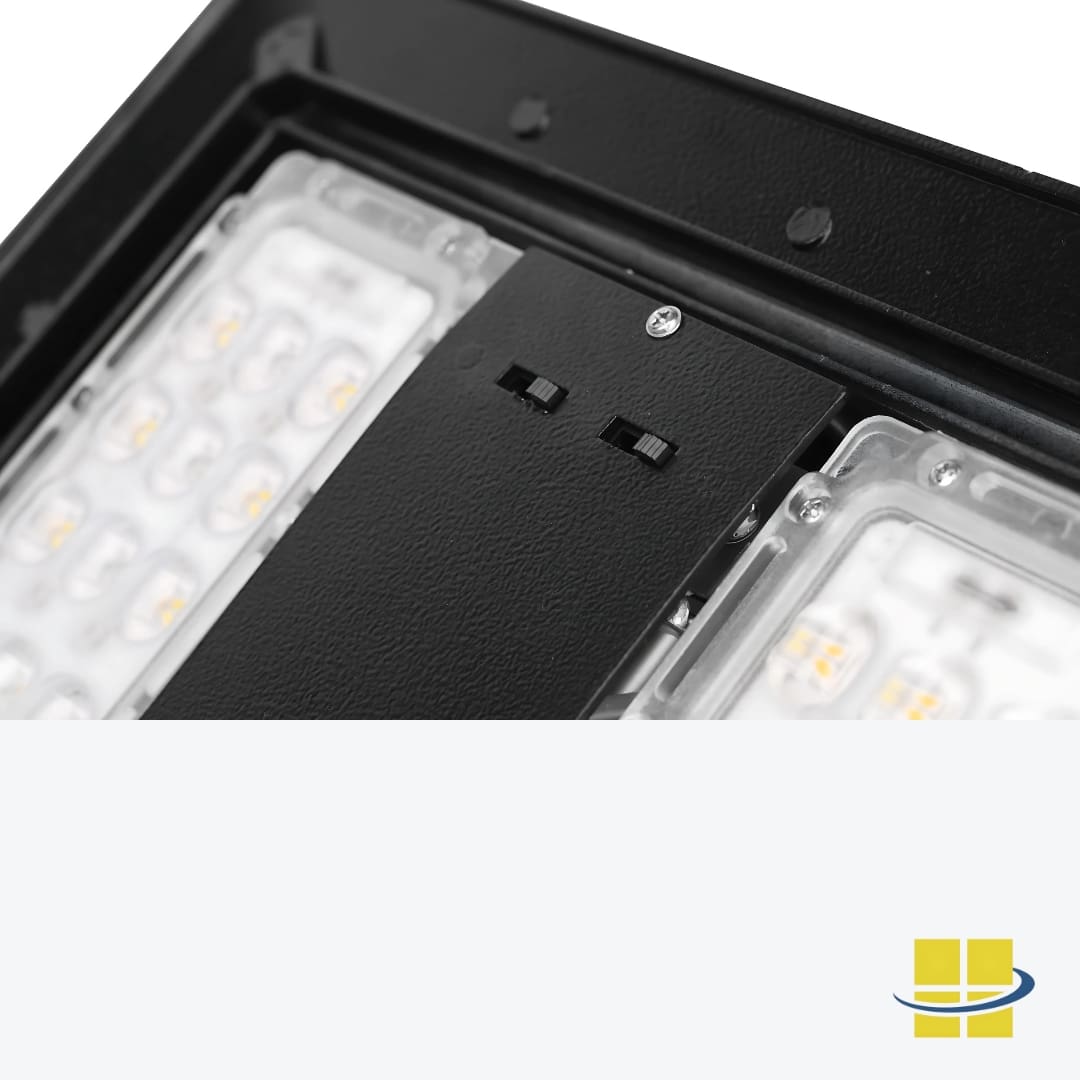

- Correlated Color Temperature (CCT: 3000K, 4000K, 5000K, 5700K (3CCT switch optional).
- Light Distribution: Type III, Type IV, Type V.
- Lens Options: Frosted Lens, Glass Lens, PC Lens.
Mechanical and Design Features
- Mounting Height: 9ft – 26ft.
- Thermal Management: Temperature rise < 35°C.
- Housing Material: ADC12 Die casting.
- Photocell Sensor: Standard three-prong twist lock, daylight adjustable (10lux to 300lux).
- Motion Sensor: Optional with 3-step dimming function.
- Environmental Conditions: Ambient Temperature: -40°C to +45°C (-40°F to +113°F).
- IP Rating: IP65 (dust and water resistance).
- EPA: 1.6
- Lifetime: 50,000 hours.
- Installation mounting Options: Two mount bases (2 3/8 inch and 3 inches). Installation Step: Remove screws, attach mount base, connect power cords, slip over the pole, and tighten screws.

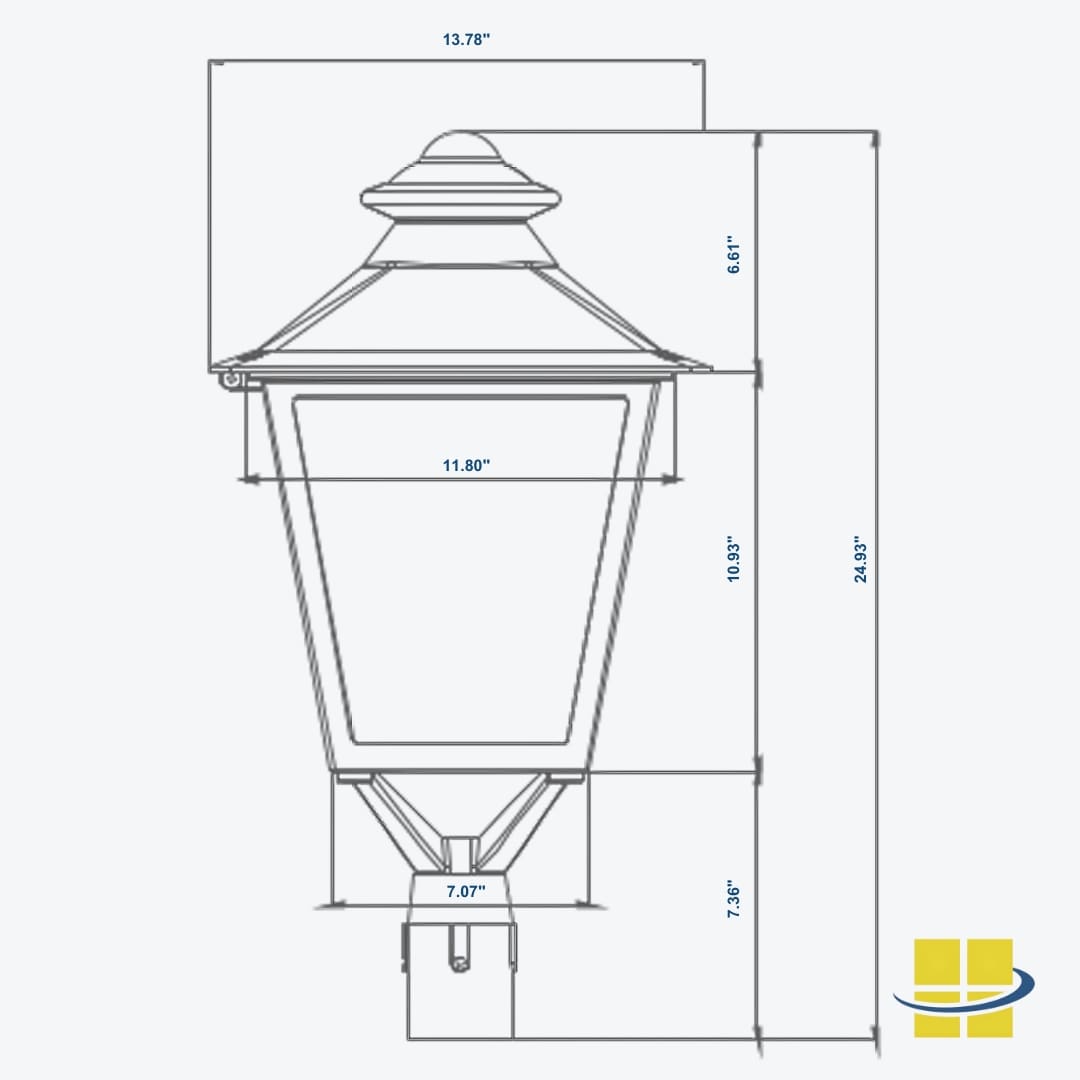

- Packaging: Packaging Dimensions: 1378″ x 13.78″ x 24.92″
- Weight: 27.56 lbs
