Outdoor Riding Arena LED Lighting 75’x150′, Avg 12fc, 30′ Pole

$7,185.94

This Outdoor Riding Arena LED Lighting 75’x150′, 1 Pole, 1800w, 12fc, 9.08 Max/Min package from Access Fixtures includes everything you need to light an outdoor 75′ x 150′ arena. Using (1) 30′ foot square steel pole and (3) APTI 600 LED sports lighters, this arena package boasts 12 footcandles, which is enough light for most styles of riding. Our APTI fixtures feature IP67 waterproof rating, 200,000-hr L70 life, and a 5-year warranty. They come standard with 4000K cool white light and bronze finish. All APTI fixtures are custom built-to-order.



In Stock

  • Select from this option and we will ship your anchor bolts and mounting hardware right away. If we can ship everything in 2-4 weeks, we will refund you this amount.

SKU: ARENA75X150AF72XAF33XFLE600-T5S1FLE600-T5W1-1POLE-12FC Categories: , ,

Specifications

Weight 100 lbs
Dimensions 150 × 75 × 30 in
Application

Availability

6 to 8 Week Production, plus Shipping

Available Finishes

Bronze

Average Footcandles

12

Ballast/Driver

700mA Driver

Color Rendering Index (CRI)

70+, 80+, 90+

Components

Bullhorn, Pole, Slip Fitter Mount, Sports Luminaire

Housing

Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.

Indoor/Outdoor

Outdoor

Light Source Included

LED Array Included

Listings

IP67, CB, CuL Listed, ENEC, IK08, RoHS, UL Listed

Max/Min Uniformity

9.08

Mounting

Slip Fitter on Triple Bullhorn

Number of Fixtures

3

Number of Poles

1

Pole Height

30 Feet

Product Family

APTI

Rated Life

200,000+ Hours

Voltage Filter

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Light Source

, ,

Voltage

120v, 208v, 240v, 277v

Product Description

This Access Fixtures Outdoor Riding Arena LED Lighting 75’x150′, Avg 12fc, 30′ Pole with 9.08 Max/Min package is a simple and cost-effective illumination system to get you riding immediately, using only one 30′ pole and three LED high performance fixtures. The 200,000 hours L70 rating translates to virtually maintenance-free usage. Minimized energy and low to no maintenance results in the perfect mixture of performance, efficiency, and sustainability.

Precision Design for Optimal Light Levels

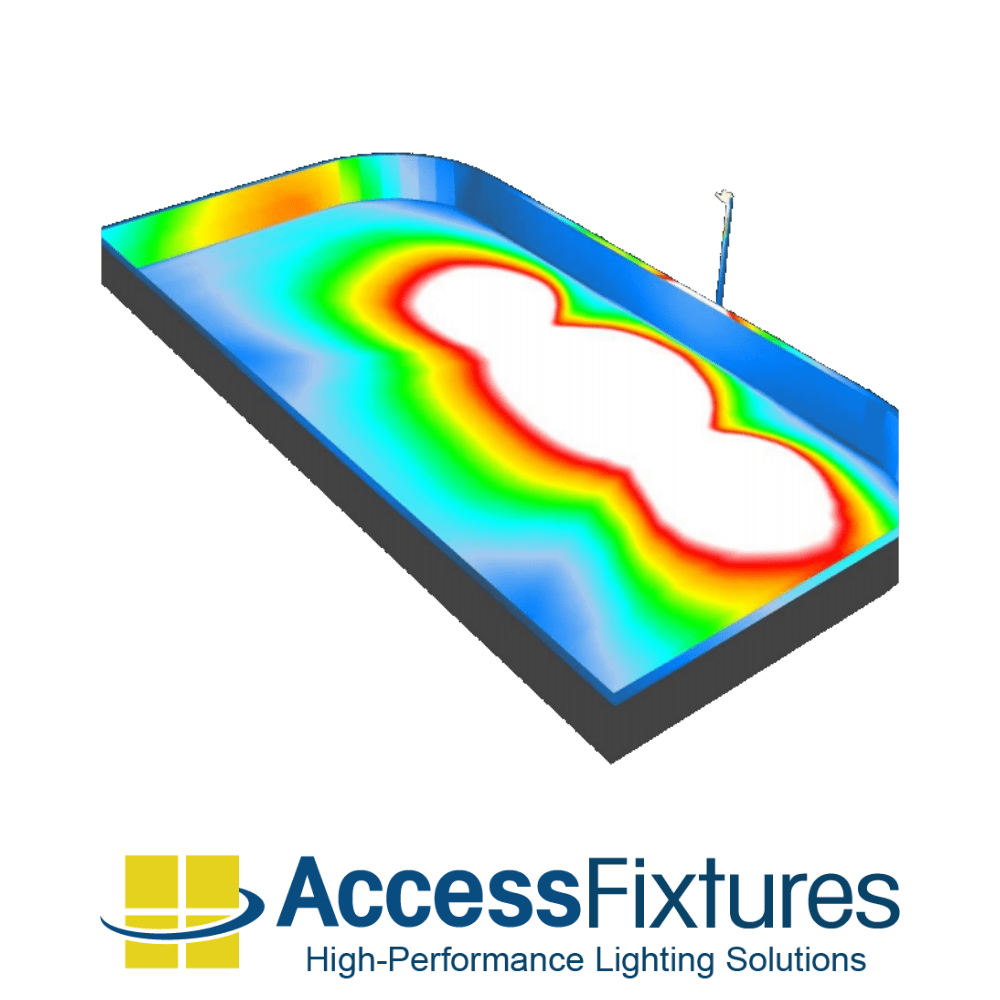

This outdoor horse riding arena package is designed for a 75’x150′ outdoor arenas. Comes with one 30′ square bronze steel pole, with 3 matching APTI 600 luminaries and one triple bullhorn mounting bracket. This layout provides 12 average footcandles and a max/min (uniformity) ratio of 9.08, which assures a brightly illuminated arena with no shadows or glare.

Reliable Energy-Efficient LED Outdoor Arena Fixture

This Outdoor Riding Arena LED Lighting 75’x150′, Avg 12fc, 30′ Pole with 9.08 Max/Min package includes weatherproof, energy-efficient, extreme-life, APTI LED sport lights and mounting component. Their modular construction features interchangeable components that are all but indestructible. If however, repair were needed, modules can be replaced individually. Boasting 76,240 light source lumens per fixture, this package reduces energy cost by at least 50% when compared to old-fashioned incandescent or pulse start-metal halide. View Horse Arena & Equestrian Arena Lighting for more information

  • Luminaires: APTI 600 LED Sport Lights with Slip Fitter Mounts
  • Number of Luminaires: 3
  • Light Source Lumens: 228,720
  • Fixture Wattage: 614
  • Rated Life (L70): 200,000+ Hours
  • Optics: (2) Type 5 wide beam spread, (1) Type 5 average beam angle – all 3 come with backlight shielding
  • Weights: 68.30 lbs each

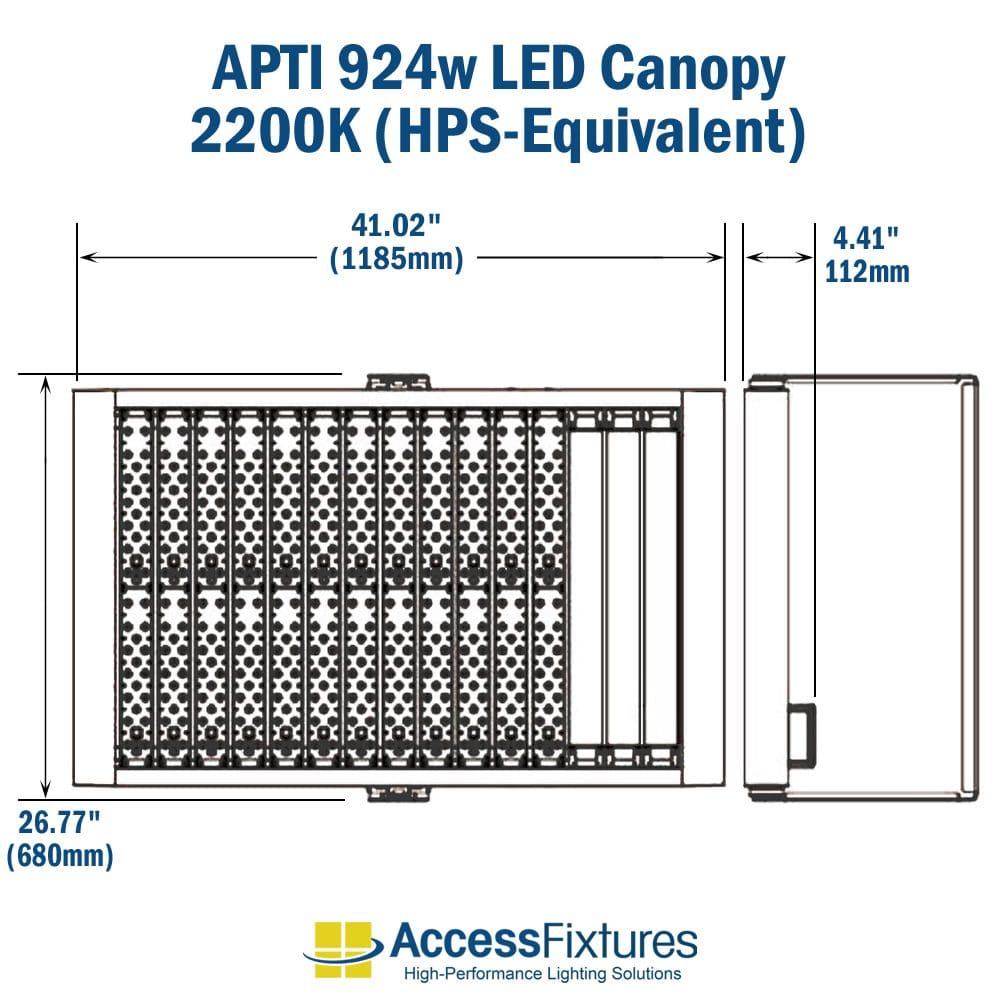

  • Fixture Dimensions: 41.02 × 26.77 × 4.41″
  • Housing: Die-cast aluminum housing with corrosion-resistant polyester powdercoat; Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012; Modular LED design with IP67 rating
  • Listings: IP67, UL Listed, CuL Listed, RoHS, ENEC, CB, IK08
  • Dimming: 0-10v dimming included in all fixtures
  • Voltage Compatibility: 120v-277v
  • Warranty: 5-Year Warranty
  • Assembled: United States

Ultra-Strength 30′ Square Steel Poles

The straight square steel pole used in this package ships complete with a mounting template, base plates, anchor bolts, and base covers. If your horse arena is located in a high wind area such as Florida, Georgia, the Carolina’s, Louisiana, and the Caribbean, or in other coastal areas, ask us about EPA (Effective Projected Area) wind ratings and wind tolerances. Installations in these areas may require heavier poles or alternative designs. Our engineers can provide data and pole recommendations for any location.

  • Number of Poles: 1
  • Pole Height: 30′
  • Shaft Size: 5” x 7” square
  • Gauge: 7-Gauge
  • Installation: Anchor-Based
  • Number of Anchor Bolts: 4 per pole
  • Base Plate Dimensions: 11” x 1″
  • Base Plate Anchor Bolt Circle: 10.6”-12” diameter steel
  • Anchor Bolt Dimensions: M22 x 33”
  • Tenon: 2 ⅜” Tenon
  • Finish: Baked-on, textured, architectural bronze finish
  • Base Cover: Square 11.25” x 11.25” x 5” 2-piece steel base cover
  • Hand Hole: Cast-iron-reinforced hand hole with cover
  • Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.

Secure Mounting

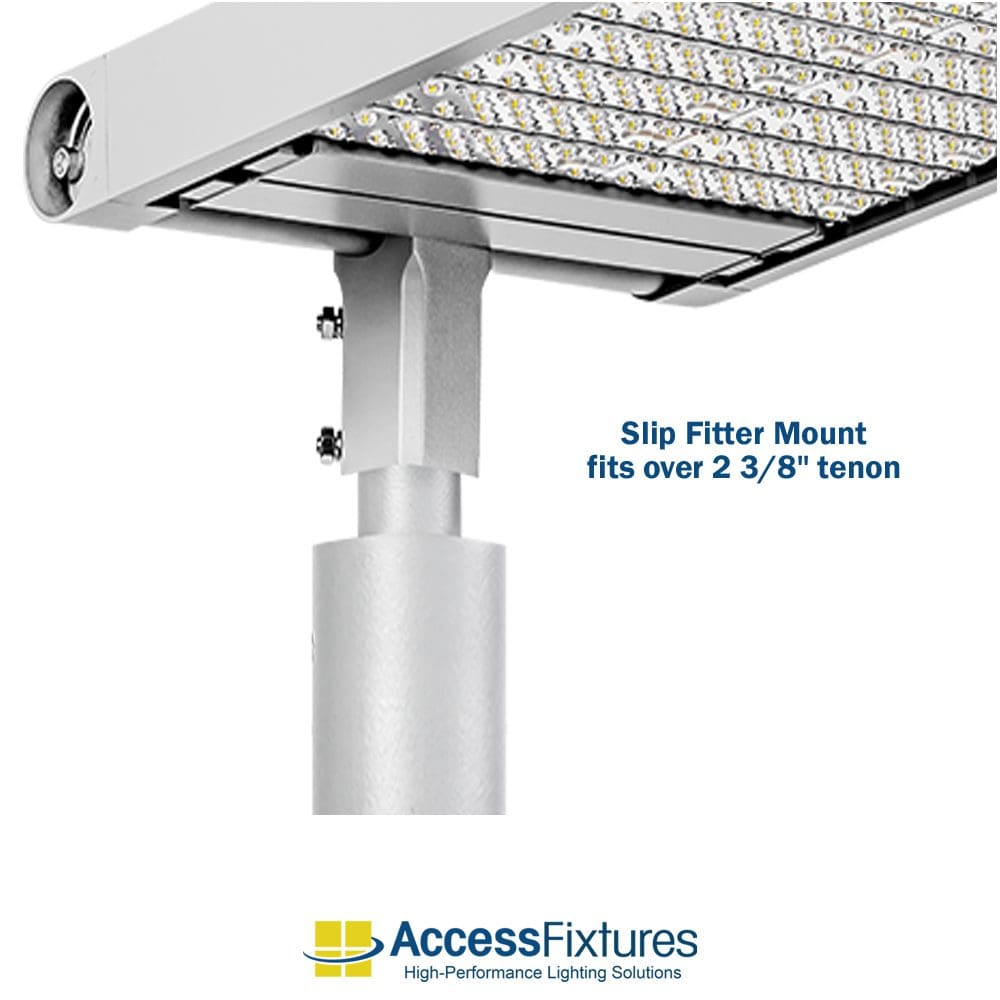

This package mounts (3) fixtures with 2 3/8 vertical tenons onto one triple bullhorn mount. For more information about the fixtures, mounts, or the poles in this package, call 800-468-9925 or send us an email at [email protected].

Prompt Delivery of Your Arena Lighting Package

Arena LED Lighting packages typically ship in 2-4 weeks. We ship your poles from the Access Fixtures production facility location closest to you. Stock does fluctuate, so call 800-468-9925 for exact lead time.

Access Fixtures Arena Lighting Provides Exactly What You Need

Access Fixtures high performance lighting specialists use the most advanced photometric software to ensure you get the perfect arena lighting. As the premier expert in arena lighting, Access Fixtures has designed arena lighting for dressage, outdoor & indoor arenas, polo arenas, as well as home arenas across the US and the Caribbean. Few arenas have identical needs. Some regions have local ordinances regulating light trespass, glare, and light pollution. Packages for coastal regions benefit from custom adaptations to compensate for wind, salt spray, and other local weather conditions. If you have any questions, our knowledgeable high performance lighting specialists in Worcester, MA are available to walk you through your arena LED lighting project. Call us today at 800-468-9925 to discuss your project. You can also email us at [email protected].

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Ready to Order Outdoor Riding Arena LED Lighting 75’x150′, Avg 12fc, 30′ Pole?

You can place your order online here. Or, if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
