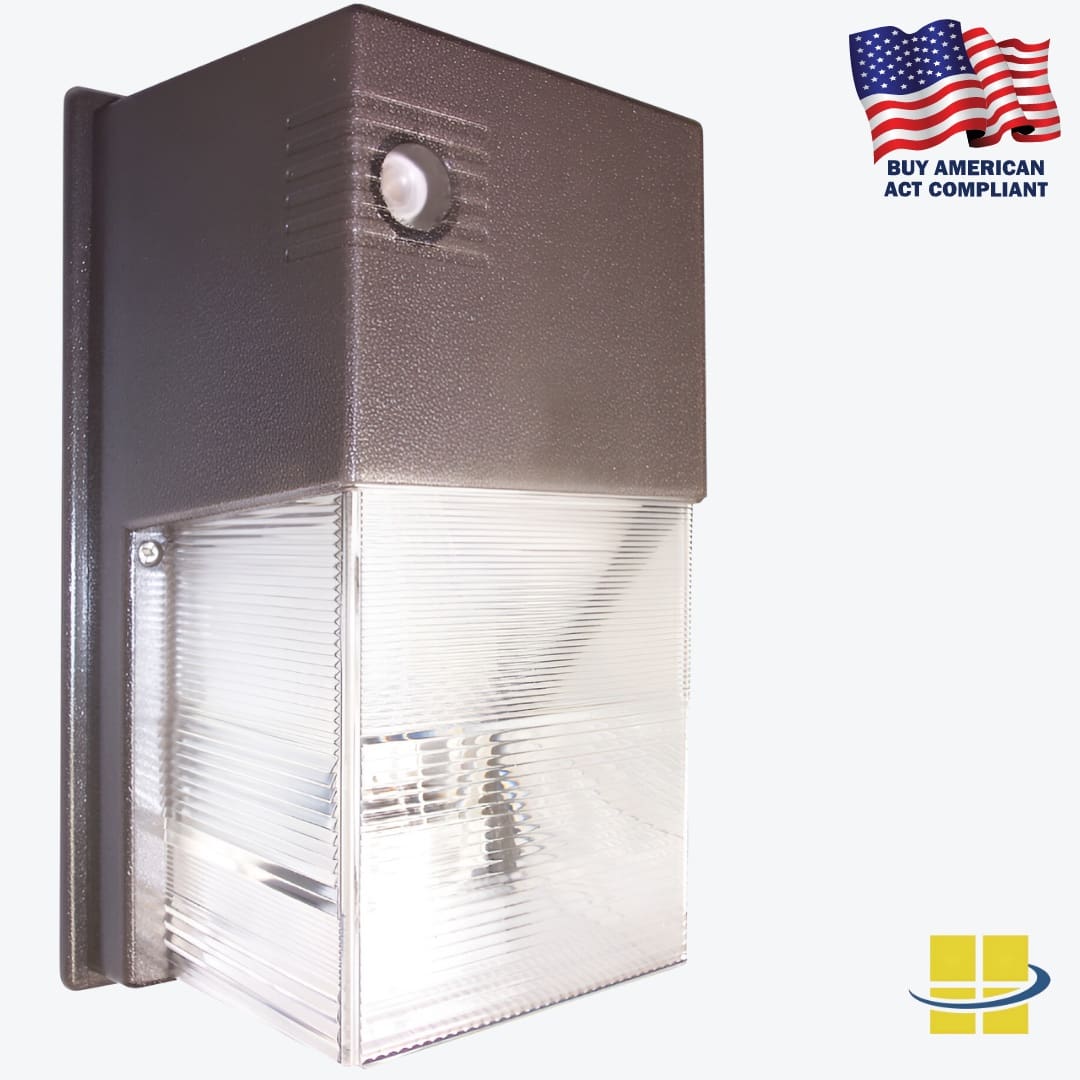

BAA SHOO 14 LED Wall Pack

$159.87

Robust Construction: Features a durable die-cast aluminum housing with an aluminum reflector, bronze UV-stabilized polycarbonate front housing, and a clear prismatic lens for enhanced light distribution and durability.

Certified for Various Applications: BAA Compliant, ETL listed for wet locations (ANSI/UL 1598, 8750) with an IP65 sealed LED compartment, ensuring suitability for outdoor and damp environments.

Efficient HID Replacement: The SHOO replaces up to 70w HID systems, providing widespread light distribution. Ideal for 8 to 15 feet mounting heights.

Buy American Act-Compliant

In Stock

  • Total

SKU: AF33XWP14QF1X13U5K Categories: , ,

Specifications

Weight 5 lbs
Dimensions 13 × 8 × 8 in
Availability

6 to 8 Week Production, plus Shipping

Available Finishes

Bronze, Custom RAL

BUG Rating

0, 3, 2

Color Rendering Index (CRI)

80+

Housing

Die cast aluminum housing

Lens

Molded prismatic polycarbonate lens and front housing

Light Source

,

Light Source Included

LED Array Included

Light Source Lumens

1054

Listings

CSA: Listed for wet locations

Mounting

Mounts over 4-inch electrical box

Product Family

SHOO

Rated Life

165,000 Hours

Style

Forward Throw

System Watts

14

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Product Description

SHOO 14 LED EXTREME-LIFE Wall Pack with Photocell Features:

  • Die Cast Aluminum Back Plate with Cast-in Template for Mounting Over an Electrical Box and Conduit Access on the Bottom. Aluminum Reflector.
  • Cast-in Template for Mounting Directly Over a 4˝ Recessed Outlet Box, or Use ½˝ Surface Conduit.
  • 3000K and 5000K available.
  • 120-277v
  • System watts: 14w
  • LED Array: 12.5w
  • 1,054 lumens
  • 71 Lumens Per Watt
  • L70 rated life of 165,000 hours
  • Operating temperature of -40°C to +40°C
  • Molded Prismatic UV-stabilized polycarbonate Lens & Front Housing.
  • BUG Rating: 0, 3, 2
  • IP55 rated
  • BAA Compliant and ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment.
  • Color rendering index (CRI) of 80+ (learn more about Color Rendering Index here)
  • Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90.
  • Bronze UV-stabilized polycarbonate Front Housing Finish or option of custom RAL color.

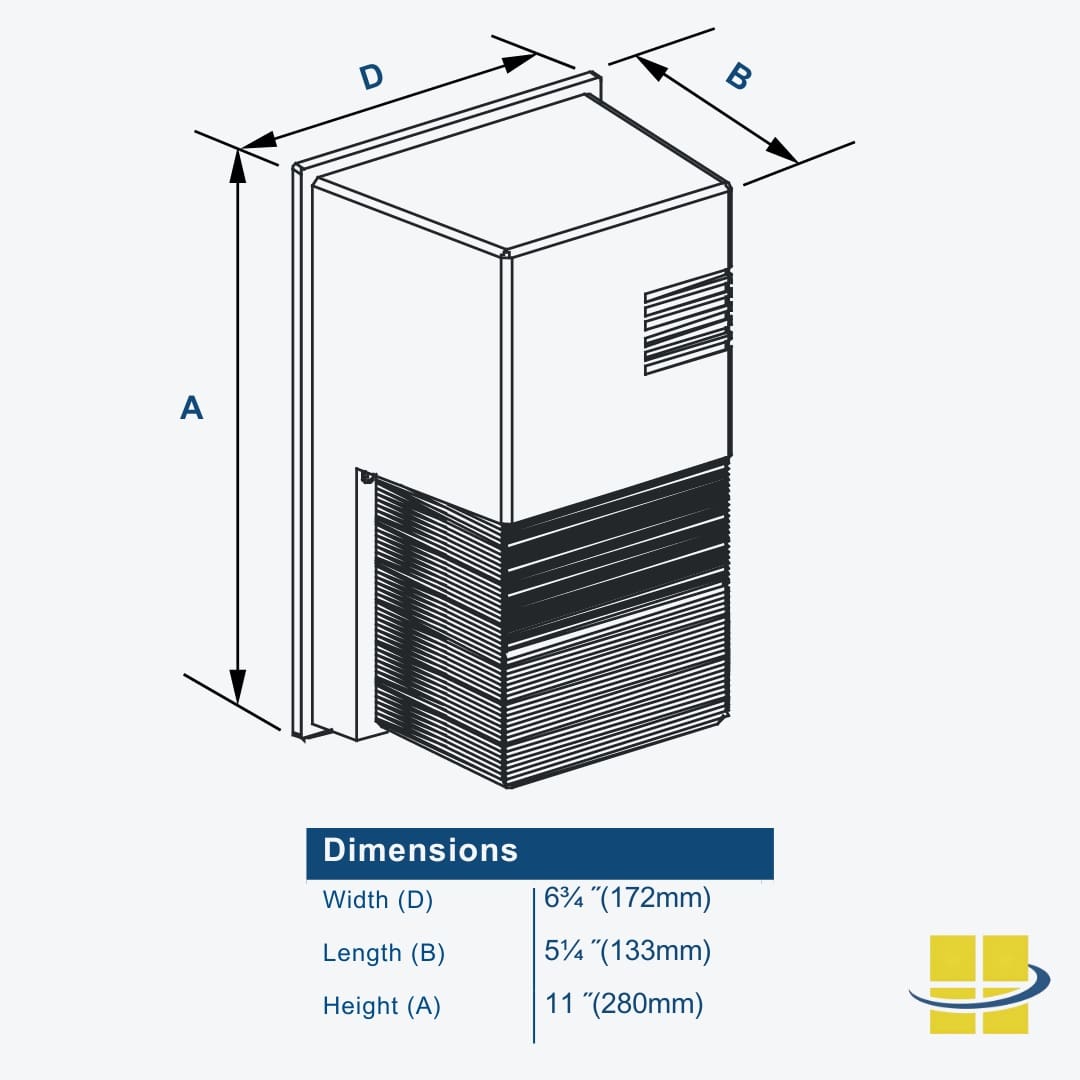

  • 11″ x 6.75″ x 5.25″
  • 3 lbs.

SHOO 14 LED EXTREME-LIFE Wall Pack with Photocell Mounting:

SHOO 14w LED Mini Wall Pack with Photocell, 120-277v includes all hardware required for mounting:

  • 4-inch recessed outlet box using a cast-in template, or ½˝ surface conduit access on the bottom of the fixture.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

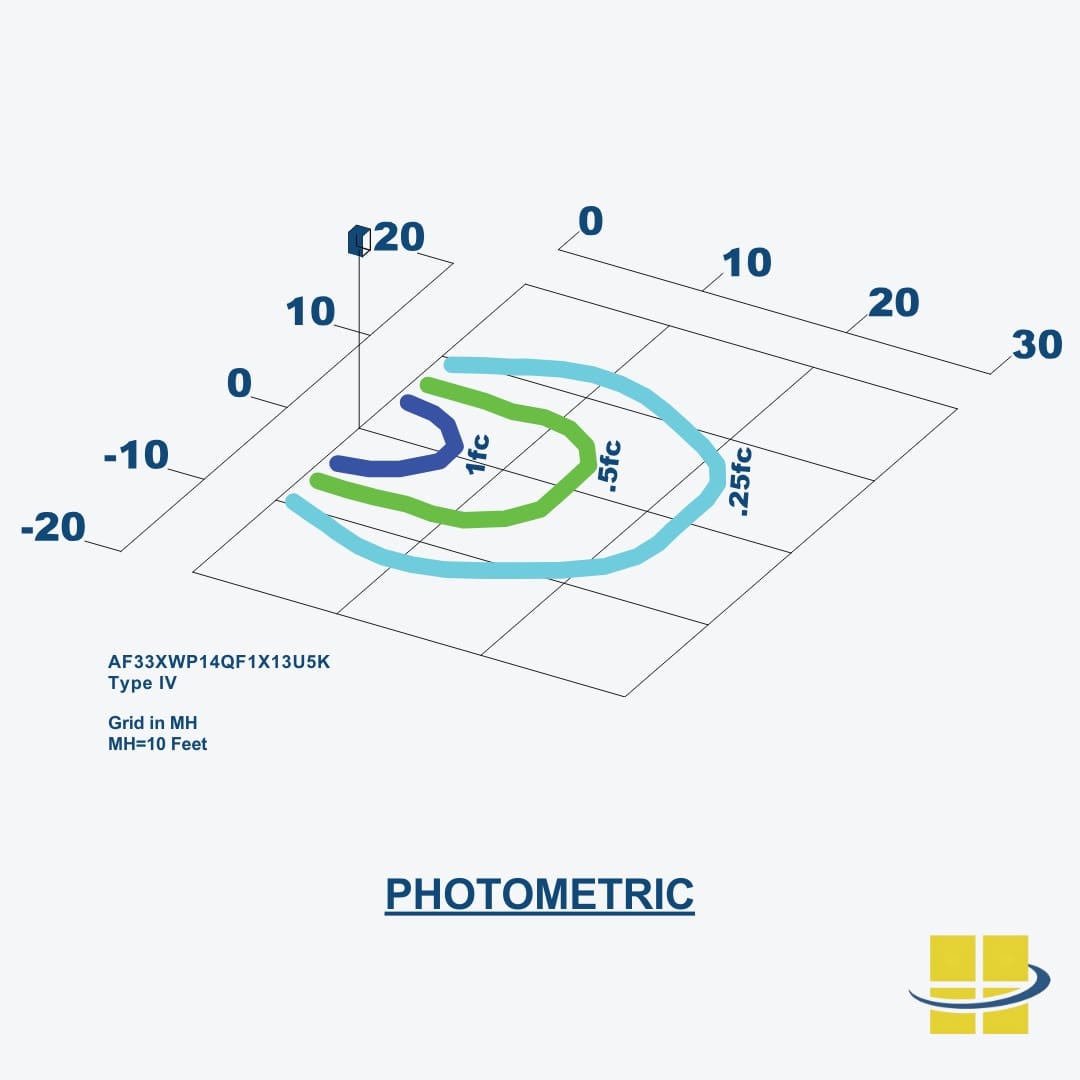

Need a Photometric Analysis for Your LED EXTREME-LIFE Wall Pack with Photocell Project?
