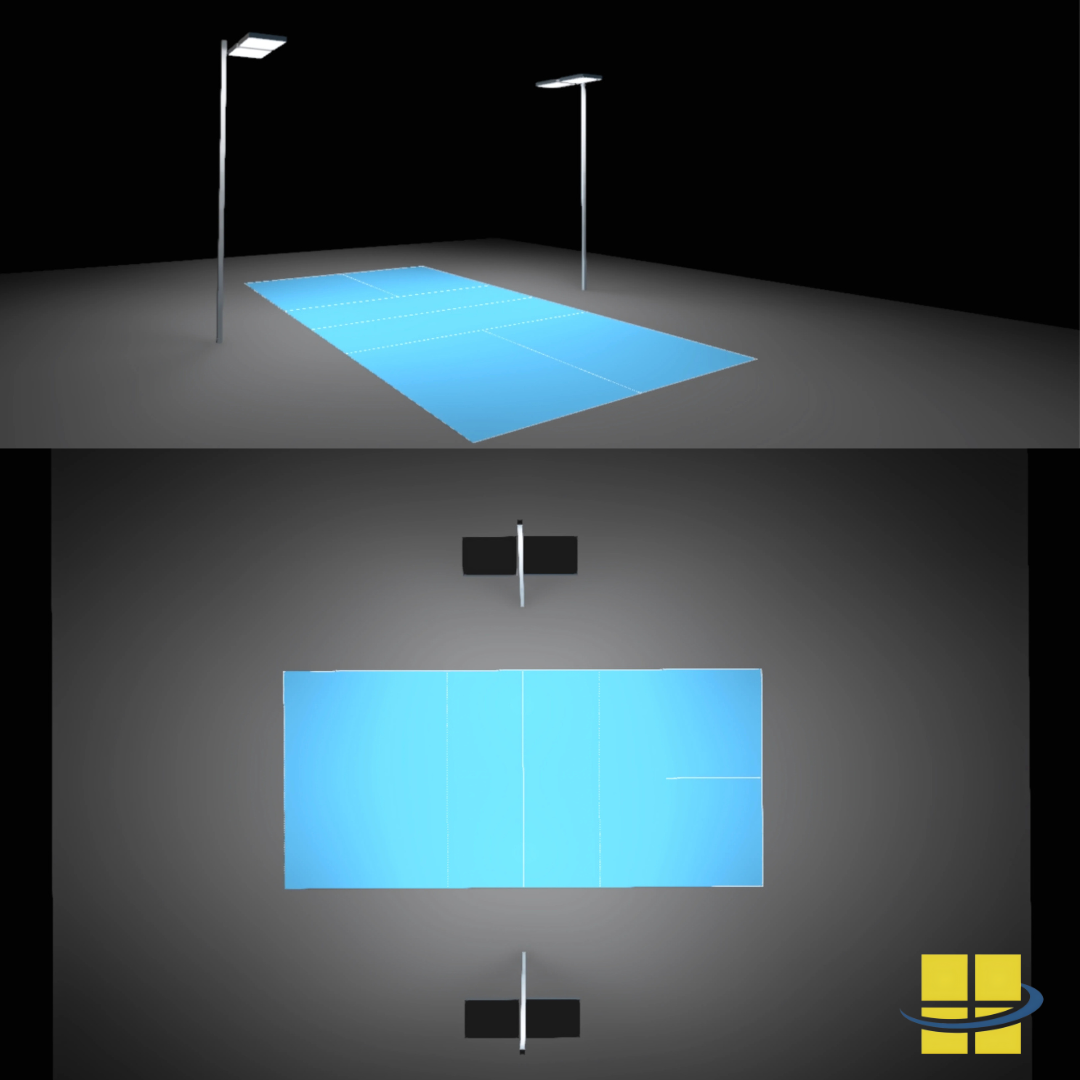

Single Solar Pickleball Court – 2 x 20′ Poles, Avg. 30fc , 2.16 Max/Min

$6,649.87

Revolutionize your pickleball court with an eco-friendly lighting solution that doesn’t have an electric bill while maintaining illumination with consistent, uniform, brilliant light powered entirely by the sun! Access Fixtures’ comprehensive solar lighting package, featuring two 20-foot-high poles, two bullhorns, and four 120-watt SUNA solar sports lights, isn’t just about significant energy savings; it’s about delivering a superior playing experience with no wires or electricians, and unwavering reliability.

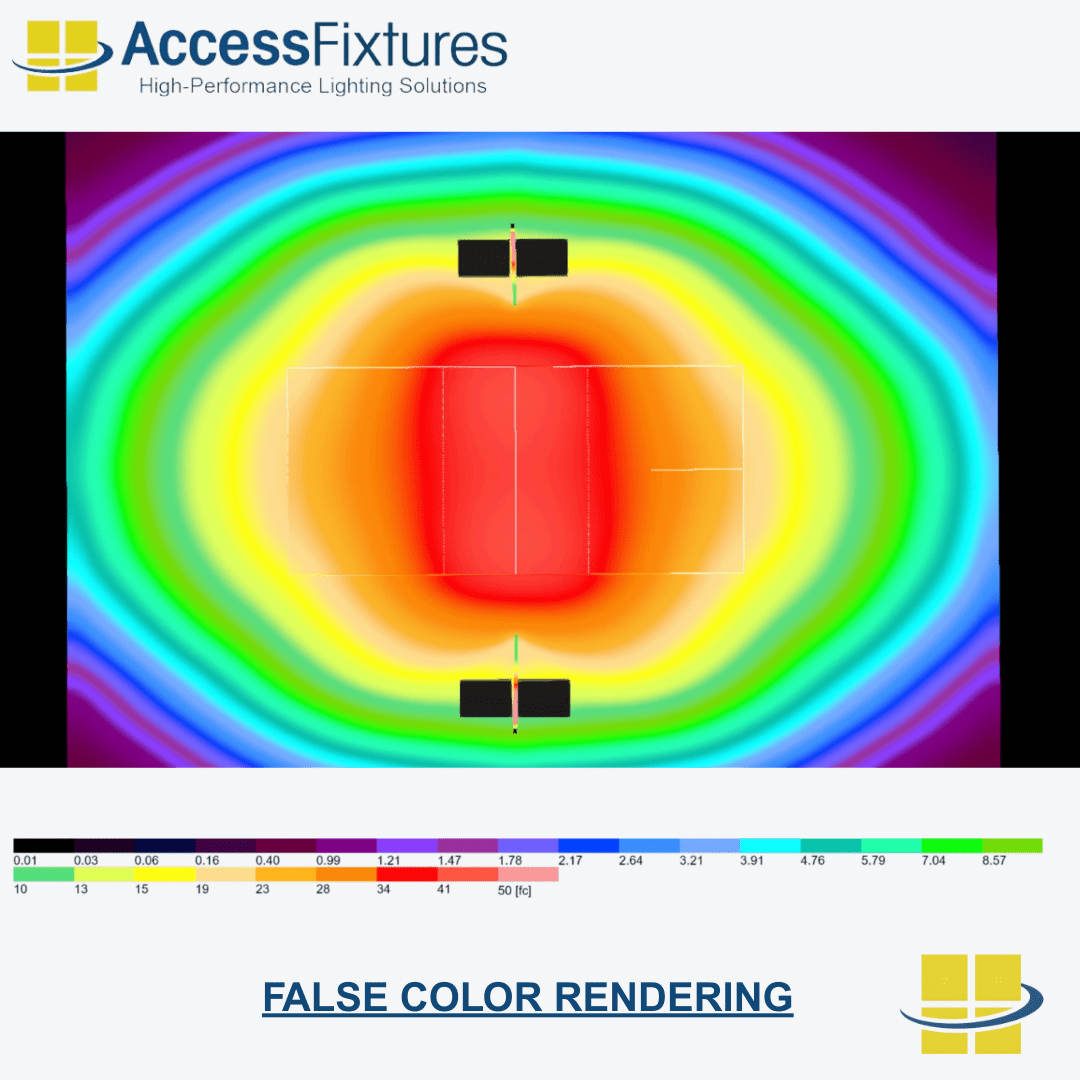

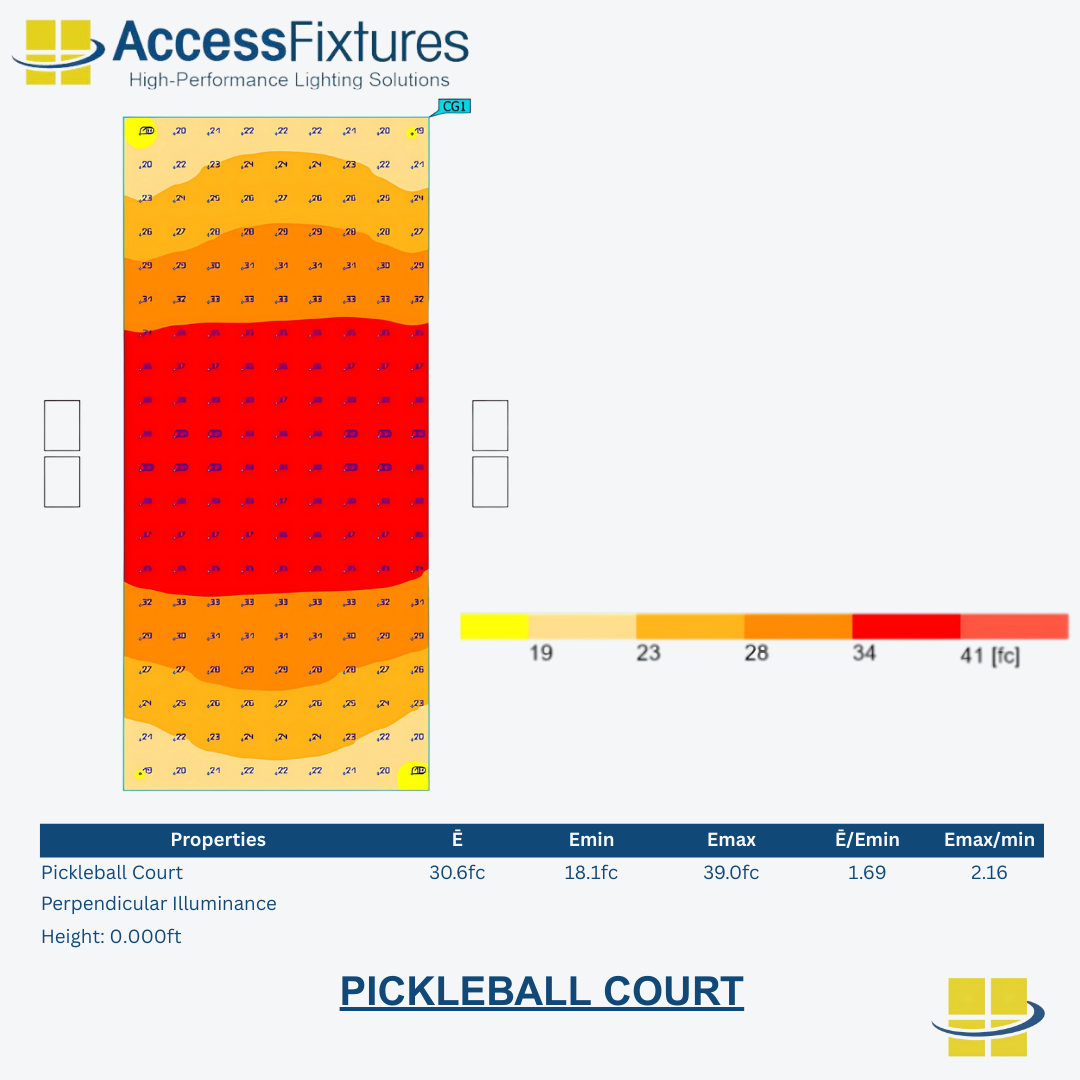

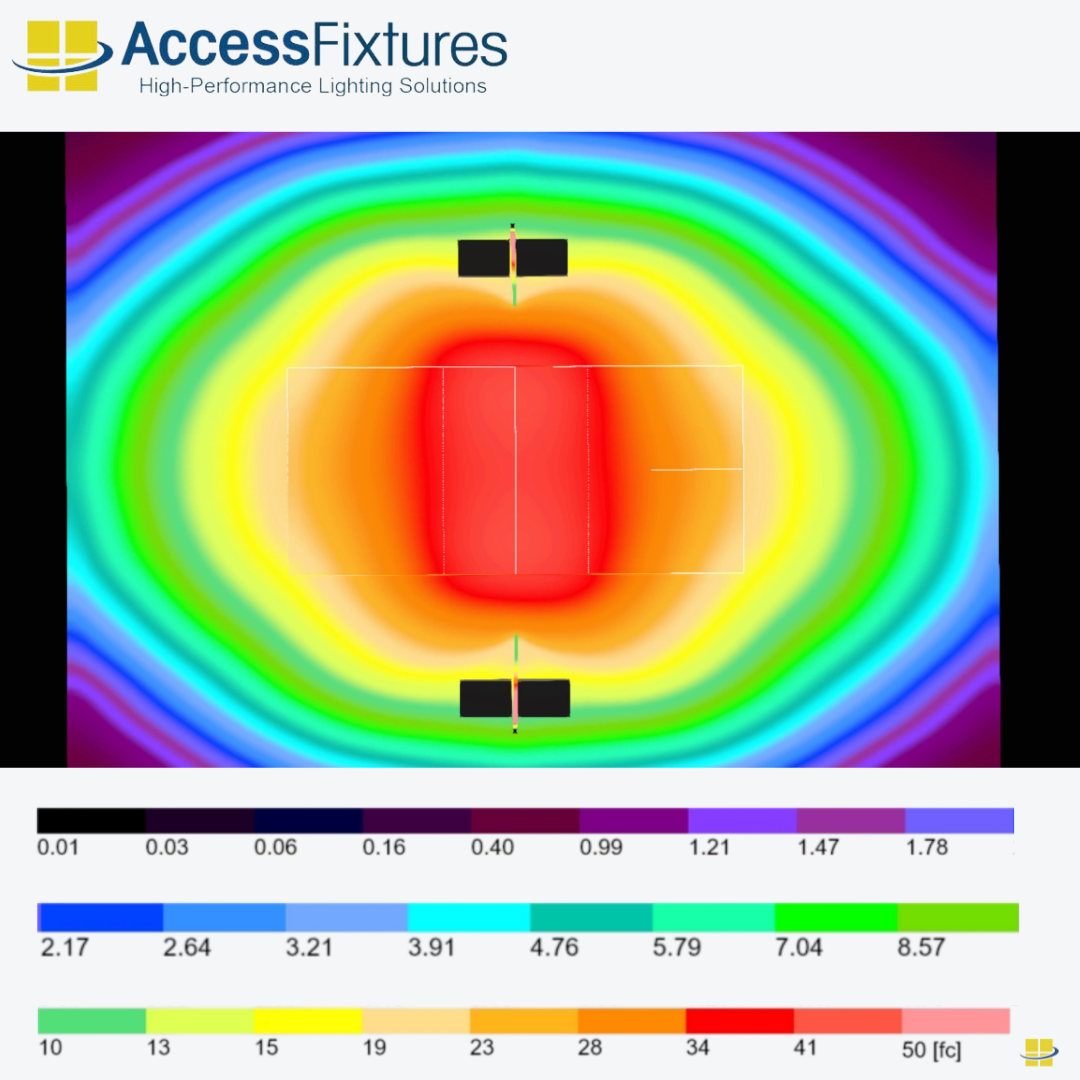

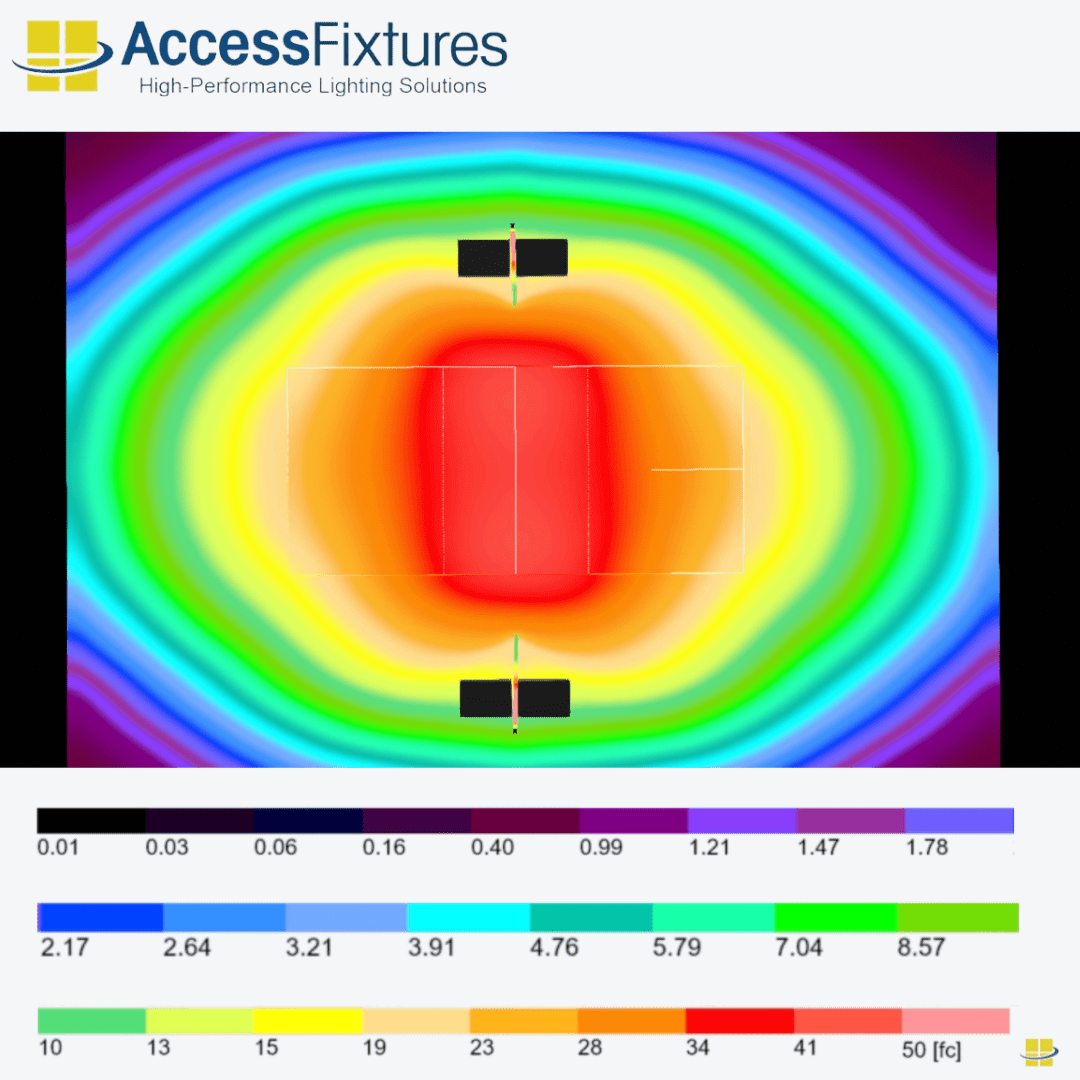

Unmatched Visibility for Peak Performance: This 4-fixture SUNA 120-watt solar lighting package is designed for clarity. Delivering an average of 30 footcandles with an impressive 2.16 max/min ratio. You get bright and even illumination across the entire court. This means players can track fast-moving balls with ease, and spectators will enjoy every thrilling moment without shadows or blinding spots.

Zero Wiring, Zero Energy Bills: No more complex wiring, disruptive trenching, and endless utility bills. Installation is incredibly fast, significantly cutting both upfront labor and long-term energy costs. Whether you’re building a new court or upgrading an existing one, our modular design makes expansion easy and maintenance minimal, giving you more time to play and less time worrying about logistics.

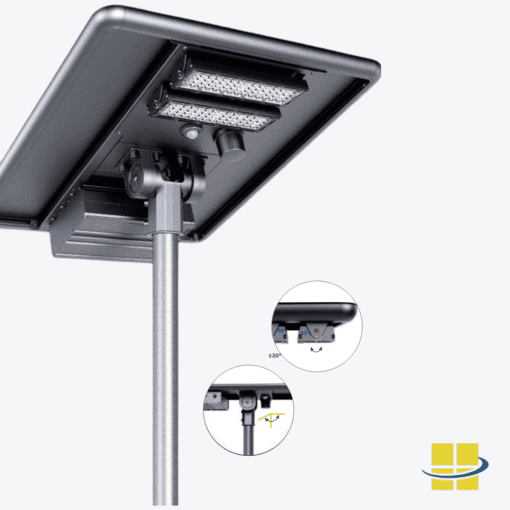

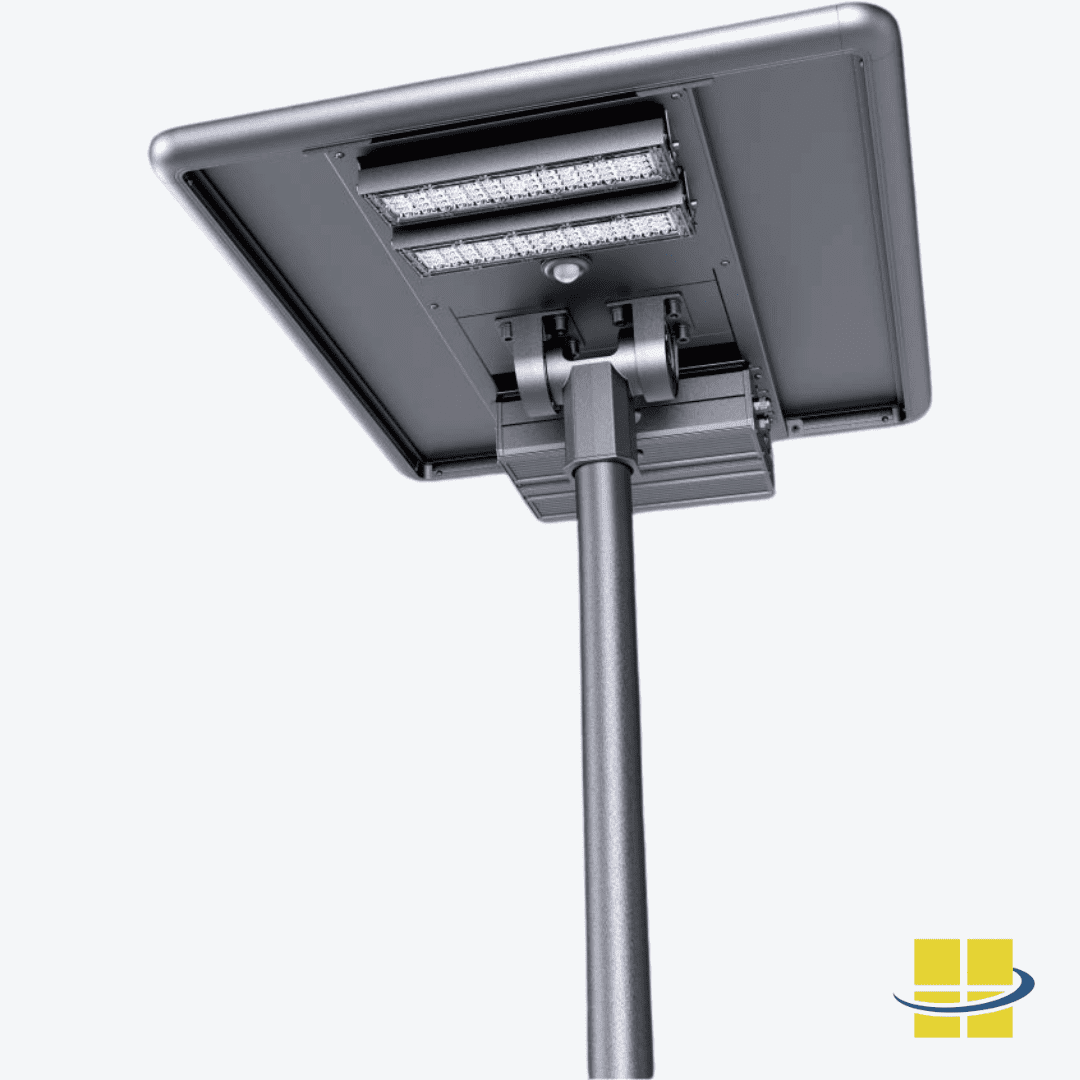

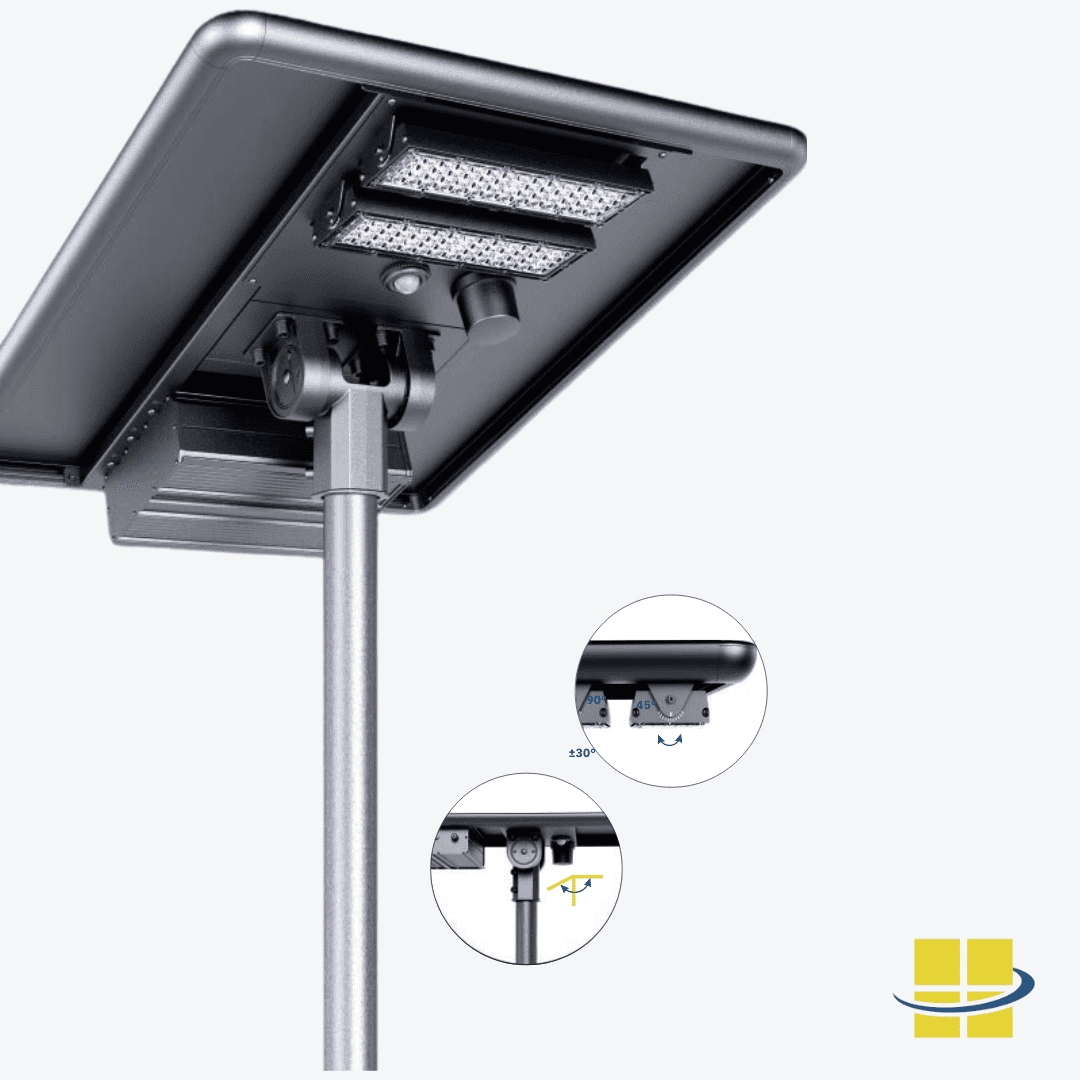

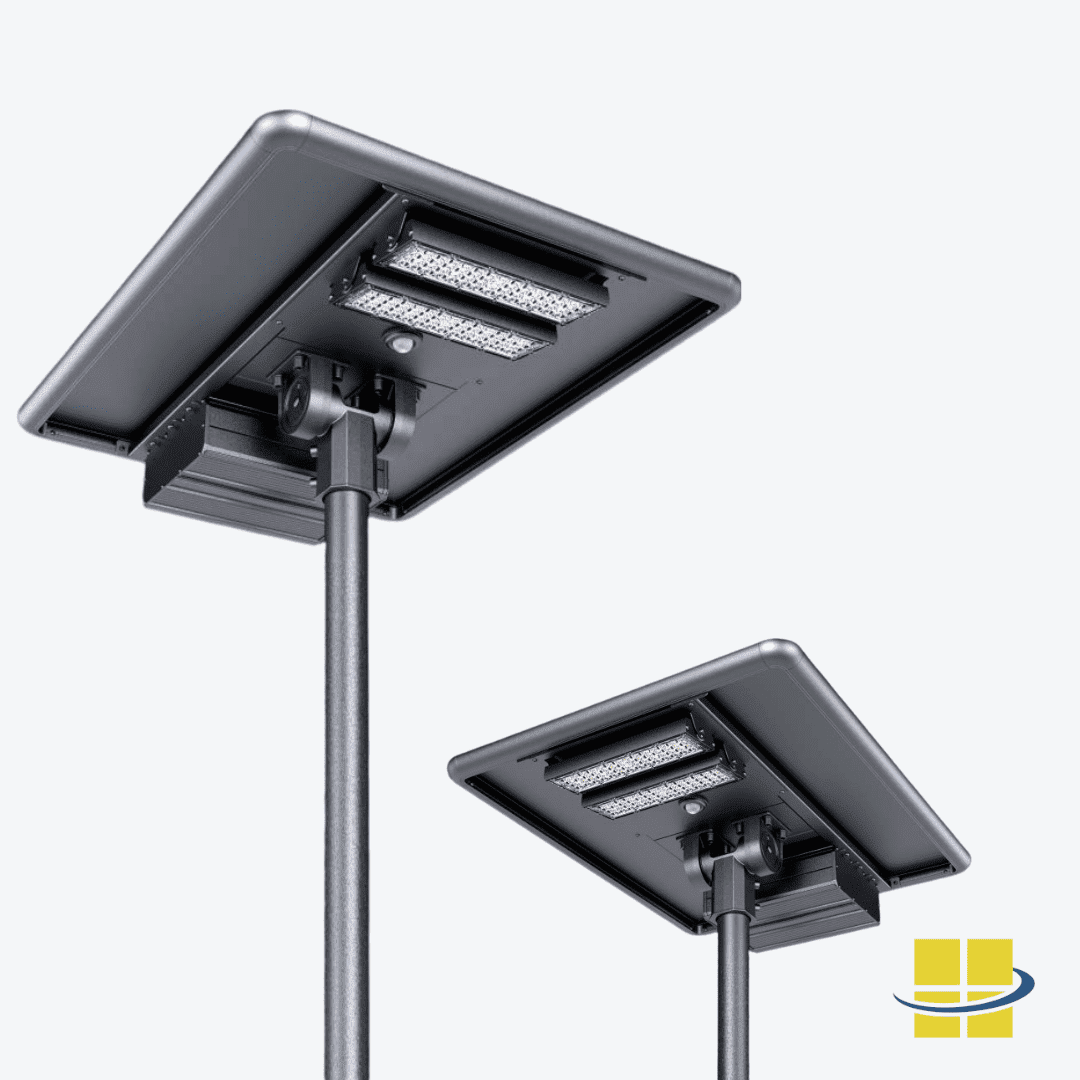

Built to Last: Pickleball courts require lighting that can withstand the elements, and this system delivers. Each SUNA solar sports light features an EXTREME-LIFE L70 rating of 150,000 hours, IP66 waterproofing, and an IK08 impact resistance rating, ensuring reliable performance in all weather conditions. With durable monocrystalline solar panels and long-lasting lithium batteries, this high-performance lighting system is engineered for long-term dependability.

     https://accessfixturesmedia.s3-accelerate.amazonaws.com/info/specsheet/SUNA-Solar-AREA-LIGHT-100-200.pdf

Lead Time: 8 to 10 Weeks Production, plus Shipping

In Stock

  • With the NEMA 7-pin socket, you gain versatile connectivity, allowing for seamless integration into various systems and equipment. Additionally, the inclusion of a shorting cap ensures optimal safety by preventing electrical hazards when the socket is not in use, giving you peace of mind and simplifying maintenance procedures.
  • Please enter a number from 0 to 4.
  • Please indicate whether you need the poles included in this package. Note: If poles are required, please contact a lighting specialist to ensure you receive the correct specifications for your project and appropriate pricing.
  • Please enter a number from 0 to 2.

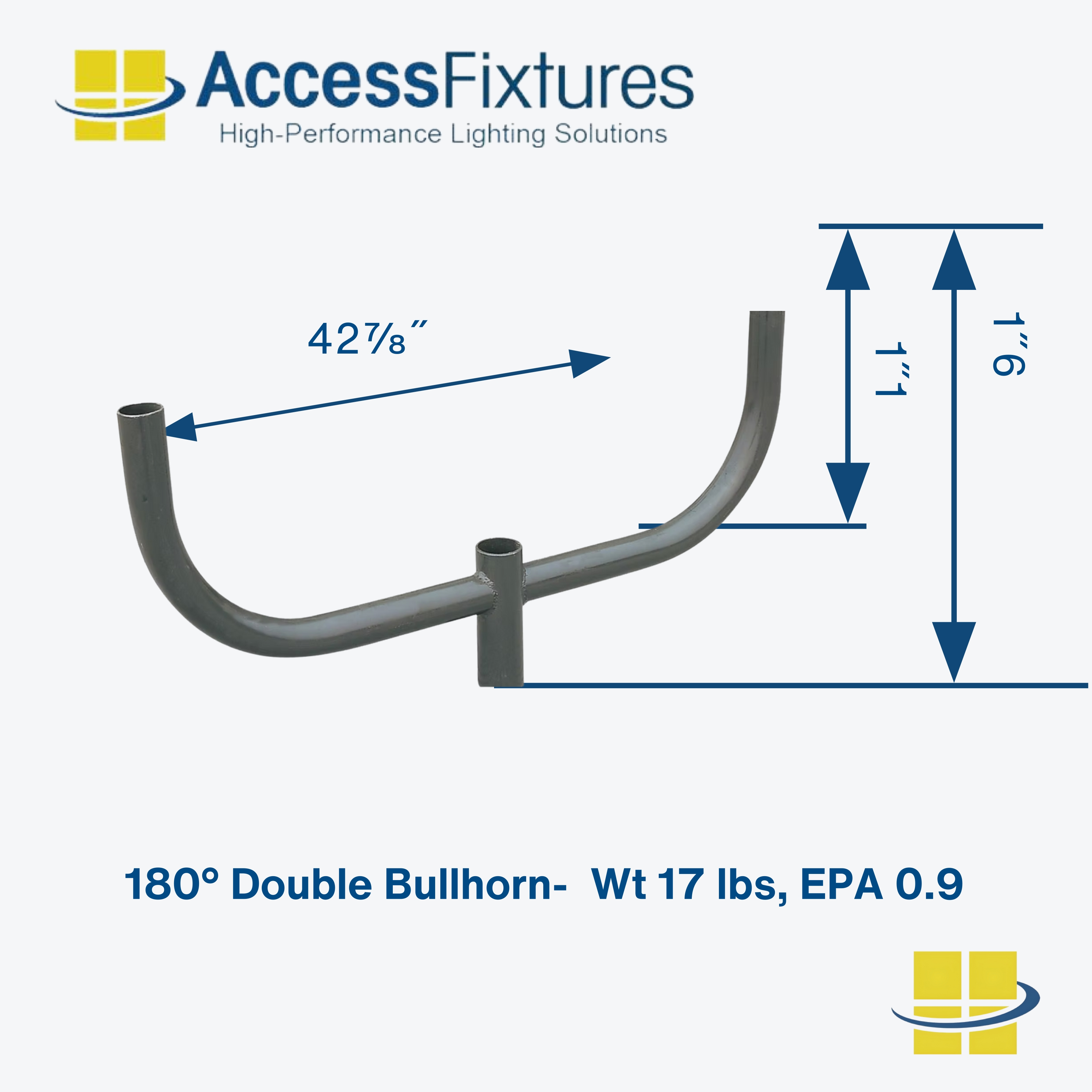

  • Please note that bullhorns are a mandatory component of this package and cannot be excluded.
  • Please enter a number from 2 to 2.
  • Total

SKU: AF44XEL-TASTII-120W-2 x 20'-30.6fc-2.16-Max/Min Categories: ,

Specifications

Weight 249.48 lbs
Dimensions 58 × 24 × 11 in
Availability

8 to 10 Weeks Production, plus Shipping

Available Finishes

Black

Color Rendering Index (CRI)

70+

Housing

Die-cast aluminum housing

Listings

IP66, RoHS Compliant, Wet locations, CE, IK08

Mounting

Slip Fitter

Product Family

SUNA

System Watts

120

Mounting Height

20ft

Max/Min Uniformity

2.16

Average Footcandles

30.6

Number of Fixtures

4

Number of Courts

1

Number of Poles

2

Warranty

5-Year Limited Warranty

Product Description

NB// These packages are configured with 20ft Aluminum poles. Pole selection is highly specific and can be customized to meet project requirements. Composite poles—engineered for high-wind environments—and steel poles are also available. Please contact a lighting specialist for guidance on selection and customization.

Access Fixtures Solar Pickleball Lighting Packages are designed specifically to deliver reliable, high-performance lighting to pickleball courts without the need for electrical infrastructure. Ideal for locations with direct sunlight, these solar packages eliminate the need for trenching, wiring, or utility access, making installation fast, simple, and cost-effective.

Each system includes high-output LEDs, a robust solar battery, and weather-resistant construction to ensure consistent illumination in all conditions — from sunny days to rain, snow, or storms. Whether you’re installing a new court or upgrading an off-grid location, these solar packages provide dependable, off-the-grid lighting built to last.

Electrical & Performance

  • Footcandles: avg. 30.6fc
  • Max/Min: 2.16
  • Wattage: 120W
  • Fixture amount: 4
  • Kelvin: 5000K (Bright-White)
  • Efficacy: Approximately 177 lumens per watt

Construction & Design

  • Housing: Die-cast aluminum with white powder-coat finish
  • Lens: Clear Polycarbonate Lens
  • Mounting: Slipfitter
  • Dimensions: Length: 58″, Width: 24″, Height: 11″
  • Weight: Each fixture is a total of 62.37 lbs

Listings & Ratings

  • Certifications: CE listed, RoHS Listed, IK08 impact rate
  • Ingress Protection: IP66 rated for wet locations
  • CRI: 70+
  • Operating Temperature : -20°C to + 60°C/-4° F to 140°F, (Charge: 0°C to 60°C/32°F to 140°F, Discharge: -20°C to 60°C/-4°F to 140°F) and Storing Temperature:-20°C to +60°C/-4°F to 140°F.

Other Options

Warranty: 5-year limited warranty

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

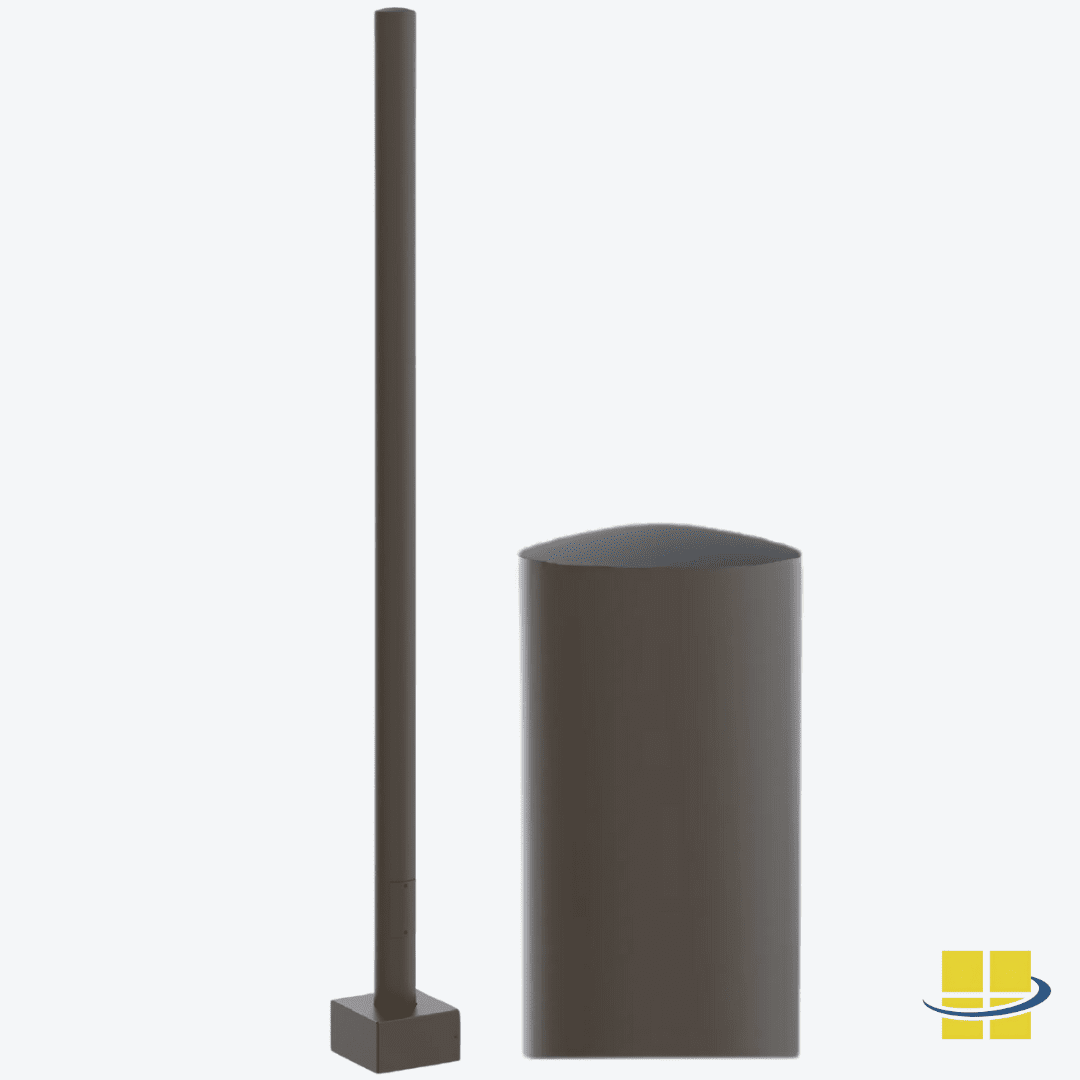

Pole Specifications (Aluminum Poles)

Pole Shaft
Constructed from seamless 6063-T6 extruded aluminum for strength and durability.

Pole Top

  • Open Top (for slip-fitter applications)

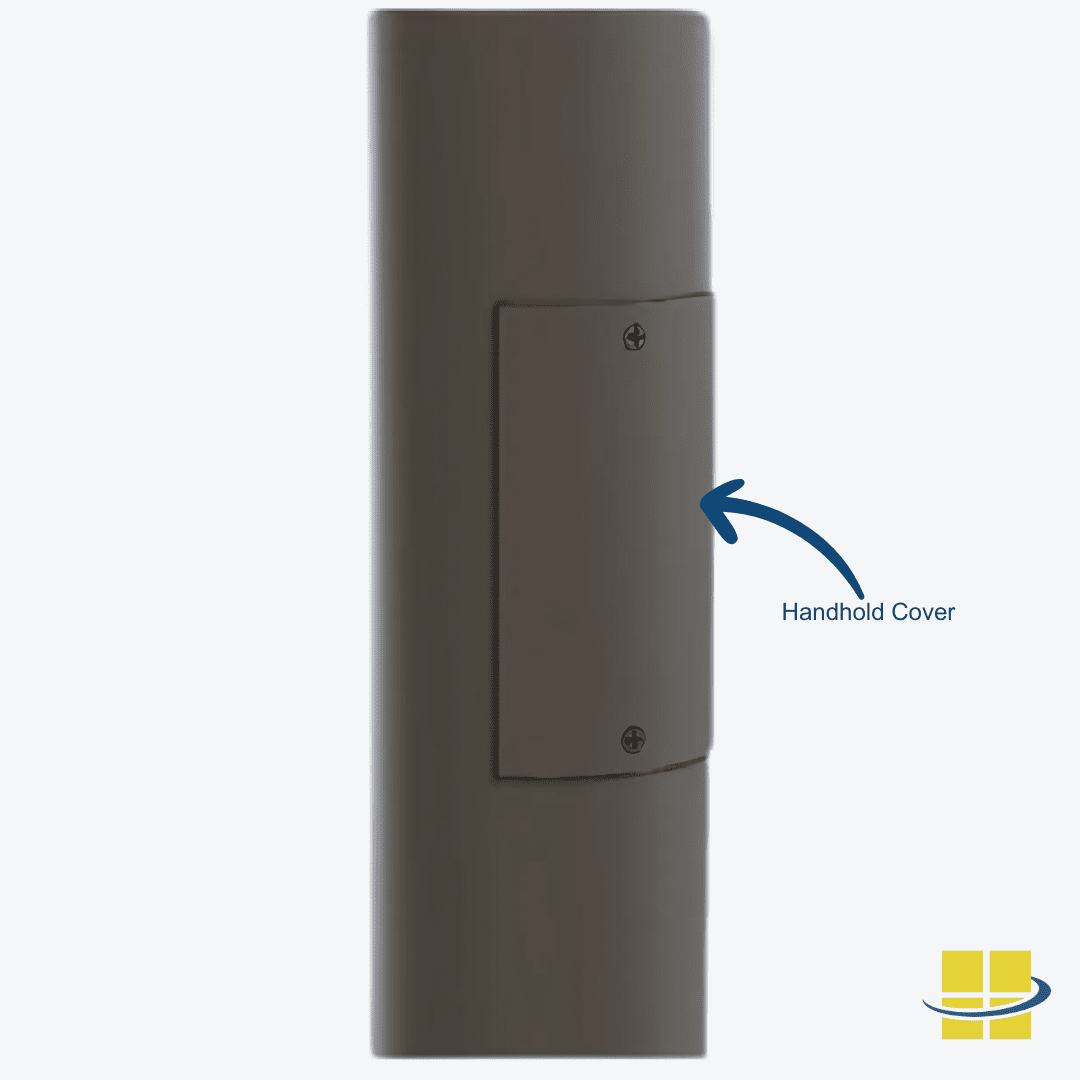

Hand Hole
2” x 4” oval hand hole with grounding provision.
Includes cover and attachment hardware. (Nominal dimensions provided.)

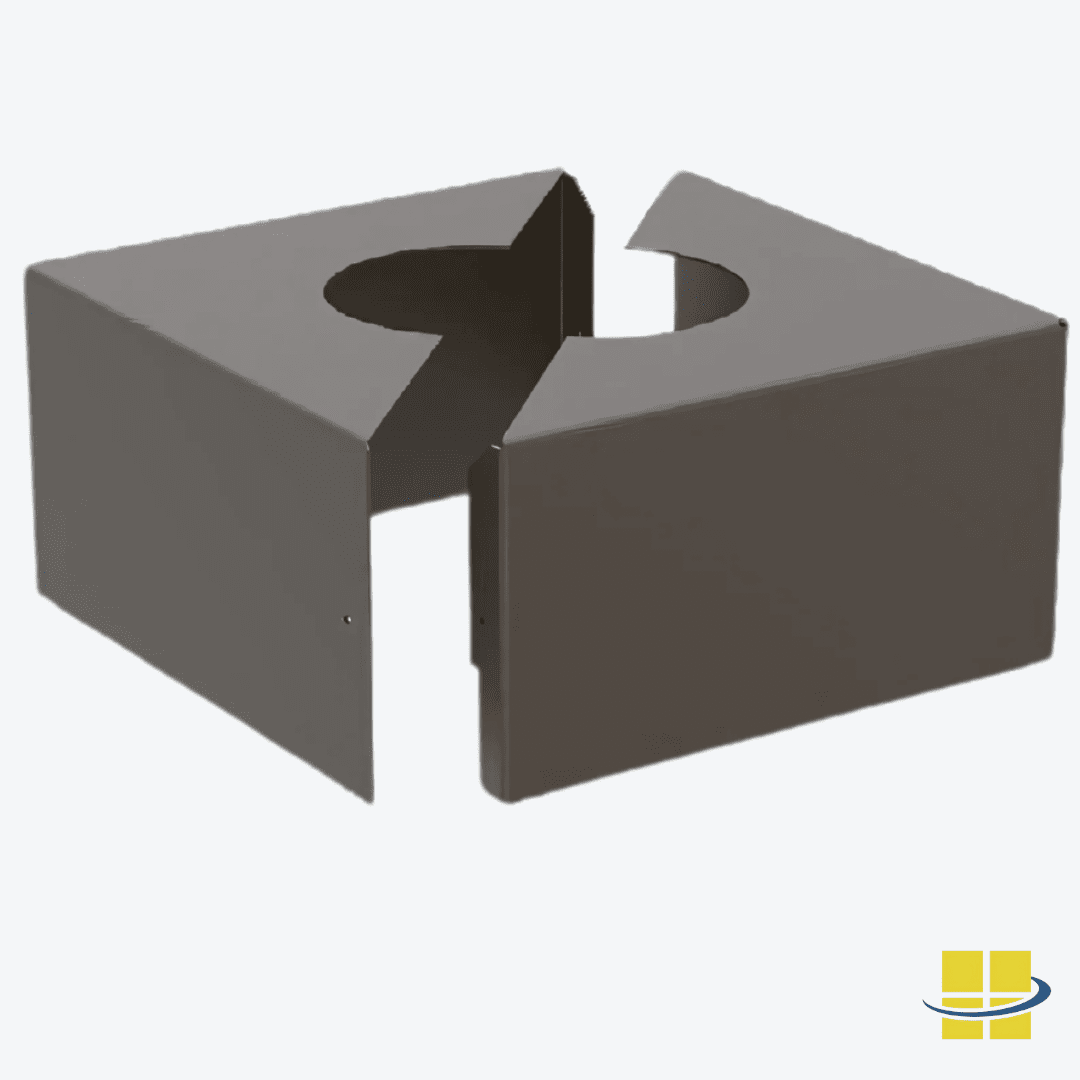

Anchor Base & Cover

  • Anchor base is cast from 356 alloy aluminum and supplied with a two-piece aluminum base cover.
  • The completed pole assembly undergoes T6 heat treatment for added strength.

Anchor Bolts
ASTM F1554 Grade 55 anchor bolts include:

  • Two hex nuts
  • Two flat washers
  • L-bend on one end
  • Galvanized at least 12” on the threaded end for corrosion resistance

Hardware

  • Structural fasteners: Galvanized high-strength carbon steel
  • Non-structural fasteners: Galvanized, zinc-plated carbon steel, or stainless steel

Finish

  • Available in anodized or painted finishes
  • Custom color options available for fixture matching
  • Important: When storing poles outdoors, remove all protective wrapping immediately upon delivery to prevent finish damage.

Design Criteria

  • Standard EPA (Effective Projected Area) and weight values follow AASHTO Criteria (3-second gust factor) for side and top-mounted fixtures only.
  • Proper performance depends on correct attachment to a supporting foundation of adequate design.



Ready to Order SUNA 120 Solar Light Package or Speak to a Lighting Specialist?

You can place your order online here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists is available to provide what you need to purchase fixtures and illuminate your project with confidence.
