Product Specifications

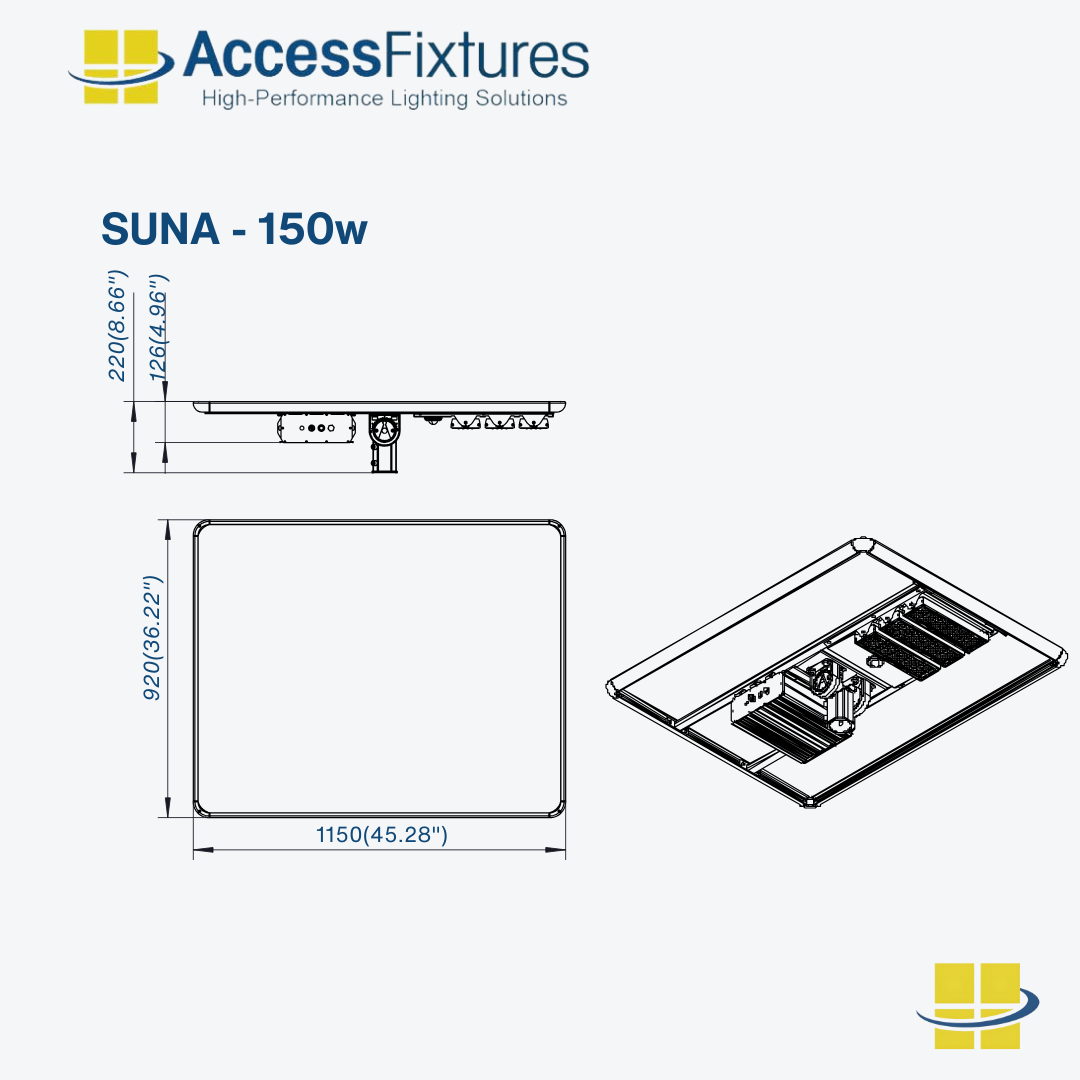

| Dimensions | 45.28 × 45.28 × 8.66 in |
|---|---|
| Indoor/Outdoor Courts | Outdoor |
| Max/Min Uniformity | 1.38 |
| Average Footcandles | 32 |
| Mounting Height | 20ft |
| Number of Fixtures | 8 |
| Number of Poles | 4 |
| Number of Courts | 1 |
| Number of Bullhorns | 4 |
| EPA (Effective Projected Area) | N/A. |
| IK Rating | IK08 |
| IP Rating | IP65 |
| BUG Rating | 0, 0, 0 |
| System Watts | 200w |
| Light Source | |
| Optics | T2S(70X135D) |
| Lens | Clear polycarbonate lens |
| Housing | Die cast aluminum housing |
| Available Finishes | Black |
| L70 Rating | 150,000hrs |
| Mounting | Slip Fitter Mount |
| Availability | 7 to 10 Day Production, plus Shipping |
| Listings | RoHS Compliant, CE |
| Color Rendering Index (CRI) | N/A |
| Warranty | 5-Year Limited Warranty |
| Grid/Solar | Solar |

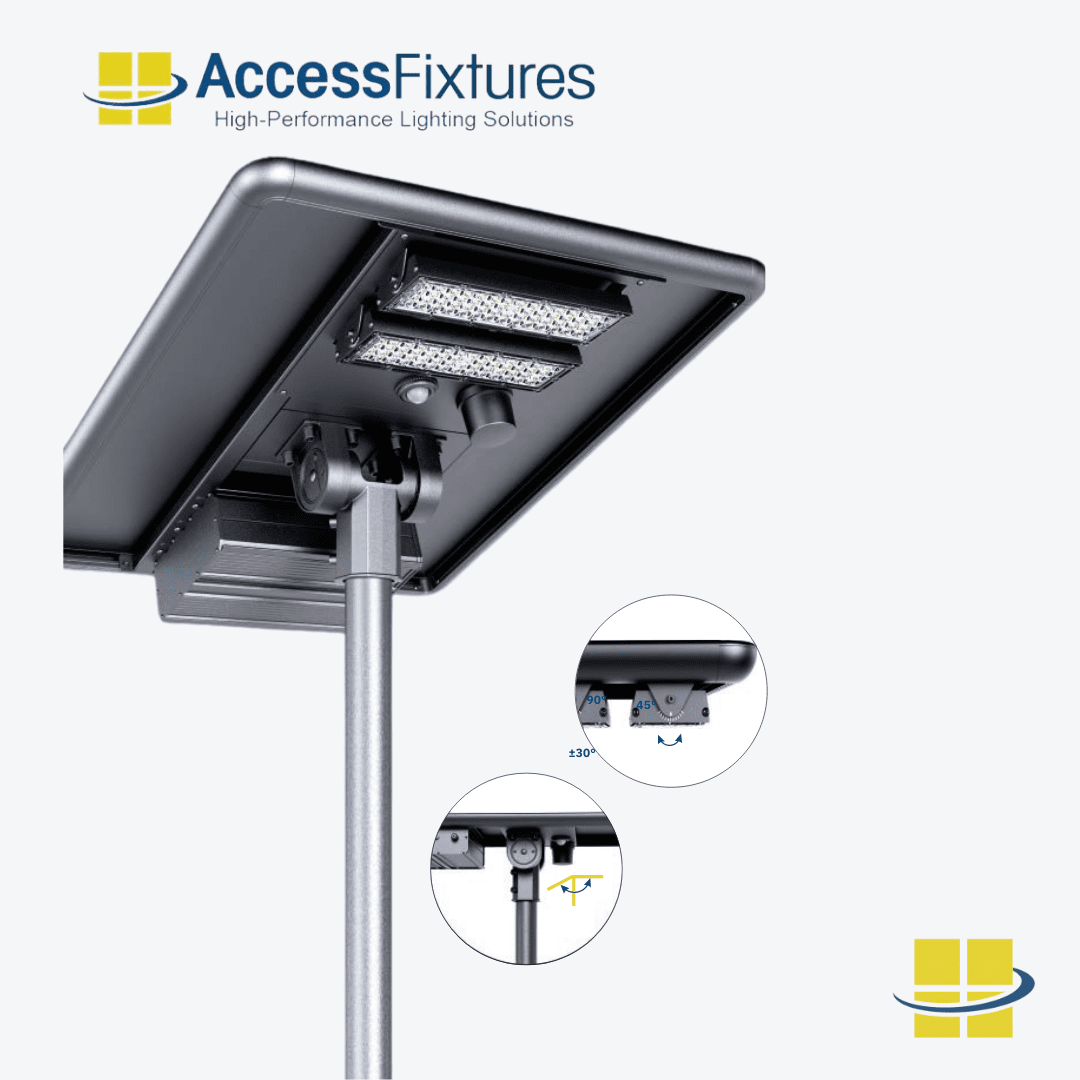

Solar Tennis Court Lighting Package – Avg. 32fc, 1.38 Max/Min, 8 150w LED Lights on 4 20′ Poles

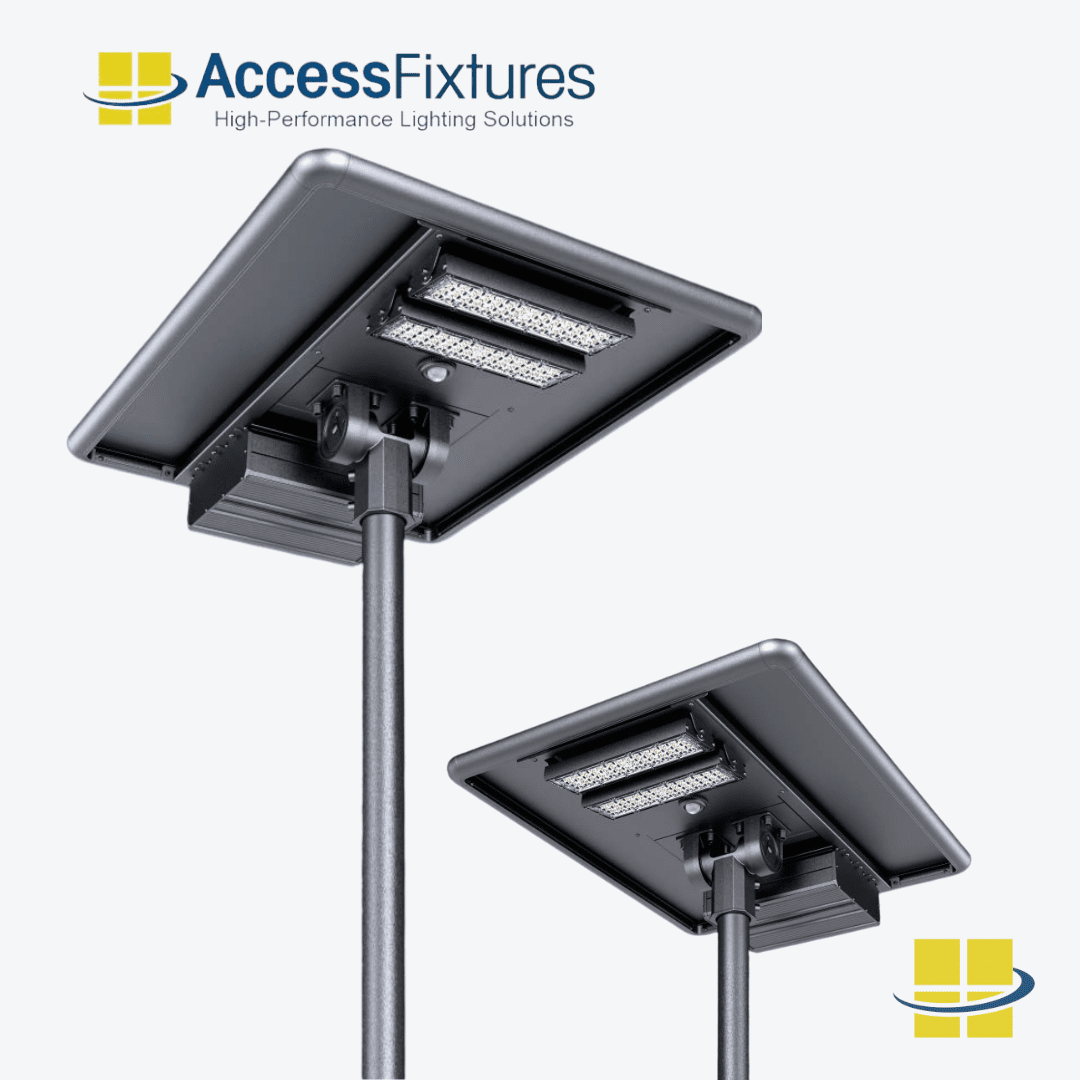

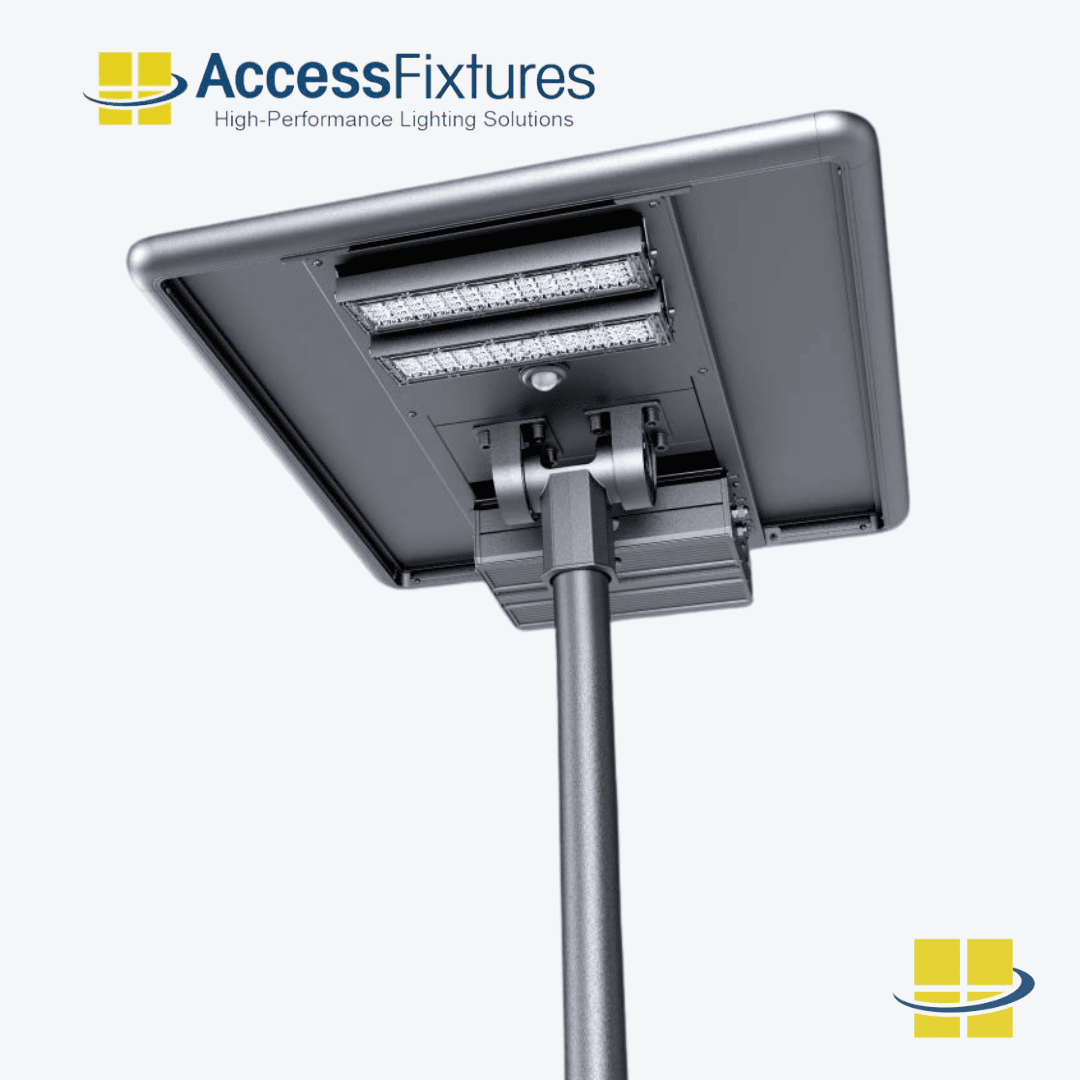

Play Tennis after dark with Solar-Powered LED Sports Lighting! Elevate your outdoor Tennis games with Access Fixtures’ SUNA solar sports lighting package. Designed to deliver reliable, wire-free illumination, SUNA harnesses the power of the sun to provide bright, uniform light without ongoing electric bills. Featuring high-performance solar fixtures mounted on durable poles, this package ensures visibility, safety, and long-term dependability for both recreational play and competitive matches.

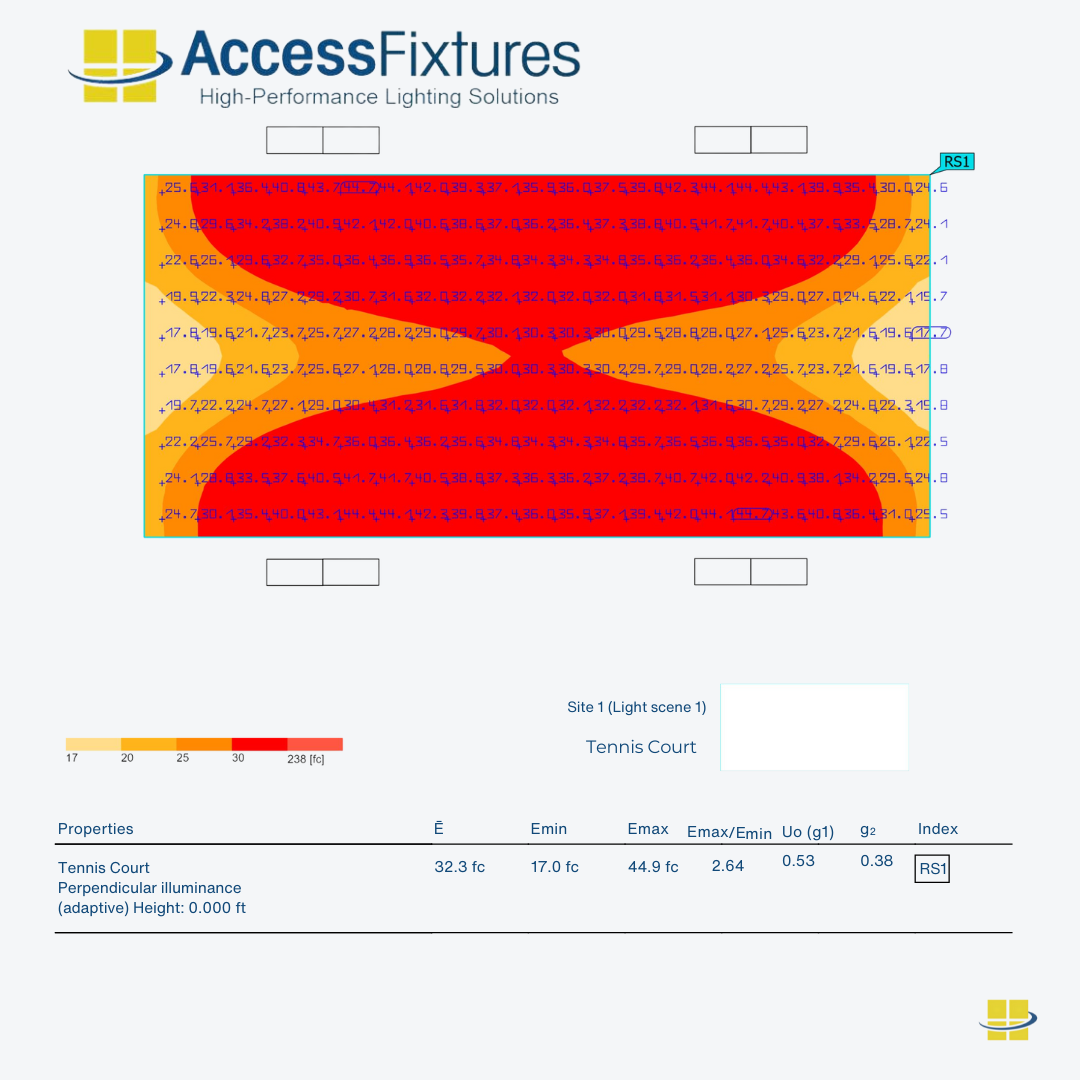

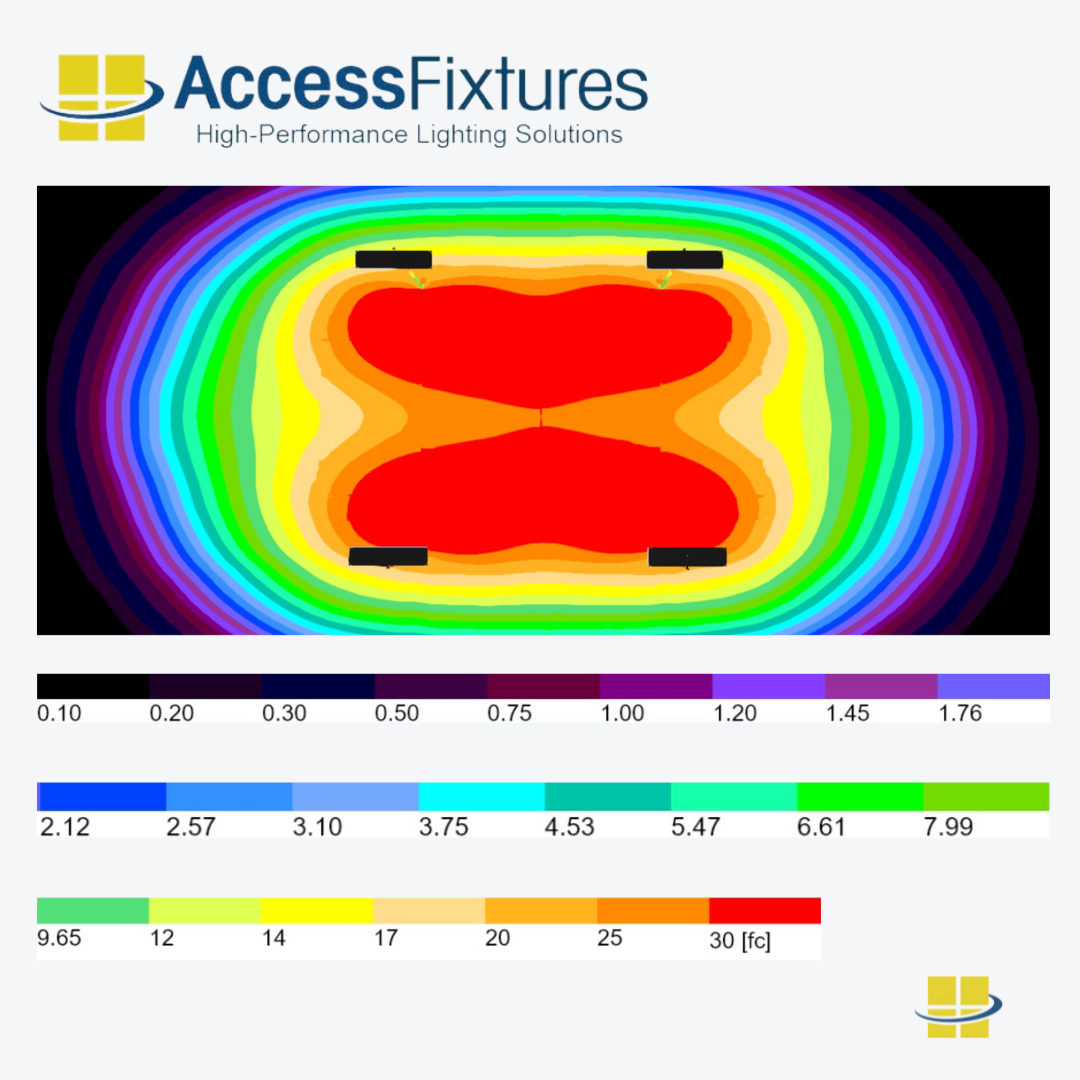

Superior Visibility: This SUNA solar Tennis lighting package is engineered to provide consistent illumination across the entire court, delivering an average of 32fc with excellent 1.38 Max/min uniformity. The result is crisp, even lighting that makes it easy to track fast-moving balls. This low-glare tennis court lighting enhances visibility and reduces eye strain, making tracking the ball easier.
Zero Wiring, Zero Energy Bills: Powered entirely by the sun, SUNA eliminates the need for trenching, wiring, and electricians. Installation is simple and cost-effective, while ongoing energy bills are reduced to zero. This makes SUNA a sustainable, budget-friendly solution that delivers brilliant light without the long-term costs of traditional grid-powered systems.
Built to Last in All Conditions: SUNA fixtures are designed for both regular and demanding environments, with long-lasting lithium batteries, durable monocrystalline solar panels, IP66 waterproofing, and an EXTREME-LIFE L70 rating of 150,000 hours. Season after season, SUNA ensures your volleyball court is always ready for play.
Tennis Lighting Requirements
Average Footcandles:
- Recreational Play: 20–30 average footcandles
- Club/Competitive Play: 30–50 average footcandles
- Professional/Televised: Minimum of 75 average footcandles
- Uniform Lighting: Max/Min ratio of 2.0 or less to ensure even light across the court and consistent ball visibility
- Glare Control: Low-glare optics to minimize eye strain and allow players to clearly track fast-moving balls
- Mounting Height: Outdoor: Minimum 20 ft; Indoor: Minimum 30 ft (higher for professional or televised play)
Fixture Durability:
- IP65: Wet location rated, sealed against dirt and moisture
- IK08: Impact-resistant housing for demanding environments
- Choice of Color Temp: 4000K or 5000K options to balance visibility and comfort
- CRI: 80+ for excellent color rendering of the ball and court surfaces
Proper Planning: Proper planning is essential for meeting tennis court lighting requirements. Access Fixtures lighting specialists can provide pre-engineered packages or custom photometric studies tailored to your court layout and level of play. Ensure your project delivers safe, uniform, and high-performance lighting. Contact a Lighting Specialist today.
No documents available
$17,049.87
Product Specifications
| Dimensions | 45.28 × 45.28 × 8.66 in |
|---|---|
| Indoor/Outdoor Courts | Outdoor |
| Max/Min Uniformity | 1.38 |
| Average Footcandles | 32 |
| Mounting Height | 20ft |
| Number of Fixtures | 8 |
| Number of Poles | 4 |
| Number of Courts | 1 |
| Number of Bullhorns | 4 |
| EPA (Effective Projected Area) | N/A. |
| IK Rating | IK08 |
| IP Rating | IP65 |
| BUG Rating | 0, 0, 0 |
| System Watts | 200w |
| Light Source | |
| Optics | T2S(70X135D) |
| Lens | Clear polycarbonate lens |
| Housing | Die cast aluminum housing |
| Available Finishes | Black |
| L70 Rating | 150,000hrs |
| Mounting | Slip Fitter Mount |
| Availability | 7 to 10 Day Production, plus Shipping |
| Listings | RoHS Compliant, CE |
| Color Rendering Index (CRI) | N/A |
| Warranty | 5-Year Limited Warranty |
| Grid/Solar | Solar |
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
You can also leave messages for and chat live with a lighting specialist by using our Live Chat feature on the bottom-right side of your browser window.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
