Product Description
Electrical Specifications:
- Wattage Options: 10w/15w/20w/30w/40w/50w/60
- AC Input Voltage: 120-277V or 347-480V
- 0-10v Dimmable Driver
- Standard Surge Protection included (6kV) 10k-V available
Optical Specifications
- Kelvin Temperature: 3000K, 4000K, 5000K, (1800K and 2700K) Available.
- Standard Colors Available: Black, Bronze, Dark Bronze, White, Green, Silver Metallic, Light Gray, Textured Black, (Custom RAL Available)
- Light Distribution: Type II, Type III, Type IV, Type V
- Lens Option: Clear Acrylic, Clear Polycarbonate, Frosted Acrylic, Frosted Polycarbonate, White Opal Acrylic, Pattern Acrylic, Seeded Acrylic.
Mechanical and Design Features
- Finish: Super Durable Polyester Powder Coat Finish, Custom Finishes Available Including Patinas and All RAL Colors.
- Housing Material: Cast Aluminum Housing & Stamped Cast Aluminum Roof.
- Controls (Optional) Button Eye Photo Control and House Side Shield.
- CSA: ETL Listed to UL 1598 Standard for Wet Locations.
- IP Rating: IP66 (Water resistant against powerful jets).
- EPA: 1.44
- Lifetime: 227,000 Hours

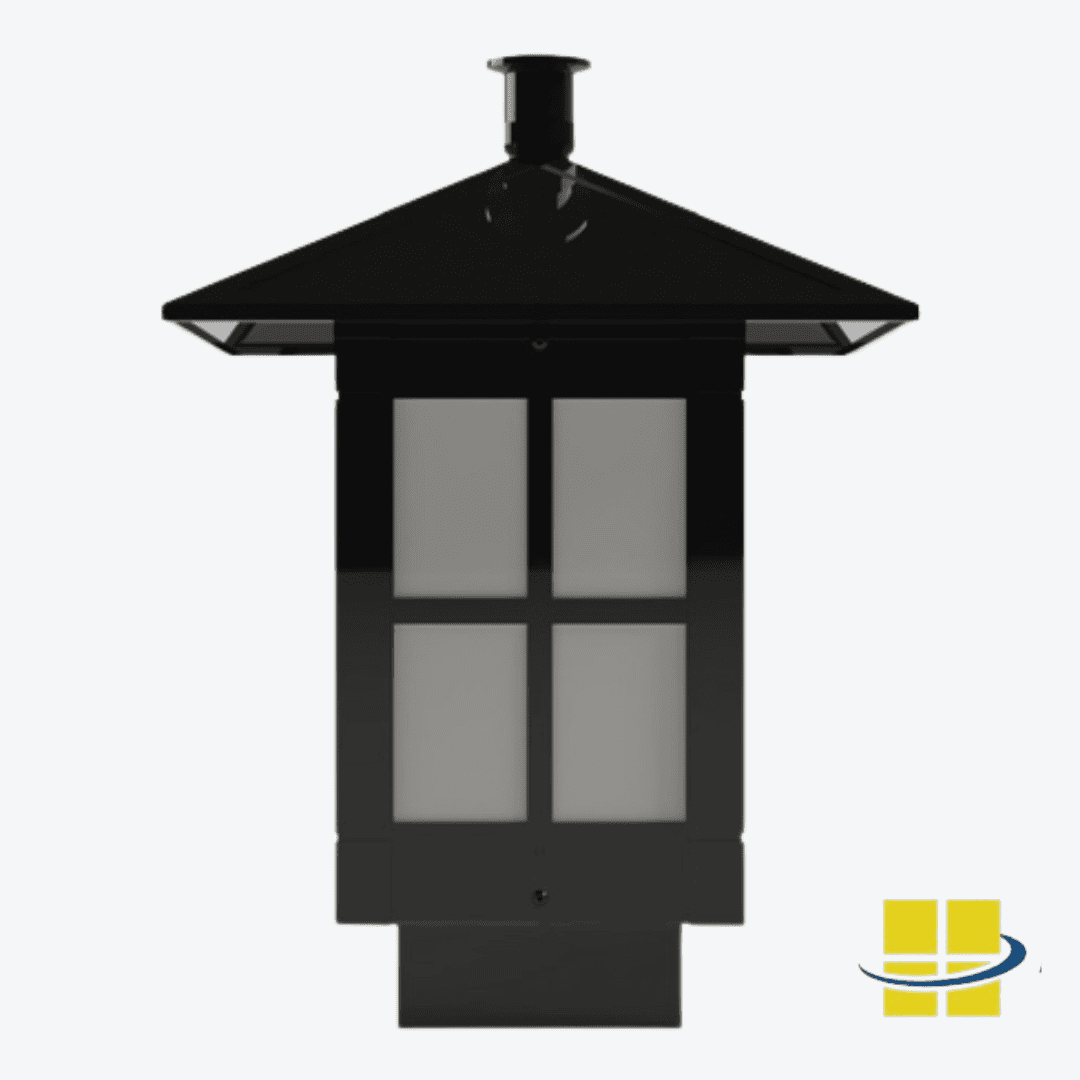

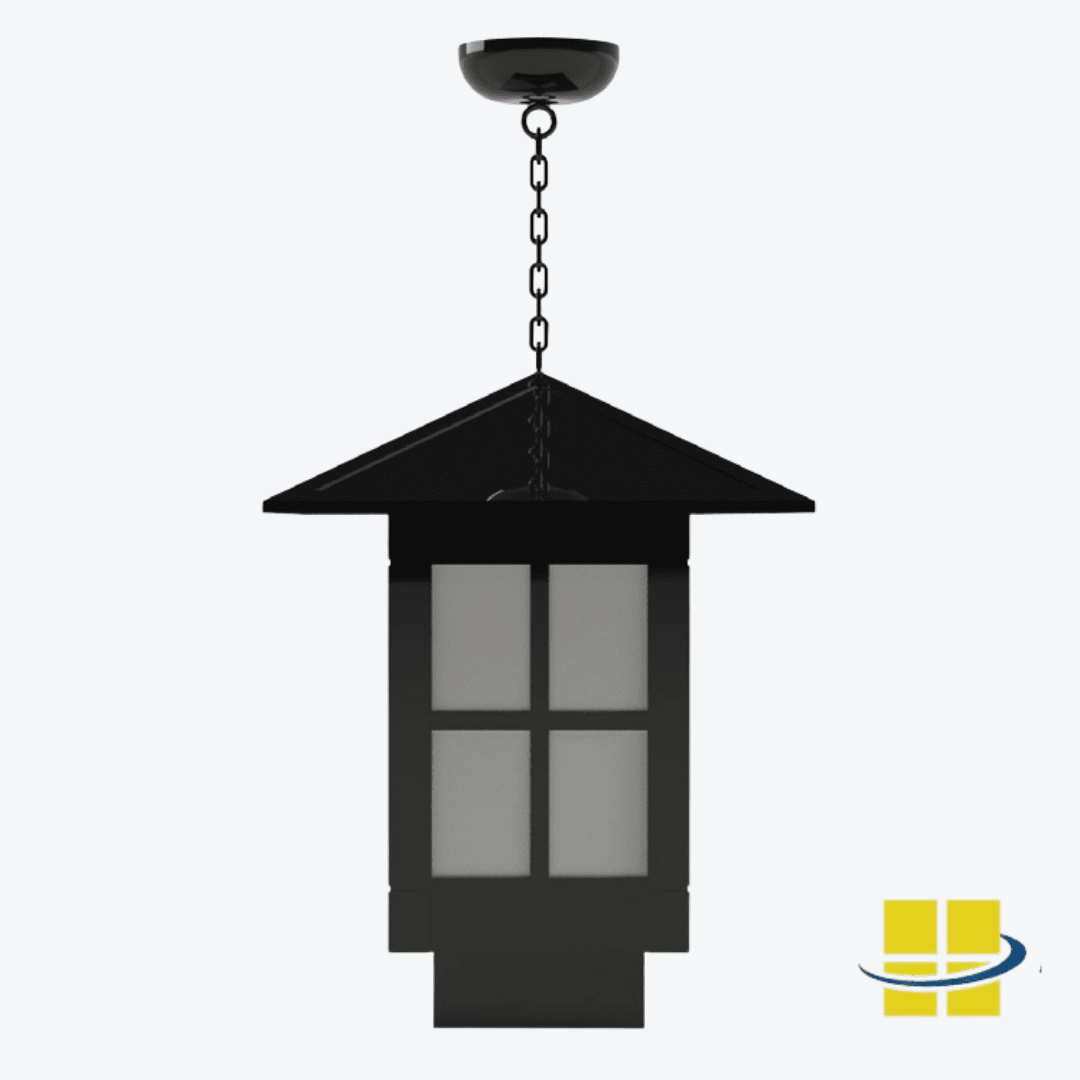

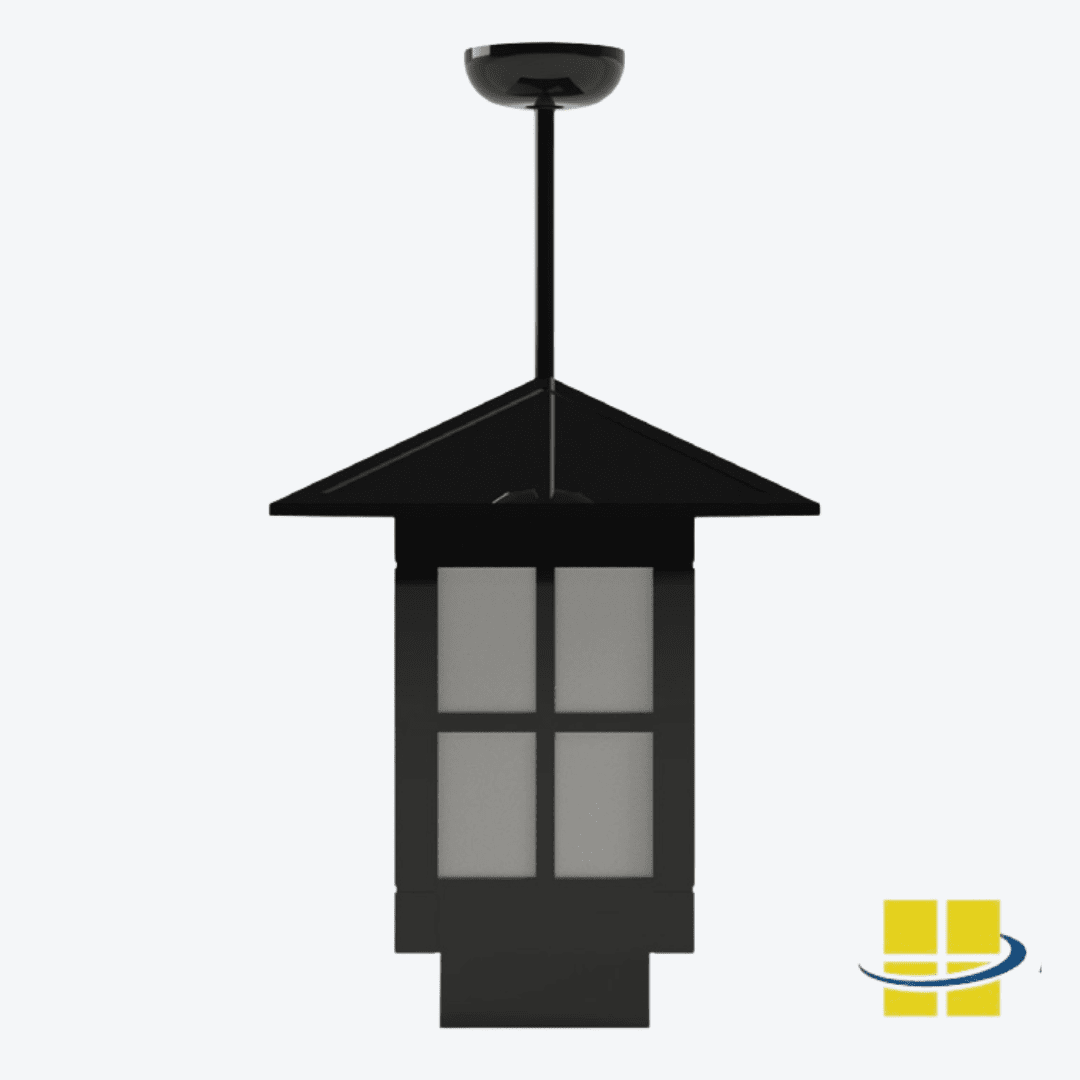

- Installation mounting Option: Standard Post Top Mount, Pendant Mount, Wall Mount.

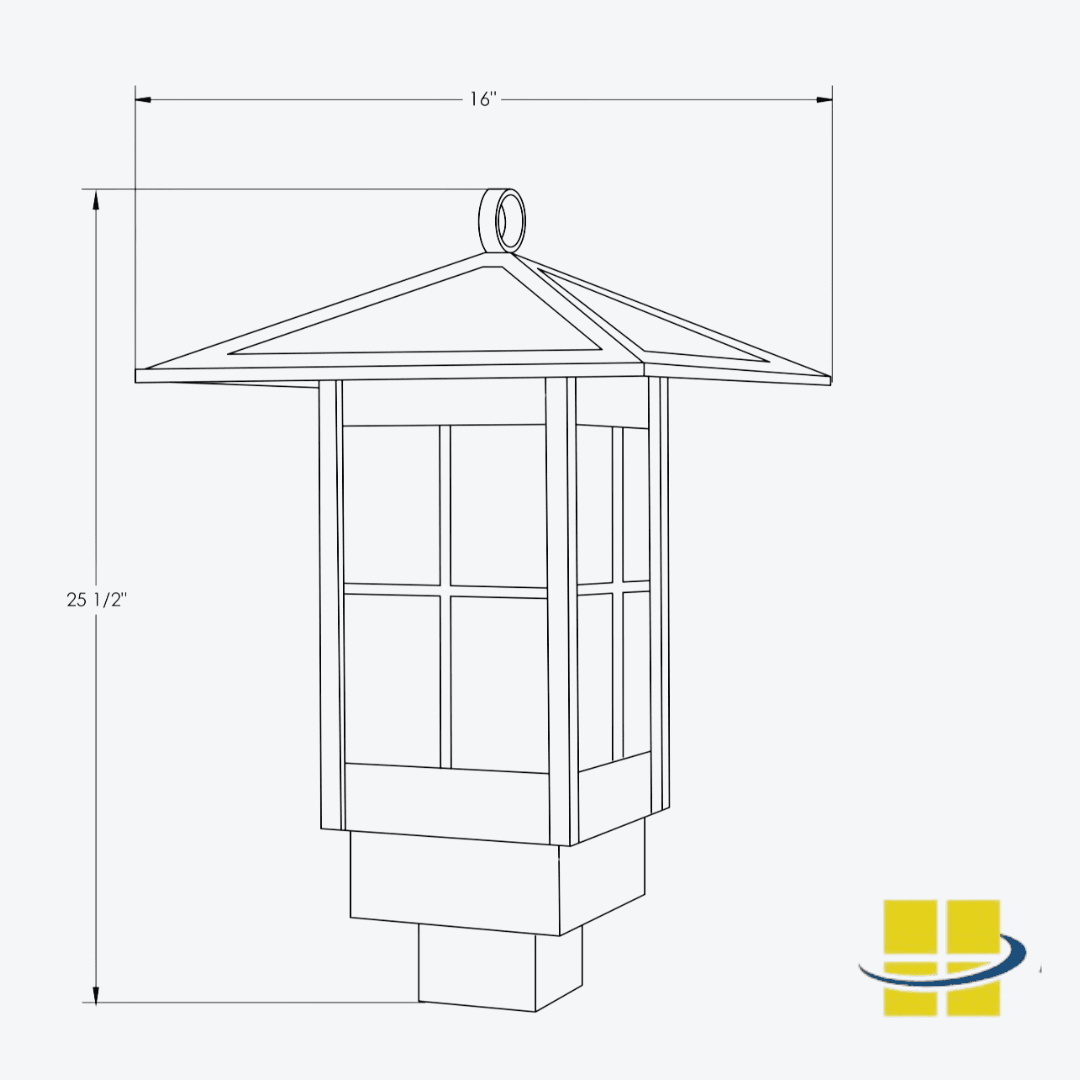

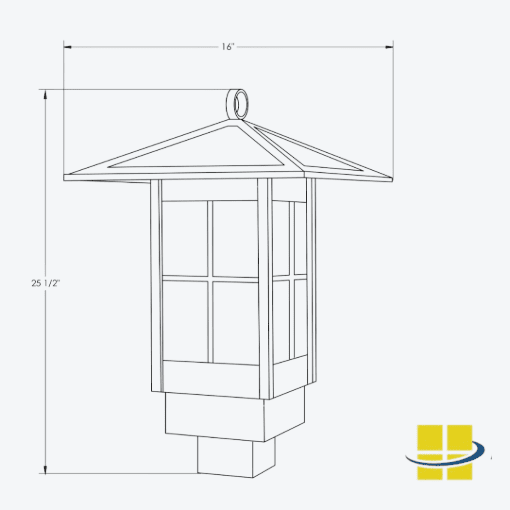

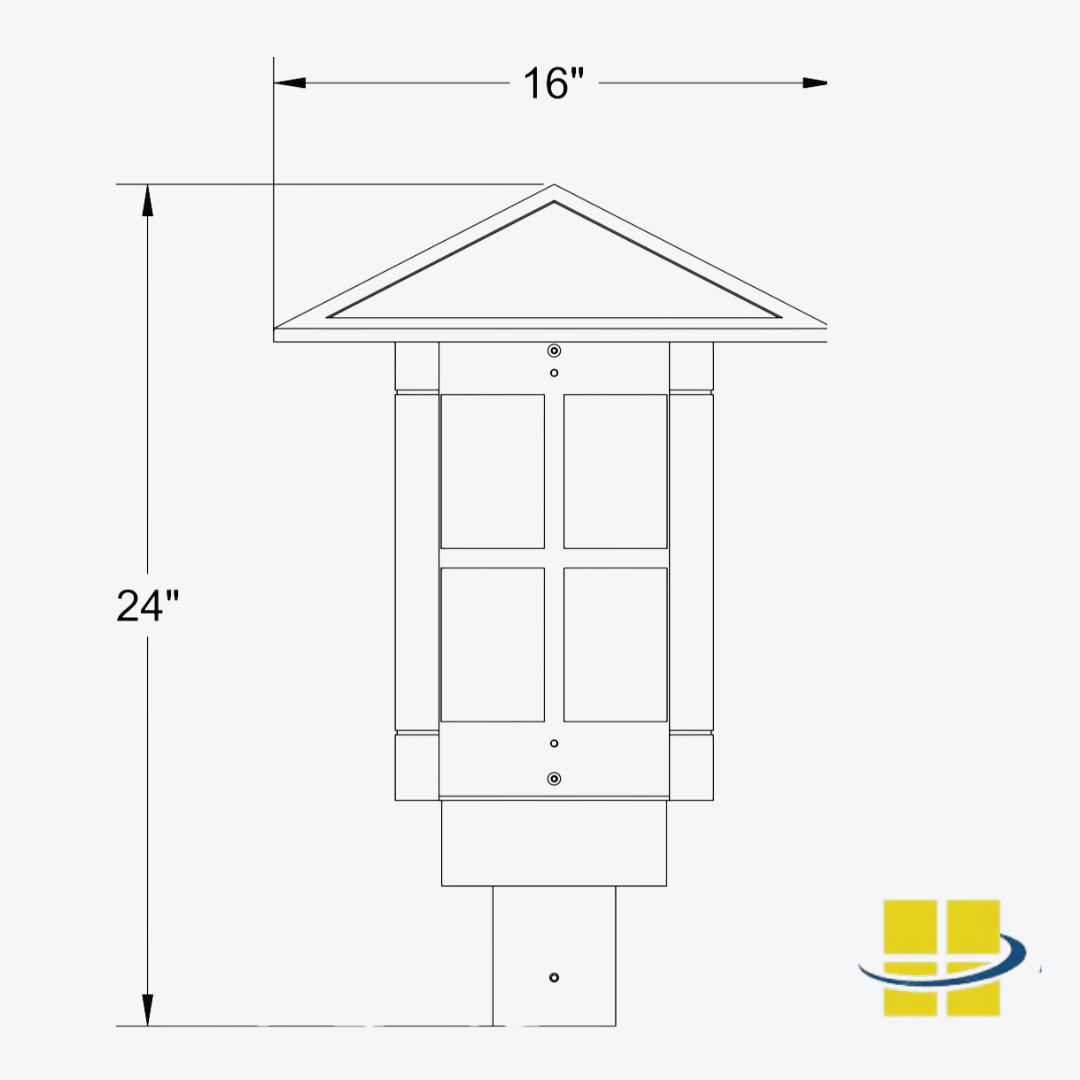

- Packaging Dimensions: 16″ x 24″
- Weight: 30 lbs (Max)
- Warranty: 5 Year Limited Warranty.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
Need a Photometric Analysis for Your Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
