TOPR 18 Square Outdoor Column / Pilar Lights- Flat Top

$359.87

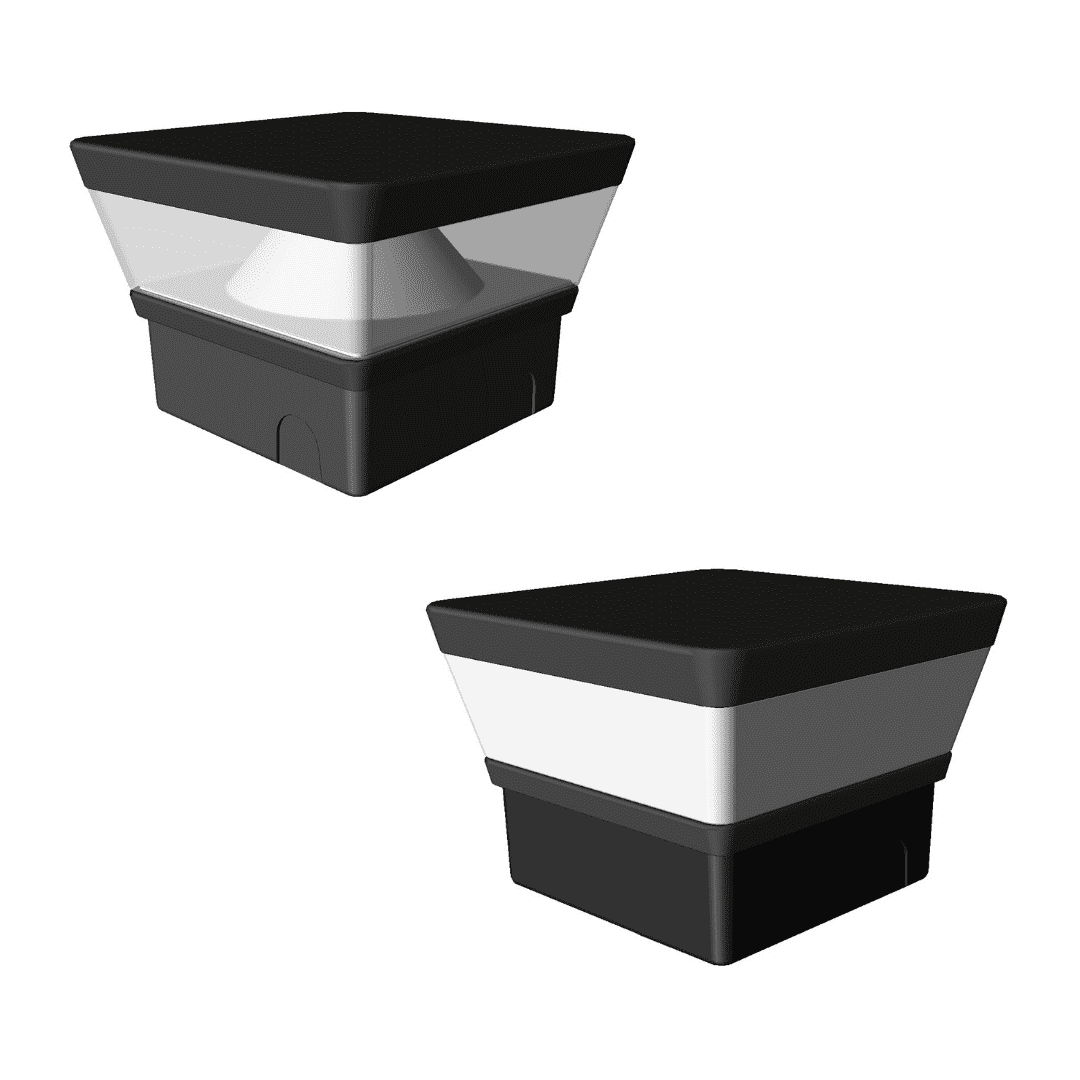

LED Column Lights / LED Pilar Lights are EXTREME-LIFE commercial-grade pillar top LED fixtures designed to mount on top of concrete, stone, or wood pillars.

EXTREME-LIFE: This column light fixture is L70 rated at 106,000 hours, translating to years of maintenance-free use.

Choice of Lenses: Choose between a clear polycarbonate lens or a polycarbonate opal lens for softly diffused optics.

Durable Construction: This luminaire is IP66 rated against spraying water and dust and features a features a durable die-cast aluminum housing.

For more information about this fixture, download the PDF below.



In Stock

Specifications

Weight 22 lbs

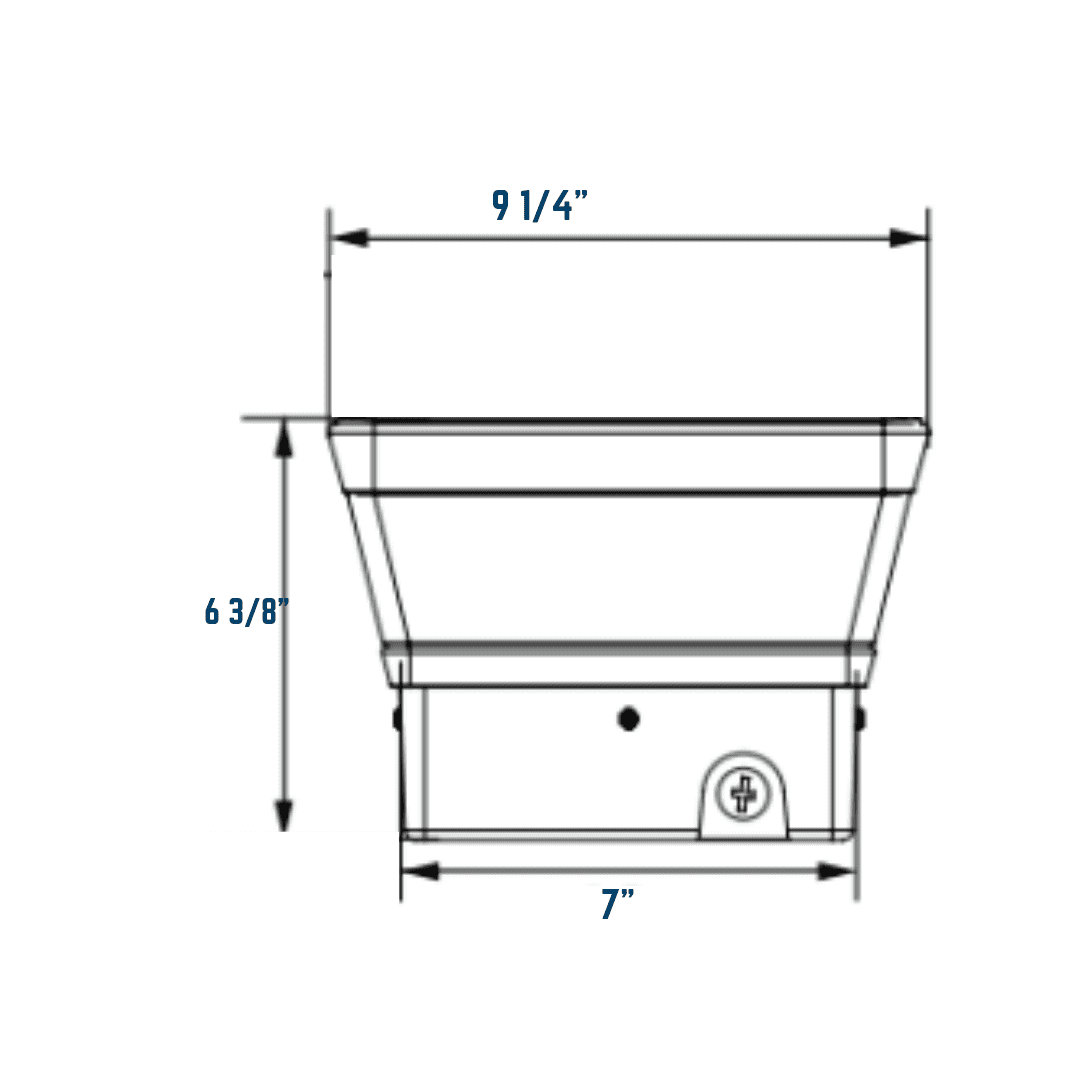

Dimensions 10 × 8 × 7 in
Availability

7 to 10 Day Production, plus Shipping

Light Source

,

Available Finishes

Black, Bronze, Custom RAL

Housing

Die cast aluminum housing

Lens

Clear polycarbonate lens, Opalescent polycarbonate lens

Light Source Included

LED Array Included

Light Source Lumens

1432, 1554, 854, 938

Listings

CSA – listed for wet Locations, IP66, ANSI/UL 1598, 8750

Mounting

Flush Mount

Product Family

TOPR

Rated Life

106,000 Hours

Reflector

White polycarbonate cone reflector

Size

7"

Style

Square

System Watts

18

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Product Description

TOPR 18 Square Flat Top Outdoor Column Lights Features:

This column light fixture includes:

  • Shatter resistant polycarbonate lens
  • 18 system watts
  • 120-277v compatible
  • Wide beam spread
  • 0-10v dimmable
  • Polycarbonate cone reflector
  • IP66, CSA, ANSI/UL listed



TOPR 18 Square Flat Top Outdoor Column Lights Options:

  • Choice of Finish: Bronze, Black, or custom RAL colors available upon request
  • Choose a clear or opal shatter resistant polycarbonate lens
  • Choose 3000K or 4000K
  • Optional single or double fuse
  • Optional surge protection
  • Optional photocell
  • Optionalavailable in 347v

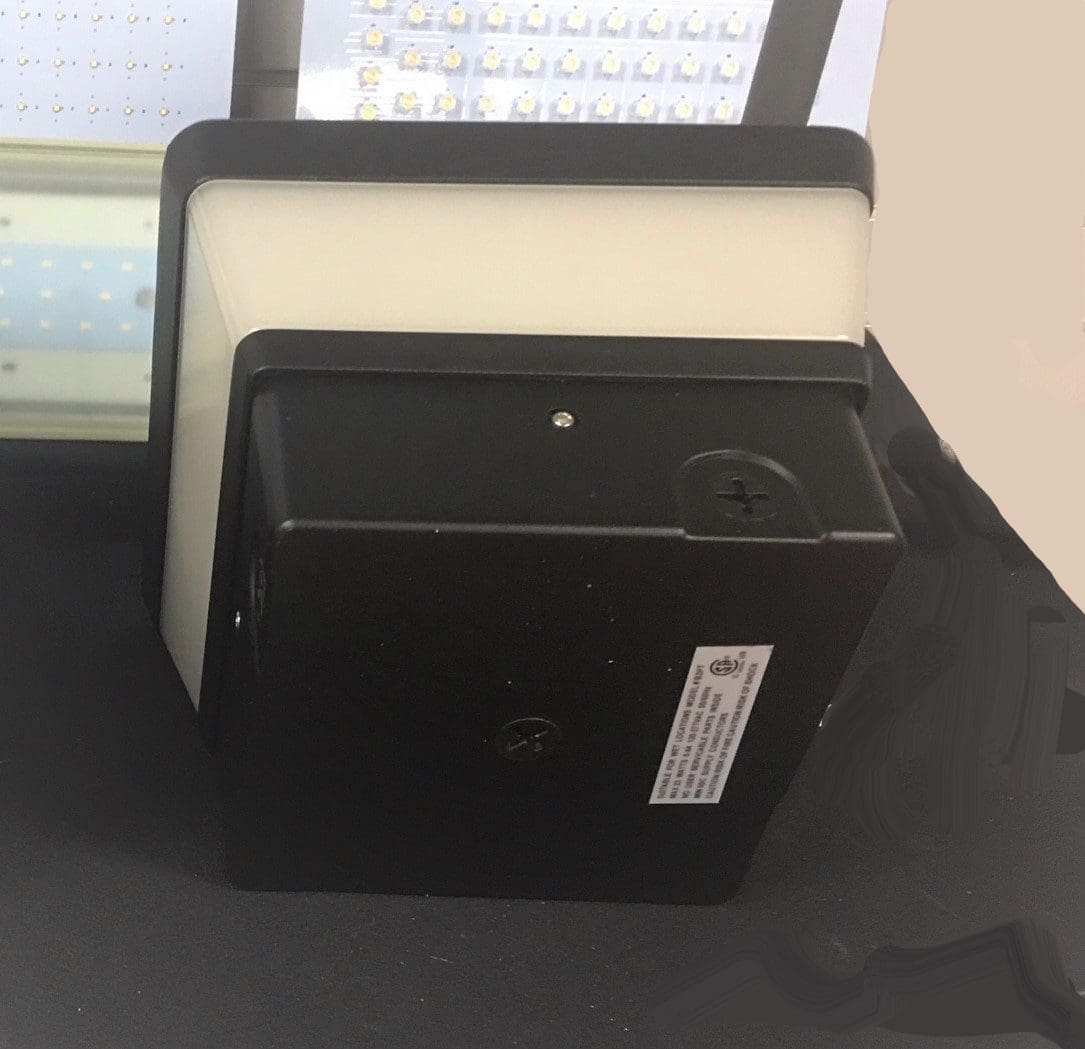

TOPR 18 Square Flat Top Outdoor Column Lights Mounting:

TOPR Square Flat Top Outdoor Column Lights, 120-277v flush mounts on flat surfaces such as concrete, wood, or stone pillars.

  • Includes Mounting kit with 8˝ zinc-plated anchor bolts
  • Flush mounting base
  • Vandal resistant screws
  • 1/2″ coin plugs for photocell and conduit entry
  • Internal driver tray for easy maintenance

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your Outdoor Column Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.



Ready to Order TOPR Square Flat Top Outdoor Column Lights or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
