Product Description

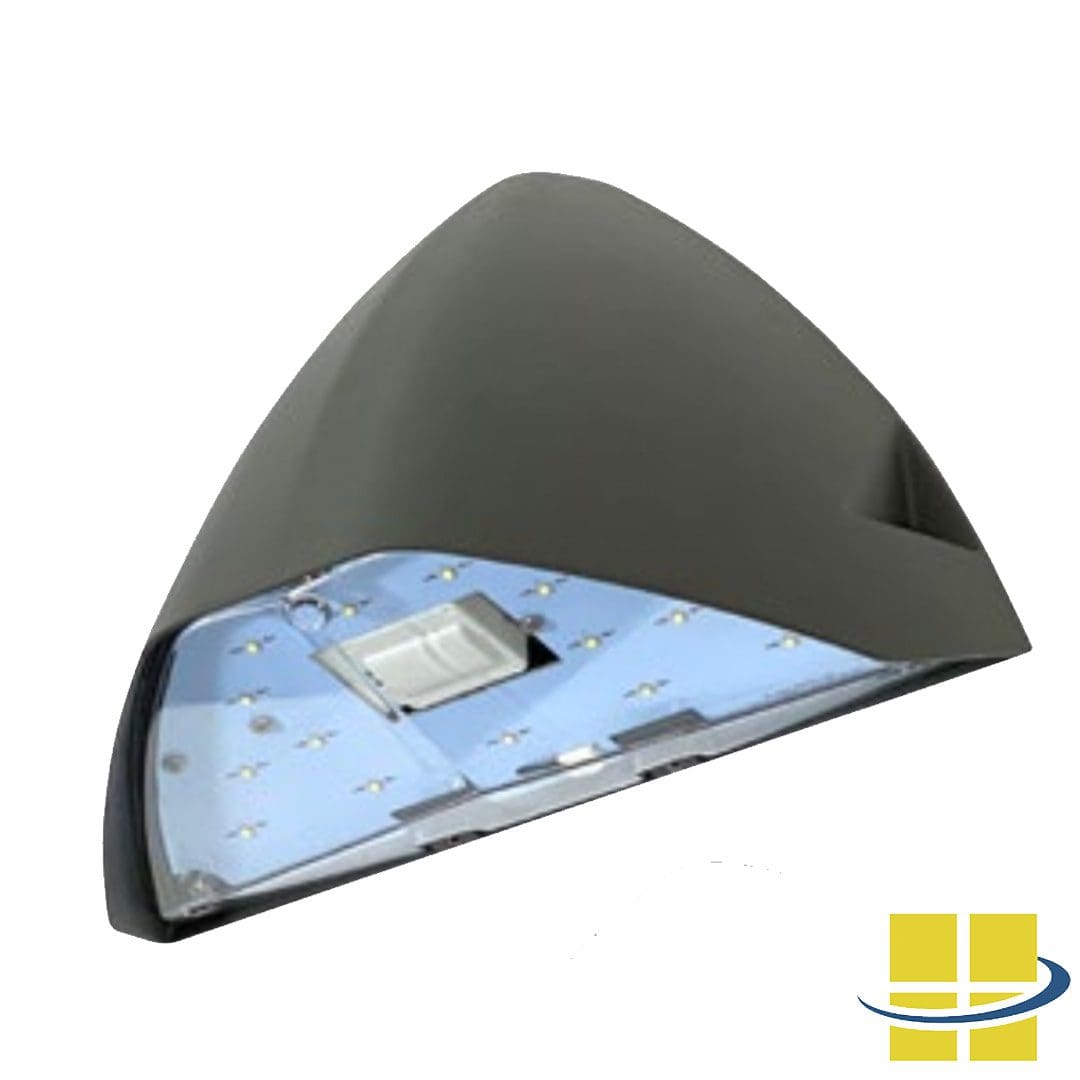

TRID LED Cutoff Wall Pack Features:
- 16w integrated LED
- 3000K, 4000K, 5000K

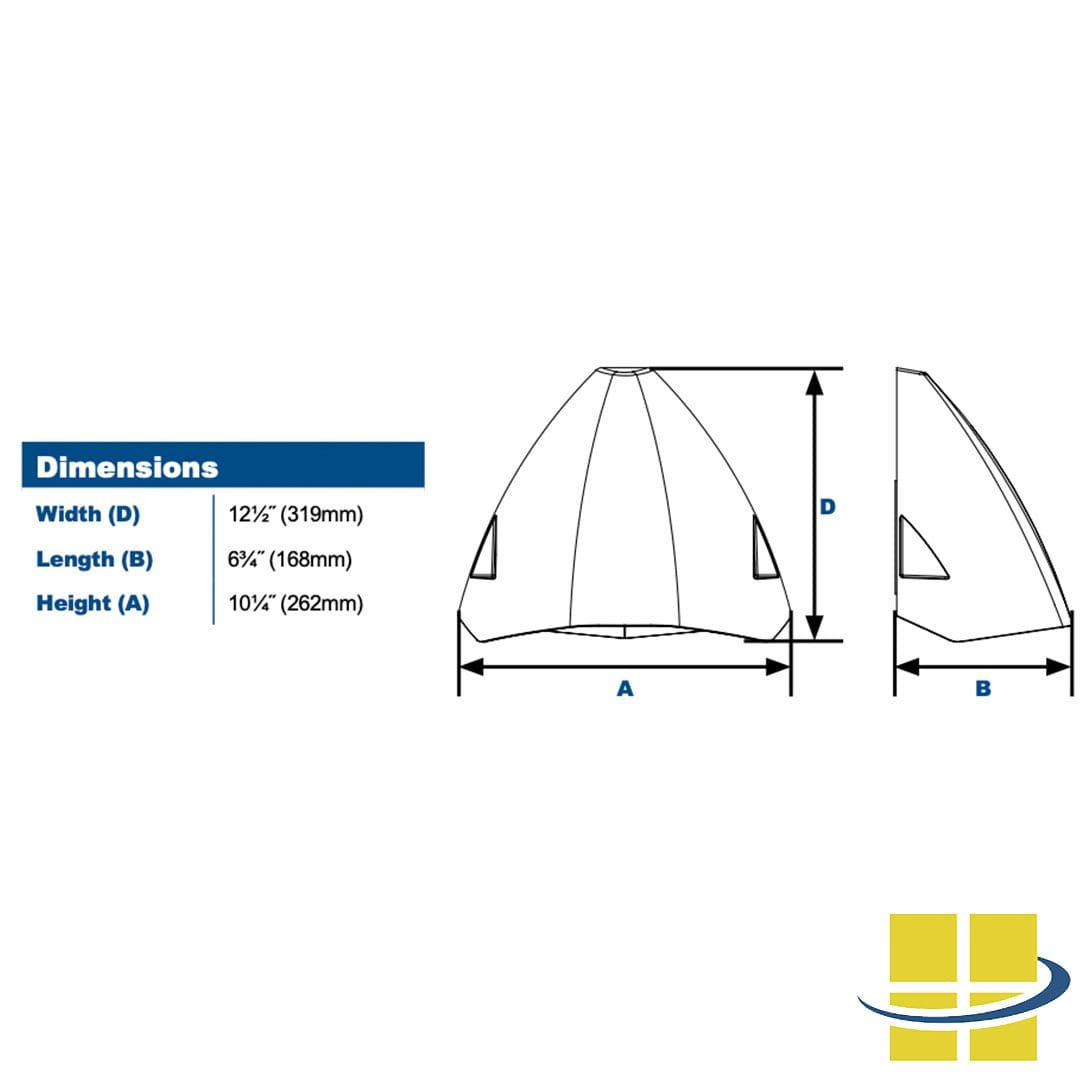

- 12.5″ x 6.75″ x 10.25″
- CSA listed for wet locations
- IP66 sealed LED compartment
- Textured architectural bronze powder coat finish over a chromate conversion coating
- Bronze finish
- Custom RAL color available on request – please speak to one of our lighting specialists

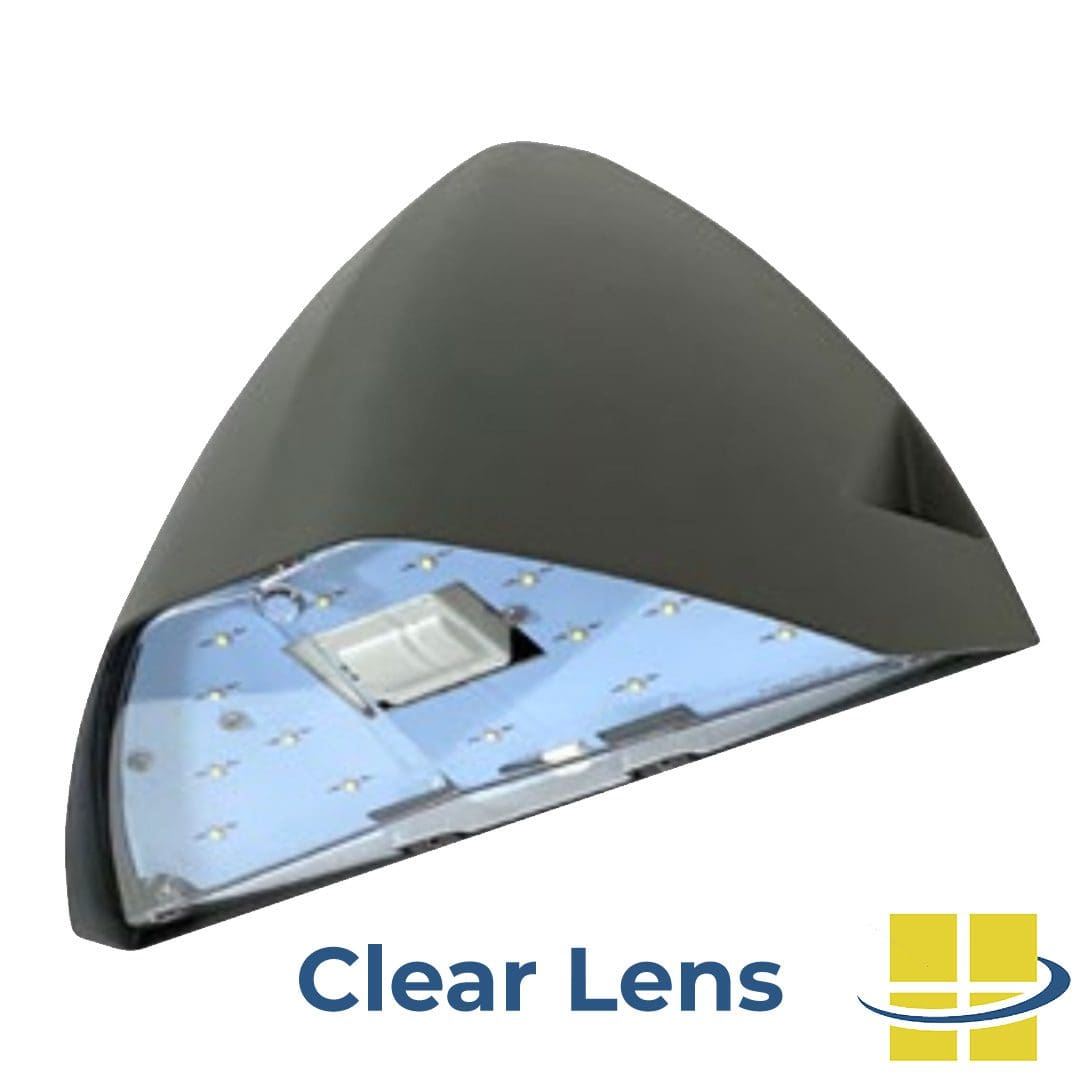

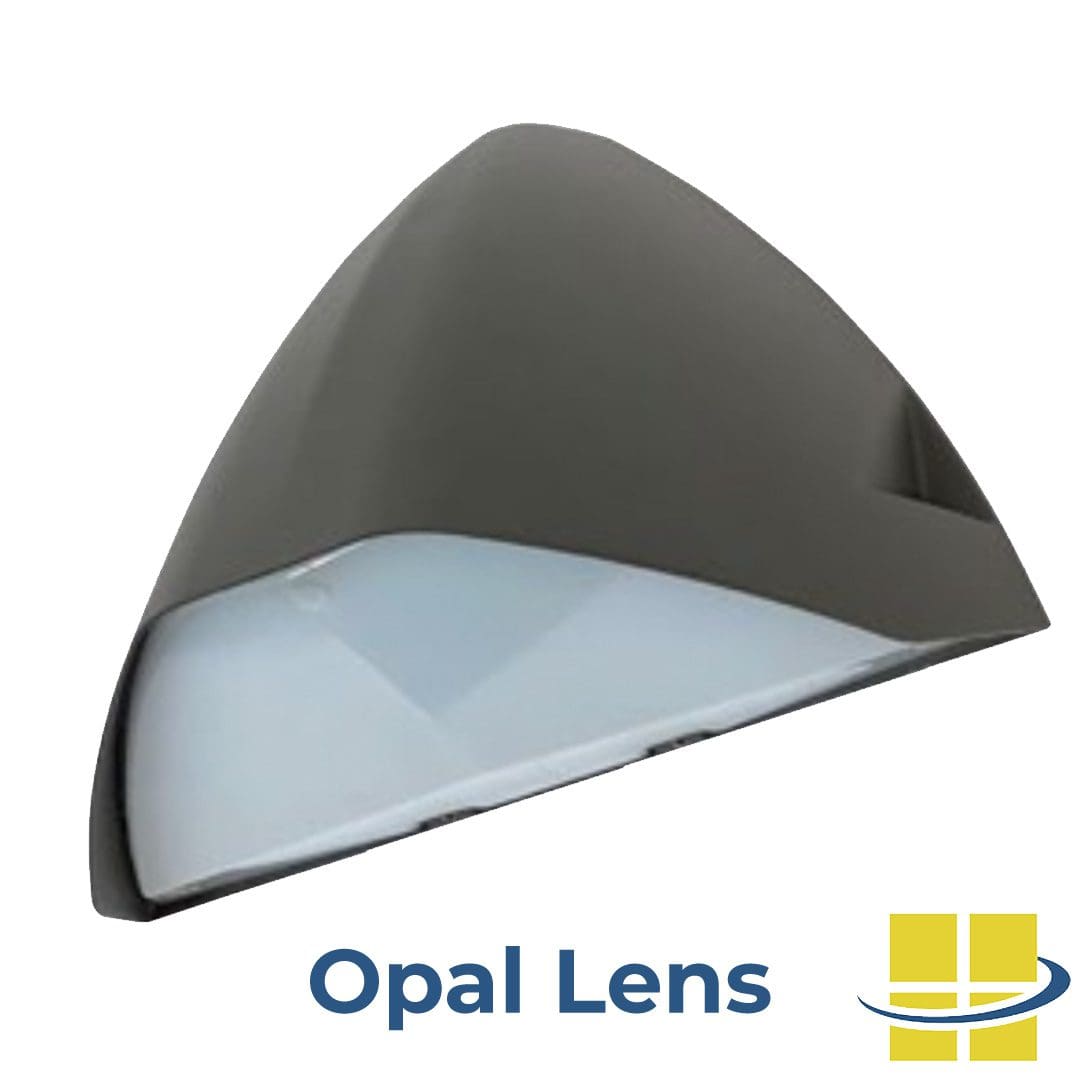

- Clear one-piece molded UV-stabilized polycarbonate lens or SoftLED LumaLens opal UV-stabilized polycarbonate array lens
- Aluminum boards
- Die-cast aluminum housing with integral heat sinking
- Nickel-plated stainless steel hardware
- Photocell Adaptable
- 120-277VAC 20KA Surge Suppressor
- L70 rate life of 320,000 hours
- Dimmable 0-10v
- Microwave Sensor with Dimming
- Lumen output:
- Type IV
- 3000K: 1,473 lumens
- 4000K: 1,533 lumens
- 5000K:1,592 lumens
- BUG rating: B0, U1, G1
- Type V
- 3000K: 1,770 lumens
- 4000K: 1,842 lumens
- 5000K: 1,913 lumens
- BUG rating: B1, U1, G1
- 120-277v
- Mounting heights of 8-15 feet
- Type IV and Type V optics
- -40° C starting temp
- 5-year warranty included
TRID LED Wall Pack Options:
- Choice of 3000K, 4000K or 5000K (learn more here)
- Choice of bronze, or custom RAL
- Choice of opalescent or clear lens
- Surge Protection
- Motion Sensor with dimming
- Button Photocell
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

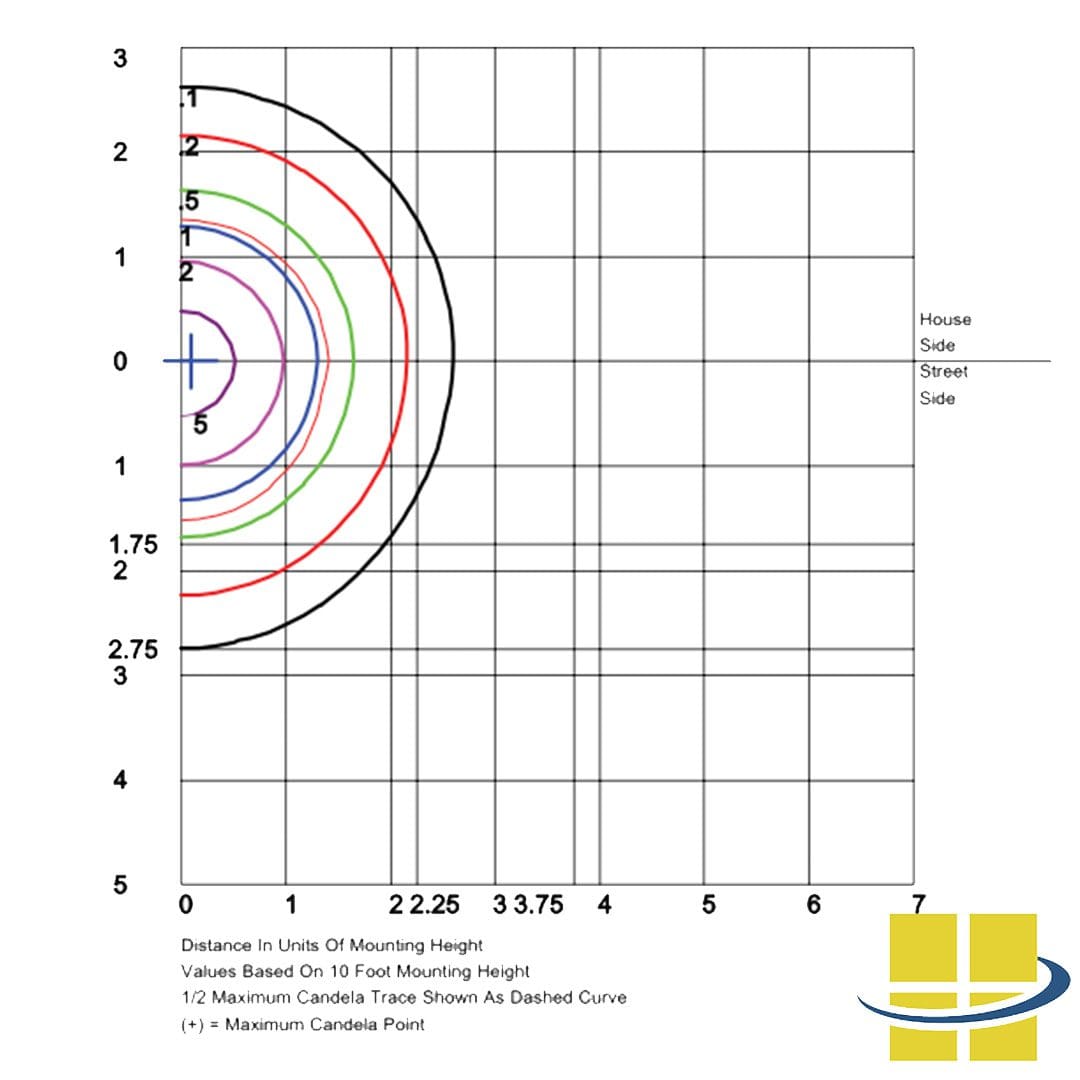

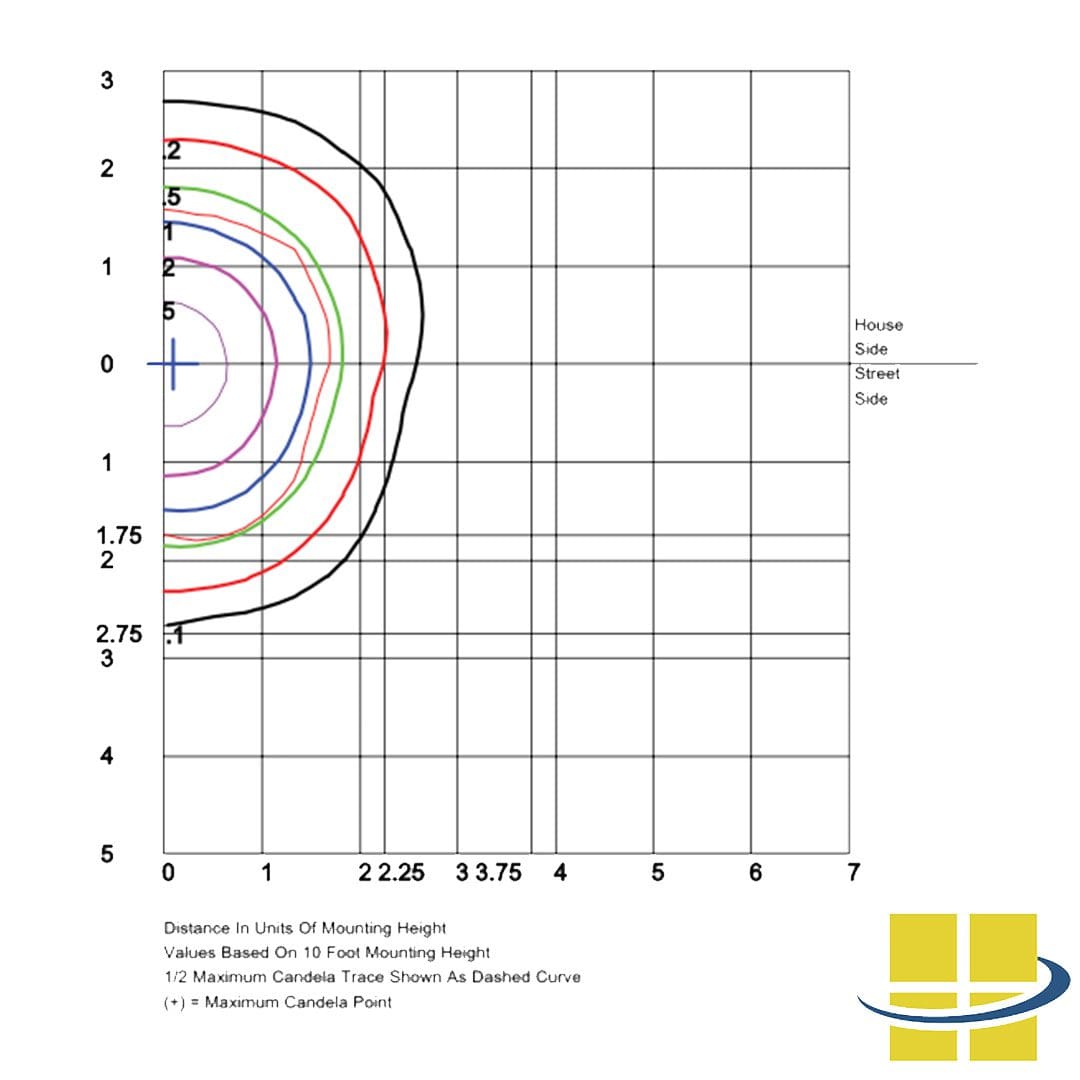

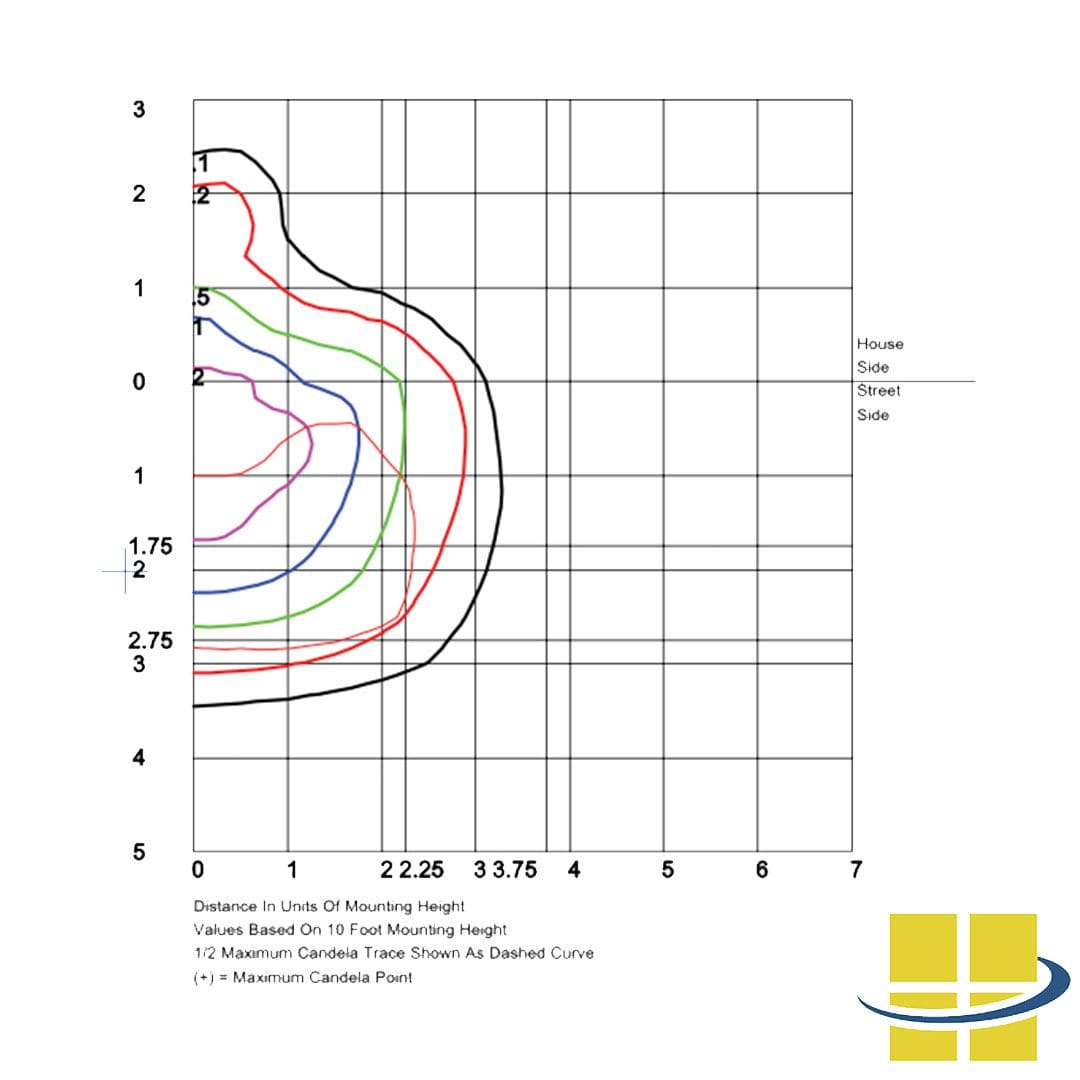

Need a Photometric Analysis for Your Wall Pack Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
Ready to Order a TRID LED Wall Pack or Speak to a Lighting Specialist?
You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
