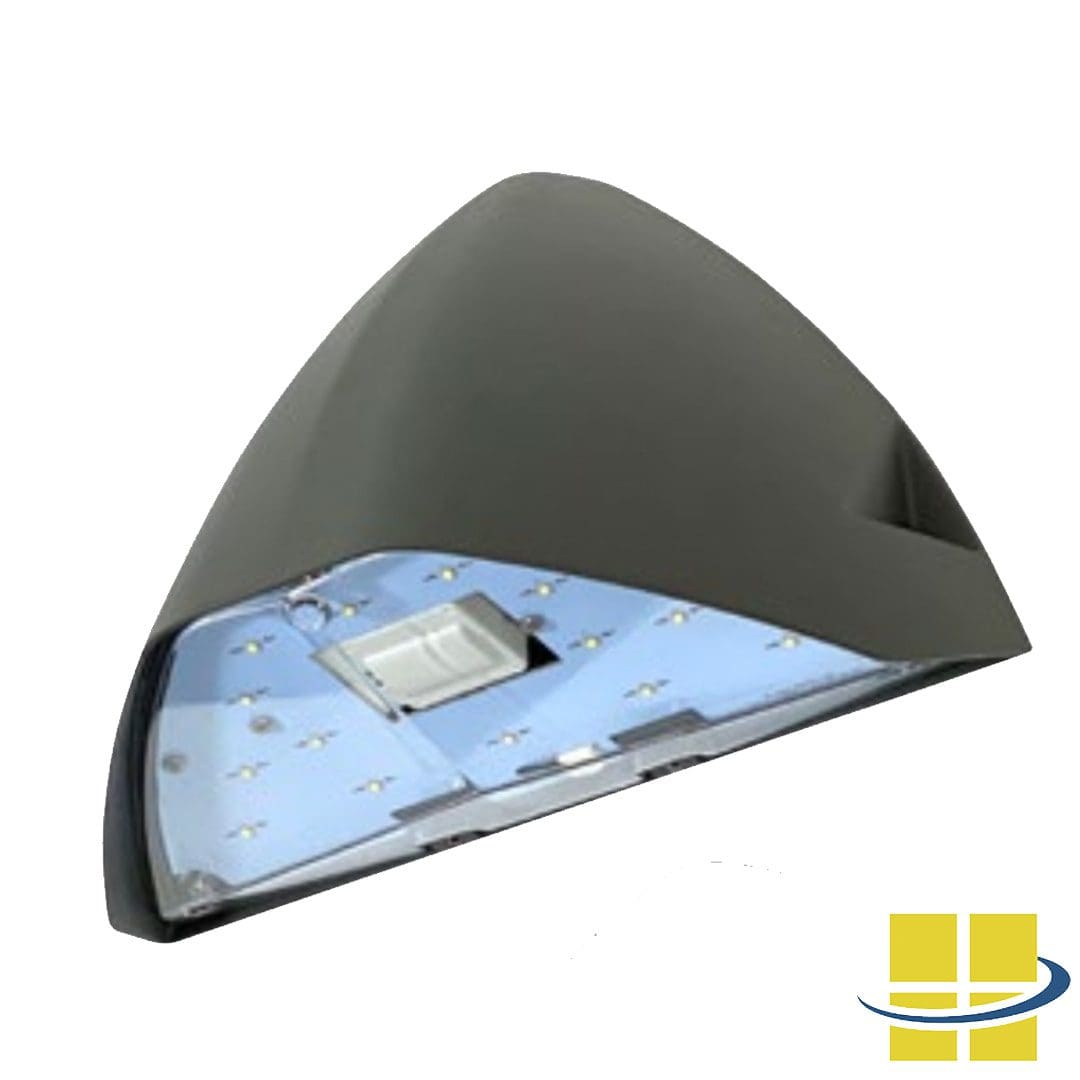

TRID 25w Triangular LED Cutoff Wall Pack, EXTREME LIFE

$379.87

TRID is designed with exceptional technology to provide powerful and reliable LED cutoff wall pack lighting options for your project. Applicable uses are facilities such as medical facilities, office buildings, schools/universities, retail centers, and other commercial/industrial buildings. The exceptional heat sink design ensures EXTREME-LIFE, virtually maintenance-free performance for years, which reduces the downtime and expense of servicing hard to reach light fixtures. TRID works for 8 to 15′ mounting heights.

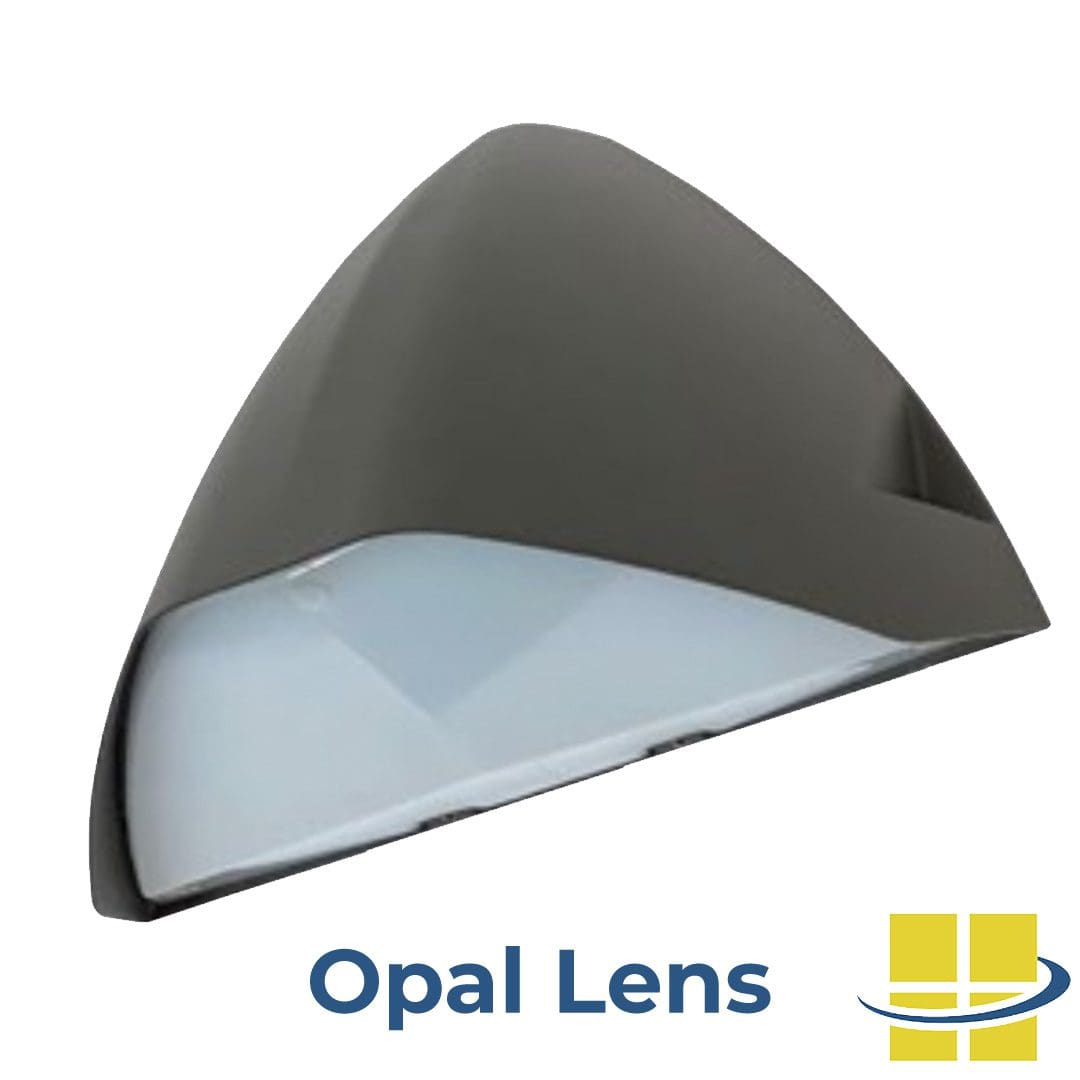

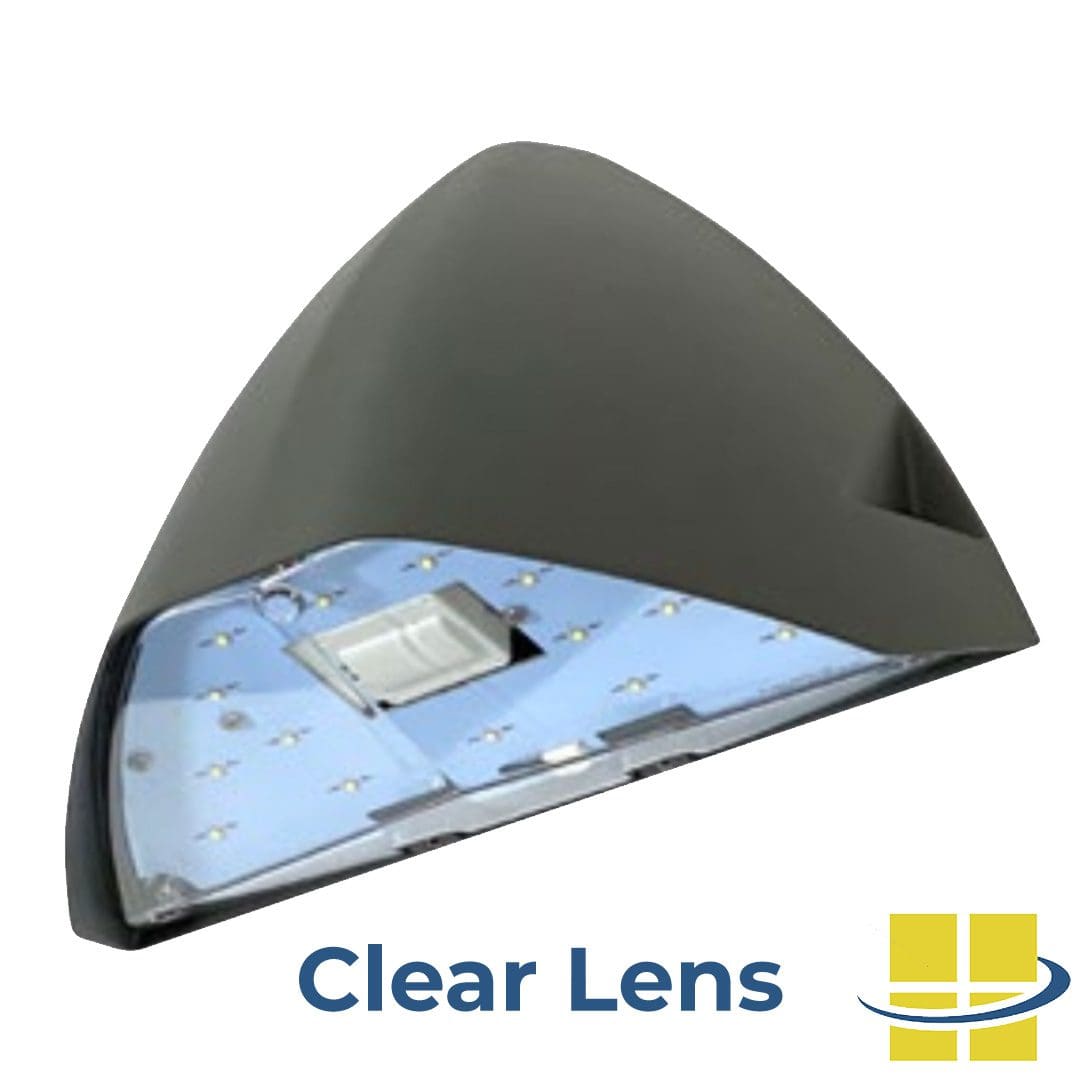

Lens Choice: TRID wall pack comes with a choice of a clear molded UV-stabilized polycarbonate lens or a SoftLED LumaLens opal UV-stabilized polycarbonate array lens

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 320,000 hours for years of virtually maintenance-free performance

Unique Design: TRIDs unique triangular design adds architectural interest and appeal in a small package


Buy American Act Compliant

In Stock

  • Total

Specifications

Weight 10 lbs
Dimensions 11 × 8.75 × 5.75 in
Availability

7 to 10 Day Production, plus Shipping

Light Source

, ,

Available Finishes

Bronze, Custom RAL

Color Rendering Index (CRI)

80+

Housing

Die cast aluminum housing

Lens

Clear polycarbonate lens, Opalescent polycarbonate diffuser lens

Light Source Included

Aluminum Boards

Light Source Lumens

2,870

Listings

CSA – listed for wet Locations, IP66

Mounting

Built-in level, Easy-hang wall bracket, Mounts over 4-inch electrical box

Product Family

TRID

Rated Life

320,000 Hours

System Watts

25

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Product Description

TRID LED Cutoff Wall Pack Features:

  • 25w integrated LED
  • 3000K, 4000K, 5000K
  • 12.5″ x 6.75″ x 10.25″
  • CSA listed for wet locations
  • IP66 sealed LED compartment
  • Textured architectural bronze powder coat finish over a chromate conversion coating
  • Bronze finish
    • Custom RAL color available on request – please speak to one of our lighting specialists
  • Clear one-piece molded UV-stabilized polycarbonate lens or SoftLED LumaLens opal UV-stabilized polycarbonate array lens
  • Aluminum boards
  • Die-cast aluminum housing with integral heat sinking
    • Nickel-plated stainless steel hardware
  • Photocell Adaptable
    • Button photocell
  • 120-277VAC 20KA Surge Suppressor
  • L70 rate life of 320,000 hours
  • Dimmable 0-10v
  • Microwave Sensor with Dimming

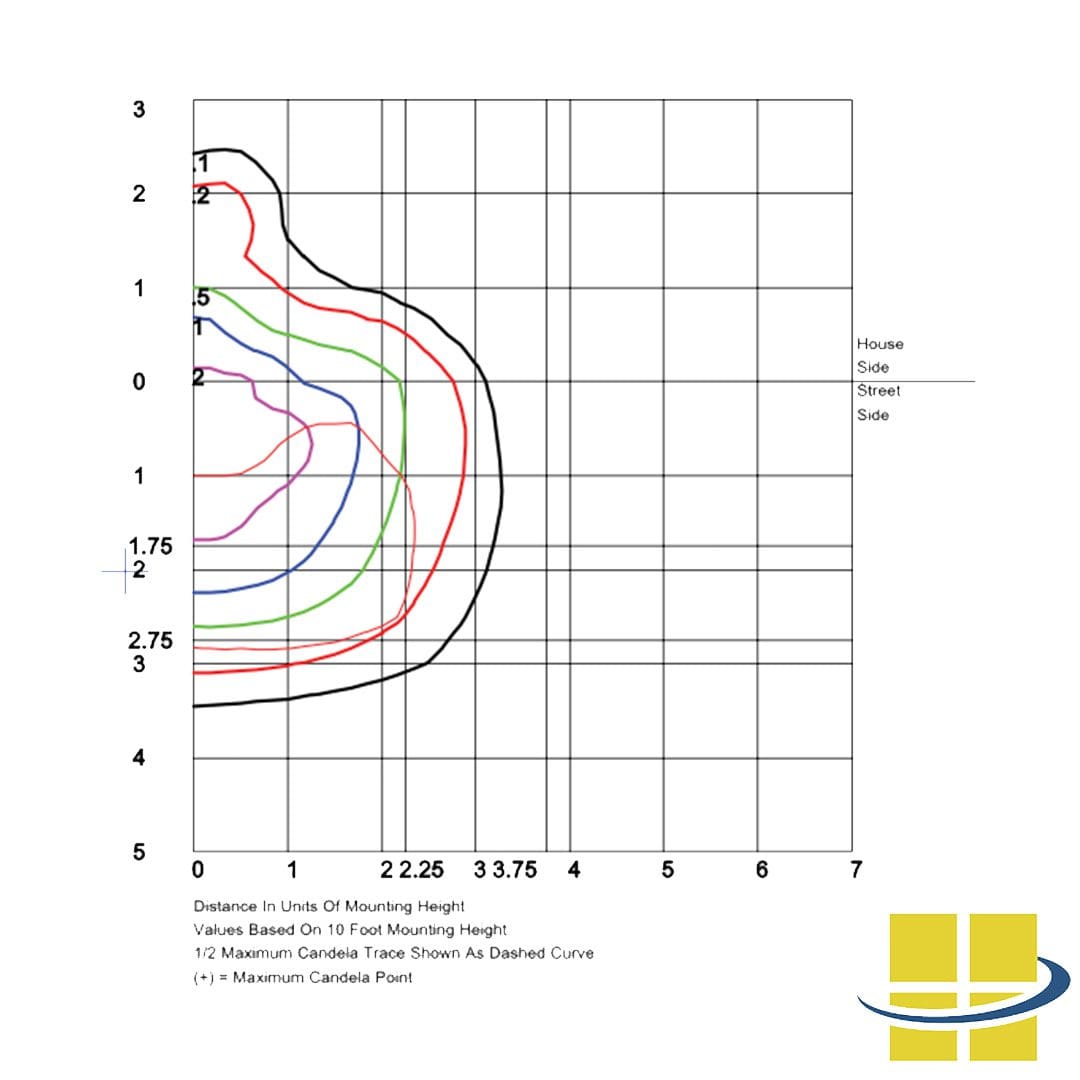

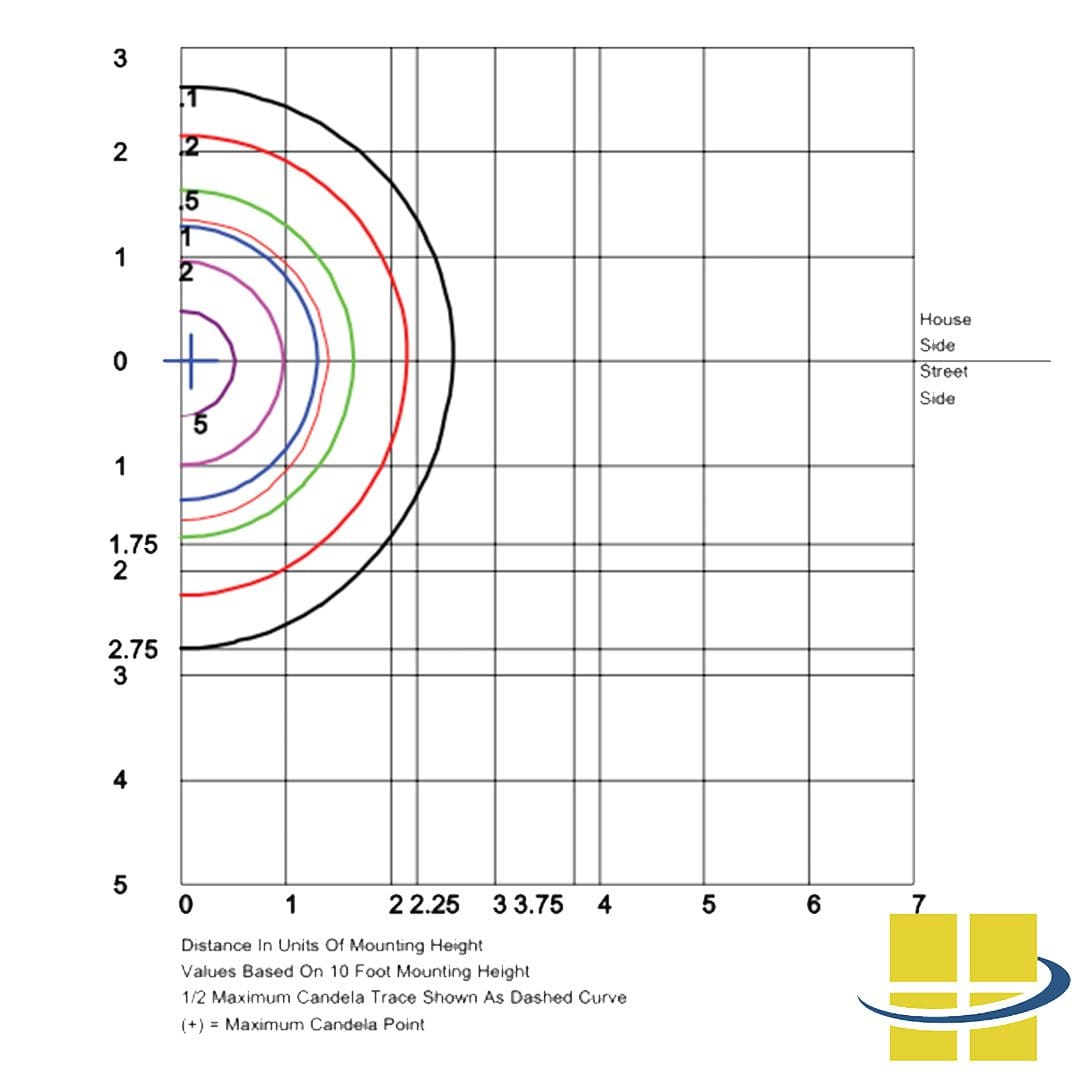

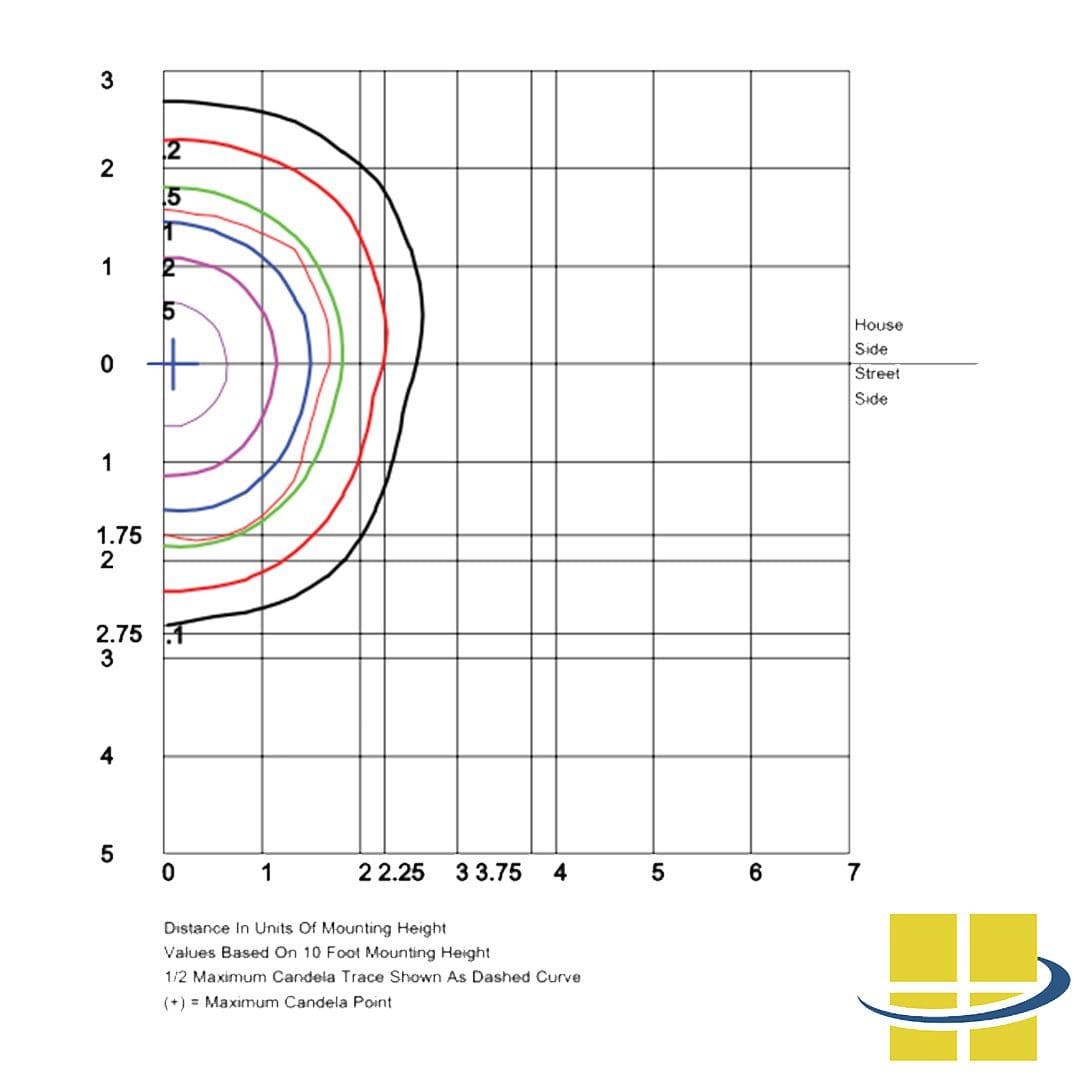

  • Lumen output:
    • Type IV
      • 3000K: 2,209 lumens
      • 4000K: 2,299 lumens
      • 5000K:2,389 lumens
      • BUG rating: B1, U1, G1
    • Type V
      • 3000K: 2,655 lumens
      • 4000K: 2,762 lumens
      • 5000K: 2,870 lumens
      • BUG rating: B1, U1, G1
  • 120-277v
  • Mounting heights of 8-15 feet
  • Type IV and Type V optics
  • -40° C starting temp
  • 5-year warranty included

TRID LED Wall Pack Options:

  • Choice of 3000K, 4000K or 5000K (learn more here)
  • Choice of bronze, or custom RAL
  • Choice of opalescent or clear lens
  • Surge Protection
  • Motion Sensor with dimming
  • Button Photocell

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your Wall Pack Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order a TRID LED Wall Pack or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
