Volleyball Court – 30fc & 1.94 max/min, 4 APTA 240s, 20′ Poles

$6,299.87

EXTREME-LIFE: APTA LED lights are L70 @ 250,000 hours & are IP-67 rated. This means that after 250,000 hours, this fixture will still emit 70% or greater of its original lumens, and it is impervious to dust and torrential rain being able to withstand total immersion for 30 minutes

Competition Level: This package delivers club level/competition level lighting with an abundant average of 30 footcandles and very even lighting demonstrated by a very low max/min of 1.94

Dark Sky: Employing premium optics, this lighting is full cutoff minimizing any uplight. It is Dark Sky compliant when ordered with 3000 Kelvin LEDs. Backlight shielding reduces light trespass behind the poles too.

INCLUDES:

  • 4) APTA 240 Sports Lighters
  • 2) 20-ft 4″ x 4″ 11-ga Steel Poles
  • 2) Twin Bull Horns
  • See description tab below for details. Questions? Call Access Fixtures at 800-468-9925.

    In Stock

    • CRI measures color balanced to display the colors we expect to see. 65-70 is recommended for most sports. The NFL recommends 90 for television broadcast.
    • Select from this option and we will ship your anchor bolts and mounting hardware right away. If we can ship everything in 2-4 weeks, we will refund you this amount.

    SKU: AF72XV1FLB240L4P220DB2-FC20-1 Categories: , Tag:


    Specifications

    Weight 100 lbs
    Dimensions 30 × 30 × 30 in
    Light Source

    , ,

    Availability

    Typically ships in 6-8 weeks.

    Available Finishes

    Black, Bronze, Gray, White

    Ballast/Driver

    700mA Driver

    Color Rendering Index (CRI)

    70+, 80+, 90+

    Components

    APTA Sports Light, Bullhorn, Pole, Pole Base Cover, Pole Mounting Kit, Slip Fitter Mount

    Features

    Complete Sports Light Package, Wet location

    Housing

    Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.

    Lens

    Type 4 – T4SB, Type 4 Medium

    Light Source Lumens

    106,692

    Listings

    IP67, CB, CE, CuL Listed, RoHS, UL Listed

    Mounting

    Slip Fitter on Double Bullhorn

    Product Family

    APTA

    Rated Life

    L70 @ 250,000 Hours

    Sports Level of Play

    Club, Competition

    Pole Height

    20 Feet

    Number of Fixtures

    4

    Number of Poles

    2

    Warranty

    5-Year Limited Warranty

    Number of Courts

    1

    Average Footcandles

    30

    Max/Min Uniformity

    1.94

    Voltage

    120-277v

    Access Fixtures Outdoor Volleyball Court Lighting is full cutoff and with 3000K LEDs is Dark Sky compliant. It produces 30 fc with a 1.97 Max/Min and is a good choice for club-level or competition volleyball. It features:

    • 4) APTA 240 Sports Lighters with slip fitter mounts
    • (2) Twin Bull Horns
    • 2) 20-ft 4" x 4" 11-gauge Straight Square Steel Poles
    • 30 FC Average Footcandles
    • 1.94 Light Uniformity (max/min footcandles)

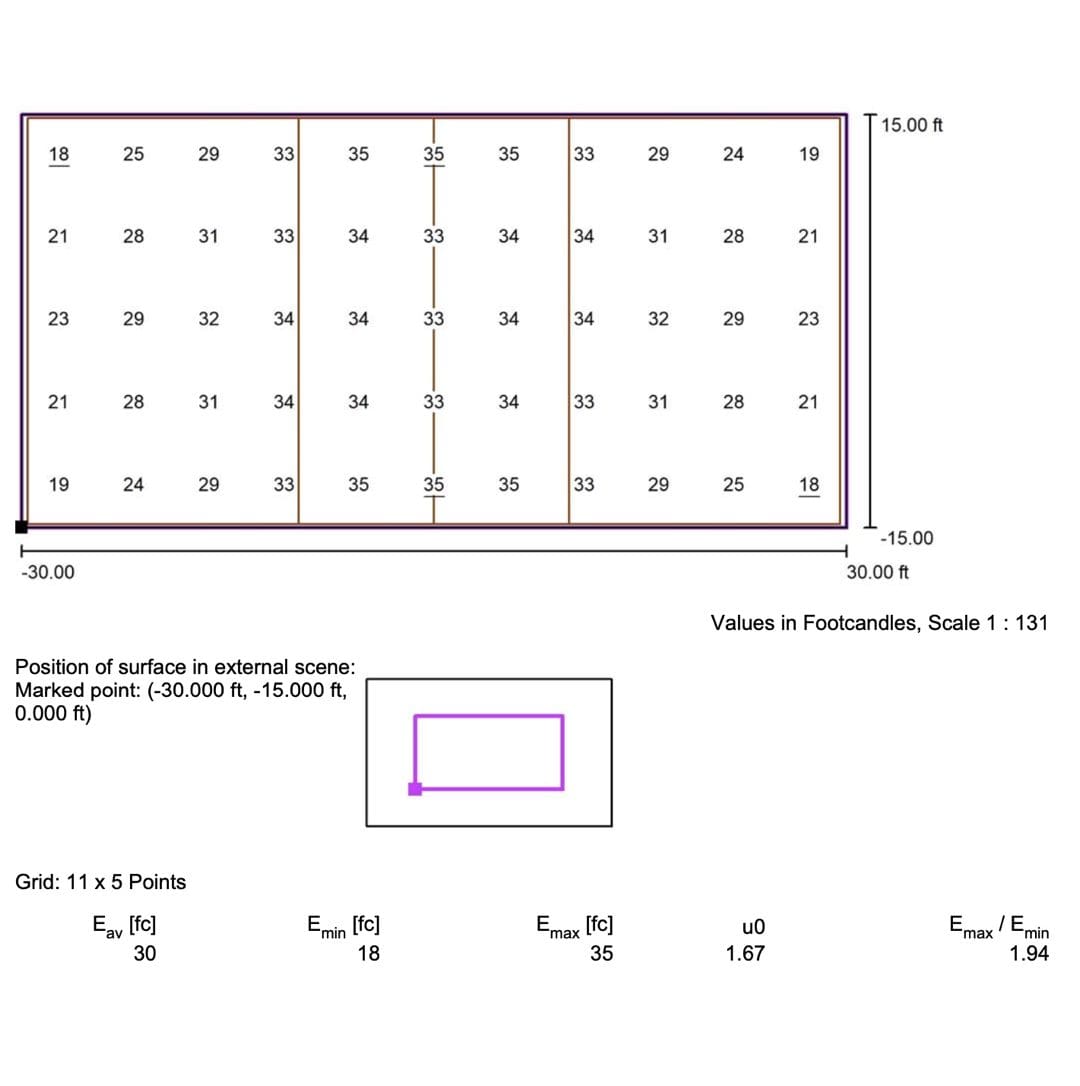

    • Photometric Report
    • IP67-Rated withstands the dust, torrential rain, and even total immersion for up to 30 minutes.

    Whether you're interested in setting up volleyball court lighting at home, establishing a club-level volleyball, or building a professional volleyball venue for competition, Access Fixtures is your premier expert in volleyball court lighting.

    Precision Design for Optimal Light Levels

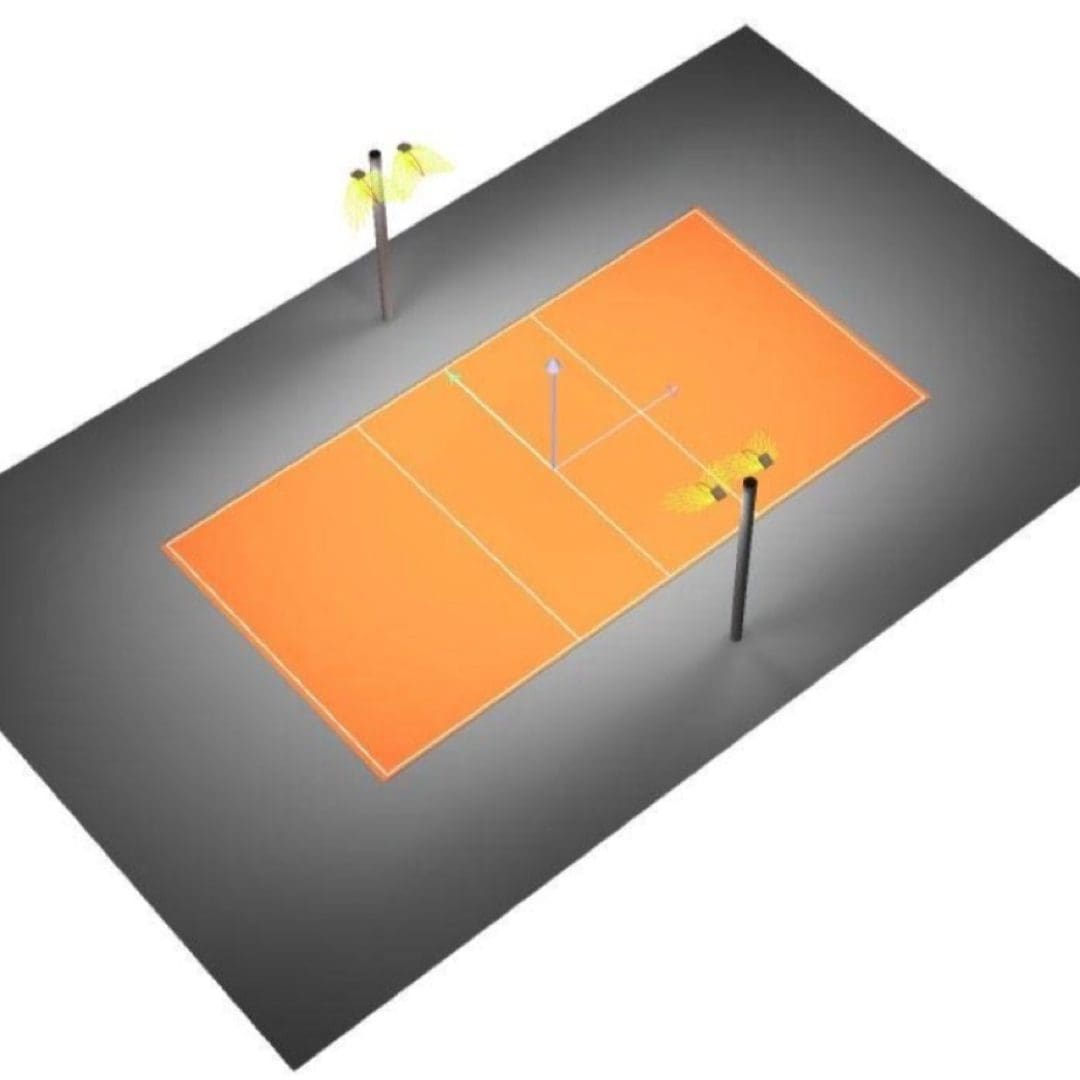

    Outdoor Volleyball Court Lighting 20-ft Poles - 30fc, 1.94 max/min is designed for a standard volleyball court measuring 30 ft. wide x 60 ft. long. This club-level package provides 30 average footcandles and has full cutoff optics. With 3000K LEDs it meets Dark Sky standards. This achieves a noteworthy max/min (uniformity) ratio of 1.94, which assures light is evenly spread across the entire playing area. A max/min uniformity of 3 or less is considered good: the lower the ratio number, the better uniformity. Best of all, it features only two poles, making it truly affordable.

    Reliable Energy-Efficient LED Outdoor Volleyball Court Lighting

    The Outdoor Volleyball Court Lighting come with weatherproof, energy-efficient, LED EXTREME-LIFE, APTA sport lights. The modular construction features modules that are all but indestructible, however, if ever the need might arise, each module can be to be replaced individually.

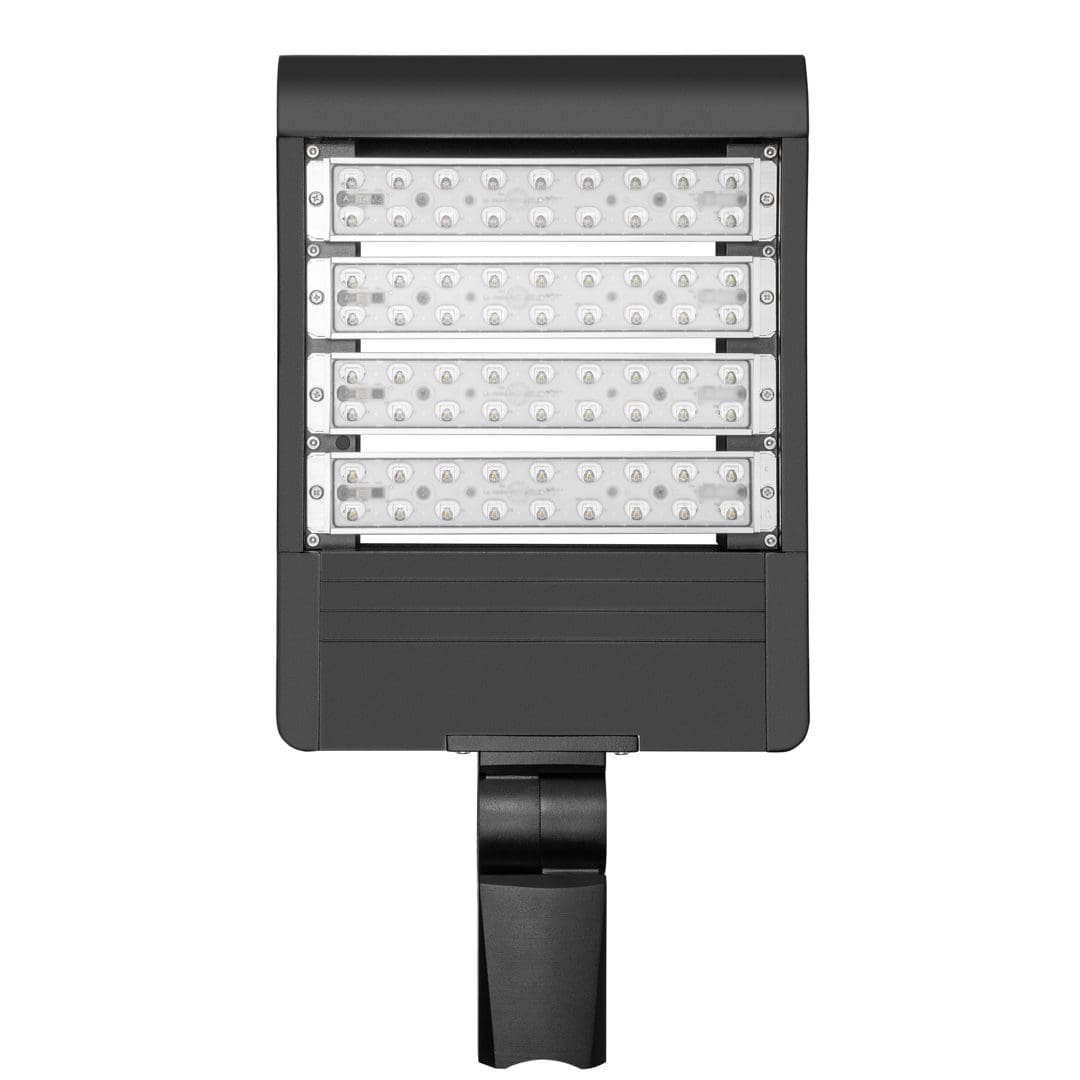

    • Luminaires: APTA 240 LED Sport Lights
    • Number of Luminaires: 4
    • Fixture Wattage: 237w
    • Rated Life (L70): 250,000+ Hours
    • Optics: Type 4 medium beam
    • Weight: 20.5 lbs each luminaire
    • Dimensions: 647cm (25.47") x 446cm (17.75") x 82cm (3.23")
    • Housing: Die-cast aluminum housing with corrosion-resistant polyester powdercoat. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.
    • Listings: IP67, UL Listed, CuL Listed, RoHS, ENEC, CB, CB, IK08
    • Dimming: 0-10v dimming included in all fixtures.

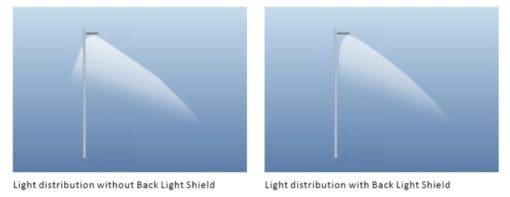

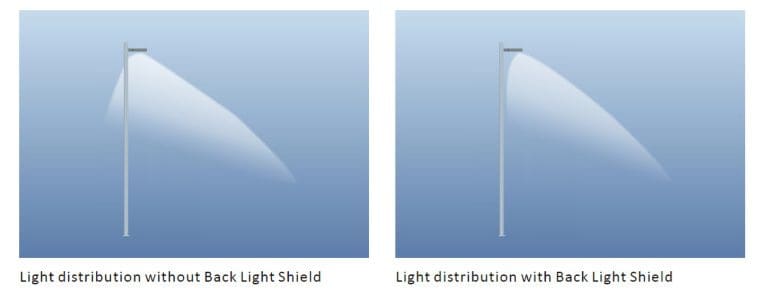

    • Backlight Shield: to minimize light trespass, Included
    • Voltage Compatibility: 120-277v
    • Warranty: 5-Year Warranty
    • Surge Protection: (optional)

    High-Strength 20-foot Square Steel Poles

    The straight square steel poles used in this package ships come complete with a mounting template, base plates, anchor bolts, and base covers. For volleyball courts located in high-wind areas, e.g., Florida, Georgia, South Carolina, Louisiana, the Caribbean, and most coastal areas, ask us about EPA ( Effective Projected Area) wind ratings and wind tolerances for each setup. Installations in these areas may require heavier poles or alternate designs. Our engineers can provide data and pole recommendations for any location. As specs can affect lead time and pricing, it is best to call first.

    • Number of Poles: 2
    • Pole Height: 20 Feet
    • Shaft Size: 4” x 4”
    • Gauge: 11-Gauge
    • Installation: Anchor-Based
    • Number of Anchor Bolts: 4 per pole
    • Base Plate Dimensions: 10.5 x 10.5” x .75” thickness
    • Base Plate Anchor Bolt Circle: 8”-11” diameter
    • Anchor Bolt Dimensions: M22 x 33”
    • Weight: 205 lbs each pole, 410 lbs total
    • Tenon: 2 ⅜” Tenon
    • Finish: Baked-on, textured, architectural bronze finish.
    • Base Cover: Square 10.75” x 10.75” x 5” 2-piece steel base cover
    • Hand Hole: Cast-iron-reinforced hand hole with cover
    • Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.

    Secure Mounting

    This package mounts two fixtures on each pole tenon using a twin square vertical tenon. For more information about the fixtures, mounts, or the poles in this package, call 800-468-9925 or send us an email at customerservice@accessfixtures.com.

    Prompt Delivery of Your Outdoor Volleyball Court Lighting Package

    Everything in this 2-pole Outdoor Volleyball Court Lighting package typically ships in 2-4 weeks. Even with these custom-built fixtures, we are almost always able to meet or exceed this estimated window. We’ll ship your poles from the factory location closest to you. Stock does fluctuate, so call 800-468-9925 for an exact lead time.

    Access Fixtures Volleyball Lighting Provides Exactly What You Need

    We at Access Fixtures want to make sure you buy with confidence and that you get the perfect volleyball court for your particular site. We’ve designed court lighting for HOAs, clubs and schools, as well as recreational courts throughout the US and the Caribbean. While volleyball courts are standardized, few will have identical needs. Some regions have local ordinances regulating light trespass, glare, and light pollution. Packages for coastal regions benefit from adaptations to compensate for wind, salt spray, or local weather conditions. If you have any questions, our helpful lighting specialists in Worcester, MA are available to walk you through your volleyball court LED lighting project. Give us a call today at 800-468-9925 to discuss your project. You can also email us at customerservice@accessfixtures.com.
