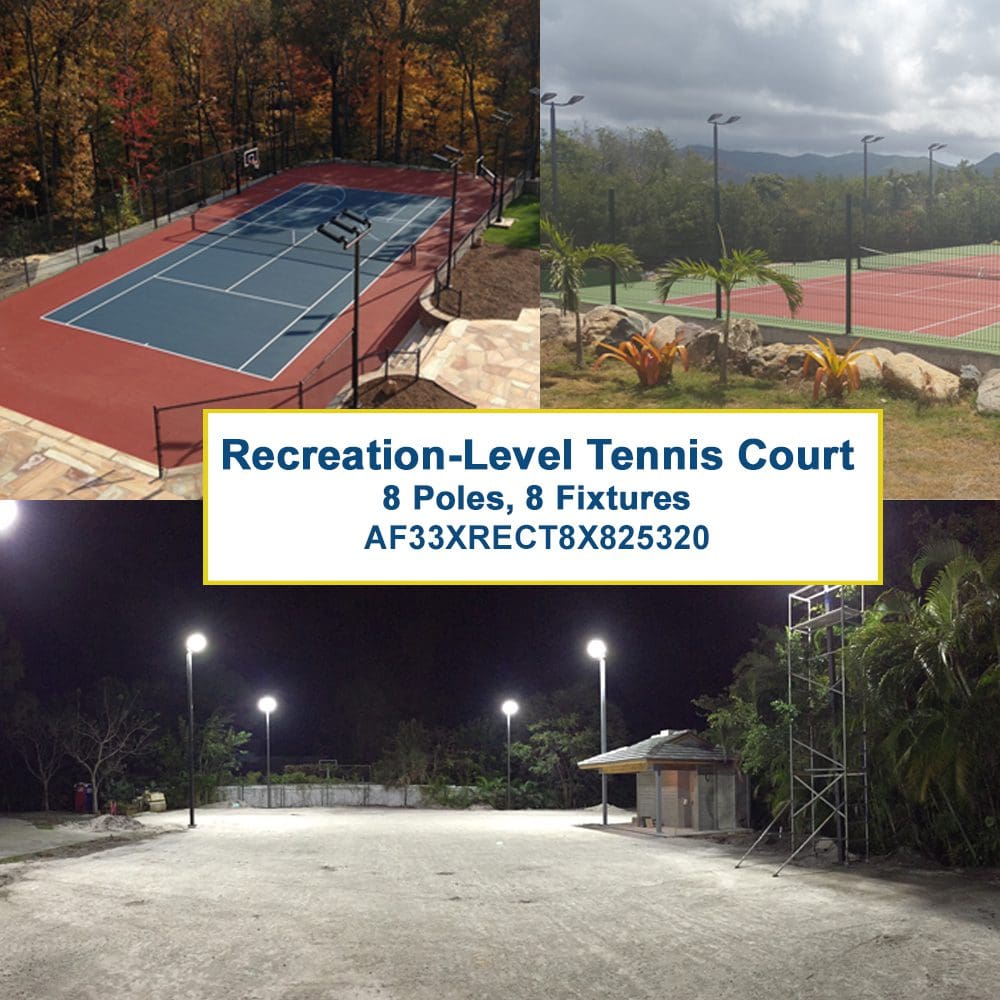

Recreation-Level LED Tennis Package: 8 Poles, 8 Fixtures, 26 AVG FC, 1.83 MAX/MIN


This 310w outdoor LED tennis court lighting package includes everything you need for recreational tennis lighting. It will illuminate standard 78′ x 36′ tennis courts to an average of 26 foot candles. Full photometric analysis available. Select your preferred CRI and Kelvin temperature using the menu below. When you order this package, you’ll receive:

  • (8) 310-Watt LED Sport Light Fixtures
  • (8) 25-Foot, 4″ x 4″, 7-Gauge Steel Poles
  • (8) Adjustable Slip Fitter Mounts for Easy Aiming & Tilting
  • (8) Two-Piece Steel Base Covers
  • (8) Base Plates & Mounting Templates
  • (32) 33″ Pole Anchor Bolts

This package comes in bronze only. Click on the “Description” Tab below for more information. Click here to see the full photometric analysis. Give us a call at 800-468-9925 and we’ll be happy to answer any additional questions.

In Stock

  • "Kelvin Temperature" refers to the color of the emitted light. 4000K is the standard for sporting applications. 3000K provides warmer light. 5000K provides white-blue light.
  • Select from this option and we will build your fixtures with high-CRI LED chips.
  • All packages typically ship in 2-4 weeks, though delays are possible. Select from this option and we will ship your anchor bolts and mounting hardware right away. If we can ship everything in 2-4 weeks, we will refund you this amount.

SKU: AF33XRECT8X825320 Categories: , Tag:


Weight 100 lbs
Dimensions 30 × 30 × 30 in
Light Source

, ,


Typically ships in 6-8 weeks.


Electronic 50/60 Hz

Color Rendering Index (CRI)

70+, 80+, 90+


Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.


IP67, CuL Listed, RoHS, UL Listed

Rated Life

200,000+ Hours


5-Year Limited Warranty

Number of Poles


Pole Height

25 Feet

Sports Level of Play


Number of Courts


Average Footcandles


Number of Fixtures


Max/Min Uniformity


Available Finishes


Product Family



120v, 208v, 240v, 277v, 347v, 480v

Product Description

The Layout

This 310w Outdoor LED Tennis Court Lighting Package is designed for recreation-level tennis courts.

To have an Access Fixtures lighting specialist walk you through the complete photometric report, call us at 800-468-9925.

It is designed for standard 78’ x 36’ tennis courts with 21’ serving areas and 12’ between the doubles line and the edge of the court.

This package has four poles positioned on either side of the court. All poles are set 5 feet away from the court.

Read below for more information about the light levels, poles, mounts, and fixtures used in this 310w Outdoor LED Tennis Court Lighting Package.

The Light Levels

Recreational courts include backyard courts, community-use parks, HOA tennis courts, and others. Courts that fall under this category won’t likely host high-level competitions or tournaments but need sufficient lighting for youth and adult lessons, low-level play, and pick-up-caliber games. Recreational courts are the lowest-cost packages available.

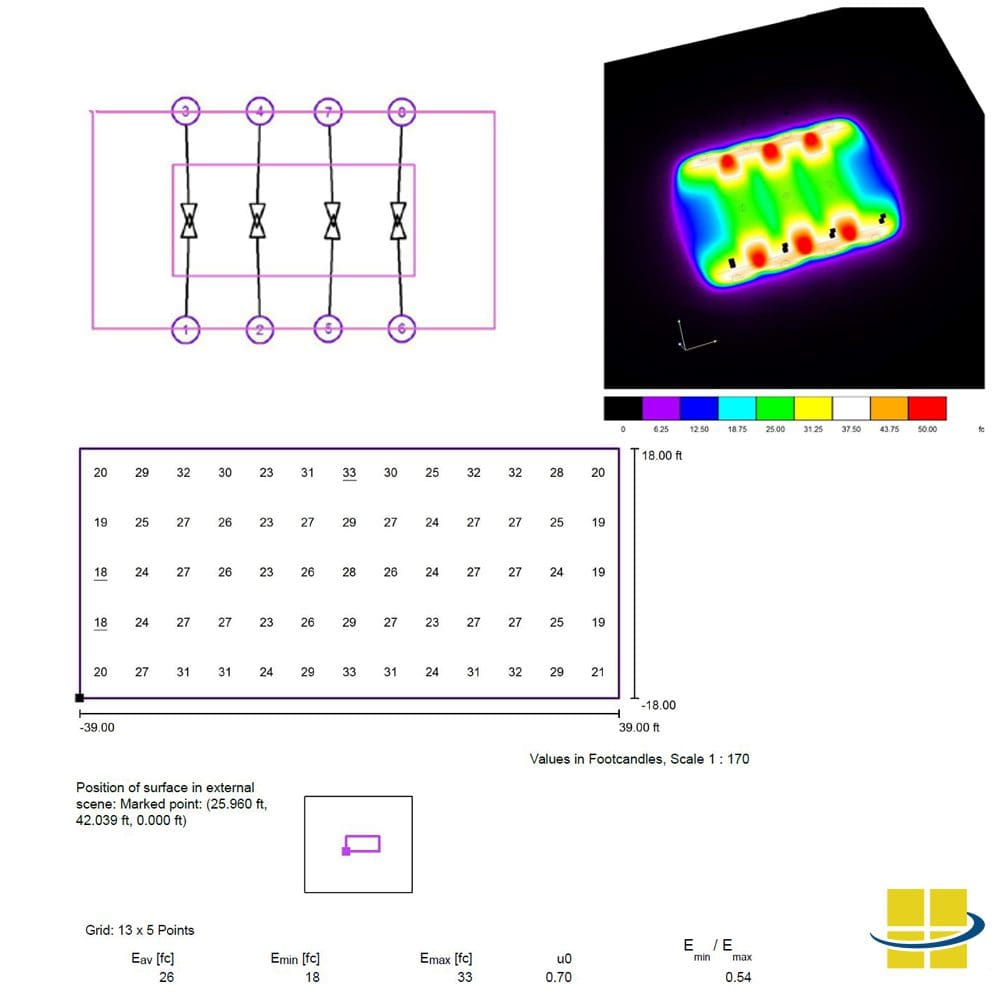

This 310w Outdoor LED Tennis Court Lighting Package illuminates the playing area of the court to an average of 26 foot candles. It achieves a maximum foot candle reading of 33 and does not go below 18 foot candles. It achieves a max/min (uniformity) ratio of 1.83, which means its light is evenly spread across the entire playing area.

The Fixtures

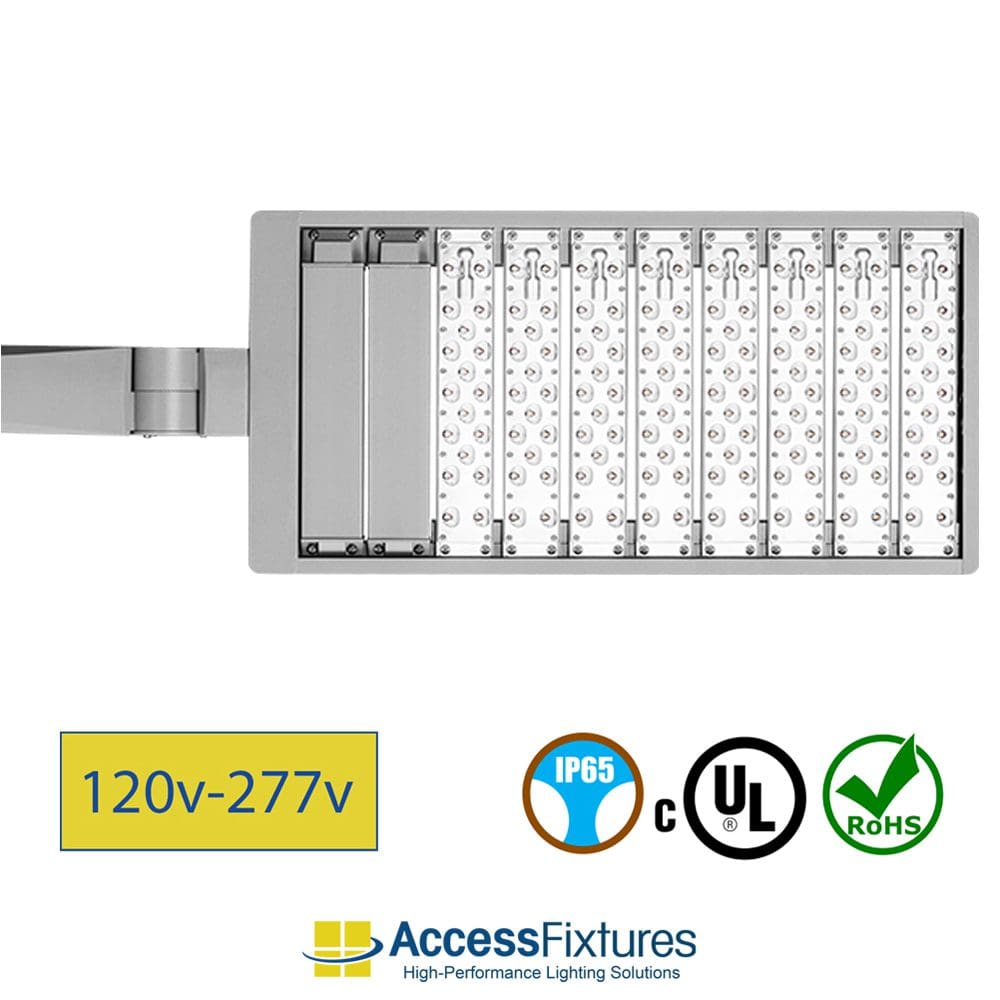

310-Watt LED Sport Light Fixtures

The 310w-Watt LED Sport Light Fixtures used in this tennis court package are L70 rated for an astounding 200,000+ hours.

The 310w Outdoor LED Tennis Court Lighting Package uses high-powered, long-lasting LED sport lights. Full specs of each of these fixtures below.

  • System Wattage: 310
  • Light Source Wattage: 320
  • Light Source Lumens: 40,300
  • Rated Life (L70): 200,000+ Hours
  • Beam Spread:  60 Degrees
  • Weight: 26.35 Pounds
  • Dimensions: 34.84″ x 12.99″ x 2.76″
  • Housing: Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP65 rating.
  • Listings: IP67, UL Listed, CuL Listed, RoHS
  • Voltage Compatibility: 120-277v
  • Dimming: Yes. 1-10v dimming standard in all fixtures.
  • Warranty: 5-Year Warranty

If you have additional questions about the fixtures used in this package, call us at 800-468-9925.

The Poles

Square Steel Pole

The square steel poles used in this package feature textured, architectural bronze finishes. They ship complete with anchor bolts, base covers, base plates, and mounting templates.

The 310w Outdoor LED Tennis Court Lighting Package uses steel poles. We always have the full specs of each of these poles below. If your tennis court is located in a high-wind area (e.g., Florida, Louisiana, Georgia, the Caribbean), make sure to ask us about EPA ratings and wind tolerances of each setup. Installations in these areas often require poles with thicker walls, materials like aluminum or composite, or tapered designs. Our engineers can provide this data and the necessary poles for any location, but as these changes affect lead time and pricing, it is best to call first.

  • Pole Height: 25 Feet
  • Direct Burial or Bolt-In: Bolt-In
  • Number of Anchor Bolts: 4
  • Anchor Bolt Dimensions: M22 x 33”
  • Base Plate Dimensions: 11” (L) x 11” (W), .75” (Thickness)
  • Base Plate – Anchor Bolt Circle: 8”-11” (Diameter)
  • Gauge: 7-Gauge
  • Weight: 256 Pounds
  • Tenon: 2 ⅜” Tenon
  • Finish: Baked-on, textured, architectural bronze finish.
  • Base Cover: Two-piece steel base cover
  • Hand Hole: Cast-iron-reinforced hand hole with cover
  • Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.

For more information about the poles used in this package, call 800-468-9925 or send us an email at [email protected].

The Mounts

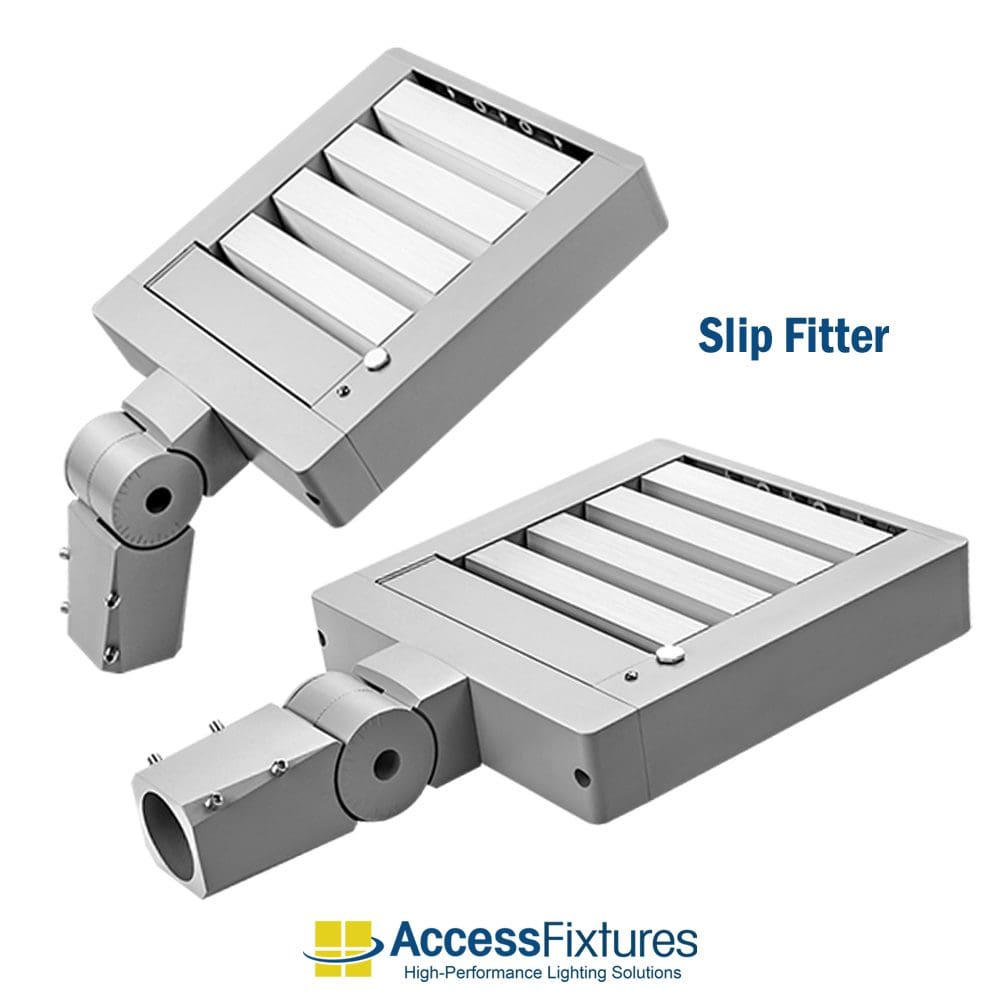

The fixtures in this package utilize built-in slip fitter mounts that make for easy aiming and tilting.

The Lead Time

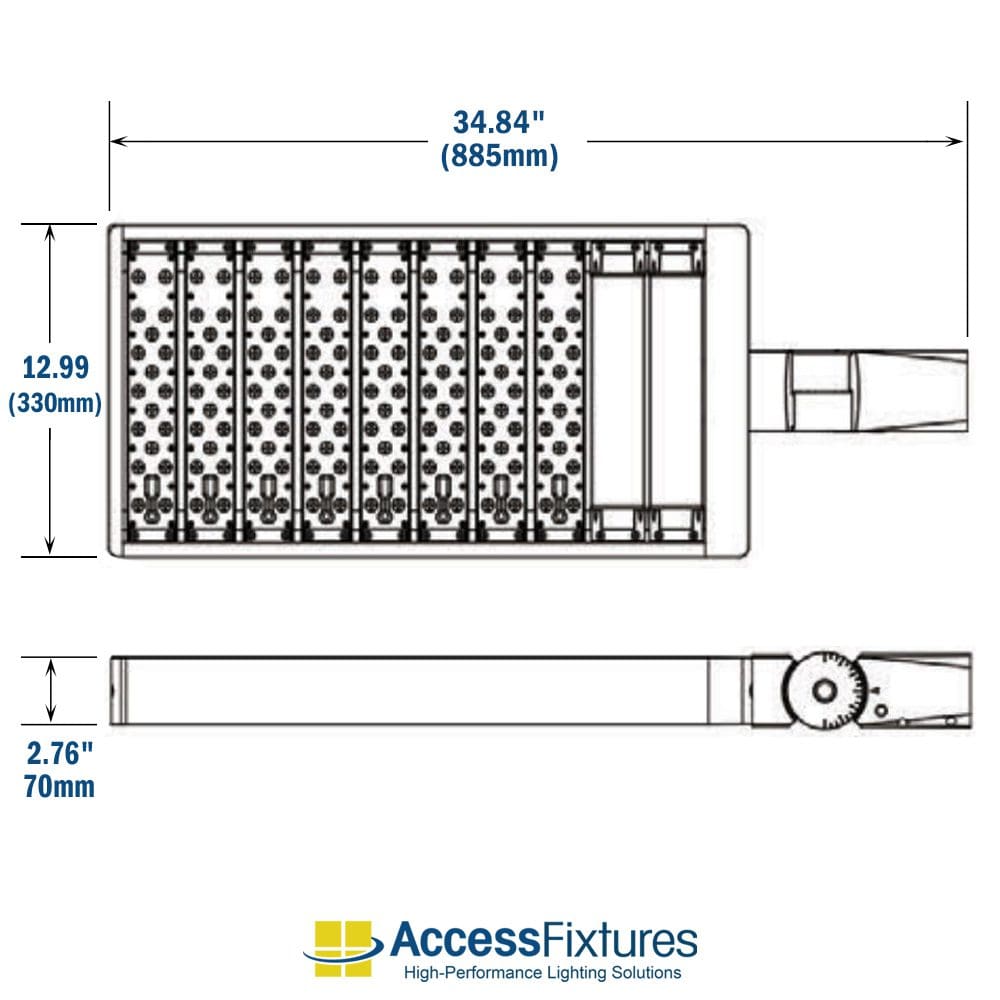

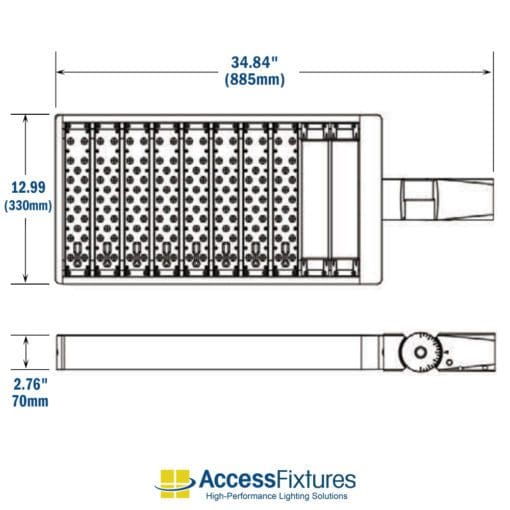

310-Watt LED Sport Light Fixtures Dimensions

The 310-Watt LED Sport Light Fixtures used in this tennis package have a narrow profile for better suitability in high-wind environments.

Everything in this 310w Outdoor LED Tennis Court Lighting Package typically ships in 2-4 weeks. The fixtures are custom-built to order but we are almost always able to meet or beat this estimated window. We’ll ship your poles from the factory location closest to you.

Stock does fluctuate, so call 800-468-9925 for an exact lead time.

Do You Have More Questions about the 310w Outdoor LED Tennis Court Lighting Package?

We want to make sure you buy in confidence and select the right court for your particular project. If you have any questions or would like a lighting specialist to walk you through the options, give us a call today. You can also email us at [email protected].

LED Tennis Court Lighting Packages from Access Fixtures

At Access Fixtures, we want to make illuminating your tennis court(s) as simple as possible. Our lighting specialists, photometric engineers, and designers have all come together to build comprehensive LED tennis court packages with everything you need to achieve the exact kind of light you need.

Not all tennis courts need the same lighting. We’ve designed packages for housing authorities in Texas, collegiate and high school courts from Florida to Washington, public courts in New York, backyard courts across the United States and the Caribbean, and just about everything in between; while there are standard layouts, few tennis courts have the same needs. Some require a specific number of poles, a specific pole layout, specific fixtures, and—most often—light levels catered to a specific level of play. We’ve designed our tennis court packages to fit every tier of play from recreational, club, competition, to NCAA-level tournaments.

Call 800-468-9925 to discuss your project with an Access Fixtures lighting specialist. We look forward to hearing from you.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.
