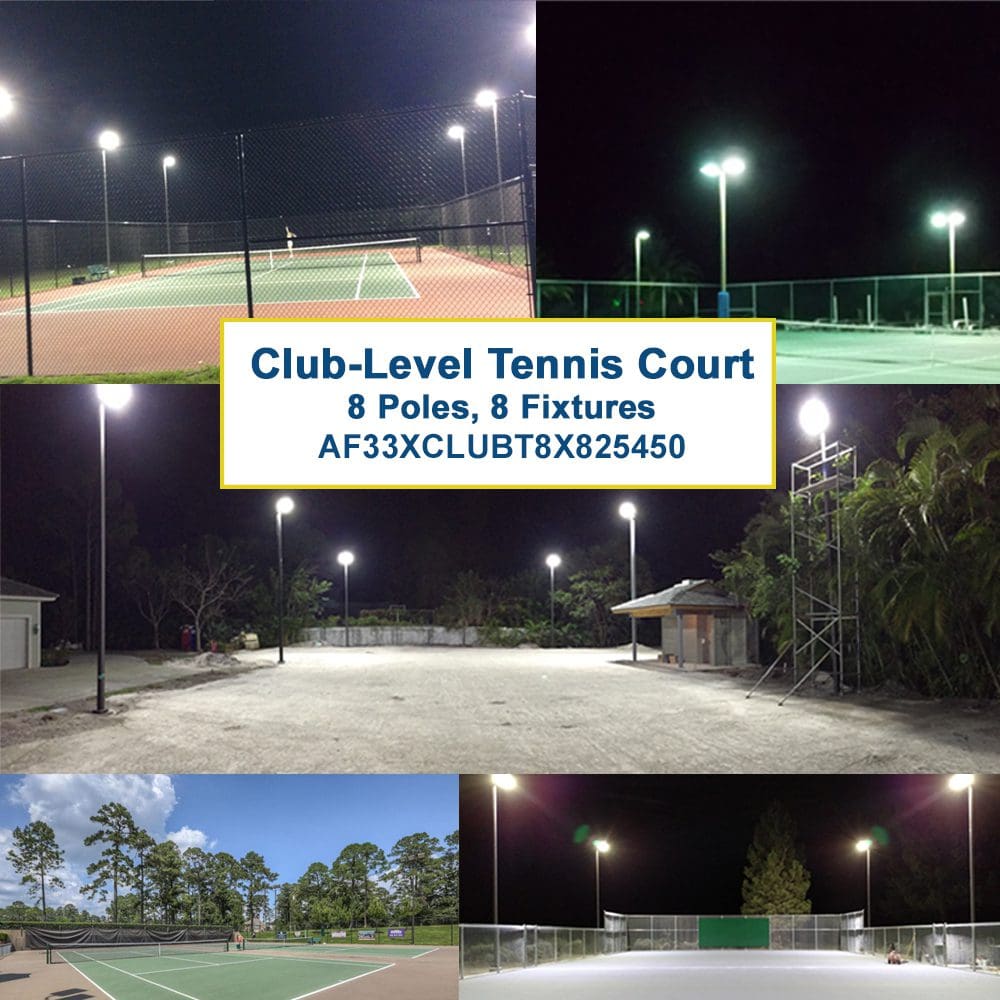

This 461w LED Tennis Lights package is designed for club-level tennis courts.
To have an Access Fixtures lighting specialist walk you through the complete photometric report, call us at 800-468-9925.
It is designed for standard 78’ x 36’ tennis courts with 21’ serving areas and 12’ between the doubles line and the edge of the court.
This package has four poles on either side of the court. Poles are set 5 feet off of the court.
Read below for more information about the light levels, poles, mounts, and fixtures used in this 461w LED Tennis Lights Package.
The Light Levels
Tennis clubs often host players from all levels of the National Tennis Rating Program (NTRP), including those who are just learning and have not yet been ranked. These clubs almost always work with one or a few professionals who help make sure the needs of the club are met. Tennis clubs across the country need to be able to attract all levels of players; the lighting package must do the same.

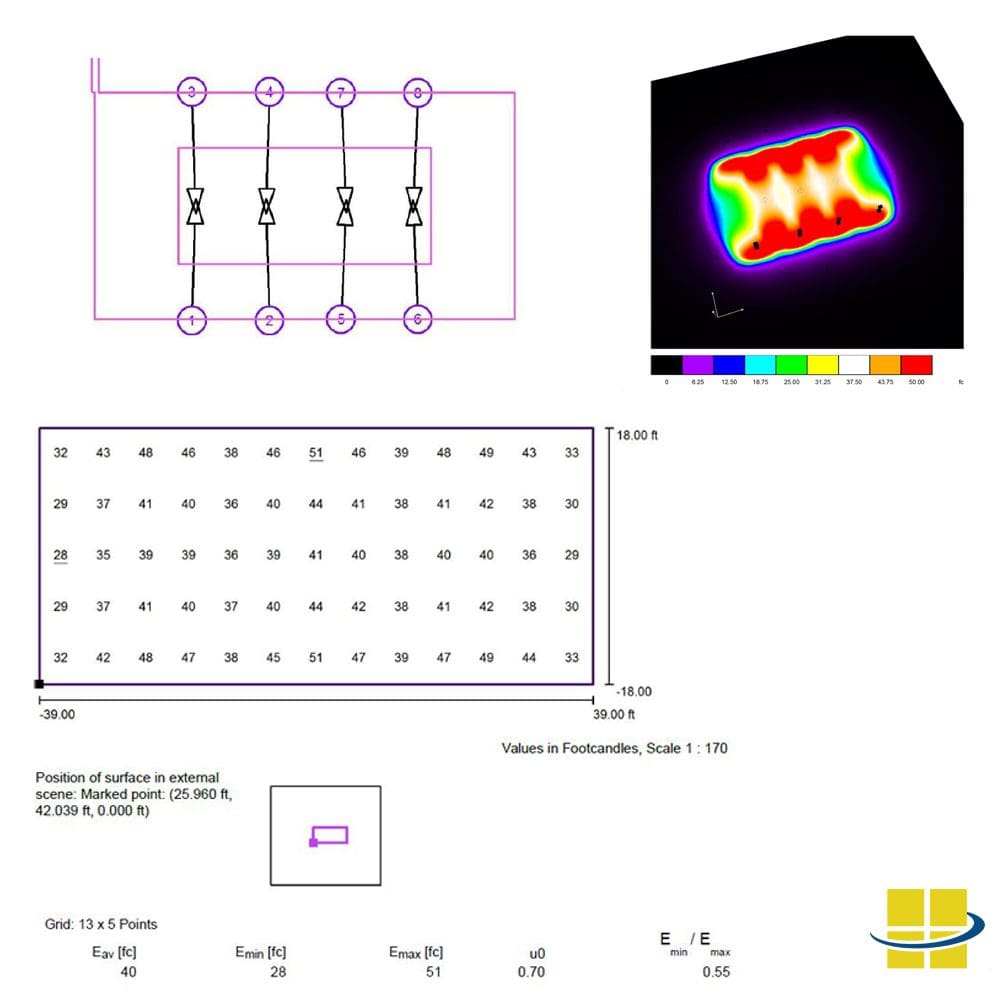

This 461w LED Tennis Lights Package illuminates the playing area of the court to an average of 40 foot candles. It achieves a maximum foot candle reading of 51 and does not go below 28 foot candles. It achieves a max/min (uniformity) ratio of 1.82, which means its light is evenly spread across the entire playing area.
These fixtures are also designed for easy maintenance. Each of the LED modules (or “bricks”) in these fixtures can be individually replaced.

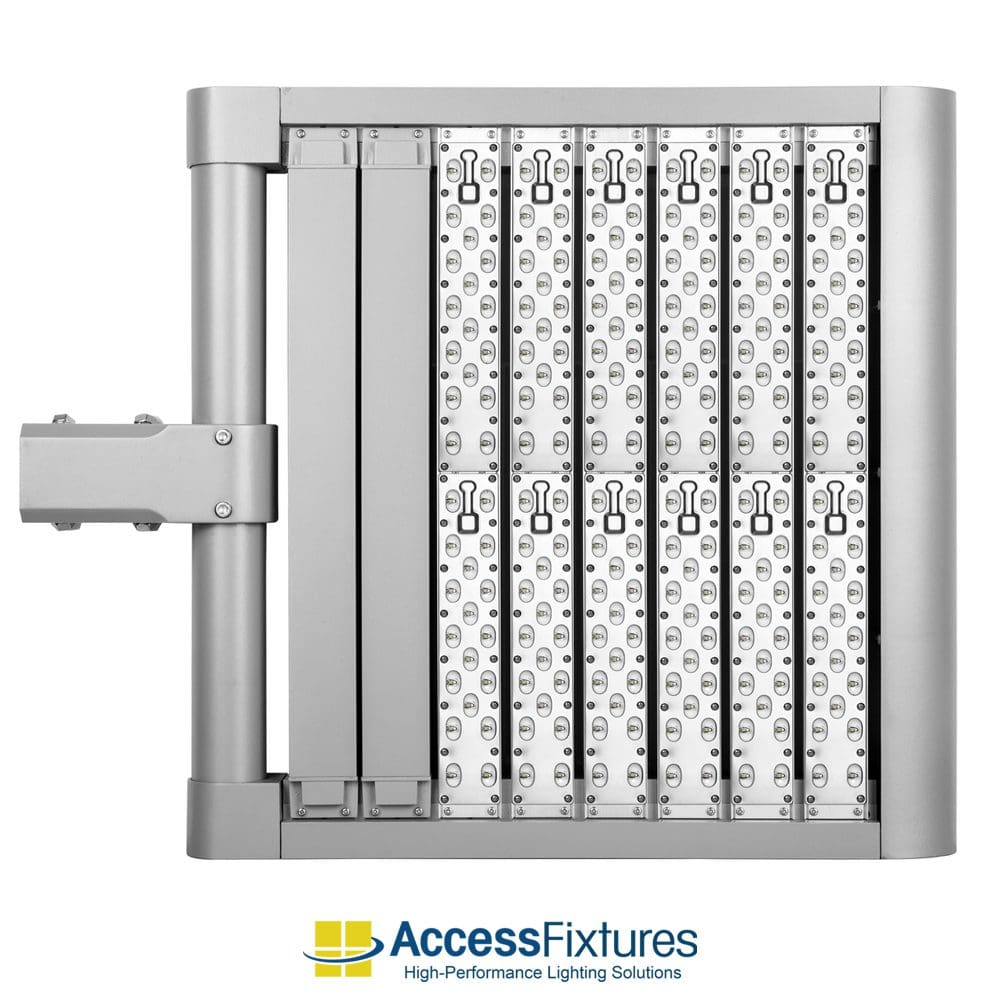

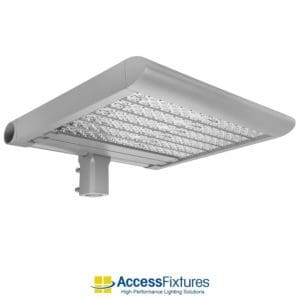

The 461w LED Tennis Lights Package uses high-powered, long-lasting LED sport lights. Full specs of each of these fixtures below.
- System Wattage: 461
- Light Source Wattage: 450
- Light Source Lumens: 62,235
- Rated Life (L70): 200,000+ Hours
- Beam Spread: 60 Degrees
- Weight: 40.54 Pounds

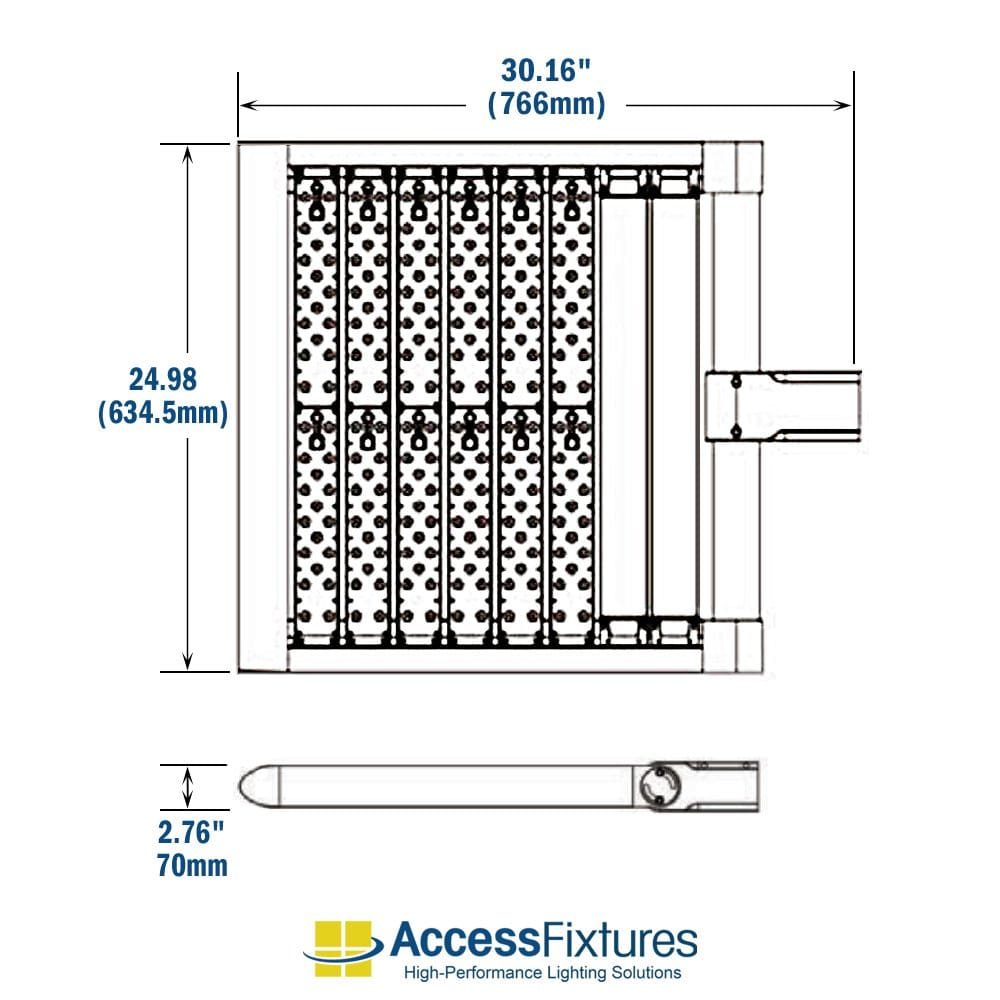

- Dimensions: 30.16” x 24.98” x 2.76”
- Housing: Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.

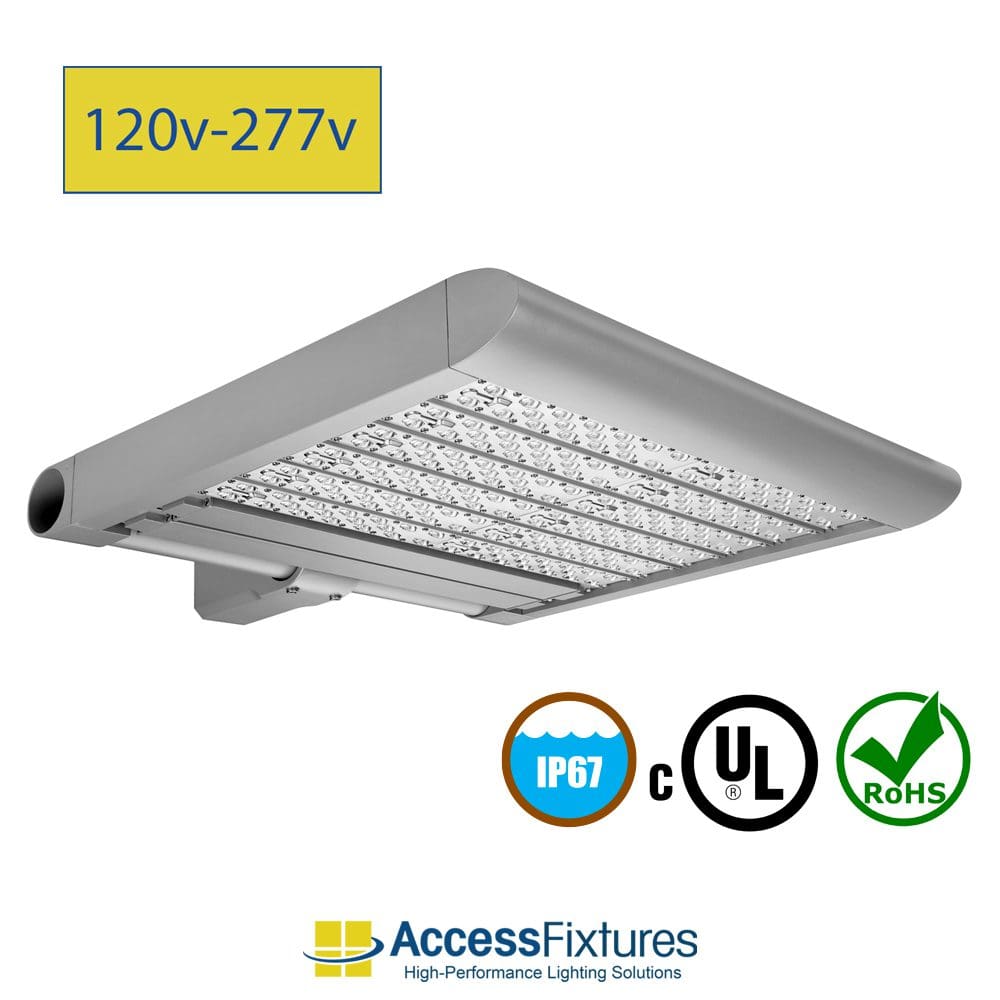

- Listings: IP67, UL Listed, CuL Listed, RoHS
- Voltage Compatibility: 120-277v
- Dimming: Yes. 1-10v dimming standard in all fixtures.
The 461w-Watt LED Sport Light Fixtures used in this tennis court package are L70 rated for an astounding 200,000+ hours.
- Warranty: 5-Year Warranty
If you have additional questions about the fixtures used in this package, call us at 800-468-9925.
The 461w LED Tennis Lights Package uses steel poles. We always have the full specs of each of these poles below. If your tennis court is located in a high-wind area (e.g., Florida, Louisiana, Georgia, the Caribbean), make sure to ask us about EPA ratings and wind tolerances of each setup. Installations in these areas often require poles with thicker walls, materials like aluminum or composite, or tapered designs. Our engineers can provide this data and the necessary poles for any location, but as these changes affect lead time and pricing, it is best to call first.
- Pole Height: 25 Feet
- Direct Burial or Bolt-In: Bolt-In
- Number of Anchor Bolts: 4

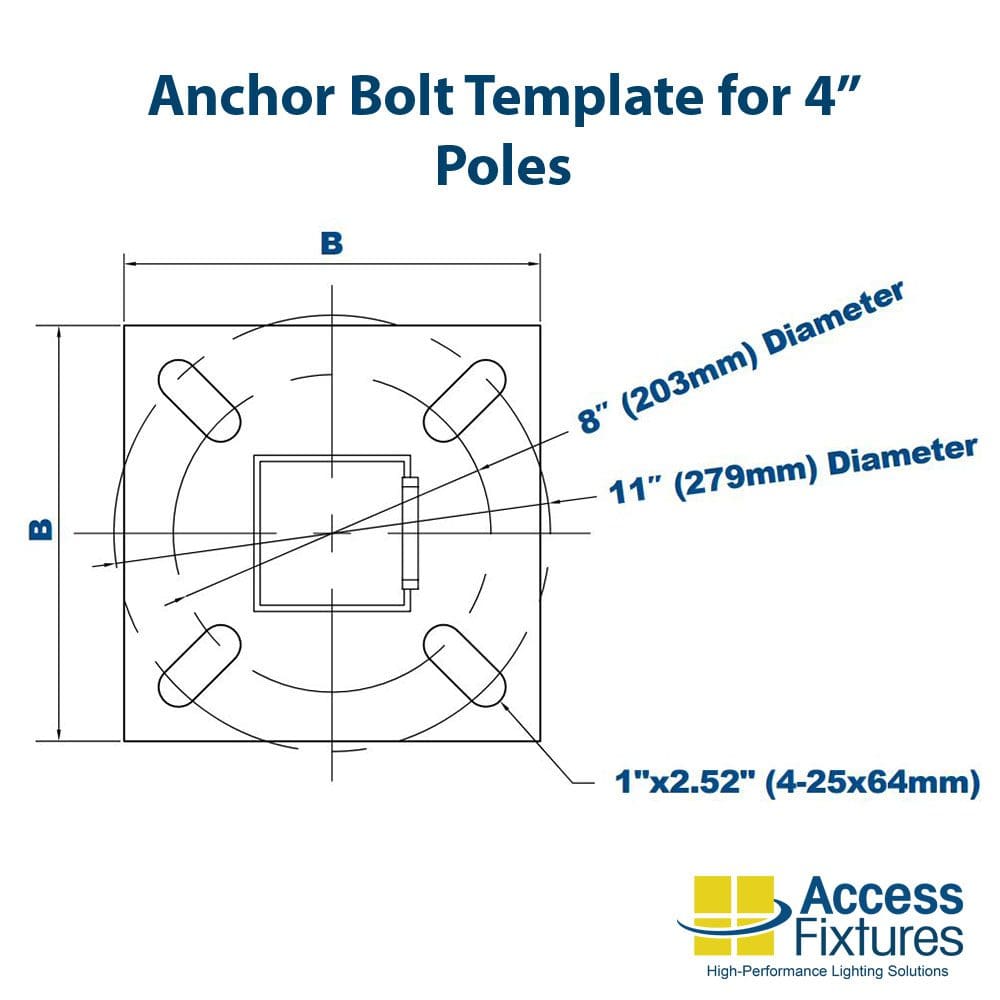

- Anchor Bolt Dimensions: M22 x 33”
- Base Plate Dimensions: 10.5” (L) x 10.5” (W), .75” (Thickness)
- Base Plate – Anchor Bolt Circle: 8”-11” (Diameter)
- Gauge: 7-Gauge
- Weight: 256 Pounds

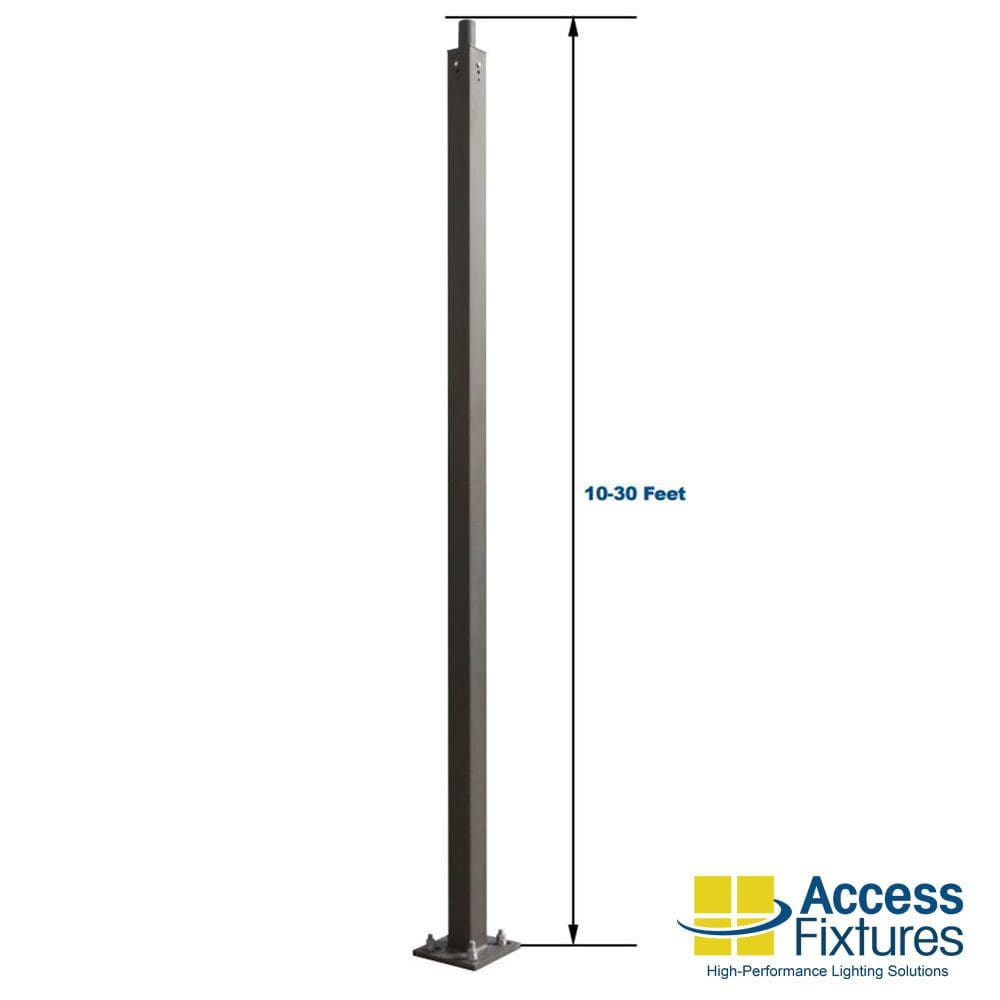

The square steel poles used in this package feature textured, architectural bronze finishes. They ship complete with anchor bolts, base covers, base plates, and mounting templates.

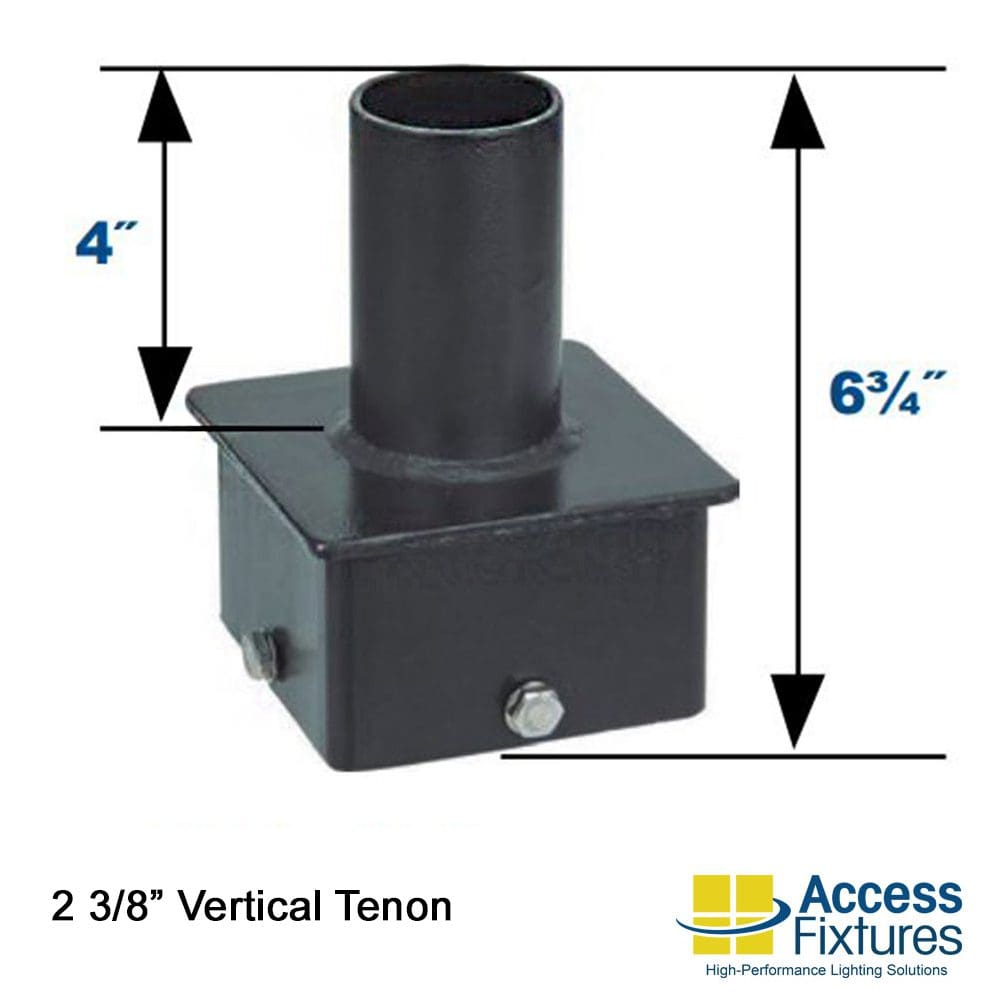

- Tenon: 2 ⅜” Tenon
- Finish: Baked-on, textured, architectural bronze finish.
- Base Cover: Two-piece steel base cover
- Hand Hole: Cast-iron-reinforced hand hole with cover
- Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.
For more information about the poles used in this package, call 800-468-9925 or send us an email at firstname.lastname@example.org.

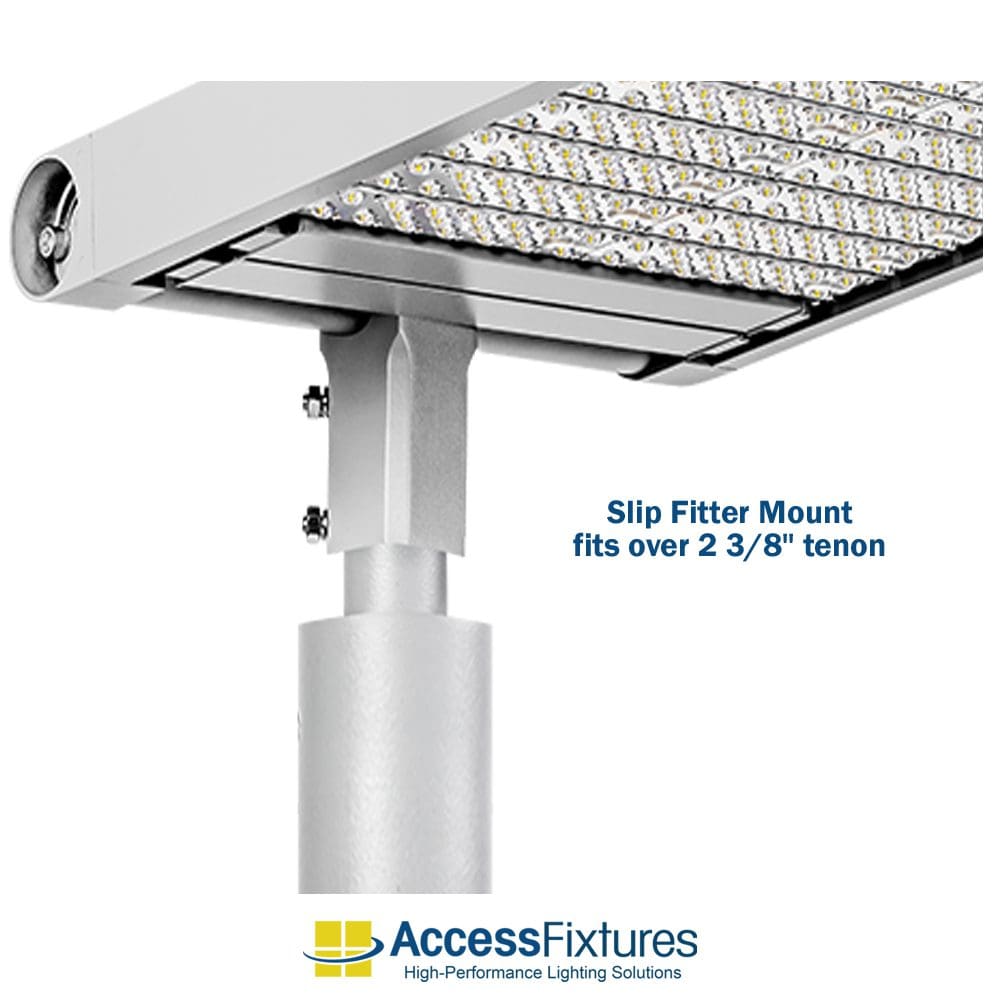

The fixtures in this package utilize built-in slip fitter mounts that make for easy aiming and tilting.
The Lead Time
Everything in this 461w LED Tennis Lights Package typically ships in 2-4 weeks. The fixtures are custom-built to order but we are almost always able to meet or beat this estimated window. We’ll ship your poles from the factory location closest to you.
Stock does fluctuate, so call 800-468-9925 for an exact lead time.
Do You Have More Questions about the 461w LED Tennis Lights Package?
The LED Sport Light Fixtures you’ll receive are custom built with specific beam spreads required for this tennis package.
We want to make sure you buy in confidence and select the right court for your particular project. If you have any questions or would like a lighting specialist to walk you through the options, give us a call today. You can also email us at email@example.com.
