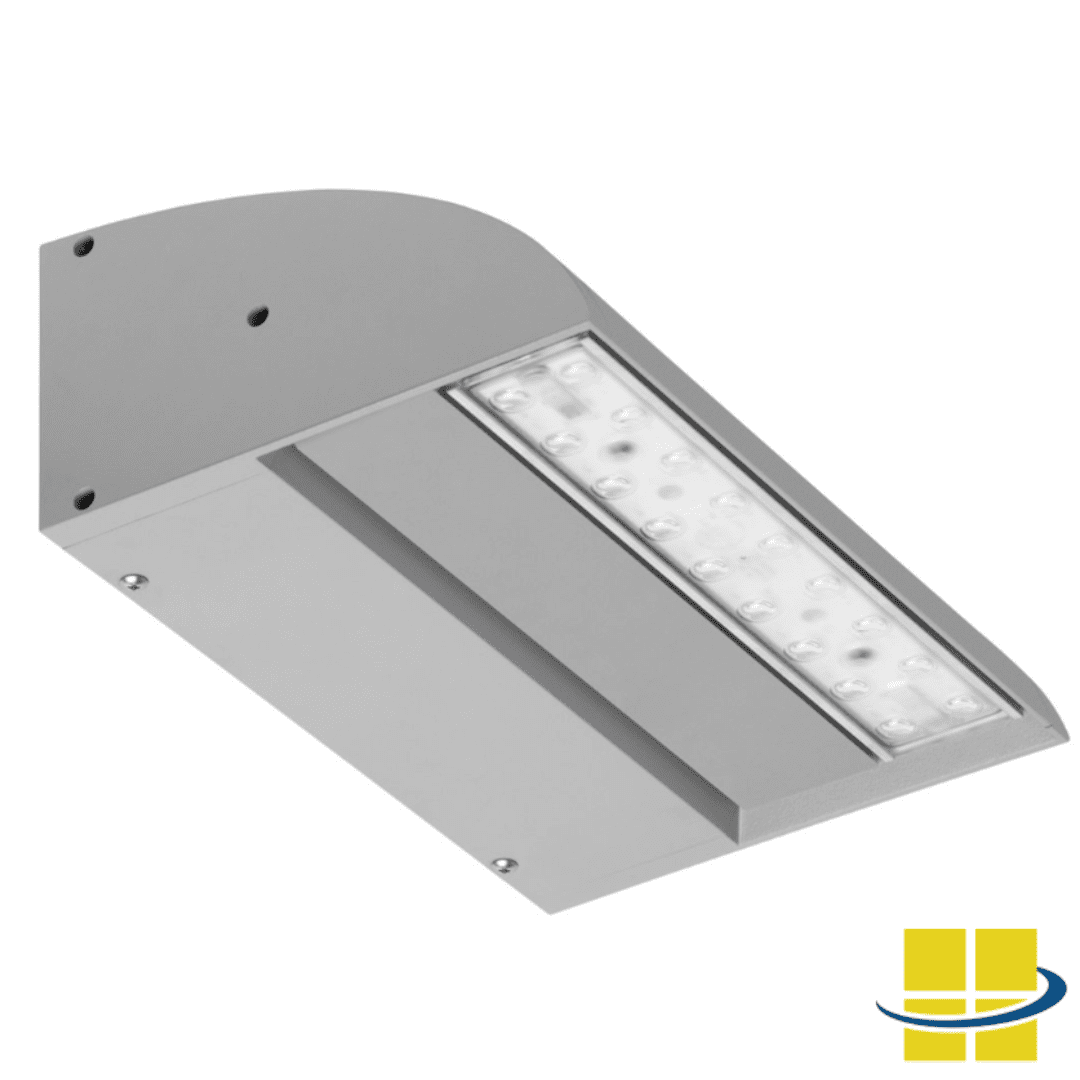

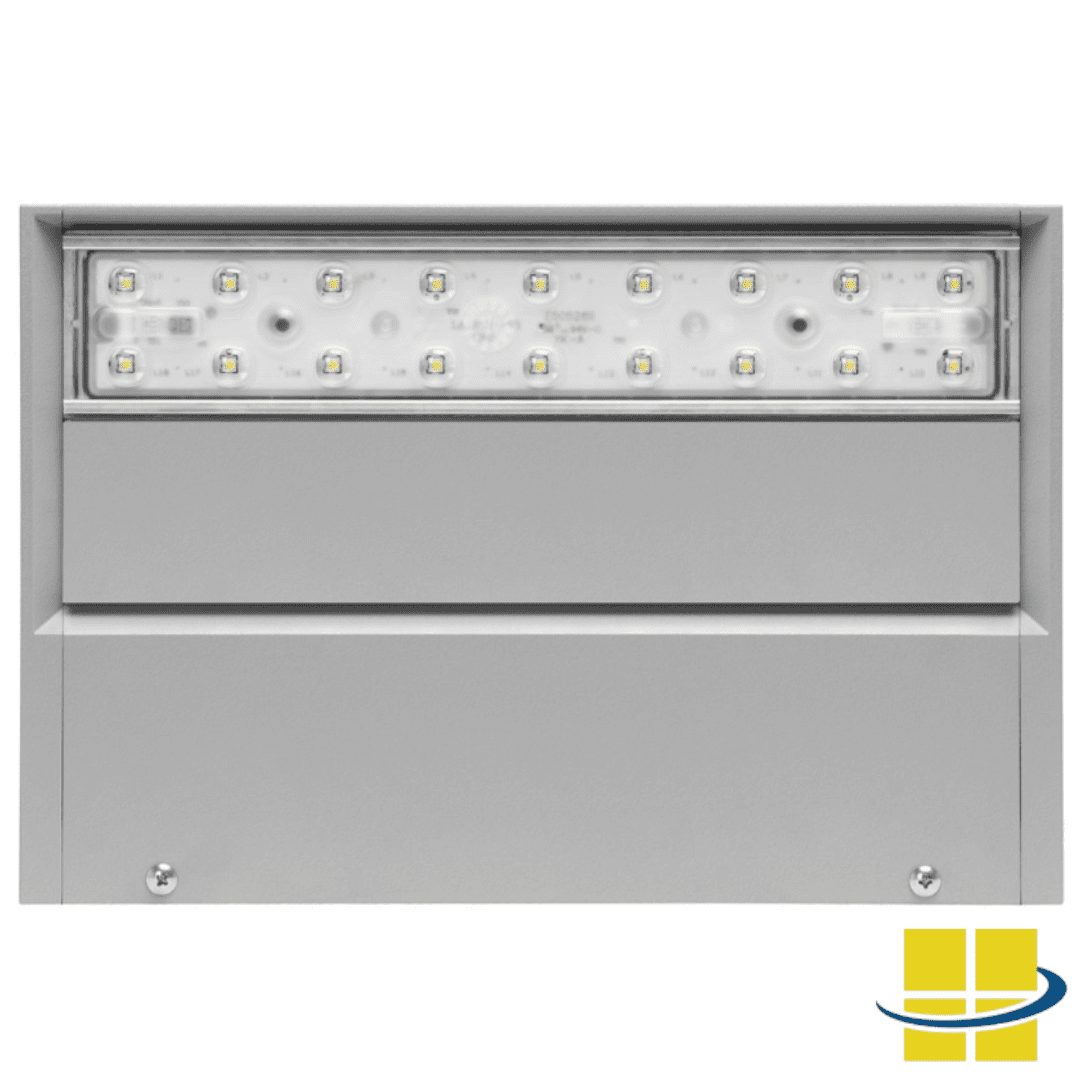

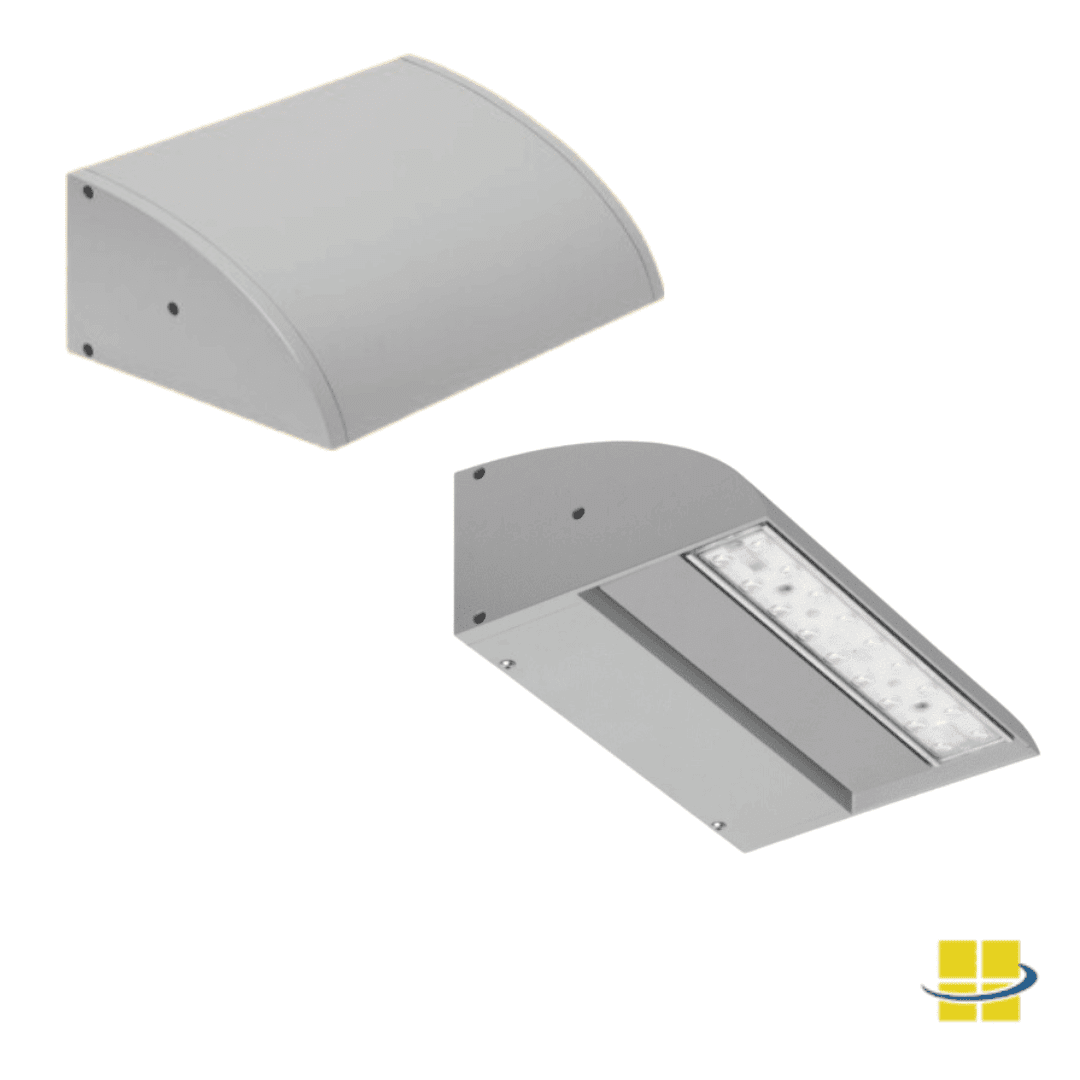

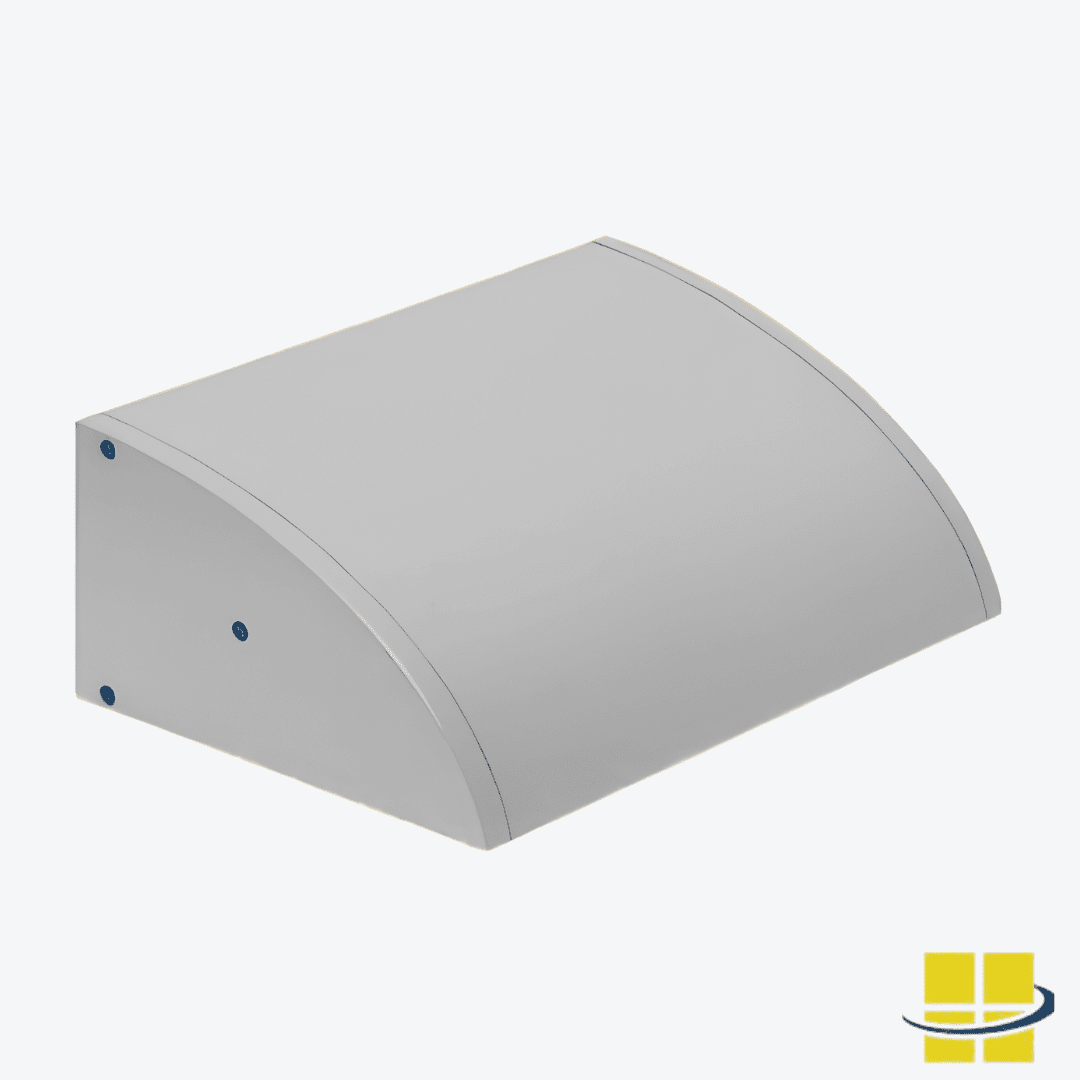

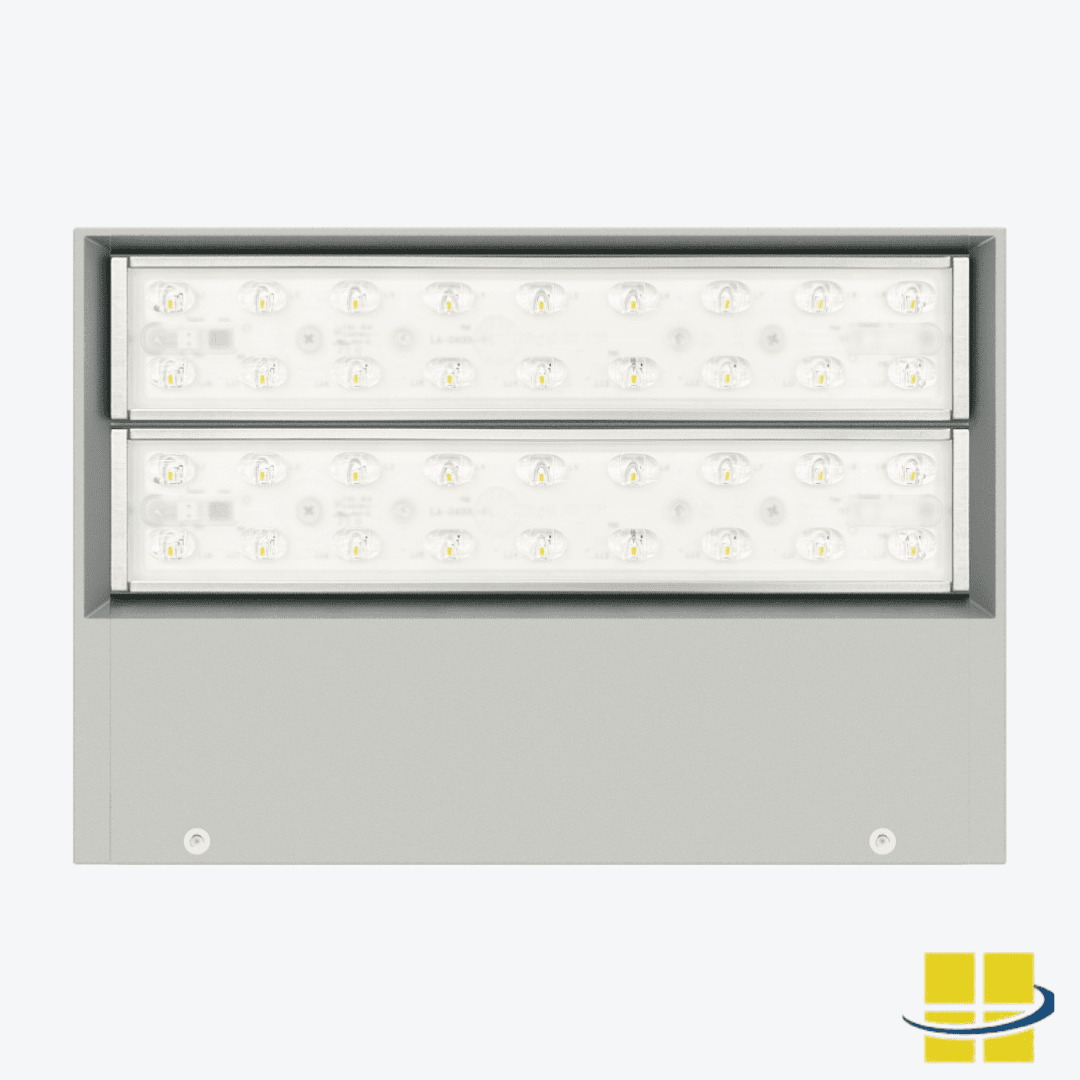

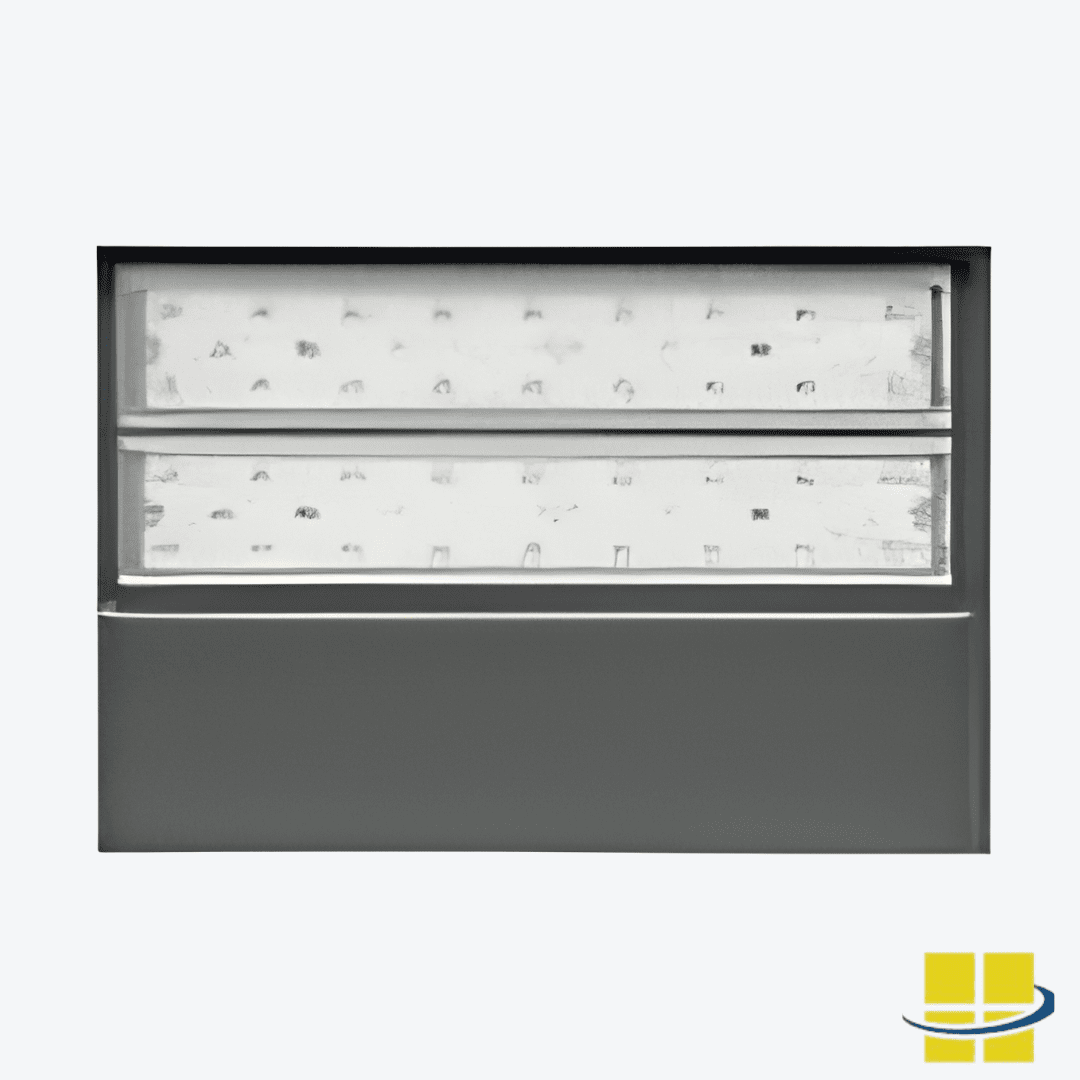

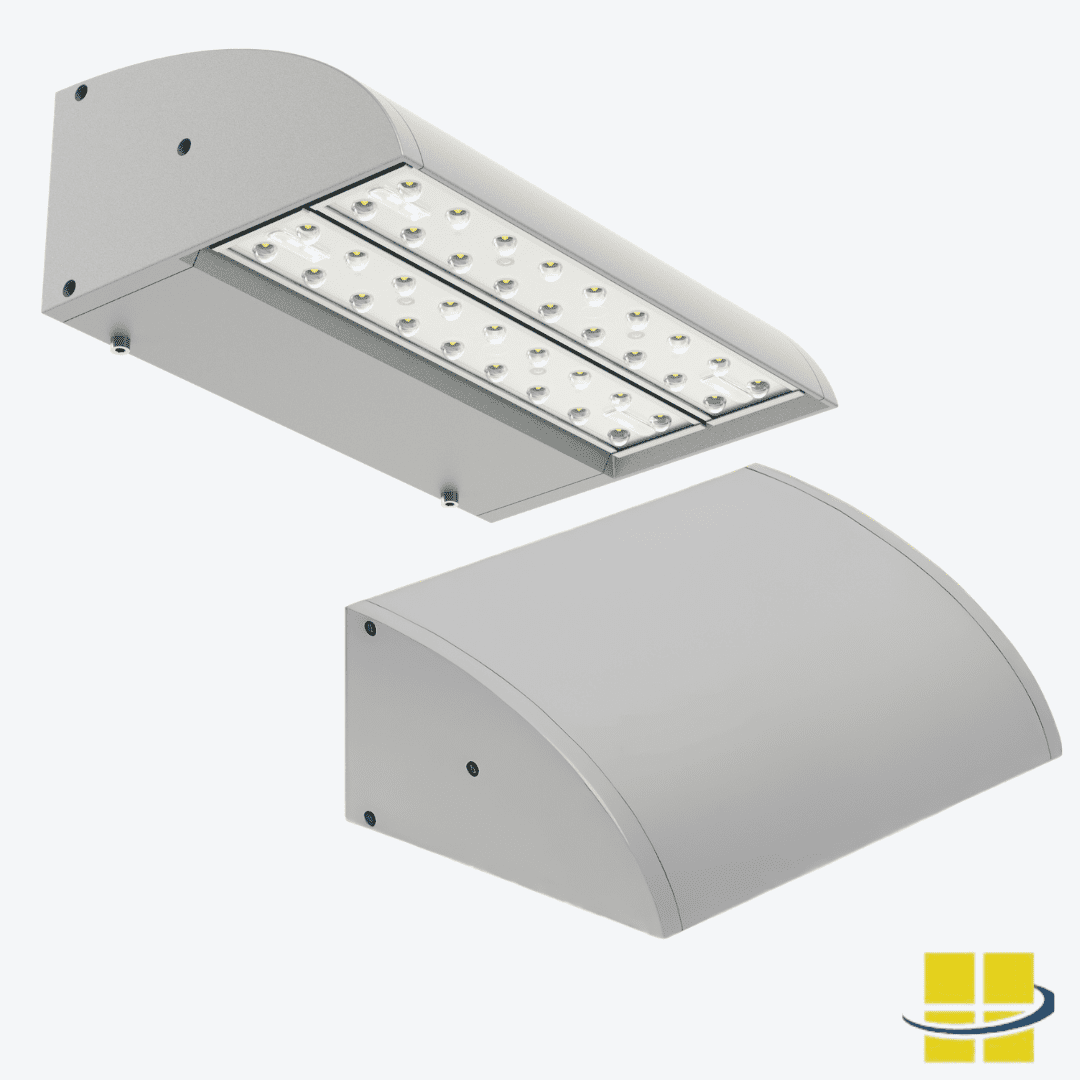

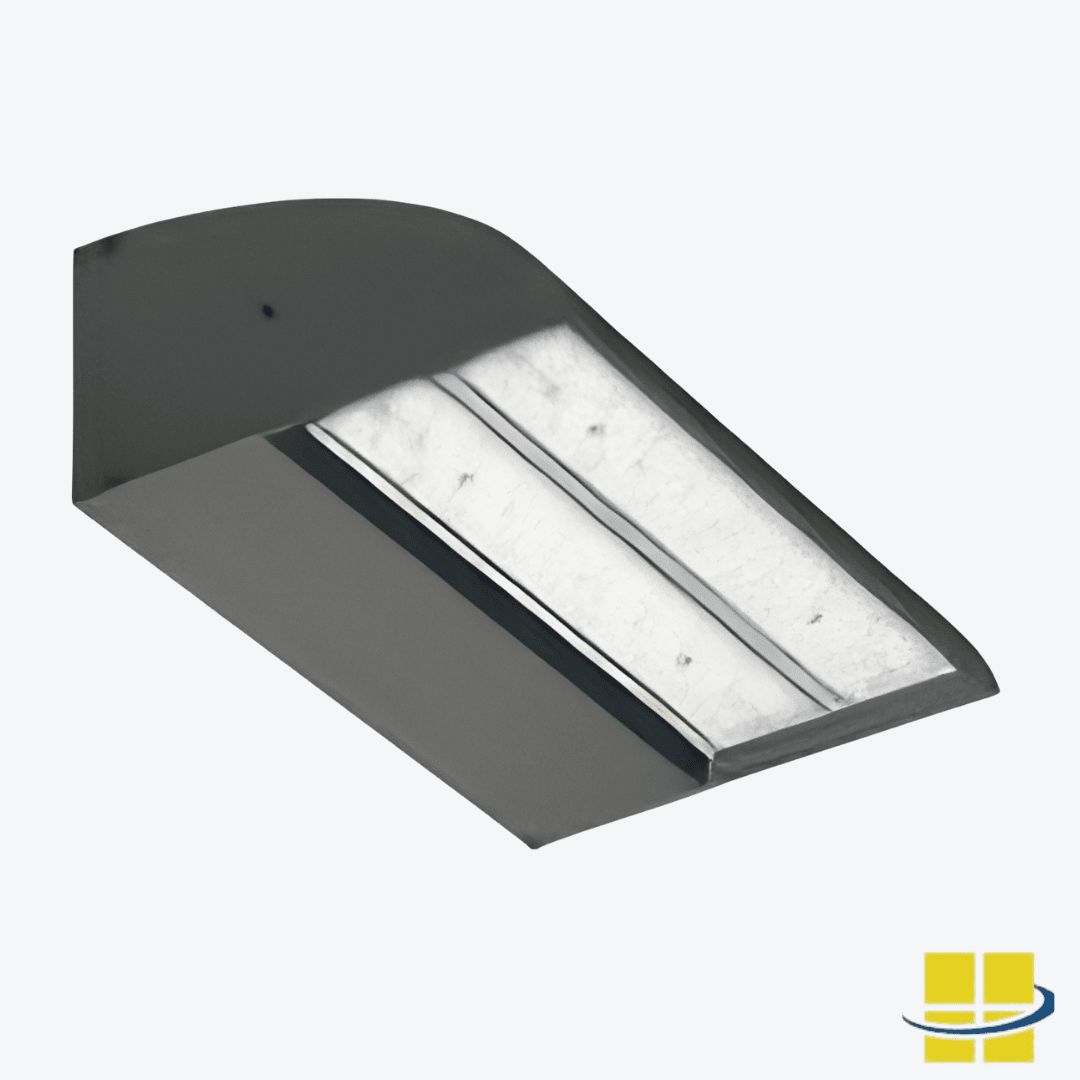

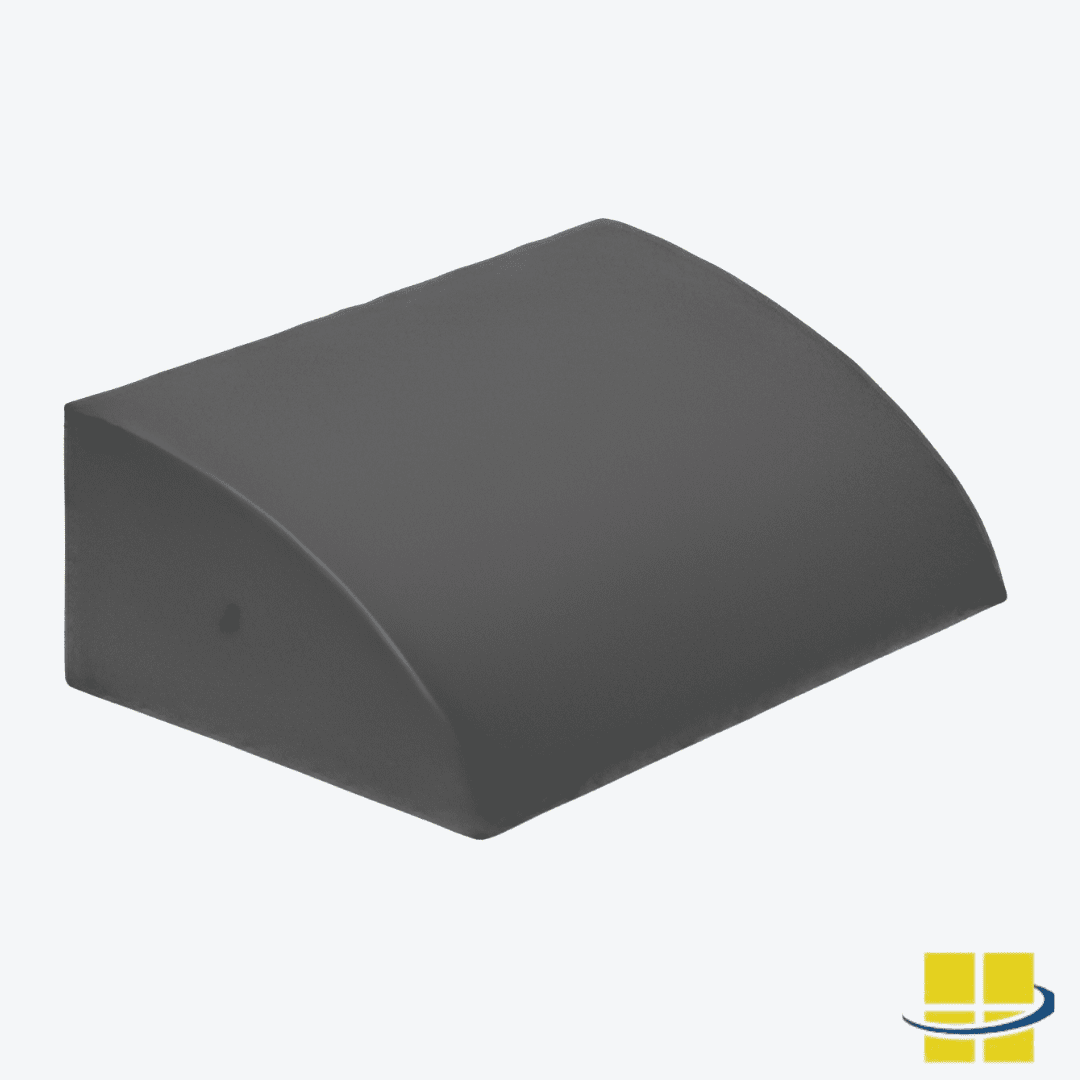

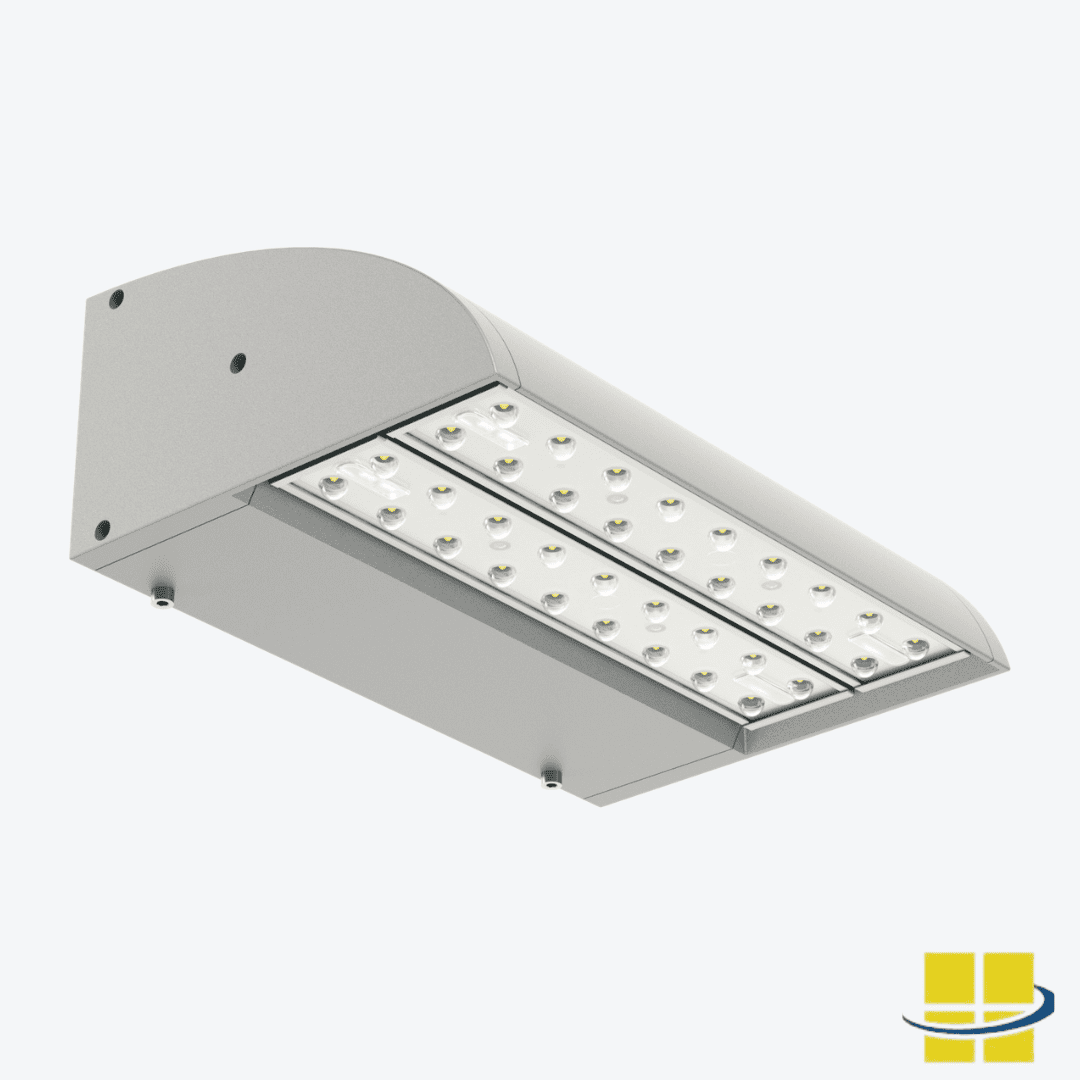

APTO 100 LED Full Cutoff Wall Pack, EXTREME-LIFE, 120-277v

$379.87

APTO EXTREME-LIFE Full Cutoff LED Wall Packs are designed and manufactured to meet virtually any lighting ordinances, to be vandal resistant, and to require virtually no maintenance.

EXTREME-LIFE: L70 @ 200,000 hours rated and 5/10 year limited warranty means years of maintenance free service

Precision Optics: Full cut off precision optics distribute light where you want it and not up or where you don’t want it. Dark sky compliant when equipped with 2200 or 3000K LEDs

Controls: Available with a photocell, programmable occupancy/daylighting sensor, or ready for DALI or similar control systems

Notes:

  • Lumens per Watt may vary based on mA used to achieve wattage(LPW)
  • Custom RAL finishes are available with a minimum order quantity (MOQ)
  • Dark Sky Compliant with 2200 Kelvin or 3000 Kelvin LEDs

  • In Stock

    • Standard colors shown. Custom RAL colors available with minimum order quantity (MOQ) and additional charge.
    • 1-10v dimming is required for microwave occupancy/daylighting sensor. 1-10v is recommended and does not have to be used.
    • See APTO pdf for description of optics.
    • For higher color rendering, the Kelvin must be 3000K or higher. This option is NOT for 2200K
    • Programmable Microwave Occupancy and Daylighting Sensor requires (1) APTO Remote Programmer to program sensor. APTO Remote Programmer is a separate line item.
    • The standard warranty is a 5-year limited warranty. There is a 10-year optional limited warranty available for purchase.

    SKU: AF88XWFD100L Categories: , Tags: , ,


    Specifications

    Weight 7 lbs
    Dimensions 16 × 11 × 8 in
    Availability

    Typically ships in 6-8 weeks.

    Light Source

    , , , ,

    Available Finishes

    Black, Bronze, Gray, White

    Color Rendering Index (CRI)

    70+, 80+, 90+

    Housing

    Modular design, Vandal reistant screws optional, Die cast aluminum housing, Finish meets 1000-hour salt-spray certification per ASTM B117/ ISO 9227:2012

    Lens

    12+ Optics avaialbe to meet all light distributon requirements

    Light Source Included

    LED Array Included

    Light Source Lumens

    15,000

    Listings

    IP67, RoHS Compliant, CB, CE, CuL Listed, DLC Listed, IK08, LM79, SAA, UL Listed

    Mounting

    Wall Mount

    Product Family

    APTO

    Rated Life

    200,000+ Hours

    System Watts

    100

    Voltage

    120-277v

    Warranty

    5-Year Limited Warranty, Optional 10-Year Limited Warranty

    Style

    Full Cutoff

    Product Description



    APTO Full Cutoff Wall Pack Notes:

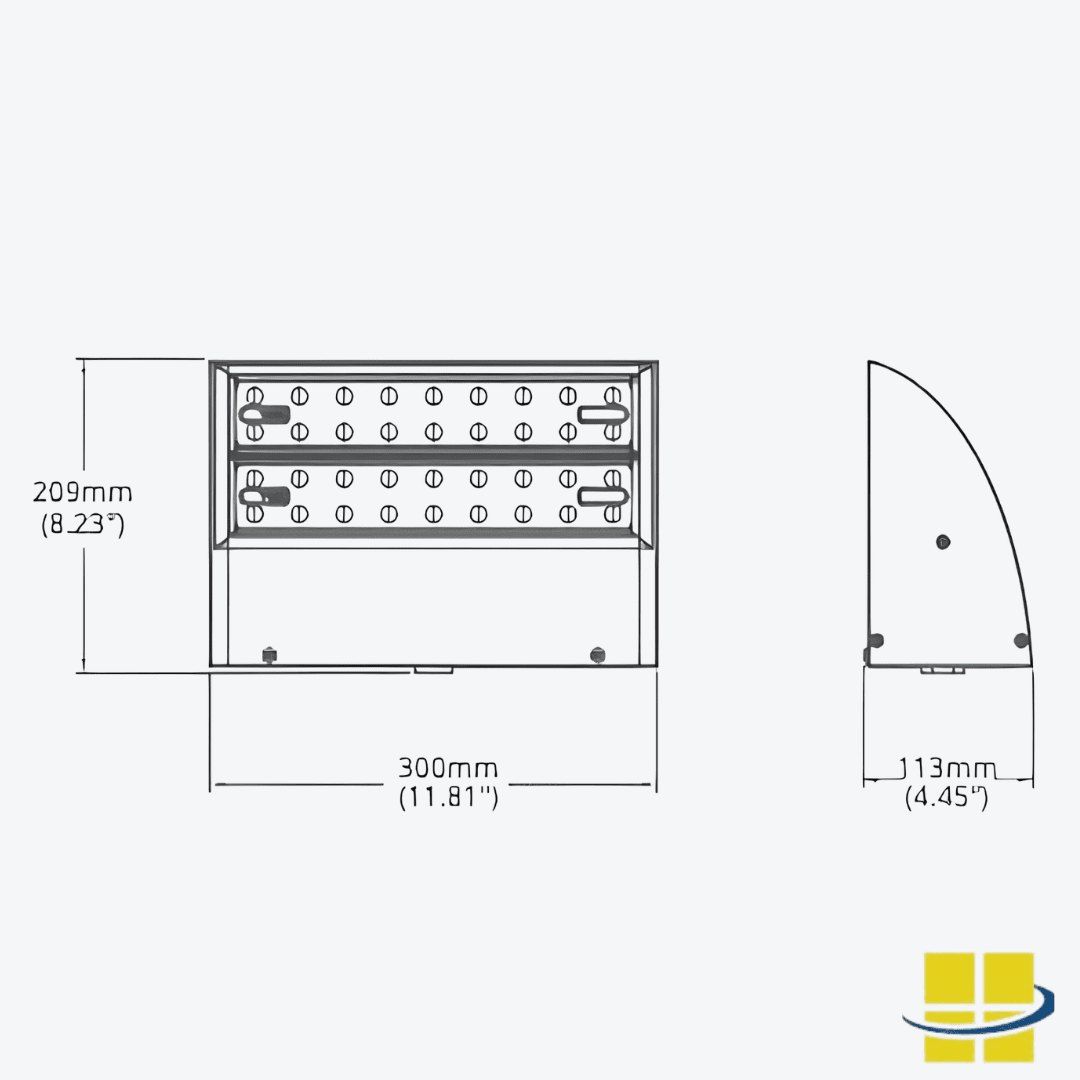

    • APTO Full Cutoff Wall Pack dimensions are provided in the attached product pdf
    • Lumens per Watt may vary based on mA used to achieve wattage(LPW)
    • Low Kelvin reduces Lumens per Watt (LPW)
    • 5700K is about approximately 160 LPW
    • 5000K is about approximately 140 LPW
    • 3000K is about approximately 125 LPW
    • 2200K is about approximately 112 LPW

    APTO Full Cutoff Wall Pack Features:

    • Die-cast aluminum housing
    • IP66 wet location rated
    • 10KA Surge protection standard
    • L70 @ 200,000+ hours
    • CSA listed
    • >Color rendering of Ra>70 standard, Ra>80 and Ra>90 Optional
    • Operating temperature -40°C to +50°C, -40°F to 122°C
    • 1-10v Dimming
    • 5-Year limited warranty

    APTO Full Cutoff Wall Pack Selections:

    • Select Finish – bronze, black, white, or gray
    • Select Kelvin – 2200K, 3000K, 4000K, 5000K, or 5700K
    • Select Mount – 2 3/8″ or 2 7/8″ vertical tenon
    • Select Optics – Optics

    APTO Full Cutoff Wall Pack Options:

  • Option – Backlight blockers
  • Option – RAL finishes available with MOQ
  • Option – Ra>80 or Ra>90 (color rendering)
  • Option – Photocell
  • Option – Programable microwave occupancy/daylighting sensor
  • Option – Emergency power supply
  • Option – Works with DALI, PWM or DMX controls when ordered/specified for these operating systems
  • Option – 10-Year limited warranty
