Product Description
Electrical Specifications:
- Wattage Options: 10w/19w/28w
- AC Input Voltage: 120-277V or 347-480V
- 0-10v Dimmable Driver
- Standard Surge Protection included (2kV) 10k-V available
Optical Specifications
- Kelvin Temperature: 3000K, 4000K, 5000K
- Standard Colors Available: Black, Custom RAL Colors Available.
- Light Distribution: Type II, Type III, Type IV, Type V
- Lens Option: Clear UV- Stabilized Polycarbonate Vandal Resistant Opal Lens
Mechanical and Design Features
- Finish:Textured Architectural Black Powdercoat Finish Over a Chromate Conversion Coating (Custom RAL Colors Available)
- Housing Material:Extruded Die Cast with Flush Mount Base and Vandal-Resistant Screws
- Controls (Optional) Microwave Sensor with dimming and remote programming, Battery Backup, 90 Minutes* Cold Start Battery Backup, -20°C, 90 Minutes
- CSA: Listed for Wet Location, ANSI/UL 1598, 8750; lP66 Rated
- IP Rating: IP66 (Water resistant against powerful jets).
- Lifetime: 187,000 Hours

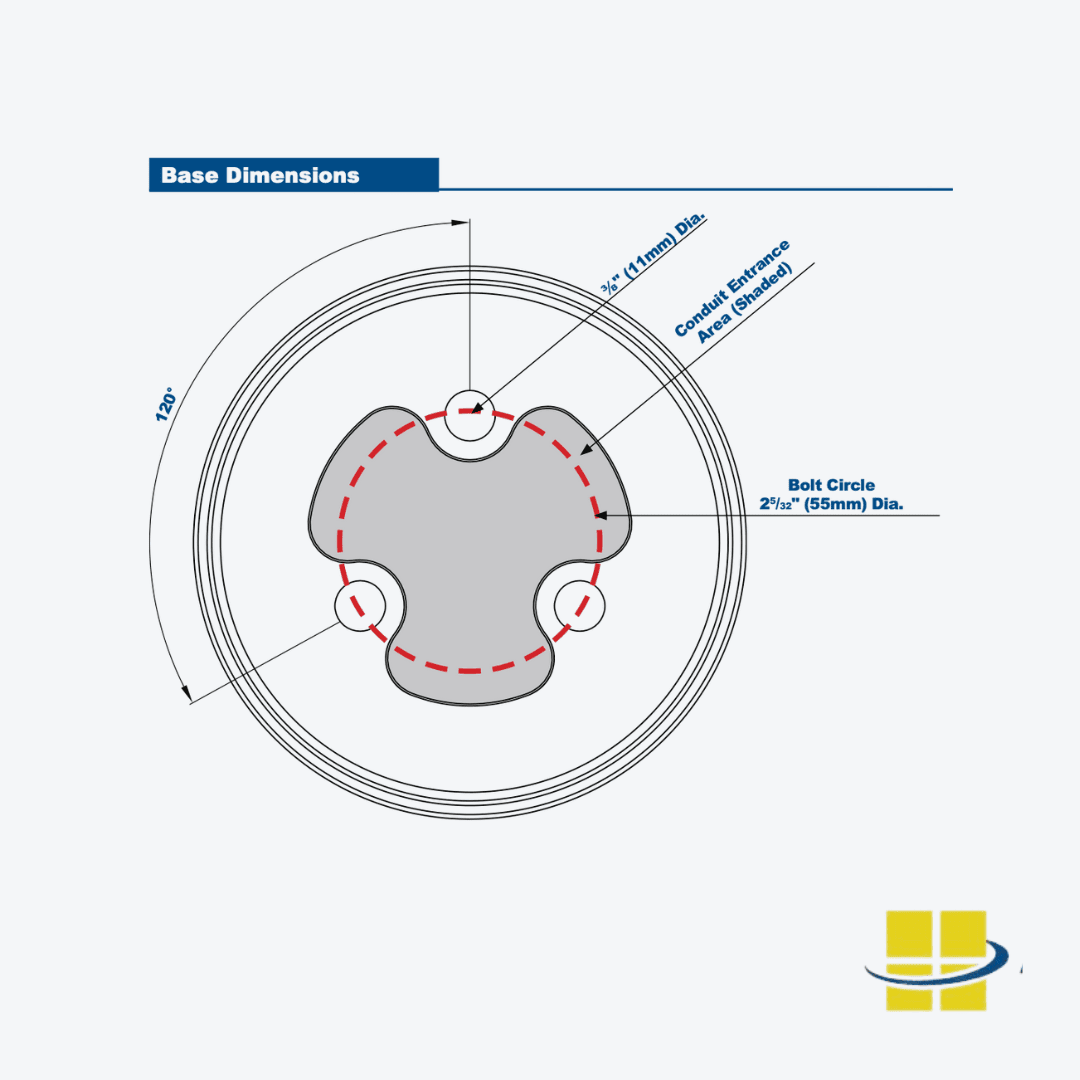

- Installation: Mounting Kit with 8″ Zinc Plated Anchor Bolts
- Packaging Dimensions: 14X14X48
- Weight: 25lbs
- Warranty: 5 Year Limited Warranty
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
Need a Photometric Analysis for Your Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
