CARO 130 LED Flood Light – LED Area Light, 160+ LPW, 120-277v


CARO High Performance LED Area Light / LED Flood Light

Customizable: Select the wattage, Kelvin, optics, mounts and controls to get exactly what you need

Efficient: 160 to 170 luminaire lumens per watt (LPW) for maximum LED energy efficiency

Value: Durability and entry level low price combine for an LED area light / flood light that delivers outstanding value


In Stock

  • Minimizes light behind the pole and partially blocks the view of the light source.
  • Recommended on islands or anyplace that has fluctuations in voltage. LED lights should never be on the same circuit as HID lights or machinery.
  • Photocell includes top mounted outlet and twist-lock photocell. Bi-level dimming photocell/occupancy sensor: Light off when ambient light is >80 Lux (7.5fc). 50% of light when ambient light is < 50 lux (4.6fc). 100% of light with occupancy for 10 minutes if ambient light is >80 Lux (7.5fc). (D-OSMA)
  • Total


Weight 21 lbs
Dimensions 15 × 26 × 9 in

7 to 10 Day Production, plus Shipping

Light Source

, ,

Available Finishes



Electronic 50/60 Hz

Color Rendering Index (CRI)



Die-cast aluminum housing



Light Source Included

LED Array Included

Light Source Lumens



RoHS Compliant, Wet locations, CuL Listed, DLC Premium, IP65, UL


Direct Square Mounting Arm, Slip Fitter, Yoke Mount/U-Bracket Mount

Product Family


Rated Life

50,000 Hours

System Watts



120v, 208v, 240v, 277v, 480v


5-Year Limited Warranty

Product Description

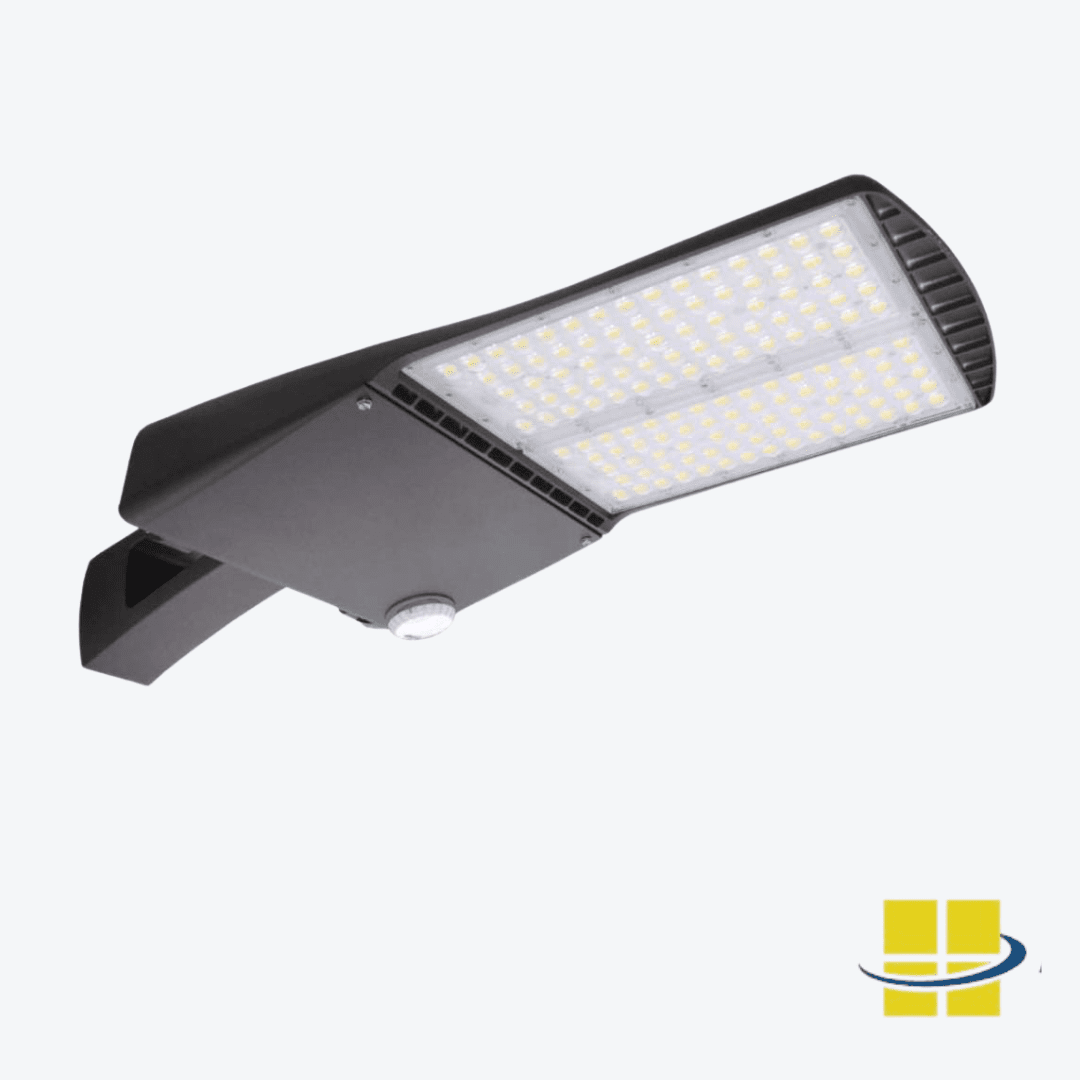

CARO LED Area Light / LED Flood Light Features:

  • One piece die-cast aluminum housing
  • DLC, UL, cUL, CE, RoHs Listed
  • 70+ CRI
  • Dimmable 1-10v
  • 21,777 lumens with 5000K
  • 160 to 170 Lumens per Watt (LPW)
  • 50,000 hour L70 rated life
  • IP65 Rated: protected from total dust ingress; protected from high pressure water jets from any direction
  • Bronze UV Stabilized Powdercoat Finish

CARO LED Area Light / LED Flood Light Options:

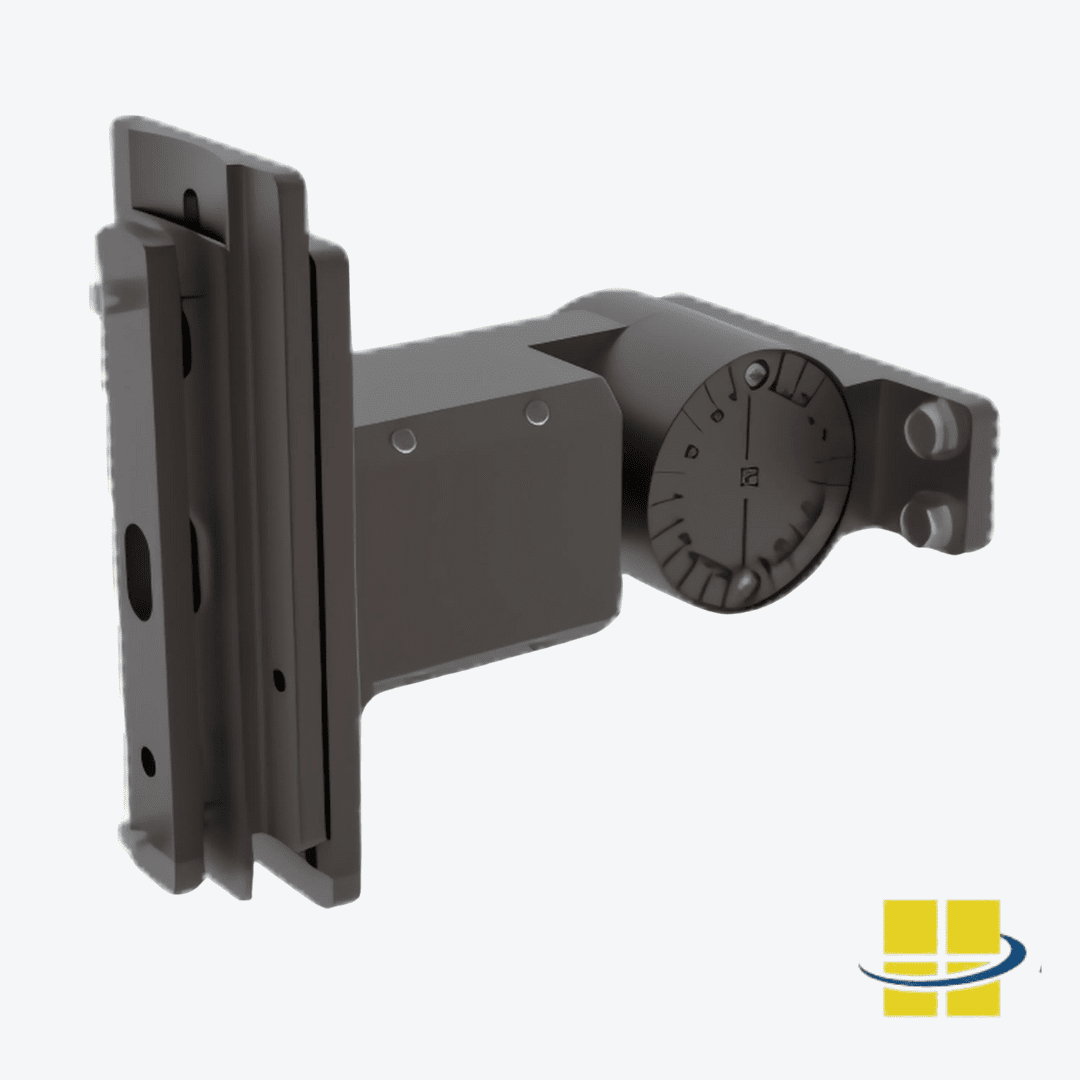

  • Bracket mount (trunnion), slip fitter mount, or pole arm mount
  • Pole side back light shield
  • Voltage – 120-277v,

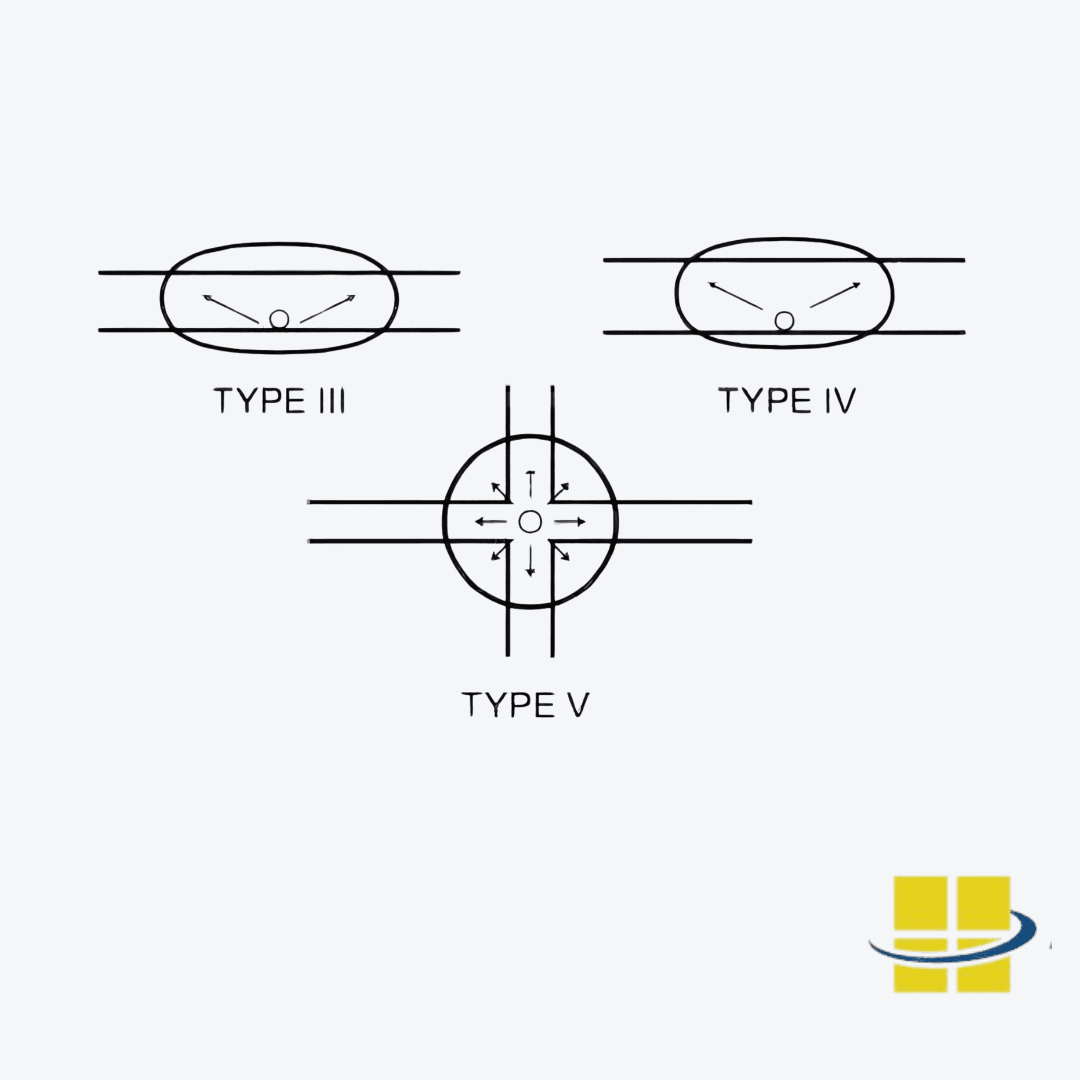

  • Optics – Type III, Type IV, or Type V
  • Kelvin – 4000K or 5000K

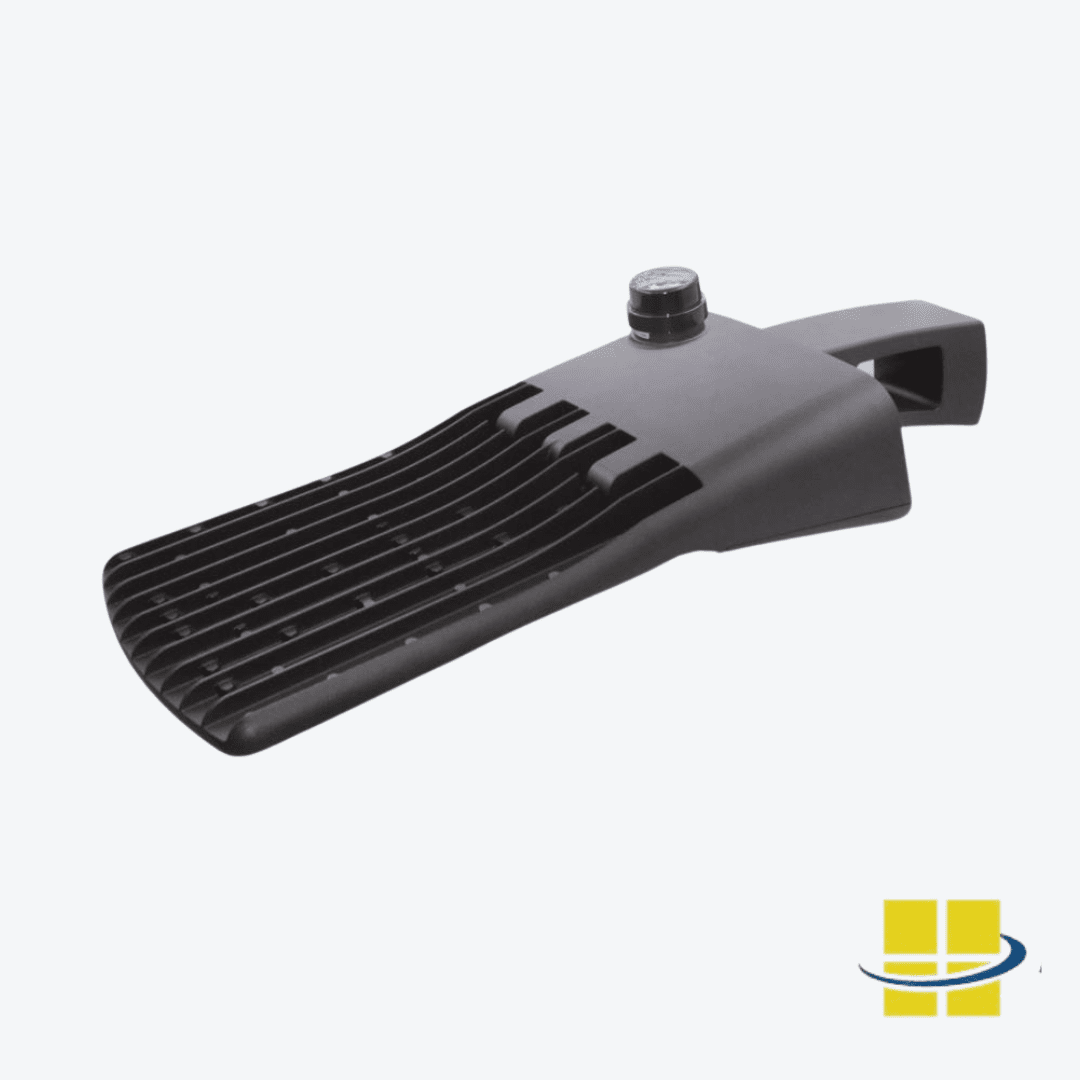

  • Photocell – Twist lock photocell with receptacle
  • Bi-level microwave control with occupancy sensor and daylight harvesting
  • Surge Protection – 4kV standard, 20kV optional

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year¬†warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures'¬†complete warranty policy.

CARO LED Area Light / LED Flood Light Photometric Analysis

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

CARO LED Area Light / LED Flood Light Orders and Questions

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
