Product Description

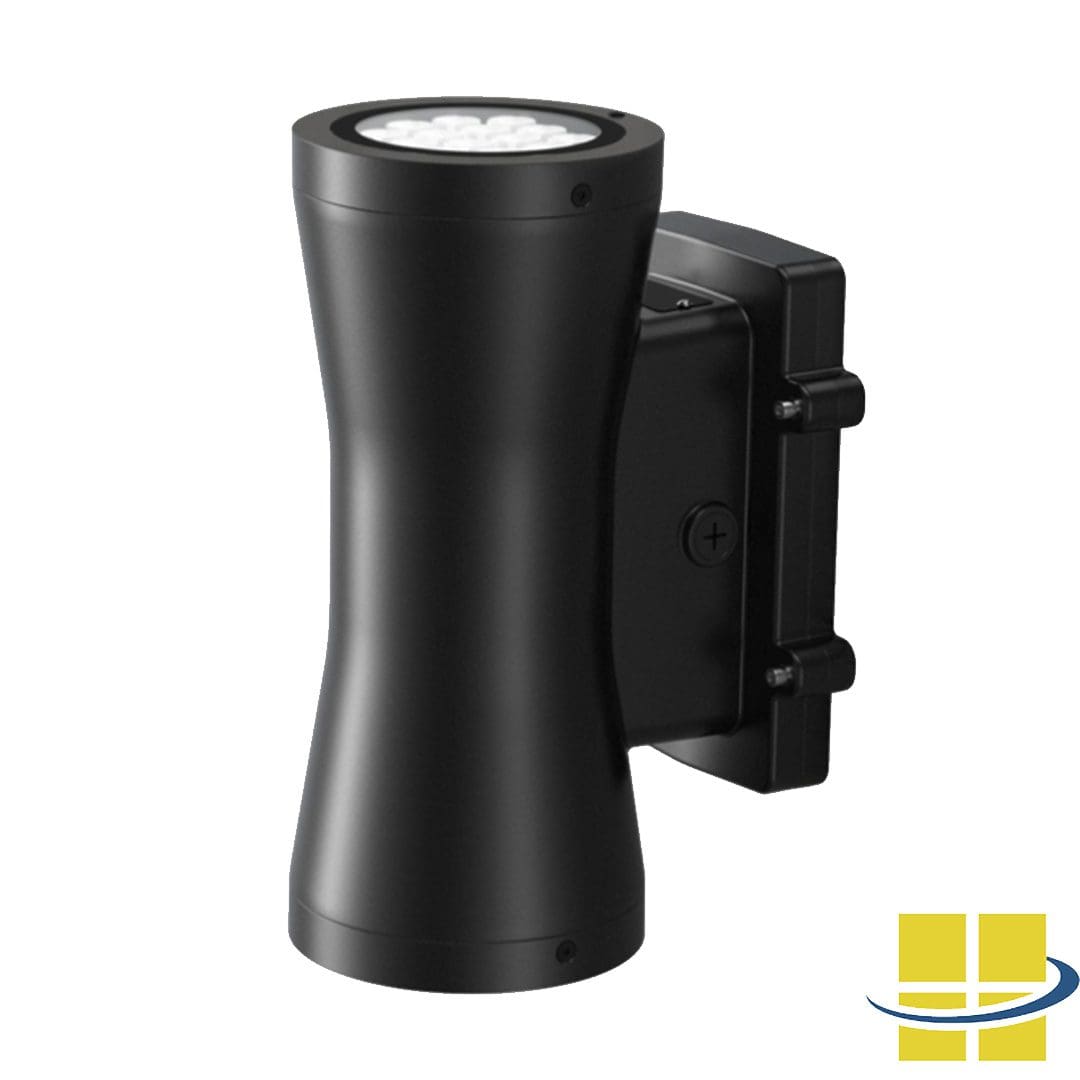

HAMO LED Wall Pack Features:

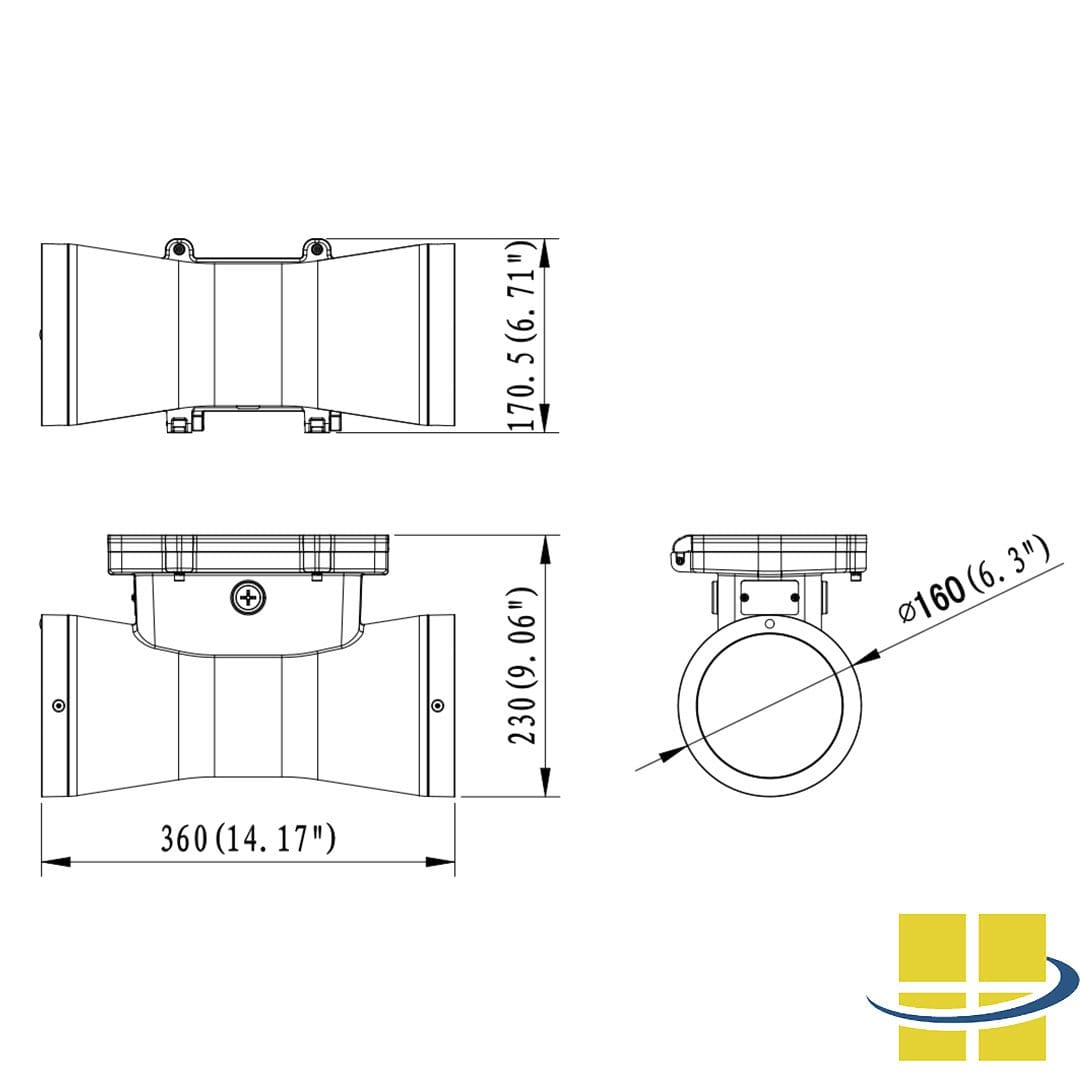

- 14.17″ x 9.06″ x 6.71″ inches
- 4.3lbs

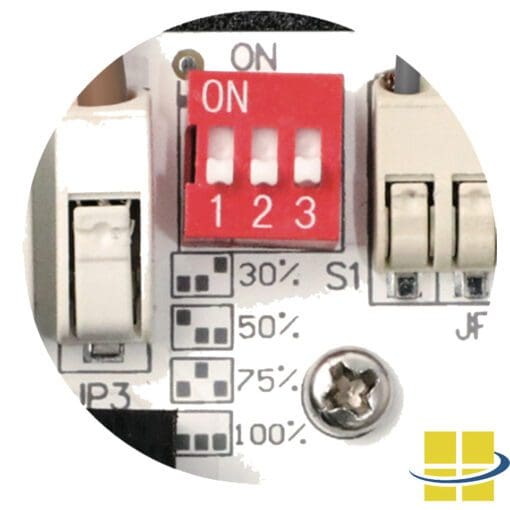

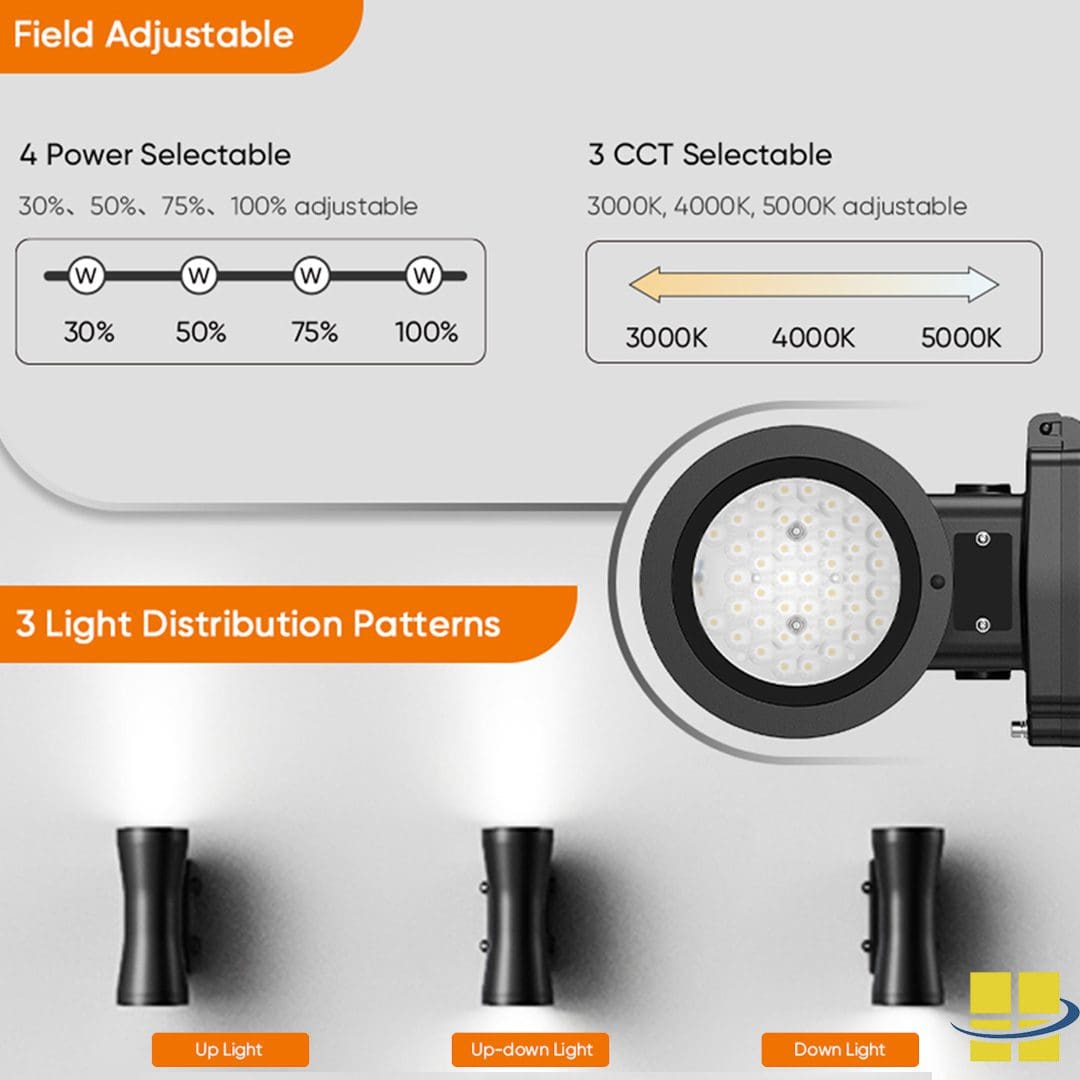

- Selectable Wattage
- 30%, 50%, 75%, 100% adjustable
- Selectable Kelvin
- Black finish [RAL 9017]

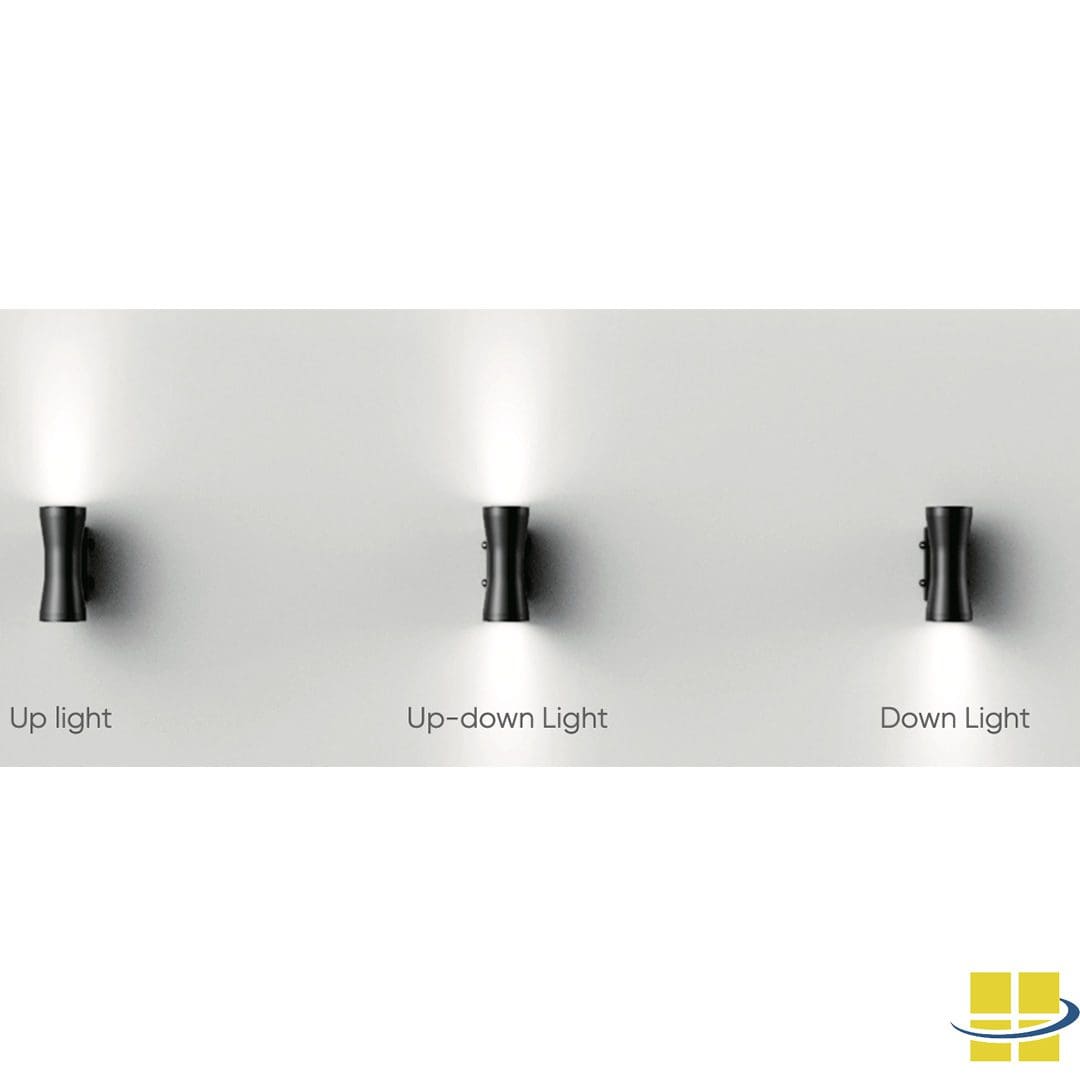

- 3 light distribution patterns
- Up light
- Up/Down light
- Down light
- Up Light power
- 30w (100% / 75% / 50% / 30% Selectable)
- Down Light power
- 30W (100% / 75% / 50% / 30% Selectable)

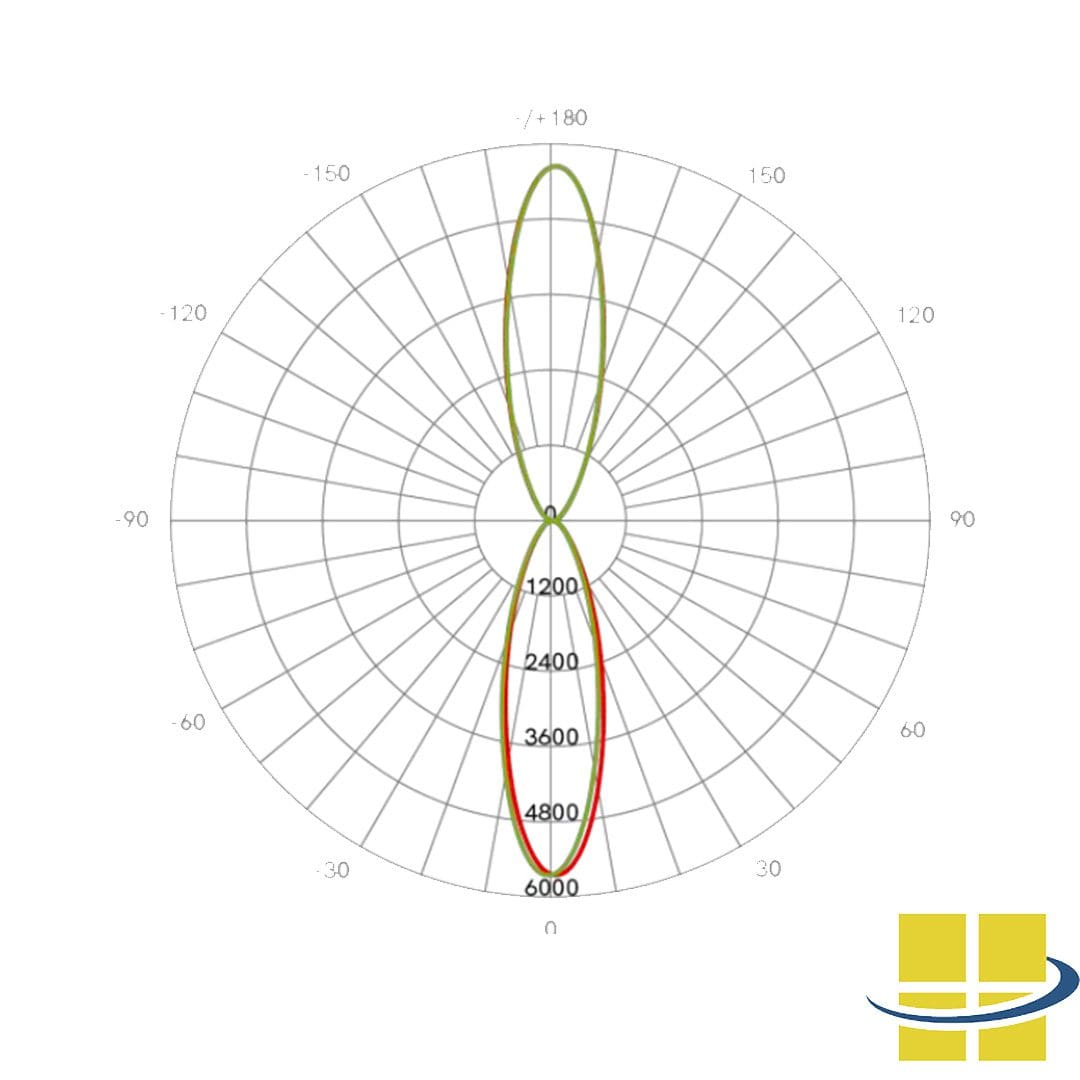

- 30° beam angle
- Power consumption +5%
- 60W(100%/ 75%/ 50% /30% Selectable)
- 120-247 VAC, 50/60 Hz
- 0-10v dimmable

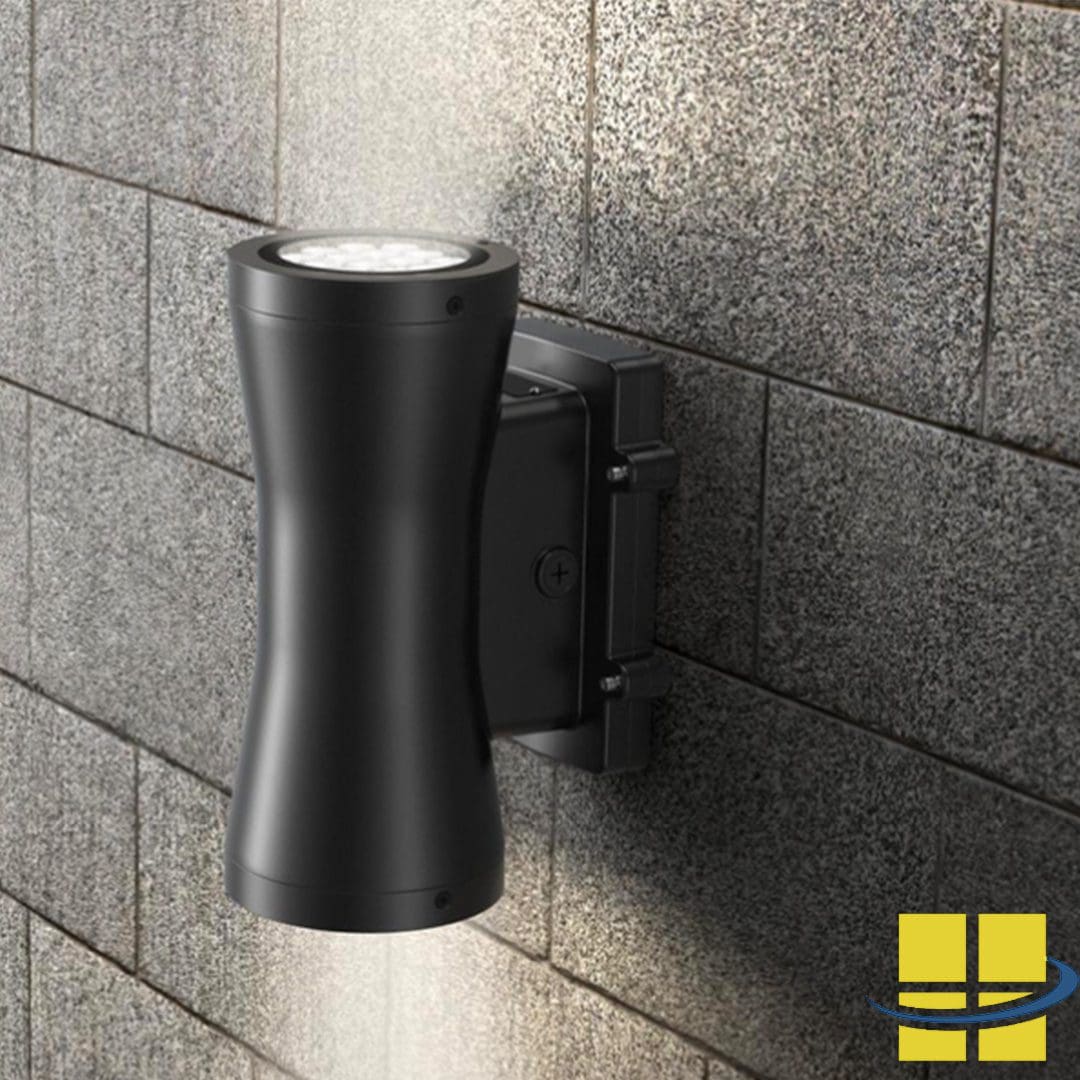

- Wall mounted

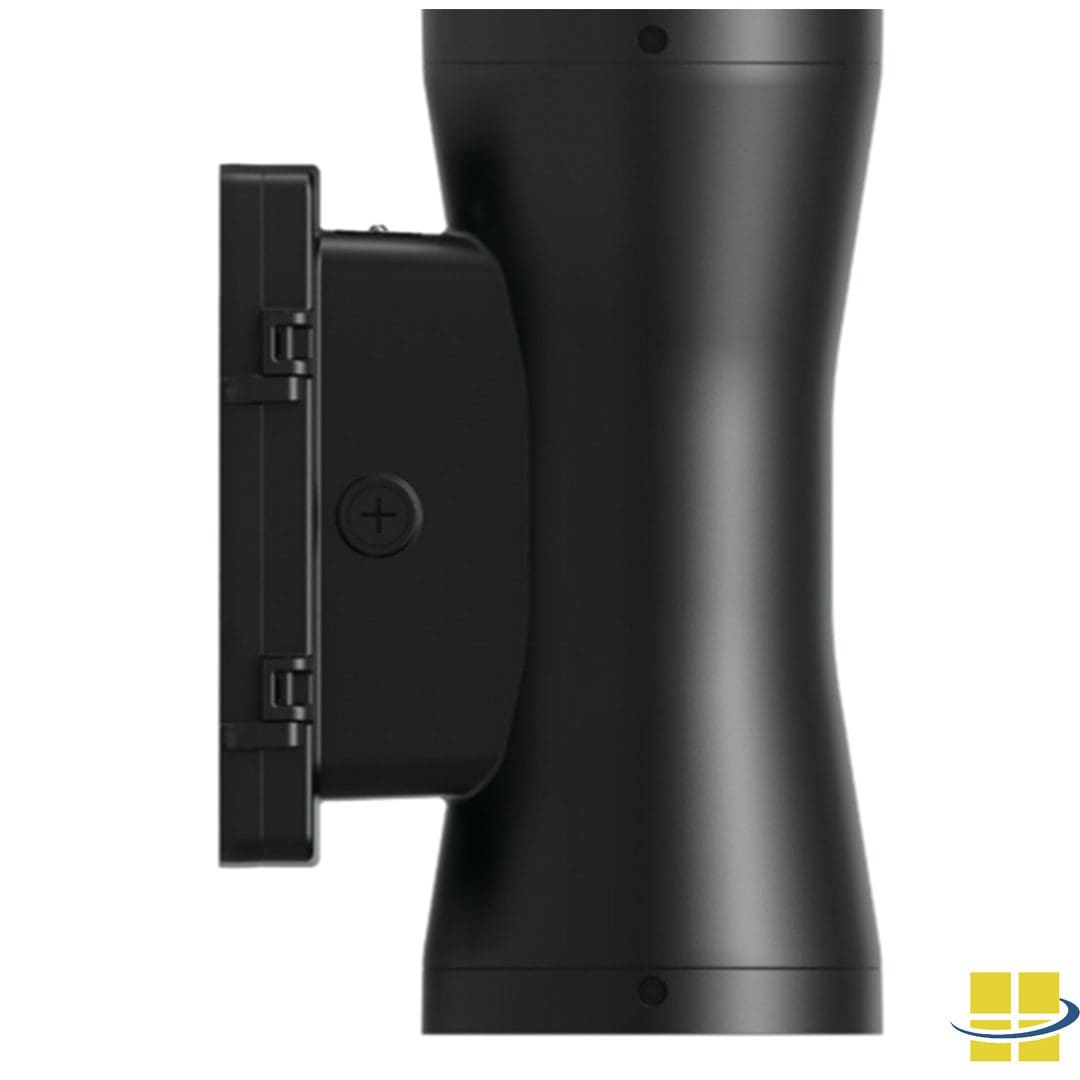

- Revolving shaft open/close structure

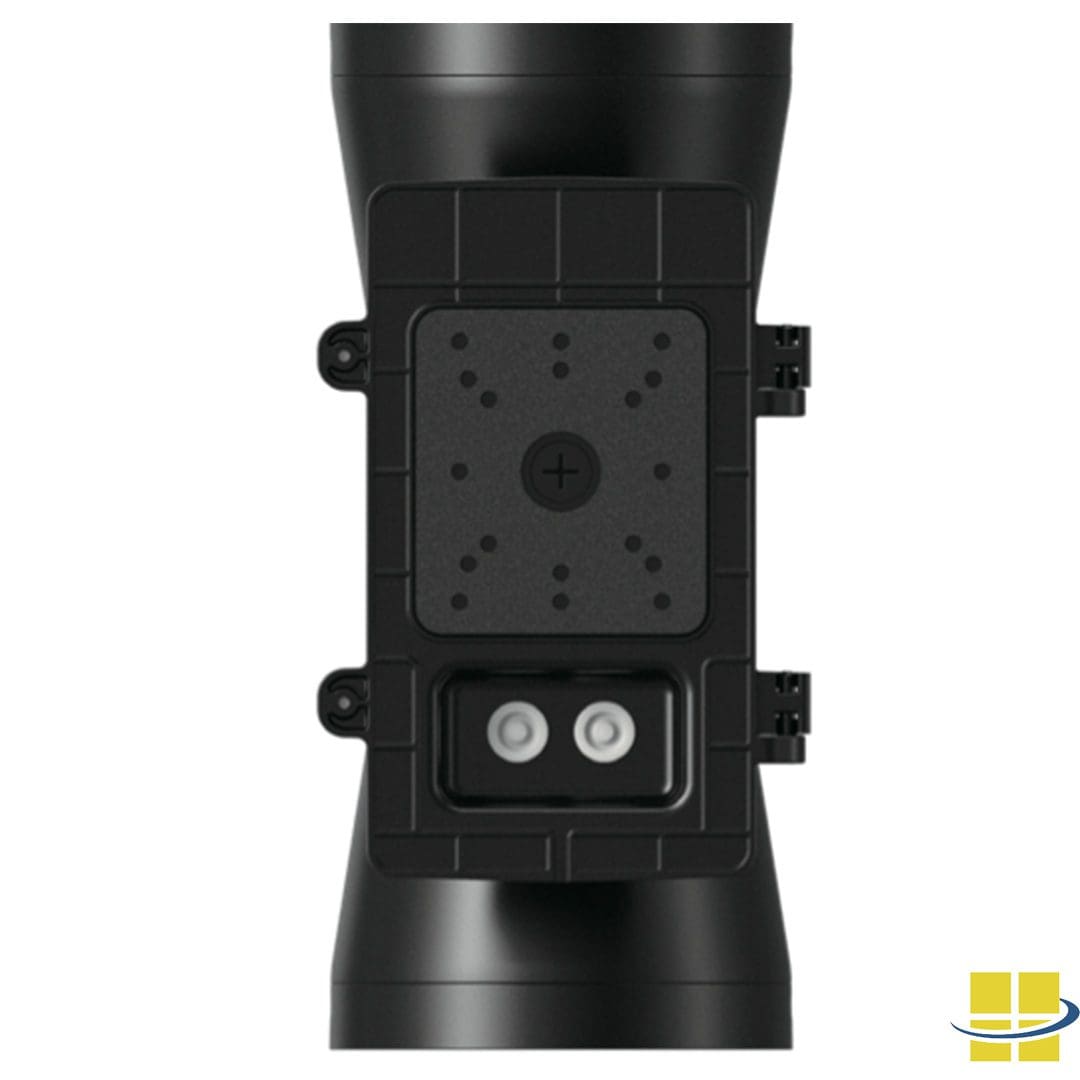

- The reserved hole provides installation possibilities from both sides or the back side directly
- Industrial robust powder-coated, die-cast aluminum alloy structure
- Protects the fixture from being easily vandalized

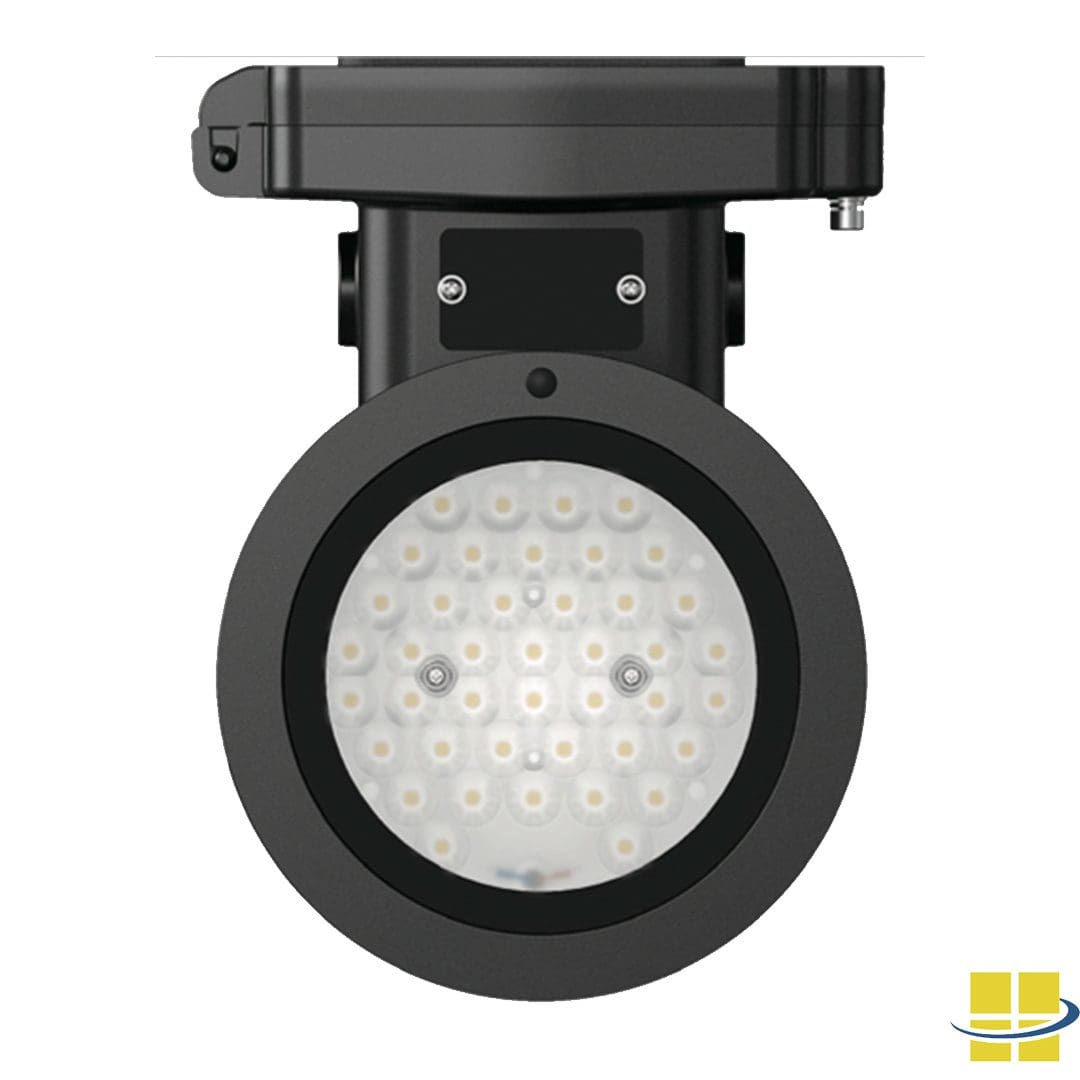

- PMMA lens
- Specially processed safety glass prevents dirt and water from accumulating
- Lumen output:
- EXTREME-LIFE: L70 @ 130,000 hours life span
- IP66 rated
- IK08
- 2KV line-line surge protection, 4KV line-earth surge protection
- CRI 80+
- -22°F to 122°F
- 5-year warranty
- 5-year Access Fixtures warranty
