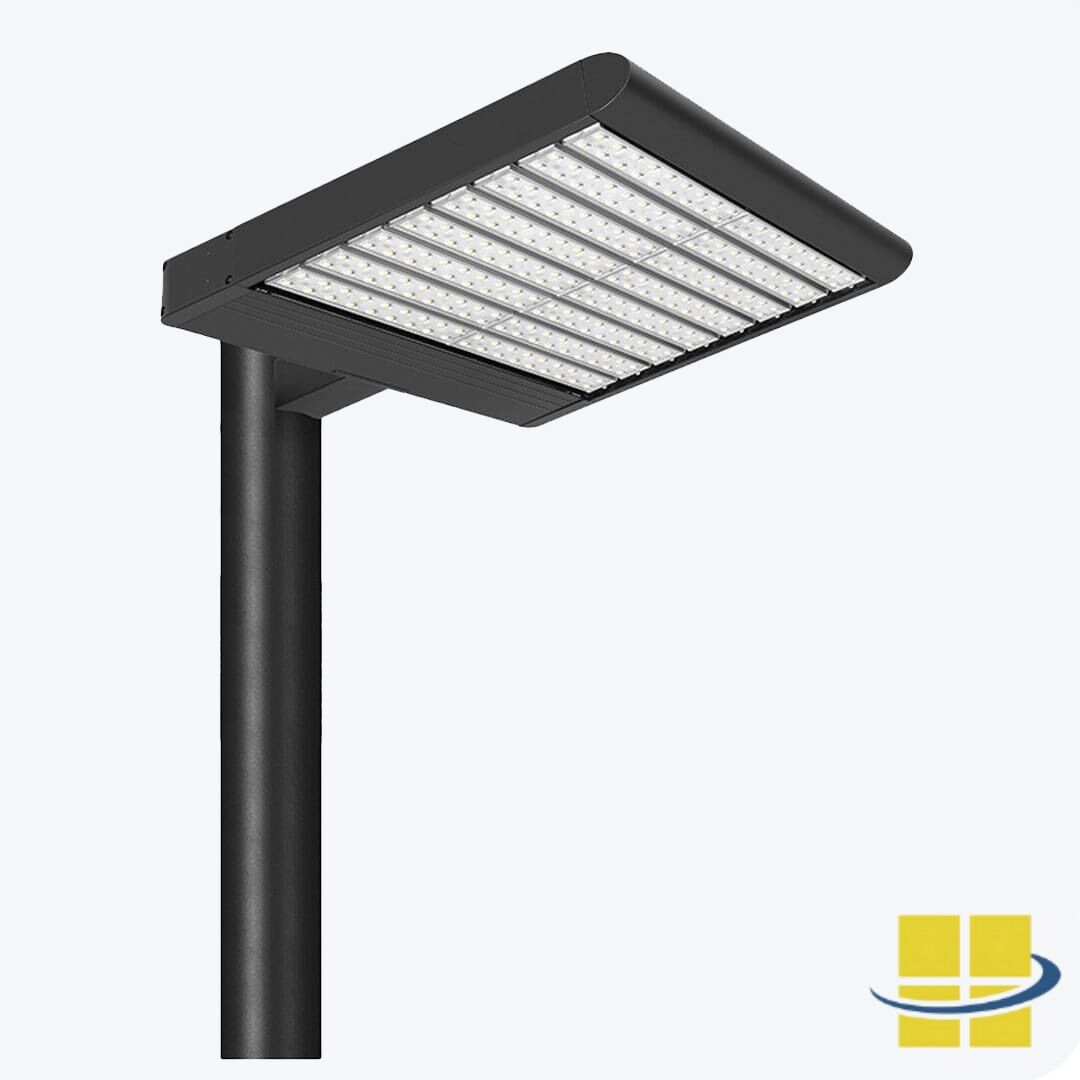

Recreational Tennis Court (3000K), 4 x 20’ Poles, 4 x APTA 480s, 24FC

$8,799.87

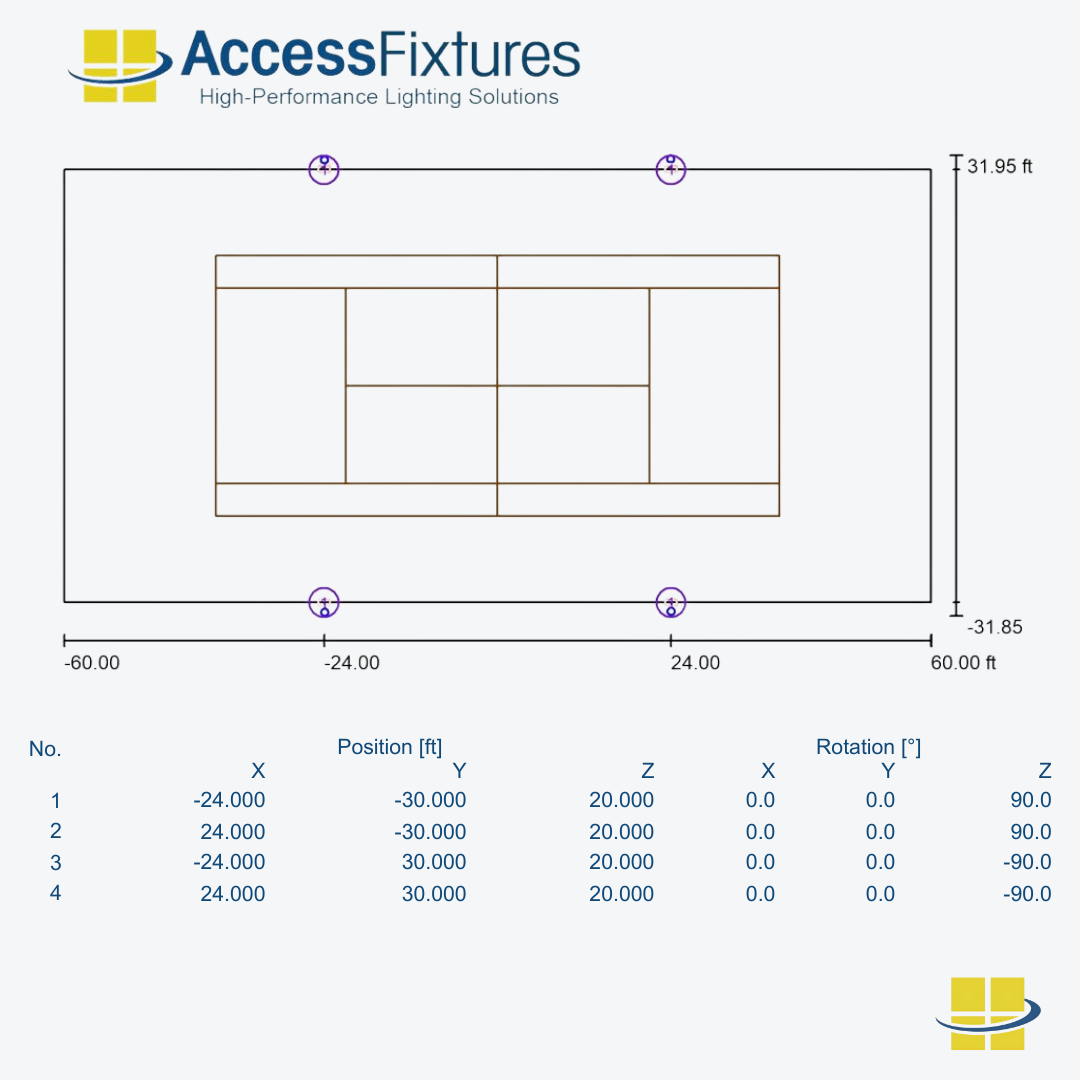

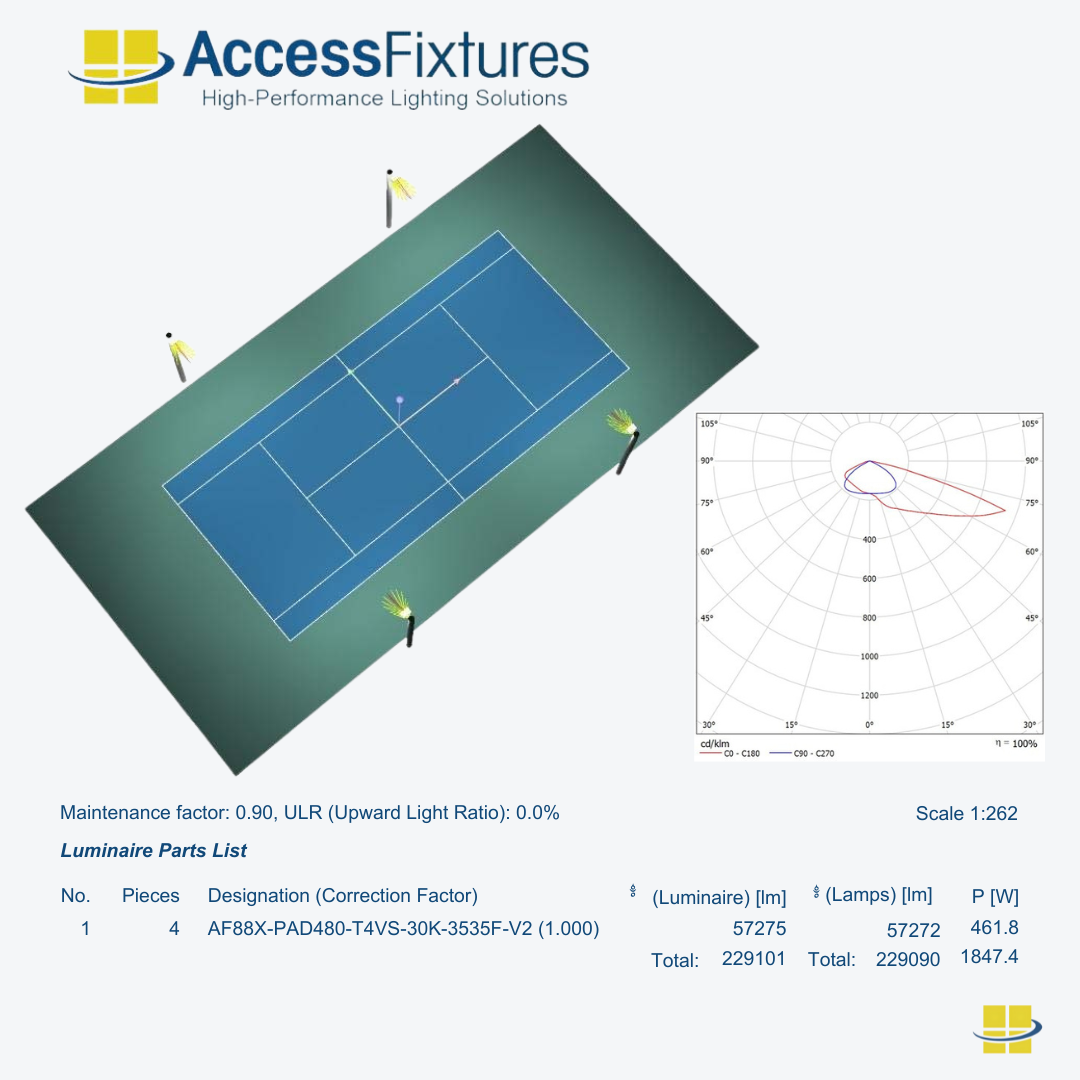

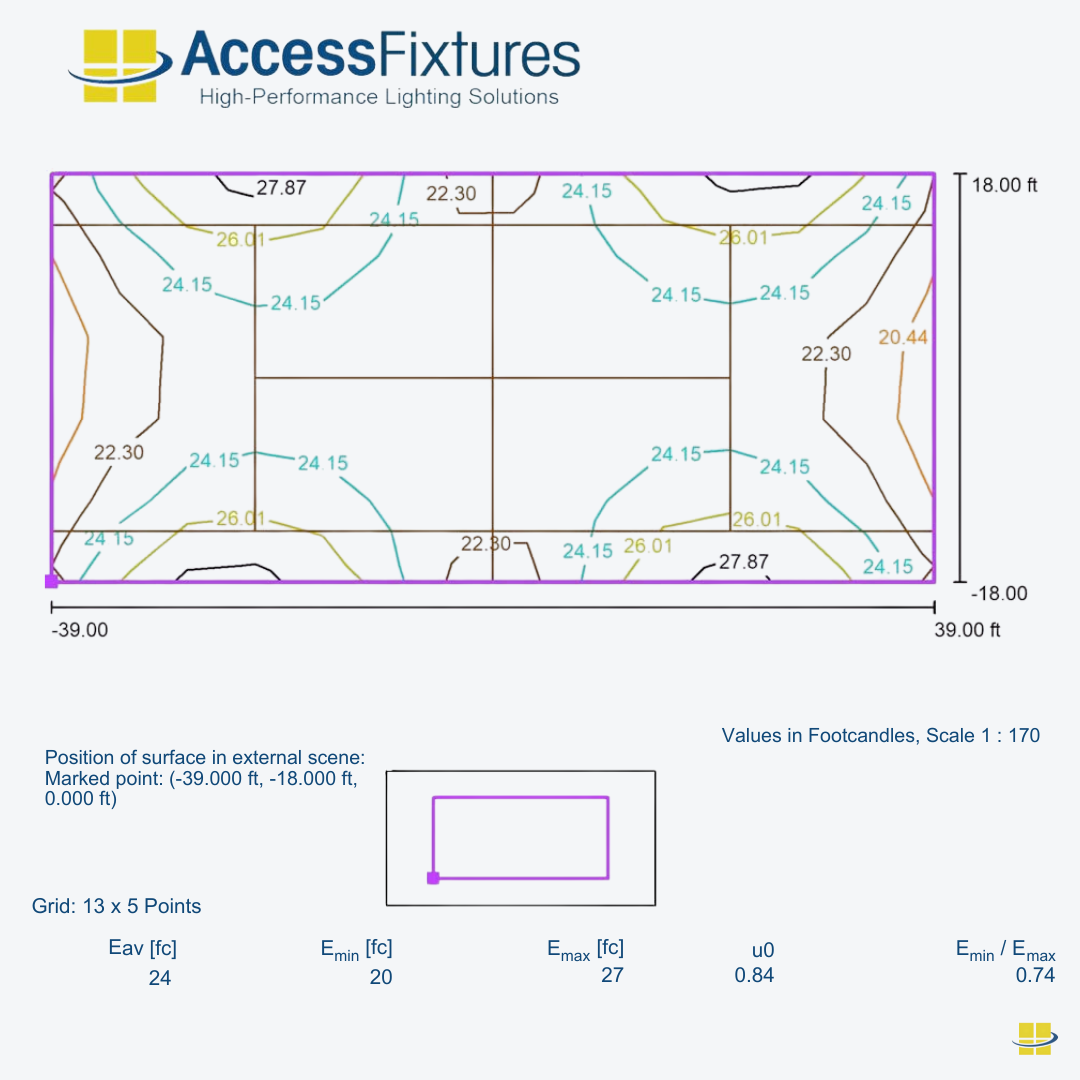

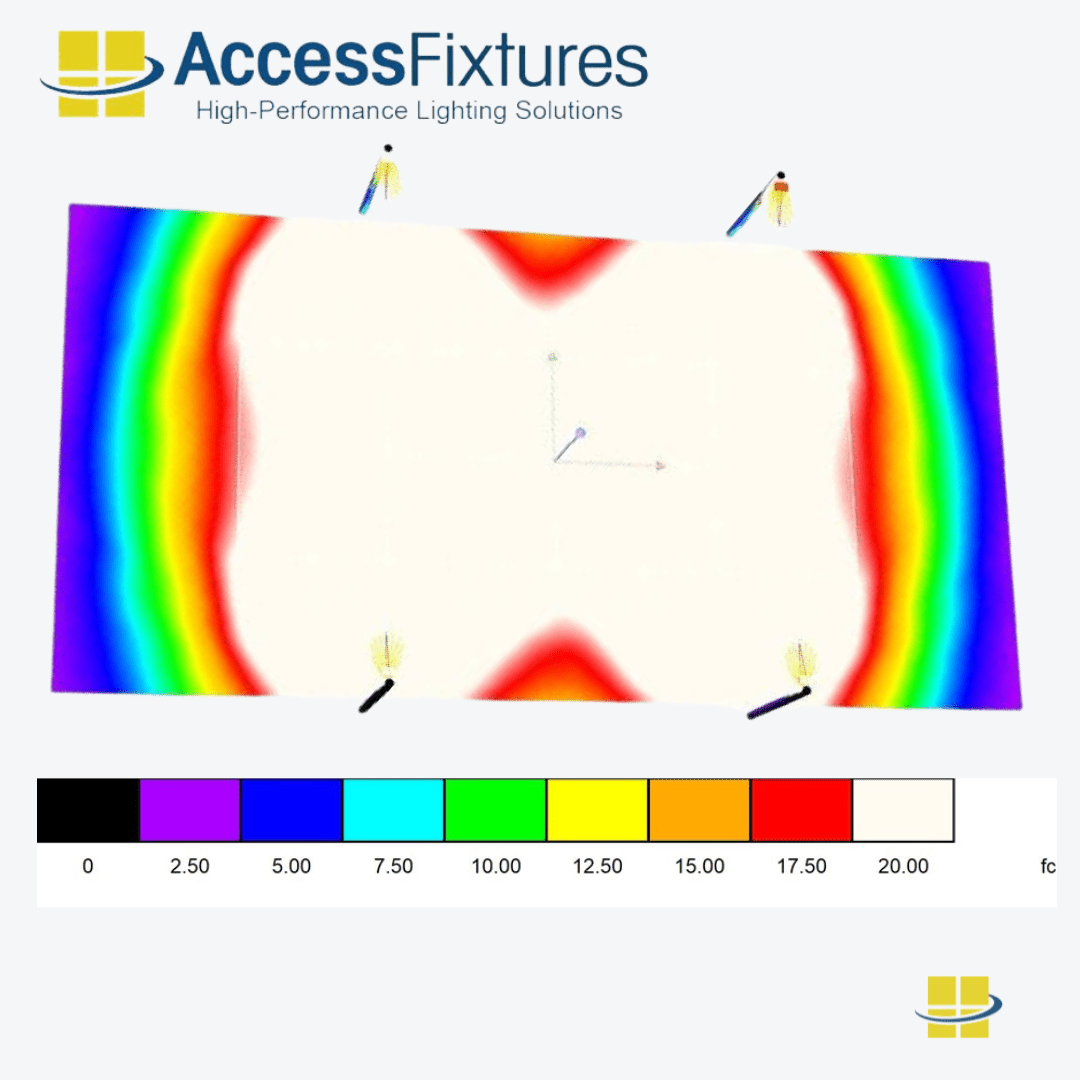

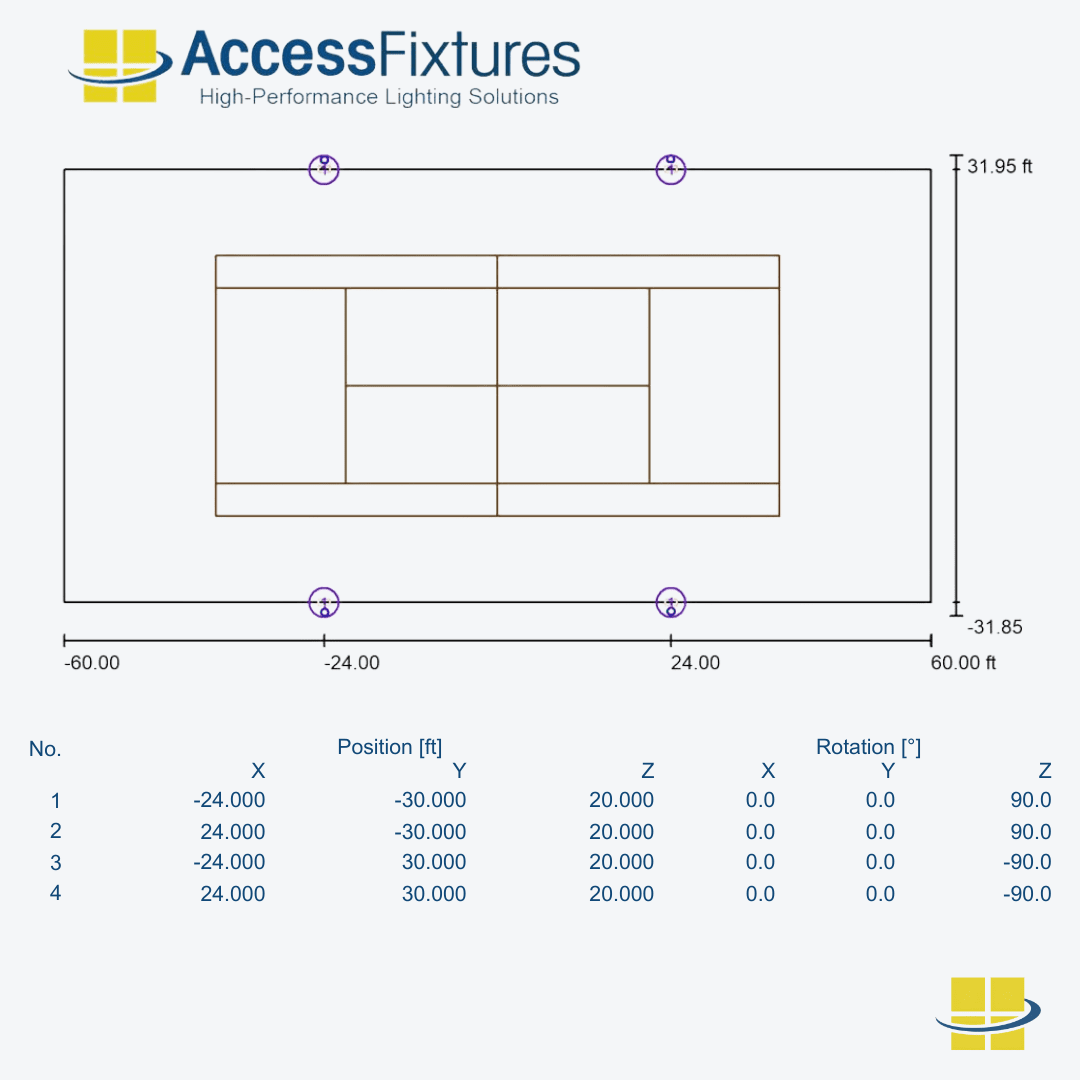

The Recreational Tennis Court (3000K) Package: 4 Fixtures, 24 Avg Fc, 1.35 Max/Min

Dark Sky Compliant: The meticulous full cutoff design of the APTA 480 is tailored to minimize upward light distribution, guaranteeing adherence to dark sky regulations in most locations when acquired in the 3000K variant.

Glare-Free Optics: This package features APTA  480 which has anti-glare technology for optimal visibility during games.

EXTREME-LIFE: The APTA 480 is L70 rated at over 200,000 hours for years of maintenance-free life.

In Stock

SKU: AF88XPAD480L-L-T4VS-70-30K + AF33XPSSS20411(4) Categories: ,

Specifications

Weight 100 lbs
Dimensions 30 × 30 × 30 in
Availability

3 to 4 Week Production, plus Shipping

Light Source

Housing

High-Grade Aluminum

Available Finishes

Black, Bronze, Gray

Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, RoHS, SAA

Rated Life

L70 @ up to 200,000 Hours

Sports Level of Play

Recreation

Product Family

APTA

Pole Height

20 Feet

Number of Poles

4

Number of Courts

1

Number of Fixtures

4

Average Footcandles

24

Max/Min Uniformity

1.35

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

Product Description

Recreational Tennis Court LED Lighting Package:

The following parts and materials are included in this package:

  • 4 x APTA 480 fixtures
  • 4 x 20′ poles
  • Anchor bolts
  • 4 3/8” tenon
  • Slipfitter mount (L mount)

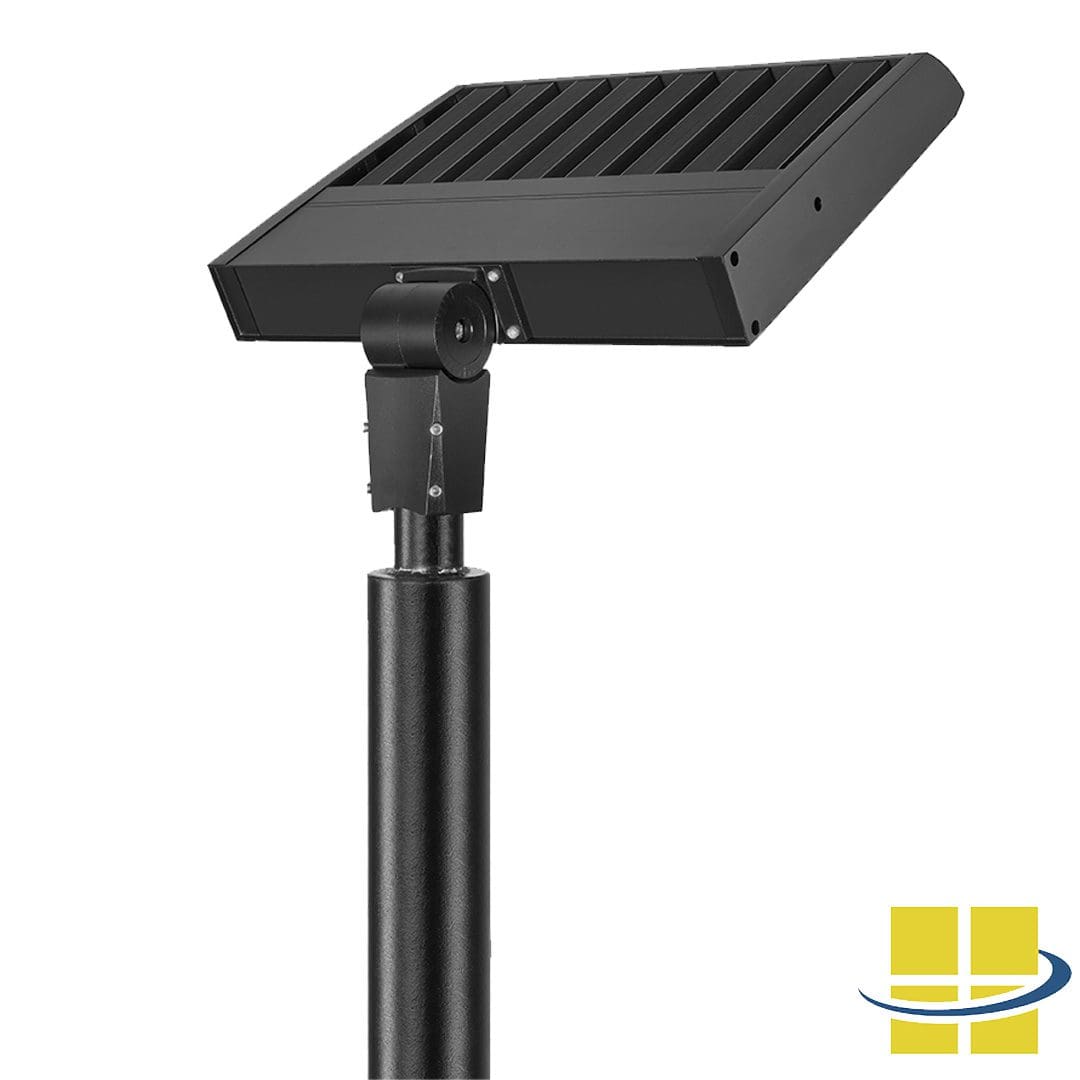

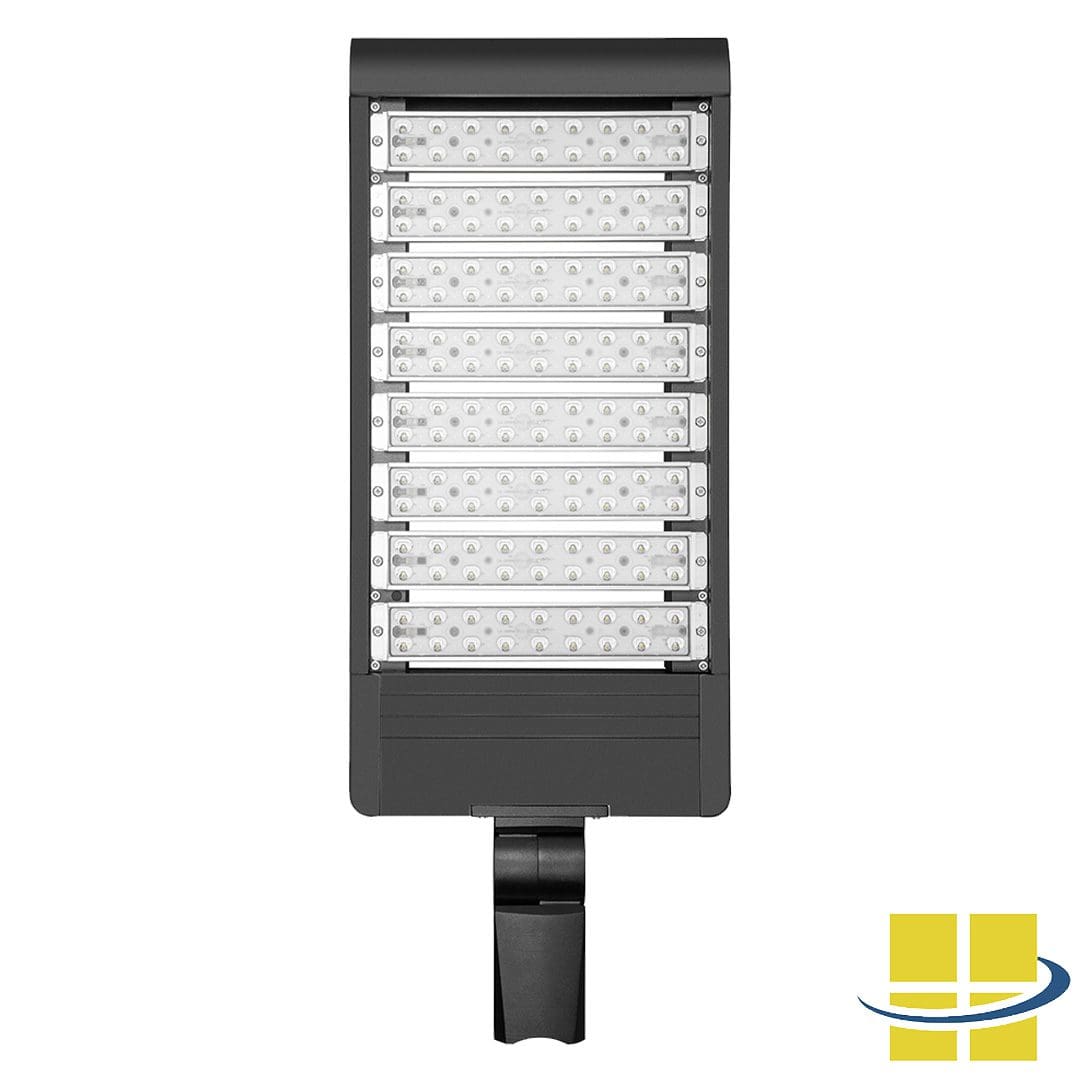

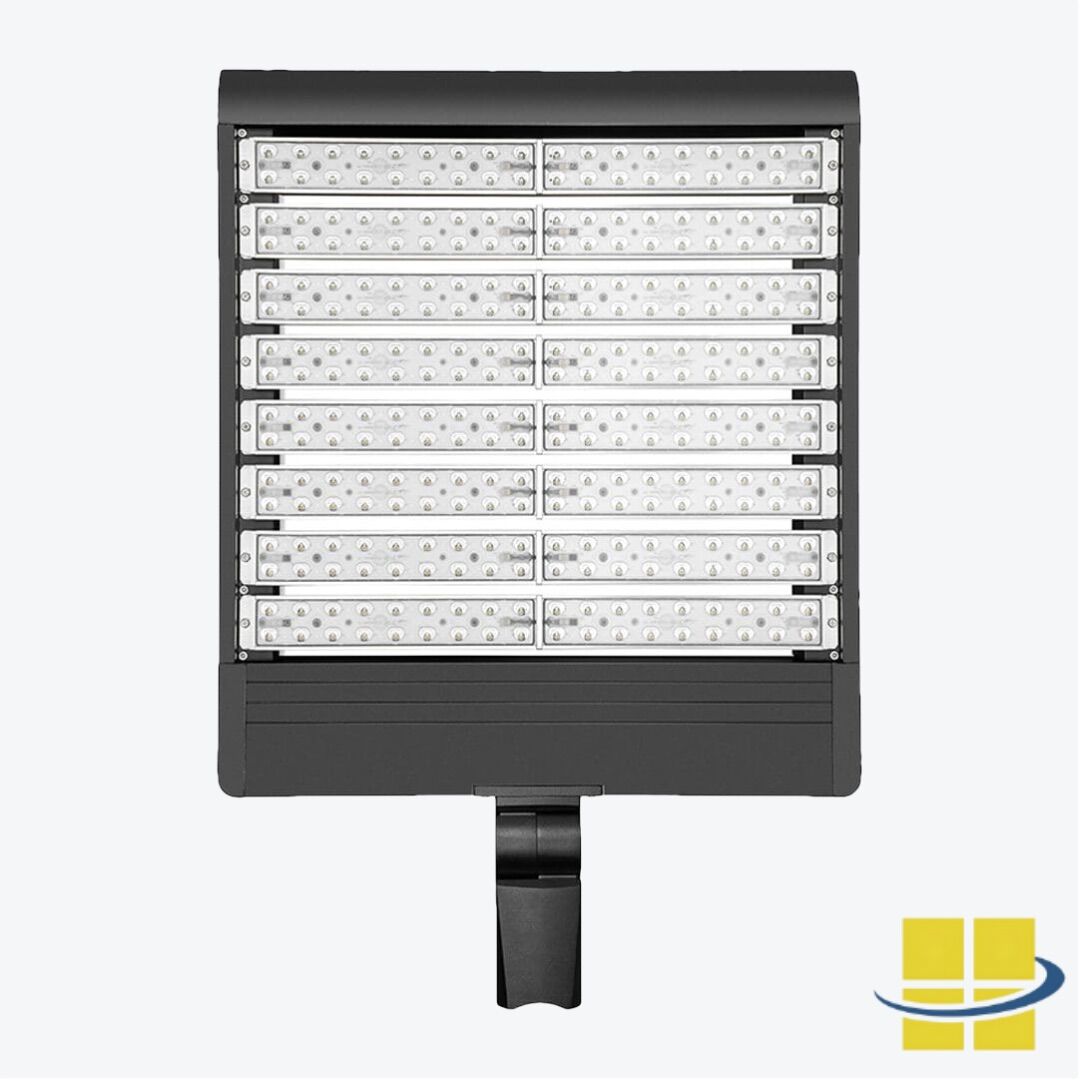

APTA 480 Features:

  • 24.91 lbs
  • 25.47L x 22.09W x 3.23H
  • 100-277VAC or 277-480VAC, 50/60Hz
  • Nominal power 40W-960W
  • Superior patented high-efficiency spill light control system
  • High light output, low weight
  • Low effective project area (EPA)
  • Provides superior quality anti-glare illumination to large-scale areas
  • Constructed with high-grade aluminum
  • 140 LPW
  • 67,200 lumens
  • 1050 mA
  • Ra70 standard, optional Ra80 or Ra90
  • <20% total harmonic distortion at full load
  • Imax 10KA surge protection standard
    • 20kv surge protection available at an additional cost
  • Exceptional heat sink design to ensure these fixtures will last, with a rating of L70 @ 200,000 hours of operation – making them virtually maintenance-free for a lifetime
  • T4VS optics
  • Black or Gray color options
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA, ENEC, TUV rated

APTA 480 Options:

  • 1-10v dimming
  • L Mount (Slipfitter mount)
  • Optional remote LED drivers
  • 10v PWM control
  • DALI control
  • DMX control
  • Photocell 3PIN, photocell 7PIN, Photocell MINI
  • Spill Control
  • Bird spikes
  • Optics rotated left
  • Optics rotated right
  • Emergency power supply
  • Backlight shield
  • Ra80 or Ra90 optional

Optional Pole Features:

  • Round tapered steel poles built from high-strength steel tube
  • Confirms to ASTM-A-500 Grade B: Minimum strength of 46,000 PSI
  • Wall thickness: 11 gauge (.120″)
  • Textured architectural bronze or black powder coat finish
    • Baked to ensure maximum paint adhesion, hardness, and durability
  • Anchor bolts included
  • Cast iron reinforced hand hole and cover with ground screw
  • Poles are provided with a two-piece formed steel base cover
    • Easily assembled and fitted over pole base
  • Pole height: 20′
  • Standard length poles include side drilled 2@180°
  • UV-Stabilized polycarbonate top cover and hole plugs for unused drilling locations
  • Taper Rate=0.14″/FT
  • Side Drills: 2 at 180°
  • Base plate anchor bolt circle: 9″-11″ (229-279mm)
  • Base size: 10″
  • Base thickness: 3/4″
  • Bold projection: 4″
  • Anchor bolt size: M20 x 27.5″
  • Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.
  • 2 ⅜” x 4″ Tenon or 2 ⅜” x 3″ Tenon

All poles come with templates and necessary mounting hardware.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

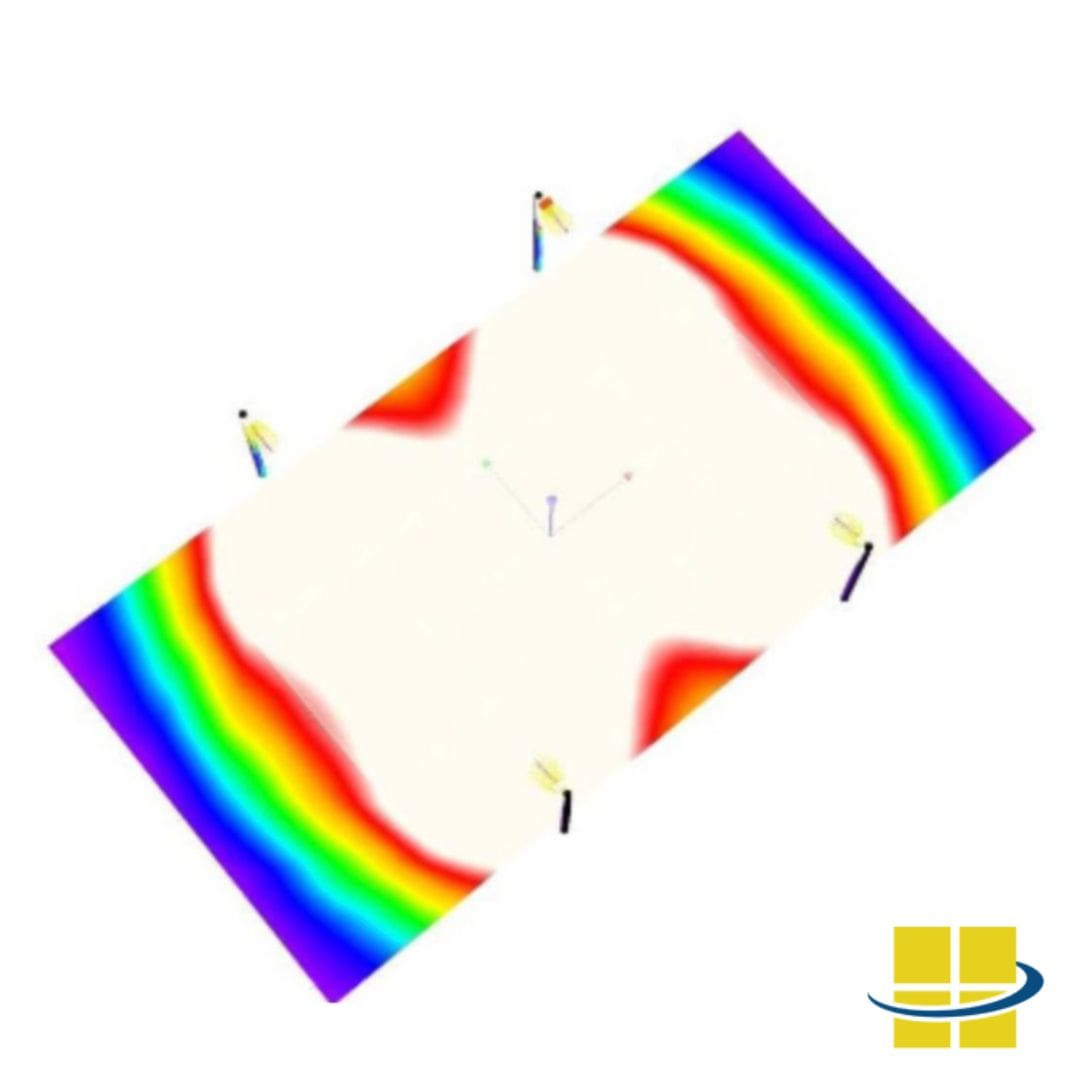

Need a Photometric Analysis for Your Recreational Tennis Court (3000K), 4 x 20’ Poles, 4 x APTA 480s, 24FC, 1.35 max/min Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order Recreational Tennis Court (3000K), 4 x 20’ Poles, 4 x APTA 480s, 24FC, 1.35 max/min, or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
