Pickleball Court Lighting, 2 20′ Poles on Court Ends, 32fc

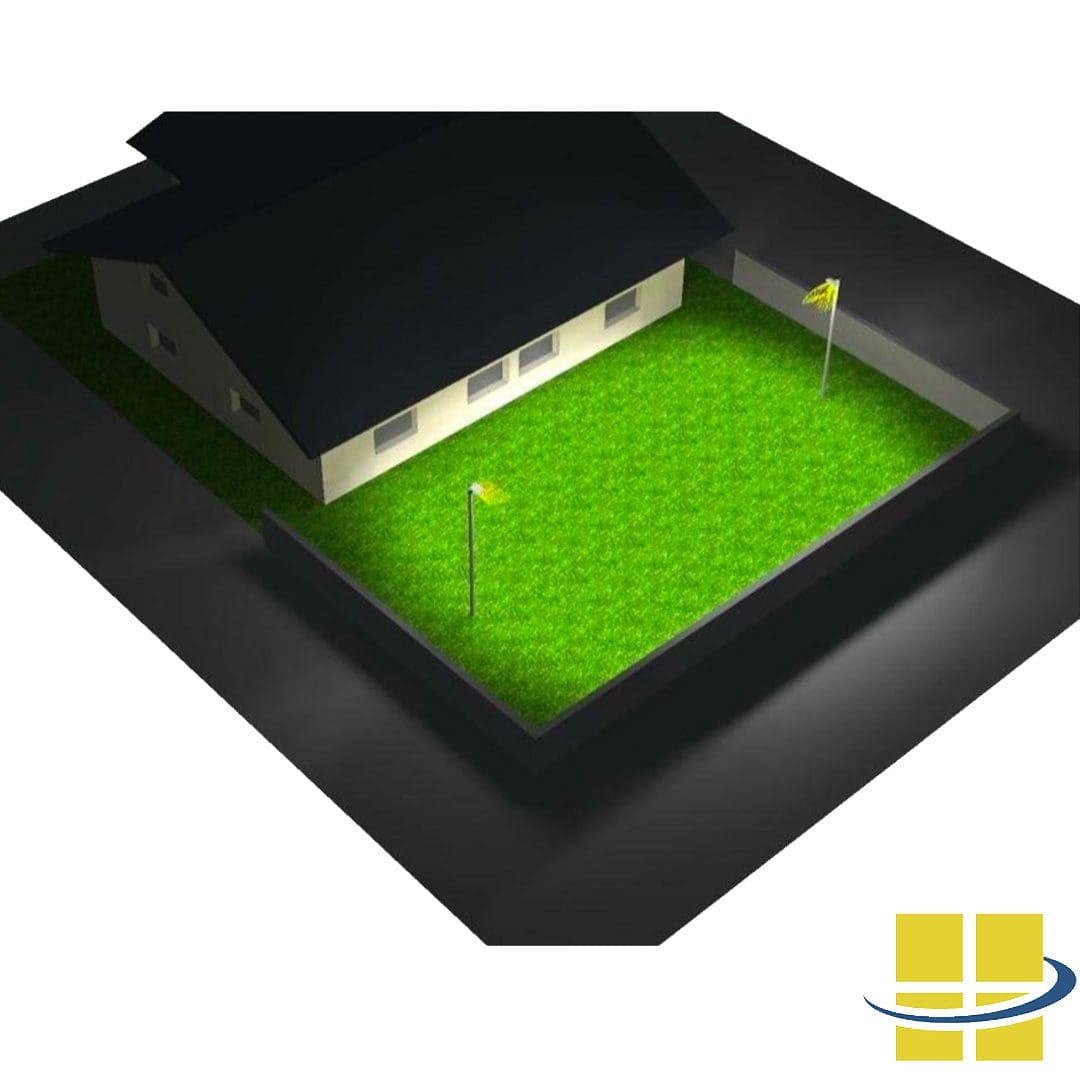

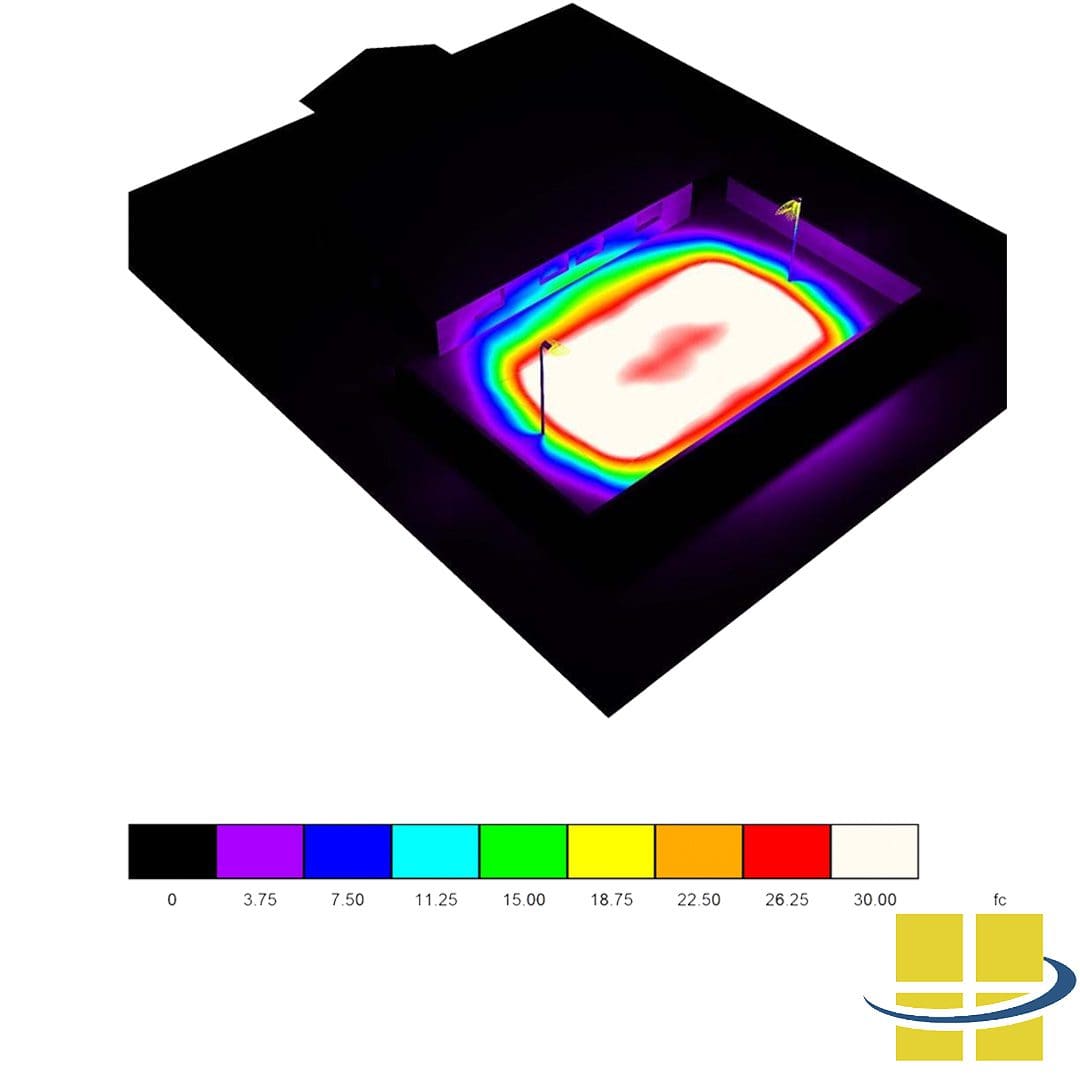

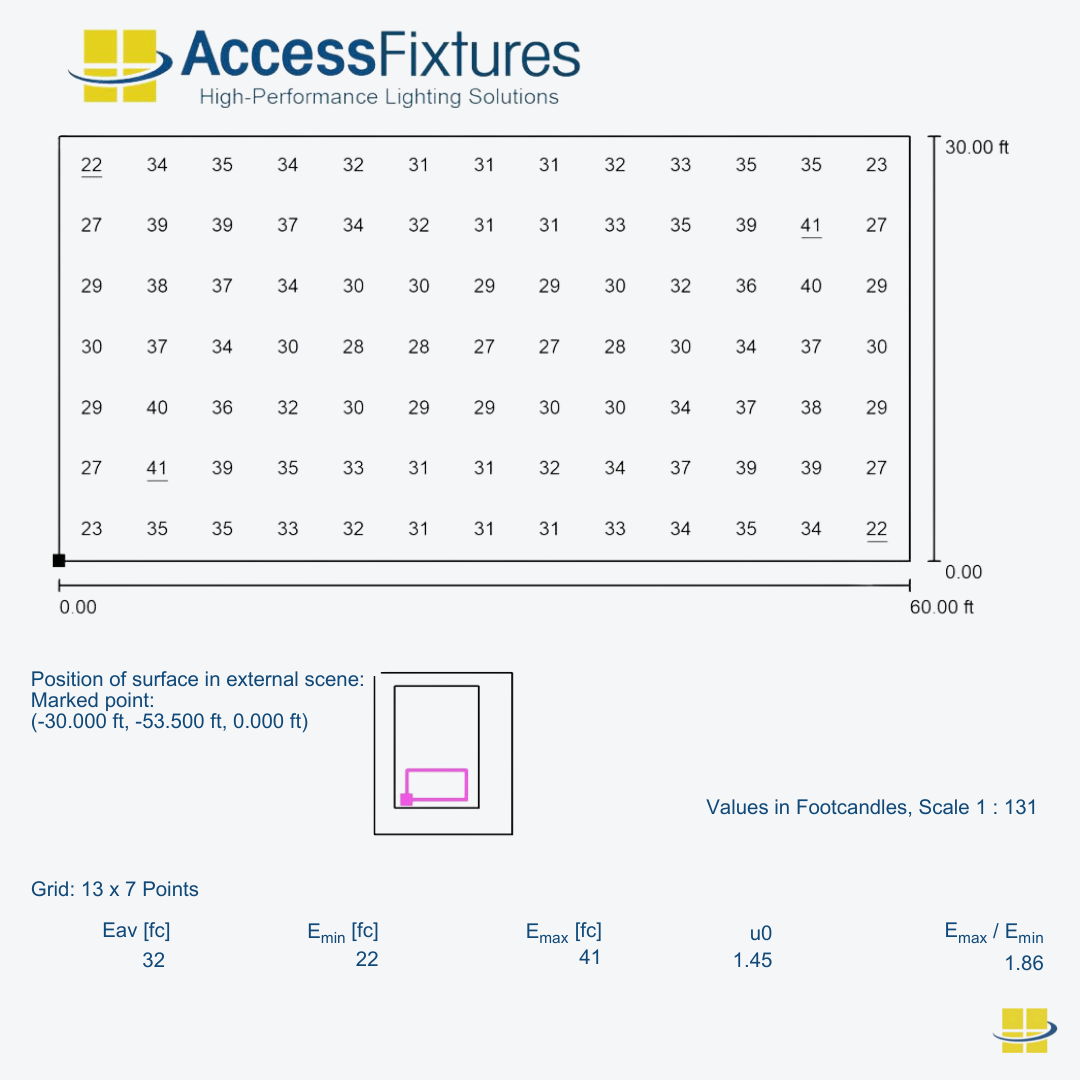

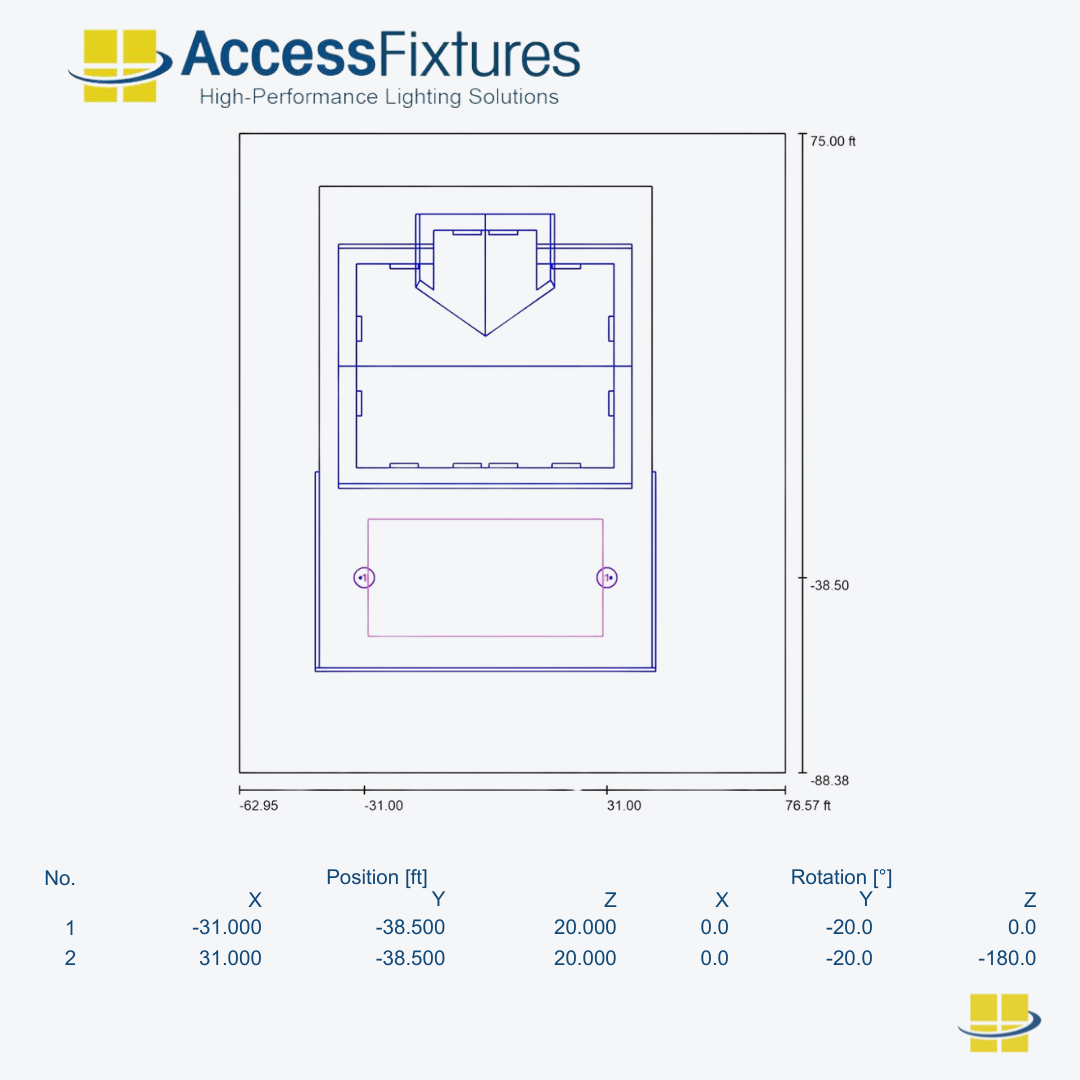

This Access Fixtures pickleball court lighting package features 2 x 20′ poles on court ends and 2 x APTA 480 LED light fixtures. This package uses only 900 watts of energy to deliver 32 footcandles of light with a low 1.86 max/min ratio. That exceeds all USA Pickleball Association lighting standards. Having your poles located at either end of your pickleball court means the lights do not interrupt the view from your house, deck, or patio. The LED lights are full cutoff lights, meaning up-light is minimized while sports lighting is maximized. When equipped with 3000K LEDs this pickleball lighting package also meets most Dark Sky compliance requirements. Check your local lighting ordinances to confirm compliance. APTAs are available with optional backlight shields and optional ¾ baffles to minimize light trespass.

EXTREME-LIFE: APTA 480s have an exceptional heat sink design that produces an EXTREME-LIFE rating of L70 @ 200,000 hours for decades of virtually maintenance-free performance.

Maximum Durability: APTAs are rated IP66 waterproof, rated IK10 for impact resistance, are vibration resistant, have 10ka surge protection, and have a 5000-hour rated marine-grade finish.

Low Weight and EPA: APTAs are relatively lightweight and have a very low EPA (Effective Projected Area), which reduces pole requirements in windy hurricane-prone areas.

In Stock

  • Black, Gray, Bronze, White and Green are standard colors. Custom RAL finishes are available at an up-charge with a minimum order quantity (MOQ).
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Large facilities may have birds living inside the building. Installing bird spikes on area/spot/flood lights stops the birds from nesting on the lights.
  • APTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Do you need the APTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
  • Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Select from this option and we will ship your anchor bolts and mounting hardware right away.

SKU: AF88XPAD480L-L/T-S + AF33XPSSS20411 Categories: , Tags: , ,


Weight 100 lbs
Dimensions 30 × 30 × 30 in
Light Source


Typically ships in 6-8 weeks.

Available Finishes

Green [RAL6005], Black, Bronze, Gray, White


Electronic 50/60 Hz


High-Grade Aluminum

Landing Page Attribute (LPA)

Sports Package


IK10, IP66, CE, CuL Listed, DLC Listed, ENEC, RoHS, SAA, UL Listed



Product Family


Rated Life

L70 @ up to 200,000 Hours

Sports Level of Play


Pole Height

20 Feet

Number of Fixtures


Number of Poles


Total Lamp Watts



5-Year Limited Warranty

Number of Courts


Average Footcandles


Max/Min Uniformity



120v, 208v, 240v, 277v, 347v, 480v

Product Description

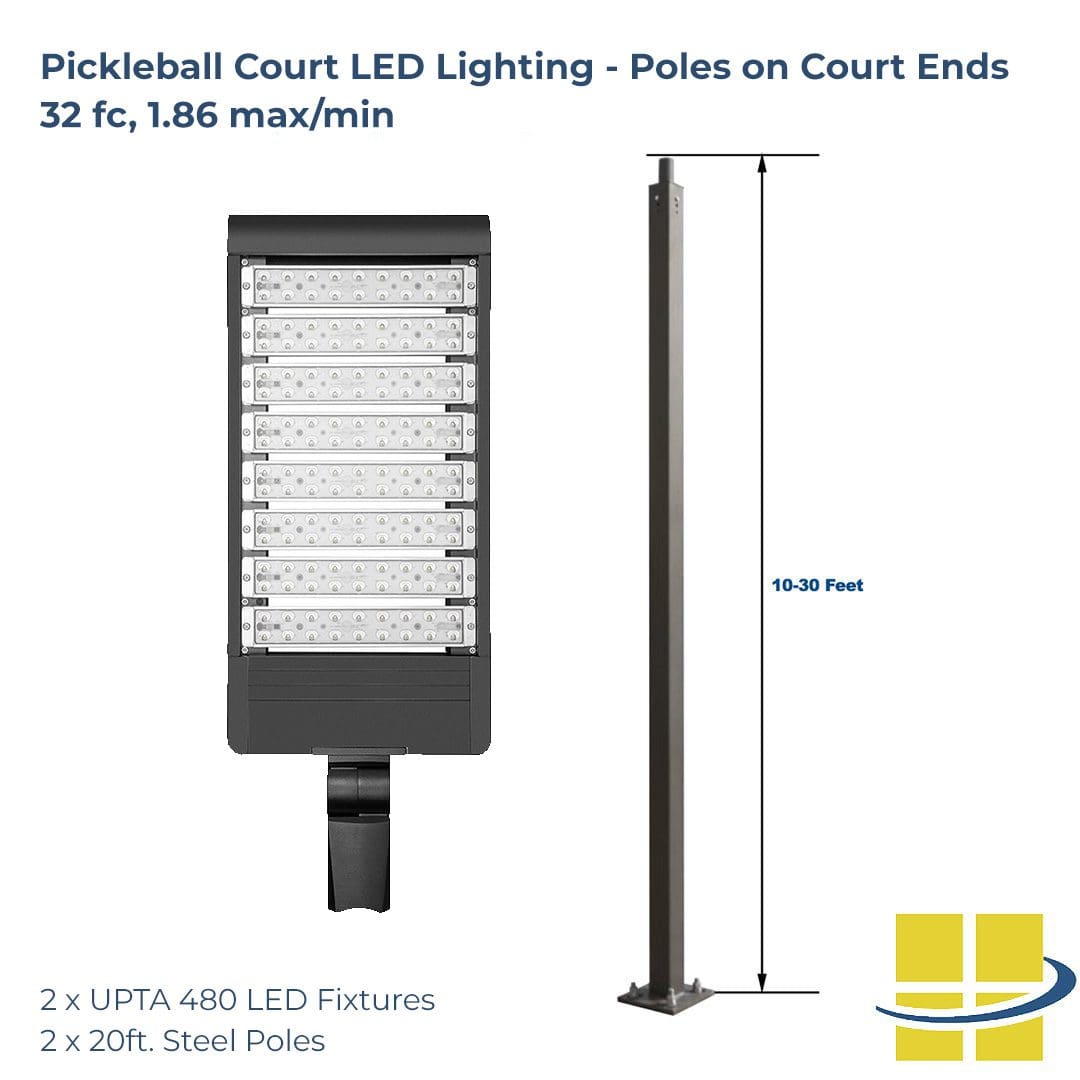

Pickleball Court LED Lighting Package:

The following parts and materials are included in this package:

  • 2 x UPTA 480 fixtures
  • 2 x poles
    • located at the ends of the court so the poles and lights do not interrupt the view from the house
  • Anchor bolts
  • 2 3/8” tenon
  • Slip fitter mount

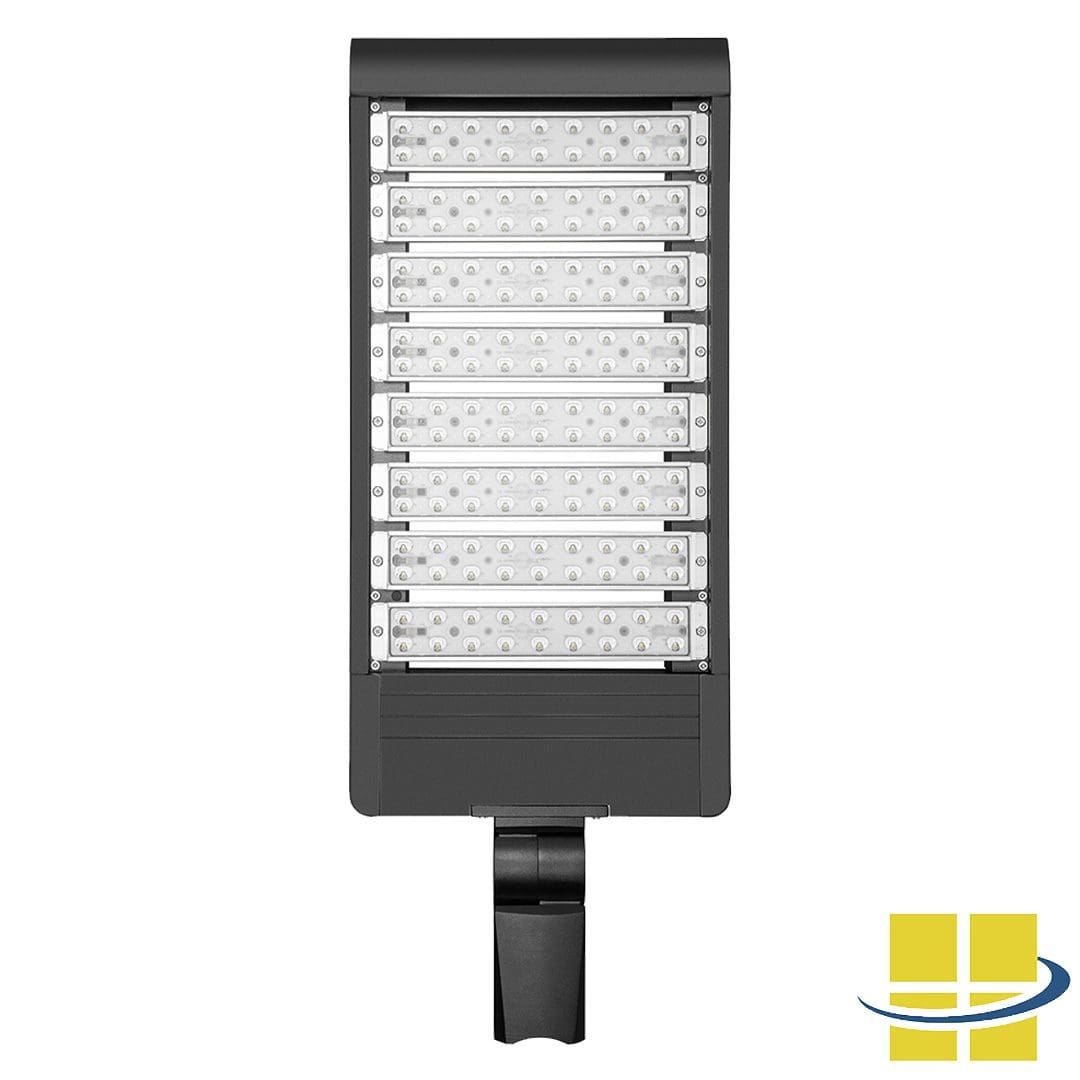

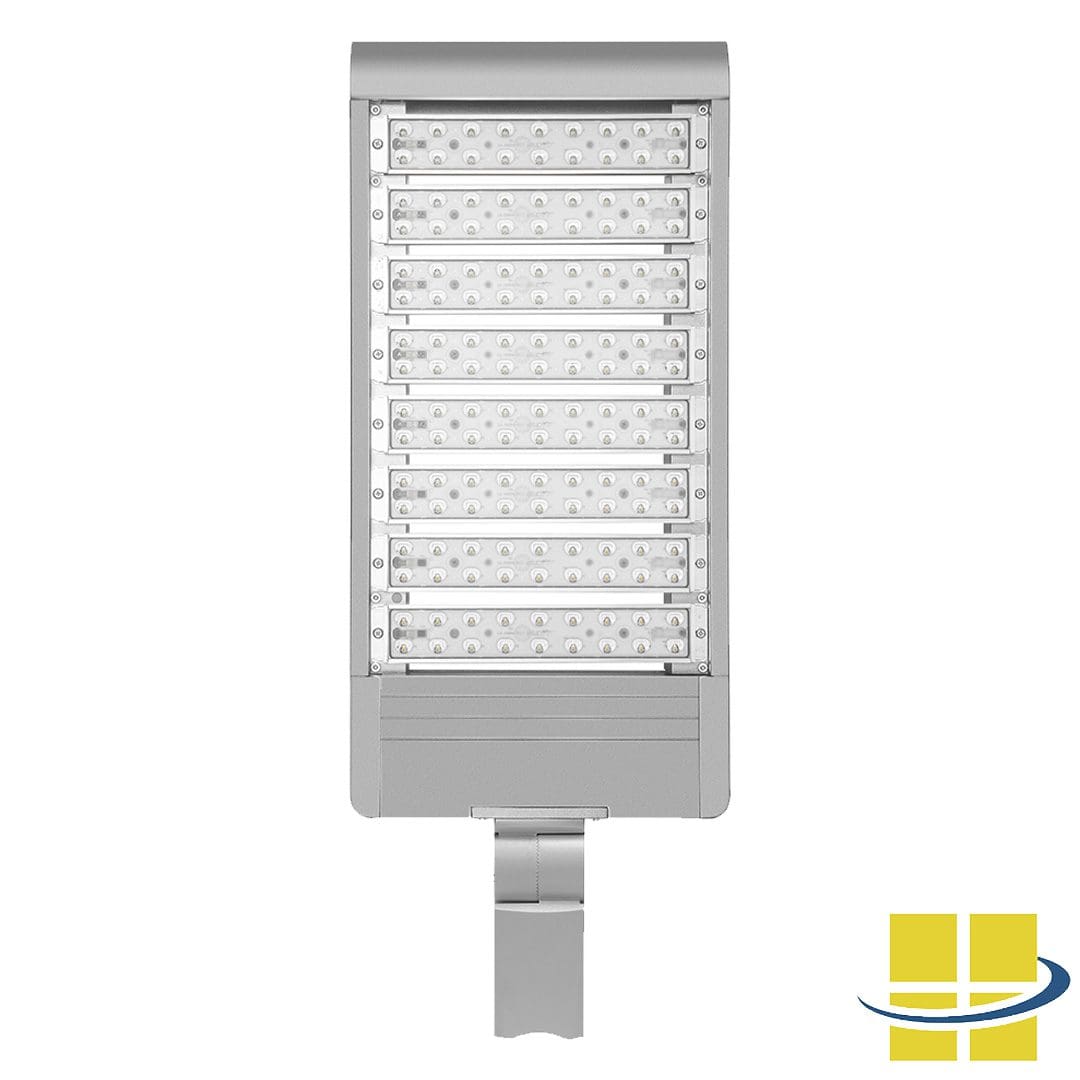

APTA 480w LED Sport Light Features:

    • 24.91 lbs
    • 25.47L x 22.09W x 3.23H
    • 100-277VAC or 277-480VAC, 50/60Hz
    • Nominal power 40W-960W
    • Superior patented high-efficiency spill light control system
    • High light output, low weight
    • Low effective project area (EPA)
    • Provides superior quality anti-glare illumination to large-scale areas
    • Constructed with high-grade aluminum
    • 67,200 lumens
    • 1050 mA
    • Ra70 standard, optional Ra80 or Ra90
    • <20% total harmonic distortion at full load
    • Imax 10KA surge protection
    • Exceptional heat sink design to ensure these fixtures will last, with a rating of L70 @ 200,000 hours of operation – making them virtually maintenance-free for a lifetime
    • T2S, T2M, T3S, T3M, T4VVSB, T4VS, T4VSB, T4S, T4SB, T4M, T4MB, T5M, T5W, T10D, T20D, T40D, T60D, T90D optics
    • Black or Gray color options
    • L70 @ 200,000 hours
    • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA, ENEC, TUV rated

    APTA 480w LED Pickleball Court Light Options:

    • 2200K, 3000K
    • 1-10v dimming
    • L Mount (Slip fitter mount)
    • Optional remote LED drivers
    • 10v PWM control
    • DALI control
    • DMX control
    • Microwave motion sensor
    • Photocell 3PIN, photocell 7PIN, Photocell MINI
    • Spill Control
    • Bird spikes
    • Optics rotated left
    • Optics rotated right
    • Emergency power supply
    • Backlight shield
    • 3/4 Baffle
    • Ra80 or Ra90 optional

Prompt Delivery of Your Pickleball Court LED Lighting Package

Everything in this package typically ships in 6-8 weeks. The fixtures are custom-built to order but we are almost always able to meet or exceed this estimated window. We’ll ship your poles from the factory location closest to you. Stock does fluctuate, so call 800-468-9925 for an exact lead time.

Access Fixtures Warranty

Access Fixtures is proud to assemble high-quality, long-lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

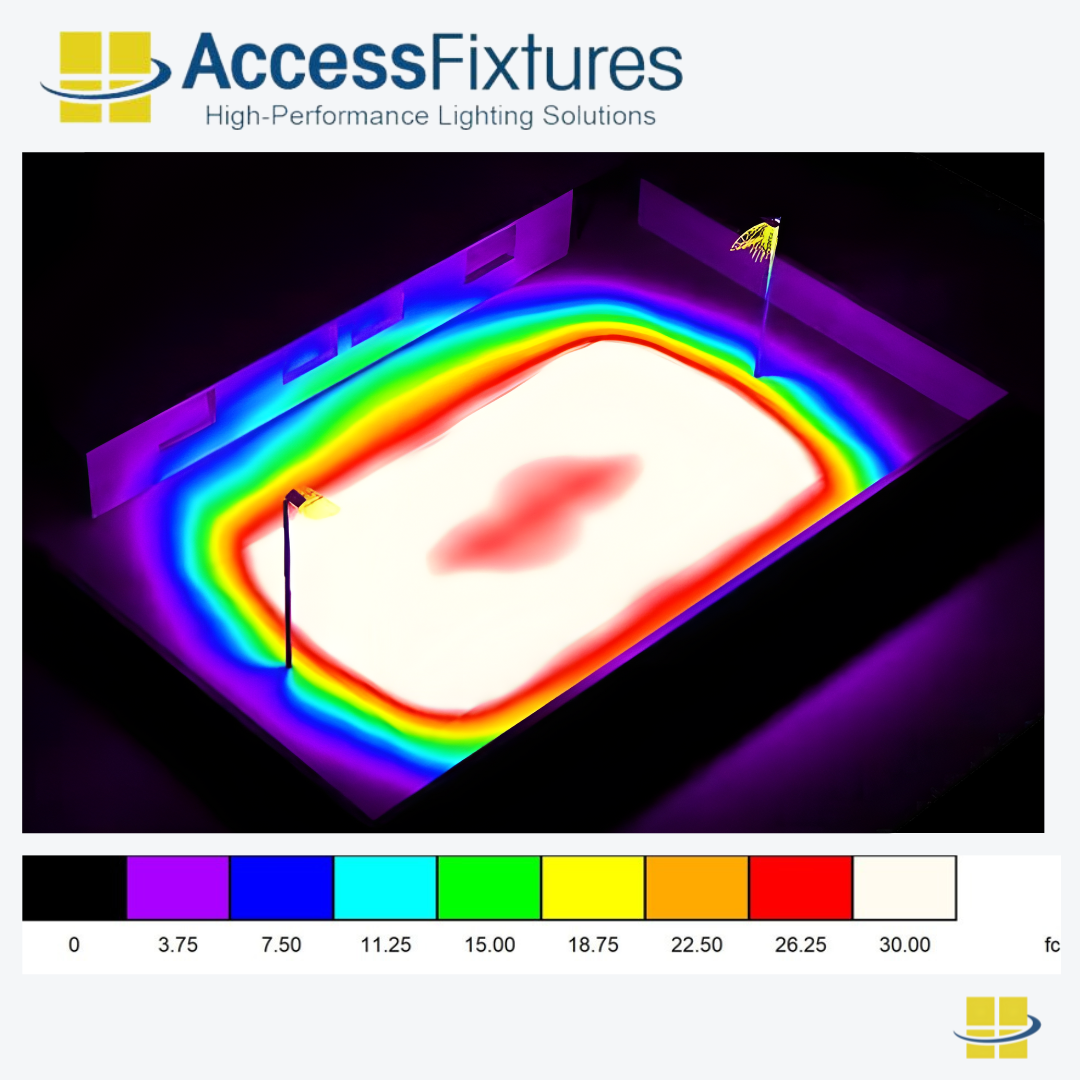

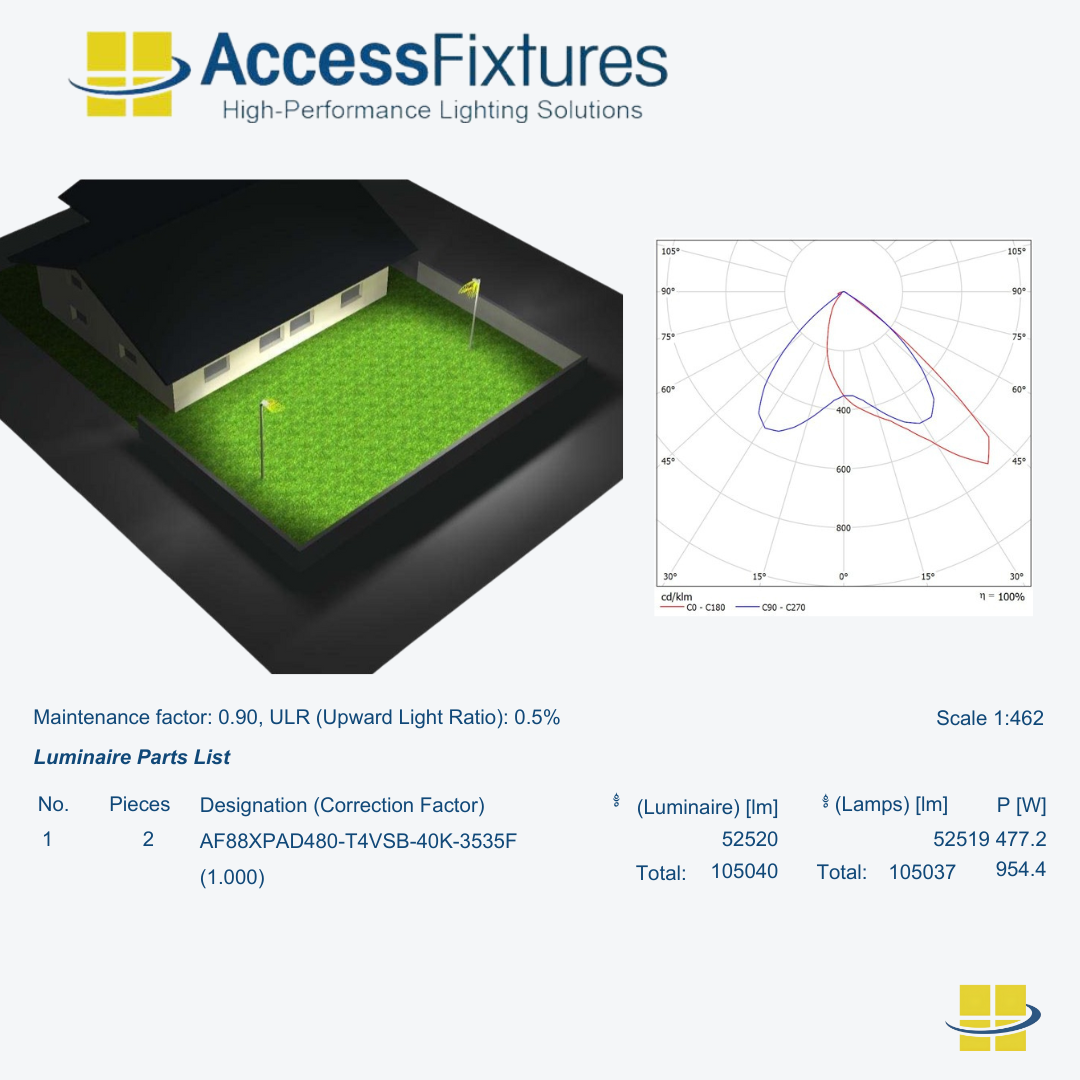

Need a Custom Photometric Analysis for Your Pickleball Court Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
